SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 449

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

30

5B

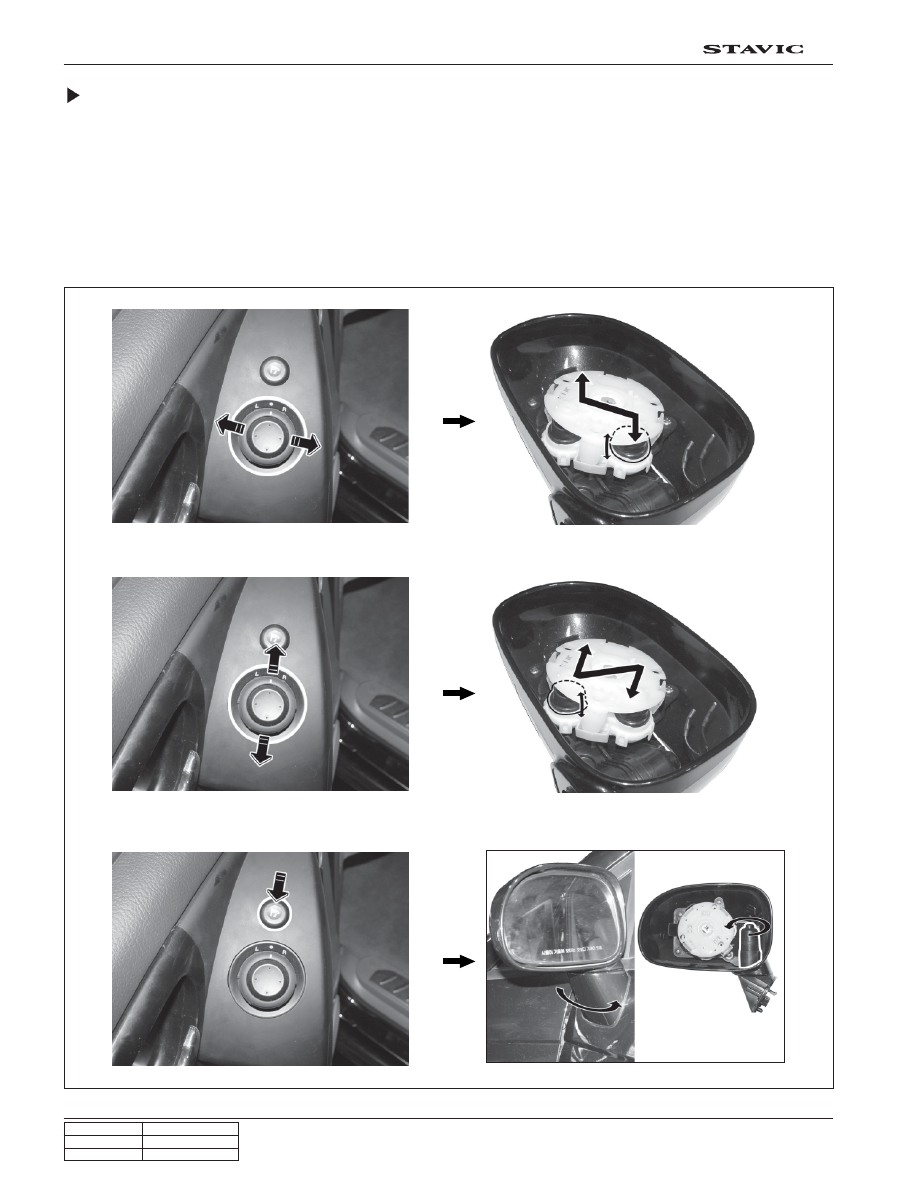

Rear View Mirror

General information

• Mirror adjustment

When switch-rear view mirror is operated, two motors which of one moves up and down and the other one moves left
and right are shifted to the direction the driver intended (Refer to the picture below).

• Folding

Motor is operated to fold the rear view mirrow when switch is pushed.

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

31

5B

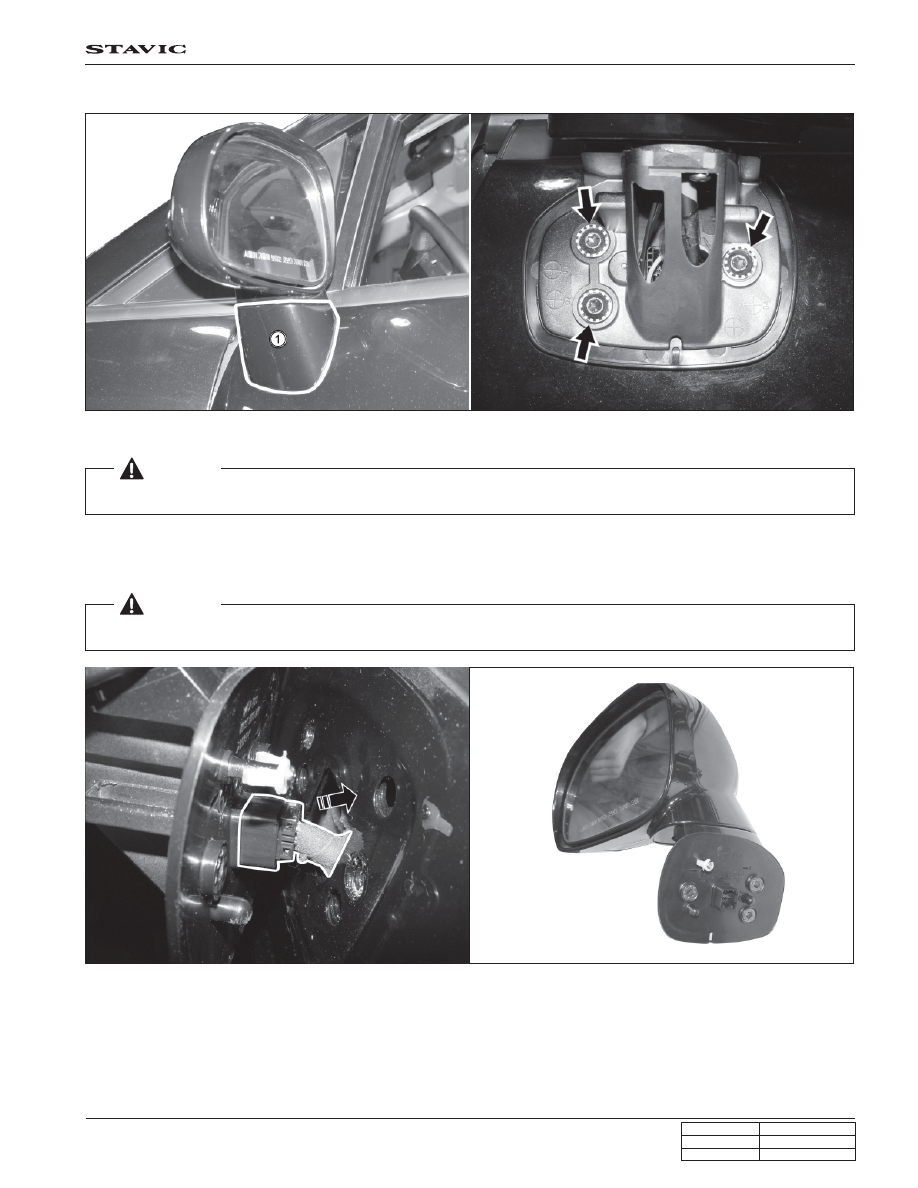

Removal and installation

 [Notice]

Pull out the mirror cover as lifted upward.

 [Notice]

Be careful not to damage the mounting fastenr guided from inside of the door when handle the mirror.

1. Remove mirror cover and three mounting screws.

2. Disconnect the connector and disassemble the outside mirror assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

32

5B

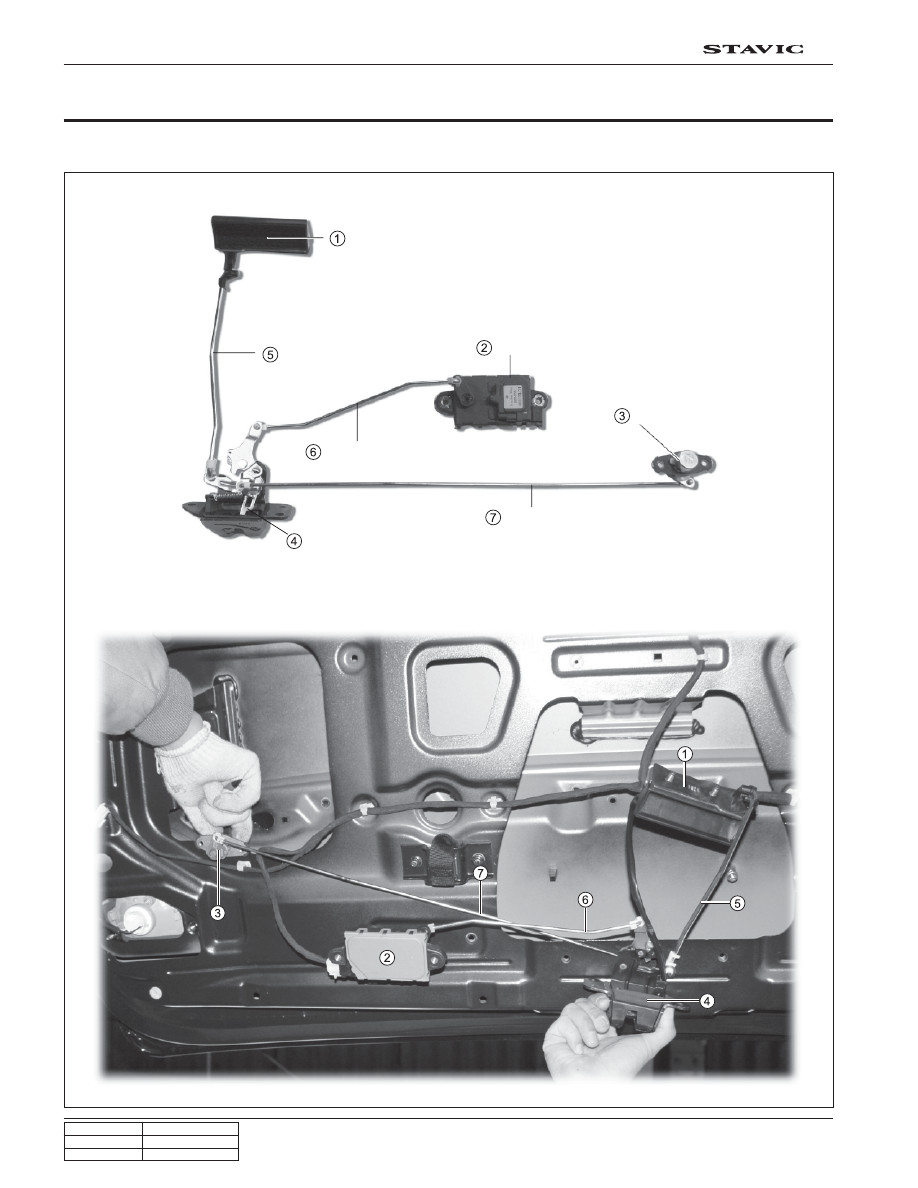

HOOD /  BUMPER & TAILGATE

1. OPERATION  - TAILGATE

 Tailgate handle

 Connecting - tailgate handle

 Connecting rod - actuator handle

 Door latch

 Connecting rod - key cylinder

 Actuator

 Key cylinder

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

33

5B

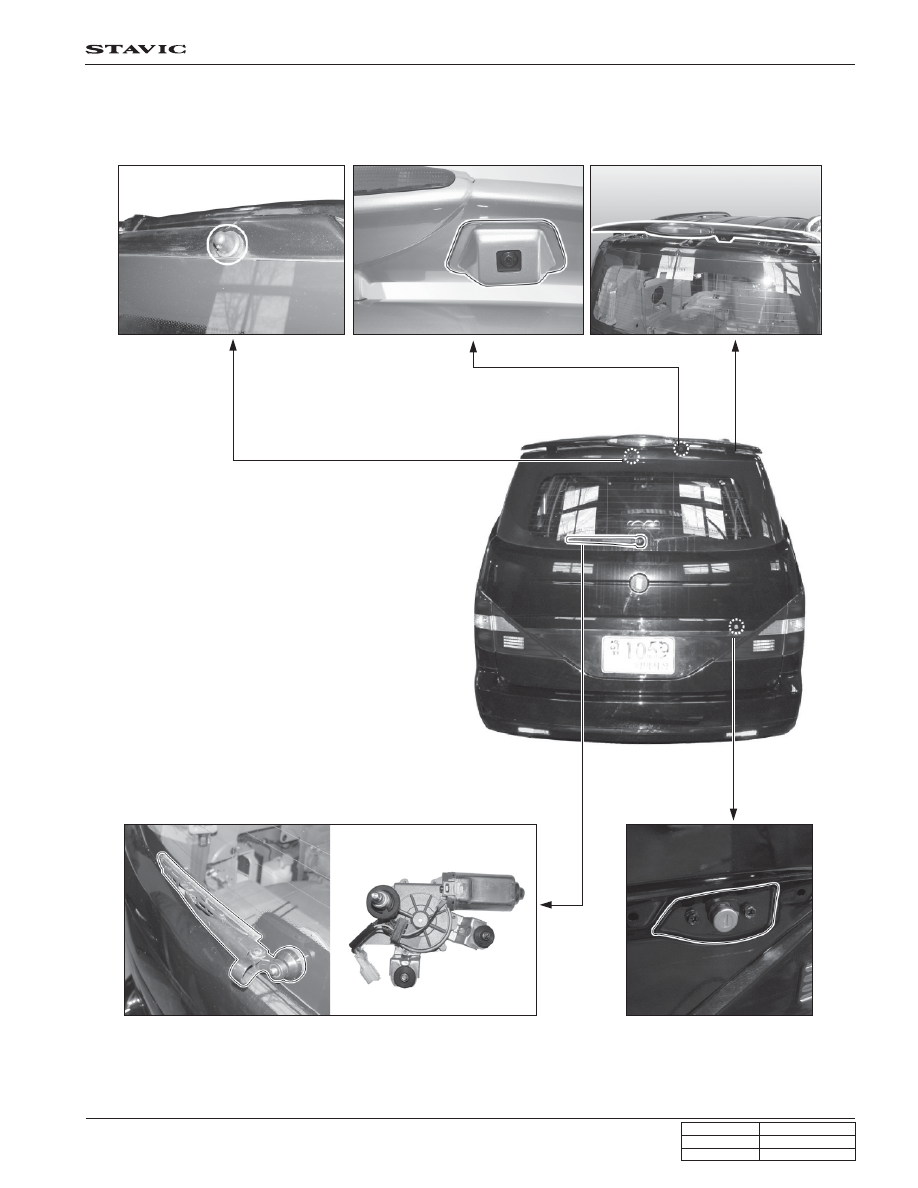

2. LAYOUT - TAILGATE

Wipre & motor

Key cylinder

Washer nozzle

Rear view camera

Rear spoiler
