SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 447

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

22

5B

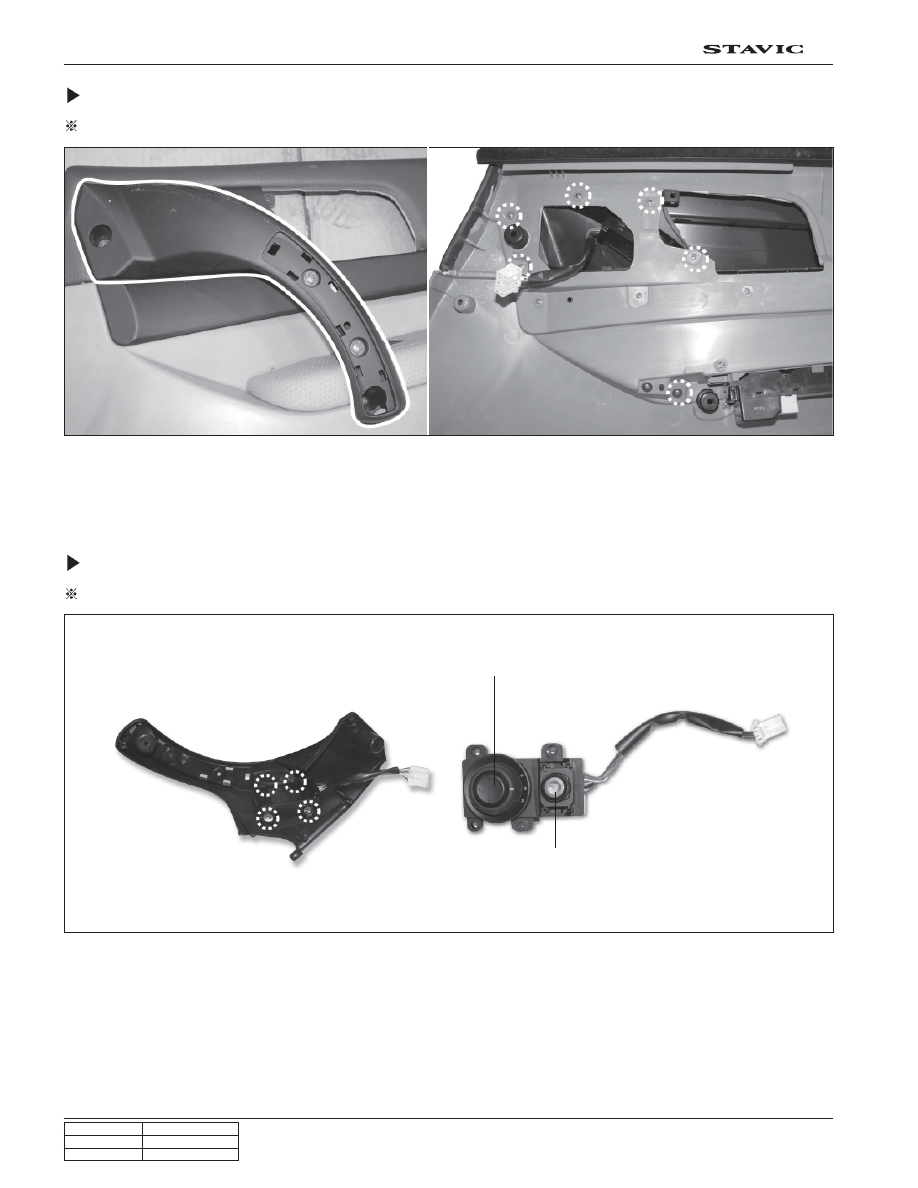

- Unscrew 6 bolts to remove door armest grip.

- Disassemble adjustment & folding switch assembly (Rear view mirrow)

Rear View Mirror Folding Switch

Preceding Work: Removal of door armrest grip

Front Door Speaker

Preceding Work: Removal of door trim

Adjust switch - Rear view mirror

Folding switch - Rear view mirror

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

23

5B

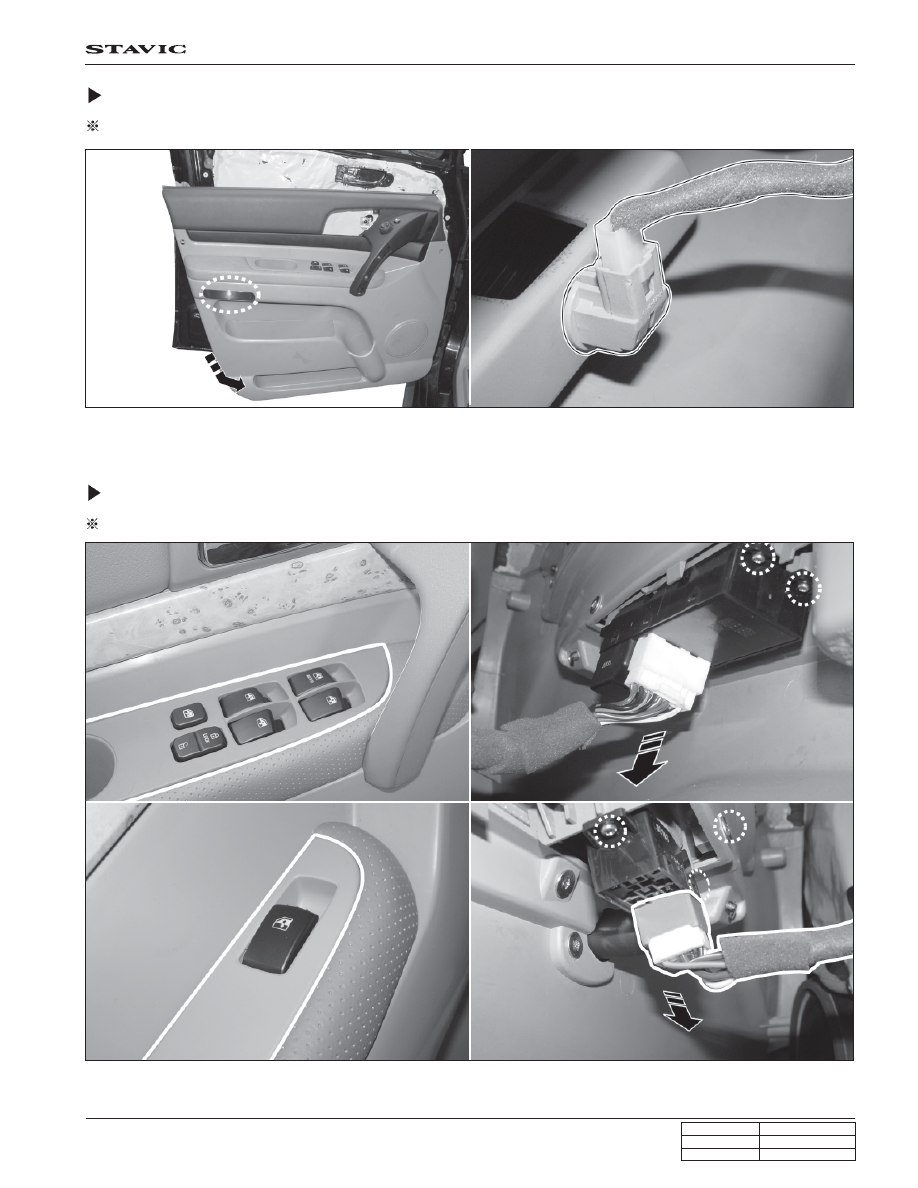

Door Courtesy Lamp

Preceding Work: Removal of door trim

- Disconnect three clip behind lamp for disassembly (Use driver)

- Disconnect three clip behind lamp for disassembly (Use driver)

Power Window Switch Assembly

Preceding Work: Removal of door trim

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

24

5B

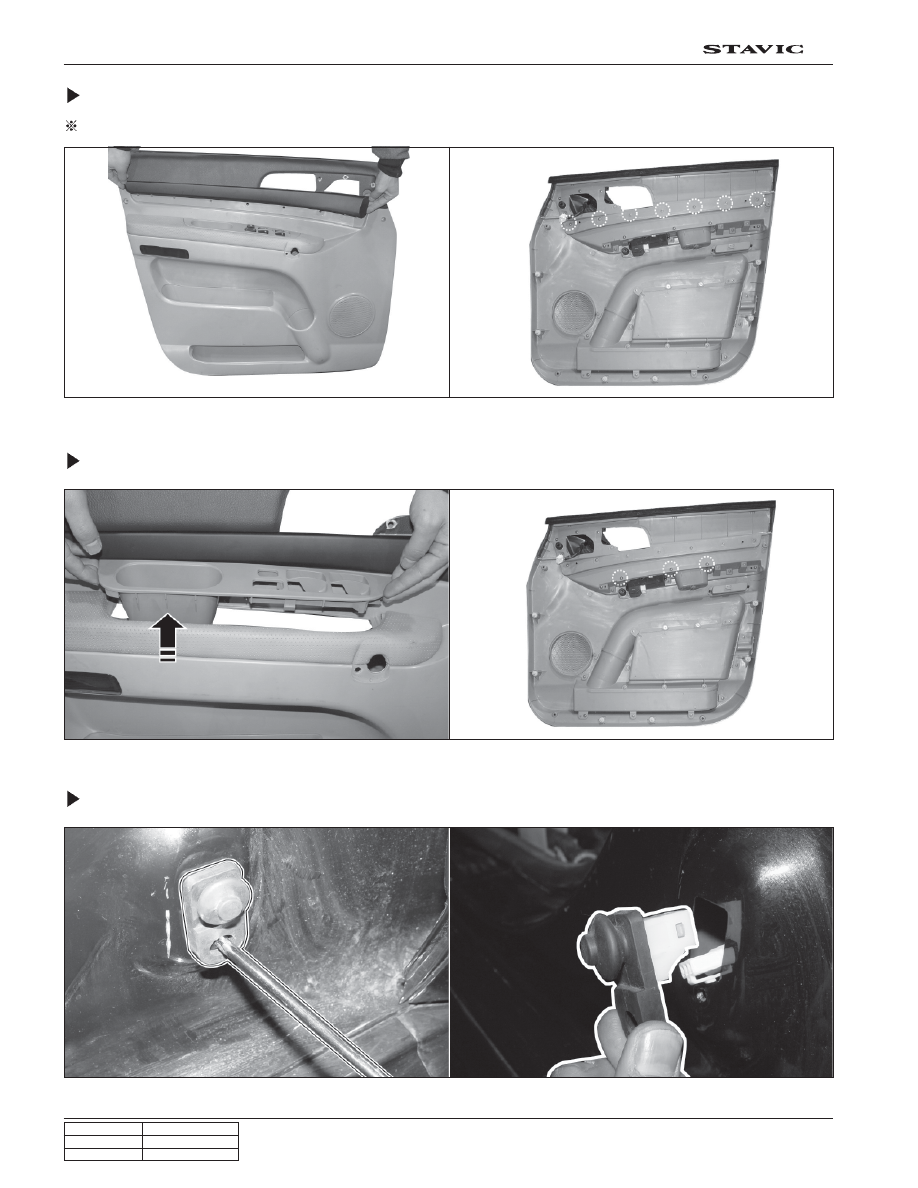

Door Trim Molding

Preceding Work: Removal of door trim

- Unscrew 7 - mounting screw to disassemble the molding.

- Unscrew three mounting screws to disassemble door armrest grip

Door Armrest Grip (II)

Door Contact Switch

- Remove a screw and disconnet door contact switch.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

25

5B

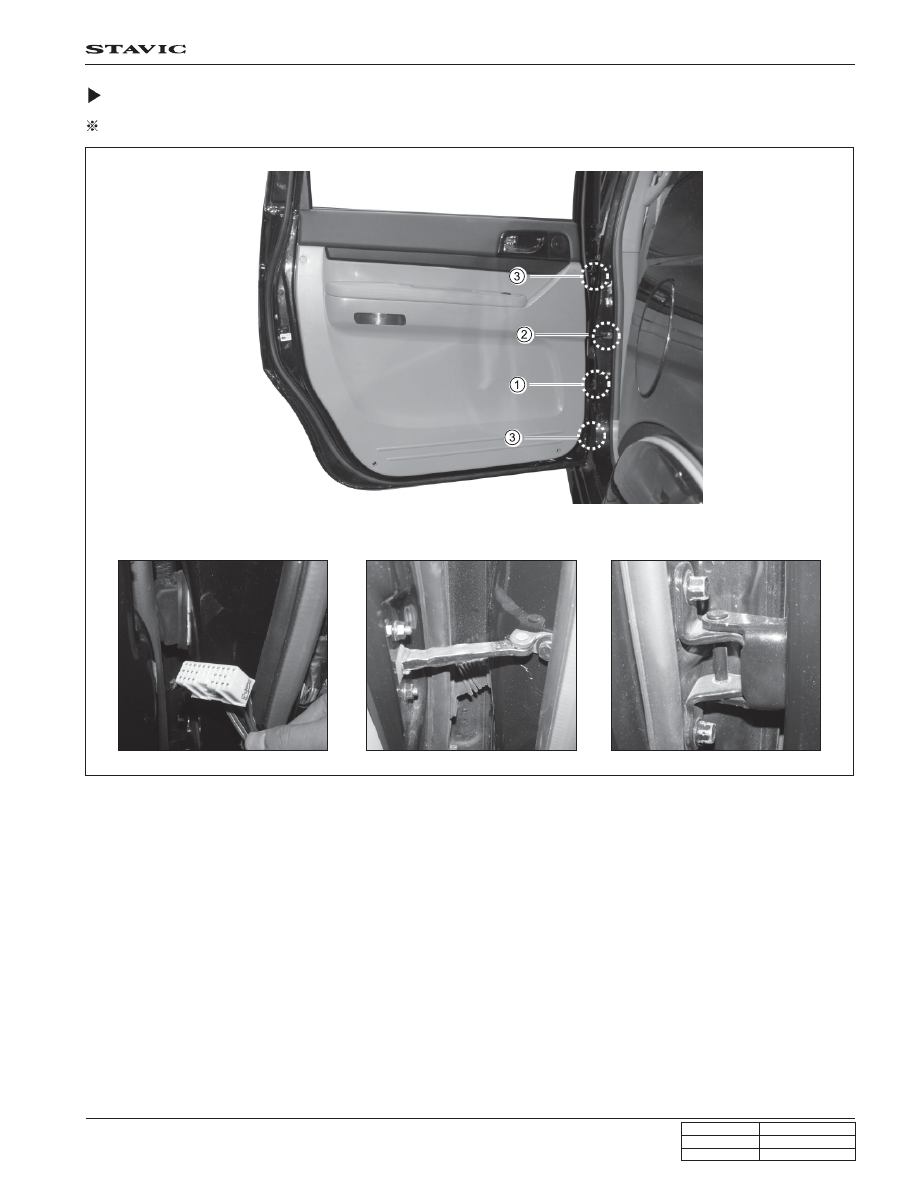

Rear Door Assemble

Preceding Work: Disassemble the battery cable (-)

1. Disassemble “B” - pillar cover and disconnect door connector.

2. Remove check linkage mounting bolt from inside.

3. Remove door hinge mounting bolts.

4. Uninstall door assembly.

5. Install in the reverse of removal.

2. Door check linkage

1. Door connector

3. Door hinge
