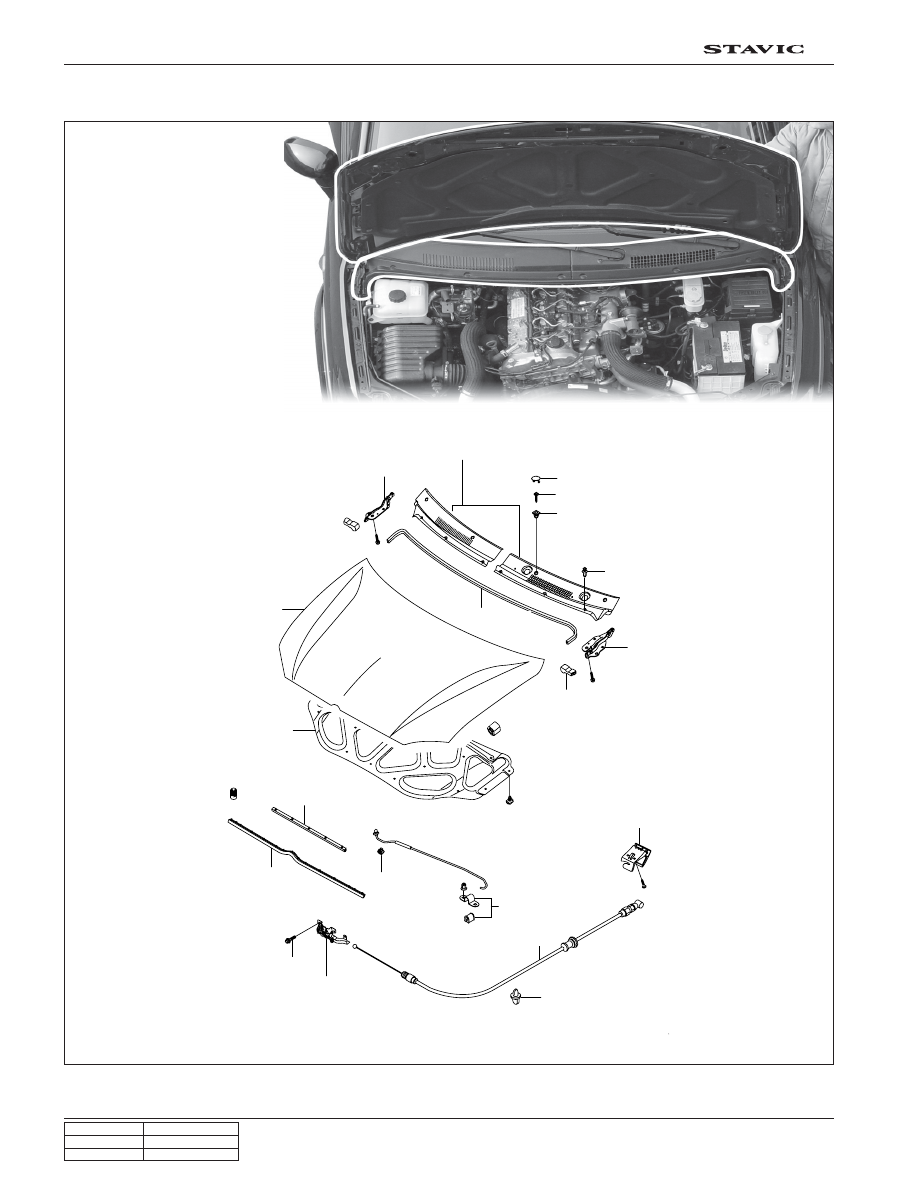

3. LAYOUT - COWL ASSY / HOOD

Hinge

Cowl assembly

Cap

S c r e w

Screw cap

Peace

Hinge

Bumper

Hood seal
- rear

Hood insulator

Hood

Hood seal - Front

Hood seal - sub

Hood over slam

Hood latch handle

Braket

Cable

Key

Bolt

Hood latch

Nut

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

43

5B

Removal and Installation

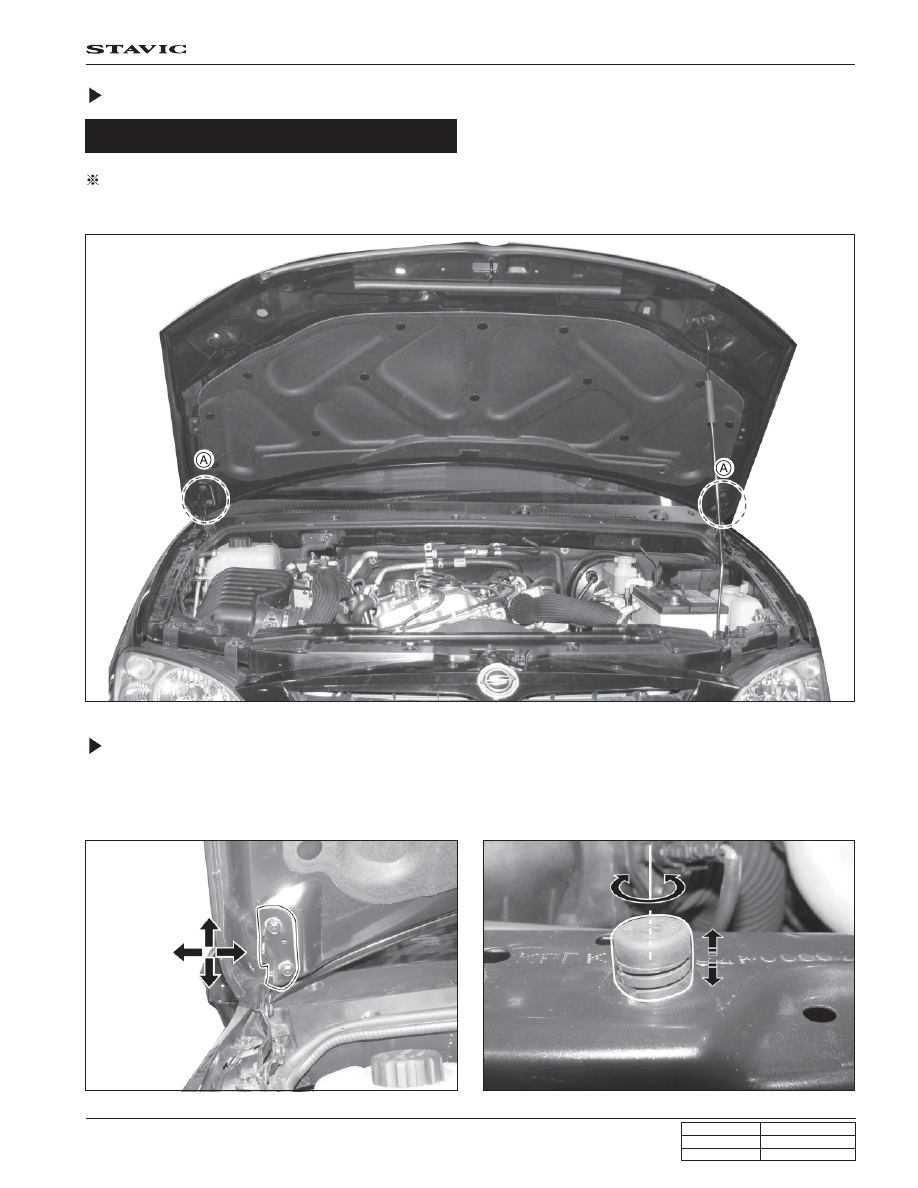

Adjustment

1. Release the hinge bolts.

2. Have the hood mounted properly.

3. Adjust the height of hood with overslam bumper.

Preceding Work: Wrap the body with soft material to prevent from damage

1. Unscrew hood hinge bolts (8 mm - 4ea) and disassemble hood from thevehicle (A).

Hood

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

44

5B

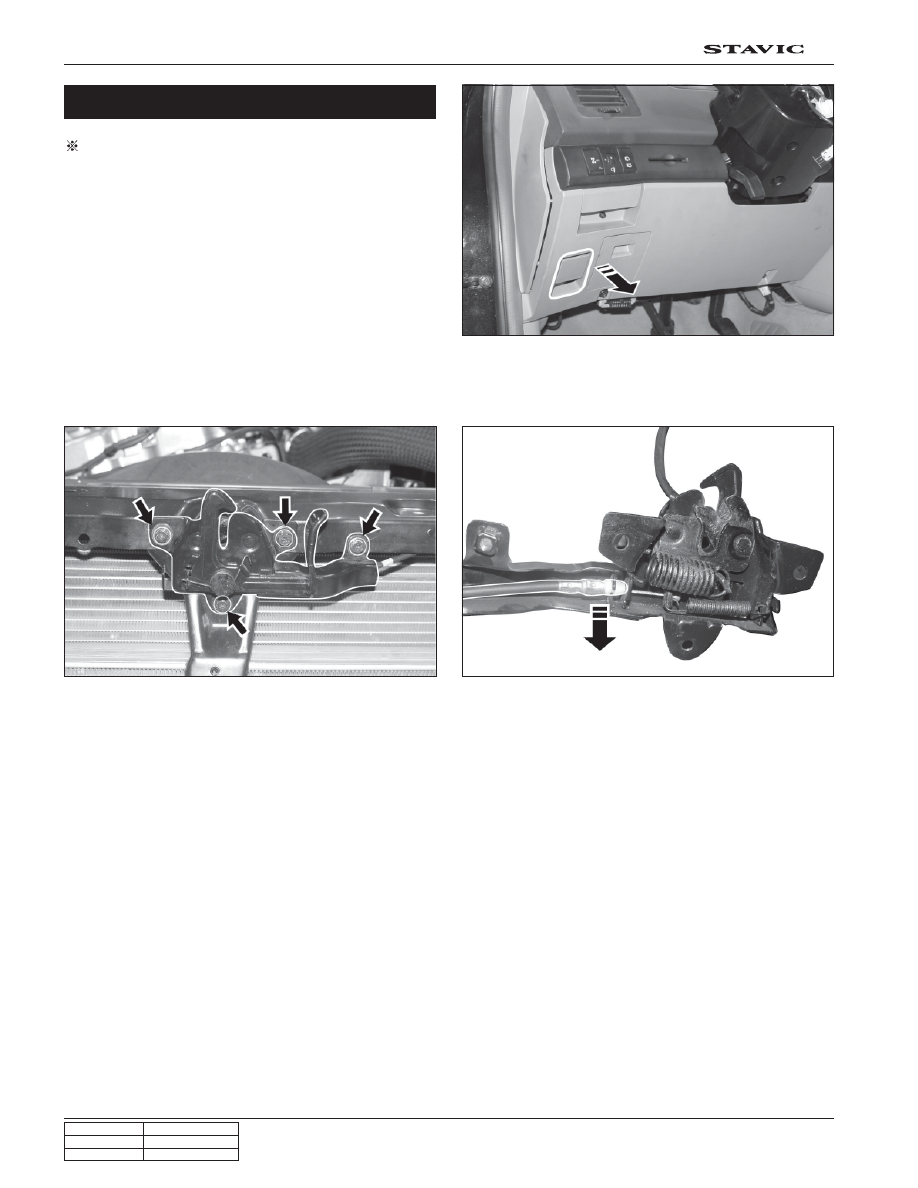

3. Disassemble the hood cable.

Preceding Work: Removal of front bumper assem-

bly (Including head lamp)

1. Disconnect the hood cable from head latch handle.

2. Unscrew hood latch mounting bolts (6 mm - 4EA) and disconnect spring hood cable to disassemble hood latch.

Hood Latch, Cable

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

45

5B

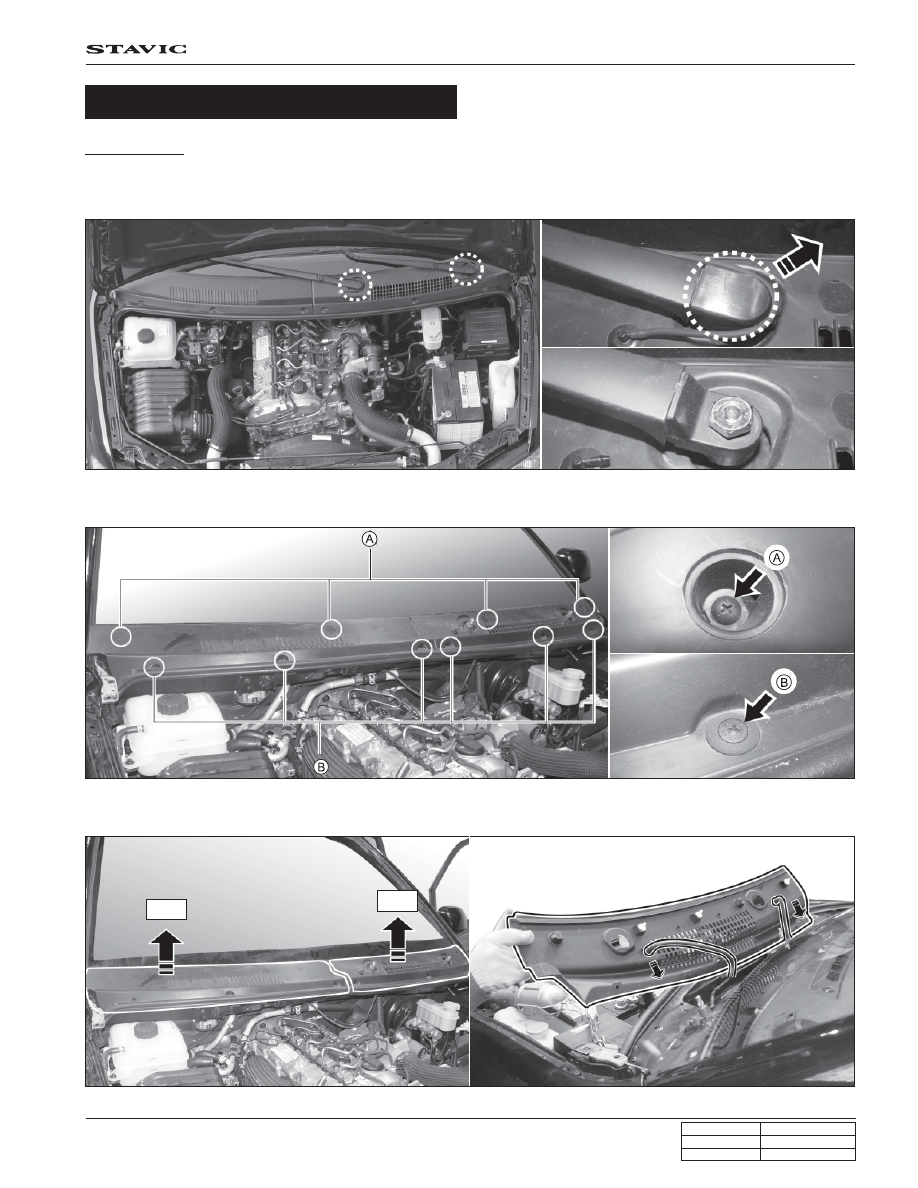

3. Remove cowl mounting clip (6EA) and screw (4EA).

4. Disassemble left / right cowl grill (Left side first,  disassemble washer hose before take the cowl out)

Left

Right

Cowl Grill

1. Disconnect washer hoses at both wiper.

2. Unscrew wiper mounting nuts (14mm - 2EA) and

Cowl Grill & Insulator
