3D-2 REAR DRIVE AXLE

FASTENER TIGHTENING SPECIFICATIONS

Application

Inner Bracket Mounting Nut

Propeller Shaft to Rear Axle Input Shaft

Lower Arm Mounting Nut

Lower Shock Absorber to Axle Housing

Upper Arm Mounting Nut

Stabilizer Bar Mounting Bolt

Lateral Rod Mounting Nut

Drive Pinion Lock Nut

Oil Drain Plug

Ring Gear Mounting Bolt

Oil Filler Plug

•••••

50 - 65

70 - 80

150 - 180

50 - 65

150 - 180

30 - 45

150 - 180

240 - 310

28 - 42

75 - 90

28 - 42

4.55

4.27

5.86

3.73

4.89

1.9 L

SEA 80W/90, API GL - 5

M/T

A/T (MB)

M/T

A/T (MB)

A/T (BTRA)

M/T

A/T (MB)

A/T (BTRA)

Oil Capacity

Oil Specification

Application

Description

GENERAL SPECIFICATIONS(CONT'D)

E20

E23

E32

Reduction Ratio

REAR DRIVE AXLE 3D-3

Checks

Worn or Damaged Tooth of Pinion or Side Gear

Worn Pinion Shaft

Excessive Backlash of Pinion Gear and Side Gear

Excessive End-play of Rear Axle Shaft

Incorrect Contact of Side Gear and Differential Case

Axle Housing Crack

Bent or Poor Installation of Drive Pinion Oil Seal

Damaged or Torn Drive Pinion Oil Seal

Loosened Bearing Collar

Worn or Damaged Universal Joint

Worn or Damaged Axle Shaft Bearing

Checks

Excessive Oil

Faulty Seal of Carrier Contact Surface

Axle Housing Crack

Worn or Damaged Oil Seal

Checks

Lack of Oil

Low Viscosity of Oil

Insufficient Oil

Excessive Backlash of Ring Gear

Worn or Damaged Tooth of Ring and Pinion Gear

Worn or Damaged Drive Pinion Bearing

Bent Axle Housing

Bent Differential Case

Worn Pinion Shaft

Incorrect Drive Pinion Preload

Incorrect Contact of Ring Gear and Pinion

DIAGNOSIS

NOISE (DURING STRAIGHT DRIVING)

Action

Replenish

Replace

Adjust

Replace

Adjust

Retightening

OIL LEAKAGE

Action

Adjust

Repair

Replace

NOISE (DURING TURNING)

Action

Replace

Adjust

Replace

HEATING

Checks

Lack of Oil

Insufficient Backlash of Gears

Excessive Preload of Bearing

Action

Replenish

Adjust

3D-4 REAR DRIVE AXLE

VIBRATION

Checks

Faulty Connection of Sliding Joint

Bent Propeller Shaft

Symmetry of Universal Joint Snap Ring

Loosened Yoke Bolts

Action

Adjust

Replace

Adjust

Tighten

NOISE

Checks

Worn or Damaged Universal Joint Bearing

Fallen Off Universal Joint Snap Ring

Loosened Yoke Connection

Worn Sliding Joint Spline

Insufficient Grease

Action

Replace

Adjust or Replace

Tighten

Replace

Apply as Necessary

REAR DRIVE AXLE 3D-5

1 Spring Seat
2 Coil Spring
3 Lateral Rod
4 Shock Absorber

5 Upper Arm
6 Lower Arm
7 Connecting Link
8 Stabilizer Bar

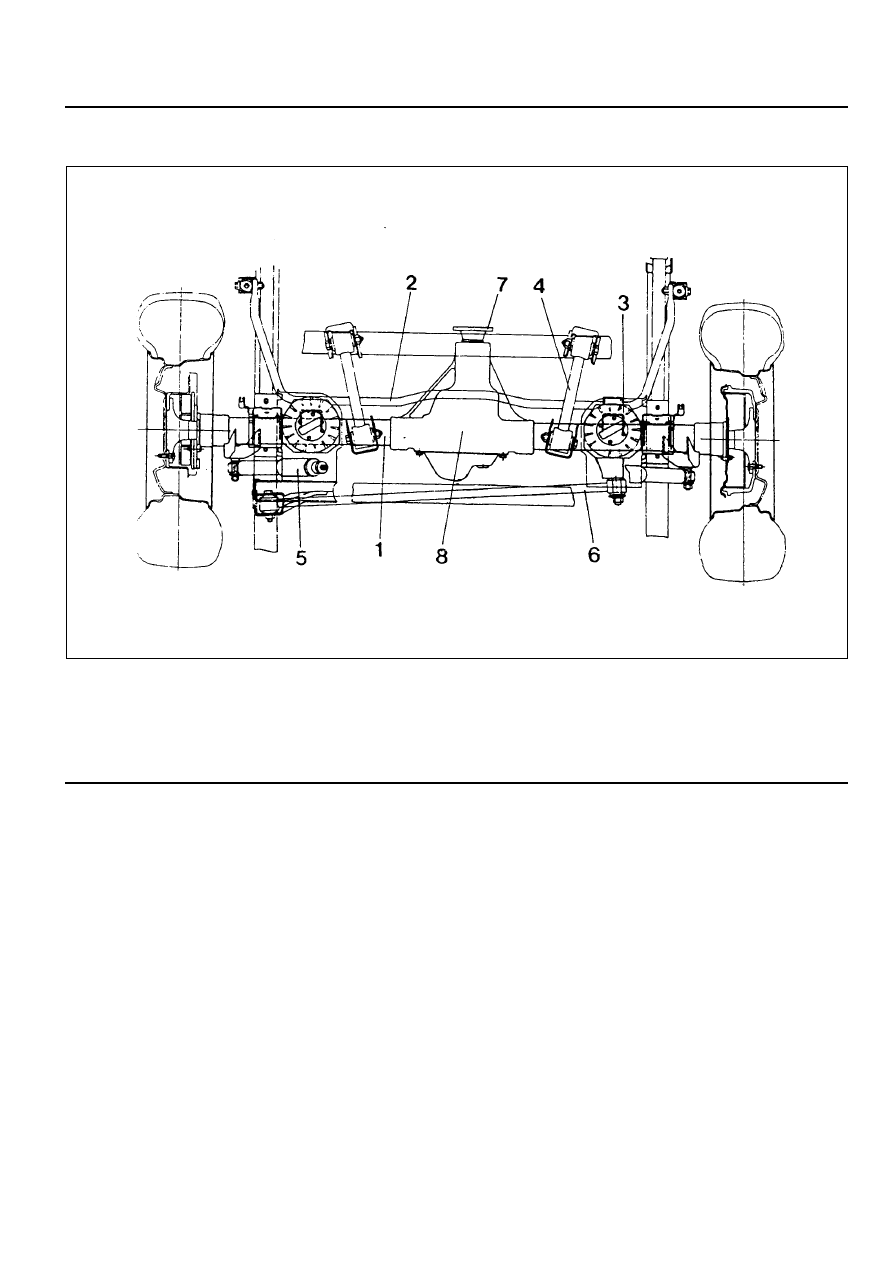

COMPONENT LOCATOR
