OM600 ENGINE INTAKE & EXHAUST  1G3-7

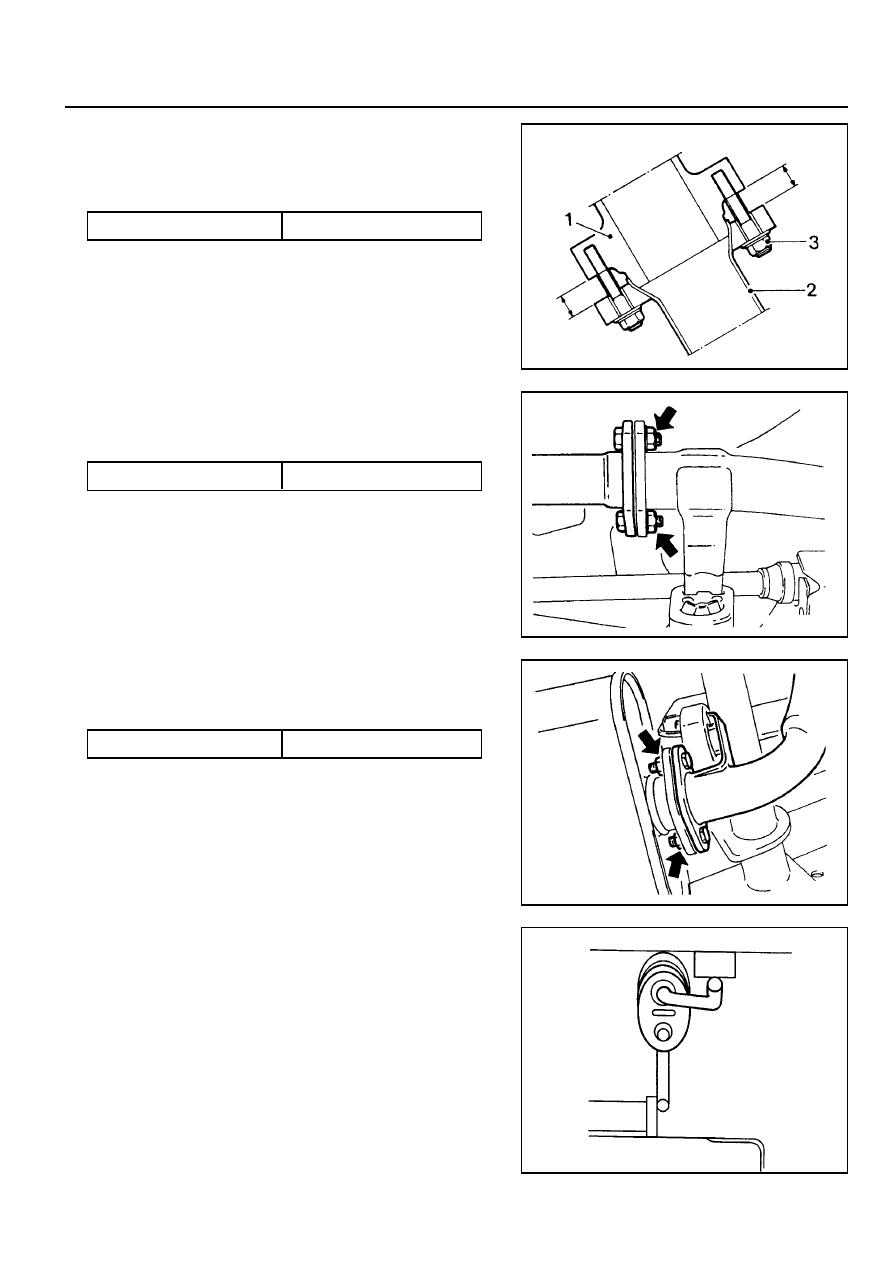

Removal & Installation Procedure

1. Remove the bolt from the exhaust manifold and then remove

the front exhaust pipe.

Installation Notice

Tightening  Torque

15 - 18 Nm

Notice

When tightening the nut(3), maintain the clearance between
exhaust manifold(1) and front exhaust pipe.

2. Remove the nut from the front of center muffler and then

remove the front exhaust pipe.

Installation Notice

3. Remove the nut from the rear of center muffler and then

remove the tail muffler.

Installation Notice

4. Remove the muffler mounting hanger from the rubber pad

and remove the center muffler and tail muffler.

Notice

Check the gasket, if necessary, replace the new one.

5. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

28 - 47 Nm

Tightening  Torque

28 - 47 Nm

1G3-8  OM600 ENGINE INTAKE & EXHAUST

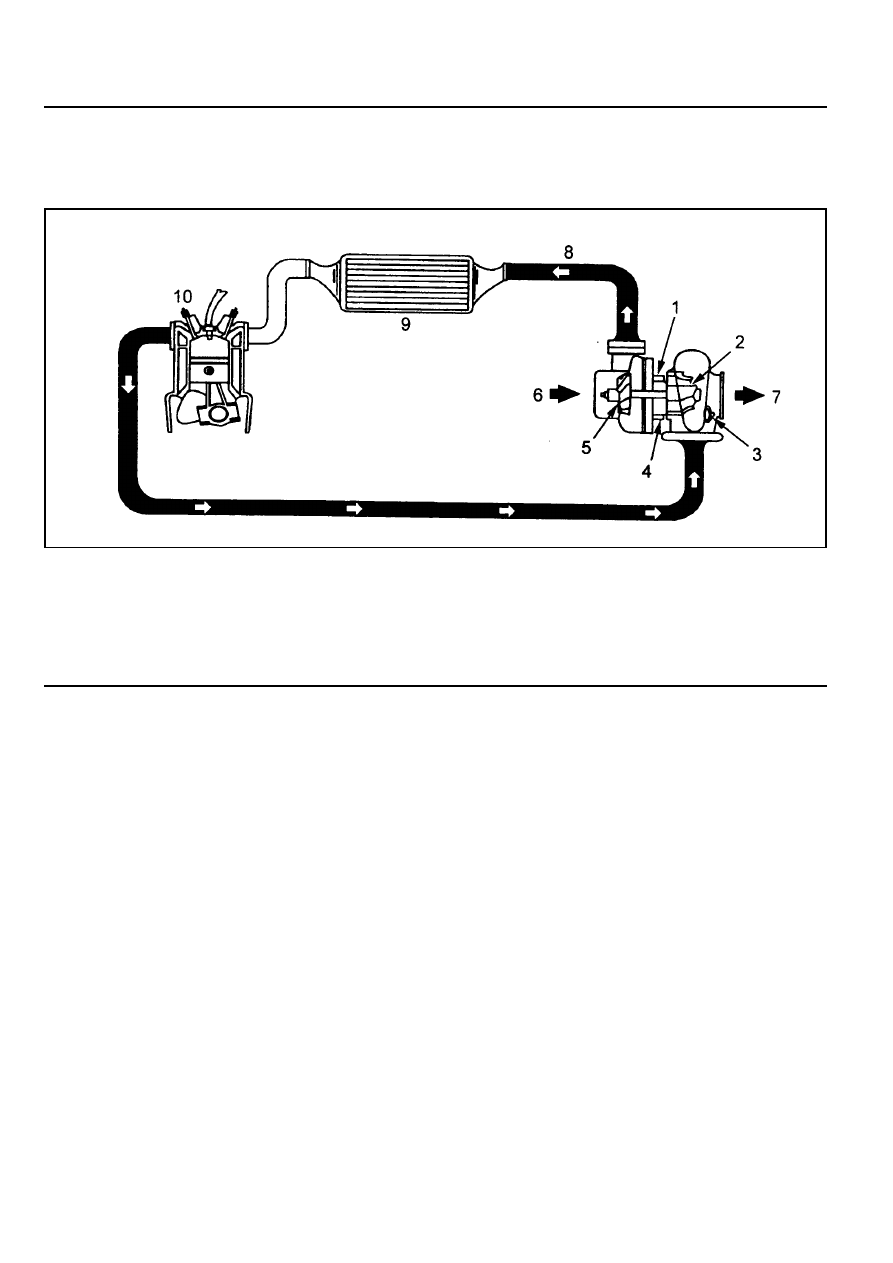

1 Turbocharger Oil Inlet
2 Turbine Wheel
3 Waste Gate
4 Oil Outlet
5 Compressor Wheel

6 Air Inlet
7 Exhaust Gas Outlet
8 Compressed Air Flow
9 Intercooler

10 Cylinder

TURBOCHARGER

CHARGE AIR SYSTEM DIAGRAM

OM600 ENGINE INTAKE & EXHAUST  1G3-9

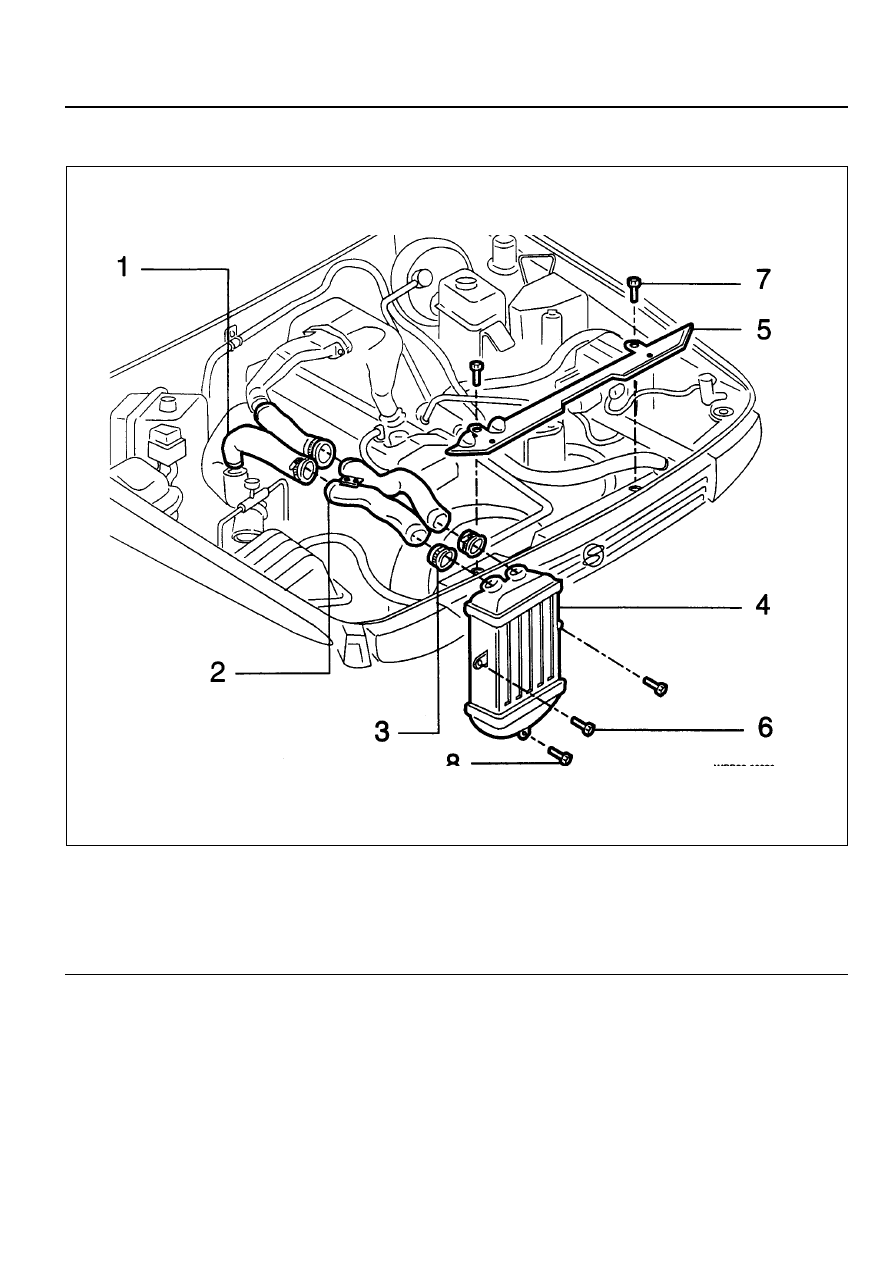

INTERCOOLER

1 Hoses
2 Pipes
3 Hoses
4 Intercooler

5 Cover
6 Bolts
7 Screws
8 Bolts

1G3-10  OM600 ENGINE INTAKE & EXHAUST

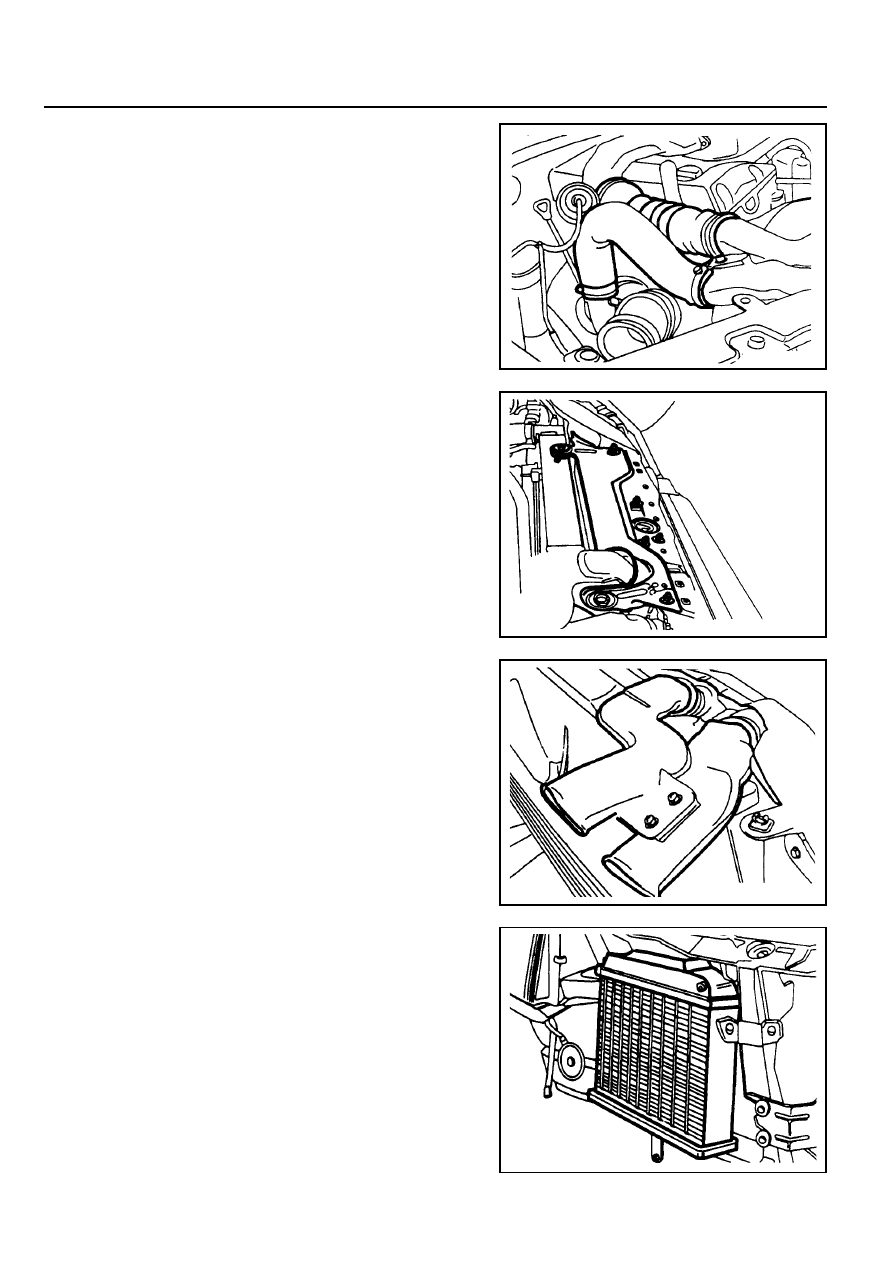

Removal & Installation Procedure

1. Remove the hose connected to turbocharger and intake

duct.

2. Remove the protective cover.

3. Loosen the clamps and remove the pipe and hose

connected to intercooler.

4. Unscrew the mounting bolts and remove the intercooler.

5. Installation should follow the removal procedure in the

reverse order.
