OM600 ENGINE INTAKE & EXHAUST  1G3-3

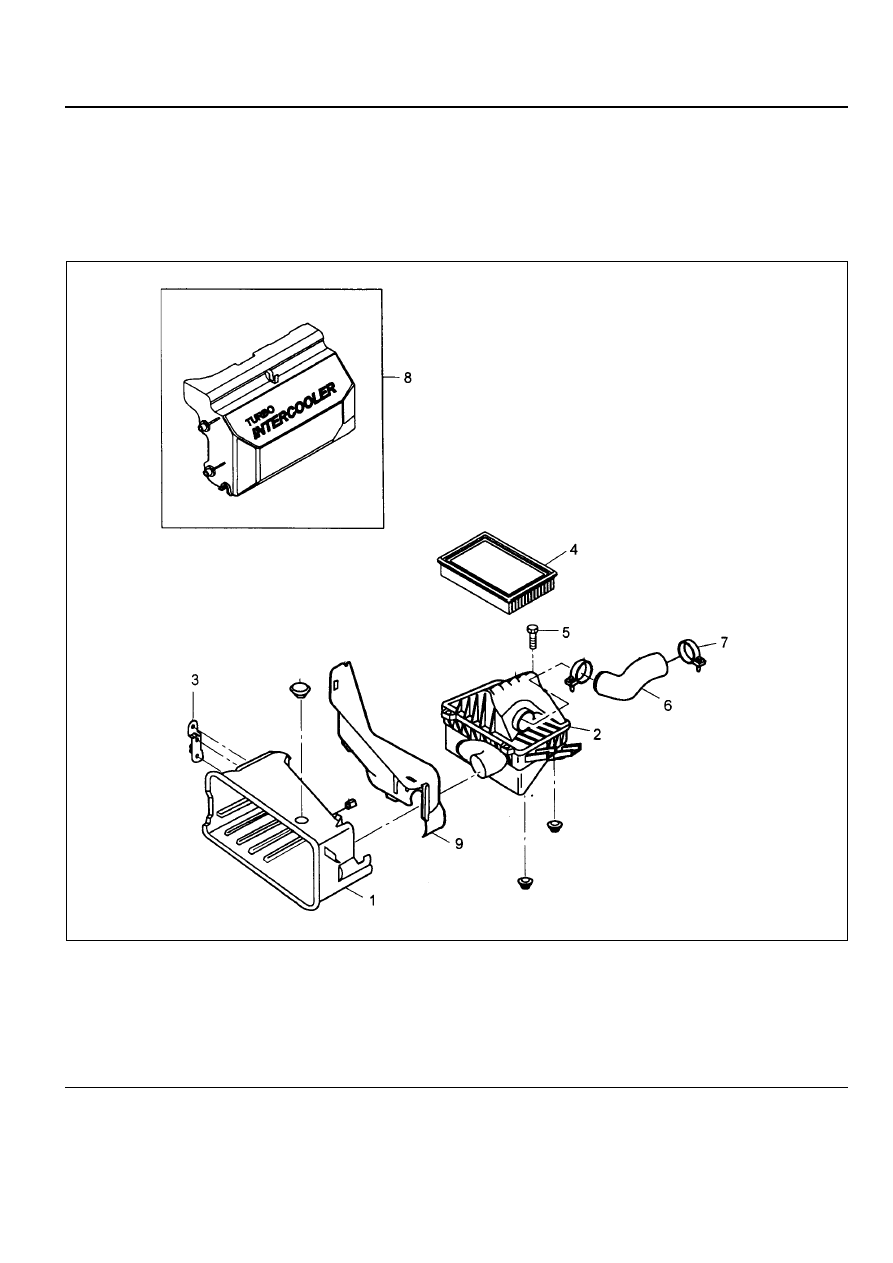

AIR CLEANER AND INLET DUCT & HOSE

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

 1

Air Intake Shield Assembly

 2

Air Cleaner Assembly

 3

Mounting Bracket

 4

Air Cleaner Element ........... Clean      : 20,000km

Replace  : 60,000km

5 Bolt ......................................................... 9-11Nm
6 House
7 Clamp
8 Engine Cover Assembly (Turbo)
9 Mounting Bracket

1G3-4  OM600 ENGINE INTAKE & EXHAUST

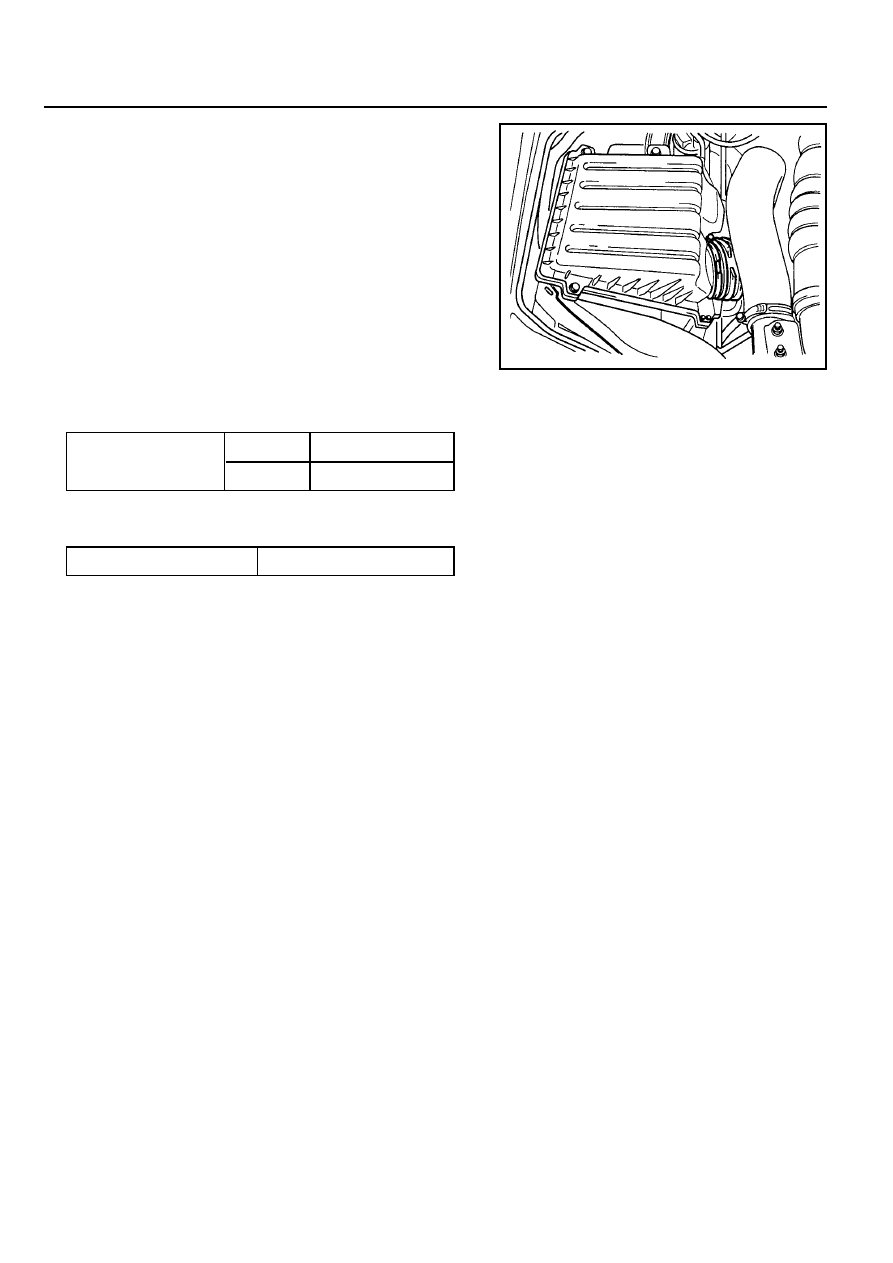

Removal & Installation Procedure

1. Loosen the air duct hose clamp and then remove the air

cleaner and air duct hose.

2. Disconnect the air cleaner housing cover clamp and remove

the cover and element.

Tightening  Torque

9 - 11 Nm

3. Loosen the nut (4EA) and remove the air cleaner housing

from the intake manifold.

Notice

Do not fold the rubber.

Operating Interval

Clean

Replace

every 20,000km

every 60,000km

4. Loosen the clamp and remove the air duct hose.

5. Loosen the mounting nut and bolt.

6. Remove the air inlet duct and hose.

7. Installation should follow the removal procedure in the

reverse order.

OM600 ENGINE INTAKE & EXHAUST  1G3-5

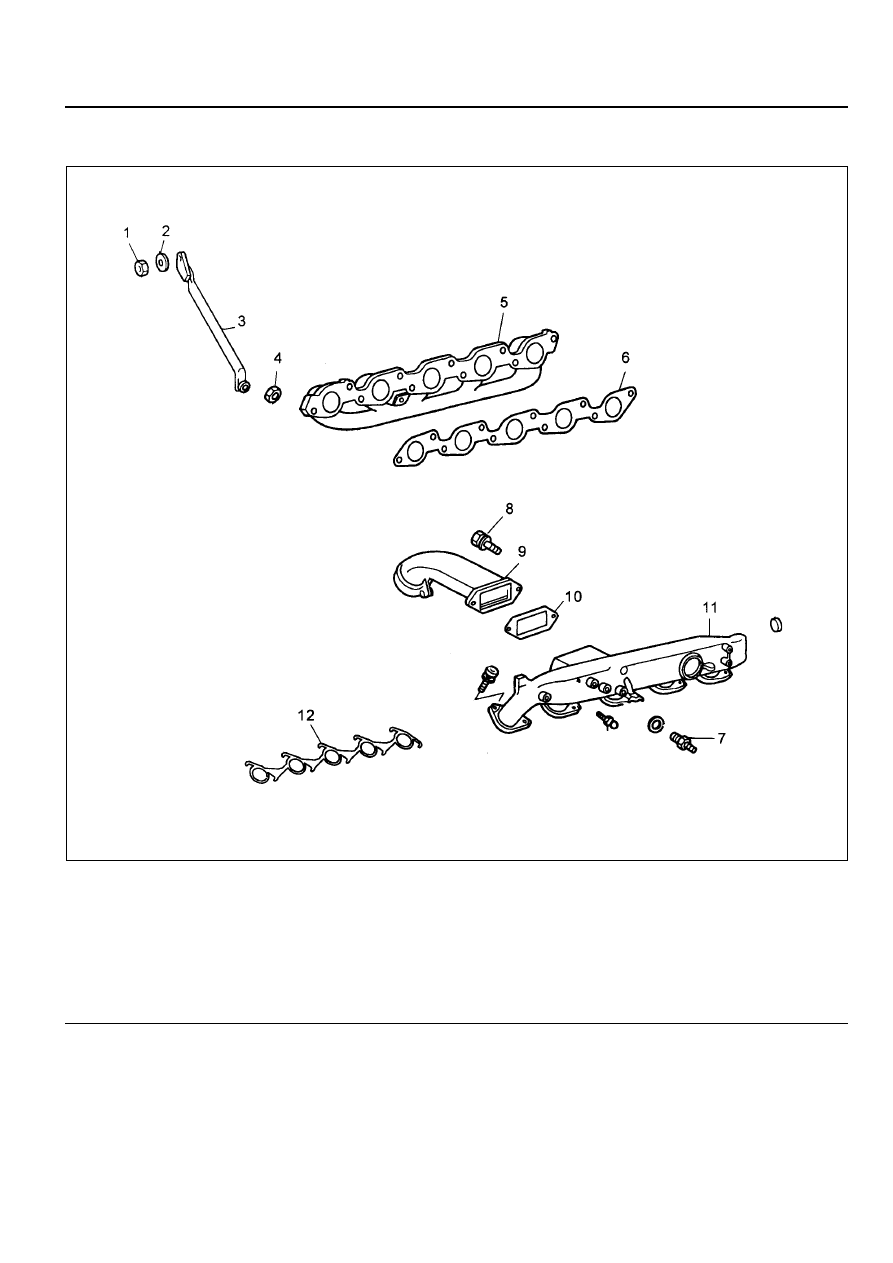

INTAKE AND EXHAUST MANIFOLD

1 Nut ................................................. 22.5-27.5 Nm
2 Washer
3 Support Assembly Bar
4 Nut ................................................. 22.5-27.5 Nm
5 Exhaust Manifold Assembly
6 Exhaust Gasket

7 Stud Bolt .......................................... 9.9-12.1 Nm
8 Bolt (M8) ........................................ 22.5-27.5 Nm
9 Intake Duct

10 Intake Duct Gasket

11 Intake Manifold

12 Intake Gasket

1G3-6  OM600 ENGINE INTAKE & EXHAUST

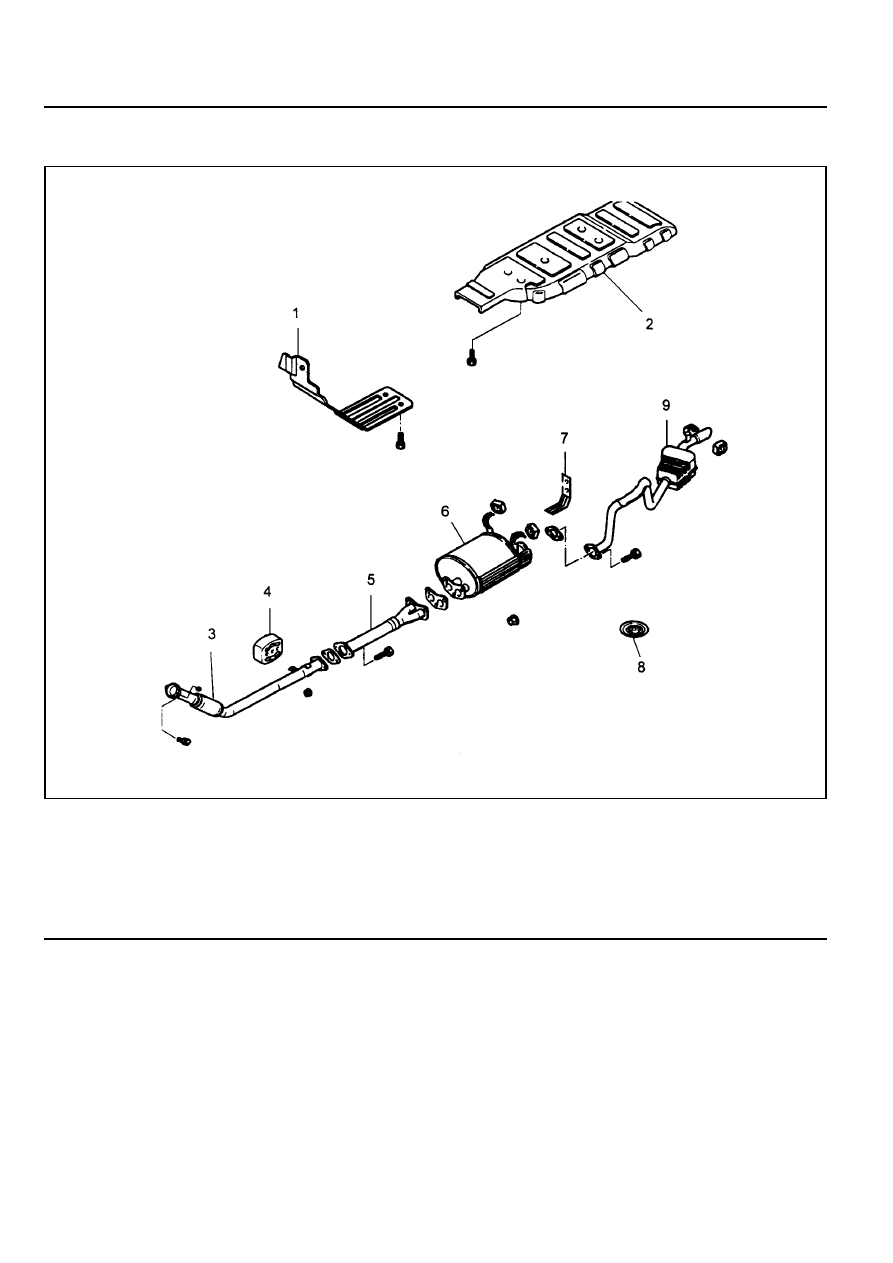

Exhaust Line

1 Heat Protector Assembly
2 Heat Protector Floor
3 Exhaust Front Pipe Assembly
4 Ring
5 Exhaust Rear Pipe Assembly

6 Muffler
7 Mounting
8 Heat Protector Front Floor
9 Tail Exhaust Pipe Assembly
