3D-6  REAR DRIVE AXLE

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

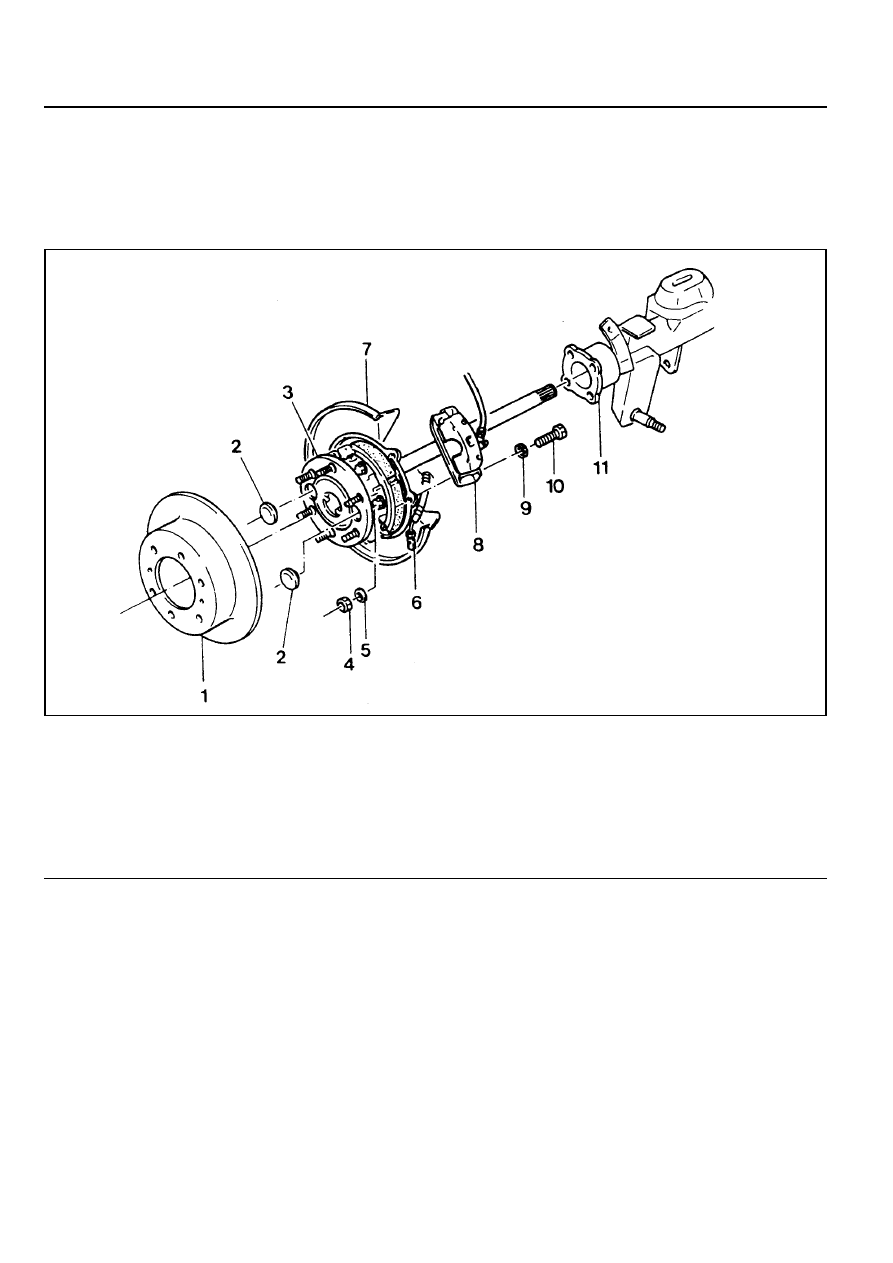

AXLE SHAFT

1 Brake Disc
2 Dust Plug
3 Rear Axle Shaft
4 Nut ....................................................... 50-65 Nm
5 Washer
6 Parking Brake Cable

7 Parking Brake Lining and Back Plate Assembly
8 Caliper Assembly
9 Gasket

10 Bolt .................................................... 85-100 Nm

11 Rear Axle Housing

REAR DRIVE AXLE  3D-7

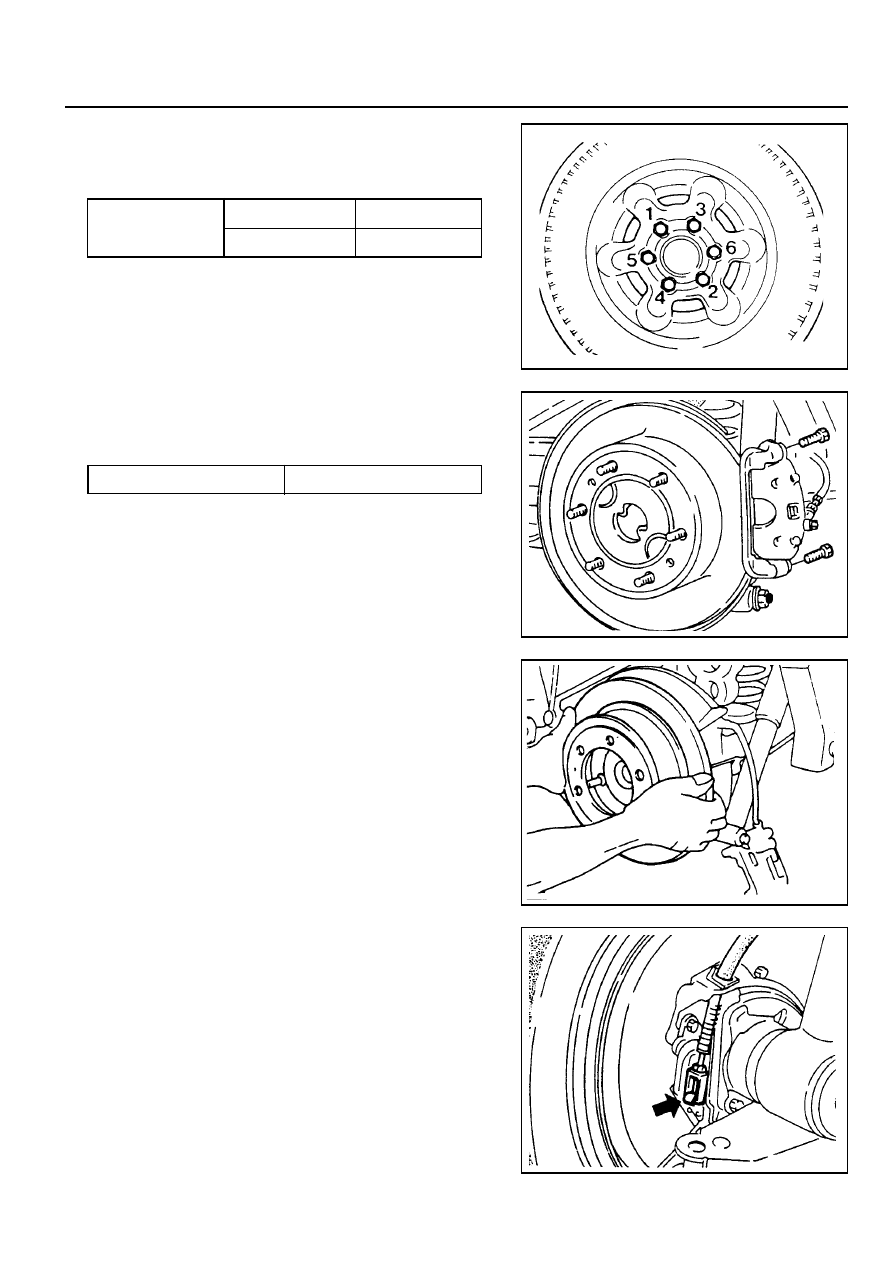

Removal & Installation Procedure

1. Remove the tire.

Installation Notice

2. Release the parking brake.

Steel Wheel

Aluminum Wheel

Tightening Torque

3. Remove the bolts and the brake caliper.

Installation Notice

Be careful not to damage the brake hose.

Tightening  Torque

85 - 100 Nm

4. Remove the brake disc.

Notice

To remove the disc, install the bolts (M8 x 1.25) into the
service hole and uniformly tighten the bolts.

5. Disconnect the parking brake cable.

80 - 120 Nm

110 - 130 Nm

3D-8  REAR DRIVE AXLE

Tightening  Torque

50 - 65 Nm

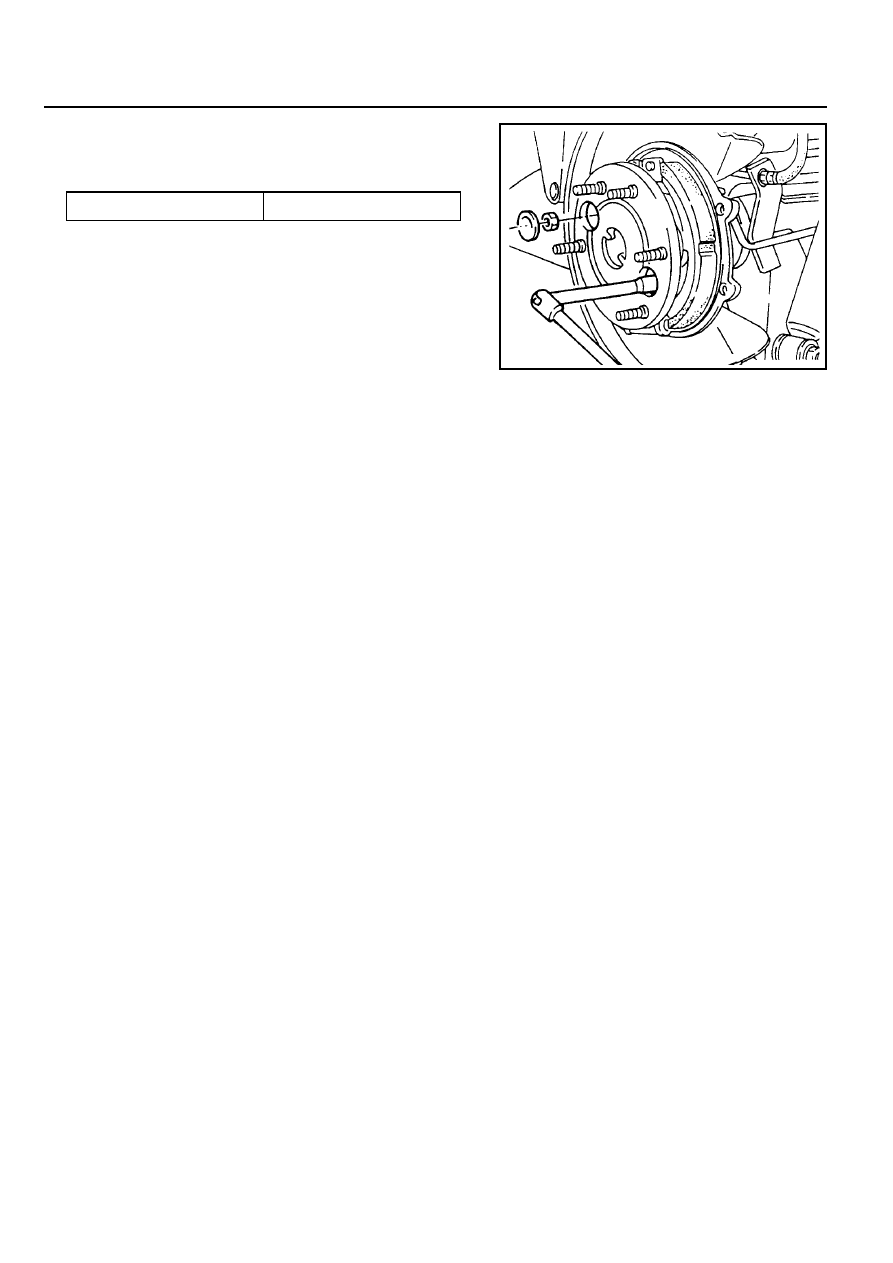

6. Remove the plug from the axle shaft flange and remove the

inner shaft mounting nuts.

Installation Notice

7. Remove the axle shaft, parking brake lining and back plate

assembly.

8. Installation should follow the removal precedure in the

reverse order.

REAR DRIVE AXLE  3D-9

AXLE

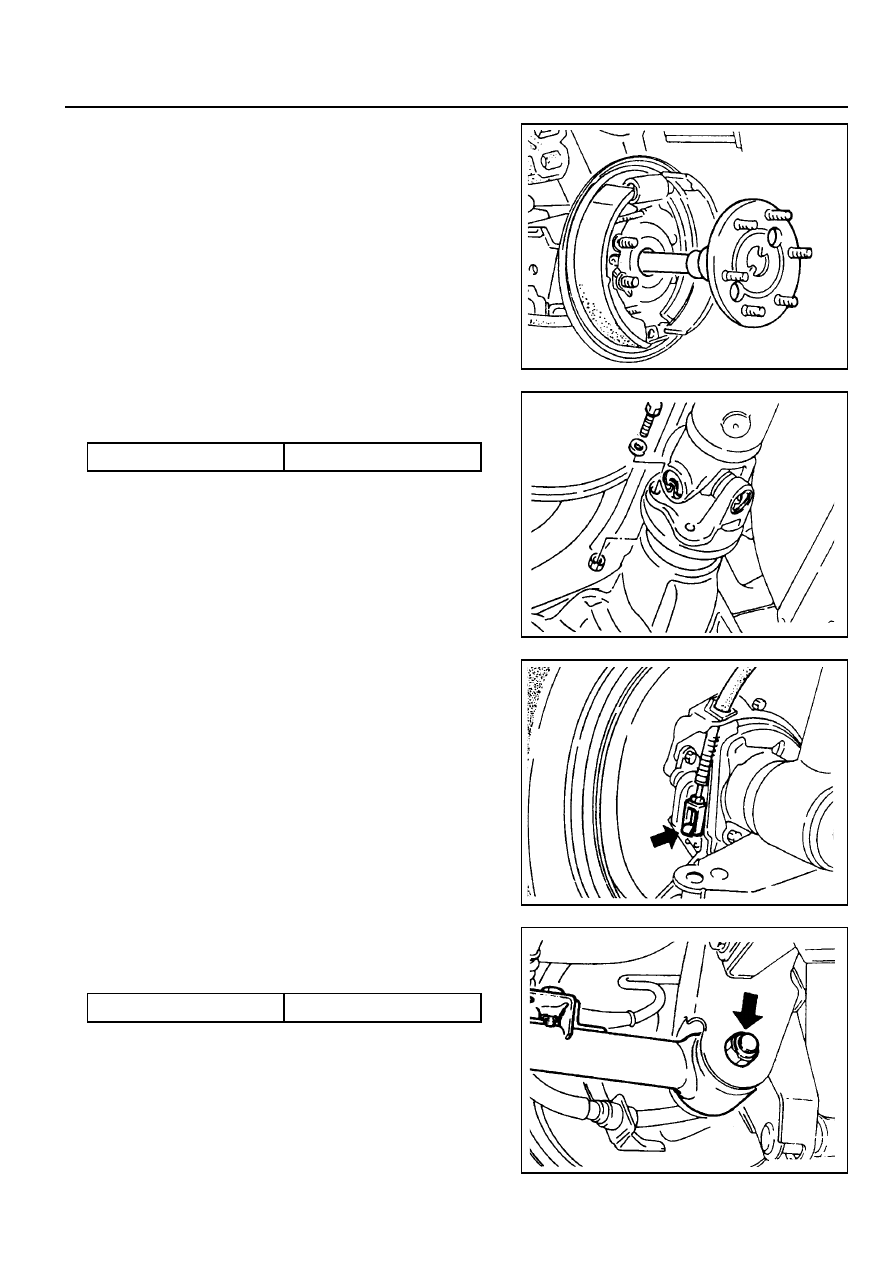

Removal & Installation Procedure

1. Lift up the vehicle and support the frame safely.

2. Remove the axle shaft.

Tightening Torque

150 - 180 Nm

3. Remove the propeller shaft from the rear axle input shaft.

Installation Notice

Notice

Place alignment marks before removal.

Tightening  Torque

81 - 89 Nm

4. Disconnect the parking brake cable and brake hose.

5. Remove the lower arm mounting nuts and remove the lower

arm from the axle housing.

Installation Notice
