1F3-38  OM600 ENGINE CONTROLS

Tools Required

617 589 08 21 00  Position Sensor

Test Procedure

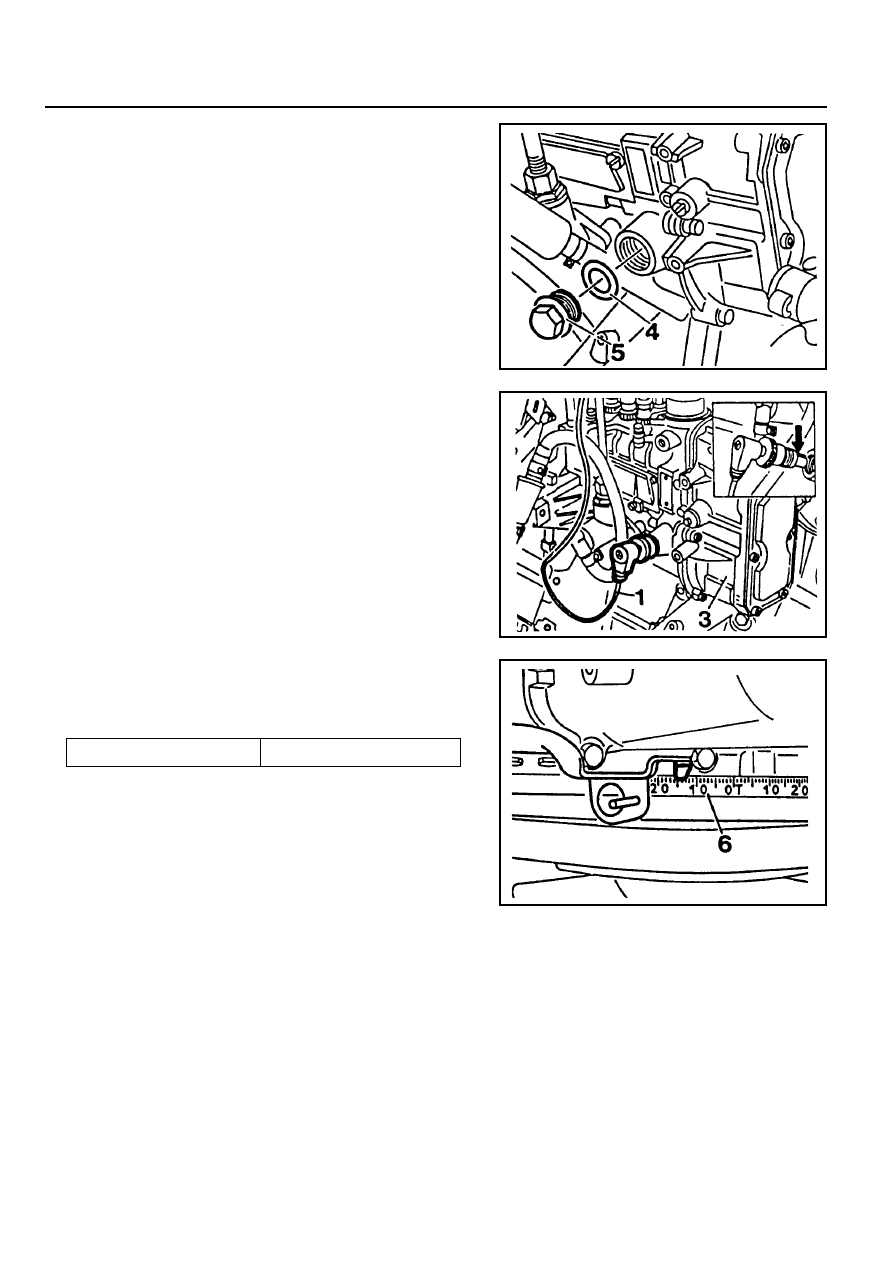

1. Remove the screw plug (5) and seal (4) and collect oil in a

suitable vessel.

2. Install the position sensor (1) into the governor housing of

the injection pump to be the guide pin of the position sensor
facing up.

3. Connect the battery terminal of position sensor (1) to positive

terminal (+) of battery.

Position Sensor 617 589 08 21 00

4. Rotate the crankshaft by hand (in direction of engine rotation)

until the lamp ‘B’ lights up. Rotate the crankshaft carefully
further until both lamps ‘A and B’ come on. In this position,
check the Rl value  on the crankshaft vibration damper.

Notice

If only lamp ‘A’ lights up, repeat the test and if out of
specification, adjust start of delivery.

Specification

ATDC 14° - 16°

OM600 ENGINE CONTROLS  1F3-39

Digital Tester, RIV Method

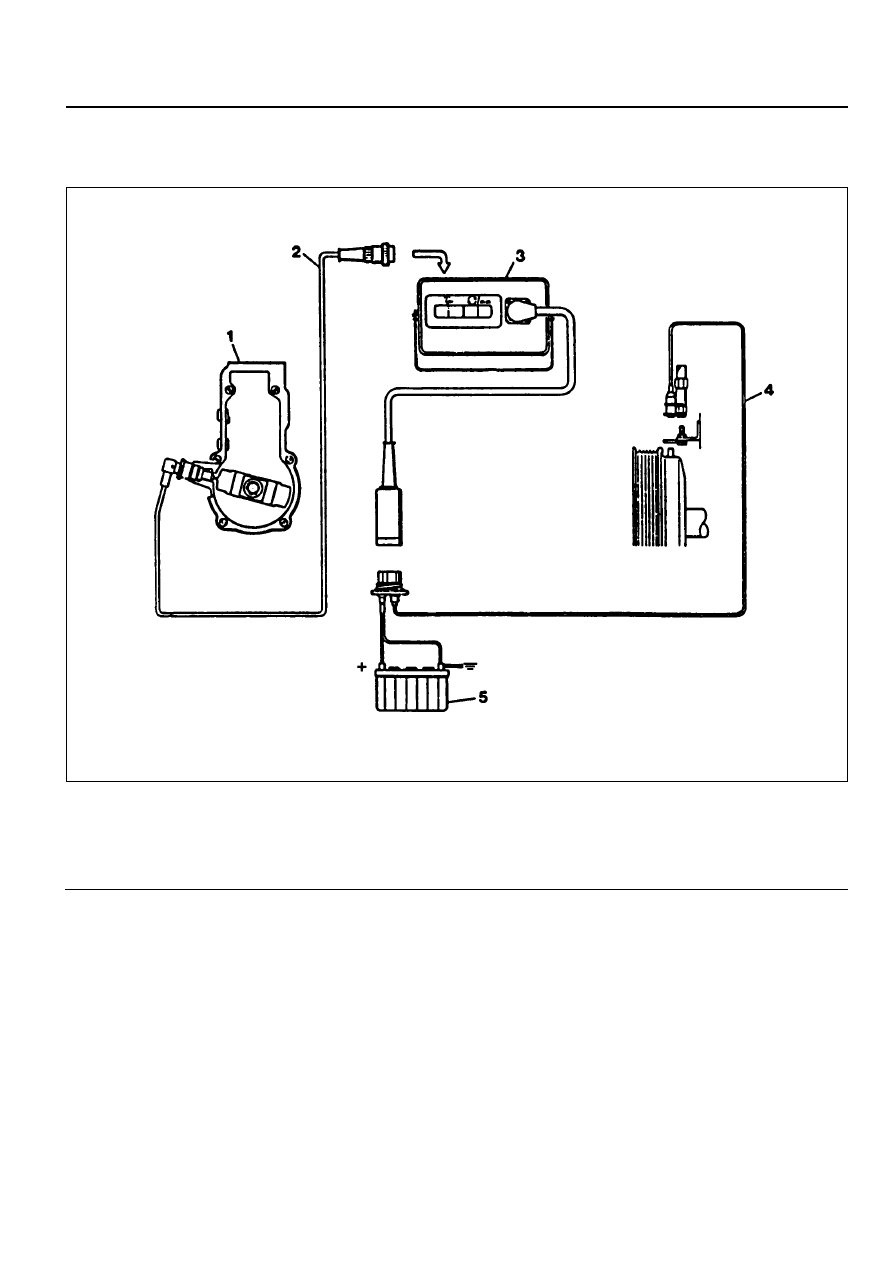

(Connection Diagram for Testers Without Adapter)

1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester

4 TDC Pulse Sender Unit
5 Battery

1F3-40  OM600 ENGINE CONTROLS

Start of Delivery (RIV)

Idle Speed

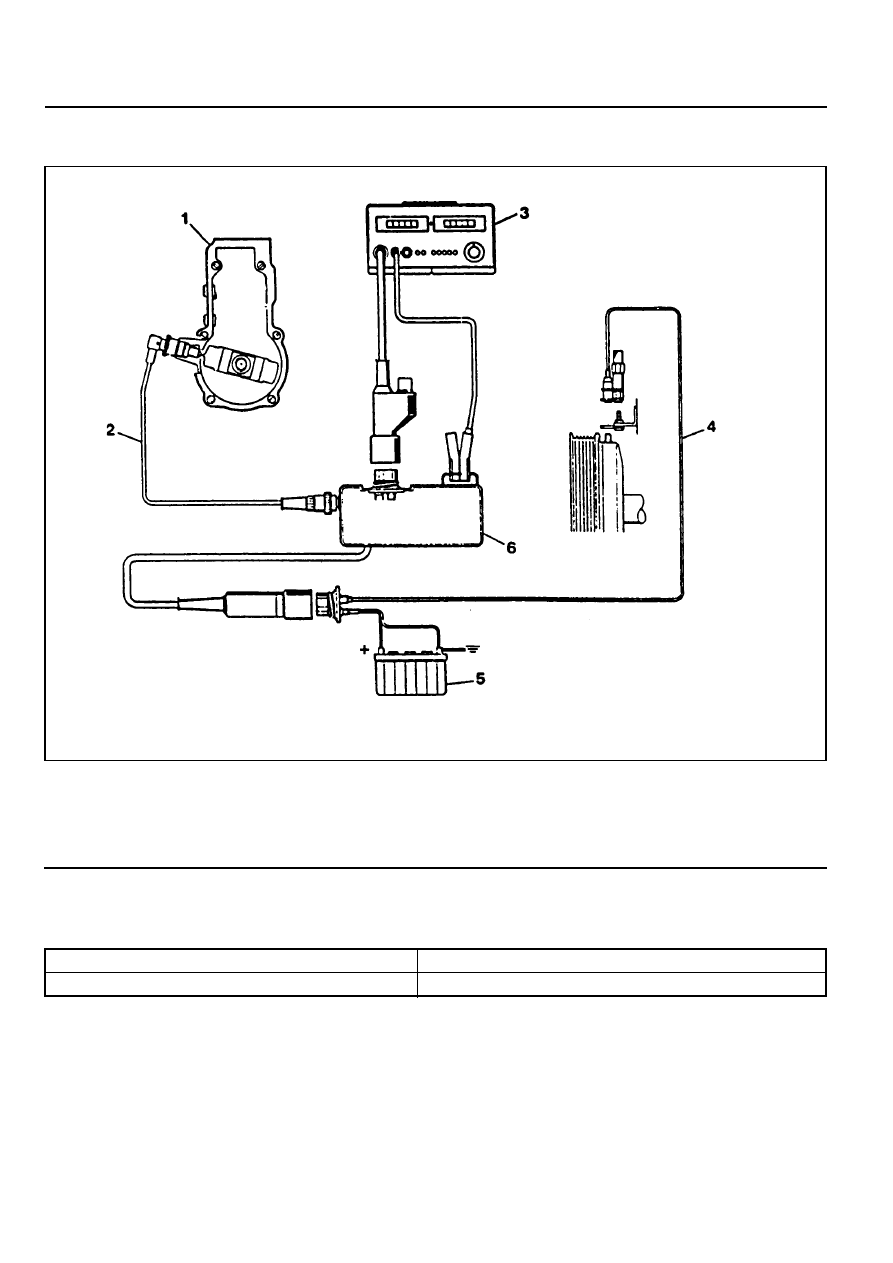

(Connection Diagram for Testers With Adapter)

1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester

4 TDC Pulse Sender Unit
5 Battery
6 Rl Pulse Generator

Service Data

ATDC 14° - 16°

OM661LA : 720 - 820 rpm, OM662LA : 750 - 850 rpm

OM600 ENGINE CONTROLS  1F3-41

With Pulse Generator

Tools Required

617 589 09 21 00  Rl Sensor

617 589 10 21 00  Timing Tester

667 589 00 21 00  TDC Pulse Generator

Commercial Tools

Item

Digital Tester

Without Pulse Generator

Tools

Bosch, MOT 001.03

Hartmann & Braun, EOMT3

Bosch, ETD 019.00

Sun, DIT 9000

ALV, Diesel - Tester 875

Test Procedure

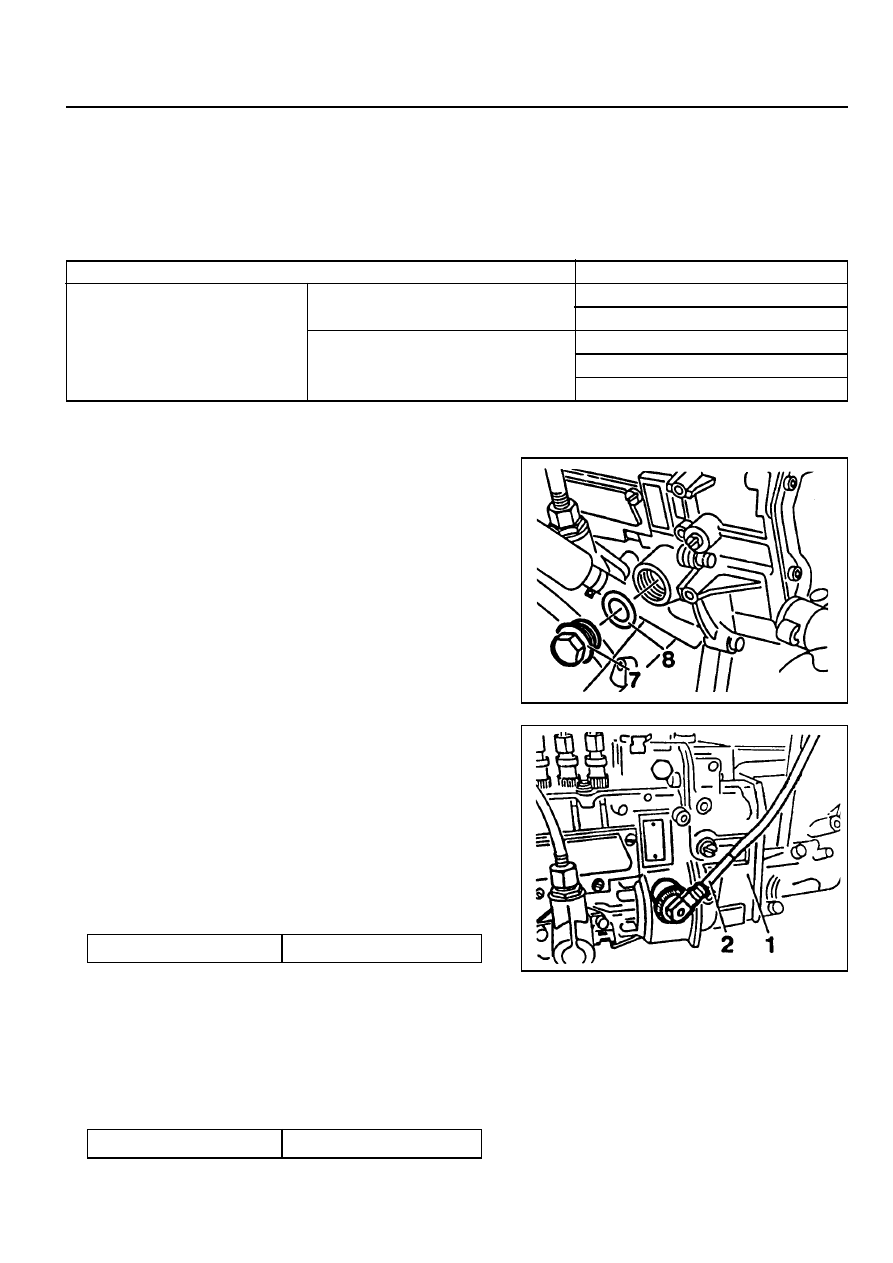

1. Remove the screw plug (7) and seal (8) collect oil in a suitable

vessel.

2. Install the Rl sensor into the governor housing of injection

pump (1).

Rl Sensor 617 589 10 21 00

3. Connect the digital tester and TDC pulse sender unit

according to connection diagram.

4. Run the engine at idle speed and check the Rl value on the

digital tester

Notice

If out of standard, adjust the start of delivery.

5. Stop the engine.

6. Remove the Rl sensor, digital tester and TDC pulse sender

unit.

7. Replace the seal and tighten the plug.

8. Check engine oil level and adjust if necessary.

Rl value

ATDC 14° - 16°

Tightening Torque

30 Nm
