1F3-42  OM600 ENGINE CONTROLS

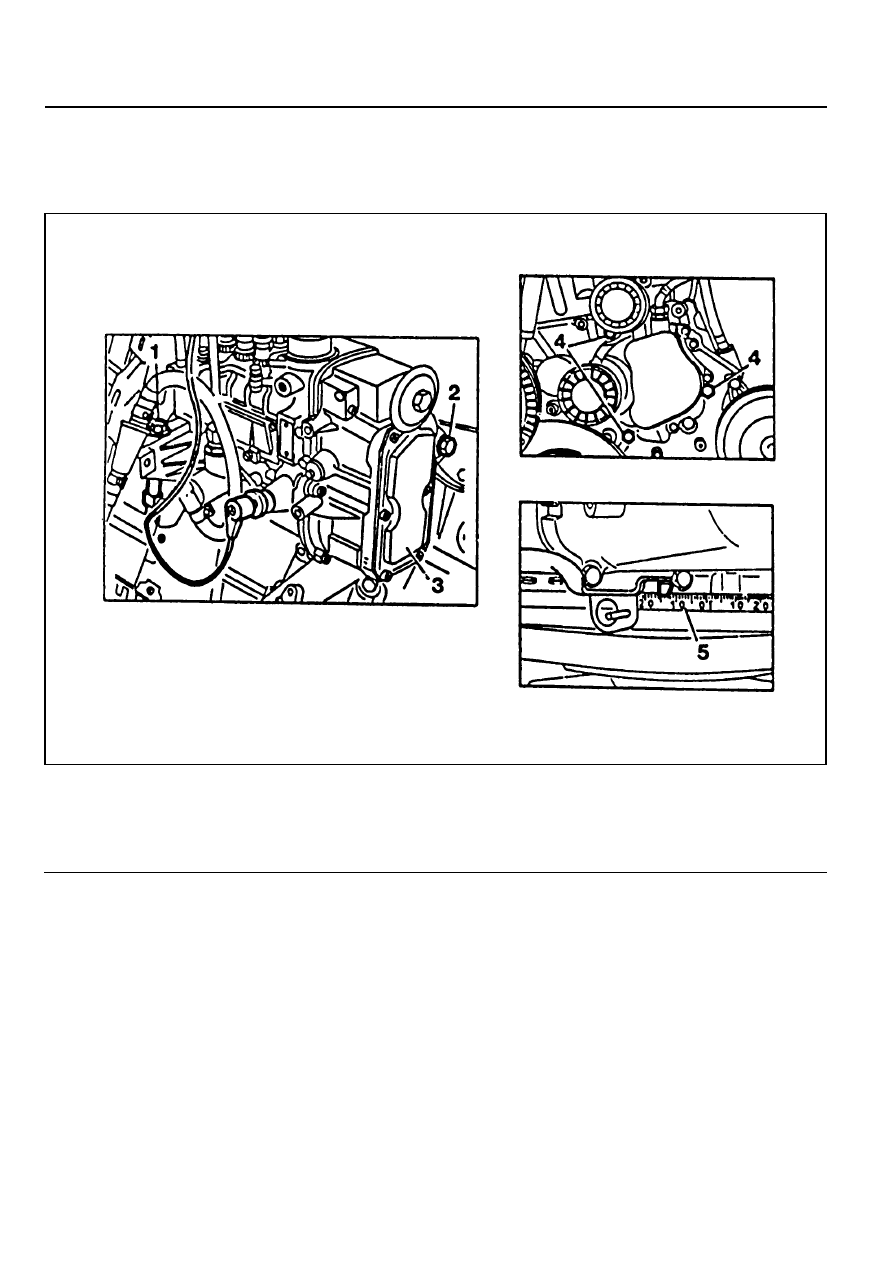

After Testing

Preceding Work : Start of delivery test

Position Sensor (RIV method)

1 Adjusting Screw
2 Bolt ............................................................ 23Nm
3 Fuel Injection Pump

4 Bolt ............................................................ 23Nm
5 Scale .......... Rl start of delivery = 14° - 16° ATDC

OM600 ENGINE CONTROLS  1F3-43

Tools Required

617 589 08 21 00  Position Sensor

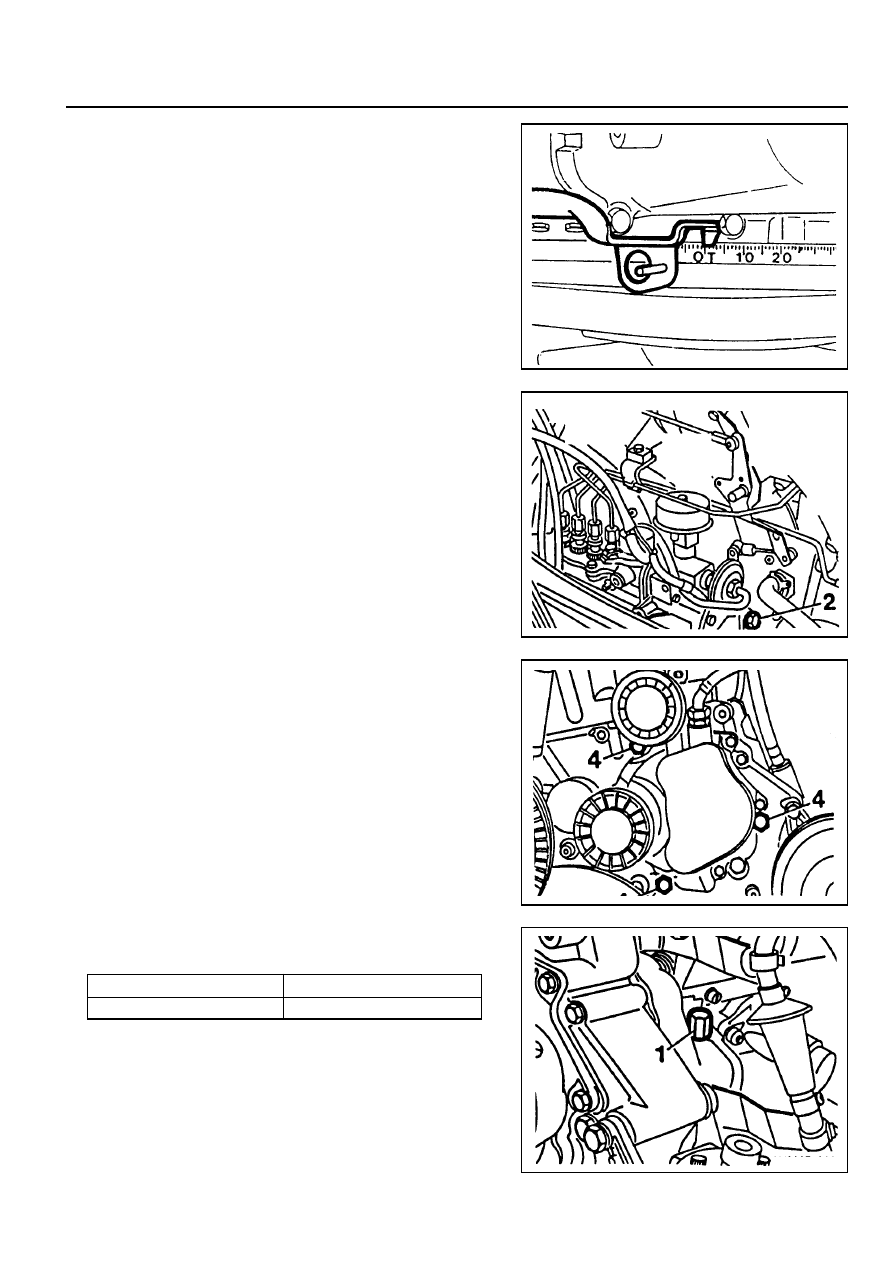

Adjustment Procedure

1. Position the No. 1 cylinder at ATDC 15°

Notice

Do not rotate the engine in opposite direction of engine
rotation.

2. Remove the bolt (2) at the supporting bracket.

3. Remove the bolt (4).

4. Turn the adjusting screw (1) until both lamps ‘A’ + ‘B’ on

the position sensor light up.

Notice

If the adjustment range is not adequate, remove the injection
pump and reinstall.

Position Sensor 617 589 08 21 00

5. After adjusting, retighten all the bolt to the specified torque.

To the right

To the left

Start of delivery retarded

Start of delivery advanced

1F3-44  OM600 ENGINE CONTROLS

Tools Required

617 589 09 21 00  Rl Sensor

617 589 10 21 00  Timing Tester

667 589 00 21 00  TDC Pulse Generator

Commercial Tools

Item

   Digital Tester

With Pulse Generator

Without Pulse Generator

Tools

Bosch, MOT 001.03

Hartmann & Braun, EOMT3

Bosch, ETD 019.00

Sun, DIT 9000

ALV, Diesel - Tester 875

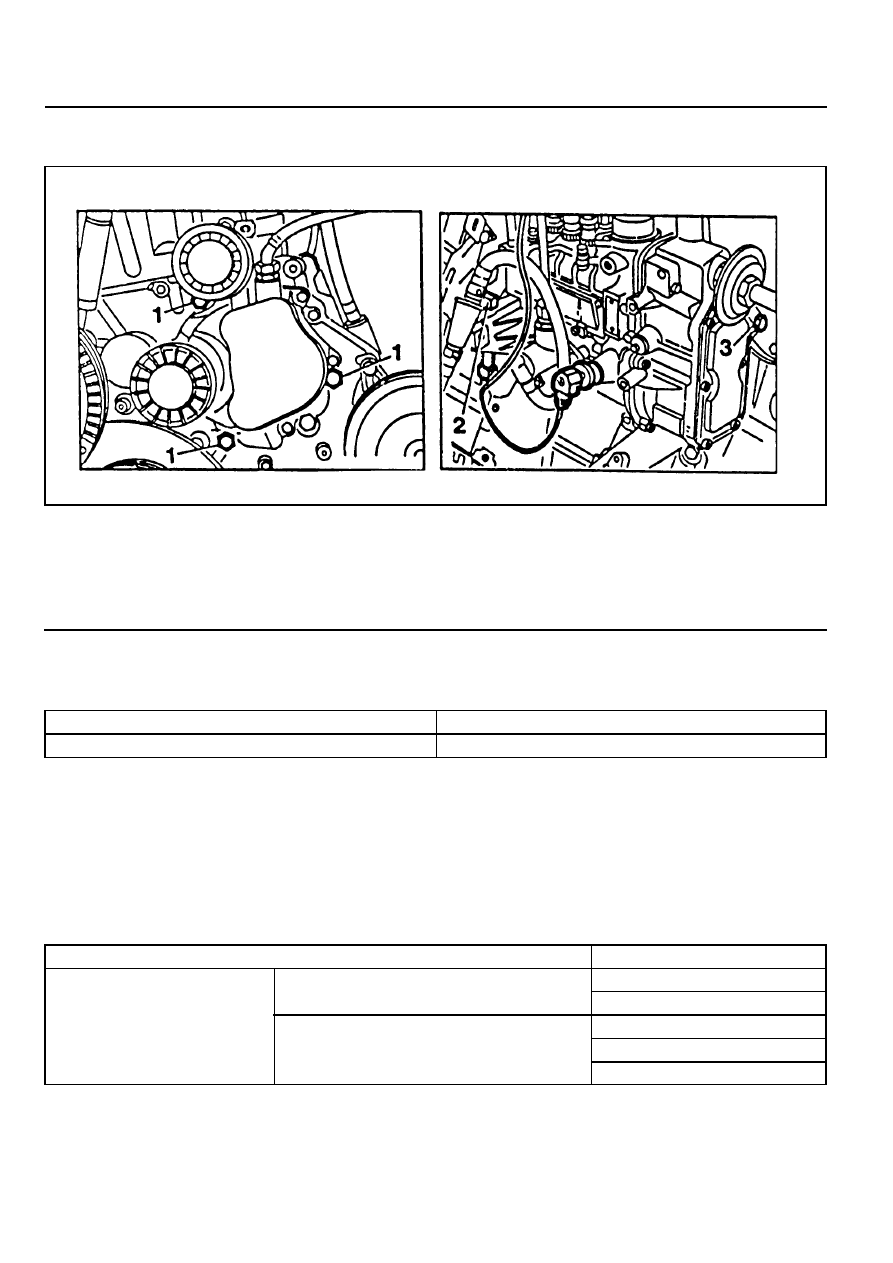

Digital tester (RIV Method)

1 Bolt ............................................................ 23Nm
2 Adjusting

Screw ....... To the right : start of delivery retarded

To the left : start of delivery advanced

3 Bolt ............................................................ 23Nm

Service Data

Start of Delivery (RIV)

Ldling Speed

ATDC 14° - 16°

OM661LA : 720 - 820 rpm, OM662LA : 750 - 850 rpm

OM600 ENGINE CONTROLS  1F3-45

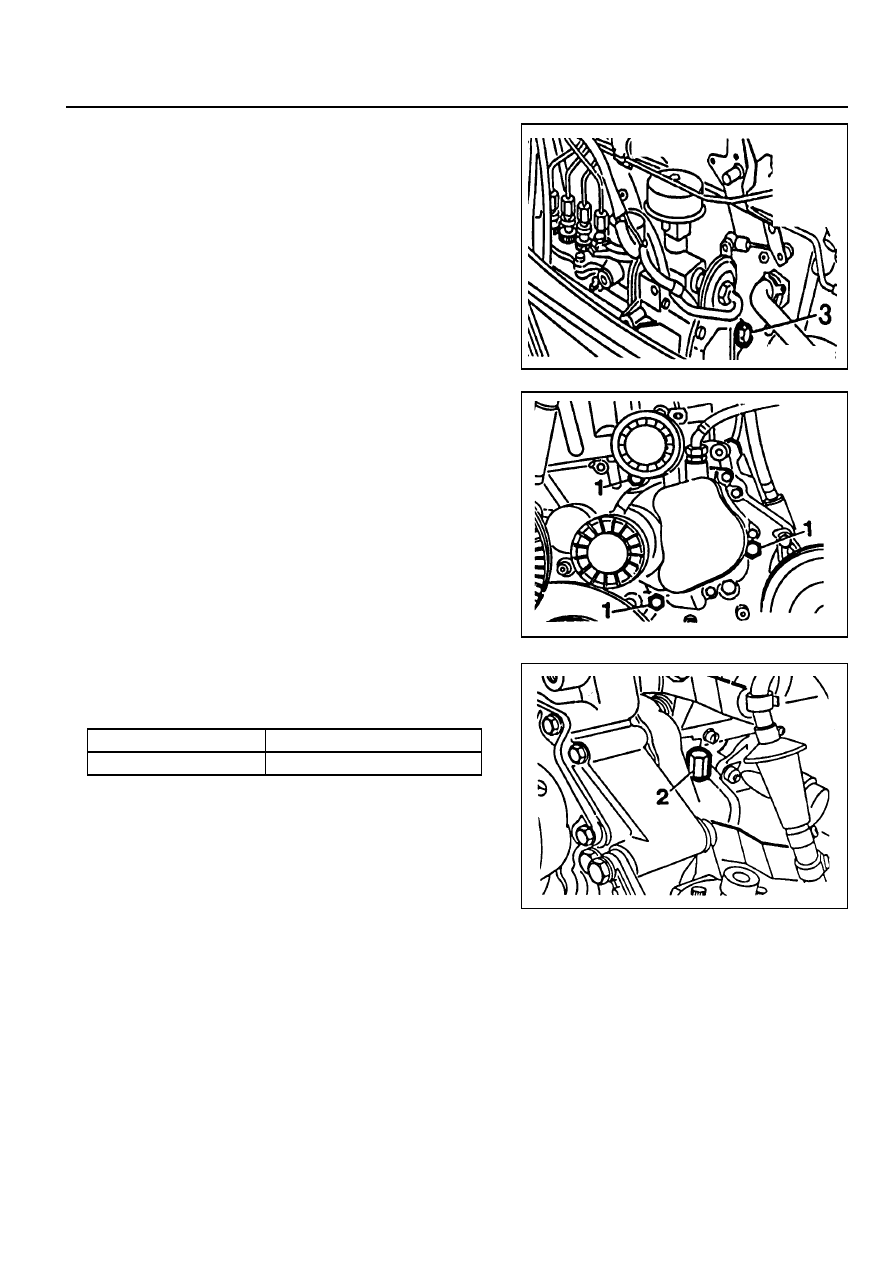

Adjustment Procedure

1. Remove the bolt (3) at the supporting bracket.

2. remove the bolts (1) at the timing case cover.

3. Run the engine at idle speed.

4. Turn the adjusting screw (2) until the specification (15° ± 1°

ATDC) is indicated on the digital tester.

To the Right

To the Left

Start of Delivery Retarded

Start of Delivery Advanced
