1F3-34  OM600 ENGINE CONTROLS

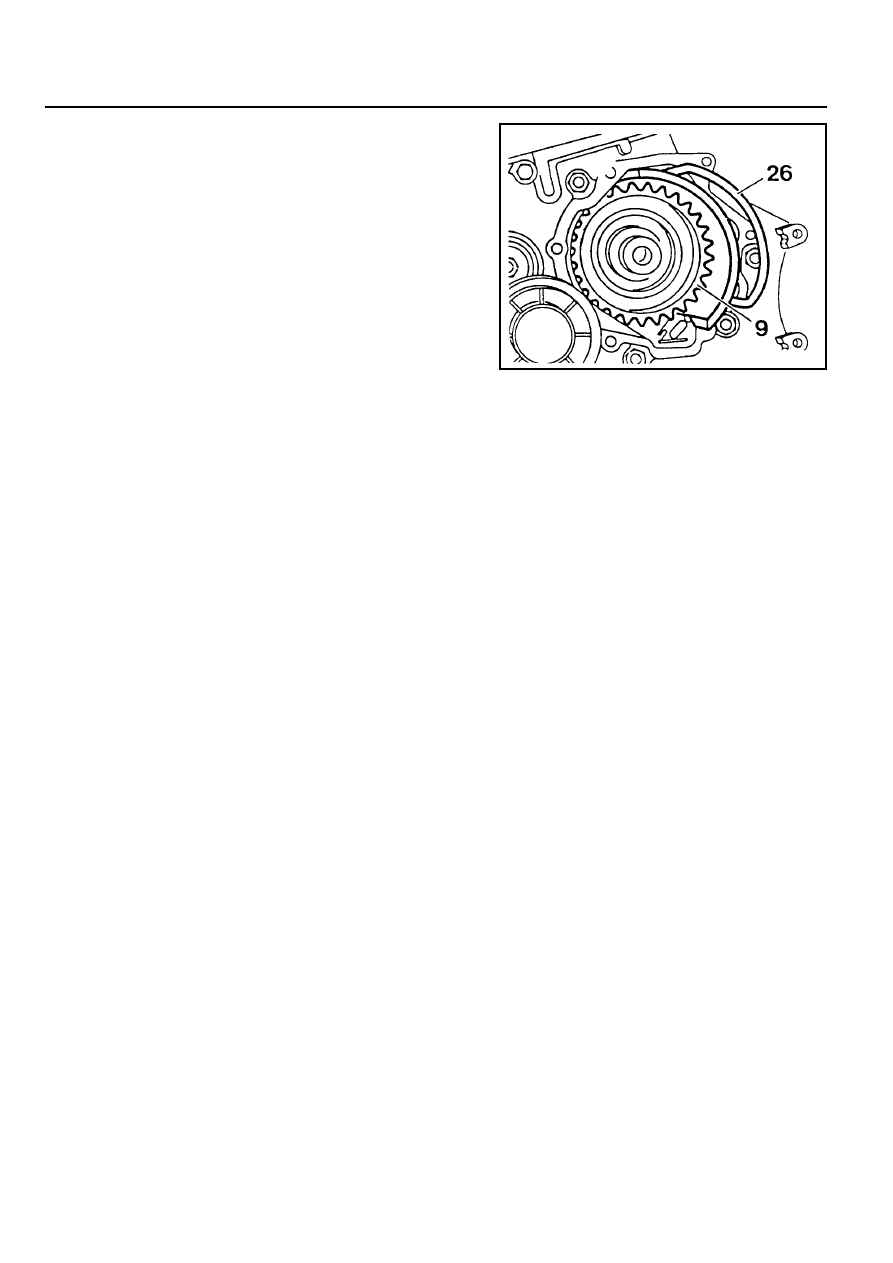

12. Push back the timing chain with retaining plate (26) and

remove the injection timing device (9).

Retaining Plate 667 589 04 63 00

13. Installation should follow the removal procedure in the

reverse order.

14. After assembling the engine, check start of delivery and

adjust if necessary.

OM600 ENGINE CONTROLS  1F3-35

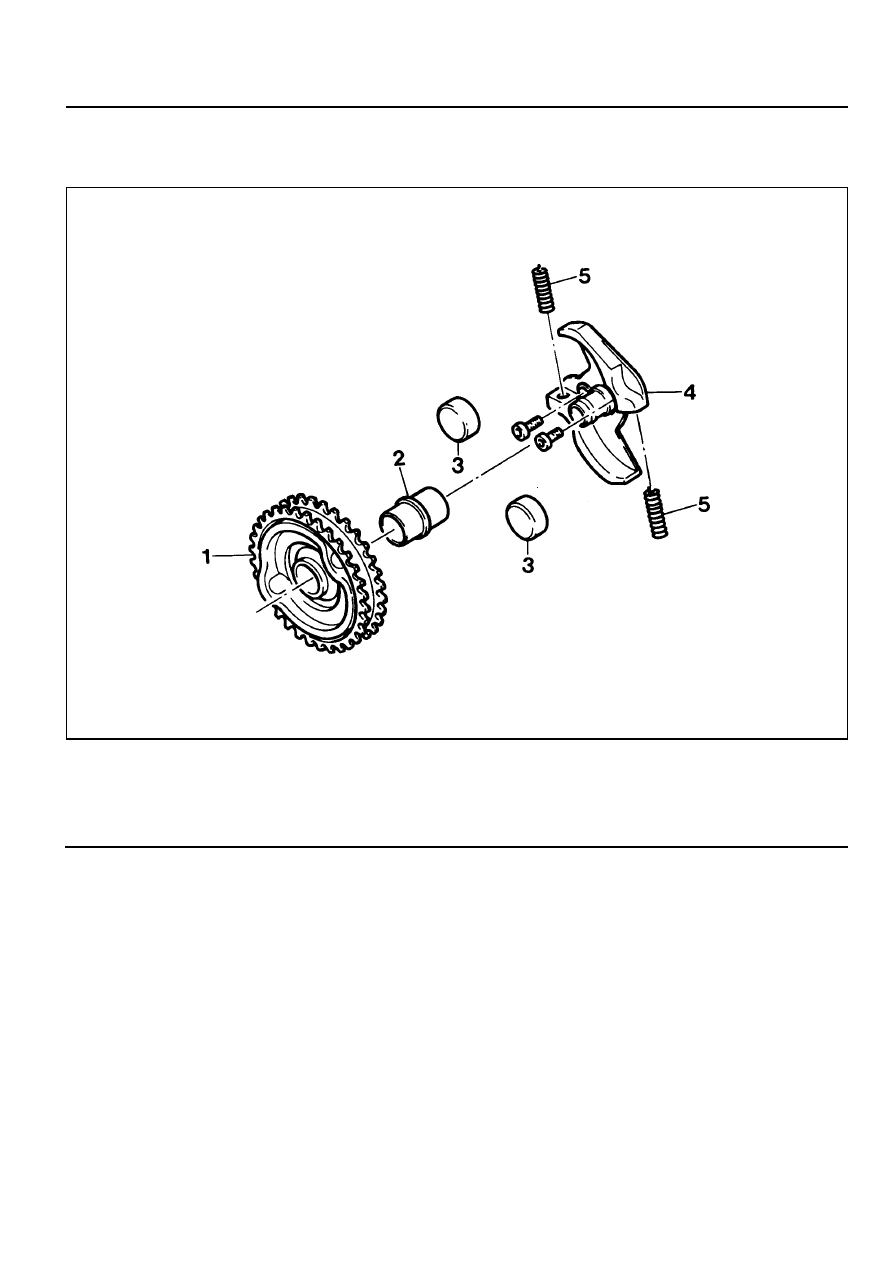

INJECTION TIMING DEVICE

Preceding Work : Removal of injection timing device

1 Cam Sprocket ........................................... Check
2 Bushing .................................................... Check
3 Governor Weights

4 Segment Flange and Drive Hub
5 Compression Springs

1F3-36  OM600 ENGINE CONTROLS

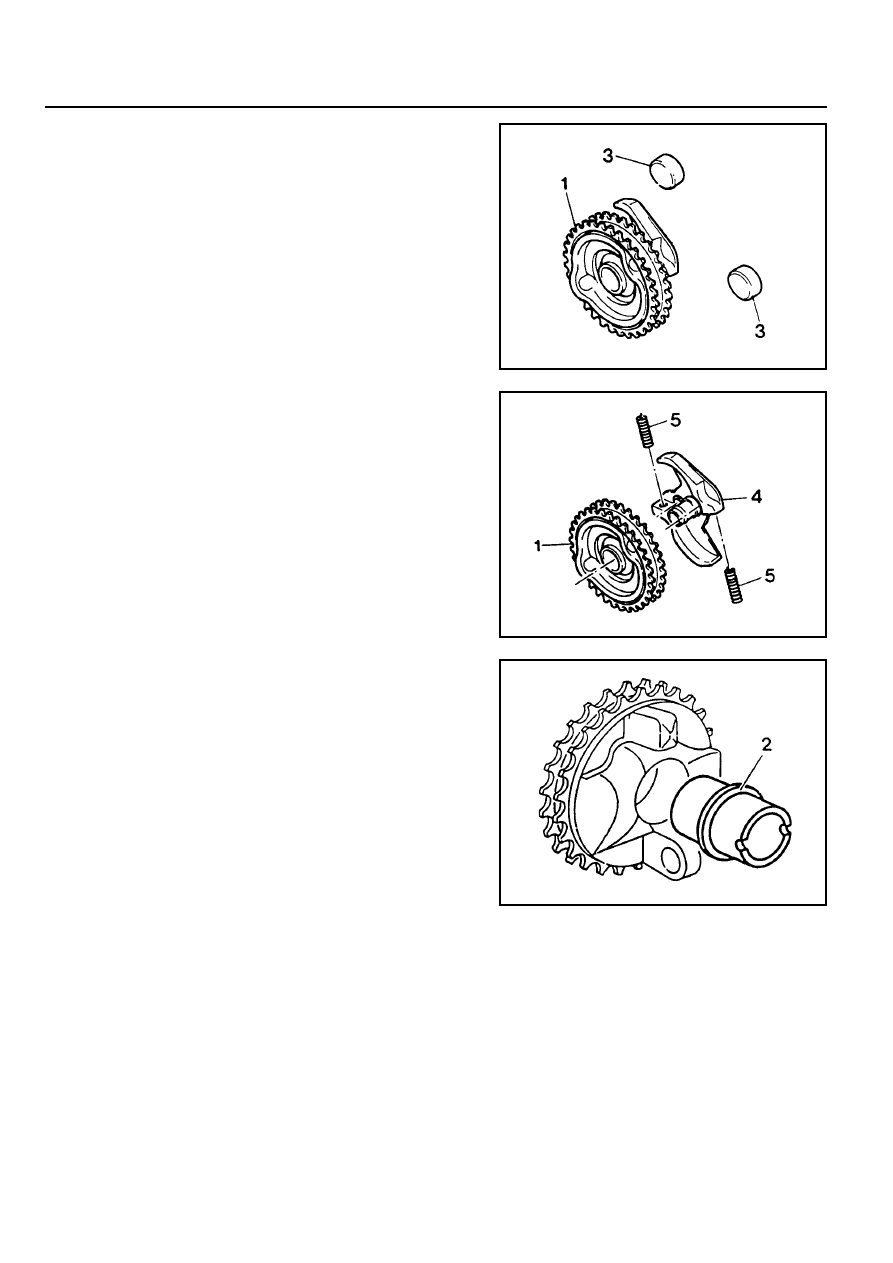

Disassembly & Assembly

1. Remove the governor weights (3).

2. Pull out the compression springs (5) and cam sprocket (1)

from the segment flange (4).

3. Knock out the bushing with a proper drift.

4. Installation should follow the removal procedure in the

reverse order.

OM600 ENGINE CONTROLS  1F3-37

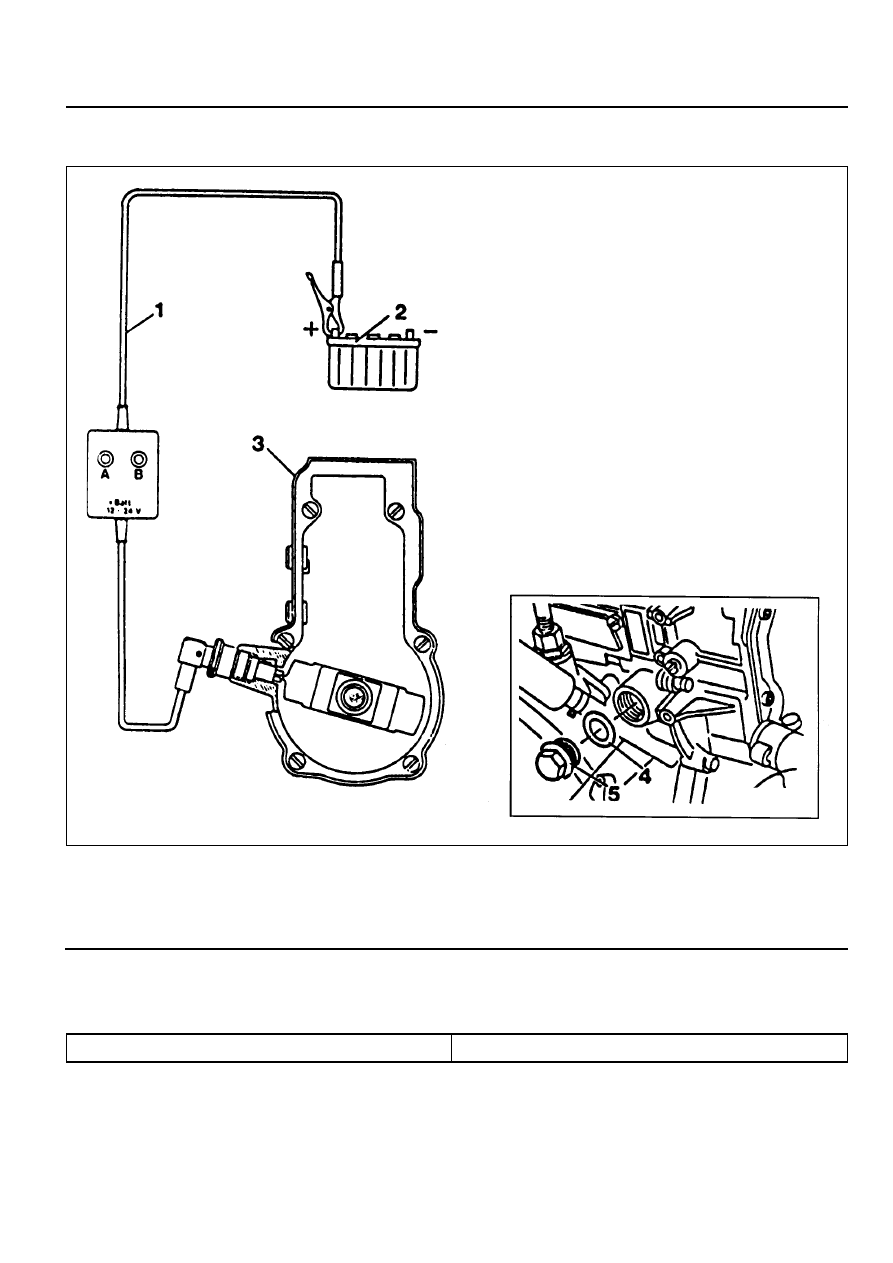

START OF DELIVERY TEST (POSITION SENSOR, RIV METHOD)

1 Position Sensor
2 Battery
3 Fuel Injection Pump

4 Seal ....................................................... Replace
5 Screw Plug ................................................. 30Nm

Service Data

Start of Delivery (RIV)

ATDC 14° - 16°
