M162 ENGINE MECHANICAL  1B1-7

103 589 01 63 00

Rivet Set

103 589 02 09 00

Oil Filter

Socket Wrench

102 589 12 15 00

Drift

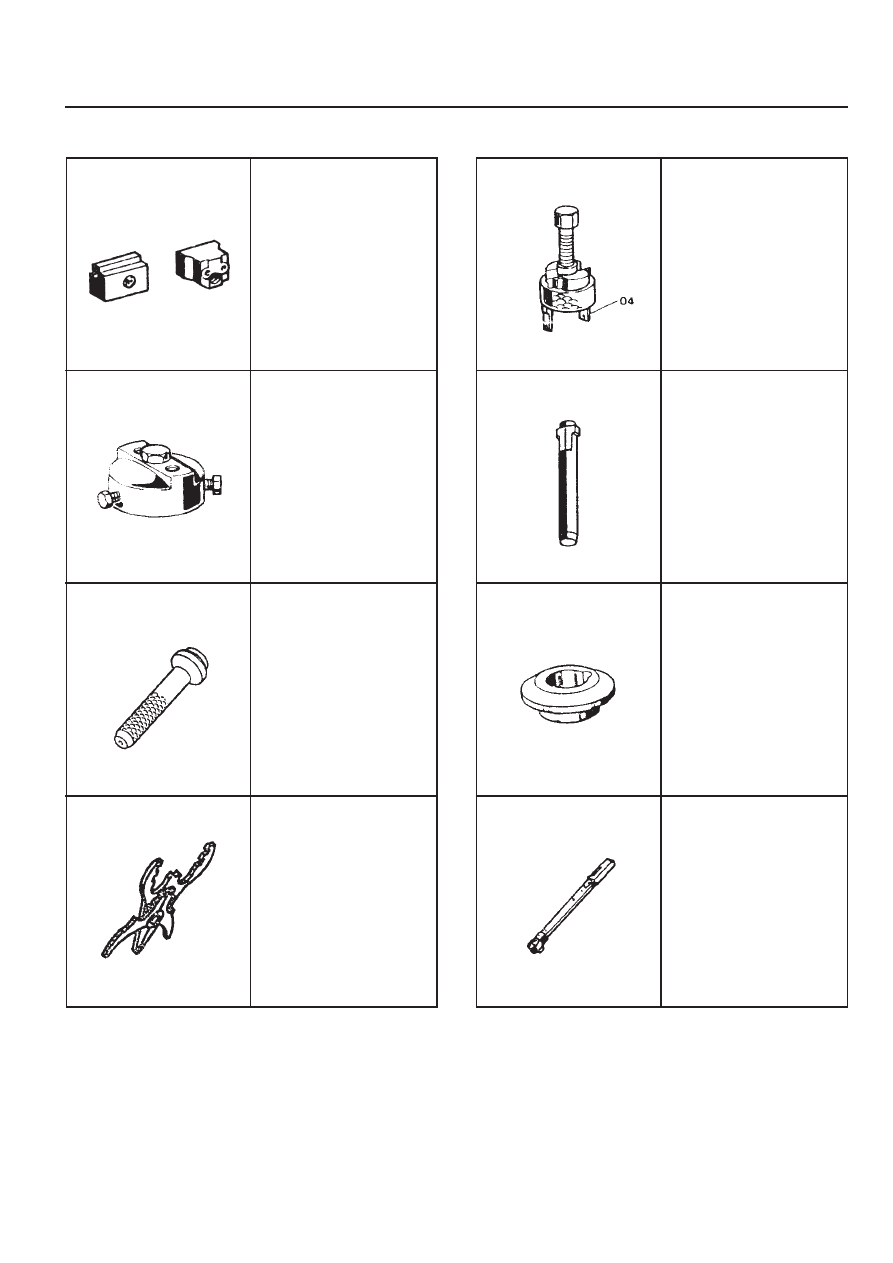

SPECIAL TOOLS TABLE (Cont’d)

615 589 01 33 00

Caulking Bolt

102 589 00 15 00

Drift

000 589 51 37 00

Clamping Strap

001 589 72 21 00

Torque Wrench

601 589 03 14 00

Sleeve

1B1-8  M162 ENGINE MECHANICAL

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

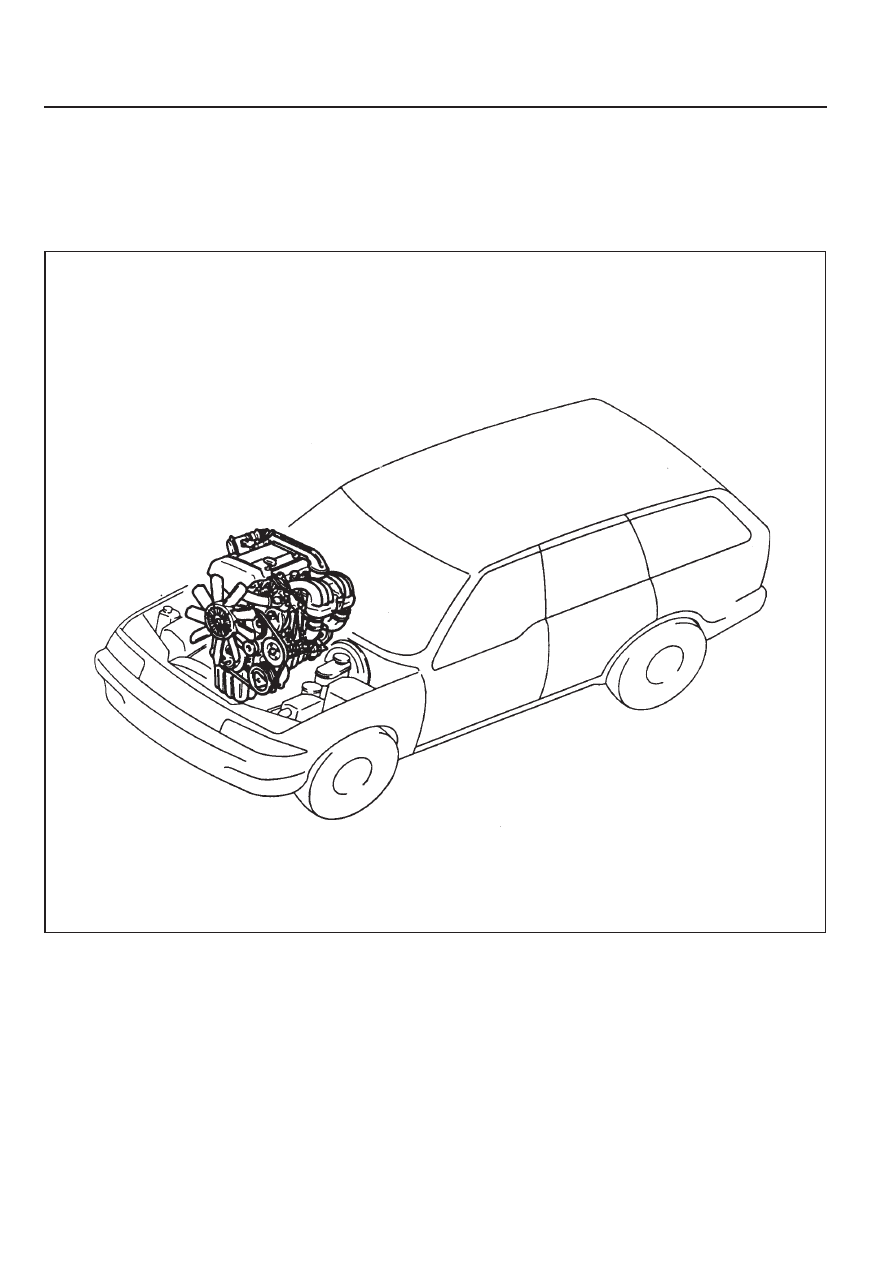

ENGINE ASSEMBLY

Tools Required

000 589 10 99 01 Torque Wrench

000 589 40 37 00 Hose Clamp

112 589 00 72 00 Oil Extractor

M162 ENGINE MECHANICAL  1B1-9

4. Disconnect the coupling of HFM sensor and remove the air

cleaner cross pipe.

6. Loosen the radiator drain cock and drain the coolant.

Notice

Open the coolant reservoir cap.

5. Remove the air cleaner cover. Remove the mounting bolts

and air cleaner housing and element assembly.

Removal & Installation Procedure

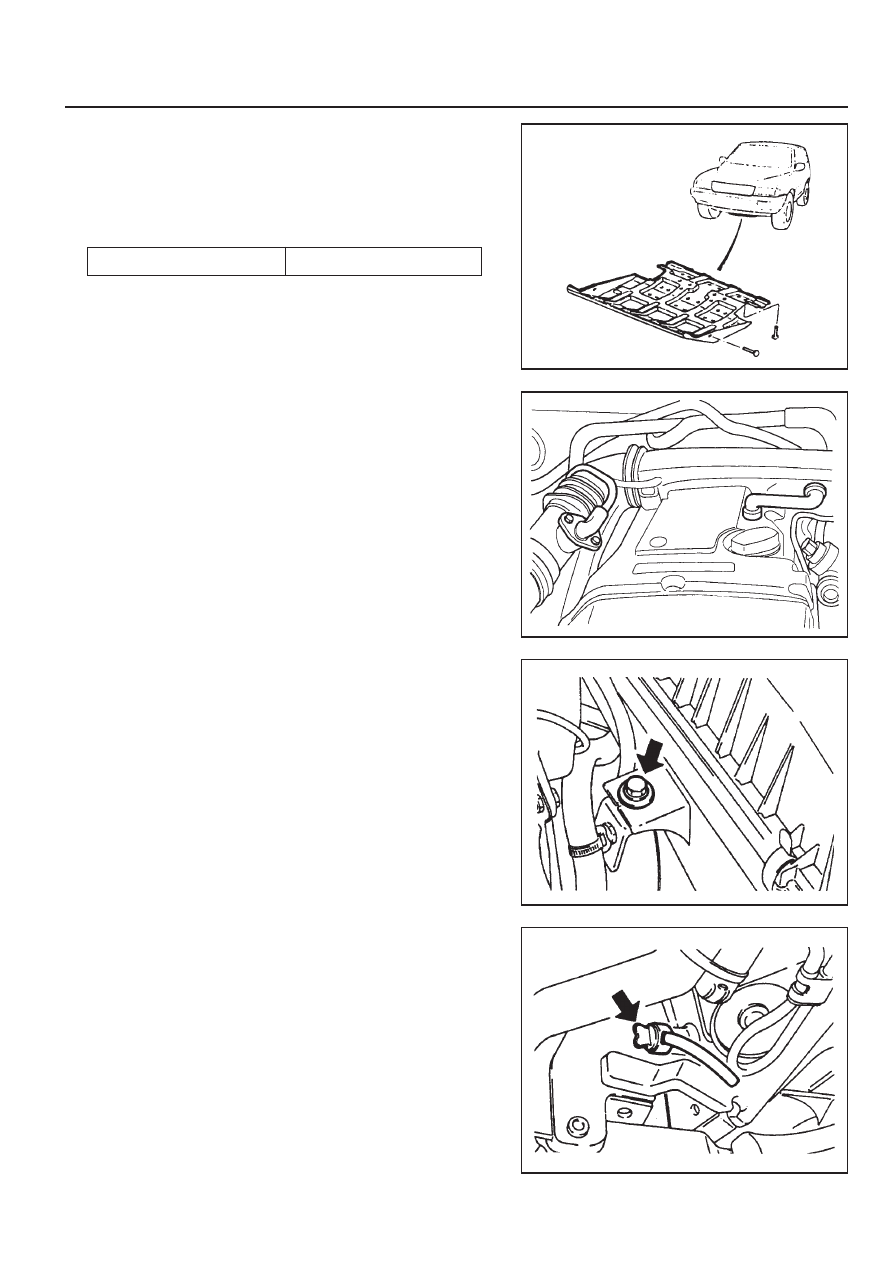

1. Disconnect the negative terminal of battery.

2. Remove the hood.

3. Remove the under cover.

Installation Notice

Tightening  Torque

28 - 47 Nm

1B1-10  M162 ENGINE MECHANICAL

10. Remove the upper mounting bolts of radiator and then

remove the radiator.

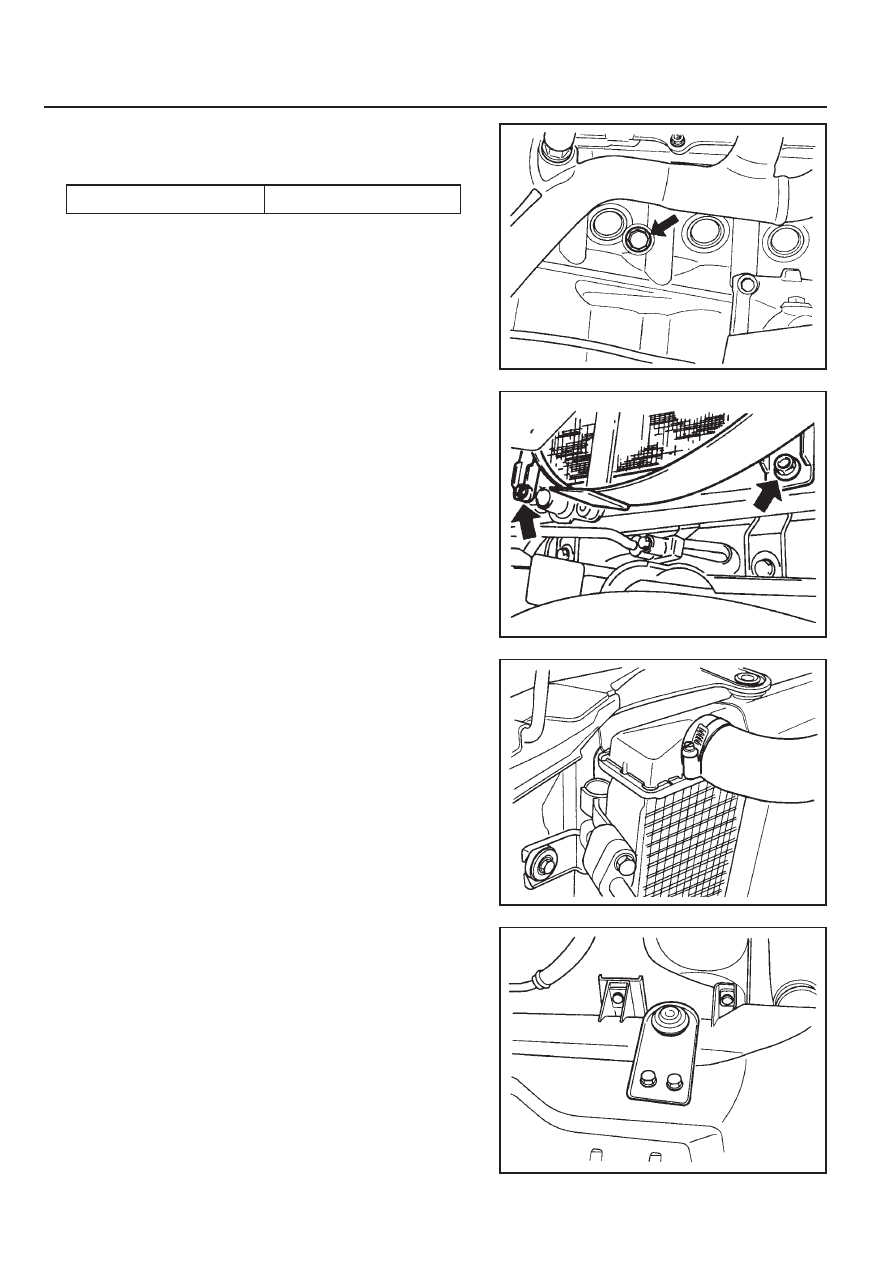

7. Loosen the cylinder block drain plug and then drain the

coolant completely.

Installation Notice

Tightening Torque

30 Nm

Notice

Replace the seal before installation of the drain plug.

8. Remove the cooling fan shroud.

9. Disconnect the each hose from radiator.
