1A1-2  GENERAL ENGINE INFORMATION

Application

Idle Speed (rpm)

Fuel Injection Pressure (kg/cm²)

Oil Capacity (liter)

Lubrication Type

Oil Filter Type

Fuel

ENGINE SPECIFICATIONS (Cont'd)

E32 Engine

700 ± 50

3 - 4

8.2

Forced by Gear Pump

Full Flow with Paper Filter

Unleaded Gasoline

MSE 3.62S/3.53S (Motorsteuer  Elektronik : German)

MSE : Engine Control Electronic

3.62S : 6 Cylinder Version

3.53S : 4 Cylinder Version

GENERAL ENGINE INFORMATION  1A1-3

COMPONENT LOCATOR

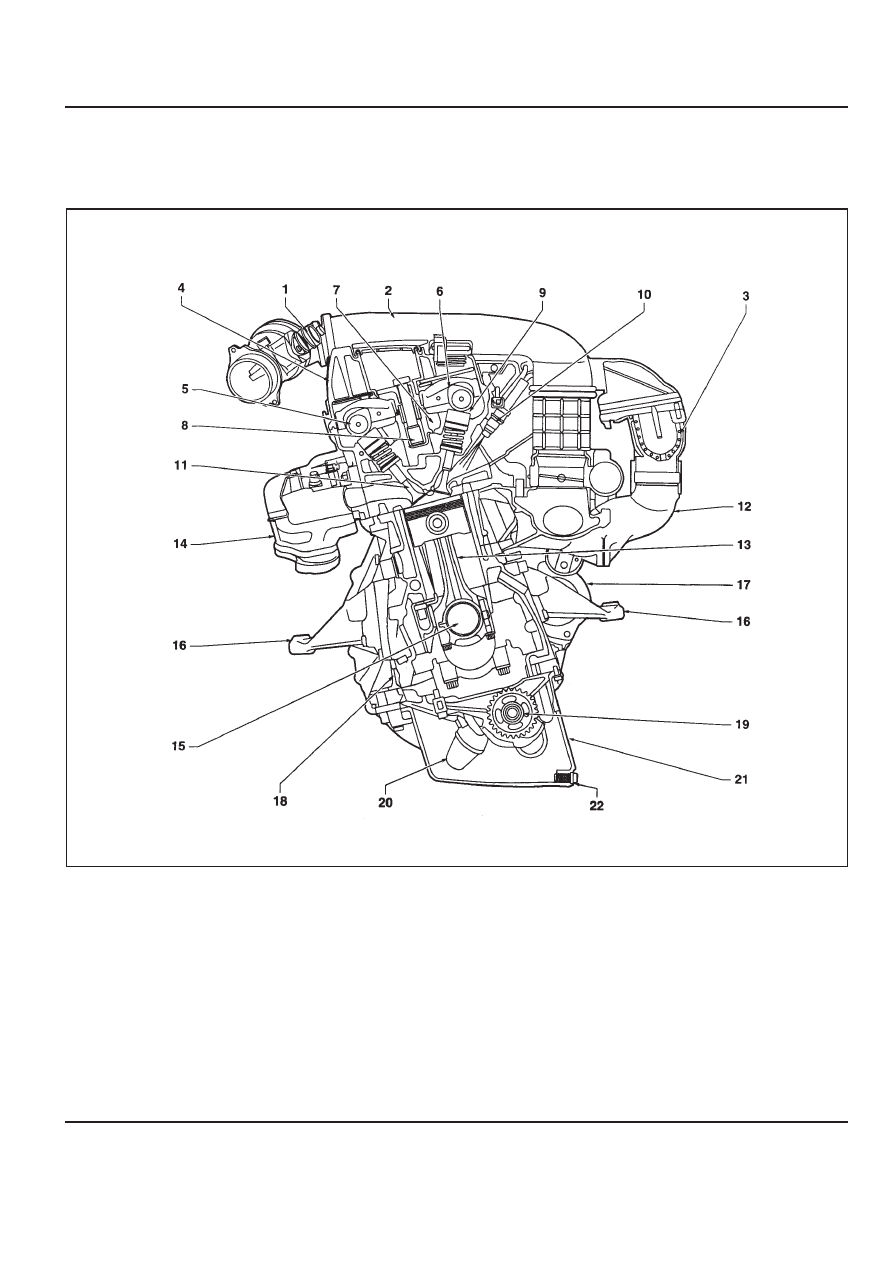

FRONT VIEW

1 HFM Sensor
2 Intake Air Duct
3 Resonance Flap
4 Cylinder Head Cover
5 Exhaust Camshaft
6 Intake Camshaft
7 Cylinder Head
8 Spark Plug Connector
9 Valve Tappet

10 Injector

11 Exhaust Valve

12 Intake Manifold
13 Connecting Rod
14 Exhaust Manifold
15 Crankshaft
16 Engine Mounting Bracket
17 Starter
18 Crankcase
19 Oil Pump Sprocket
20 Oil Strainer
21 Oil Pan
22 Drain Plug

1A1-4  GENERAL ENGINE INFORMATION

23 Camshaft Adjuster
24 Cooling Fan and Viscous Clutch
25 Piston
26 Flywheel of Drive Plate

27 Oil Pump Drive Chain
28 Oil Return Pipe
29 Timing Chain
30 Oil Pump

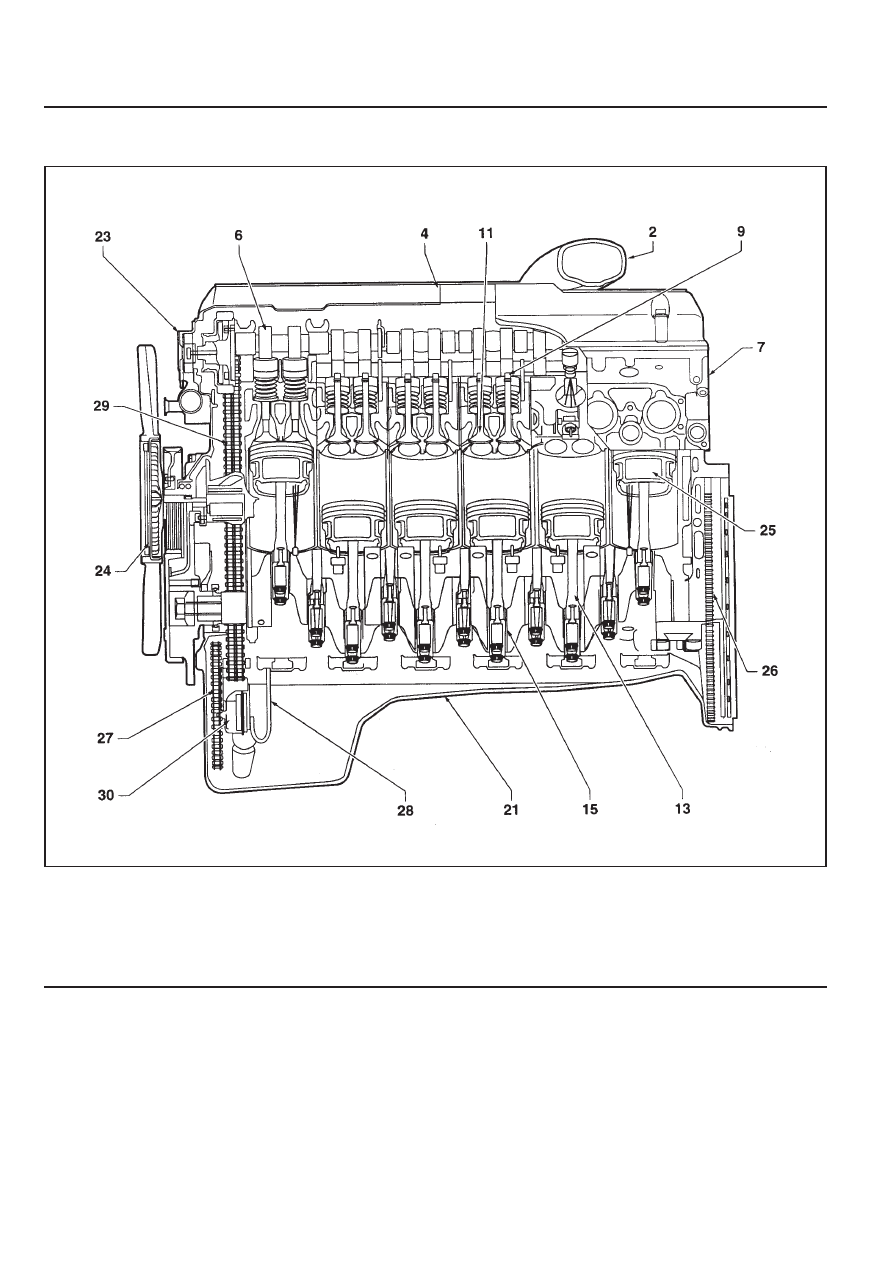

SIDE VIEW

GENERAL ENGINE INFORMATION  1A1-5

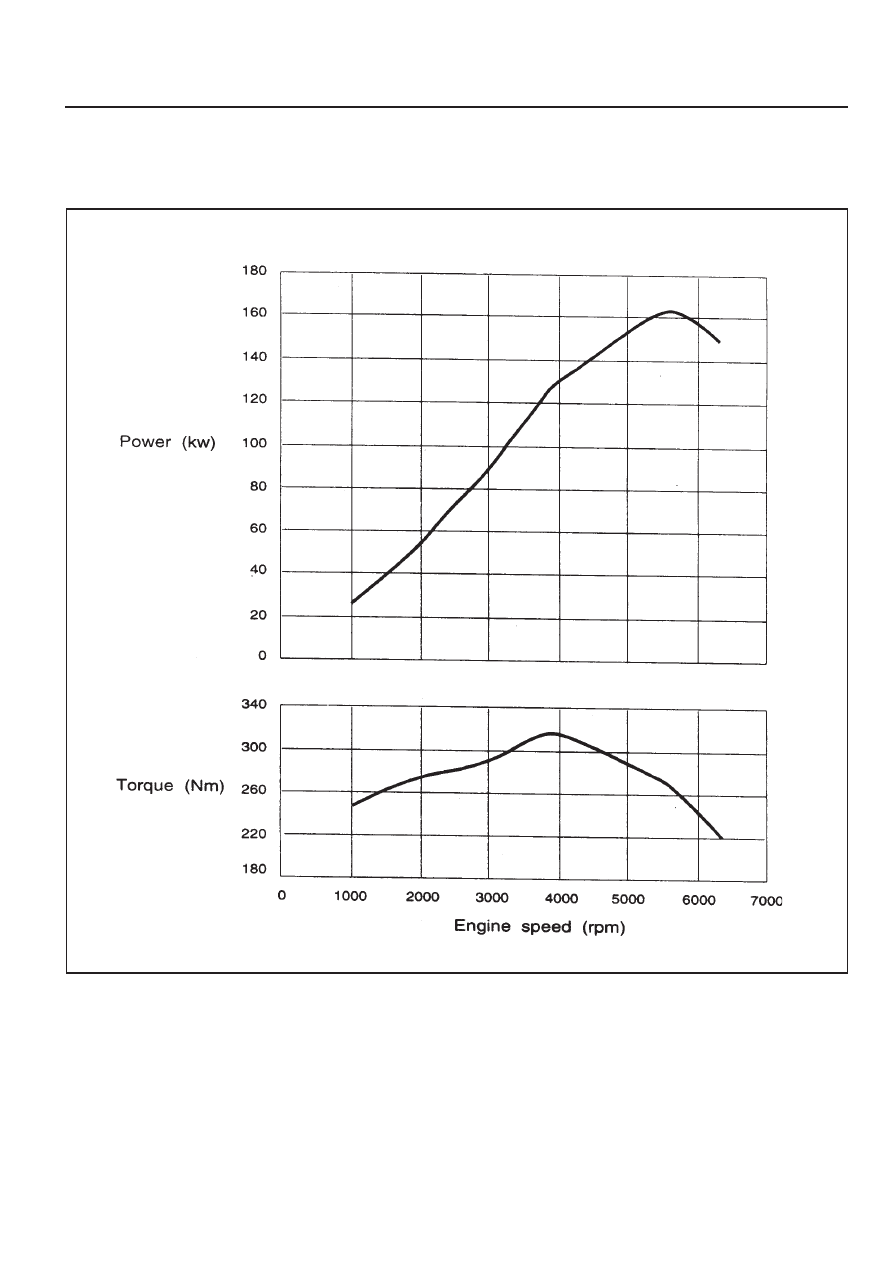

PERFORMANCE CURVE

E32 ENGINE
