SsangYong Musso. Manual - part 231

Description

Alumimun

7JJ X 15

Radial Tire

P215 / 75R 15 - 30psi

P235 / 75R 15 - 30psi

P255 / 70R 15 - 30psi

Application

Wheel

SECTION 2E

TIRES AND WHEELS

TABLE OF CONTENTS

SPECIFICATIONS

GENERAL SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

Wheel Bolt

80 - 120

110 - 130

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2E-1

General Specifications . . . . . . . . . . . . . . . . . . 2E-1

Fastener Tightening Specifications . . . . . . . . . 2E-1

Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-2

Wear Pattern Diagnosis . . . . . . . . . . . . . . . . . 2E-2

Identification . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3

Radial Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3

Wheel Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3

Component Locator . . . . . . . . . . . . . . . . . . . 2E-4

Wheel and Tire . . . . . . . . . . . . . . . . . . . . . . . . 2E-4

Maintenance and Repair . . . . . . . . . . . . . . . 2E-5

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 2E-5

Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . 2E-5

Material

Size

Tire

Type

Size and Tire Pressure

Steel

Alumimum

2E-2 TIRES AND WHEELS

DIAGNOSIS

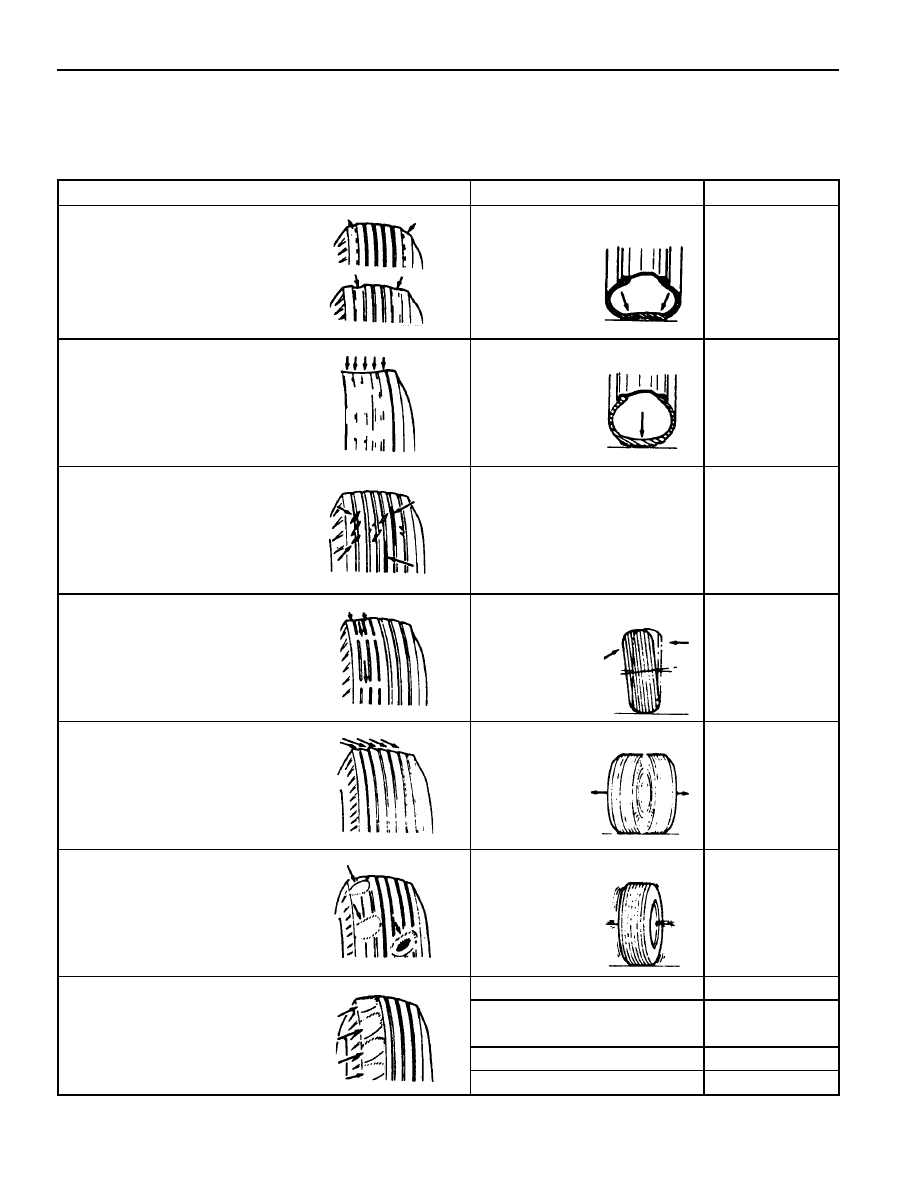

WEAR PATTERN DIAGNOSIS

Wear Pattern

Possible Cause

Remedy

Wear on Both Tread Shoulders

Under Inflation

Wear on Tread Center

Over Inflation

Tread Torn Out

Under Inflation

One-sided Tread Wear

Incorrect Camber or Toe-in

Feather Edging of Tread

Incorrect Toe-in

Spotty Tread Wear

Out of Wheel Balance

Spotty Wear-wear Localized on
Shoulder Sections

Out of Wheel Balance

Play in Hub Bearings

Play in Ball Joint

Defective Shock Absorber

Adjust

Check play

Adjust preload

Check

TIRES AND WHEELS 2E-3

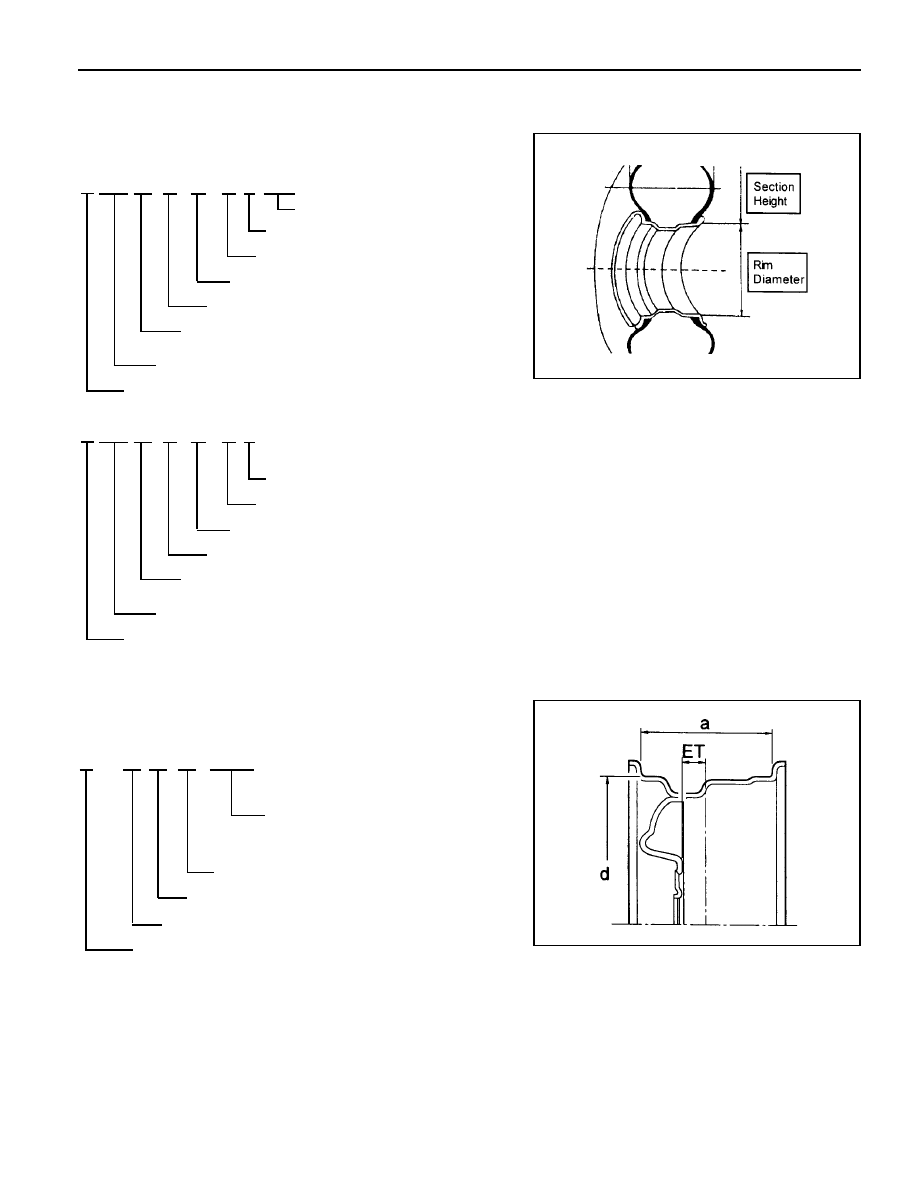

IDENTIFICATION

RADIAL TIRE

WHEEL DISC

7 J x 16 ET 39

Wheel Offset (mm)

(Distance from rim center to wheel
nave contacting surface)

Rim Diameter (inch)

Identification for One-piece Well-base Rim

Code Letter for Height and Profile of Rim Flange

Rim Width (Inch)

ET :

Distance from Rim Center to Wheel have Contacting

Surface (mm)

a :

Rim Width (Inch)

d :

Rim Diameter (Inch)

Four Season Mud & Snow

P 215/75 R 15 94 H M+S

Speed Rating (max. 210km/h)

Load Range (below 670kg)

Rim Diameter (inch)

Radial Tire

Aspect Ratio = (Section Height

Section

Width) x 100

Section Width (mm)

Passenger Car

215/65 R 16 93 V

Speed Rating (max. 240km/h)

Load Range (below 650kg)

Rim Diameter (inch)

Radial Tire

Aspect Ratio = (Section Height

Section

Width) x 100

Section Width(mm)

Summer Tire

2E-4 TIRES AND WHEELS

COMPONENT LOCATOR

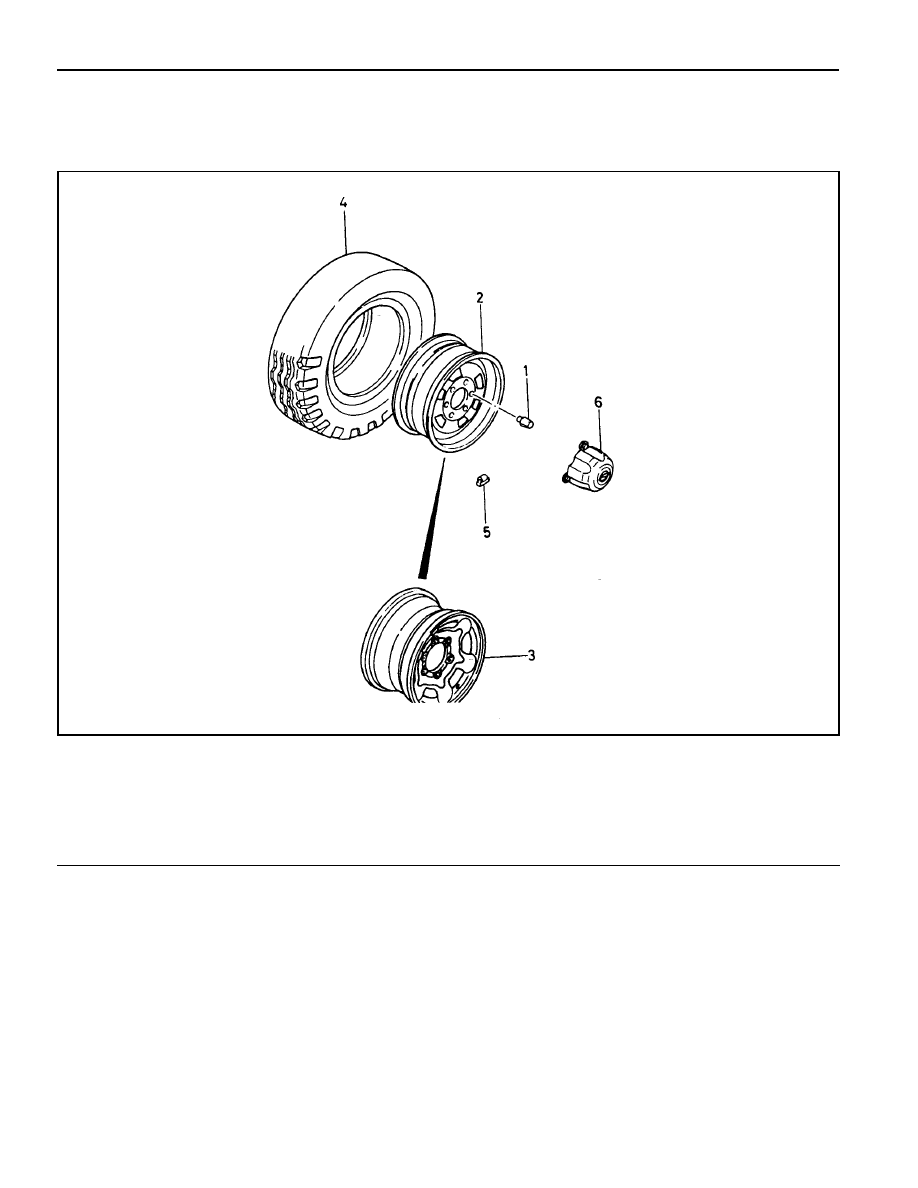

WHEEL AND TIRE

1 Wheel Bolts ................. Steel Wheel : 80-120 Nm

.......................... Aluminium Wheel : 110-130 Nm

2 Steel Wheel
3 Aluminium Wheel

4 Tire
5 Steel Wheel Weight Balance
6 Hub Cap
