REAR SUSPENSION 2D-3

HEATING

Check

Lack of Oil

Insufficient Backlash of Gears

Excessive Preload of Bearing

Action

Replenish

Adjust

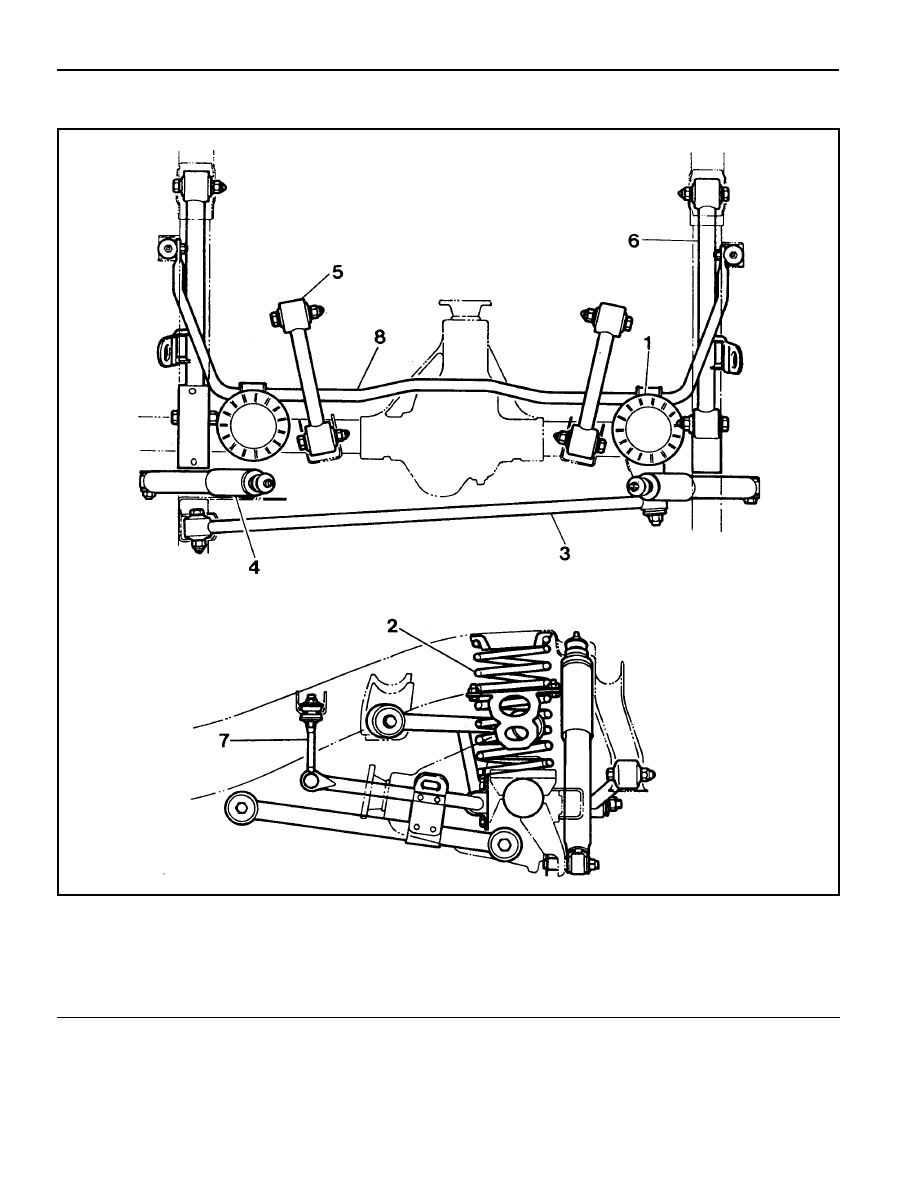

2D-4 REAR SUSPENSION

1 Spring Seat
2 Coil Spring
3 Lateral Rod
4 Shock Absorber

5 Upper Arm
6 Lower Arm
7 Connecting Link
8 Stabilizer Bar

COMPONENT LOCATOR

REAR SUSPENSION 2D-5

MAINTENANCE AND REPAIR

ON-VEHICLE SERIVCE

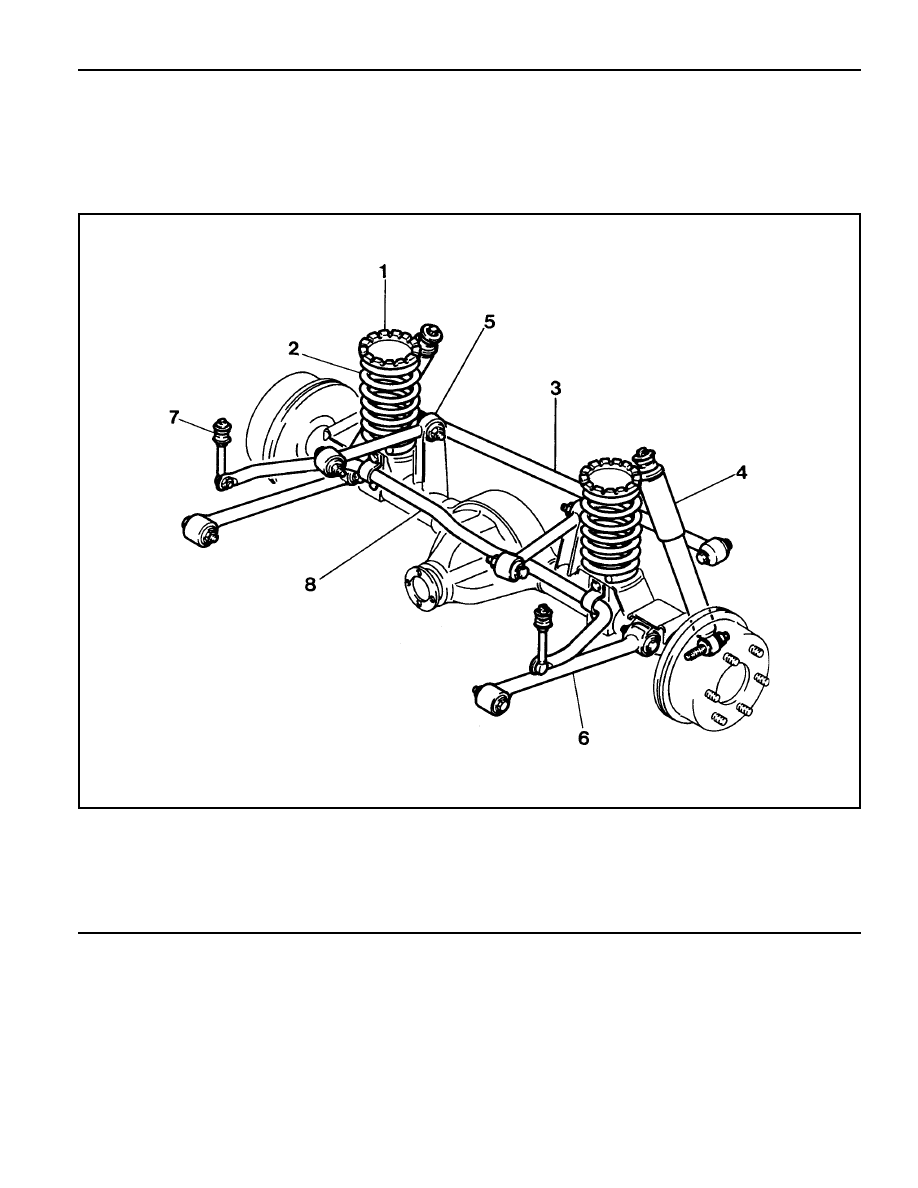

REAR SUSPENSION (5 - LINK)

1 Spring Seat
2 Coil Spring
3 Lateral Rod
4 Shock Absorber

5 Upper Arm
6 Lower Arm
7 Connecting Link
8 Stabilizer Bar

2D-6 REAR SUSPENSION

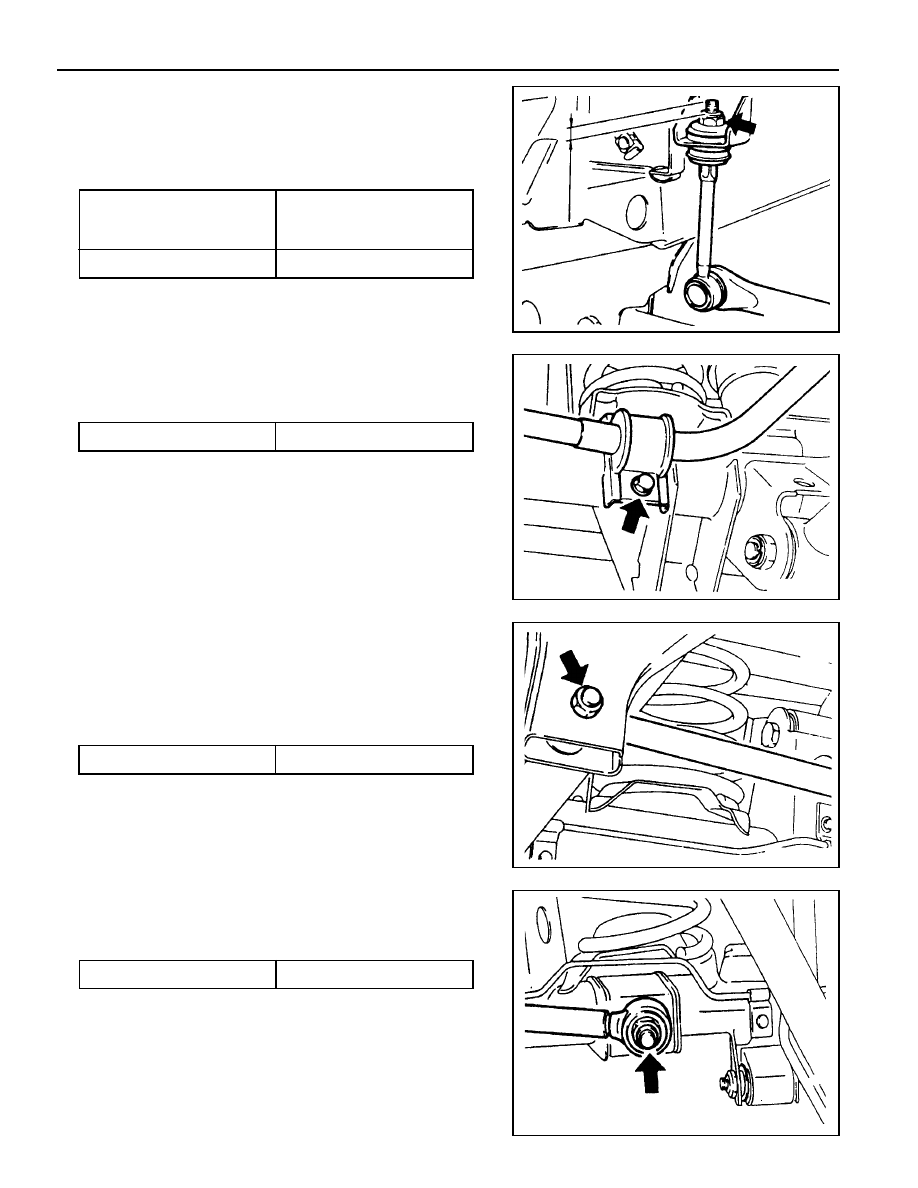

Removal & Installation Procedure

Stabilizer bar

1. Remove the upper nut of the connecting link.

Installation Notice

2. Remove the stabilizer bar cap fixing bolts (arrow) and

remove the stabilizer bar.

Installation Notice

Tightening Torque

16 - 22 Nm

Distance Between the Nut

end and the Screw end

10 - 13 mm

Tightening Torque

30 - 45 Nm

Lateral Rod

1. Remove the lateral rod fixing nut from the frame.

Notice

Completely press the coil springs.

Installation Notice

2. Remove the lateral rod fixing nut from the rear axle and

remove the lateral rod.

Installation Notice

Tightening Torque

150 - 180 Nm

Tightening Torque

150 - 180 Nm
