BODY WIRING SYSTEM  9A-17

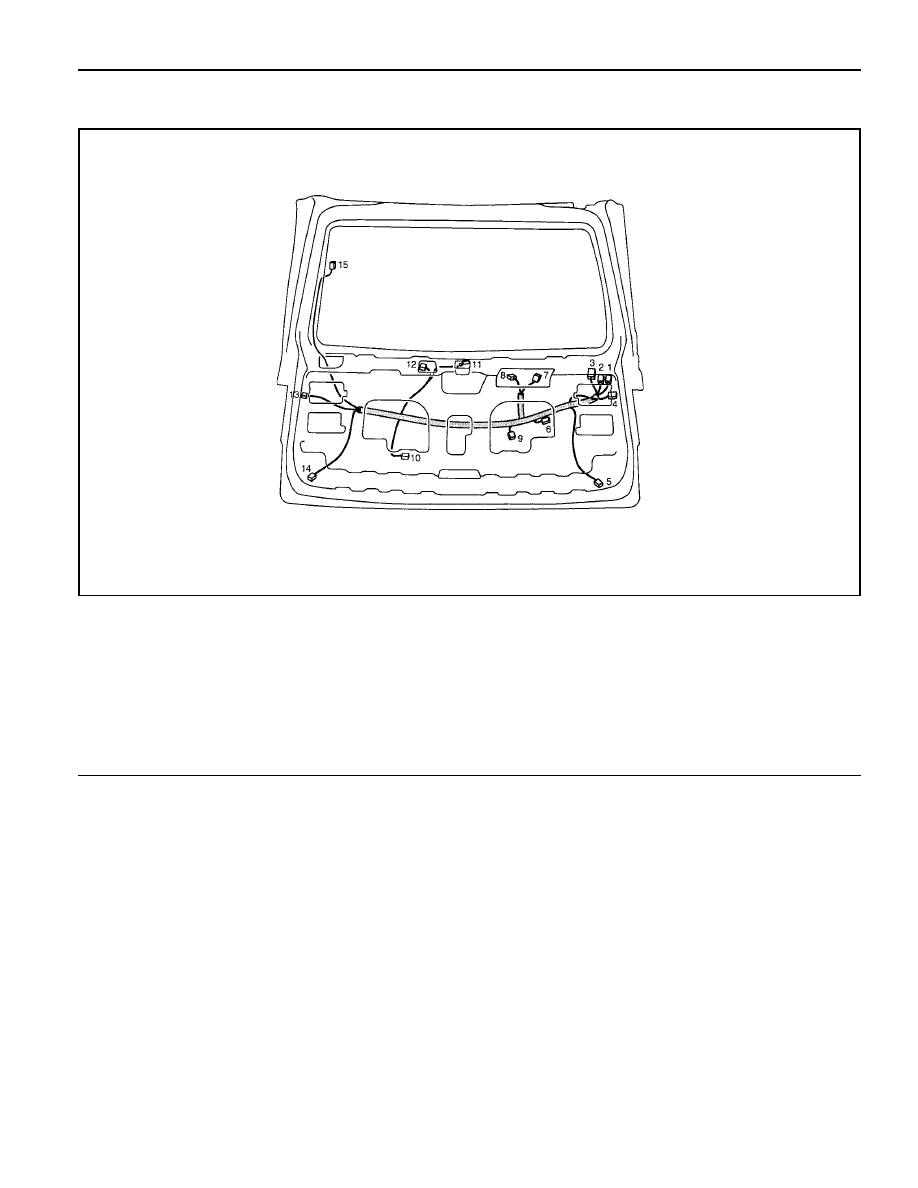

TAIL GATE

1 Floor Wiring Connector
2 Floor Wiring Connector
3 Floor Wiring Connector
4 LH Rear Combination Lamp
5 LH Rear Fog Lamp
6 Joint Connector (Ground)
7 Rear Wiper Motor
8 LH License Lamp

9 Tail Gate Switch

10 Door Lock Actuator

11 High Mounted Stop Lamp

12 RH License Lamp
13 RH Rear Combination Lamp
14 RH Rear Fog Lamp
15 Rear Heated

9A-18  BODY WIRING SYSTEM

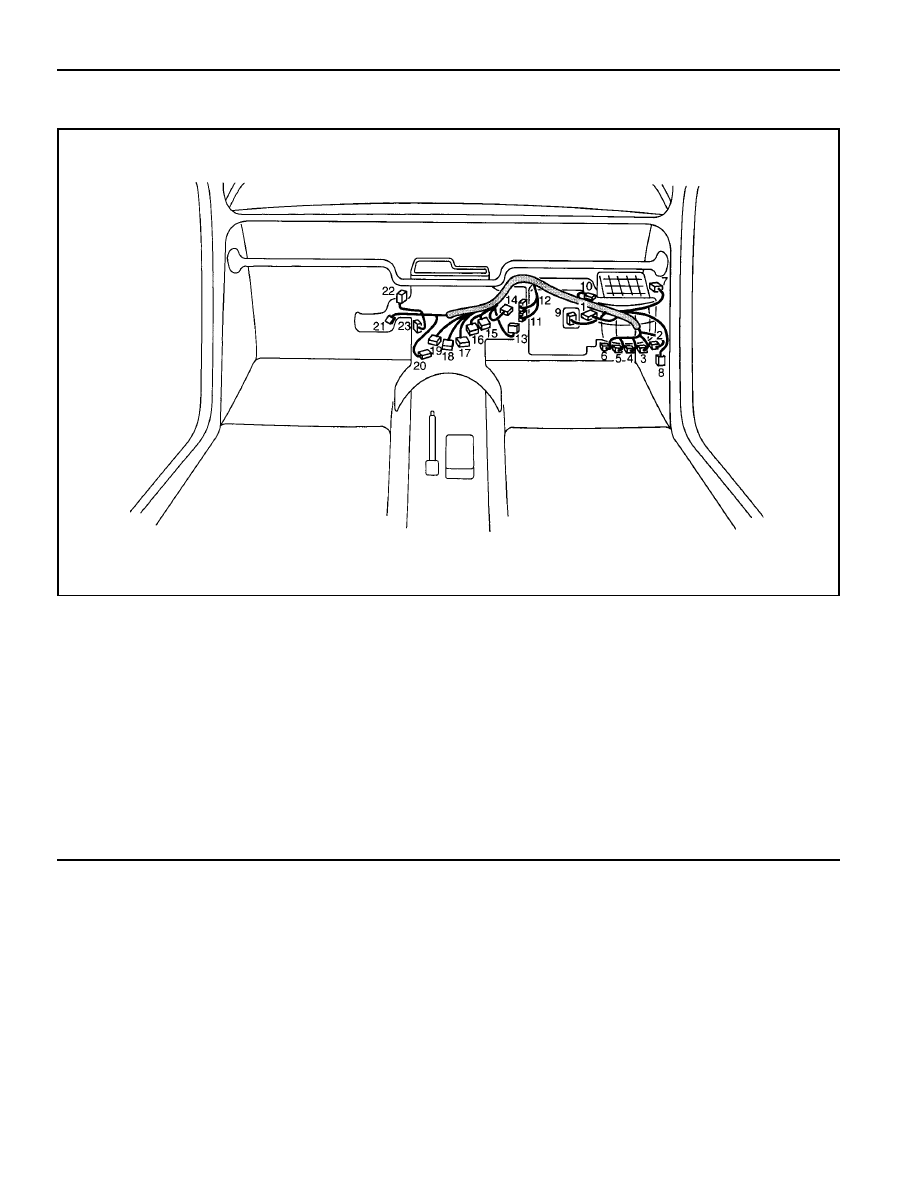

SEMI AUTOMATIC AIR CONDITIONER

1 Main Connector
2 Air Conditioner Relay 2
3 LO Relay
4 ML Relay
5 MH Relay
6 HI Relay
7 Intake Actuator
8 Blower Motor
9 Resistor

10 Diode

11 Amplifier

12 Amplifier

13 Temp  Actuator
14 Blower Relay
15 Water Temperature Sensor
16 Air Conditioner Switch
17 Fan Switch (Auto)
18 PTC
19 Control
20 Mode Switch
21 In Car Sensor
22 Sun Sensor
23 Mode Actuator

BODY WIRING SYSTEM  9A-19

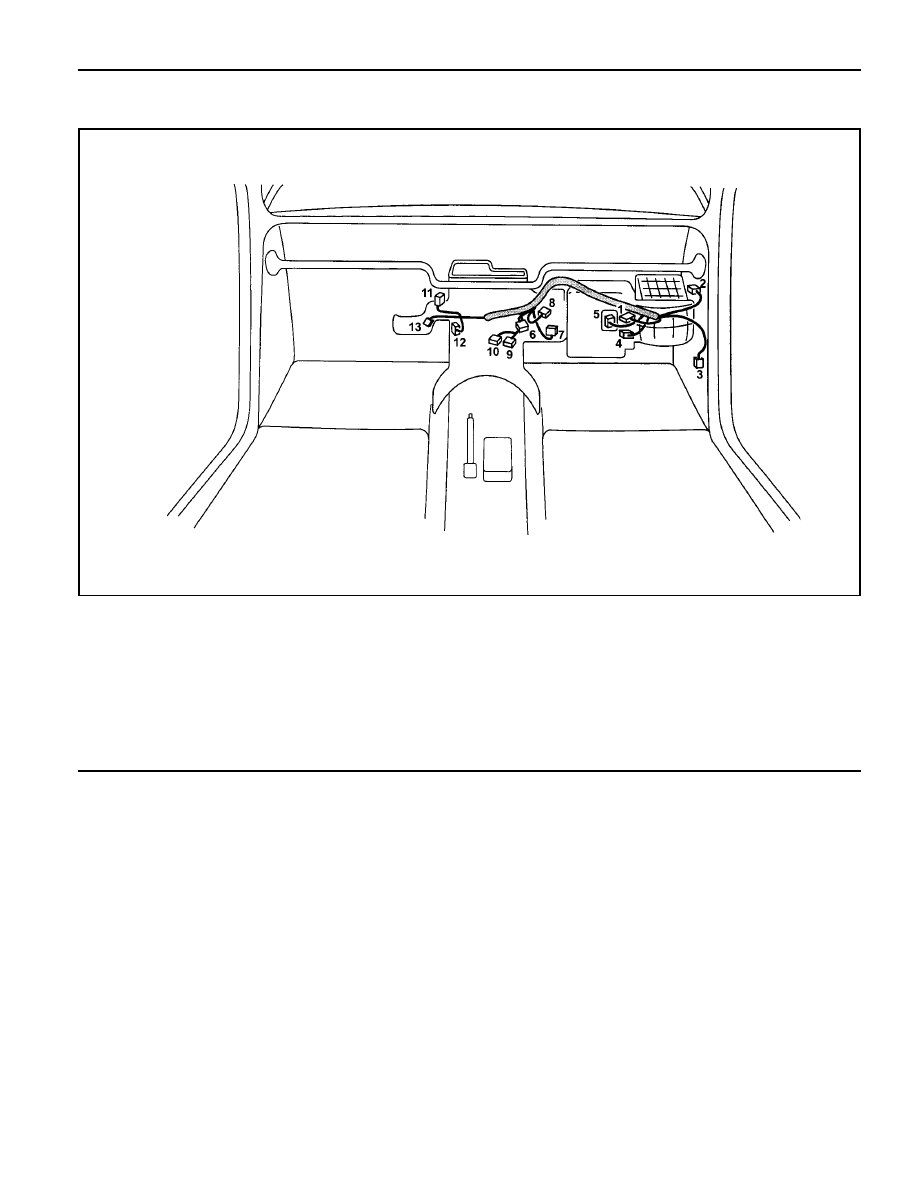

FULL AUTOMATIC  AIR CONDITIONER

1 Main Connector
2 Intake Actuator
3 Blower Relay
4 HI Relay
5 Power TR
6 Water Temperature Sensor
7 Temp  Actuator

8 Blower Relay
9 Control (A)

10 Control (B)

11 Sun Sensor

12 Mode Actuator
13 In Car Sensor

9A-20  BODY WIRING SYSTEM

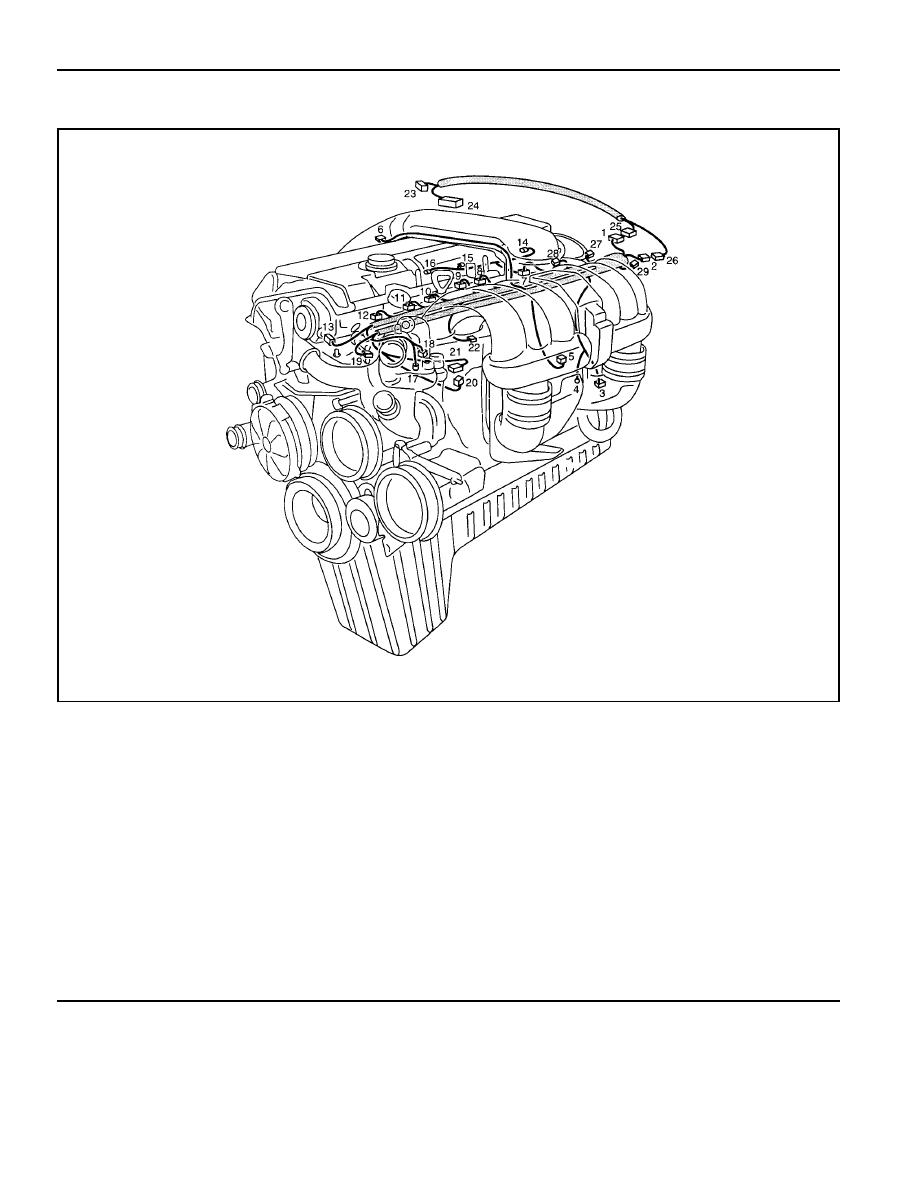

GASOLINE ENGINE (MSE)

1 ECU Main Wiring Connector
2 ECU Main Wiring Connector
3 Crankshaft Position Sensor
4 Oil Pressure Switch
5 Knock Sensor 2
6 Hot-Film Air Mass Sensor
7 Injector 6
8 Injector 5
9 Injector 4

10 Injector 3

11 Injector 2

12 Injector 1
13 Camshaft Adjustment Magnet

14 Ignition Coil 3
15 Ignition Coil 2
16 Ignition Coil 1
17 Temperature Sensor (Gauge)
18 Double Sensor
19 Camshaft Position Sensor
20 Knock Sensor 1
21 Throttle Regulating Unit
22 Resonance Flap
23 Main Wiring Connector
24 ECU
25 ECU Engine Wiring Connector
26 ECU Engine Wiring Connector
