BODY WIRING SYSTEM  9A-9

44 Joint Connector .................................................... Ground
45 Door Unlock Switch
46 Front Fog Lamp Switch
47 Rear Defogger Switch
48 ECS Switch
49 Rear Fog Lamp Switch ........................................ Rear Fog Lamp
50 Digital Clock
51 Thermo Amplifier
52 Glove Box Lamp Switch
53 Air Conditioner Wiring Connetor
54 Glove Box Lamp
55 Ground 6
56 Ground 6 ............................................................. Gasoline E/G
57 Ground 7 ............................................................. Gasoline E/G
58 Wheel Speed Sensor (FR) .................................. ABS 5.0 or ABD 5.0
59 O

2

 Sensor ............................................................ E32 Gasoline E/G

60 Engine Main Wiring Connector ............................ Gasoline E/G with MSE ECU
61 HFM ..................................................................... Gasoline E/G with HFM ECU

61-1 MSE ..................................................................... Gasoline E/G with MSE ECU

62 Front Door Wiring Connector (Passenger Side)
63 Front door Wiring Connector (Passenger Side)
64 Joint Connector (B+)
65 Audio
66 Audio
67 Air Bag Wiring Connector
68 Chime Bell
69 Buzzer
70 Kick Down Switch ................................................. Automatic Transmission
71 Diode 2 ................................................................ Manual Transmission
72 Ground 3
73 Ground 4
74 Front Cigarette Lighter
75 Diode 3 ................................................................ Automatic Transmission, MB
76 S/E Mode Selector Switch .................................... Automatic Transmission

76-1 Mode Switch ........................................................ Automatic Transmission

77 “B” Position Switch .............................................. Automatic Transmission
78 “P” Position Switch .............................................. Automatic Transmission
79 Shift Lock Solenoid Valve ..................................... Automatic Transmission
80 TCCU
81 Ground 5 ............................................................. Gasoline E/G

81-1 Ground 7 ............................................................. Diesel E/G

82 Seat Extension Wiring Connector
83 Transmission Extension Wiring Connector ........... E23 & E32 Gasoline E/G with Manual Transmission

83-1 Transmission Extension Wiring Connector ........... Diesel E/G with MB A/T

84 Transmission Extension Wiring Connector ........... Gasoline E/G with Manual Transmission

84-1 Transmission Extension Wiring Connector ........... Diesel E/G with Manual Transmission or BTRE A/T

85 Transmission Extension Wiring Connector ........... E23 & E32 Gasoline E/G with A/T

85-1 Transmission Extension Wiring Connector ........... Diesel E/G with BTRE A/T

86 Transfer Case Motor
87 Transfer Case Motor
88 Vehicle Speed Sensor
89 Fuel Gauge
90 Acceleration Sensor ............................................. ABS 5.0
91 Seat Belt Switch (Passenger)
92 Seat Heater Switch
93 Head Lamp Leveling Device Switch ..................... Leveling Device

9A-10  BODY WIRING SYSTEM

94 Seat Belt Switch (Driver)
95 Seat Belt Switch (Dirver)
96 Parking Brake Switch
97 Rear Cigarette Lighter
98 OVPR ................................................................. Gasoline E/G
99 LH Side Repeater ............................................... Rear Fog Lamp

100 Engine Wiring Connector
101 Engine Joint Connector
102 Engine Joint Connector ...................................... Gasoline E/G
103 ECS Engine Wiring Connector ........................... Diesel E/G & Gasoline E/G with HFM ECU
104 ABD Engine Wiring Connector ........................... ABD 5.0
105 ABD Engine Wiring Connector ........................... ABD 5.0

105-1 ABS Engine Wiring Connector ............................ ABS 5.0

106 Canister Purge Solenoid Valve ........................... Gasoline E/G with MSE ECU

106-1 Canister Purge Solenoid Valve ........................... E20 & E23 Gasoline E/G with FHM ECU

107 Econo/Standard Solenoid Valve ......................... Gasoline E/G with Automatic Transmission
108 CO Potentio Meter .............................................. Gasoline E/G with HFM ECU & CO Potentio Meter
109 Front Wiper Motor

110 O

2

 Sensor ........................................................... E20 or E23 Gasoline E/G

111 RH Side Repeater

112 Engine Wiring Connector
113 Vertical Sensor
114 Lateral Sensor
115 Diagnosis
116 Joint Box ............................................................. Gasoline E/G (E32)
117 Canister Purge Solenoid Valve ........................... E32 Gasoline E/G with HFM ECU
118 Led Antenna ...................................................... Rolling code type Immobilizer
119 E-key Connector ................................................ Gasoline E/G with Rolling Code Type Immobilizer

120 Receiver Unit ...................................................... Gasoline E/G with Rolling Code Type Immobilizer
121 Receiver Unit ...................................................... Gasoline E/G with Rolling Code Type Immobilizer
122 Receiver Antenna .............................................. Gasoline E/G with Rolling Code Type Immobilizer
123 Receiver Connector ........................................... Gasoline E/G with Rolling Code Type Immobilizer
124 ICU Connector .................................................... Gasoline E/G with Rolling Code Type Immobilizer
125 ICU ..................................................................... Gasoline E/G with TOD (MSE ECU 3.2 Engine Only)
126 CAN Line ............................................................ Gasoline E/G with TOD (MSE ECU 3.2 Engine Only)
127 TOD ................................................................... Gasoline E/G with TOD (MSE ECU 3.2 Engine Only)
128 TOD ................................................................... Gasoline E/G with TOD (MSE ECU 3.2 Engine Only)
129 Transfer Case Speed Sensor ............................. Gasoline E/G with TOD (MSE ECU 3.2 Engine Only)
130 Engine Main Wiring Connector ........................... Gasoline E/G with MSE ECU
131 Remote Engine Start .......................................... Diesel E/G with A/T & Black Out Lamp
132 Remote Engine Start .......................................... Diesel E/G with A/T & Black Out Lamp
133 TCU .................................................................... Diesel E/G with BTRE A/T
134 TCU .................................................................... Diesel E/G with BTRE A/T
135 Ground 5 ............................................................ Diesel E/G
136 Start Protection Relay ......................................... Diesel E/G with Rolling Code Type Immobilizer
137 EGR control unit ................................................. Diesel E/G
138 ICU 1 .................................................................. Diesel E/G with Rolling Code Type Immobilizer
139 ICU 2 .................................................................. Diesel E/G with Rolling Code Type Immobilizer
140 Injection Pump Valve Extension .......................... Diesel E/G with Rolling Code Type Immobilizer
141 Injection Pump Valve Extension .......................... Diesel E/G with Rolling Code Type Immobilizer
142 EGR Solenoid .................................................... Diesel E/G
143 ICU led ................................................................ Diesel E/G with Rolling Code Type Immobilizer
144 Immobilizer Solenoid Valve .................................. Diesel E/G with Crypto Type Immobilizer
147 Immobilizer Unit ................................................... Diesel E/G with Crypto Type Immobilizer

BODY WIRING SYSTEM  9A-11

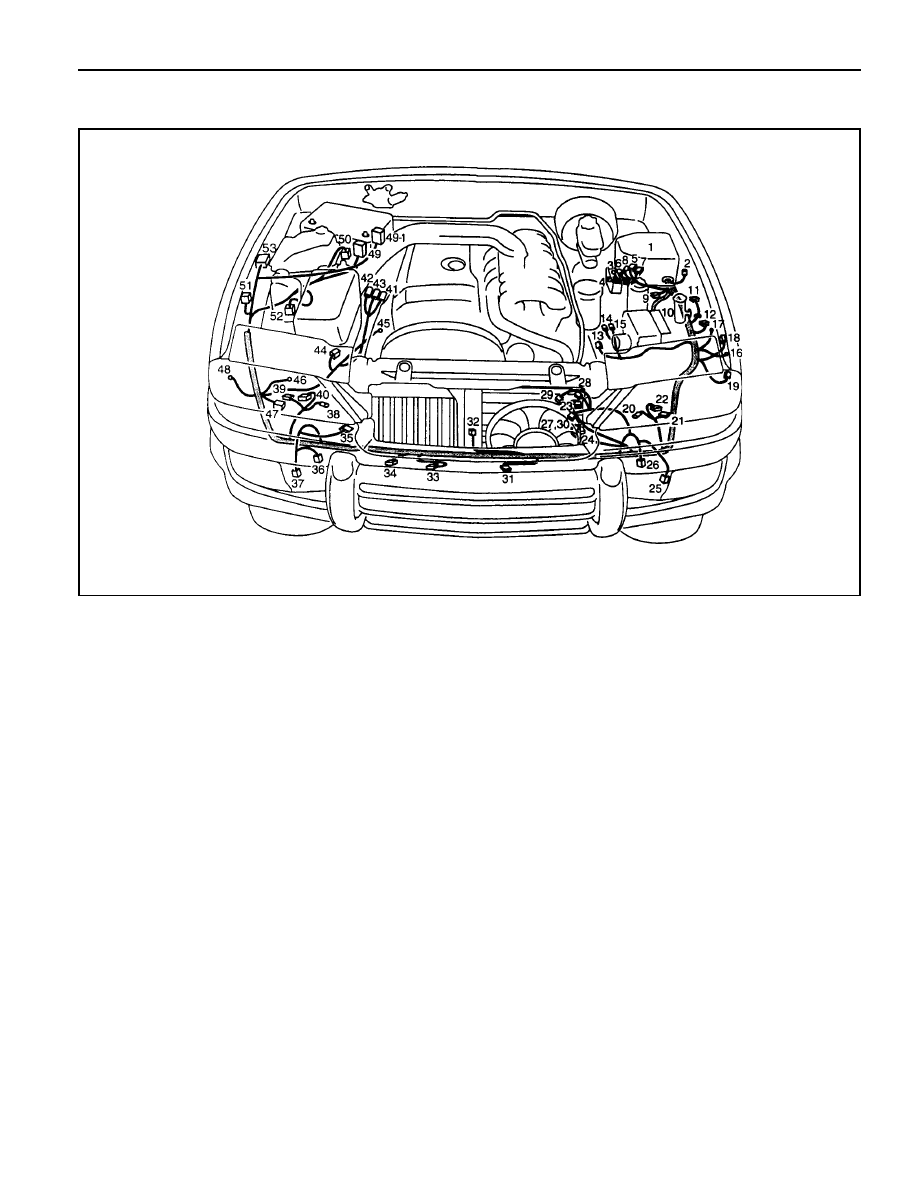

ENGINE ROOM

1 Engine Room Relay Box

1.1 Main Wiring Connector
1.2 Main Wiring Connector
1.3 Main Wiring Connector ........................................ Gasoline E/G
1.4 Joint
1.5 Compressor, Condenser Fan Relay ..................... Diesel E/G
1.6 Condenser Fan Relay 2
1.7 Air Conditioner Relay
1.8 Resistor with Diode .............................................. Gasoline E/G
1.9 Front Fog Lamp Relay

1.10 Condenser Fan Relay 1

1.11 Tail Lamp Relay

1.12 Horn Relay

2 Octane Selector ................................................... Gasoline E/G with HFM
3 Preheating Unit .................................................... Diesel E/G
4 Preheating Timer Unit .......................................... Diesel E/G
5 ECS Main Wiring Connector ................................ ECS
6 Brake Leveling Fluid Sensor
7 ABD Main Wiring Connector ................................ ABD 5.0

7-1 ABS Main Wiring Connector ................................ ABD 5.0

8 ABD main Wiring Connector ................................ ABD 5.0
9 Engine Temperature Sensor ................................ Diesel E/G

10 ABS 5.0 ECU ....................................................... ABS 5.0

10-1 ABD 5.0 Modulator ............................................... ABD 5.0

11 Front Washer Motor ............................................. Diesel E/G

12 Head Lamp Relay
13 Compressor ......................................................... Air Conditioner
14 Wheel Speed Sensor ........................................... ABS 5.0 or ABD 5.0

9A-12  BODY WIRING SYSTEM

15 LH Damper ........................................................... ECS
16 Ground 1
17 Ground 2
18 Locking Hub Solenoid
19 Condenser Fan Relay ......................................... Gasoline E/G
20 LH Position Lamp
21 LH Head Lamp
22 LH Head Lamp Leveling Device ........................... Leveling Device
23 Thermo Switch 2 .................................................. Gasoline E/G with HFM
24 Thermo Switch 3 .................................................. Gasoline E/G with HFM & Air Conditioner
25 LH Front Fog Lamp
26 LH Horn ............................................................... Black Out Driving Lamp (Domestic)
27 Condenser Fan Motor ......................................... Diesel E/G
28 Black Out Driving Lamp ....................................... Black Out Driving Lamp (Domestic)
29 LH Horn ............................................................... Leveling Device
30 LH Condenser Fan Motor .................................... Gasoline E/G with Air Conditioner
31 Thermo Switch 1 .................................................. Diesel E/G or Gasoline E/G with HFM
32 Resistor ............................................................... Gasoline E/G with Air Conditioner
33 Thermo Switch 4 .................................................. Gasoline E/G with HFM & Air Conditioner
34 Ambient Censor ................................................... Air Conditioner
35 RH Condenser Fan Motor .................................... Gasoline E/G
36 RH Horn
37 RH Front Fog Lamp
38 RH Position Lamp
39 RH Head Lamlp
40 RH Head Lamp Leveling Device .......................... Leveling Device
41 Wheeling Sensor ................................................. ECS
42 Wheel Speed Sensor (FR) .................................. ABS 5.0, 5.3 or ABD 5.0, 5.3
43 RH Damper .......................................................... ECS
44 Alternator Extension Connector ........................... Gasoline E/G
45 Alternator ............................................................. Gasoline E/G
46 Alternator Extension Joint box .............................. Diesel E/G
47 Alternator Extension Connector ........................... Diesel E/G
48 Ground 3
49 Fusible Link Box................................................... Gasoline E/G

49-1 Fusible Link Box................................................... Diesel E/G

50 Receiver Dryer ..................................................... Gasoline E/G with Air Conditioner

50-1 Receiver Dryer ..................................................... Diesel E/G with Air Conditioner

51 Hood Switch ......................................................... Diesel E/G with Black Out Driving Lamp
52 Front Washer Motor ............................................. Gasoline E/G
53 Main Wiring Connector
