SsangYong Musso. Manual - part 13
BODY WIRING SYSTEM 9A-13

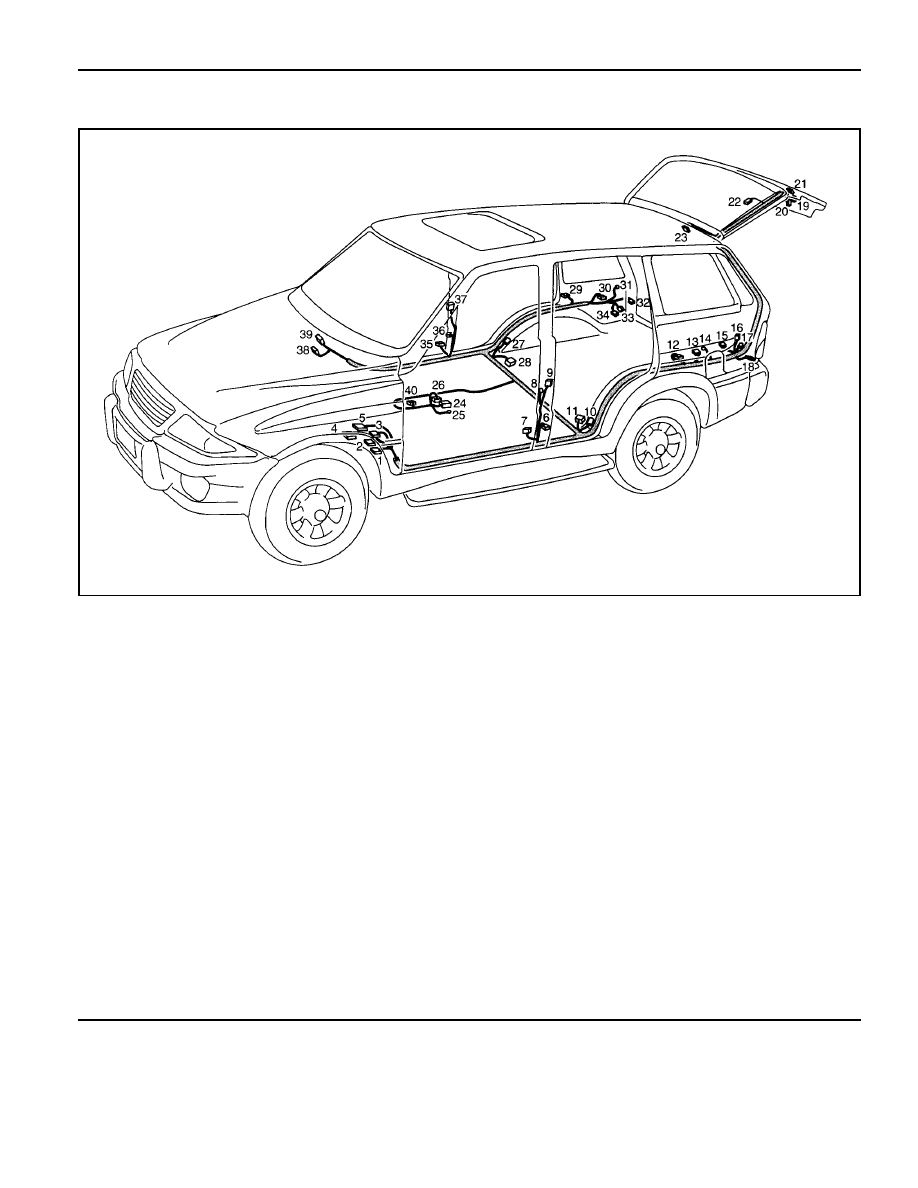

FLOOR
1 ECS Main Wiring Connector ........................ ECS
2 Main Wiring Connector
3 Main Wiring Connector
4 Main Wiring Connector
5 ABD Main Wiring Connector ........................ ABD
6 LH Front Door Switch
7 LH Tension Reducer
8 Ground 1
9 LH Rear Door Wiring Connector
10 Wheel Speed Sensor (RL) .................. ABD, ABS
11 Damper (RL) ................................................ ECS
12 LH Rear Door Switch
13 LH Rear Speaker
14 Ground 2
15 Power Socket
16 Power Antenna
17 Diode
18 LH Rear Combination Lamp
19 Tail Gate Wiring Connector
20 Tail Gate Wiring Connector
21 Tail Gate Wiring Connector
22 Rear Heated
23 Luggage Lamp
24 ABD ECU ..................................................... ABD
25 Ground 4 ..................................................... ABD
26 ECS ............................................................. ECS
27 Wheel Speed Sensor (RR) ................. ABD, ABS
28 Damper (RR) ............................................... ECS
29 RH Rear Door Switch
30 RH Rear Speaker
31 Ground 3
32 RH Rear Combination Lamp
33 Trailer Connector
34 Rear Washer Motor
35 RH Tension Reducer
36 RH Front Door Switch
37 RH Rear Door Wiring Connector
38 RH Front Door Wiring Connector
39 Wheel Speed Sensor (RR) ................. ABD, ABS
40 Acceleration Sensor ..................................... ABD
