BODY WIRING SYSTEM  9A-21

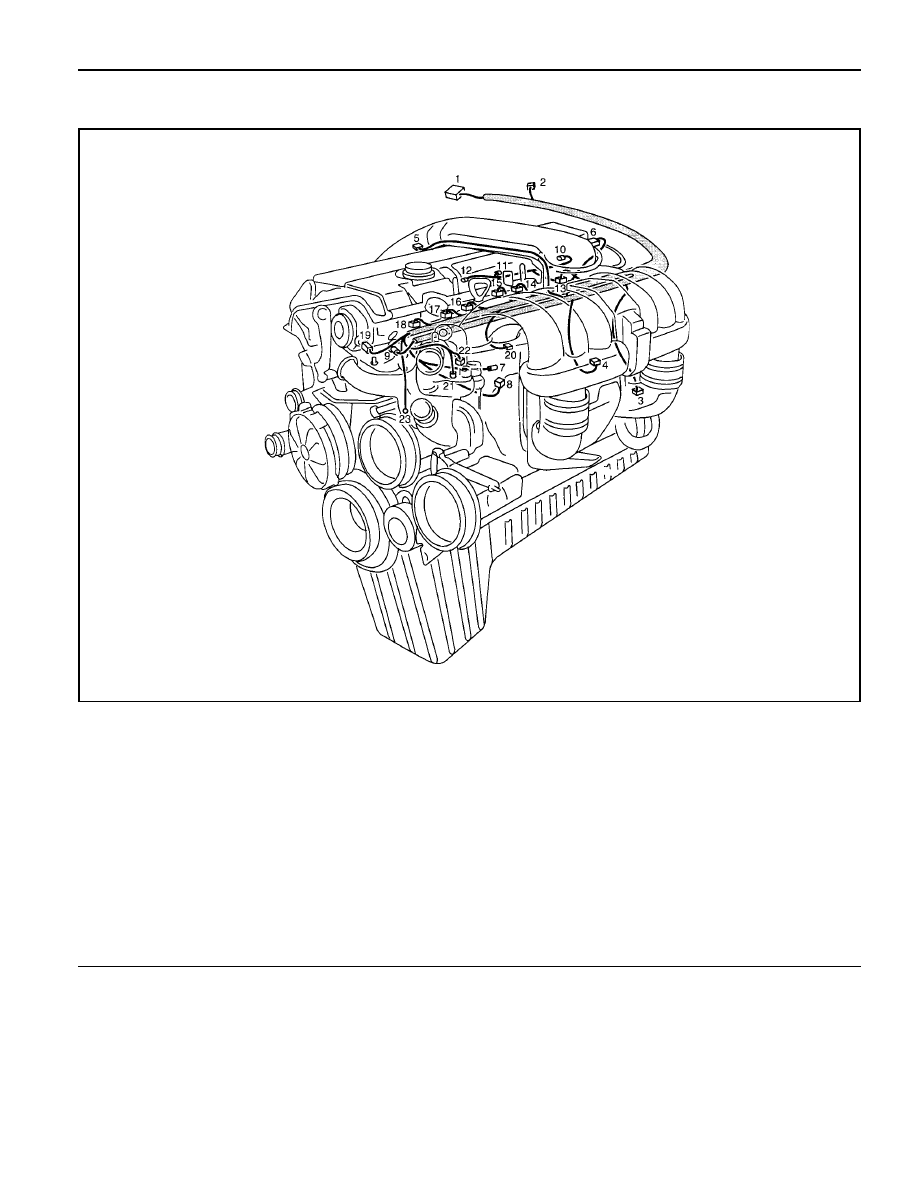

GASOLINE ENGINE (HFM)

1 ECU
2 Main Wiring Connector
3 Crankshaft Position Sensor
4 Knock Sensor
5 Hot-Film Air Mass Sensor
6 Aspiration Sensor
7 Throttle Regulating Unit
8 Knock Sensor
9 Camshaft Position Sensor

10 Ignition Coil 3

11 Ignition Coil 2

12 Ignition Coil 1

13 Injector 6
14 Injector 5
15 Injector 4
16 Injector 3
17 Injector 2
18 Injector 1
19 Camshaft Adjustment Magnet
20 Resonance Flap
21 Temperature Sensor (Gauge)
22 Double Sensor
23 Ground

9A-22  BODY WIRING SYSTEM

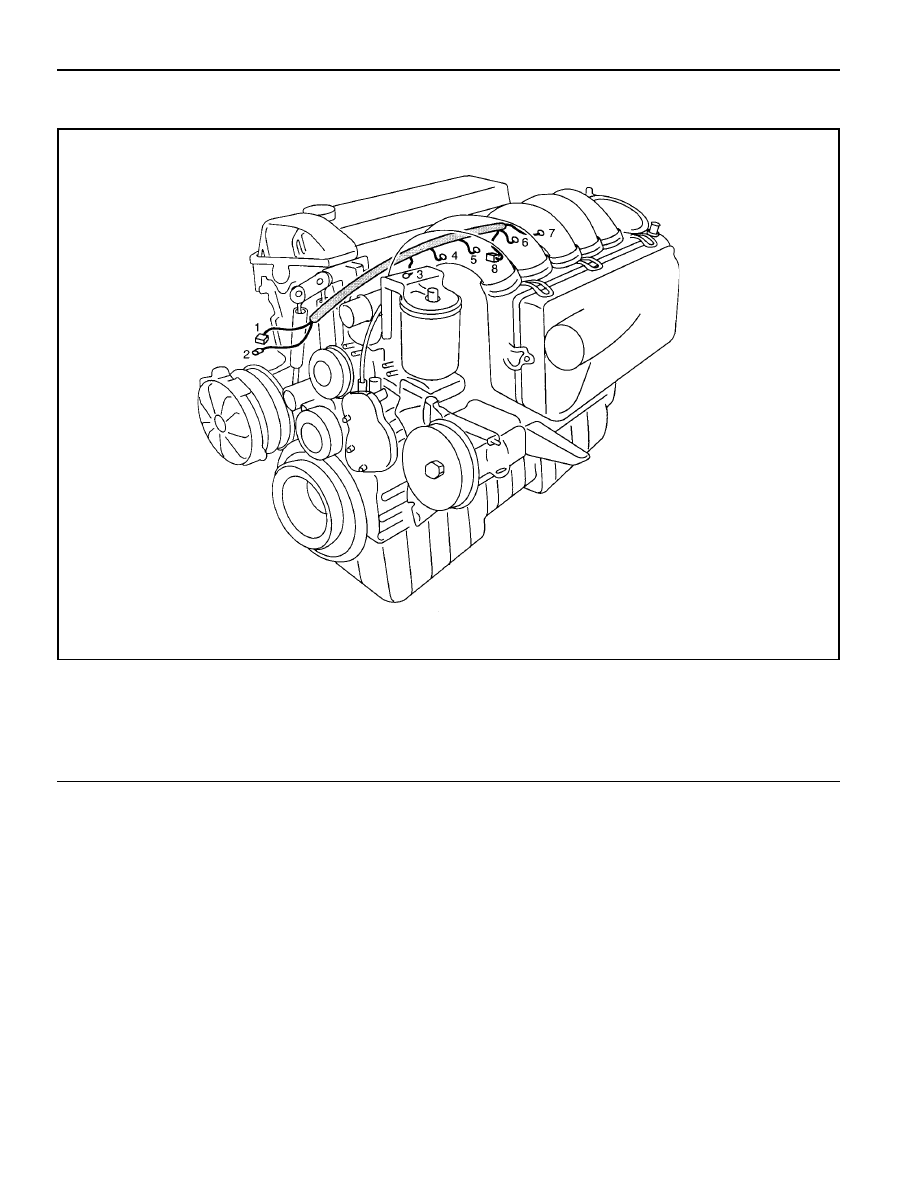

DIESEL ENGINE

1 Preheating Unit
2 Main Wiring Connector
3 Glow Plug 1
4 Glow Plug 2

5 Glow Plug 3
6 Glow Plug 4
7 Glow Plug 5
8 Water  Temperature Sensor (Gauge)

BODY WIRING SYSTEM  9A-23

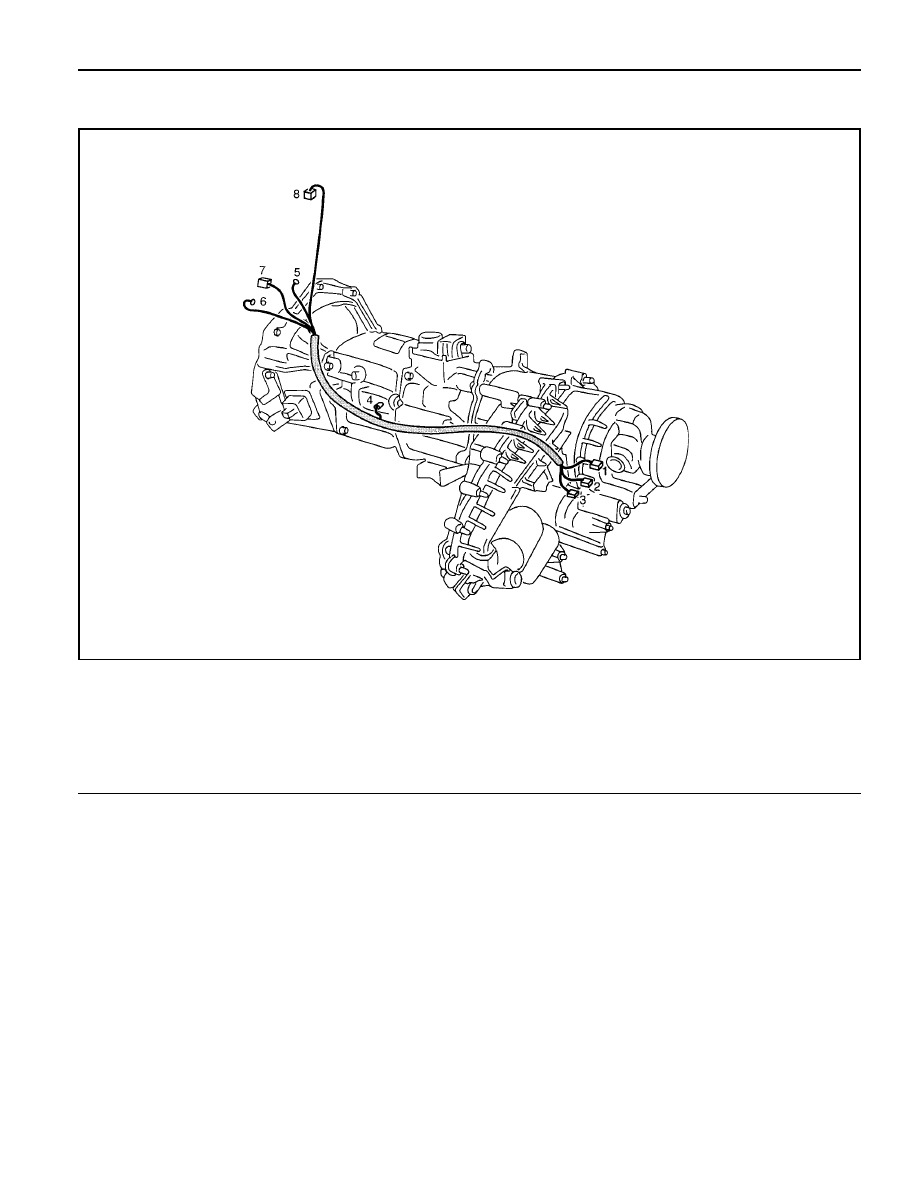

MANUAL TRANSMISSION

1 Main Wiring Connector ...................... Diesel E/G
2 Main Wiring Connector .................. Gasoline E/G
3 Main Wiring Connector ......................... Gasoline

(E32, E23) E/G

4 Back Up Switch

5 Oil Pressure Switch
6 Start Motor Solenoid
7 Micro Switch
8 Speed Sensor (Turbo Diesel Engine Only)

9A-24  BODY WIRING SYSTEM

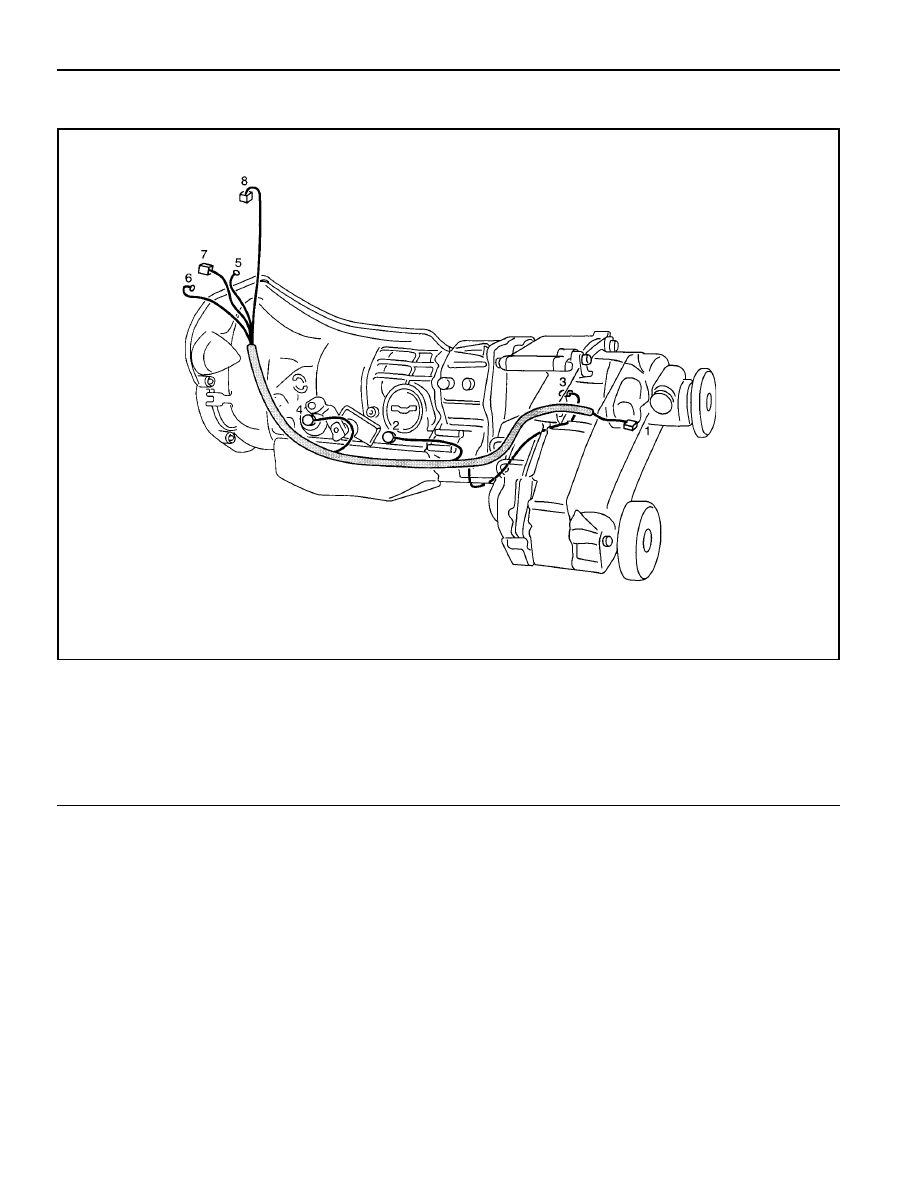

AUTOMATIC TRANSMISSION (BENZ)

1 Main Wiring Connector
2 Start Lock Switch
3 Automatic Transmission Change Over Valve
4 Transmission Overload

Protection Switch ........................... Gasoline E/G

5 Oil Pressure Switch
6 Start Solenoid
7 Micro Switch ....................................... Diesel E/G
8 Speed Sensor .......................... Turbo Diesel E/G
