MUSSO-SPORTS  1A-17

SUPPLEMENT

KAA5A300

REMOVAL AND INSTALLATION

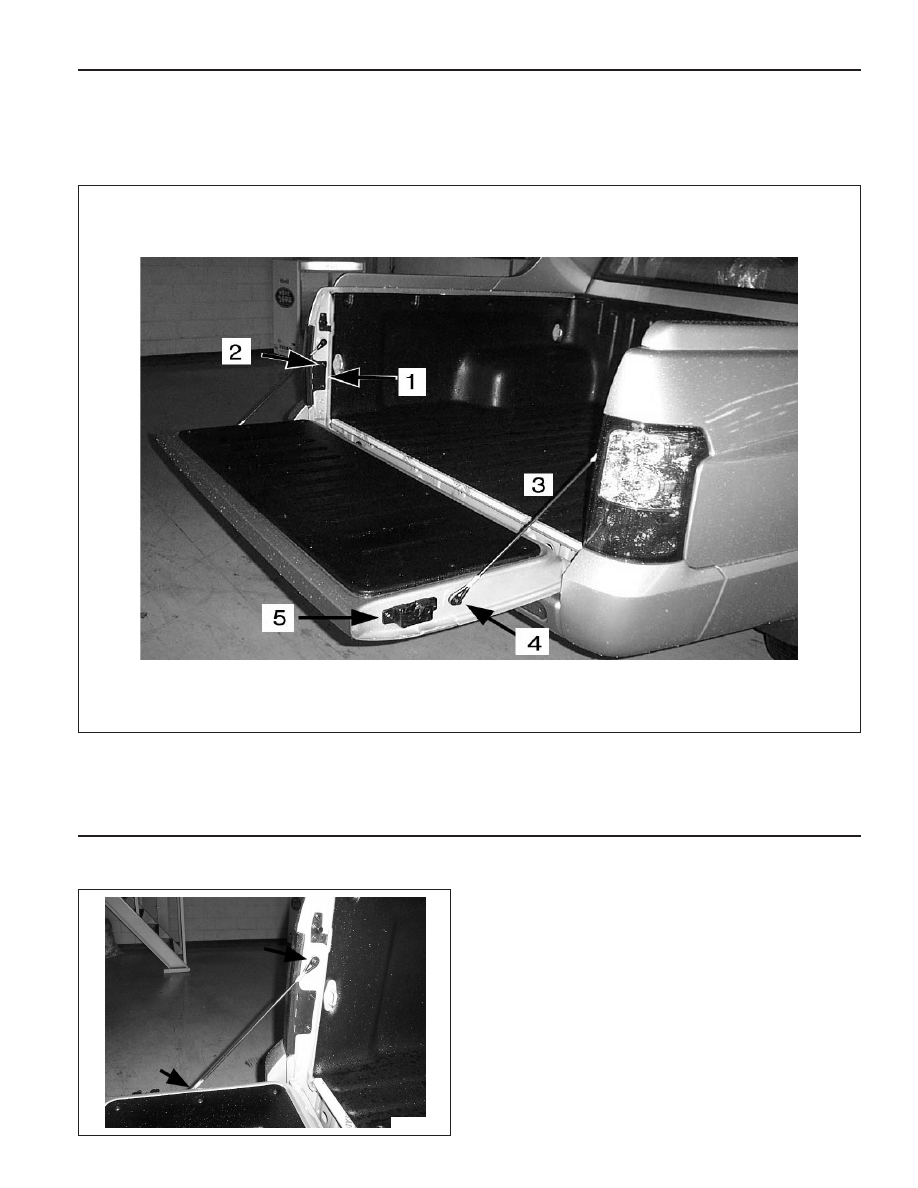

TAIL GATE

Preceding repair: remove trim cover of tail gate

1 Hinge Assembly of Tail Gate
2 Fixing Bolt of Tail Gate Hinge
3 Stopper of Tail Gate

4 Fixing Bolt of Tail Gate Stopper
5 Latch of Tail Gate and Rod Assembly

KAA5A020

Removal

1. After pulling the tail gate, release fixing bolt of left

tail gate and right tail gate.

Notice: While stopper fixing bolt of tail gate is released
not released completely, put this one on the hole of
installation.

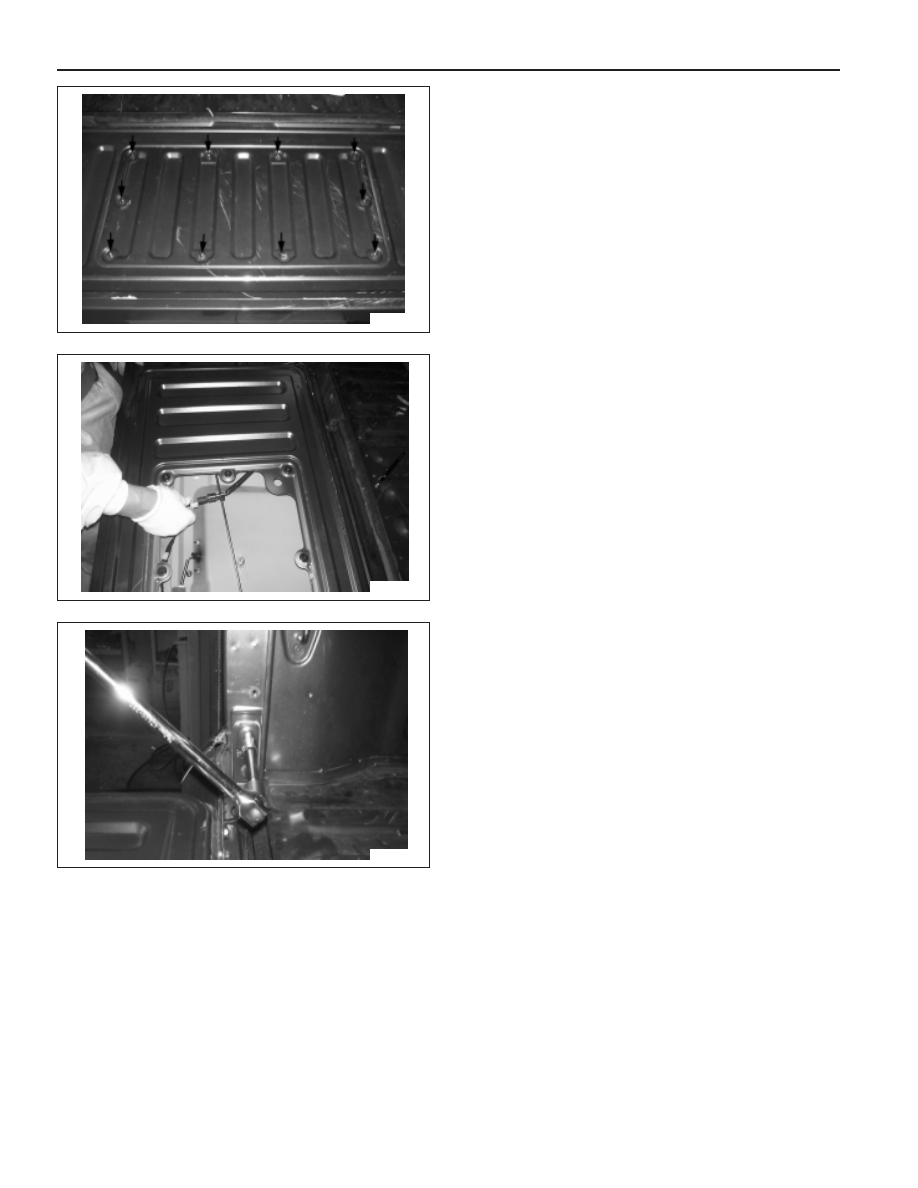

1A-18  MUSSO-SPORTS

SUPPLEMENT

KAA5A020

KAA5A020

3. Remove the wiring connector of tail lamp.

4. Remove the wiring and grommet which is linked with

tail gate.

5. Remove left and right hinge of tail gate.

6. Remove the assembly of tail gate.

KAA5A020

2. After pulling the tail gate, release fixing screw of tail

gate inside and then remove pannel.

MUSSO-SPORTS  1A-19

SUPPLEMENT

KAA5A020

KAA5A020

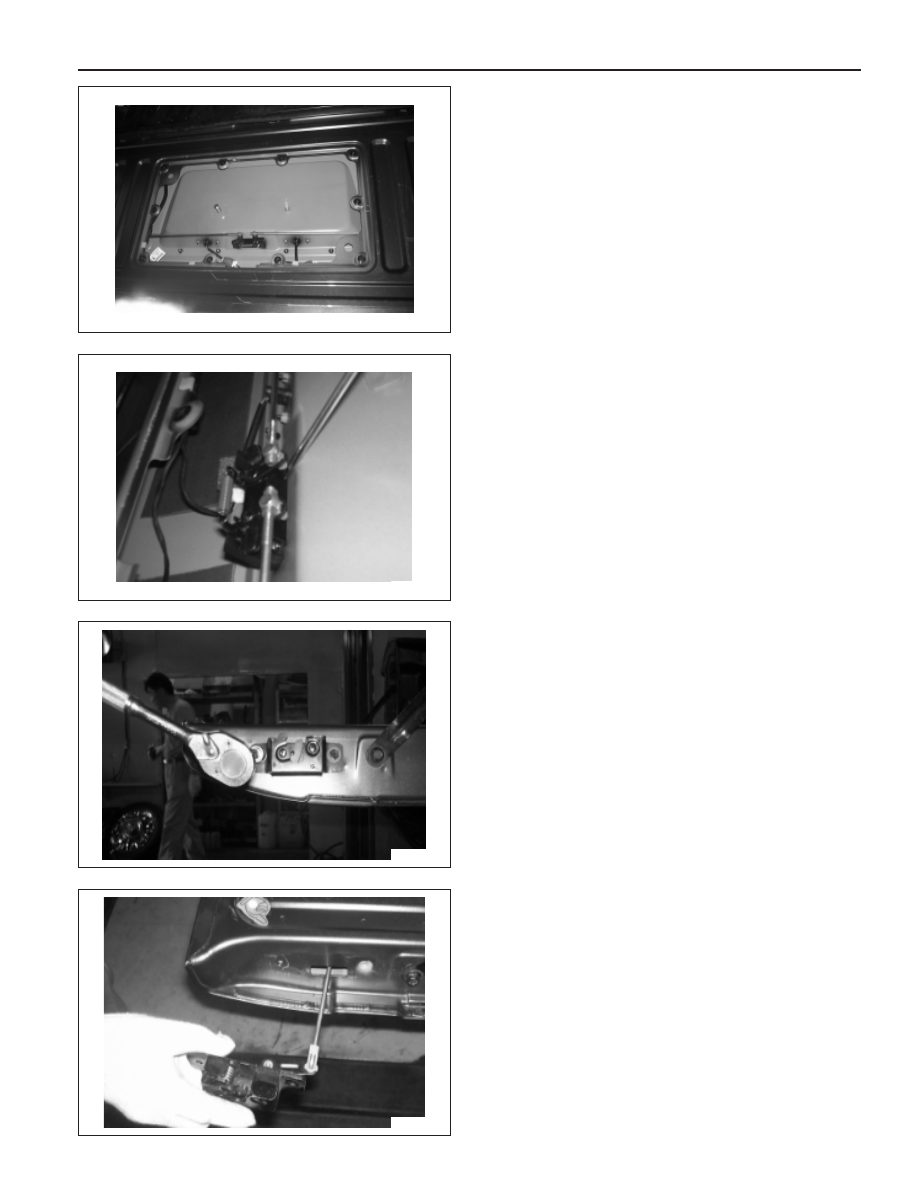

LATCH OF TAIL GATE AND ROD
ASSEMBLY

1. Remove the inside pannel of tail gate.

2. After pushing the lower section linking with rod which

is connected with latch of tail gate, remove rod from
the latch.

KAA5A020

KAA5A020

3. Release the fixing bolt (2 EA) of latch, tail gate.

4. Simultaneously, remove the latch of tail gate and rod.

5. Install the reverse order of removal.

1A-20  MUSSO-SPORTS

SUPPLEMENT

KAA5A020

KAA5A020

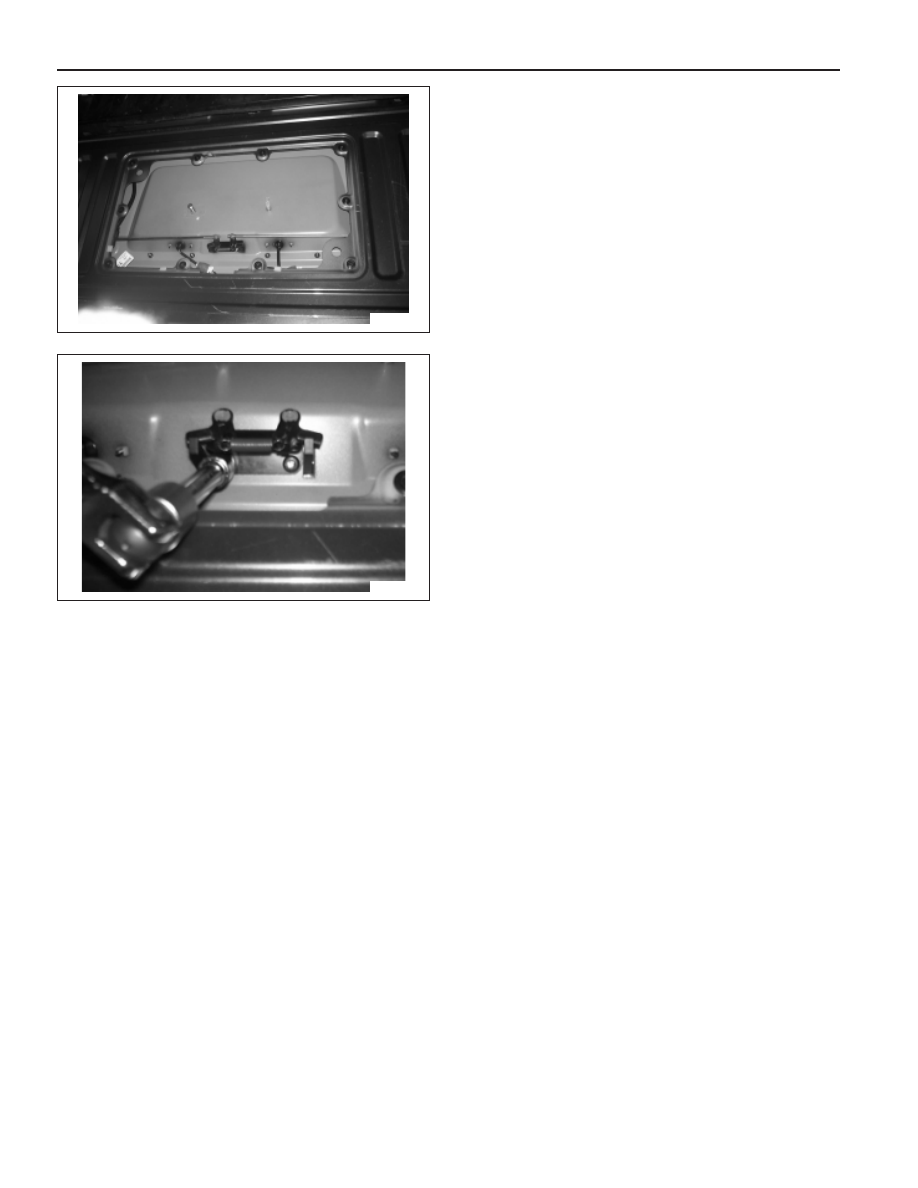

OUT SIDE HANDLE OF TAIL GATE
AND LATCH ACTUATOR.

1. Remove the inside handle of tail gate.

2. Remove the fixing bolt (2 EA) of latch actuator of tail

gate.

3. Remove the outside handle of tail gate.
