SsangYong Musso. Manual - part 4

MUSSO-SPORTS 1A-13

SUPPLEMENT

KAA5A020

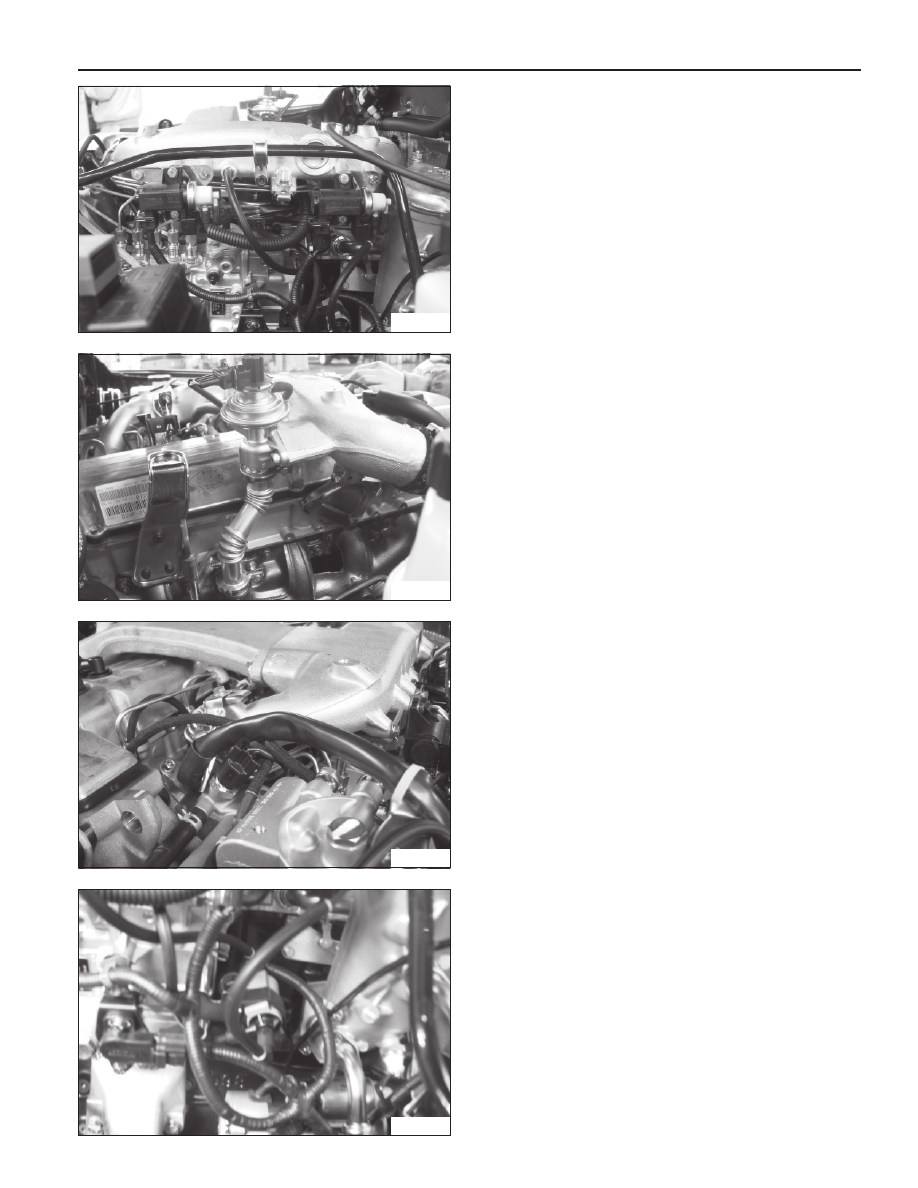

VACUUM MODULATOR 1, 2

Removal and Installation Procedure

1. Disconnect vacuum hose and connector from vacuum

module.

2. After releasing fixing bolt from bracket of intake

manifold, and then remove vacuum modulator.

3. Installation should follow the removal procedures in

the reverse order.

KAA5A020

EGR VALVE AND LIFT SENSOR

Removal and Installation Procedure

1. Disconnect vacuum hose and connector from the

EGR valve.

2. After releasing the clamping bolt/nut of EGR Valve

pipe and then remove the clamp.

3. After releasing fixing bolt of EGR Valve of Intake

Manifold, remove the EGR Valve assembly.

4. Installation should follow the removal procedure in

the reverse order.

COOLANT TEMPERATURE SENSOR

Removal and Installation Procedure

1. Disconnect the coolant temperature sensor from the

coolant temperature sensor.

2. After releasing the coolant temperature sensor from

cylinder block and then remove the coolant tempera-
ture sensor.

3. Installation should follow the removal procedure in

the reverse order.

SOLENOID VALVE

Removal and Installation Procedure

1. Disconnect vacuum hose(3ea) and connector from

the solenoid valve.

2. Remove the solenoid valve from the fixing bracket of

injection pump.

3. Installation should follow the removal procedure in

the reverse order.

1A-14 MUSSO-SPORTS

SUPPLEMENT

KAA5A020

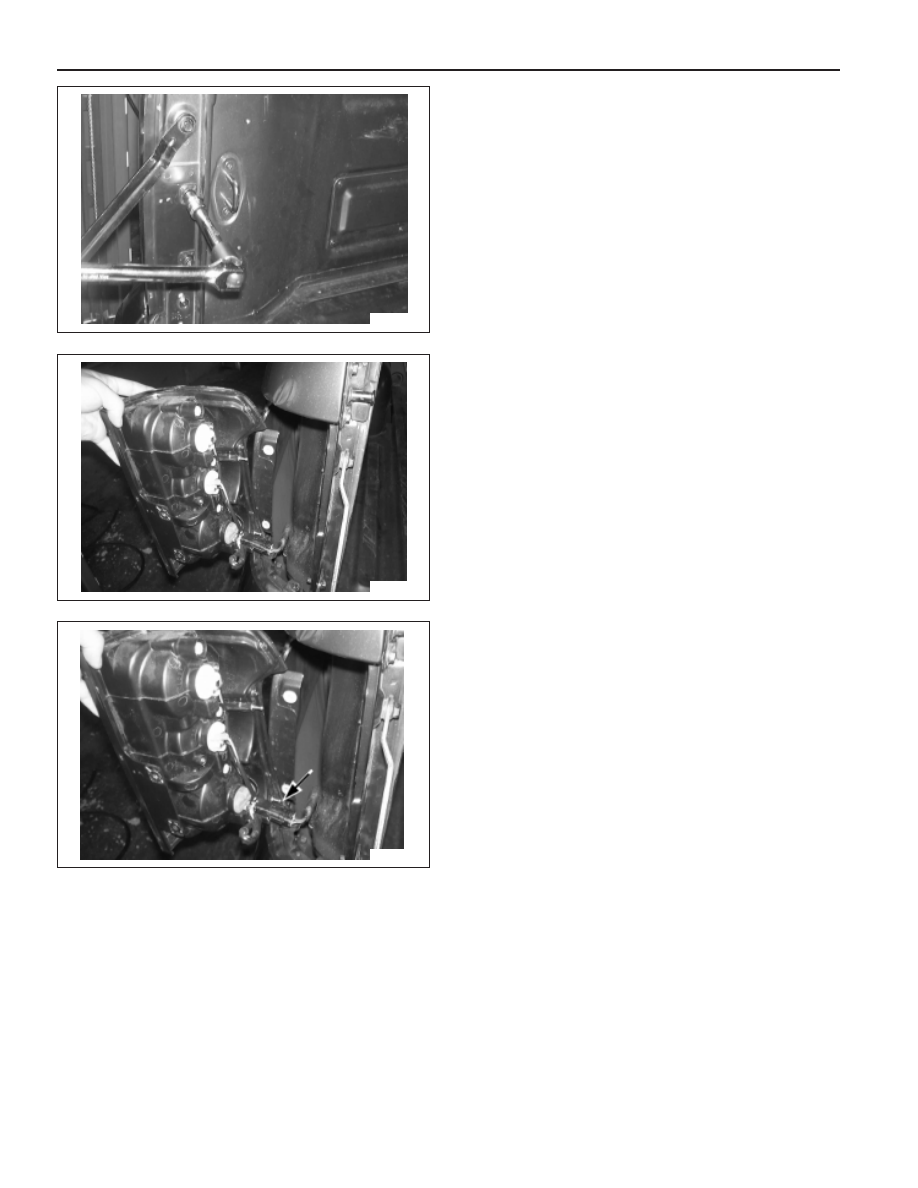

Removal and Installation of Rear Combi-Lamp

1. After pulling the tailgate, release fixing bolt of the

tail lamp assembly.

2. Carefully remove the tail lamp assembly.

3. Remove the wiring connector of tail lamp.

4. Installation should follow the removal procedure in

the reverse order.

MUSSO-SPORTS 1A-15

SUPPLEMENT

KAA5A020

Removal and Installation of Luggage Deck

Preceding work: Removal of tail lamp assembly

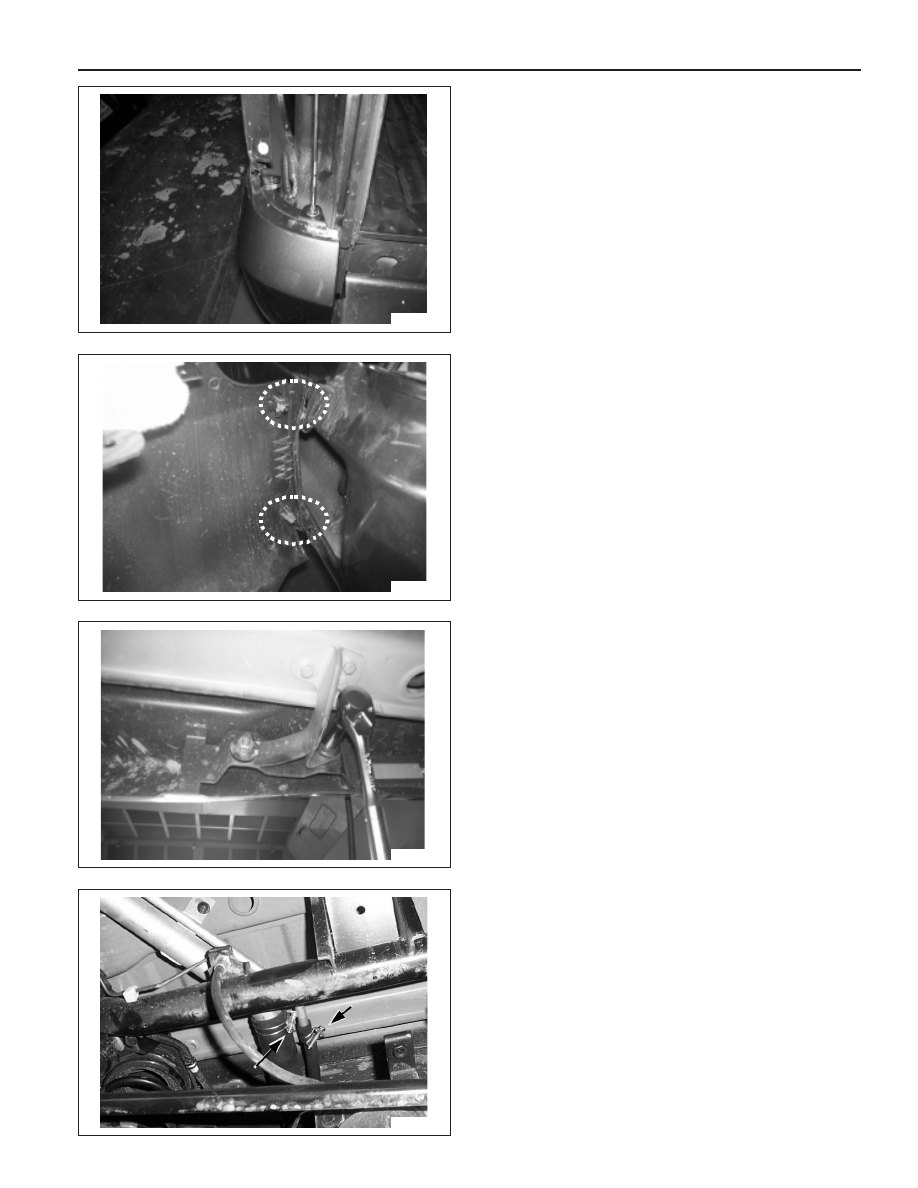

1. After removing the tail lamp assembly, release upper

two screw and one lower. Screw of the side bumper
cover.

KAA5A020

2. Carefully remove the cover of bumper side.

Note: Due to the opposite fixing section of the cover
screw of bumper side is the locking fastener, so it is
fragile part careful remove this one.

3. After releasing four fixing bolt of rear bumper, and

then remove the bumper.

4. Remove the wiring of tail lamp and the operation cable

of fuel filler.

1A-16 MUSSO-SPORTS

SUPPLEMENT

엔드크로스멤버

KAA5A020

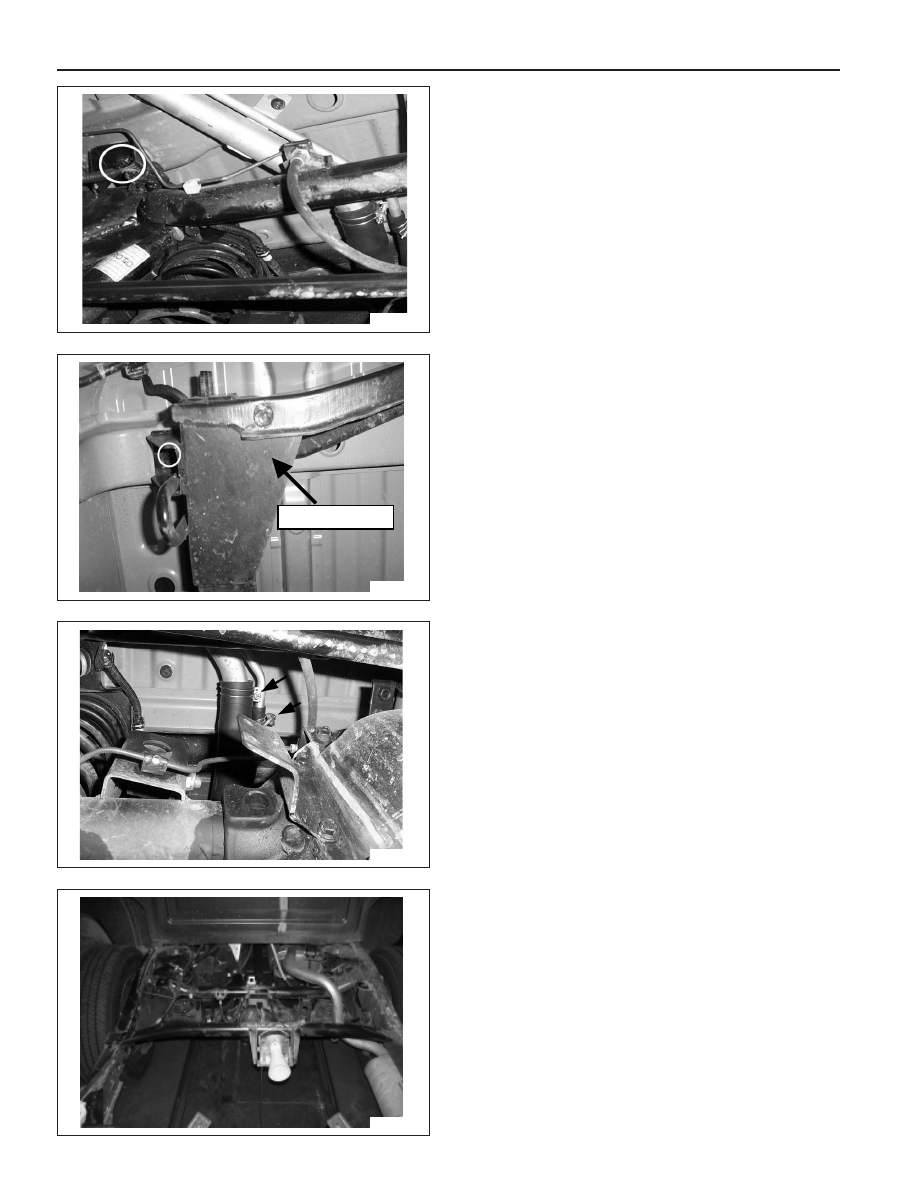

5. Release the front fixing bolt mounting of luggage

deck.

KAA5A020

6. Release the rear fixing bolt mounting of luggage deck.

Note: In order for other materials not to enter into
fuel filler and breather.

7. Due to removal of luggage deck, check if damage

happen on the harness and other parts, and then
remove the luggage deck.

8. Install the reverse order of removal.

End Cross Member
