Scania Truck (2017 year). Spare parts and accessories

130 |

4 ser

ies

Compressed air

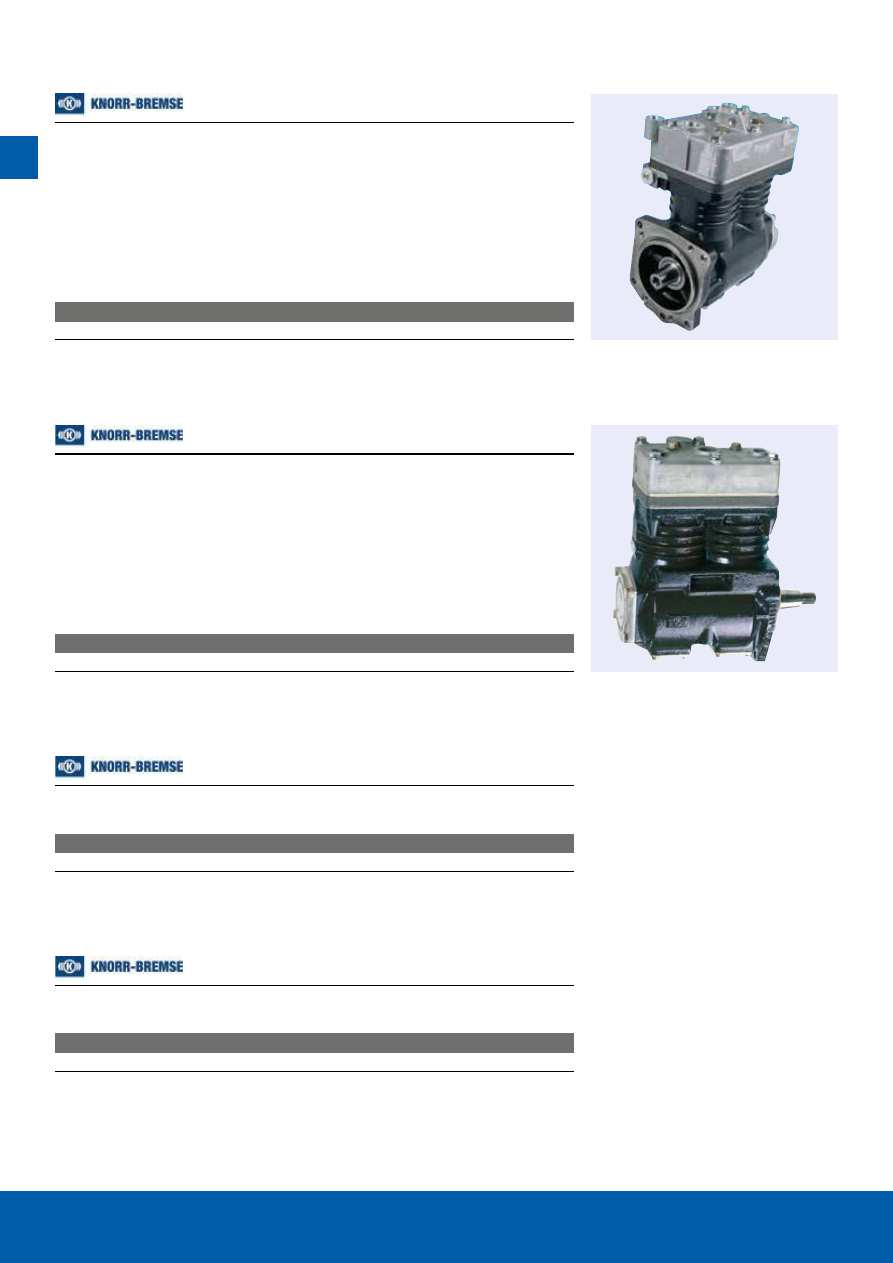

Compressor

With drive shaft, pressurised lubrication, water-cooled valve plate, with energy saving mechanism
Version

water cooled

Number of cylinders 2

Capacity

608 cm³

Connection thread

M26 x 1,5/M22 x 1,5

Fastening

Flange

Coolant connection M18 x 1.5

Oil pressure connection M12 x 1.5

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 016 615

Knorr-Bremse K016615ES

Compressor

Version

water cooled

Number of cylinders 2

Capacity

600 cm³

Connection thread

M26 x 1,5/M22 x 1,5

Fastening

Flange

Coolant connection M18 x 1

Suitable for

Order no

Comparative no

144

3405 495 700

Knorr K002975X00

(Illustration similar)

Cylinder head kit

for compressor

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 044 230

Knorr SEB011380061

Gasket set

for compressor

Suitable for

Order no

Comparative no

114

3419 869 051

Knorr I869090051

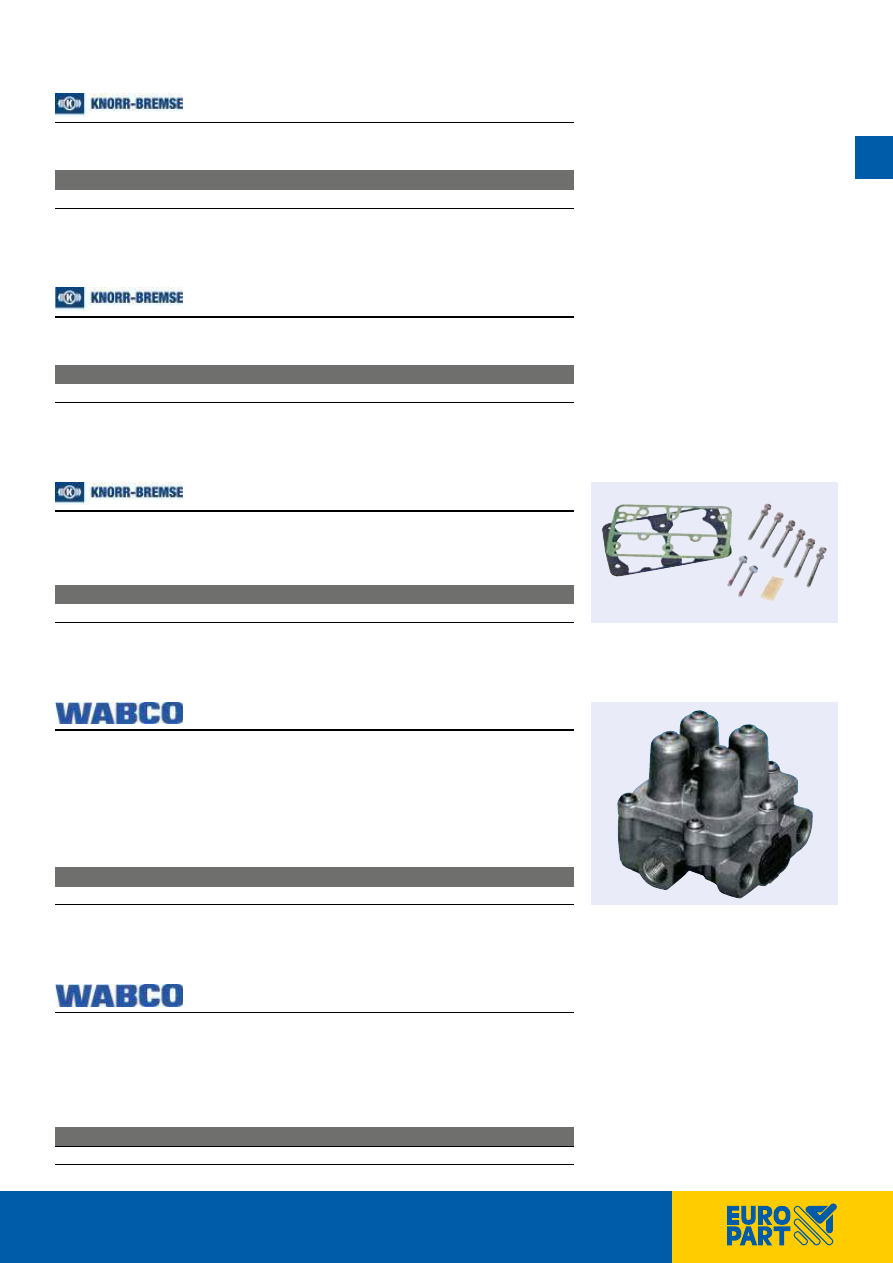

| 131

4 ser

ies

Compressed air

Four-circuit protection valve

Version

dynamic

Operating pressure max. 13 bar

Thread

M22 x 1,5/M16 x 1,5

Opening pressure

21-22: 6,5-0,3 bar

23: 7,4-0,3 bar

24: 6,5-0,3 bar

Closing pressure

21-24: >= 4,5 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0577 142 110

WABCO 934 714 211 0

Repair kit

for 2-cylinder compressors

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 035 470

Knorr II159920063

Gasket set

for compressor

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3420 680 570

Knorr II326840061

Four-circuit protection valve

Version

dynamic

Operating pressure max. 13 bar

Thread

M22 x 1,5/M16 x 1,5

Opening pressure

21-22, 24: 7.5-0.3 bar

23: 8.5-0.3 bar

Closing pressure

21-24: 5.5 bar

Suitable for

Order no

Comparative no

164, 124, 114, 94

0577 141 320

WABCO 934 714 732 0

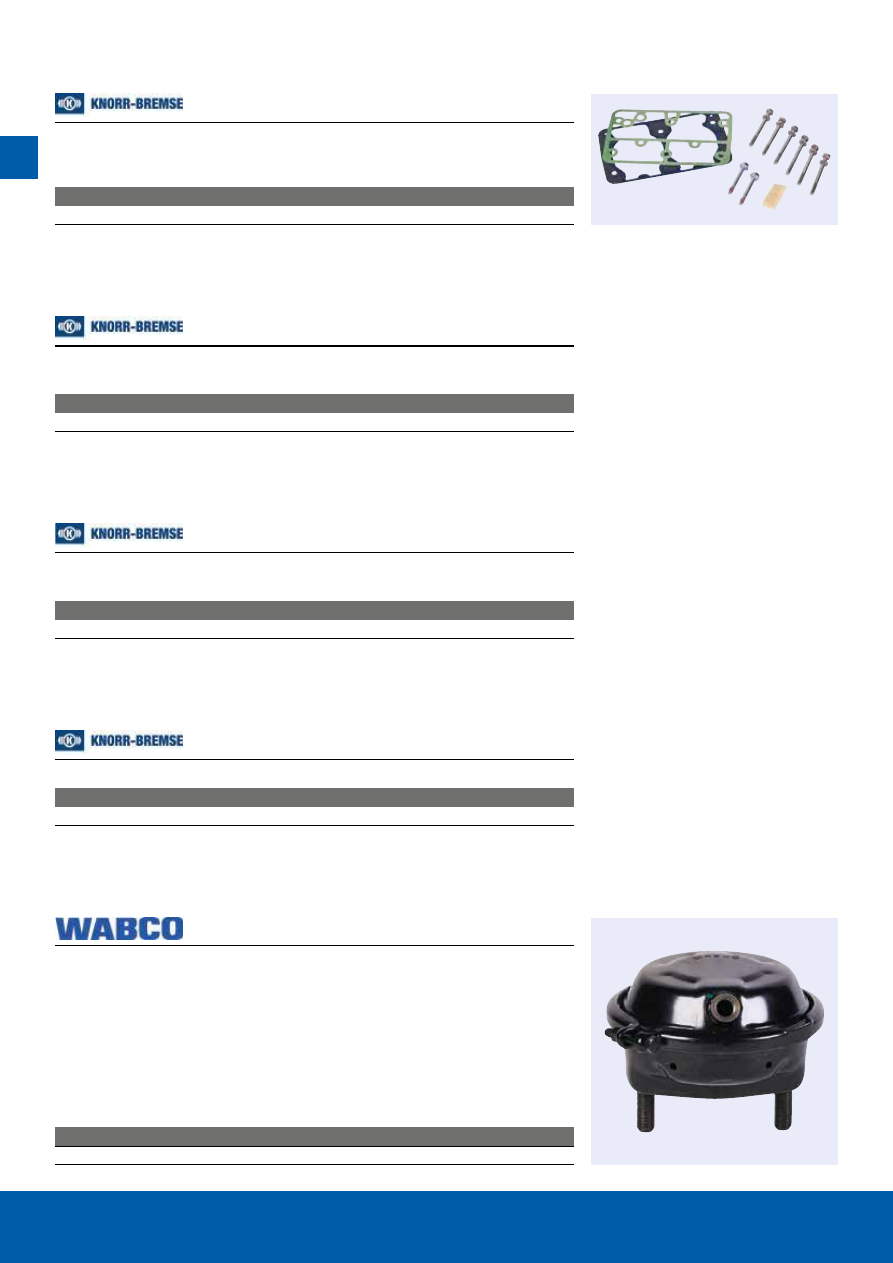

Cylinder head gasket set

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 043 840

Knorr II159920051

for compressor

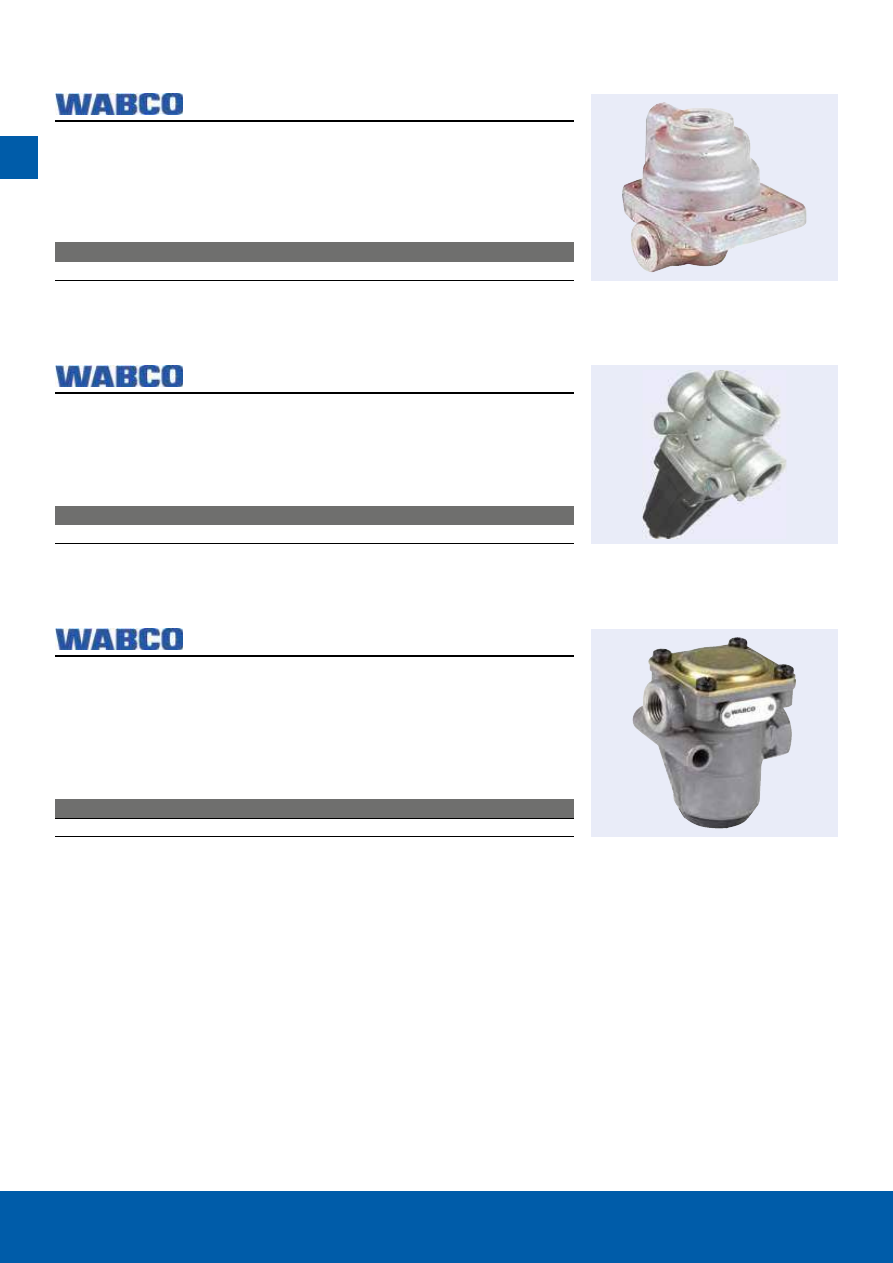

132 |

4 ser

ies

Load/empty valve

Operating pressure 10 bar

Thread

M22 x 1,5/M22 x 1,5/M12 x 1,5

Temperature range

-40 to +80 °C

Control ratio 2:1

Suitable for

Order no

Comparative no

124

0383 000 030

WABCO 473 300 003 0

Blowoff valve

Connection

M22 x 1.5

Operating pressure max. 20 bar

Outlet pressure

9,2+0,2 bar

Inlet pressure

12,4 bar

Setting range

5,8-10,8 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0390 102 000

WABCO 475 010 200 0

Blowoff valve

Connection

M16 x 1.5

Operating pressure max. 10 bar

Outlet pressure

8+0,3 bar/-0,1 bar

Inlet pressure

12 bar

Setting range

4-8 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0390 150 050

WABCO 475 015 005 0

Compressed air

| 133

4 ser

ies

Pressure limiter

Version

without safety valve

Connection

M16 x 1.5

Outlet pressure 8 bar

Inlet pressure

10 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3600 011 902

Knorr 0481009029000

Pressure limiter

Version

without safety valve

Connection

M16 x 1.5

Outlet pressure max. 16 bar

Inlet pressure

3 bar

Suitable for

Order no

Comparative no

124, 114, 94

3401 551 557

Knorr AC155F

Pressure limiter

Version

without safety valve

Connection

M16 x 1.5

Outlet pressure 7,3 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3630 090 180

Knorr 0481009018000

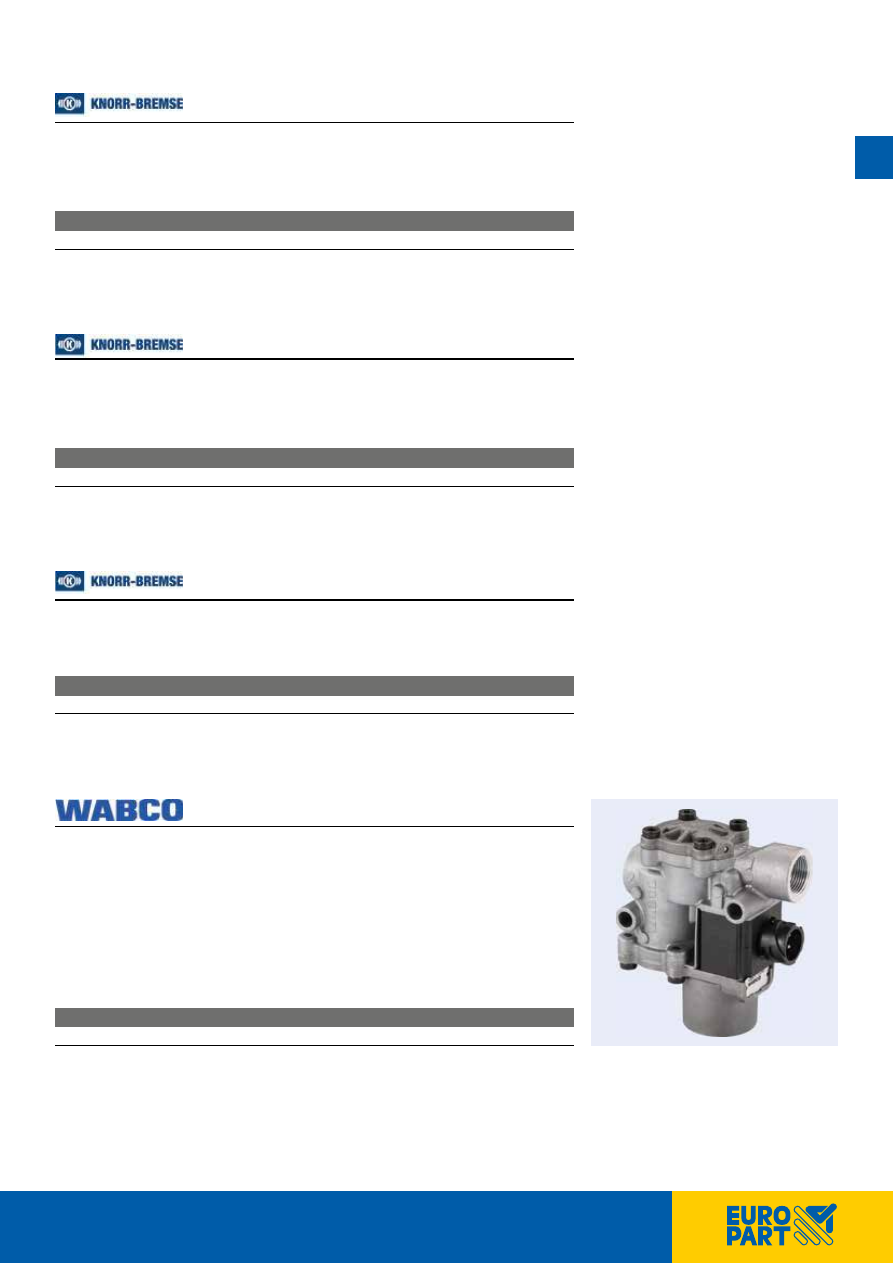

ABS solenoid control valve

Connection

electric, bayonet (DIN) 72585

Voltage

24 V

Operating pressure max. 13 bar

Temperature range

-40 to +80 °C

Connection thread

M22 x 1,5

Protection class

IP69K

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0371 950 970

WABCO 472 195 097 0

Compressed air

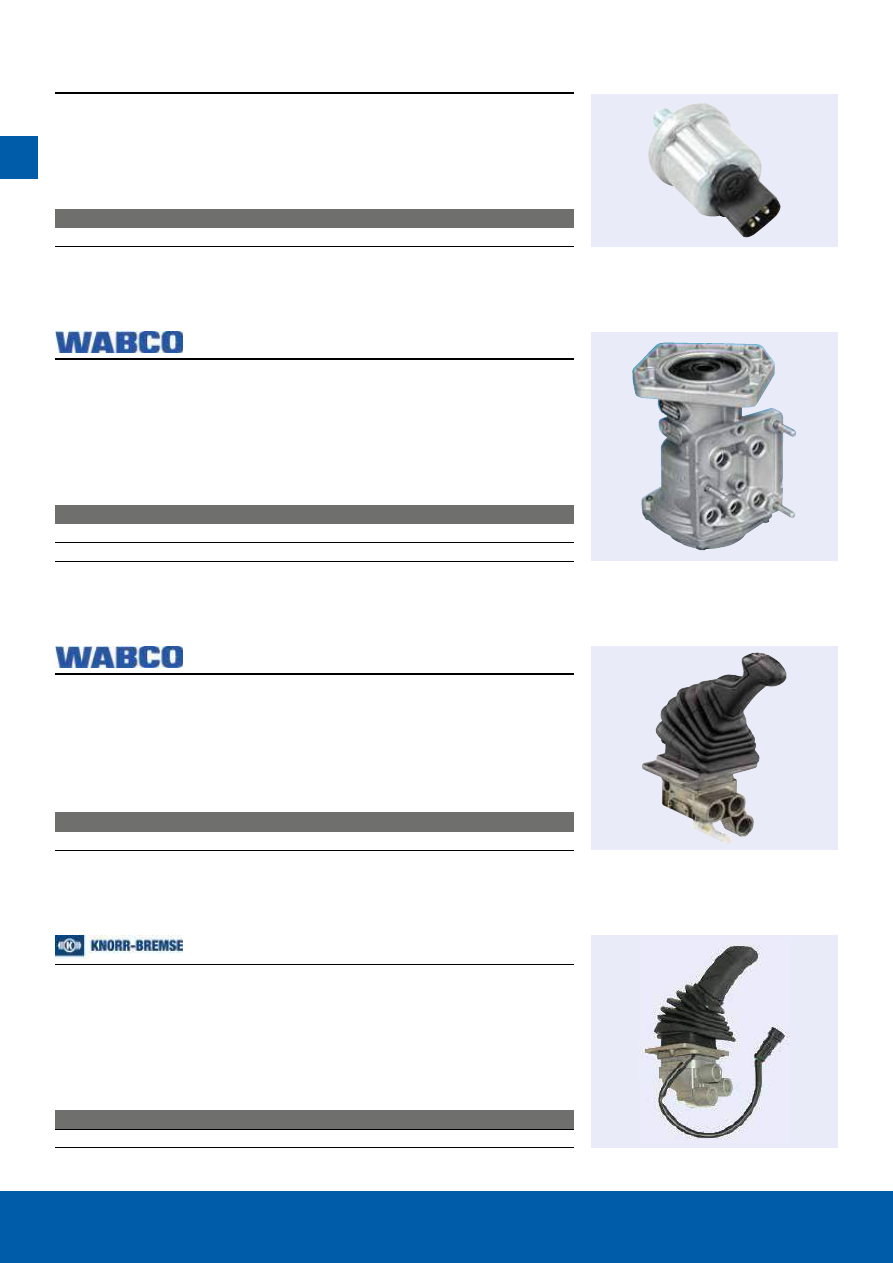

134 |

4 ser

ies

Pressure sensor

Thread

M12 x 1,5

Switching pressure 10 bar

Operating range

5 bar

Suitable for

Order no

Comparative no

94, 114, 124, 144, 164

9198 001 501

Scania 397946

Motor coach brake valve

Operating pressure max. 9 bar

Nominal width

10 mm

venting: silencer

Type

Suitable for

Order no

Comparative no

0283 151 800

WABCO 461 315 180 0

Reman

164, 144, 124, 114, 94

0283 151 807

WABCO 461 315 180 7

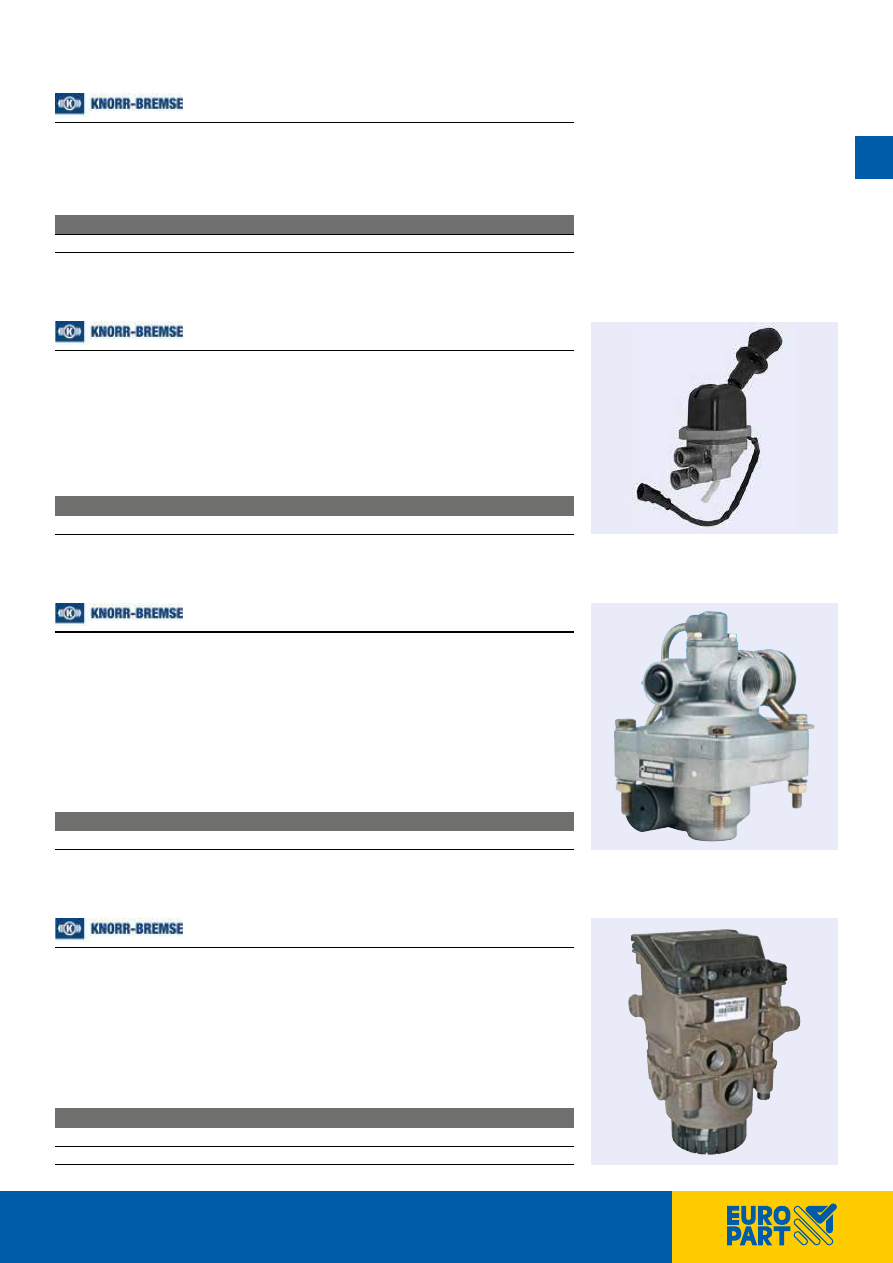

Hand brake valve

Connection

M16 x 1.5 VOSS

Operating pressure max. 10 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0607 232 170

WABCO 961 723 217 0

Hand brake valve

Connection

lateral, M16 x 1.5

Version

with microswitch, without bus stop brake, control position and emergency release

Operating pressure max. 8 bar
1 circuit operating indirectly: 1, ventilation connection for hose or pipe of 5 mm diameter

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 404 940

Knorr DPM91A

Compressed air

| 135

4 ser

ies

Hand brake valve

Connection

lateral, M16 x 1.5

Version

without microswitch, emergency release and bus stop brake, with control position

Operating pressure max. 8 bar
2 circuits operating indirectly

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 404 955

Knorr DPM98A

Hand brake valve

Connection

lateral, M16 x 1.5

Version

with microswitch, without bus stop brake, control position and emergency release

Operating pressure max. 8 bar
1 circuit operating indirectly: 1, ventilation connection for hose or pipe of 5 mm diameter

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 404 945

Knorr DPM92A

Compressed air

Brake power controller

Connection

M22 x 1.5/M22 x 1.5

Version

manual, without relay function, lever on right

Number of connections 4

Application pressure

0,5 bar

68° working range of the lever
Scope of supply

With lever, without trailer control valve

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3990 001 070

Knorr 1186938

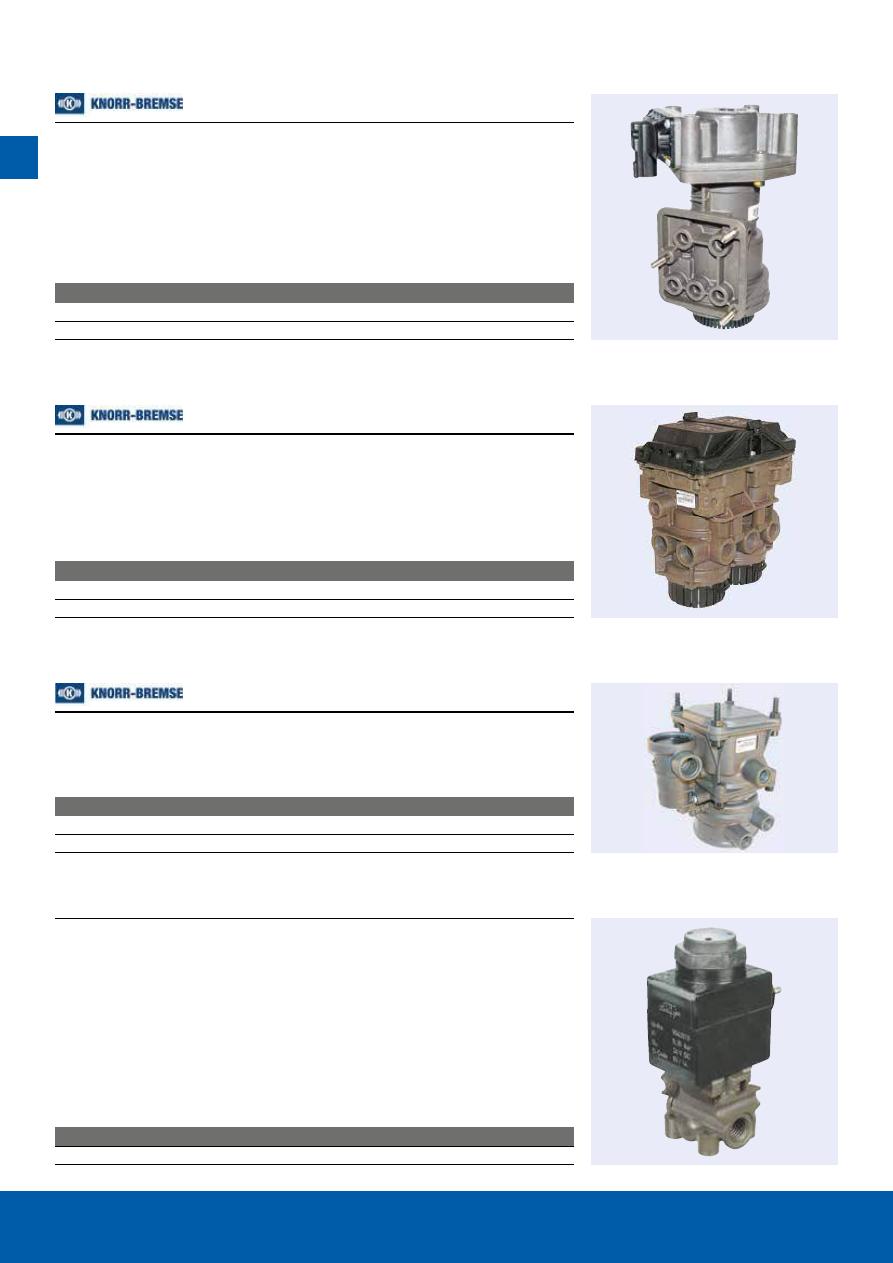

EBS axle modulator

Version

one channel

Connection

M22 x 1.5/M16 x 1.5

Operating pressure 10 bar

Type

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 403 490

Knorr 0486203025N50

Reman

164, 144, 124, 114, 94

3400 203 025

Knorr 0486203025X50

136 |

4 ser

ies

EBS foot brake module

Type

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 046 234

Knorr 0486200008N50

Reman

164, 144, 124, 114, 94

3400 000 850

Knorr 0486200008X50

Solenoid valve

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

9800 125 607

Scania 1536305

EBS two channel module

Type

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3402 040 200

Knorr 0486204019N50

Reman

164, 144, 124, 114, 94

3400 204 019

Knorr 0486204019X50

EBS trailer modulator

Type

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 046 243

Knorr 0486205014N50

Reman

164, 144, 124, 114, 94

3400 001 450

Knorr 0486205014X50

Compressed air

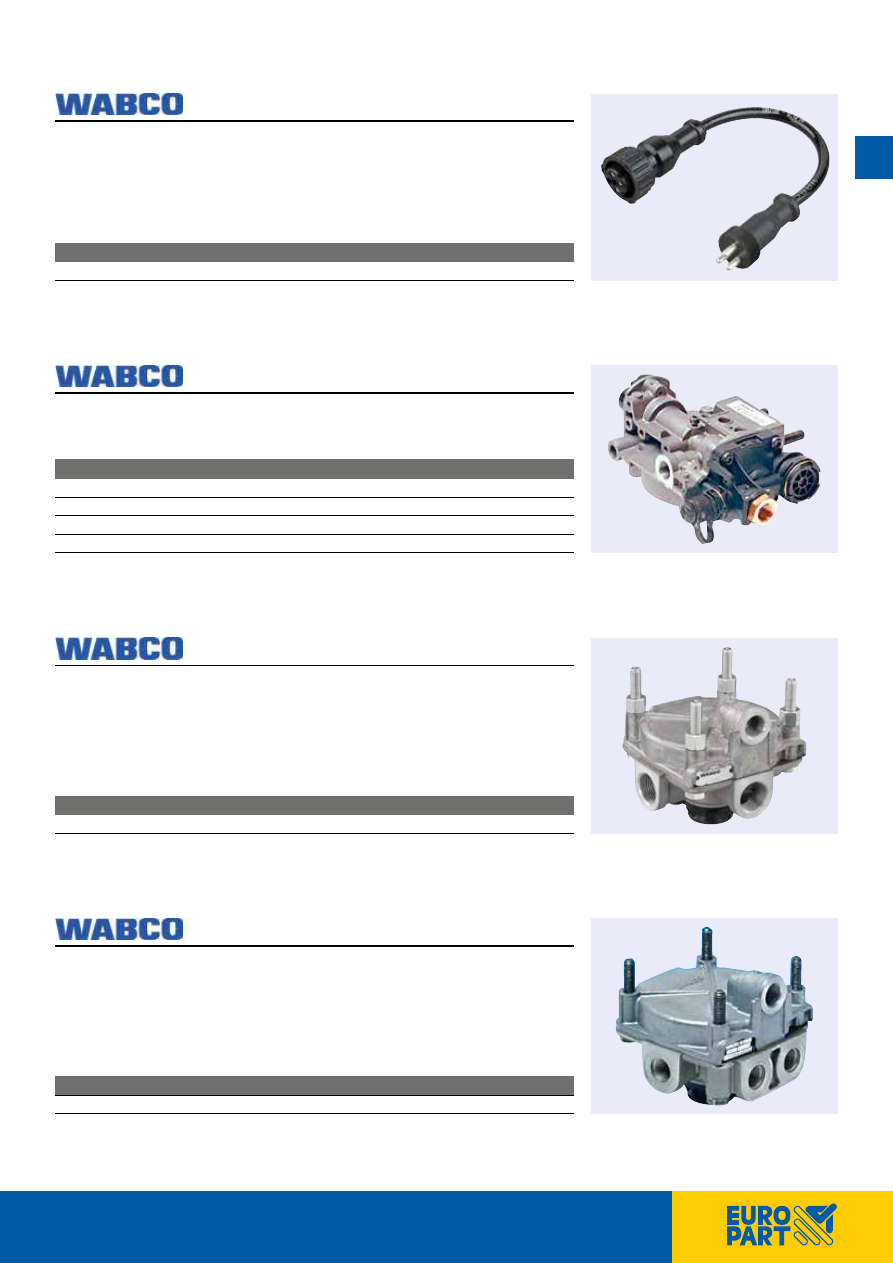

| 137

4 ser

ies

Compressed air

Adapter cable

Connection

Kostal (cable) to DIN bayonet (valve)

Connection thread M24 x 1

Version

connector: bayonet (DIN) DIN72585-B1-3.1-Sn/K1

Length

150 mm

Application range

ABS solenoid valve 0371 950 047

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0666 011 322

WABCO 894 601 132 2

Relay valve

Connection

M22 x 1.5/M16 x 1.5

Operating pressure max. 10 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0640 110 020

WABCO 973 011 002 0

Relay valve

Version

with integrated check valve

Connection

M22 x 1.5/M16 x 1.5

Operating pressure max. 13 bar

Suitable for

Order no

Comparative no

124, 114, 94

0640 110 500

WABCO 973 011 050 0

ALB controller

Operating pressure max. 10 bar

Suitable for

Connection

Order no

Comparative no

164, 124, 114, 94

M16 x 1.5/M22 x 1.5

0397 220 000

WABCO 475 722 000 0

164, 144, 124, 114, 94

M16 x 1.5/M12 x 1.5

3807 230 010

WABCO 475 723 001 0

144, 124, 114, 94

M22 x 1.5

0397 001 260

WABCO 475 700 126 0

164, 144, 124, 114, 94

M22 x 1.5

0397 001 220

WABCO 475 700 122 0

This fi gure corresponds to 3807 230 010

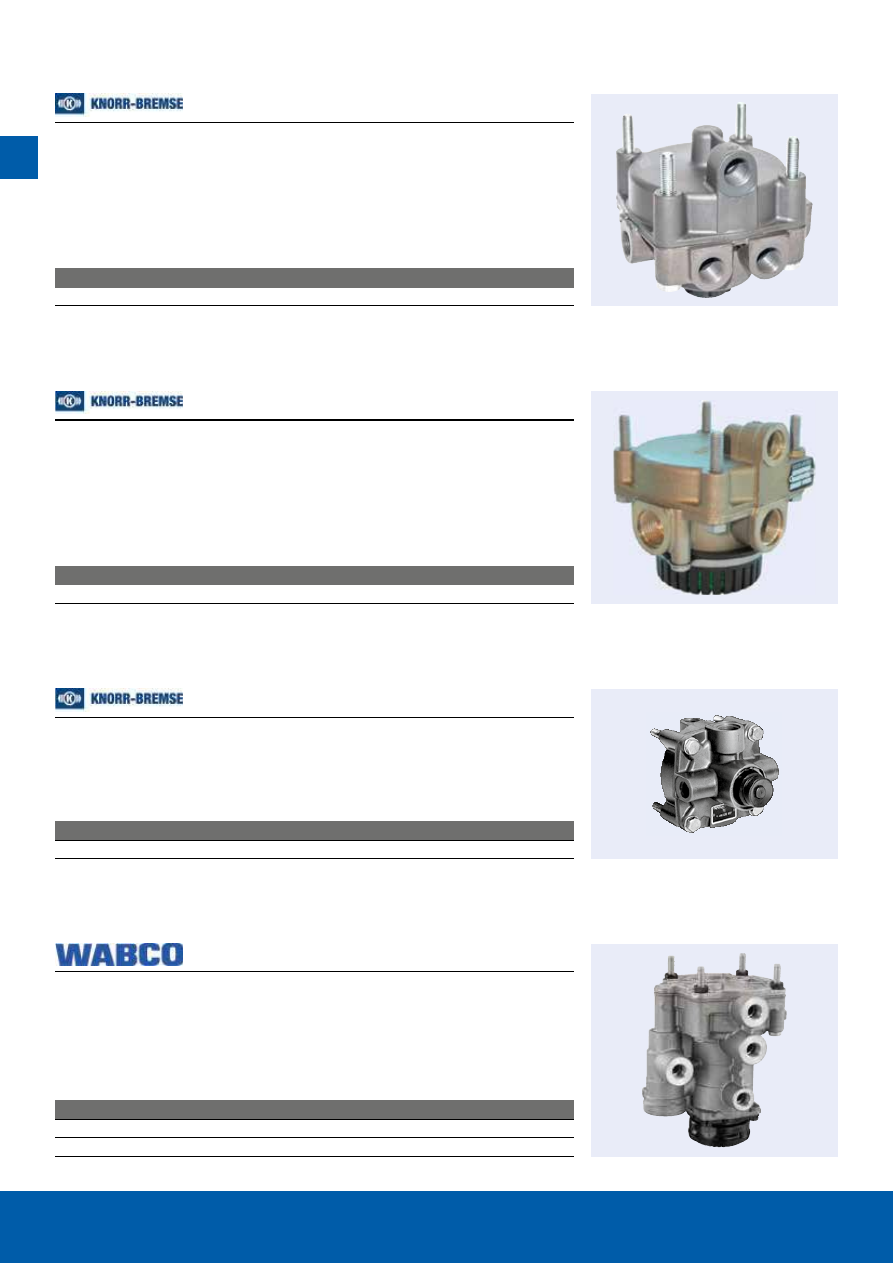

138 |

4 ser

ies

Relay valve

Version

dual circuit for addition prevention

Connection 1-2 M22 x 1,5/3 x M16 x 1,5/M22 x 1,5

Connection 4

M16 x 1.5

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3630 260 270

Knorr 0481026027000

Relay valve

Version

single circuit, with integrated silencer

Connection

M22 x 1.5/M22 x 1.5/M16 x 1.5

Operating pressure max. 10.2 bar

Temperature range

-40 to +80 °C

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 404 805

Knorr AC574CXY

Trailer control valve

Type

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0640 090 100

WABCO 973 009 010 0

Reman

164, 144, 124, 114, 94

0640 090 107

WABCO 973 009 010 7

Relay valve

Version

single circuit

Connection 1-2 M22 x 1,5

Connection 4

M16 x 1.5

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 045 956

Knorr 0481026021000

Compressed air

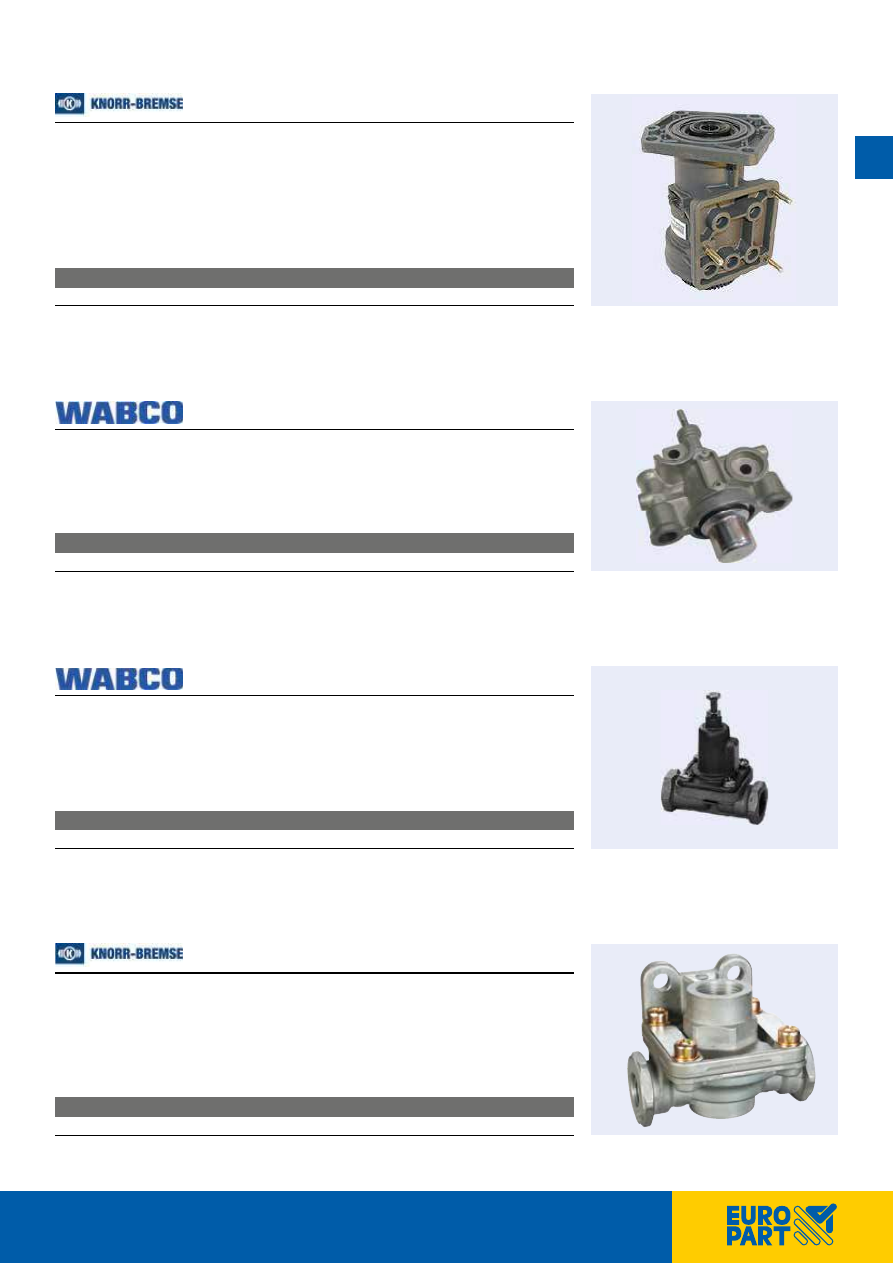

| 139

4 ser

ies

Compressed air

Quick-release valve

Version

without silencer, with bypass

Operating pressure max. 10 bar

Connection thread

M22 x 1.5/M16 x 1.5

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 008 920

Knorr KX2552/3

3/2-way valve

Connection

M12 x 1.5/M10 x 1.5/M12 x 1.5

Operating pressure max. 10 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0192 050 320

WABCO 434 205 032 0

Overfl ow valve

Version

without return fl ow

Operating pressure max. 13 bar

Connection thread

M22 x 1.5

Setting range

5,3-7,0 bar

Nominal width

8 mm

Ovefl ow pressure

10 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3804 341 001

WABCO 434 100 136 0

Motor coach brake valve

Version without microswitch, without kick plate
2 output circuits diameter 12 mm

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 046 064

Knorr 0481064603000

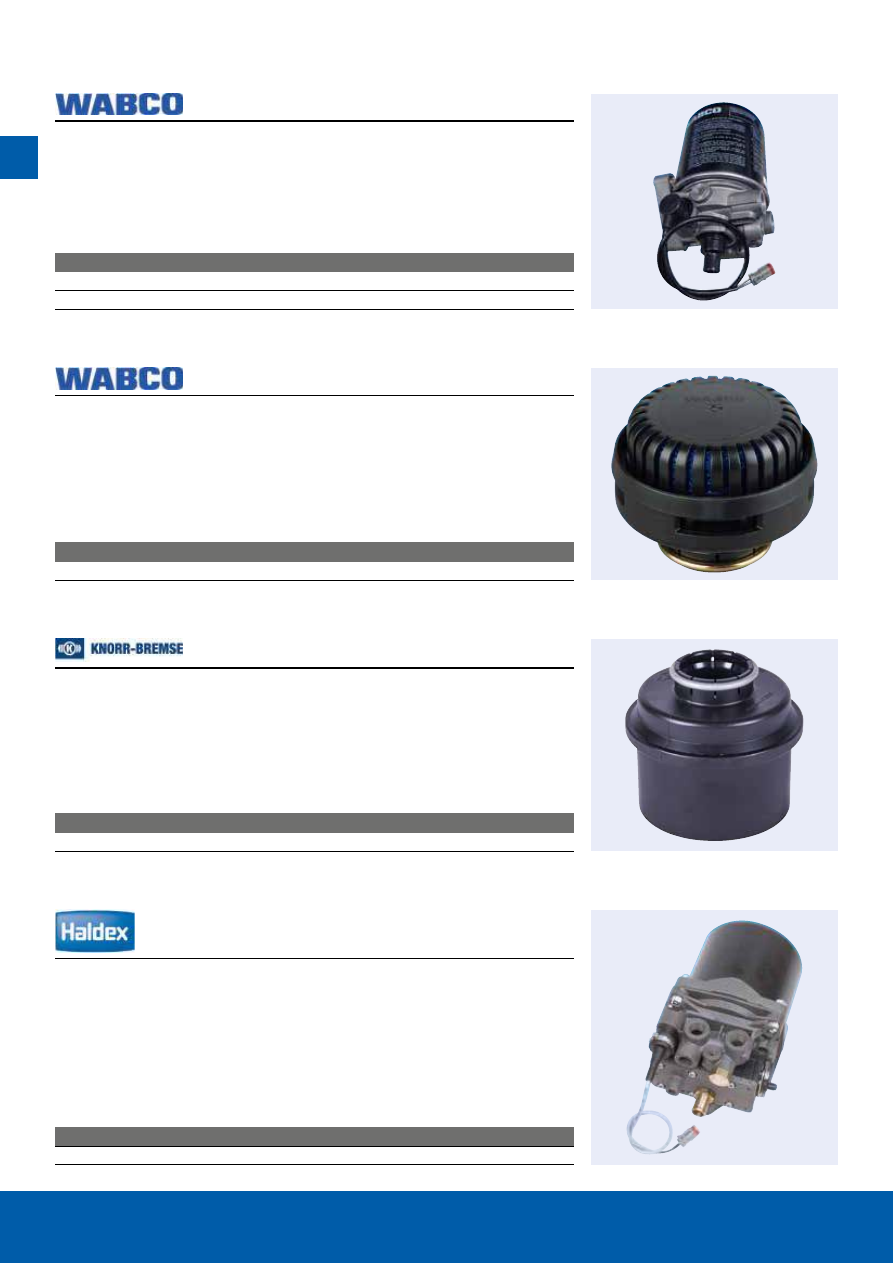

140 |

4 ser

ies

Air dryer

Version

with heating

Thread

M22 x 1,5

Connection thread M12 x 1.75

Operating range

0,9 bar

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 789 850

Haldex 78985

Compressed air

Air dryer

With pressure controller
Version

1-chamber system

Voltage

24 V

Fastening

M12 x 1.75

Operating pressure max. 13 bar

Thread

M12 x 1,5/M22 x 1,5

Operating range

0,9±0,3 bar

Type

Suitable for

Order no

Comparative no

124, 114, 94

0174 100 830

WABCO 432 410 083 0

Reman

124, 114, 94

0174 100 837

WABCO 432 410 083 7

Muffl er

Connection

Snap contour

Operating pressure 11 bar

Height

53 mm

∅

69 mm

Suitable for

Order no

Comparative no

124, 114, 94

0174 070 700

WABCO 432 407 070 0

Muffl er

Suitable for

Order no

Comparative no

4 series

3400 410 630

Knorr II41063F

A CLASS

OF ITS OWN

www.haldex.com/ModulT

ModulT disc brakes have proved extremely
successful in operation and set standards
in maintenance and repair.

Innovative Vehicle Solutions

Lightweight and easy to service

ModulT Video

| 141

4 ser

ies

Repair kit

for single air dryer (SDX)

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3730 873 470

Haldex 87347S

Compressed air

A CLASS

OF ITS OWN

www.haldex.com/ModulT

ModulT disc brakes have proved extremely
successful in operation and set standards
in maintenance and repair.

Innovative Vehicle Solutions

Lightweight and easy to service

ModulT Video

142 |

4 ser

ies

Cylinder head kit

Suitable for

Order no

Comparative no

144

3400 110 660

Knorr SEB01106004

Cylinder head kit

Suitable for

Order no

Comparative no

114

3402 258 700

Knorr SEB22587

Valve plate set

Suitable for

Order no

Comparative no

114

3400 042 110

Knorr I810150061

Compressed air

Cylinder head kit

Suitable for

Order no

Comparative no

164, 124, 114, 94

3450 414 465

Knorr SEB01444004

(Illustration similar)

Type

Installation location

front axle

Installation side

left/right

Connection

M16 x 1,5

Operating pressure

max. 10 bar

Stroke

65 mm

Piston rod thread

M16 x 1,5

Length of piston rod 15 mm
Force output 8500 N at 6 bar
Application range

Vehicles with disc brake

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0135 061 430

WABCO 423 506 143 0

Membrane brake cylinder

for compressor

| 143

4 ser

ies

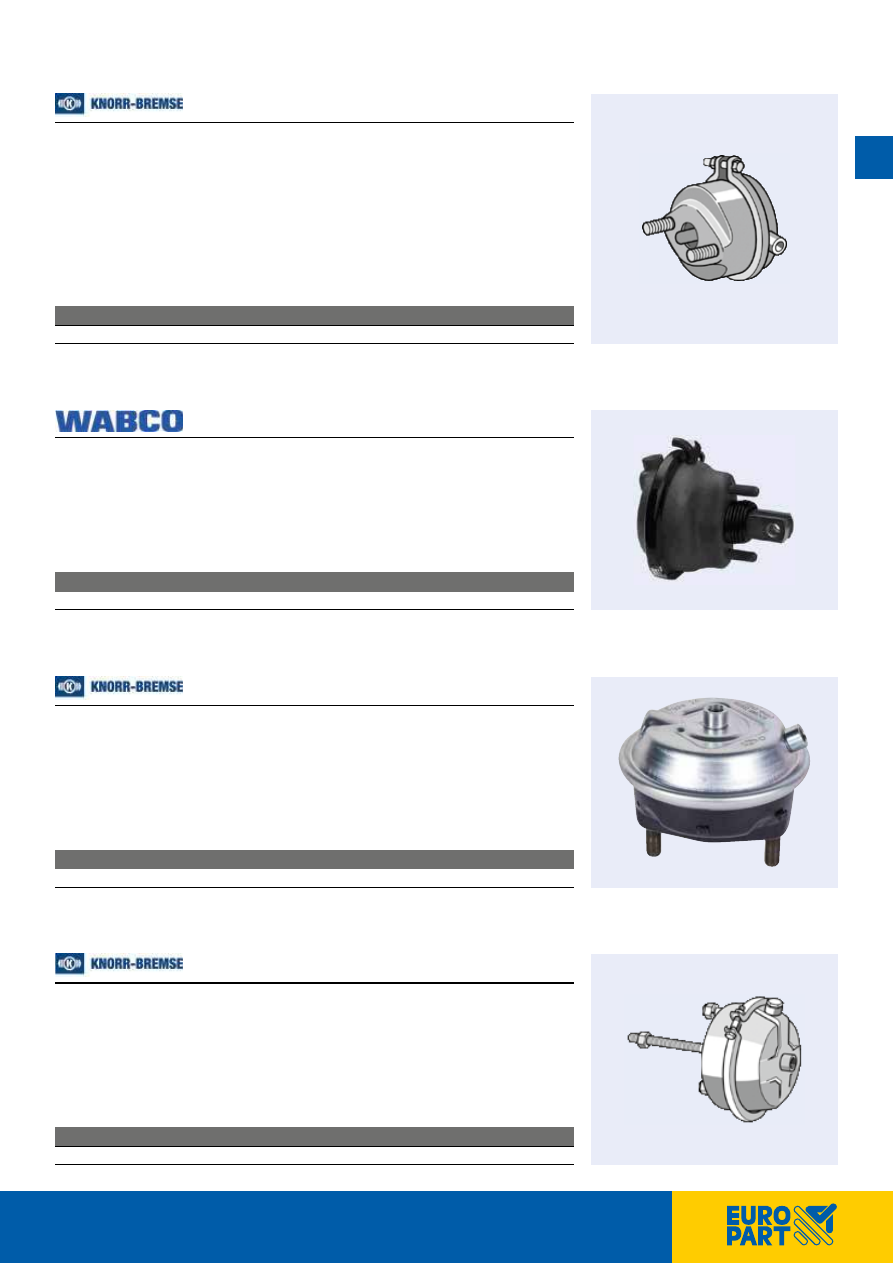

Membrane brake cylinder

Type

Connection

M16 x 1.5

Operating pressure

10.7 bar

Stroke

64 mm

Thread

M16 x 1,5

Bolt length

38 mm

Length of piston rod 15 mm

Temperature range

-40 to +80 °C

Standard

DIN/ISO 1219

Application range

Vehicles with disc brakes

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 409 380

Knorr K002556

Membrane brake cylinder

Connection

M16 x 1.5

Operating pressure

max. 10.2 bar

Stroke

65 mm

Length of piston rod 15 mm
Power output 8500 N at 6 bar
Application range

For vehicles with disc brakes

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3805 061 420

WABCO 423 506 142 0

Compressed air

Membrane brake cylinder

Connection

M16 x 1.5

Operating pressure

10.7 bar

Stroke

64 mm

Thread

M16 x 1,5

Bolt length

38 mm

Length of piston rod 15 mm
Application range

Vehicles with disc brakes

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3400 367 810

Knorr K002420

Membrane brake cylinder

Connection

M16 x 1.5

Operating pressure

max. 8.5 bar

Stroke

75 mm

Thread

M16 x 1,5

Bolt length

42 mm

Length of piston rod 180 mm
Application range

Vehicles with S-cam brake

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3403 378 333

Knorr II33783A

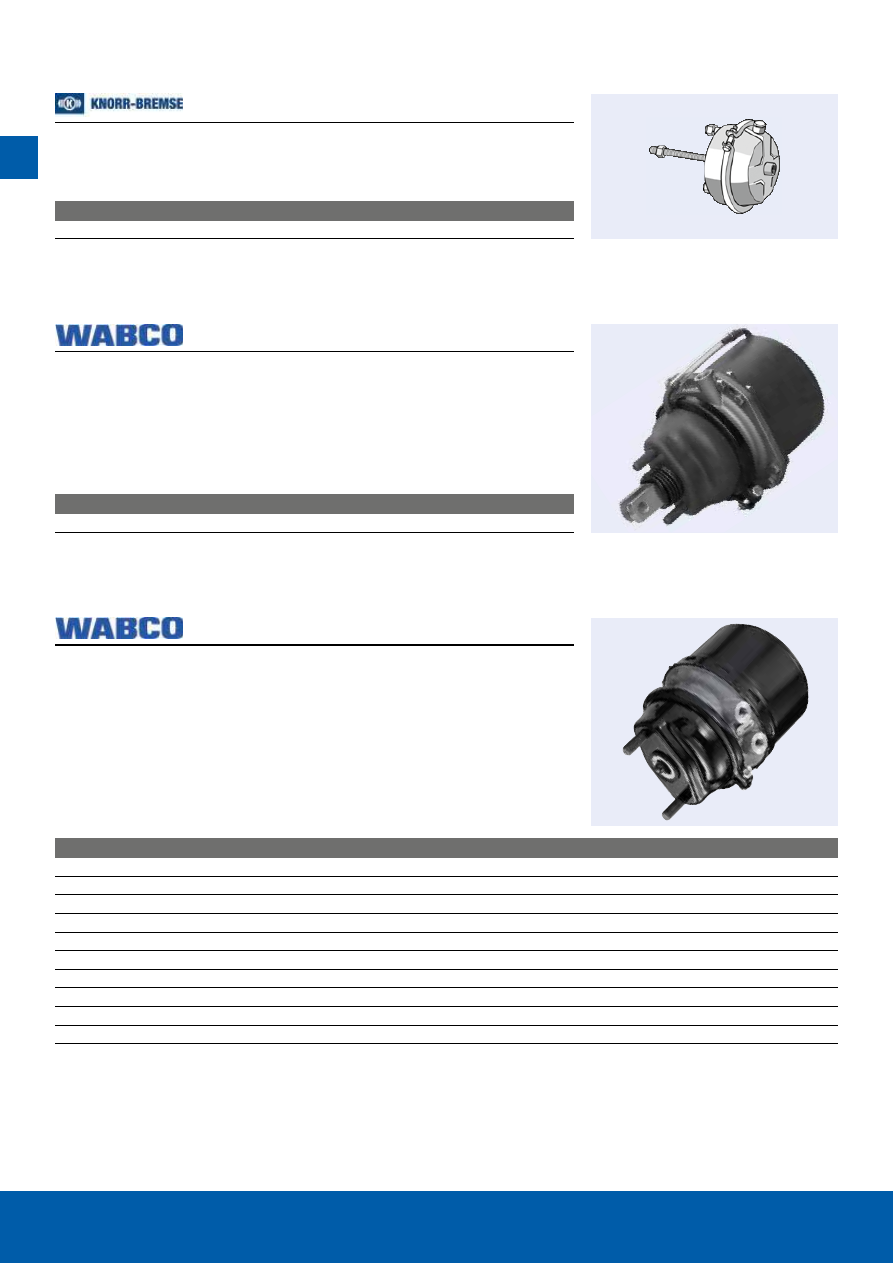

144 |

4 ser

ies

Combination brake cylinder

Length of piston rod 70 mm

Release pressure

4.9 bar

Power output F: 8800 N/20 mm

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

0554 310 637

Wabco 925 431 063 7

Combination brake cylinder

Connection thread M16 x 1.5

Stroke

65/65 mm

Suitable for

Length of piston rod

Type

Order no

Comparative no

164, 144, 124, 114, 94

15 mm

24/30 IBV

3804 813 120

WABCO 925 481 312 0

164, 144, 124, 114, 94

15 mm

24/30 IBV

3804 813 110

WABCO 925 481 311 0

164, 144, 124, 114, 94

15 mm

24/30 IBV

3804 813 100

WABCO 925 481 310 0

164, 144, 124, 114, 94

15 mm

24/30 IBV

0554 813 130

WABCO 925 481 313 0

164, 144, 124, 114, 94

70 mm

20/24

3804 300 660

WABCO 925 430 066 0

164, 144, 124, 114, 94

70 mm

20/24

3804 300 360

WABCO 925 430 036 0

164, 144, 124, 114, 94

70 mm

20/24

3804 300 350

WABCO 925 430 035 0

164, 144, 124, 114, 94

215 mm

24/24

0554 310 387

WABCO 925 431 038 7

164, 144, 124, 114, 94

215 mm

24/24

0554 310 370

WABCO 925 431 037 0

164, 144, 124, 114, 94

247 mm

24/30

0554 315 147

WABCO 925 431 514 7

This fi gure corresponds to 0554 813 130

Membrane brake cylinder

Connection M16 x 1.5
Application range

Vehicles with S-cam brake

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 408 165

Knorr II33481A

Compressed air

| 145

4 ser

ies

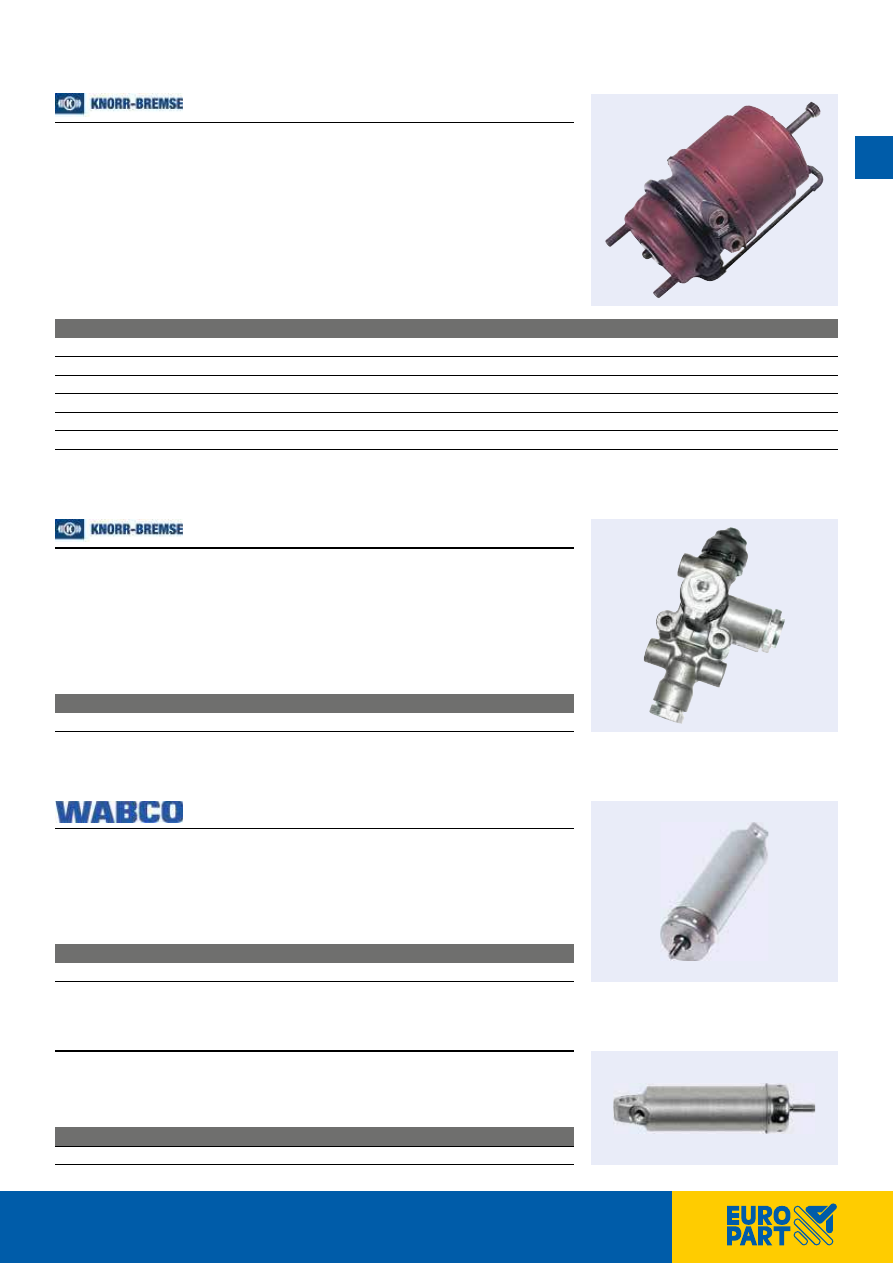

Air spring valve

Version

with fl at lever, secondary bleeding

Setting

17,5°

Thread

M12 x 1,5/M16 x 1,5

Height limit 39,5°

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

3450 408 125

Knorr II32763

Working cylinder

Connection thread

M12 x 1

Operating pressure max. 12 bar

Stroke

53 mm

Length

180,5 mm

Cylinder length

155 mm

∅

50 mm

Suitable for

Order no

Comparative no

164

0114 115 000

WABCO 421 411 500 0

Compressed air

Suitable for

Application range

Length of piston rod

Stroke

Type

Order no

Comparative no

164, 144, 124, 114, 94

Vehicles with disc brake

15 mm

64/57 mm

24/30

3450 409 110

Knorr K017119N00

164, 144, 124, 114, 94

Vehicles with S-cam brake

250 mm

64/64 mm

24/105

3990 000 070

Knorr K2B0514X50

164, 144, 124, 114, 94

Vehicles with S-cam brake

250 mm

64/64 mm

24/80

3990 000 040

Knorr K2B0506X50

164, 144, 124, 114, 94

Vehicles with S-cam brake

251 mm

64/64 mm

20/80

3990 003 780

Knorr K2B0504X50

164, 144, 124, 114, 94

Vehicles with S-cam brake

251 mm

64/64 mm

30/80

3400 008 440

Knorr K2B0520XU

164, 144, 124, 114, 94

Vehicles with S-cam brake

77 mm

64/57 mm

30/30

3990 003 750

Knorr K108671N00

Combination brake cylinder

This fi gure corresponds to 3450 409 110

Working cylinder

Connection thread

M12 x 1,5

Operating pressure 10 bar

Stroke

60 mm

Suitable for

Order no

Comparative no

164, 144, 124, 114, 94

6170 118 675

Scania 1821737

Scania Truck (2017 year). Spare parts and accessories - 9
