Scania Central gear RP832-RBP832. Manual - part 20

08:04-02

©

77

Gear housing RP832

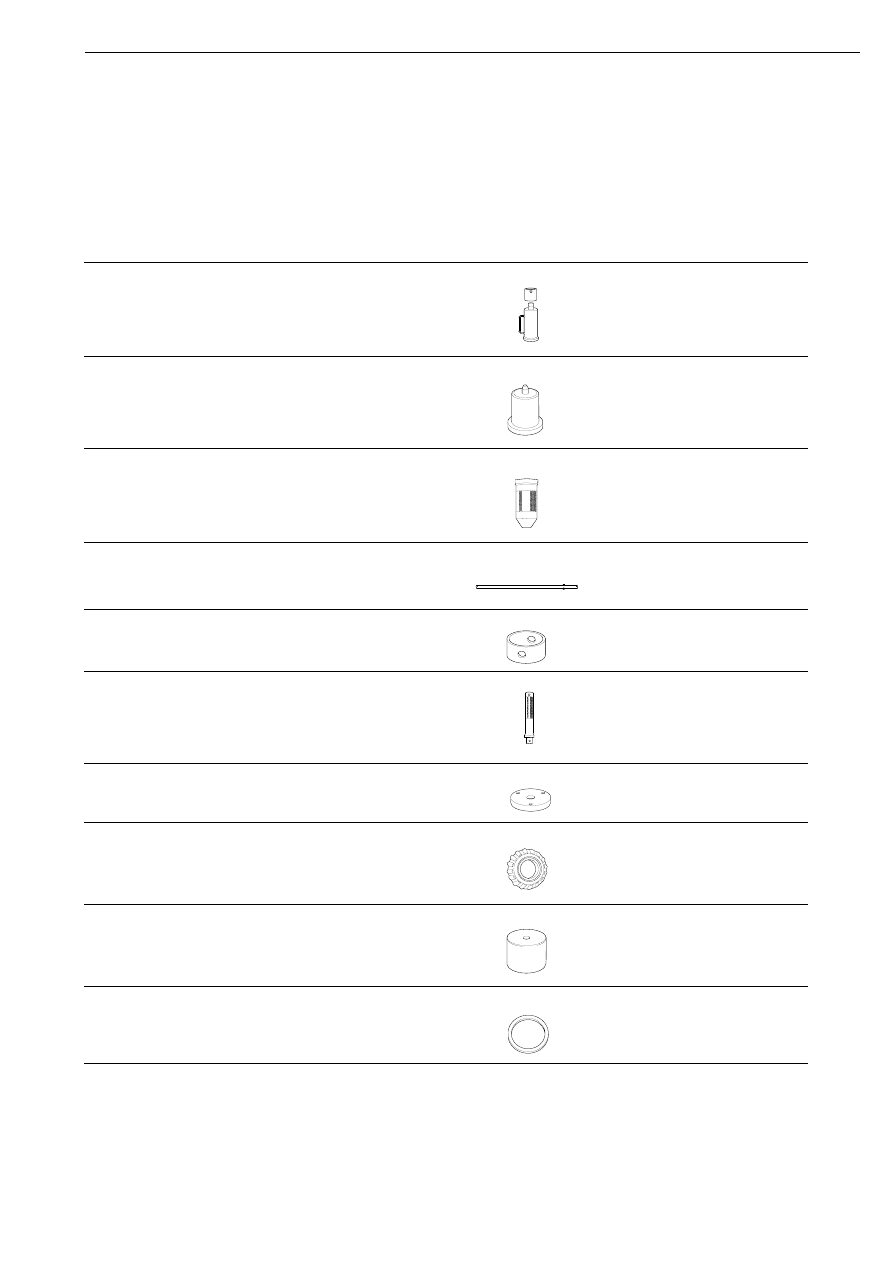

Special tools

Number

Description

Illustration

Board

87 550

Drift

AD2

87 579

Drift

R1

87 932

Drift

D3, G1

88 292

Pull rod

G2

98 364

Assembly drift

R1

98 450

Shank

R2

98 566

Drift

R1

98 570

Dummy bearing

R1

98 575

Support drift

G2

98 613

Support ring

R1

87 550

00

1628

00

1

8

1

6

87 579

00

1636

87 932

00

1848

88 292

98 364

110

129

98 450

00

1

633

00

1617

98 566

98 570

110 511

98 575

00

1621

98 613

110 803

Gear housing RP832

78

©

08:04-02

98 616

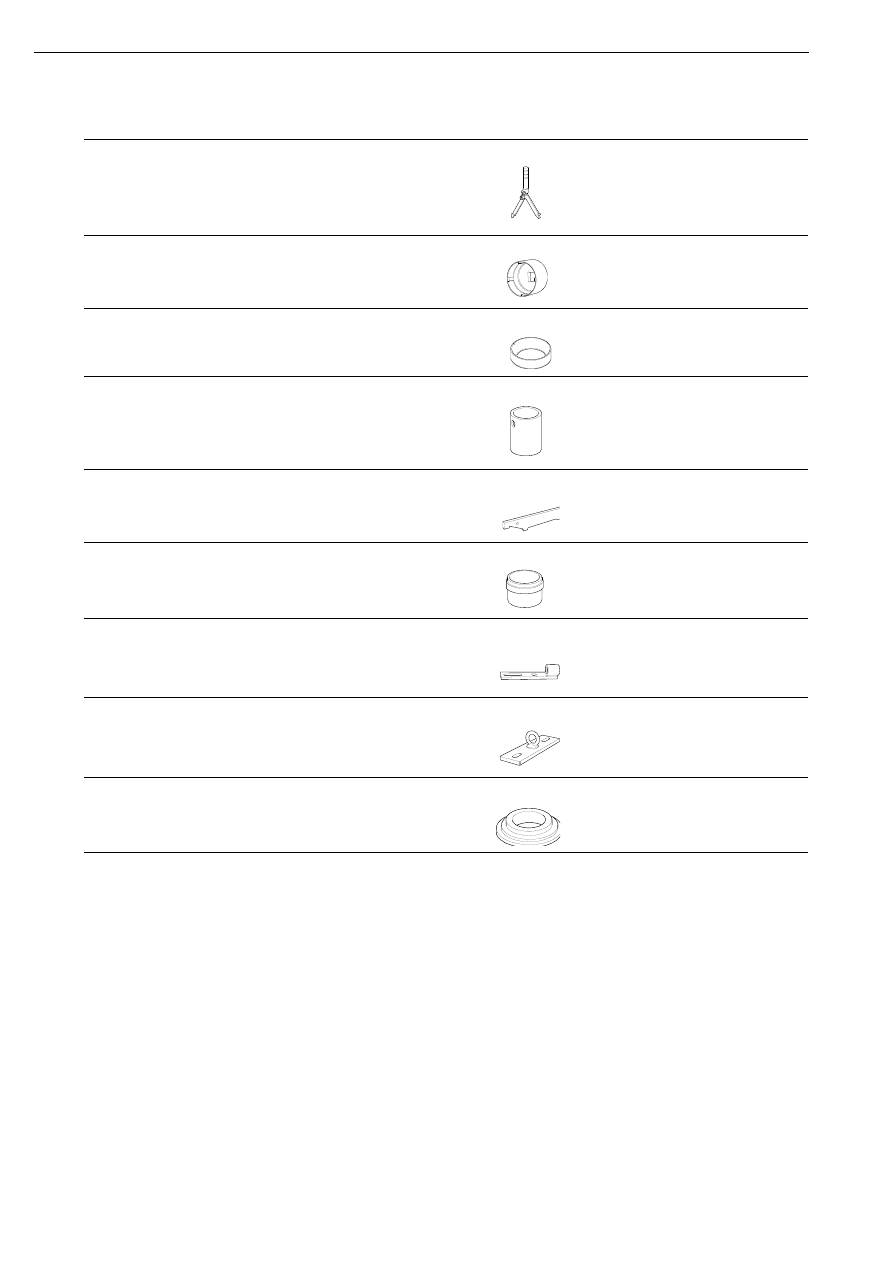

Adjustable drift

RD, AD2

98 765

Splined socket

G2

98 779

Setting ring

R1

99 005-1

Adapter

H1

99 072

Pinion position template

R2

99 092

Drift

AD/AS2

99 129

Counterhold

G2

99 167

Lifting tool

G1

99 192

Drift

G4

Number

Description

Illustration

Board

98 616

110 806

00_1642

98 765

98 779

110 878

99 005−1

111 423

99 072

00

1

6

1

9

99 092

99 129

00_1616

00

1625

99 167

99 192

Gear housing RP832

08:04-02

©

79

Dismantling

1

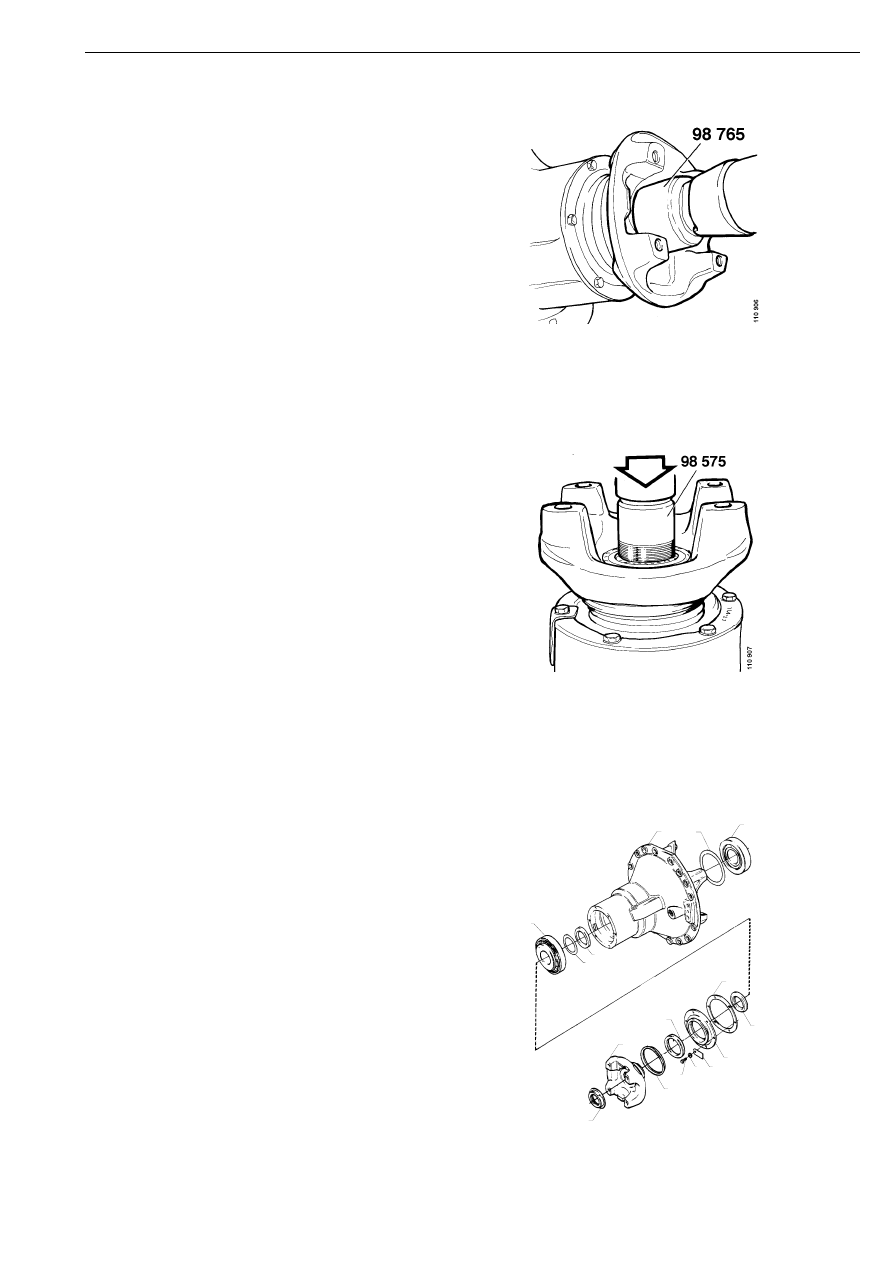

Remove the end yoke nut using sleeve
98 765.

2

Fit lifting tool 99 167 to the end yoke. Move
the gear housing over to a press.

3

Mark the positions of the end yoke and
pinion end to make assembly easier.

4

Place a wooden board under the pinion so
that the pinion is not damaged when it falls
down. Press out the pinion 33 using drift
98 575.

5

Remove the housing 1. Keep the spacing
ring 6 and shims 7 for the bearings that are
left on the pinion. They are to be used for
basic setting of bearing preload on
assembly.

6

Remove the seal seat 14. Remove the
sealing ring 15 from the cover. Remove the
support washer 12 and the front pinion
bearing inner ring with roller race 8.

7

6

13

1

4

64

61

14

18

8

62

17

12

15

63

5

111 449

Gear housing RP832

80

©

08:04-02

7

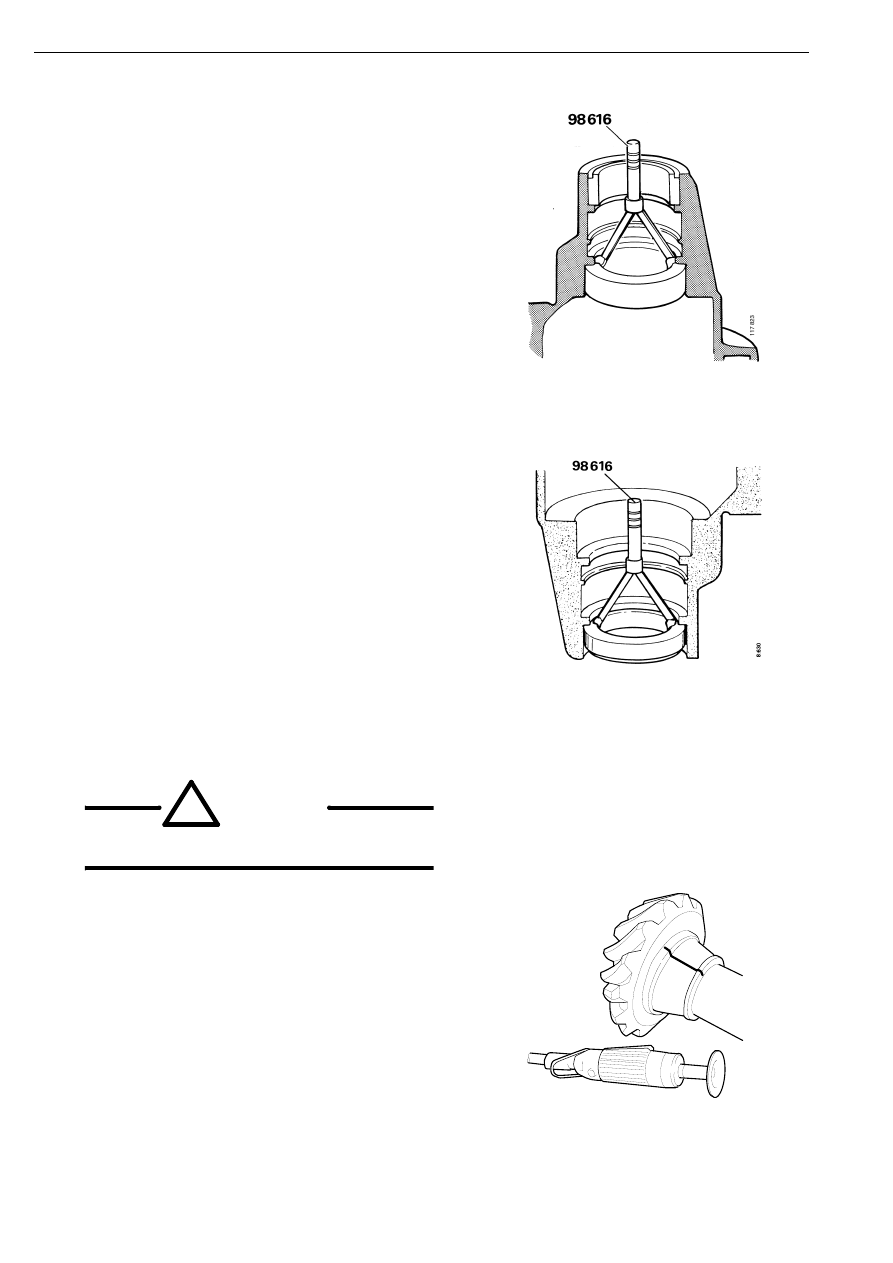

Drive out the pinion bearing rear outer ring
5 using the adjustable drift 98 616.

Keep the shims 4. They are to be used for
basic setting of the pinion position on
assembly.

8

Turn over the gear housing and drive out the
front pinion bearing outer ring 8 using the
adjustable drift 98 616.

9

Cut off the bearing roller cage and remove
the cage and rollers.

!

WARNING!

Use protective goggles when grinding.

10 Grind a narrow groove in the inner bearing

ring using a grinding wheel with a diameter
below 60 mm.

110

777

Gear housing RP832
