Scania Central gear RP832-RBP832. Manual - part 19

08:04-02

©

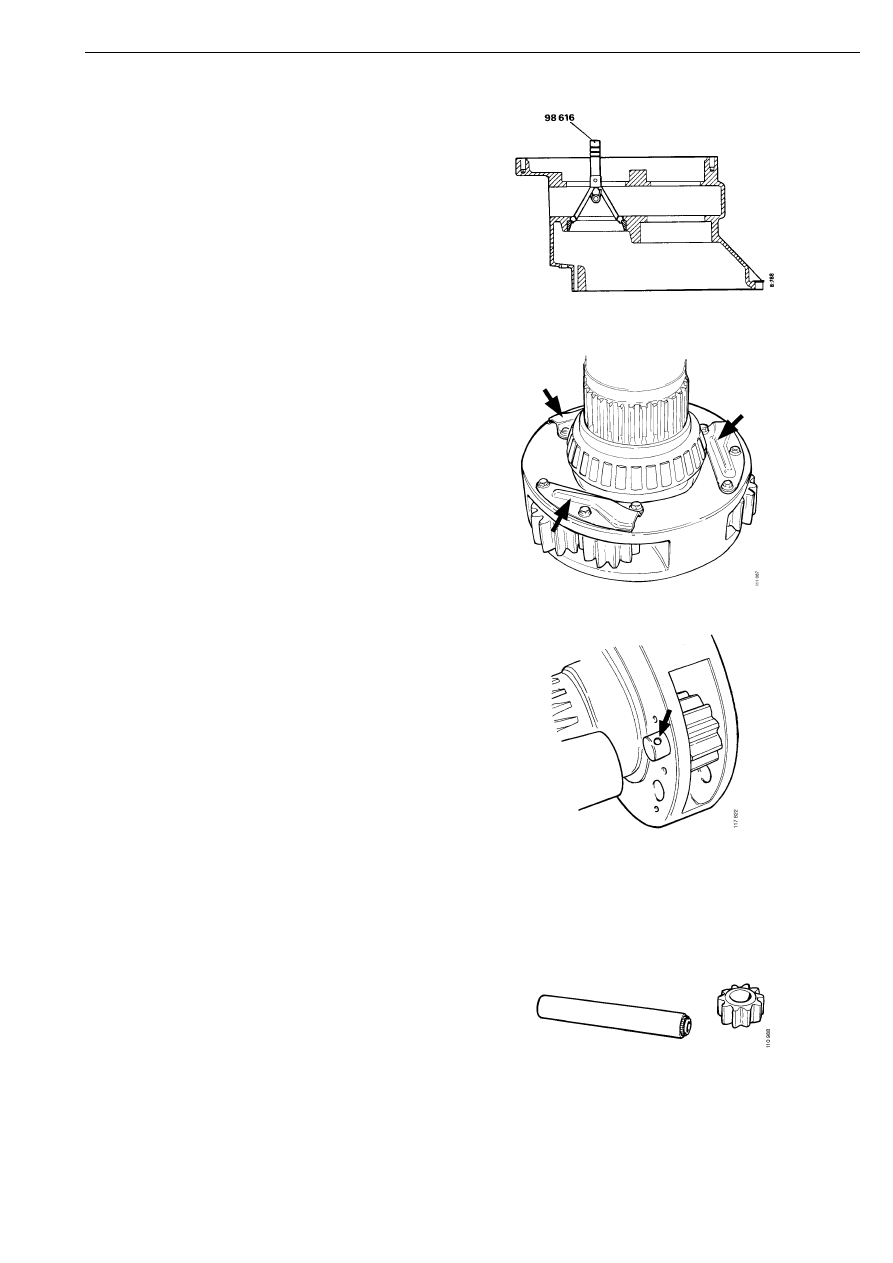

73

12 Drive the outer bearing rings from the

housing and keep the shims under the rear
pinion bearing outer ring. The shims are to
be used later during assembly for basic
setting of the pinion position.

13 Remove the oil collector 5 from the

housing.

14 Remove the oil collectors for the planet

wheel journals.

15 Slide the shafts 25 backward to the planet

wheels and take out the gears 24 and needle
bearing rollers 26. Keep the ball 27 from the
shafts.

16 The needle bearings 26 on each planet

wheel 24 comprises two rows of 30 needle
rollers each and with a thrust washer
between the rows. Six bearings are supplied
packaged in an inner and outer cardboard
tube, which can be used as an assembly tool.
The inner cardboard tube has plastic plugs
on both sides of each bearing set.

Planet wheel carrier RBP832

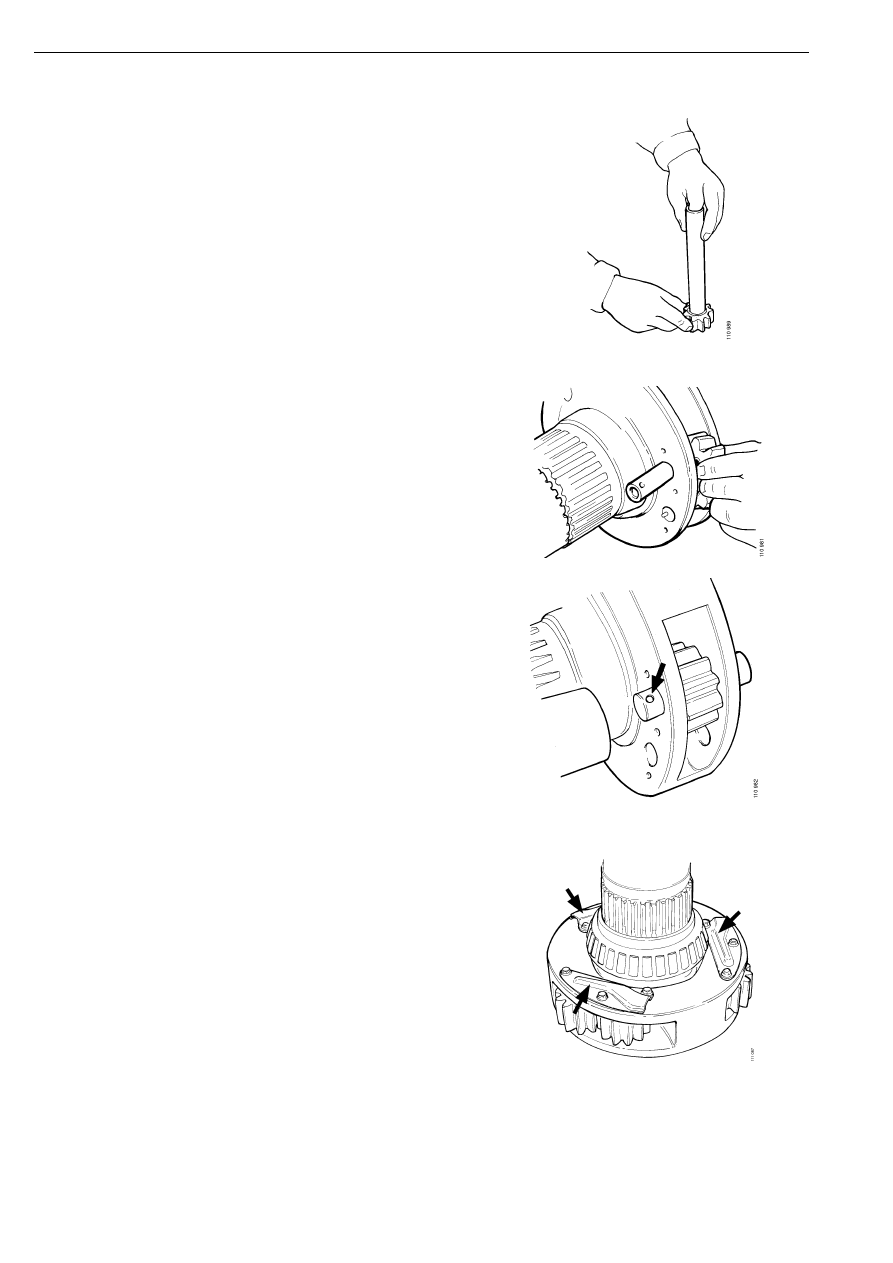

74

©

08:04-02

Assembly

1

Slide one needle bearing set into the planet
wheel carrier using the cardboard tube.

2

Carefully remove the plastic lid in the inner
tube and insert the planet wheel into the
planet wheel carrier 23.

3

Place the planet wheel opposite the shaft
hole in the planet wheel carrier. Slide in the
shaft 25 while the cardboard tube is pressed
out. Insert the latch ball 27 into the shaft
before sliding it home.

4

Fit the oil collectors 28 to the planet wheel
carrier. Apply locking compound to the
bolts and tighten them.

Planet wheel carrier RBP832

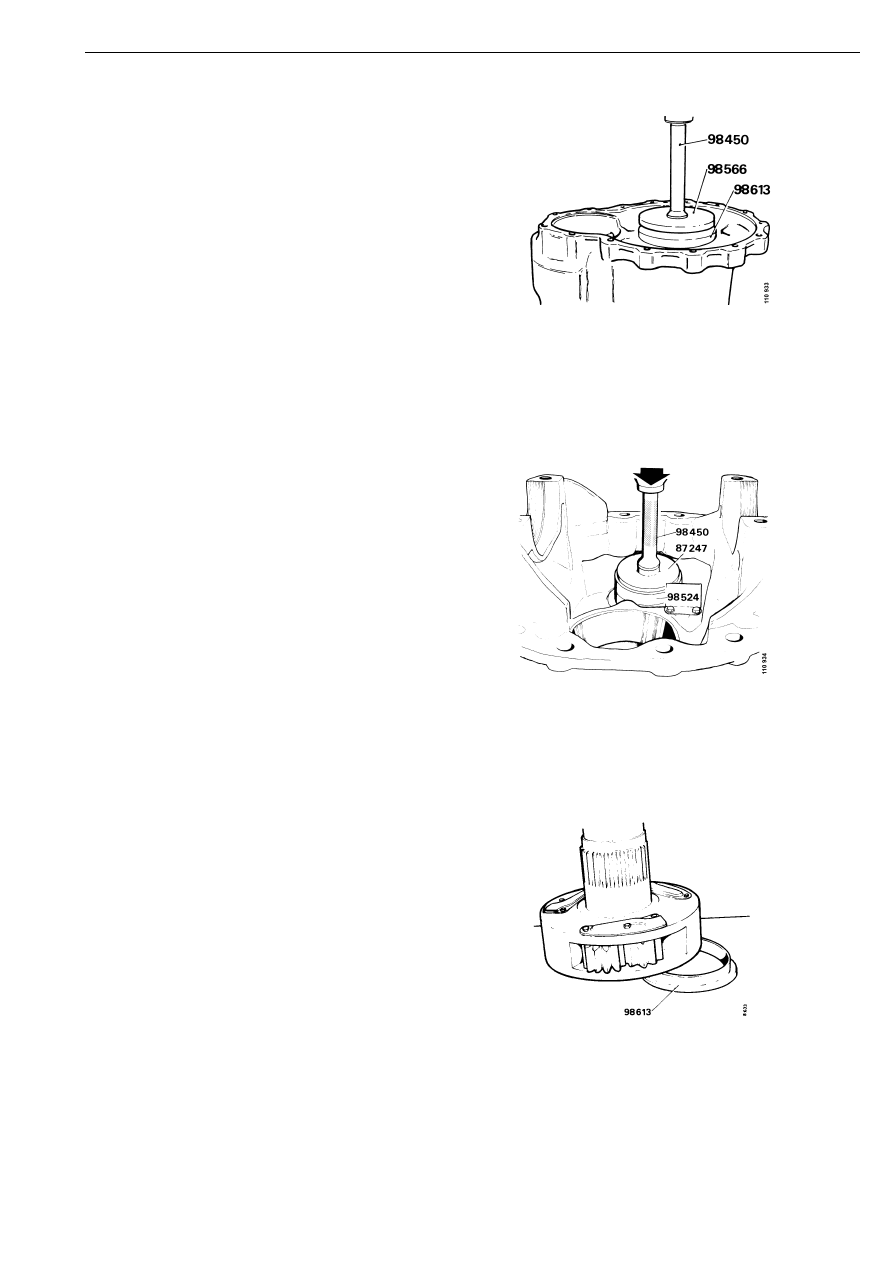

08:04-02

©

75

5

Press the planet wheel carrier front bearing
outer ring 32 into the gear housing using
drift 98 566, shank 98 450 and support ring
98 613.

6

Turn the gear housing and press the planet
wheel carrier rear outer ring 37 into the gear
housing using assembly sleeve 98 524, drift
87 247 and shank 98 450.

7

Place the planet wheel carrier on the support
ring 98 613 resting against the press plate in
the press.

Planet wheel carrier RBP832

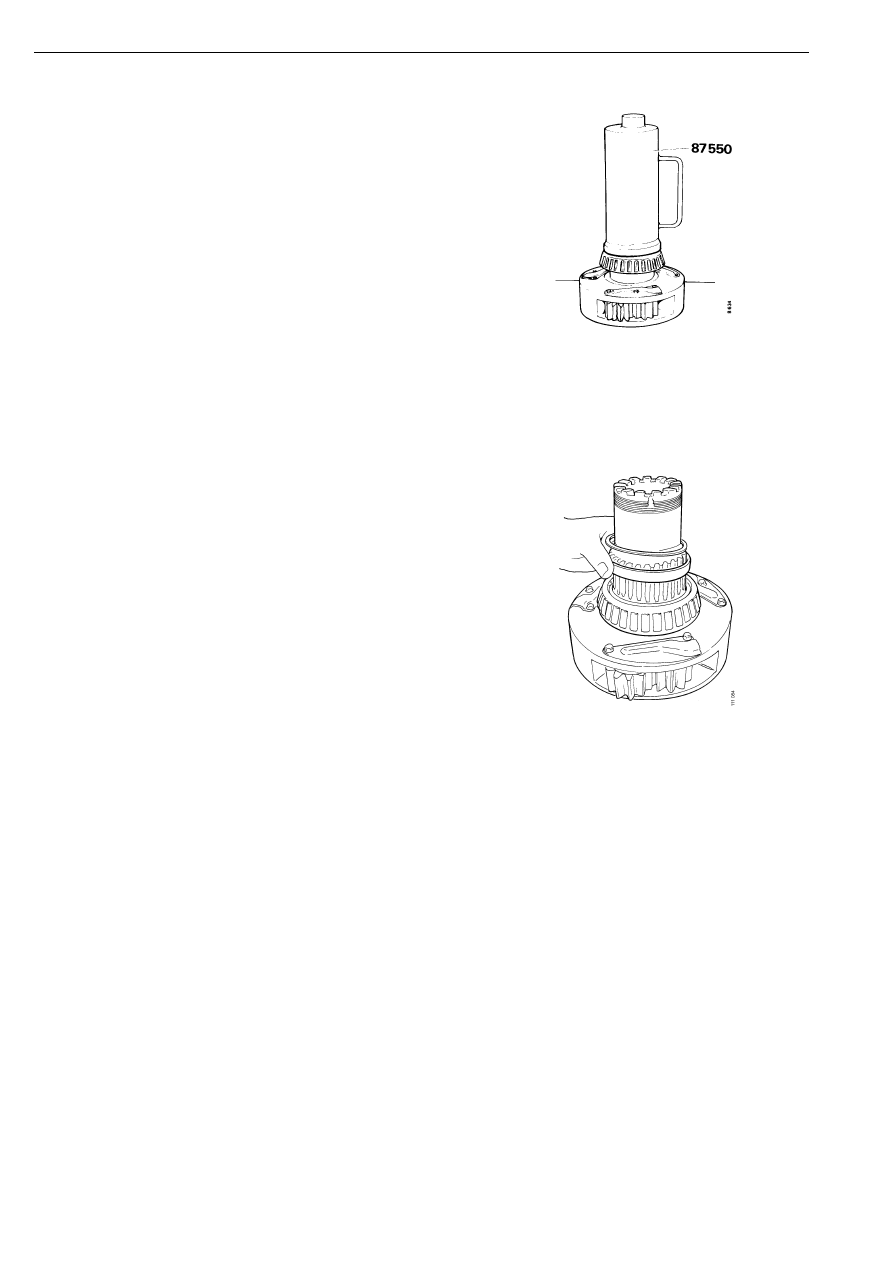

76

©

08:04-02

8

Press on the front bearing for the planet
wheel carrier using drift 87 550.

9

Fit the spacing ring 33 and the shims 34 that
were fitted earlier when adjusting the planet
wheel carrier.

Planet wheel carrier RBP832
