Scania Central gear RP832-RBP832. Manual - part 18

08:04-02

©

69

Assembling the bogie differential lock

1

Assemble both levers, 42 and 40, and shaft
43. Press the shaft into the inner lever. Make
sure the ends of the shaft are protruding
equal amounts on both sides of the outer
lever. Hook on the spring 41.

Differential lock operation

2

Insert the levers together with the spring
into the gear housing, lubricate and tighten
shaft 44 to 75 Nm. Make sure the levers are
opposite the holes for the switch and the
piston.

3

Fit the piston 49 and the cover 51 reversed
to keep the piston pressed in.

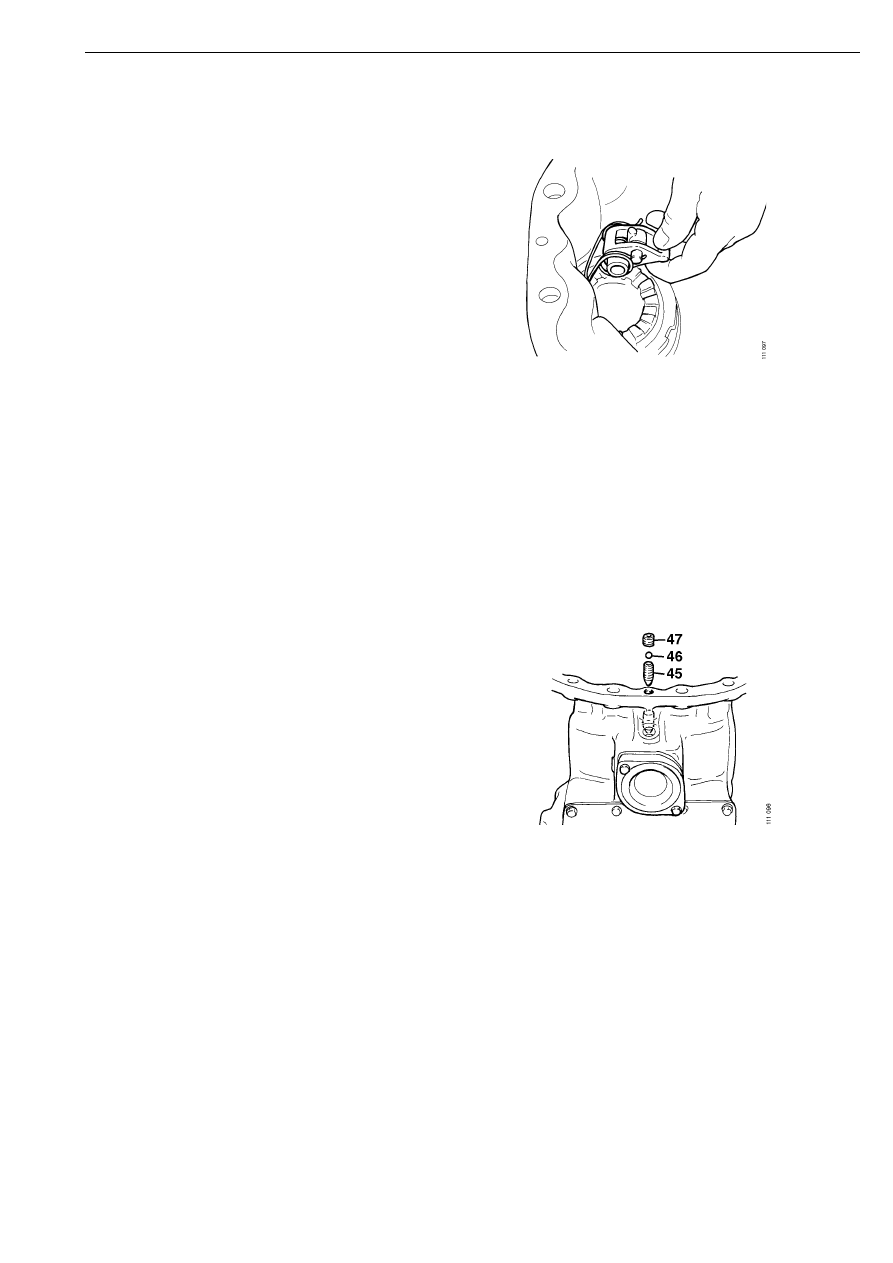

4

Screw in the set screw 45 so that the
differential lock 39 can be aligned with the
teeth in the planet wheel carrier.

5

Adjust the set screw until there is no play
between the teeth. Turn back the set screw
1/8 turn (45

°

) to attain an axial clearance of

0.20-0.50 mm between the top of the teeth
on the differential lock and the planet wheel
carrier (bottom of the teeth gaps). Insert the
ball 46 and tighten the lock bolt 47.

6

Fit the switch 48.

Bogie differential lock

70

©

08:04-02

Planet wheel carrier RBP832

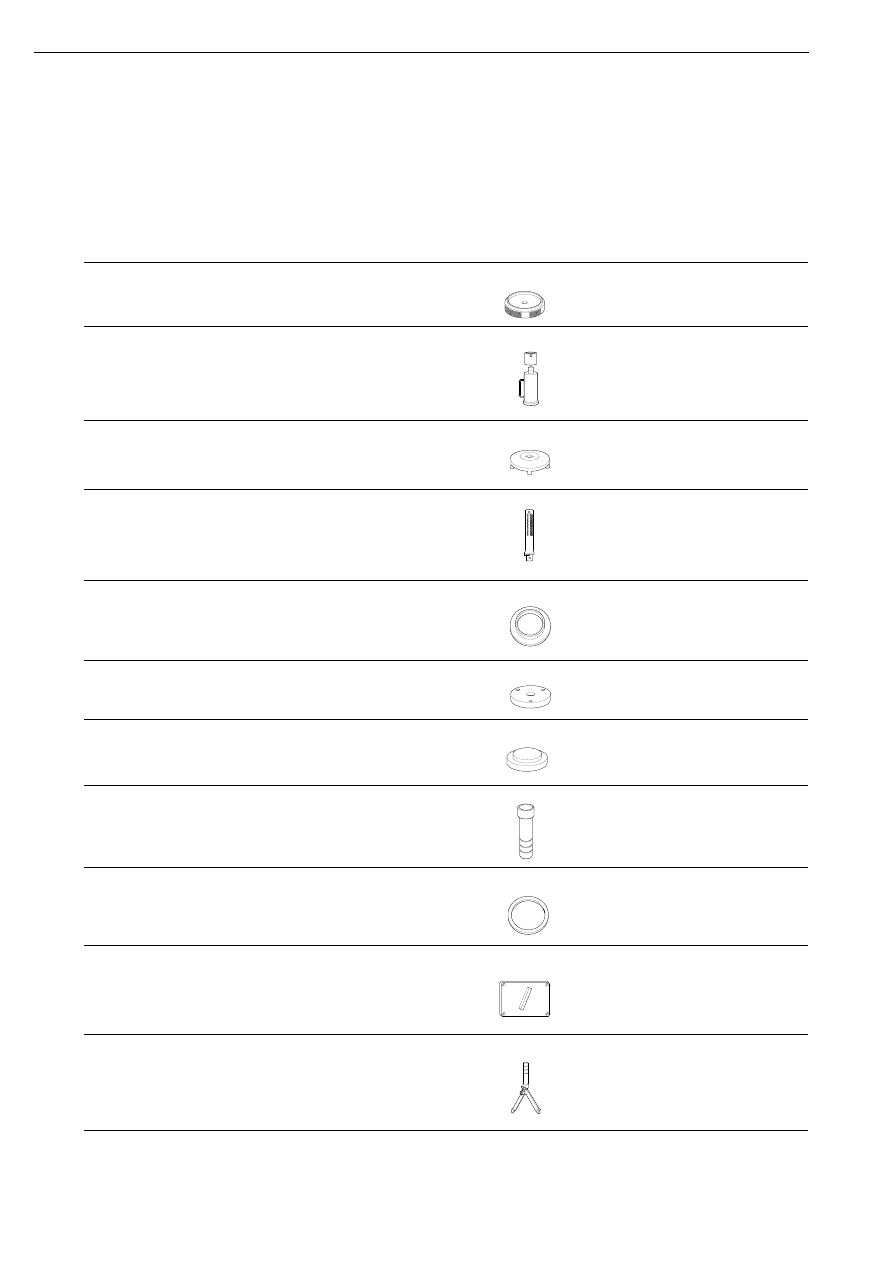

Special tools

Number

Description

Illustration

Board

87 247

Drift

R1

87 550

Drift

AD2

98 440

Stud wrench

R2

98 450

Shank

R2

98 524

Assembly sleeve

R1

98 566

Drift

R1

98 568

Support drift

R2

98 574

Drift

R1

98 613

Support ring

R1

98 615

Locking tool

R2

98 616

Adjustable drift

RD, AD2

107

759

87 247

87 550

00

1628

98 440

110 368

98 450

00

1

633

98 524

110 454

00

1617

98 566

00_1618

98 568

109 783

98 574

98 613

110 803

98 615

110

805

98 616

110 806

Planet wheel carrier RBP832

08:04-02

©

71

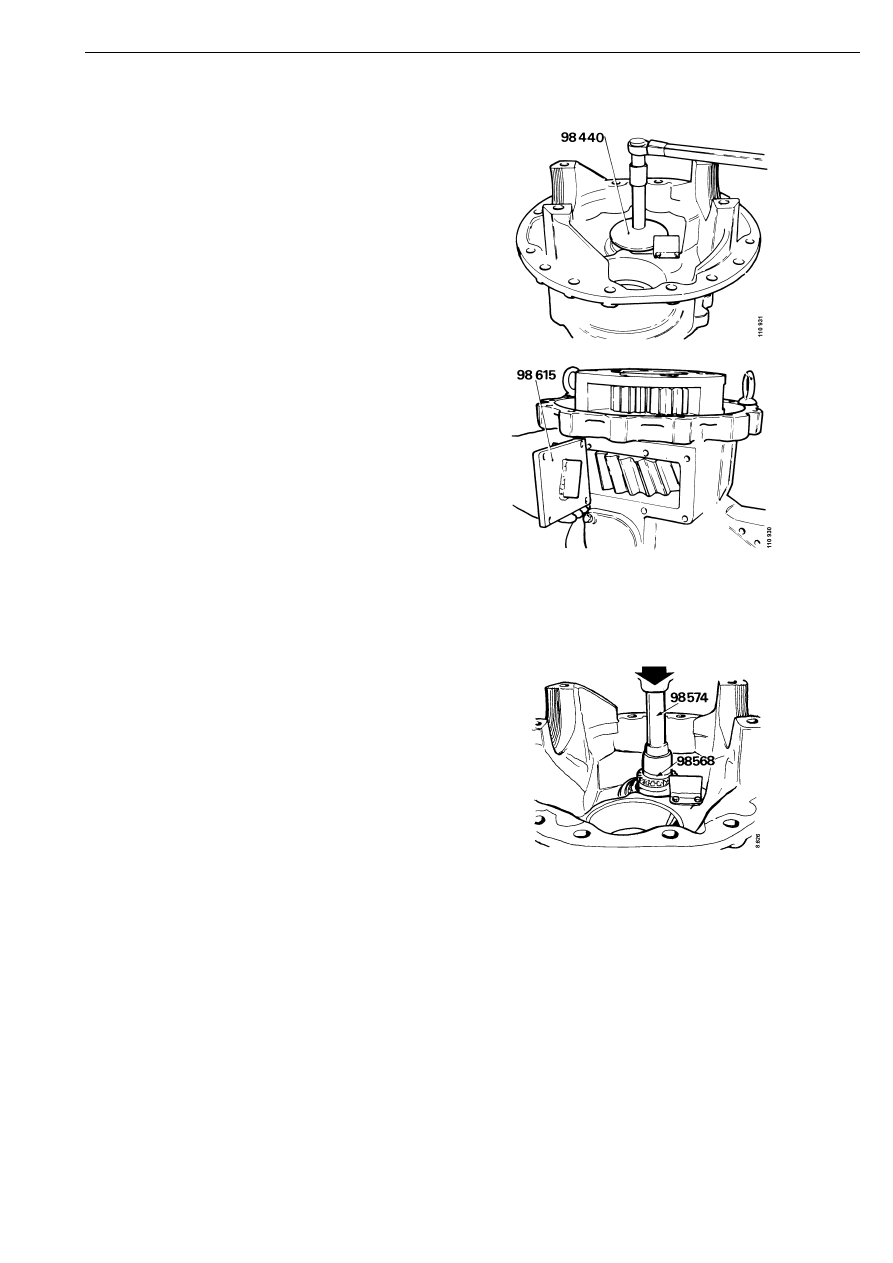

Dismantling

1

Turn over the gear housing. Remove the
lifting eyes 87 564. Strike the staking to
bend it up on nut 38. Remove the nut with
stud wrench 98 440.

2

Remove the locking tool 98 615 from the
transfer gear.

3

Place the gear housing in the press on two
parallel blocks with a wooden board in
between and press out the planet wheel
carrier using drift 98 574 and support drift
98 568.

4

Take out the planet wheel carrier rear
bearing 37 and spacing ring 36.

5

Lift up the gear housing and take out both
transfer gears 35.

6

Remove and keep the shims 34 and the
spacing ring 33 from the planet wheel
carrier. They are to be used later for setting
the bearing clearance.

Planet wheel carrier RBP832

72

©

08:04-02

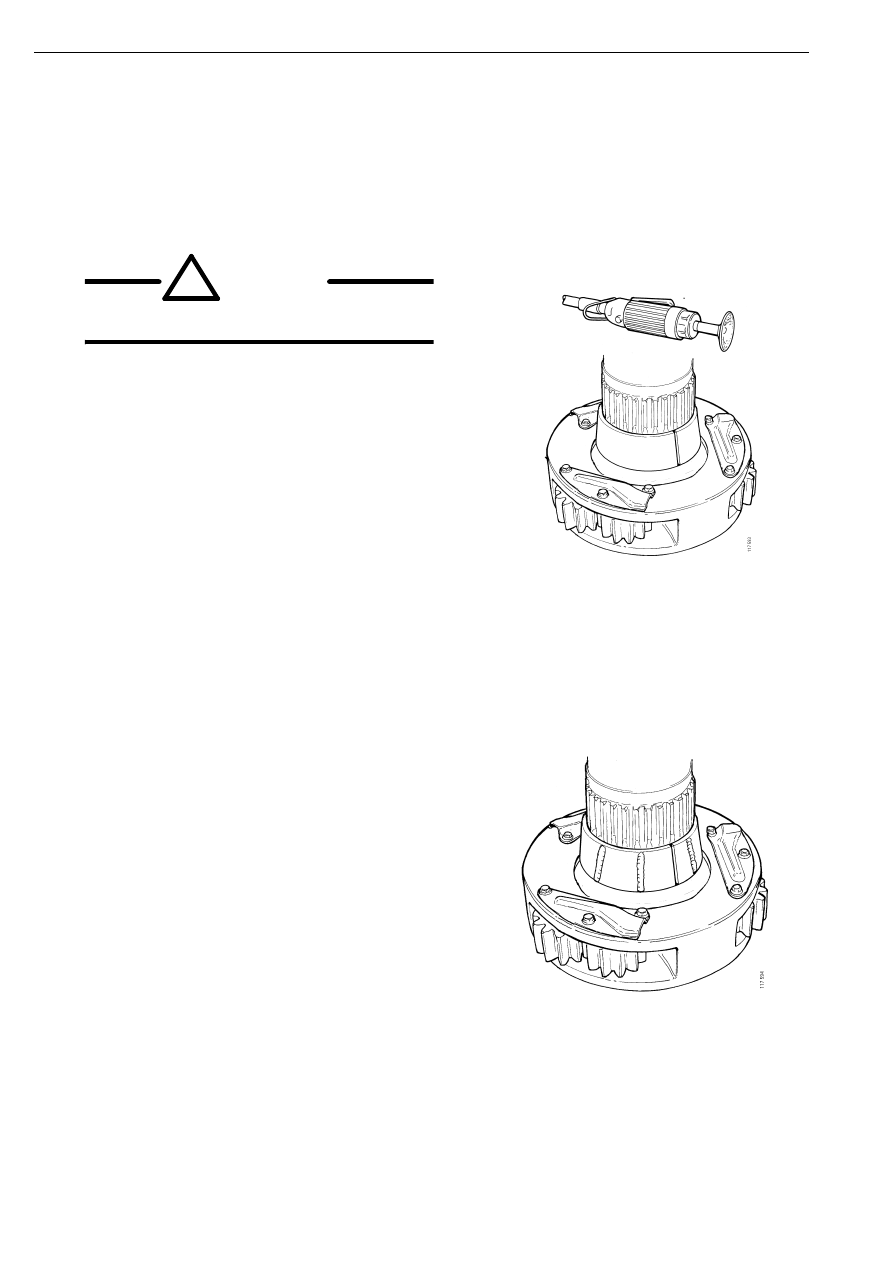

7

Remove the inner bearing ring from the
planet wheel carrier by splitting the inner
ring.

8

Cut off the bearing roller cage and remove
the cage and rollers.

!

WARNING!

Use protective goggles when grinding.

9

Grind a narrow groove in the inner bearing
ring using a grinding wheel with a diameter
below 60 mm.

10 Weld a few beads on the inner bearing ring

with an electric welder. Cool with a wet rag
after each weld.

11 Remove the inner bearing ring once it splits.

It will break through shrinkage after 4-5
welds.
