Lights and visibility

long as you hold the lever, e.g. when chang-
ing lanes.

Convenience turn signals

For the convenience turn signals, move the
lever as far as possible upwards or down-
wards and release the lever. The turn signal
will flash three times.

The convenience turn signals are activated
and deactivated in the Easy Connect system
via the



button and the

SETTINGS

function

button

›››



page 24

In vehicles that do not have the correspond-
ing menu, this function can be deactivated in
a specialised workshop.

Main beams



●

Switch on the dipped beam

›››

page 121

●

Press the lever

›››

Fig. 131

forward in the di-

rection indicated by arrow

●

Pull the lever back to its original position in

the direction indicated by arrow

to switch

the main beam off.

Headlight flasher



●

Pull the lever

›››

Fig. 131

towards the steer-

ing wheel (point of resistance) in the direction
indicated by arrow

Parking lights



●

Instructions for use

›››

page 125

CAUTION

Never use the main beam headlights or the
headlight flasher if they could dazzle other
drivers.

Note

●

If the convenience turn signals are oper-

ating (three flashes) and the other conven-
ience turn signals are switched on, the ac-
tive part stops flashing and only flashes
once in the new part selected.

●

The turn signals only work when the igni-

tion is switched on. The corresponding
warning lamp





flashes in the general

instrument panel.

●

The turn signals switch off automatically

when the steering wheel is returned to the
straight-ahead position.

●

If a turn signal bulb is defective, the con-

trol lamp flashes at double speed.

Automatic dipped beam control



The automatic dipped beam control is merely
intended as an aid and is not able to recog-
nise all driving situations.

When the light switch is in position



, the

vehicle lights and the instrument panel and
switch lighting switch on and off automatical-

ly in the following situations

›››

in Daytime

running lights on page 122

Automatic switch-

ing on

Automatic switch-

ing off

The photo sensor de-

tects

darkness

, for exam-

ple, when driving through

a tunnel.

When adequate lighting

is detected.

The rain sensor detects
rain and activates the

windscreen wipers.

When the windscreen
wipers have been inac-
tive for a few minutes.

WARNING

If the road is not well lit and other road
users cannot see the vehicle well enough
or at all, accidents may occur.

●

The automatic dipped beam control

(



) only switches on the dipped beam

when there are no changes in brightness,
and not, for example when it is foggy.

123

Operation

Fog lights*

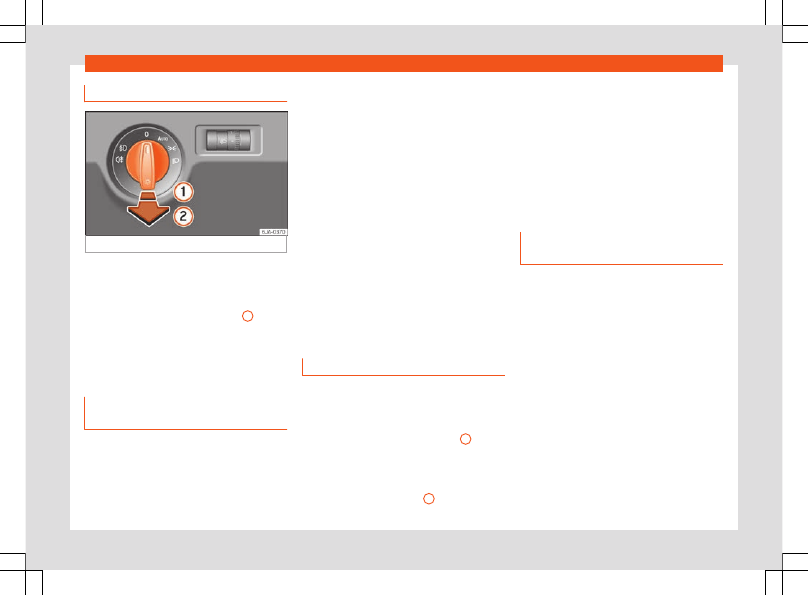

Fig. 132

Instrument panel: light panel.

Switching on front fog lights

–

First turn the light switch

›››

Fig. 132

to posi-

tion







–

Pull on the light switch to position

The



warning lamp lights up on the general

instrument panel if the front fog lights are
switched on.

Fog lights with cornering light func-
tion

Not available on vehicles equipped with full-

LED headlights and bulb fog lights.

The

cornering

light function is an additional

function to the dipped beam headlights to
improve lighting of the side of the road when
taking a sharp turn at low speed.

The

cornering

light function works when the

dipped beam headlights are already on and
it is enabled when driving at speeds below
approximately 40 km/h (25 mph).

Forward gear

●

If the steering wheel is turned to the right or

the right-hand turn signal switched on, the
right-hand fog lamp is gradually switched on.

●

If the steering wheel is turned to the left or

the left-hand turn signal switched on, the left-
hand fog lamp is gradually switched on.

●

After the turn, the

cornering

light function is

gradually switched off.

Reverse gear

●

When engaging the reverse gear, both fog

lights turn on.

Rear fog light

Switching on the rear fog light

–

First turn the light switch

›››

Fig. 132

›››

page 124

to position







–

Pull on the light switch to position

If the vehicle is not equipped with front fog
lights

›››

page 124

, the rear fog light is switch-

ed on by turning the switch to position





and pulling it to position

. This type of

switch only has one position.

The



›››

page 103

warning lamp lights up

on the general instrument panel if the rear
fog lights are switched on.

If you are towing a trailer or caravan equip-
ped with a rear fog light on a vehicle with a

factory-fitted towing bracket or one instal-
led using parts from the original SEAT
parts catalogue

, only the rear fog light on

the trailer or caravan will light up.

Function “Coming Home”/“Leaving
Home”*

This function makes it possible, under poor
visibility conditions, to automatically turn on
the lights for a brief period of time after the
vehicle has been parked or when approach-
ing the vehicle.

The function is automatically turned on if
the following conditions are met:

●

The light switch is in position



›››

page 123

●

The visibility around the vehicle is reduced.

●

The ignition is switched off.

To turn on this function, switch on the head-
light flasher prior to exiting the vehicle.

124

Lights and visibility

The light is adjusted according to the data re-
corded by the light sensor that is installed be-
tween the windscreen and the inside rear
view mirror.

The function automatically turns on the side
lights and headlights, the lighting for the en-
try area on the exterior mirrors and the num-
ber plate light.

“Coming Home” function

The light is automatically switched on when
the driver door is opened (for 60 seconds af-
ter the ignition is switched off).

The light is switched off when all the doors
and the rear lid are closed.

If a door or the rear lid remains open, the light
will switch off after 60 seconds.

“Leaving Home” function

The light is automatically switched on when
the vehicle is unlocked using the remote con-
trol.

The light is switched off after 10 seconds or
when the vehicle is locked.

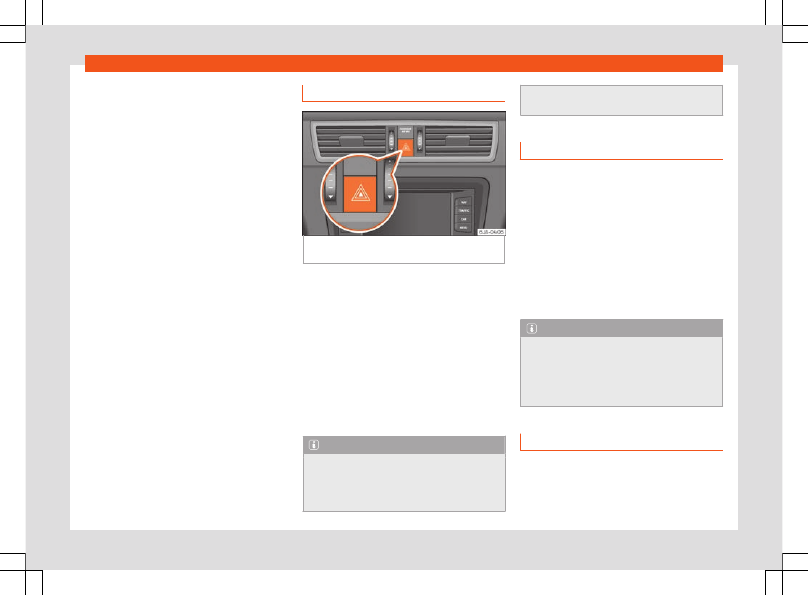

Hazard warning lights switch

Fig. 133

Instrument panel: switch for hazard

warning lights.

–

Press the button



›››

Fig. 133

to switch the

hazard warning lights on or off.

The warning lamps on the instrument panel
and the warning lamp on the switch will flash
at the same time as the turn signals when the
hazard warning lights are switched on. The
hazard warning lights also work when the ig-
nition is switched off.

The hazard warning lights come on automati-
cally in the event of an accident in which an
airbag is triggered.

Note

Switch on the hazard warning lights to warn
other road users, for example:

●

When reaching the tail end of a traffic

jam

●

if the vehicle has a technical fault or you

are involved in an emergency situation.

Parking lights*

Parking lights



–

Switch the ignition off.

–

Move the turn signal lever

›››

Fig. 131

›››

page 122

up or down to turn on the right

or left-hand parking lights respectively.

Parking light on both sides

–

Turn the light switch

›››

Fig. 129



›››

page 121

to position



and engage the

steering lock.

Note

●

The parking lights



can only be activa-

ted with the ignition disconnected.

●

The parking light will not come on auto-

matically after switching off the ignition if
the left- or right-hand turn signal is left on.

Driving abroad

The light beam of the dipped beam lights is
asymmetric: the side of the road on which
you are driving is lit more intensely.

125

Operation

When a car that is manufactured in a country
that drives on the right travels to a country
that drives on the left (or vice versa), it is nor-
mally necessary to cover part of the head-
light bulbs with stickers or to change the ad-
justment of the headlights to avoid dazzling
other drivers.

In such cases, the regulations specify certain
light values that must be complied with for
designated points of the light distribution. This
is known as “Tourist light”.

The light distribution of the halogen and full-
LED headlights allows the specific “tourist
light” values to be met without the need for
stickers or changes in the settings.

Note

“Tourist light” is only allowed temporarily. If
you are planning a long stay in a country
that drives on the other side, you should
take the vehicle to an Authorised Technical
Service to change the headlights.

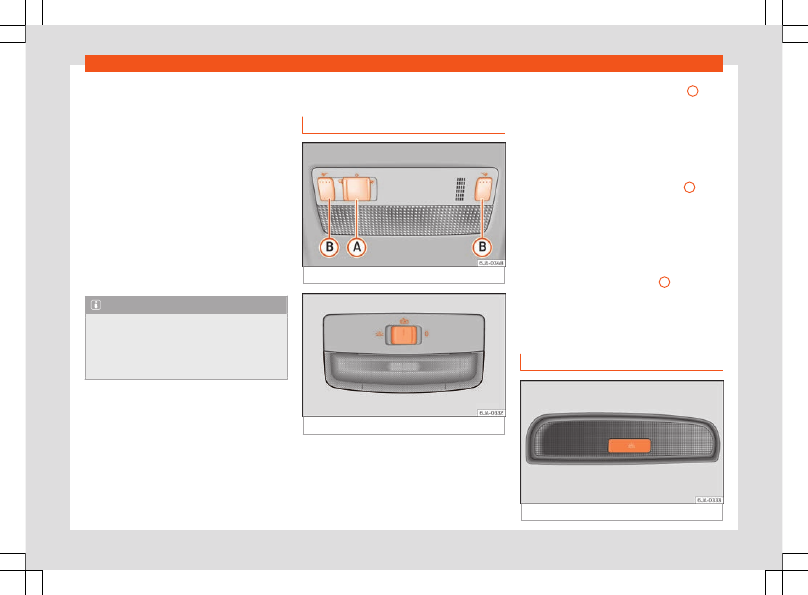

Interior lights

Interior lighting

Fig. 134

Interior lighting – version 1.

Fig. 135

Interior lighting – version 2.

Read the additional information carefully

›››



page 22

Where the courtesy light is on (switch

›››

Fig. 134

in position



), the light will come

on if:

●

the vehicle is unlocked,

●

one of the doors is opened,

●

The key is removed from the ignition

When the courtesy light is on (switch

position



), the light will switch off if:

●

the vehicle is locked,

●

the ignition is switched on,

●

30 seconds after all of the doors have been

closed

If a door is left open or if switch

is in the



position, the interior lighting switches off after
about 10 minutes to prevent the battery from
running flat.

Rear interior light

Fig. 136

Rear interior light.

126

Lights and visibility

Press the button

›››

Fig. 136

to switch the

lighting on or off.

Interior lights / ambient light*

The lighting of the central console area, the
door handles, the storage pockets in the front
doors and the footwell area will switch on
fully when the doors are opened and will de-
crease in intensity while driving with the dip-
ped beam headlights on.

Depending on the version, a logo is back-lit
on the front passenger's side of the dash
panel. This light comes on when the dipped
beam is activated.

The intensity of the ambient light* can be ad-
justed using the menu

Easy Connect >

Lighting settings > Vehicle interior
lighting

›››



page 24

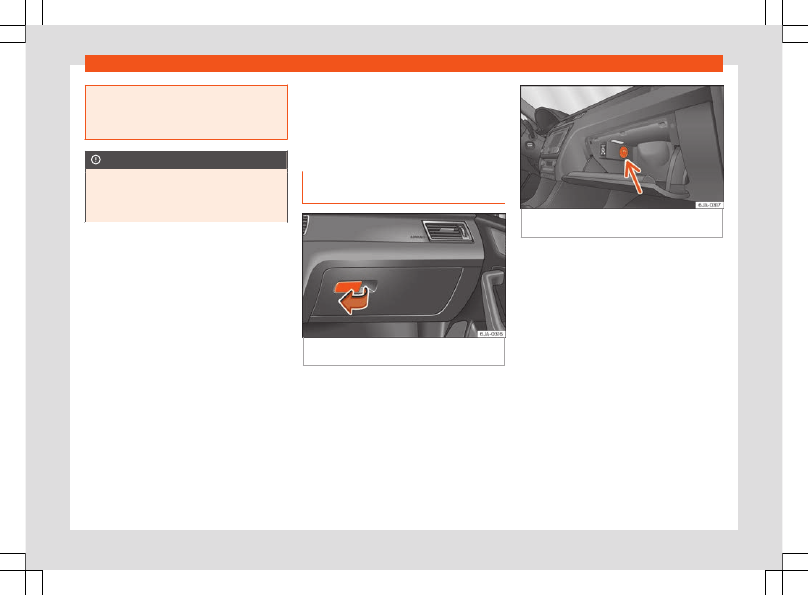

Glove box light

The light will come on automatically when
the glove compartment is opened. The light
will go out when the glove compartment is
closed.

Luggage compartment light

The light switches on automatically when the
boot is open and switches off automatically
10 minutes after the boot lid has been
opened.

Visibility

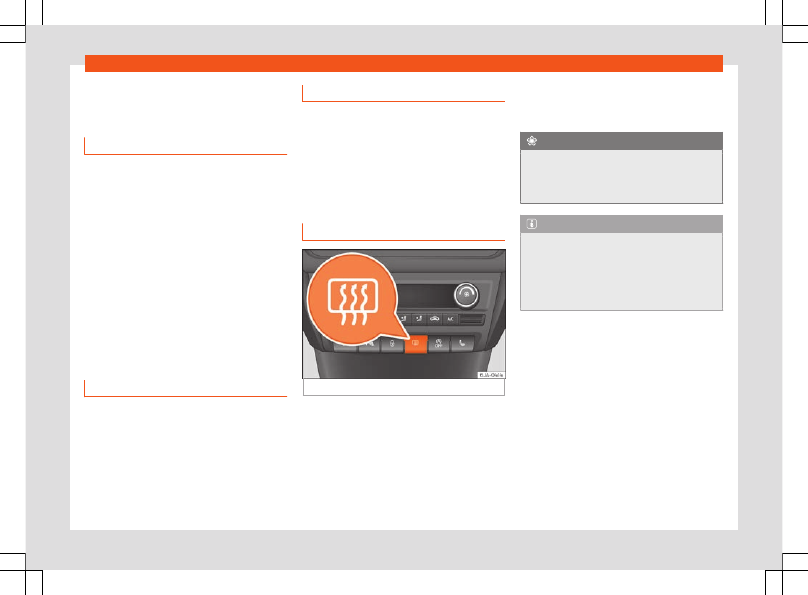

Heated rear window

Fig. 137

Heated rear window switch.

–

Switch the heated rear window on or off by
pressing the



button

›››

Fig. 137

, the warn-

ing lamp in the button will come on or go off
respectively.

The heated rear window only works when the
engine is running.

After approximately 7 minutes, the heating
device of the rear window

switches off

auto-

matically.

For the sake of the environment

The heated rear window should be switch-
ed off as soon as the glass is demisted. By
saving electrical power you can also save
fuel

›››

page 211

Note

In the event of a drop in voltage in the on-
board systems, the heated rear window
switches off automatically to ensure
enough power to control the engine

›››

page 255, Automatic disconnection of

electrical equipment

127

Operation

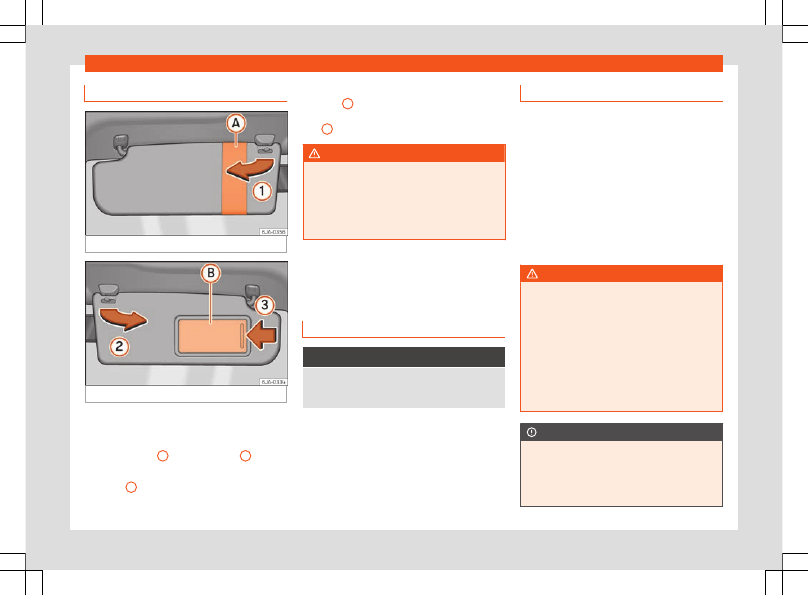

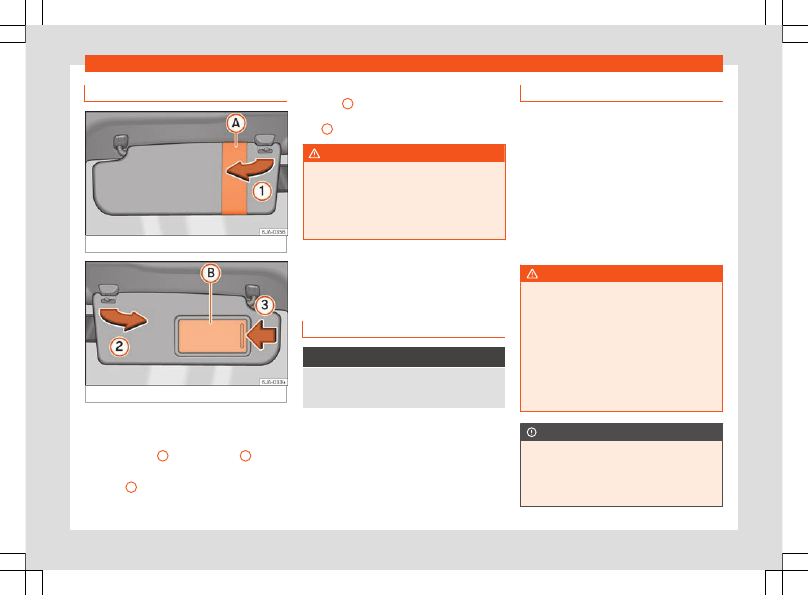

Sun visors

Fig. 138

Driver's sun visor.

Fig. 139

Front passenger's sun visor.

The sun visors for the driver and the front pas-
senger can be pulled out of their central sup-
ports and turned towards the doors in the di-
rection of arrow

›››

Fig. 138

and

›››

Fig. 139

respectively.

The strip

is to store small objects such as

notepaper, etc.

The front passenger sun visor includes a vani-
ty mirror

with a cover. The cover is opened

by sliding it in the direction indicated by ar-
row

›››

Fig. 139

WARNING

Do not turn sun visors with attached ob-
jects such as ball-pens, etc. toward the
head protection airbag triggering zone on
the side windows. The head airbags could
cause lesions to the passengers when acti-
vating.

Windscreen wipers and
windscreen washers

Control lamp



It lights up

Windscreen wiper level too low.
Top up the windscreen wiper reservoir as soon as

possible

›››

page 251

Several warning and control lamps light up
for a few seconds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds.

Introduction

The windscreen wipers and windscreen
washers only work when the ignition is
switched on.

The speed of the automatic wipe in case of
rain is automatically adjusted according to
the intensity of the rainfall.

The rear window is wiped once if the wind-
screen wipers are switched on and reverse
gear is engaged.

Fill the windscreen washer fluid

›››

page 251

WARNING

●

Make sure the blades

›››



page 56

are

in perfect condition for good visibility and
safe driving.

●

In cold conditions, you should not use the

wash/wipe system unless you have
warmed the windscreen with the heating
and ventilation system. The windscreen
washer fluid could otherwise freeze on the
windscreen and obscure your view of the
road.

CAUTION

●

During winter, always check that the

windscreen wiper blades are not frozen to
the glass before each trip or before switch-
ing on the ignition. If you switch on the
windscreen wipers when the wiper blades

128

Lights and visibility

are frozen to the glass, this could damage
both the wiper blades and the wiper motor.

●

If the ignition is switched off when the

windscreen wipers are on, they will start
operating in the same mode when the igni-
tion is switched back on. The wiper blades
may be frozen to the glass at low tempera-
tures when the ignition is switched off.

●

Carefully separate the frozen wipers

from the windscreen or rear window.

●

Remove snow and ice from the wipers be-

fore starting your journey.

●

Careless handling could lead to the wip-

er arms damaging the windscreen.

●

For safety reasons, the wiper blades

should be changed once or twice a year.
They can be purchased at a SEAT Author-
ised Service.

●

The ignition cannot be switched on while

the windscreen wiper arms are in a raised
position. Otherwise, the windscreen wipers
would return to their original position and
could damage the paintwork on the bon-
net.

Note

Keep the wipers clean. The wipers can be
soiled with remains of wax solutions from
car washes

›››

page 265

●

On vehicles equipped with windscreen

washer jets, these are heated once the en-
gine is running.

Operating windscreen wipers and
washers

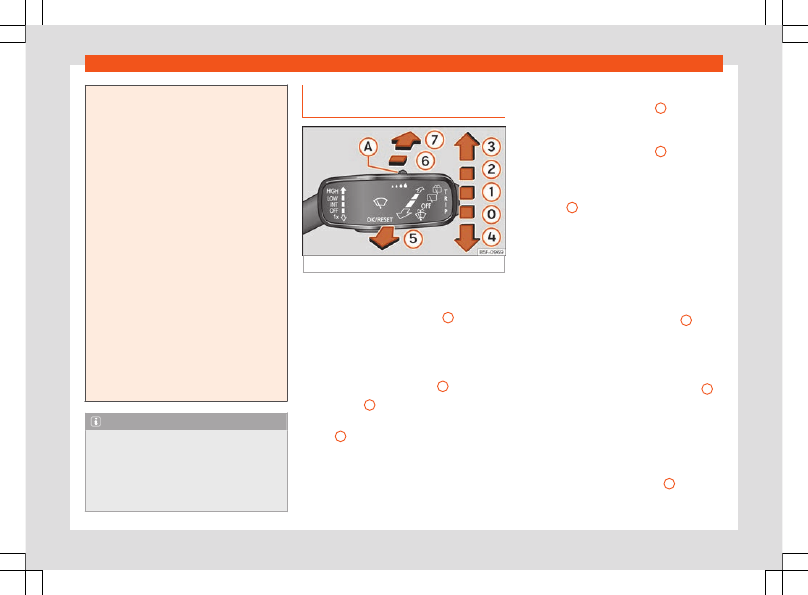

Fig. 140

Window wiper lever.

Short wipe

–

Give the windscreen a

brief

wipe by mov-

ing the lever down to position

›››

Fig. 140

Intermittent wipers/automatic wipe with
rain sensor*

–

Push the lever up to position

›››

Fig. 140

–

With switch

, adjust the wipe interval or

rain sensor sensitivity.

Switch

has 4 positions.

The rain sensor* is part of the intermittent
wipe function.

The rain sensor* controls the frequency of
the windscreen wiper intervals, depending on
the amount of rain.

Slow wipe

–

Push the lever up to position

›››

Fig. 140

Continuous wipe

–

Push the lever up to position

›››

Fig. 140

Automatic windscreen wash and wipe

–

Pull the lever towards the steering wheel,
position

›››

Fig. 140

, and the windscreen

washer and wipers are switched on.

–

Release the lever. The washer will stop and
the windscreen wipers will keep running for
1-3 wipes (depending on the windscreen
washer operating time).

Rear window wiper*

–

Press the lever forward to position

›››

Fig. 140

and the rear window wiper will

run every 6 seconds.

Automatic rear window wash and wipe*

–

Press the lever fully forward to position

›››

Fig. 140

and the rear window wiper and

washer switch on at the same time.

–

Release the lever. The rear window washer
will stop and the rear window wipers will
keep running for 1-3 wipes (depending on
the jet operating time).

When released,

the lever remains in position

129

Operation

Switching off the wipers

–

Move the lever to position

›››

Fig. 140

WARNING

The rain sensor may not detect enough rain
to switch on the wipers.

●

If necessary, switch on the wipers man-

ually when water on the windscreen ob-
structs visibility.

Note

Do not put stickers on the windscreen in
front of the rain sensor*. This may cause
sensor disruption or faults.

Headlight washers*

The headlight washers operate briefly if the
dipped headlights or headlights are on and
the lever is moved to position

›››

Fig. 140

The headlight washer system also operates
every 10 windscreen wash cycles.

Clean off stubborn dirt (insects, etc.) from the
headlights at regular intervals, for instance
when filling the fuel tank. Please observe the
following indications

›››

page 265

To ensure the system works properly in winter,
keep the nozzle holders free of snow and re-
move any ice with a de-icer spray.

CAUTION

Never pull on the nozzle holders. Risk of
damage to the system!

Mirrors

Rear view mirror with manual anti-
dazzle device

Basic settings

–

Push the lever at the bottom of the mirror
forward.

Rear vision mirror anti-dazzle setting

–

Pull the lever at the bottom of the mirror to-
wards you.

Exterior mirrors

Read the additional information carefully

›››



page 15

Before beginning any journey, adjust the rear
view mirrors for a good rear visibility.

WARNING

●

Convex (wide-angle) rear vision mirrors

give a larger field of vision. However, they
make objects appear smaller and further

away than they really are. For this reason,
you should not rely on these rear vision mir-
rors for judging the distance of vehicle be-
hind.

●

If possible, use the interior rear vision mir-

ror to estimate distances to vehicles behind
you.

Note

●

Exterior mirrors are only heated when the

engine is running.

●

Do not touch the exterior mirrors when

the heating system is running.

●

If the electrical adjustment should ever

fail to operate, the rear vision mirrors can
be adjusted by hand by pressing the edge
of the mirror glass.

●

Visit the technical service in the event of

a fault in the electrical rear vision mirror
adjustment system.

130

Seats and head restraints

Seats and head restraints

Adjusting seats and head re-
straints

Introduction

Read the additional information carefully

›››



page 14

Set the driver seat in such a way that the
pedals can be fully depressed with your legs
slightly bent.

Set the driver seat backrest so that you can
reach the upper point of the steering wheel
with your arms slightly bent.

The correct seat position is very important
for:

●

reaching all of the controls safely and

quickly,

●

a relaxed posture that will not produce fati-

gue,

●

maximum protection from the seat belts

and airbag system

WARNING

●

Adjust the driver seat only when the vehi-

cle is stationary. Risk of accident!

●

Be careful when adjusting the front seats!

Careless and uncontrolled adjustment can
cause injuries.

●

The backrests must not be reclined too

far back while driving. This could limit the
effect of the seat belts and the airbag sys-
tem. Risk of injury!

●

Never transport more than the permitted

amount of people in your vehicle.

●

Every occupant in the vehicle must prop-

erly fasten and wear the seat belt belong-
ing to his or her seat. Children must be pro-
tected with an appropriate child restraint
system

›››

page 75, Transporting children

safely

●

The front seats, head restraints and seat

belts must always be adjusted to the size of
the vehicle occupant to provide you and
your passengers with the greatest possible
protection.

●

Your feet should remain in the footwell

while the vehicle is moving; never rest them
on the dash panel, on the window or on the
seat! This also applies to passengers. An
incorrect sitting position exposes you to an
increased risk of injury in case of a sudden
braking or an accident. If the airbag is trig-
gered, you could sustain severe injuries due
to an incorrect sitting position!

●

It is important for the driver and front

passenger to keep a distance of at least
25 cm from the steering wheel and dash
panel. Failure to respect the minimum dis-

tance means that the airbag will not pro-
tect you. Risk of fatal injury if triggered!

●

Objects must not be placed in the foot-

well, as they could move to the area of the
pedals in the event of a braking manoeuvre
or change of direction. This would prevent
the clutch, brake or accelerator from being
pressed.

●

Do not place any items on the front pas-

senger seat other than those allowed (e.g.
child seat). Risk of accident!

Note

After a certain time, the backrest angle ad-
justment mechanism may gain a certain
amount of play.

131

Operation

Head restraints

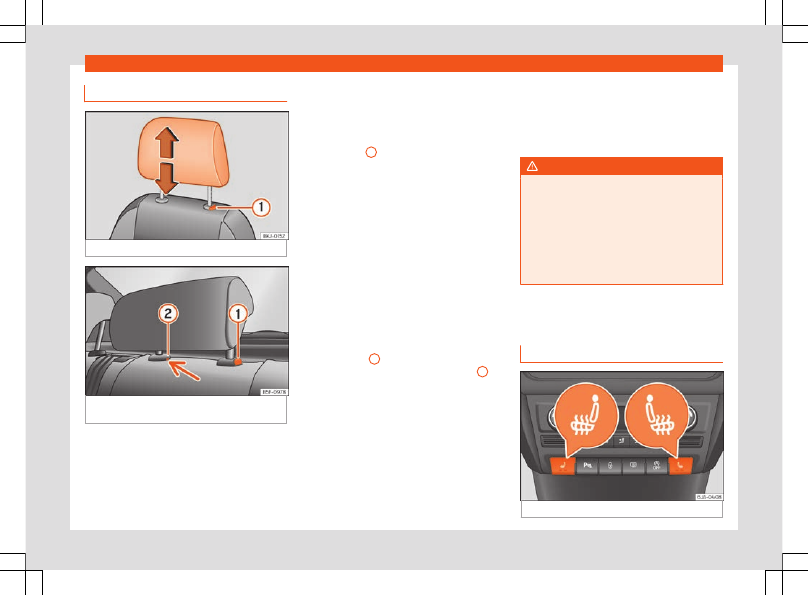

Fig. 141

Front headrest: adjusting or removing.

Fig. 142

Rear centre head restraint: release

point.

Read the additional information carefully

›››



page 14

Head restraints cannot be moved up or down
or removed on sports seats.

Fitting and removing head restraints on
front seats

–

Push the head restraint up as far as it will
go.

–

Press catch

›››

Fig. 141

and remove the

head restraint.

–

To refit, insert the head restraint into the
holes in the backrest, pushing it down until it
engages.

Fitting and removing head restraints on
rear seats

To remove the head restraint, the corre-
sponding backrest must be partially folded
forward.

–

Unlock the backrest

›››

page 134

–

Move the head restraint upwards until it ar-
rives to the top.

–

Press button

›››

Fig. 142

, while simulta-

neously pressing on the security hole

›››

Fig. 142

with a flat screwdriver a maxi-

mum of 5 mm wide, and remove the head
restraint.

–

To refit, insert the head restraint into the
holes in the backrest, pushing it down until it
engages.

For maximum head restraint protection, ad-
just the head restraint so that its upper edge
is at the same level as the top of your head.

The head restraint must be adjusted in line
with the height of users. Correct adjustment
of the head restraint, together with the seat
belts, ensure effective passenger protection

›››

page 58

WARNING

●

Badly adjusted head restraints increase

the risk of injuries in the event of an acci-
dent.

●

Never drive with the head restraints re-

moved. Risk of injuries!

●

If the seats are in use, never drive with the

rear head restraints in their out-of-use po-
sition.

Seat functions

Heated front seats*

Fig. 143

Heated front seats.

132

Seats and head restraints

The cushion and backrest of the front seats
can be heated electrically.

Press the





button

›››

Fig. 143

to switch

on and adjust the heated front seats.

Press once to connect the heating at maxi-
mum force.

Press the button again to reduce the force of
the heating and switch it off. The force is indi-
cated by the number of warning lamps lit on
the button.

WARNING

Do not use the heated seat if your percep-
tion of pain and/or temperature or that of
your passenger is limited, e.g. due to medi-
cation, paralysis or chronic illness (e.g. dia-
betes). It could cause burns on the back,
buttocks and legs that are difficult to heal.
If you still want to use the heated seat, take
frequent breaks on long journeys so that
the body can recover from the trip. Ask your
doctor about your particular situation.

CAUTION

●

To avoid damaging the heating elements,

do not kneel on the seat or apply sharp
pressure at a single point to the seat cush-
ion or backrest.

●

Do not use the heated seats if nobody is

sitting on them or if there are items attach-
ed to or lying on them, such as a child seat

or a bag, etc. The seat heating elements
could have a fault.

●

Do not clean the seats with anything

damp

›››

page 268

Note

●

Only connect the heated seats when the

engine is running. This provides considera-
ble savings on the battery capacity.

●

In the event of a drop in voltage in the on-

board systems, the heated seats switch off
automatically to ensure enough power to
control the engine

›››

page 255, Automatic

disconnection of electrical equipment

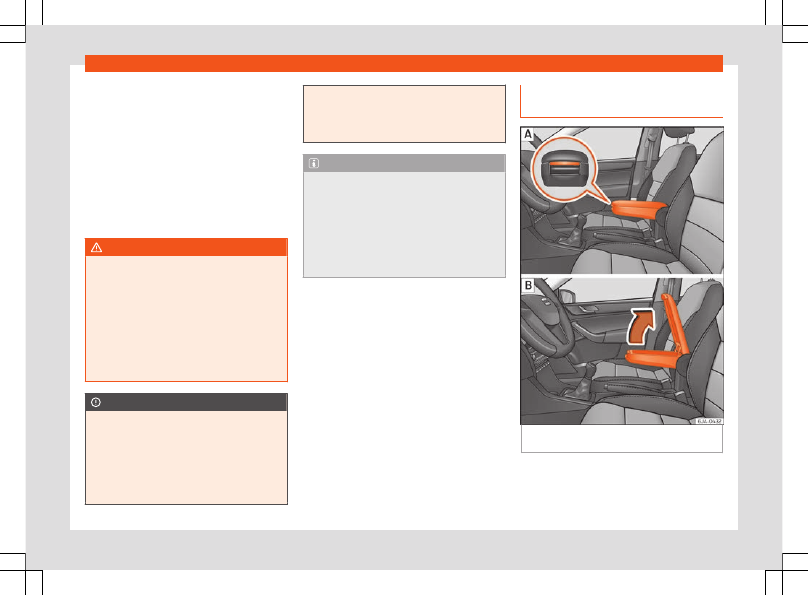

Armrest on front seats with inner
storage*

Fig. 144

Armrest/Opening and closing the

storage compartment.

Adjusting armrest height

–

Lift the armrest as far as it will go and then
fold it downward.

133

Operation

–

Raise the armrest until it engages in one of
the 5 positions.

Opening storage compartment

–

Press the button located on the front of the
armrest

›››

Fig. 144



–

Lift the storage compartment lid

›››

Fig. 144



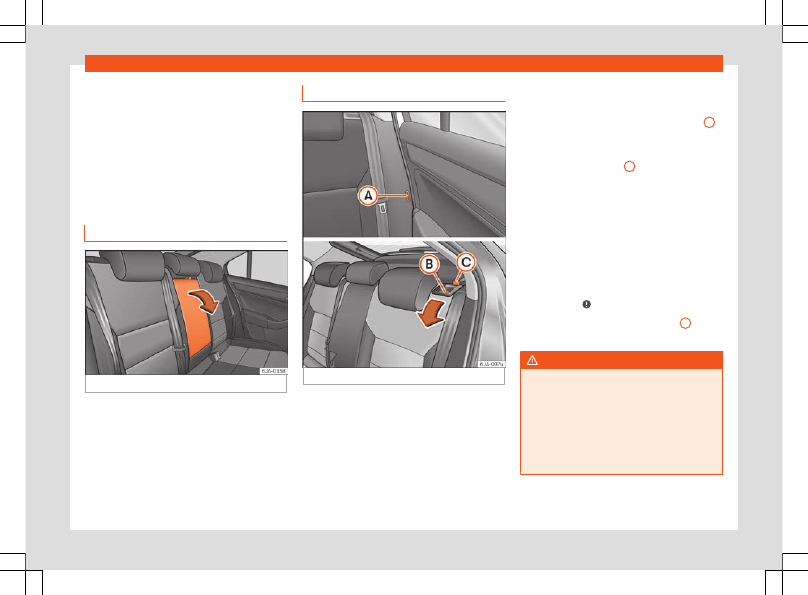

Armrest on rear seats

Fig. 145

Rear side seats: armrest.

The armrest can be folded away for greater
comfort using the handle

›››

Fig. 145

Folding down the backrest

Fig. 146

Unlocking the backrest.

Folding

–

Before folding the rear seats, adjust the po-
sition of the front seats so that the rear
seats are not damaged. When the front
seats are adjusted to the rear position, their
head restraints should be removed before
folding the backrests on the rear seats.
Store the removed head restraints in such a

way that they cannot be soiled or dam-
aged.

–

Insert the seat belt latch plate into hole

›››

Fig. 146

located on the corresponding

side of the vehicle – safety position.

–

Press the lock button

to unlock the back-

rest and fold it forward.

Returning to the initial position

–

Where the head restraint has been re-
moved, insert it into the backrest when par-
tially raised.

–

Push the backrest backwards to its original
position until the lock button engages –
check that it is locked by pulling on the
backrest

›››

–

Make sure the red protruding part

is not

visible.

WARNING

●

Once the backrests have been lifted, the

seat belts and their buckles must be in their
initial position – ready for use.

●

The backrests must be safely locked to

ensure any items in the boot cannot move
around the interior of the vehicle in the
event of a sudden braking manoeuvre. Risk
of injuries!

134

Transport and practical equipment

●

Make sure the rear backrests are correct-

ly locked. Only then will the three-point au-
tomatic seat belt on the rear central seat
work correctly.

CAUTION

Take care when handling the rear backr-
ests so as not to damage the seat belts.
The seat belt must never be left behind the
lifted backrest.

Transport and practical
equipment

Practical equipment

Passenger side storage compart-
ment

Fig. 147

Instrument panel: passenger side

glove compartment.

Fig. 148

Storage compartment: cooling con-

trol.

Opening and closing passenger side glove
compartment

–

Pull the catch on the lid in the direction indi-
cated by the arrow

›››

Fig. 147

and open

the lid.

–

Close the lid and push it until it engages.

Depending on the vehicle equipment, the CD
player is located in the glove compartment.
Separate operating instructions are enclosed
for this equipment in the corresponding In-
struction Manual.

Glove compartment cooling*

Open or close the air outlet by turning the
thumbwheel

›››

Fig. 148

If the air outlet is open and the air condition-
ing is on, the cooled air will be released into
the glove compartment.

135

Operation

If the air outlet is open and the air condition-
ing is off, outdoor air (not conditioned) will be
released into the glove compartment.

The air outlet should be closed if the air con-
ditioning is being used in heating mode or
where glove compartment cooling is not in
use.

WARNING

●

For safety reasons, all storage compart-

ments must be closed while the vehicle is
moving.

●

Never place any objects on the instru-

ment panel. These objects could be flown
around the interior while the vehicle is mov-
ing (on accelerating or turning) and dis-
tract you. Risk of accident!

●

Make sure objects remain in the centre

console or other compartments while the
vehicle is moving. Otherwise, this could
prevent you from braking, changing gear or
accelerating. Risk of accident!

Note

The glove compartment can hold a bottle
no larger than 1 litre.

Storage compartment for reflec-
tive vest

Fig. 149

Driver's seat: storage compartment.

There is a compartment below the driver seat

›››

Fig. 149

to store the reflective vests.

WARNING

The compartment is solely designed to
store the reflective vest and no other ob-
jects. Objects falling out of the storage
compartment could limit or prevent use of
the pedals.

CAUTION

The compartment is solely designed to
store the reflective vest and no other ob-
jects, since there is a risk of damaging the
storage compartment.

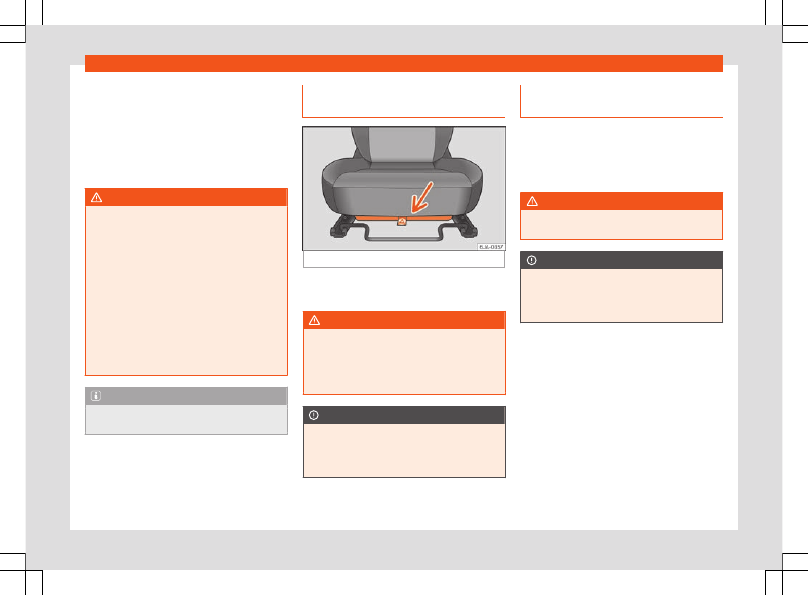

Storage pocket under the front
seats

There is a storage pocket on the rear part of
the backrest of the front seats.

These pockets are designed to hold maps,
magazines, etc.

WARNING

Do not place heavy objects in the pockets.
Risk of injury!

CAUTION

Do not place overly large objects in the
pockets (e.g. bottles) or objects with sharp
edges. Risk of damage to the pockets and
the upholstery.

136

Transport and practical equipment

Drink holder in the centre console

Fig. 150

Centre console: drinks holder.

Front drink holder in the centre console
Rear drink holder in the centre console

WARNING

●

Do not put hot drinks in the drink holders.

They could spill while the vehicle is moving.
Risk of scalding!

●

Do not use cups or glasses made of frag-

ile materials (e.g. glass or china). These

could cause injury in the event of an acci-
dent.

CAUTION

Avoid putting open drinks containers in the
drink holder while the vehicle is moving.
They could spill (e.g. on braking) and cause
damage to the electrical equipment or the
seat covers.

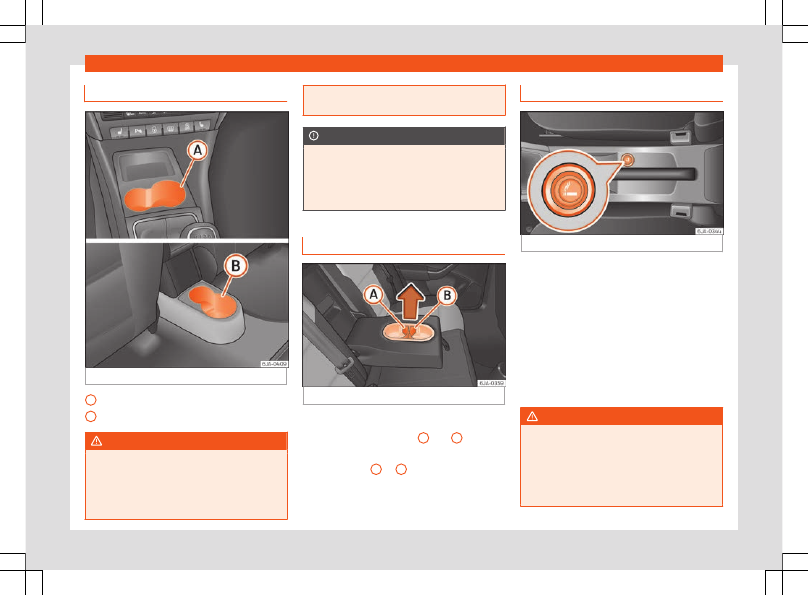

Drink holder in rear seat armrest

Fig. 151

Rear seats armrest: drink holder.

Two drinks can be placed in the drink holder.

Use the detachable parts

and

›››

Fig. 151

to change the size of the holes.

–

Remove part

in the direction indi-

cated by the arrow and replace in the re-
quired position in the drink holder.

Cigarette lighter*

Fig. 152

Centre console: lighter.

The cigarette lighter is located at the front of
the centre console

›››

Fig. 152

Using the cigarette lighter

–

Press the cigarette lighter knob

›››

Fig. 152

–

Wait for the lighter to spring out.

–

Pull out the cigarette lighter and light the
cigarette on the glowing coil immediately.

–

Put the cigarette lighter back in its socket.

WARNING

●

Take care when using the cigarette light-

er! Carelessness or negligence when using
the cigarette lighter can cause burns and
serious injuries.

●

The cigarette lighter also works when the

ignition is off and when the ignition key is

137

Operation

removed. Therefore, never leave children
unsupervised in the vehicle.

Note

●

The 12 V power socket of the cigarette

lighter can also be used as a power source
for electrical appliances

›››

page 138,

Power sockets

●

Additional information

›››

page 240, Ac-

cessories and modifications to the vehicle

Ashtrays*

Fig. 153

Centre console: front ashtray/rear

ashtray.

Removing the ashtray

–

Pull the ashtray

›››

Fig. 153

upwards to re-

move.

Inserting the ashtray

–

Push the ashtray down.

WARNING

Never put flammable materials in the ash-
tray. Risk of fire!

CAUTION

Never hold onto the ashtray by the lid when
removing it. Risk of breaking the lid.

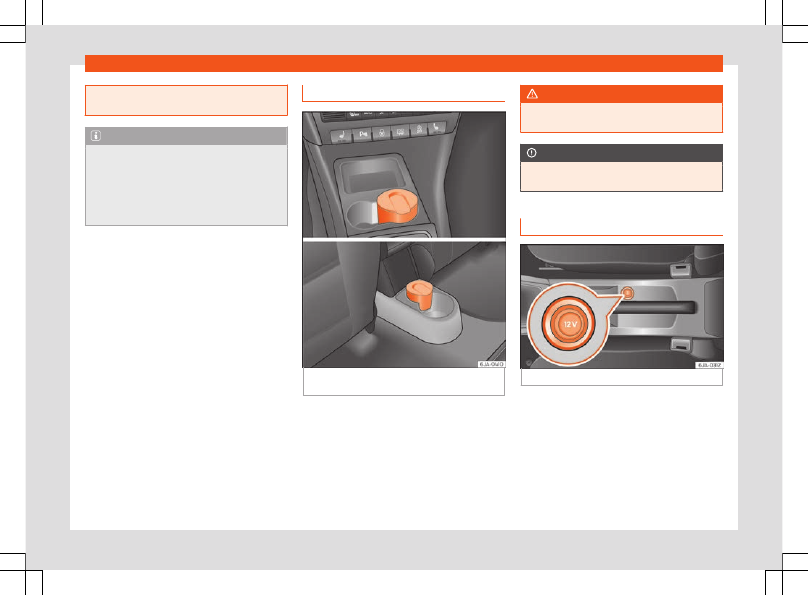

Power sockets

Fig. 154

Centre console: 12 V power socket.

12 volt socket

The 12 V power socket is located at the front
of the centre console

›››

Fig. 154

Using the power socket:

●

Open the cover or remove the cigarette

lighter concealing the socket.

●

Insert the plug of the electrical appliance

into the socket.

138

Seat Toledo (2019 year). Manual in english - page 8
