VANITY MIRRORS (if equipped)

SPA2192

To access the vanity mirror, pull the sun visor down and
pull up the mirror cover.

WARNING:

Never drive the vehicle with the parking
brake applied. The brake will overheat and
fail to operate and will lead to an accident.

Never release the parking brake from out-
side the vehicle. If the vehicle moves, it will
be impossible to push the foot brake pedal
and will lead to an accident.

Never use the gearshift in place of the
parking brake. When parking, be sure the
parking brake is fully applied.

Never leave children or adults who would
normally require the support of others alone
in your vehicle. They could unknowingly
release the parking brake and inadvertently
become involved in a serious accident.

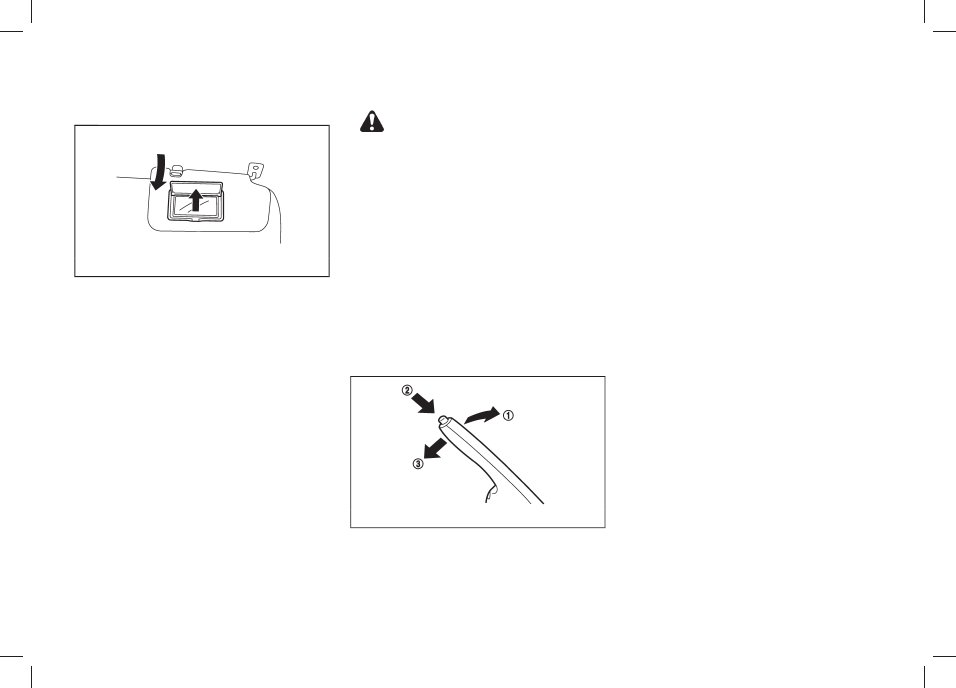

LEVER TYPE

SPA2110

To apply the parking brake, pull the parking brake lever
up

To release the parking brake, firmly depress and hold
the foot brake pedal. Pull up the parking brake lever
slightly, push the button

and lower the lever

completely

Before driving, be sure that the brake warning light has
turned off.

Pre-driving checks and adjustments

3-23

PARKING BRAKE

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4 Heater and air conditioner, and audio system

Safety precautions ................................................................................... 4-2
Ventilators .................................................................................................. 4-2

Side ventilators .................................................................................. 4-2
Center ventilators .............................................................................. 4-2

Heater and air conditioner (if equipped) ........................................... 4-3

Operating tips (for automatic air conditioner) ........................... 4-4
Manual air conditioner ..................................................................... 4-4
Automatic air conditioner ................................................................ 4-6
Servicing air conditioner ................................................................. 4-7

Audio system (if equipped) ................................................................... 4-8

Audio operation precautions .......................................................... 4-8
Antenna (if equipped) ................................................................... 4-15
FM-AM radio with Compact Disc (CD) player (Type A) ..... 4-16
FM-AM radio with Compact Disc (CD) player (Type B) ..... 4-20
FM-AM radio with Compact Disc (CD) player (Type C) ..... 4-24
FM-AM radio with Compact Disc (CD) player (Type D) ..... 4-30

LW-MW-FM radio with compact disc (CD) player
(Type E) .......................................................................................... 4-35
LW-MW-FM radio with compact disc (CD) changer
(Type F) .......................................................................................... 4-40
FM-AM radio with Compact Disc (CD) player (Type G) .... 4-46
FM-AM radio with Compact Disc (CD) player and
navigation (if equipped) ............................................................. 4-54
CD/USB memory (if equipped) care and cleaning ............ 4-54
Steering wheel switch for audio control (if equipped) ..... 4-54

USB/AUX connector (if equipped) ................................................. 4-55
Car phone or CB radio ...................................................................... 4-56
Bluetooth

Hands-Free Phone System (if equipped for model

without navigation system) ................................................................ 4-56

Regulatory information ................................................................ 4-57
CE statement ................................................................................ 4-57
Hands-free telephone operation (Type A) ............................ 4-57
Hands-free telephone operation (Type B) ............................ 4-63

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-2

Heater and air conditioner, and audio system

WARNING:

Do not adjust the heater and air conditioner
controls or audio controls while driving so
that full attention may be given to vehicle
operation.

If you noticed any foreign objects entering
the system hardware, spilled liquid on the
system, or noticed smoke or fumes coming
out from the system, or any other unusual
operation is observed, stop using the system
immediately and contact the nearest RE-
NAULT dealer. Ignoring such conditions may
lead to an accident, fire or electric shock.

SIDE VENTILATORS

SAA3126

Adjust the air flow direction of the ventilators by
opening, closing or rotating.

The side ventilators can be used for the side defogger.

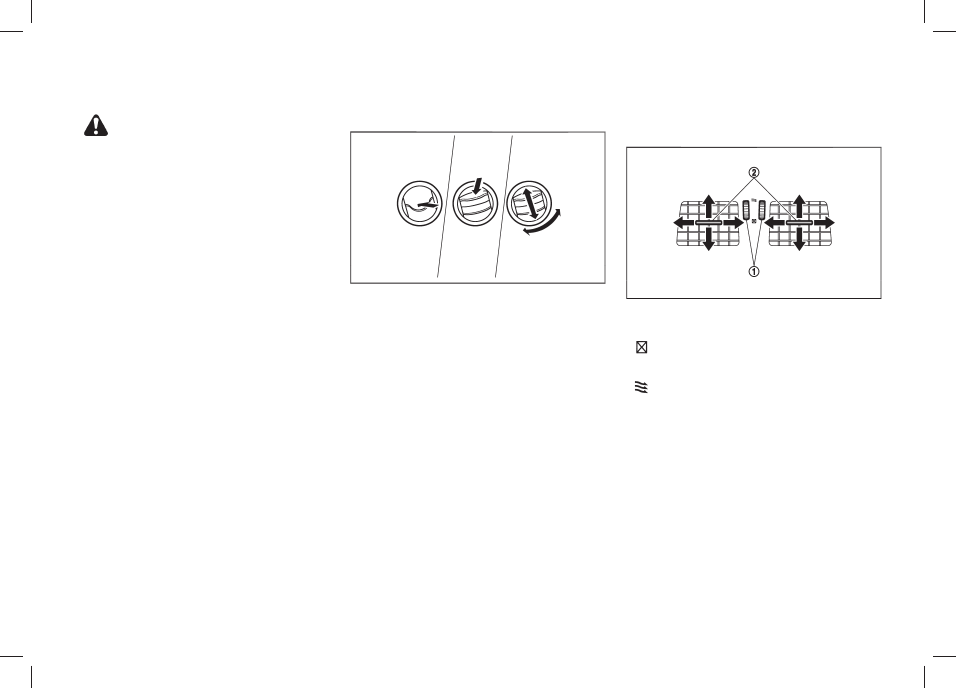

CENTER VENTILATORS

Square type

JVH0018X

Open/close the ventilators by moving the control

in either direction.

This symbol indicates that the ventilators are
closed. Moving the side control in this
direction will close the ventilators.

This symbol indicates that the ventilators are
open. Moving the side control in this
direction will open the ventilators.

Adjust the air flow direction of the ventilators by moving
the center knob

(up/down/left/right) until the

preferred position is achieved.

SAFETY PRECAUTIONS

VENTILATORS

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

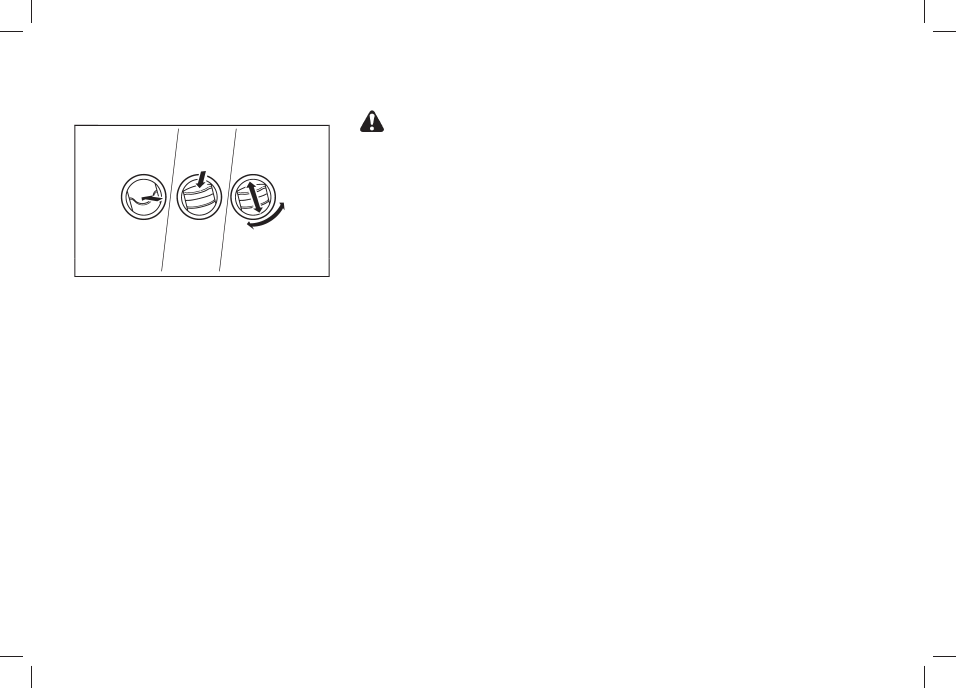

Circle type

SAA3126

Adjust the air flow direction of the ventilators by
opening, closing or rotating.

WARNING:

The heater and air conditioner operate only
when the engine is running.

Never leave children or adults who would
normally require the support of others alone
in the vehicle. Pets should not be left alone
either. They could unknowingly activate
switches or controls and inadvertently be-
come involved in a serious accident and
injure themselves. On hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.

Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.

Do not adjust the heating and air condition-
ing controls while driving so that full atten-
tion may be given to vehicle operation.

The heater and air conditioner operate when the
engine is running. The air blower will operate when the
ignition switch is in the “ON” position even if the
engine is turned off.

NOTE:
.

Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.

When parking, set the heater and air condi-
tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.

For model with Idling Stop System (if equipped
for Thailand):

When the air conditioner or rear defogger (if equipped)
is turned on, the Idling Stop System will not be
activated.

For model with Stop/Start System (if equipped
for Europe):

The Stop/Start System will not stop the engine under
the following conditions:

The front defogger mode is on. (automatic air
conditioner)

The air flow control dial is in the front defogger
position. (manual air conditioner)

The rear window defogger mode is on.

While the engine is stopped by the Stop/Start System,
taking one of the following actions will automatically
start the engine:
.

Turn the front defogger mode on. (automatic air
conditioner)

Turn the air flow control dial to the front defogger
position. (manual air conditioner)

Turn the rear window defogger mode on.

When the engine is stopped by the Stop/Start System,
performance of the heater and air conditioner may be
reduced to minimize the fuel consumption. For the best
heating and air conditioning performance, restart the
engine by pushing the Stop/Start System OFF switch.
(See “Stop/Start System OFF switch” (P.5-23).)

Heater and air conditioner, and audio system

4-3

HEATER AND AIR CONDITIONER (if

equipped)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-4

Heater and air conditioner, and audio system

OPERATING TIPS (for automatic air condi-
tioner)

JVI0023X

JVH0186X

Left-Hand Drive (LHD) model*

When the engine coolant temperature and outside air
temperature are low, the air flow from the foot outlets
may not operate. However, this is not a malfunction.
After the coolant temperature warms up, the air flow
from the foot outlets will operate normally.

The sensors

and

, located on the instrument

panel, help maintain a constant temperature. Do not
put anything on or around the sensors.

*: The illustration is for the Left-Hand Drive (LHD)
model. For the Right-Hand Drive (RHD) model, the

layout will be the opposite.

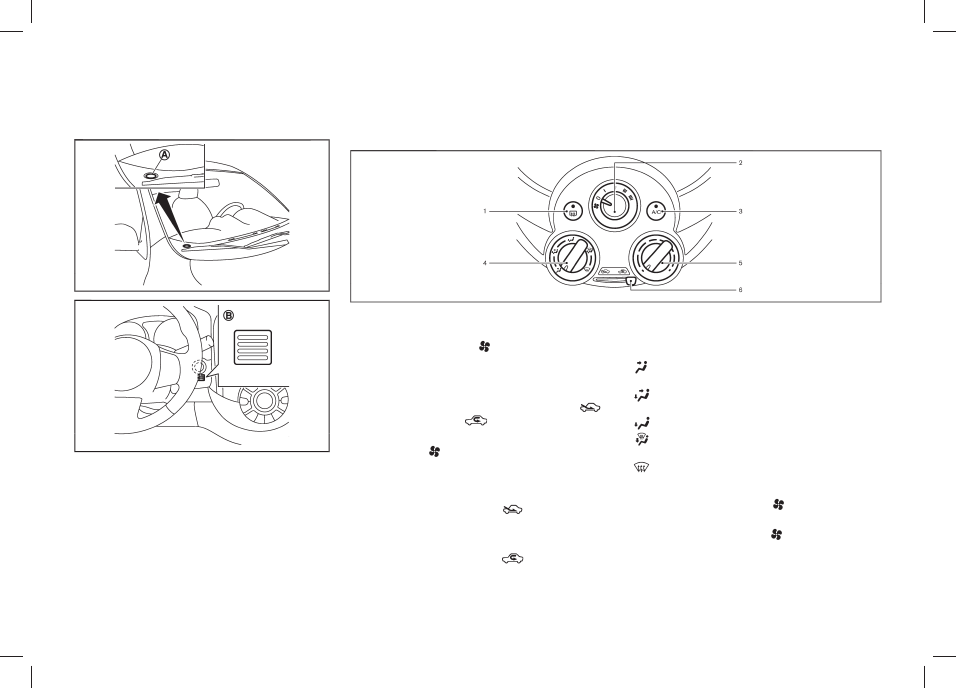

MANUAL AIR CONDITIONER

SAA3121

Rear window defogger switch (if equipped) (See
“Defogger switch” (P.2-35).)

Fan speed control “

” dial

“A/C” (Air Conditioner) button (if equipped)

Air flow control dial

Temperature control dial

Air intake lever (Outside air circulation “

”

/Air recirculation “

”)

To turn off the heater and air conditioner, turn the fan
speed control “

” dial to the “0” (off) position.

Controls

Outside air circulation:
Move the air intake lever to the “

” position. The air

flow is drawn from outside the vehicle.

Air recirculation:
Move the air intake lever to the “

” position. The air

flow is circulated inside the vehicle.

Air flow control:
Turn the air flow control dial to change the air flow
mode.

— Air flows from the center and side

ventilators.

— Air flows from the center and side

ventilators and foot outlets.

— Air flows mainly from the foot outlets.
— Air flows from the defogger and foot

outlets.

— Air flows mainly from the defogger outlets.

Fan speed control:
Turn the fan speed control “

” dial clockwise to

increase the fan speed.

Turn the fan speed control “

” dial counterclock-

wise to decrease the fan speed.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Temperature control:
Turn the temperature control dial to set the desired
temperature. Turn the dial between the middle and the
right position to select the hot temperature. Turn the
dial between the middle and the left position to select
the cool temperature.

Heater operation

Heating:
This mode is used to direct heated air to the foot
outlets.

Move the air intake lever to the “

” position for

normal heating.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Turn the temperature control dial to the desired
position between the middle and the hot (right)
position.

Ventilation:
This mode directs outside air to the side and center
ventilators.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Turn the temperature control dial to the desired
position.

Defrosting or defogging:
This mode directs the air to the defogger outlets to
defrost/defog the windows.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Turn the temperature control dial to the desired
position between the middle and the hot (right)
position.

Turn the side ventilators to the side windows to
defrost or defog for a clear view to the side
mirrors.

To remove frost from the outside surface of the
windshield quickly, turn the temperature control
dial to the maximum hot position and the fan
speed control “

” dial to the maximum position.

If it is difficult to defog the windshield, turn the
“A/C” button (if equipped) on.

Bi-level heating:
This mode directs cool air from the side and center
vents and warm air from the foot outlets. When the
temperature control dial is turned to the maximum hot
or cool position, the air between the ventilators and the
foot outlets is the same temperature.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Turn the temperature control dial to the desired
position.

Heating and defogging:
This mode heats the interior and defogs the windows.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Turn the temperature control dial to the maximum
hot (right) position.

Turn the side ventilators to the side windows to
defrost or defog for a clear view to the side
mirrors.

Air conditioner operation (if equipped)

The air conditioner system should be operated for
approximately 10 minutes at least once a month. This
helps prevent damage to the air conditioner system
due to the lack of lubrication.

Cooling:
This mode is used to cool and dehumidify the air.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Push the “A/C” button on. (The “A/C” indicator
light will illuminate.)

Turn the temperature control dial to the desired
position between the middle and the cool (left)
position.

For quick cooling when the outside temperature is
high, move the air intake lever to the “

”

position. Be sure to move the air intake lever to the
“

” position for normal cooling.

Heater and air conditioner, and audio system

4-5

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-6

Heater and air conditioner, and audio system

A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a malfunc-
tion.

Dehumidified heating:
This mode is used to heat and dehumidify the air.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Push the “A/C” button on. (The “A/C” indicator
light will illuminate.)

Turn the temperature control dial to the desired
position between the middle and the hot (right)
position.

Dehumidified defogging:
This mode is used to defog the windows and
dehumidify the air.

Move the air intake lever to the “

” position.

Turn the air flow control dial to the “

” position.

Turn the fan speed control “

” dial to the

desired position.

Push the “A/C” button on. (The “A/C” indicator
light will illuminate.)

Turn the temperature control dial to the desired
position.

Turn the side ventilators to the side windows to
defrost or defog the side mirrors.

AUTOMATIC AIR CONDITIONER

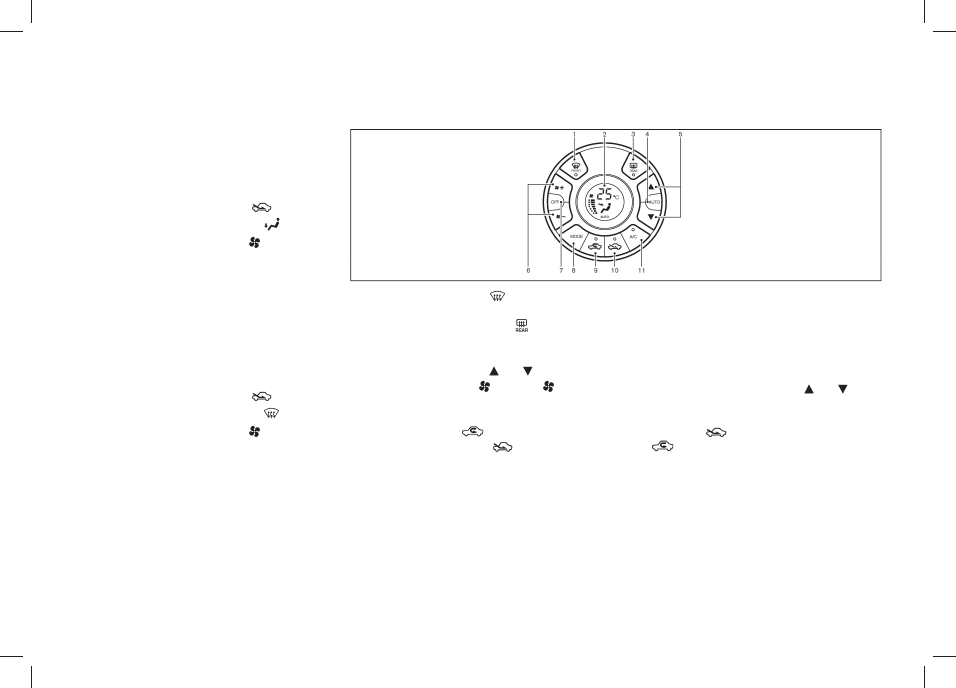

SAA2592

Windshield defogger “

” button

Display

Rear window defogger “

” button (See

“Defogger switch” (P.2-35).)

“AUTO” button

Temperature control “

”/“

” buttons

Fan speed control “

+” and “

-”buttons

“OFF” button

“MODE” (air flow control) button

Air recirculation “

” button

10.

Outside air circulation “

” button

11.

“A/C” (Air Conditioner) button

Automatic operation (AUTO)

The AUTO mode may be used year-round as the
system automatically controls constant temperature, air
flow distribution and fan speed after the desired
temperature is set manually.

To turn off the heater and air conditioner, push the
“OFF” button.

Cooling and dehumidified heating:
1.

Push the “AUTO” button. (“AUTO” will appear on
the display.)

If the “A/C” indicator light does not illuminate,
push the “A/C” button. (The “A/C” indicator light
will illuminate.)

Push the temperature control “

”/“

” but-

ton to set the desired temperature.

If the indicator light on either the outside air
circulation “

” button or the air recirculation

“

” button is illuminated, push the button with

the light illuminated to turn the light off.

A visible mist may be seen coming from the ventilators
in hot, humid conditions as the air is cooled rapidly.
This does not indicate a malfunction.

Heating (A/C off):
1.

Push the “AUTO” button. (“AUTO” will appear on
the display.)

If the “A/C” indicator light illuminates, push the
“A/C” button. (The “A/C” indicator light will turn
off.)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Push the temperature control “

”/“

” but-

ton to set the desired temperature.

Do not set the temperature lower than the outside
air temperature. Doing so may cause the tem-
perature to not be controlled properly.

If the windows fog up, use dehumidified heating
instead of the A/C off heating.

Dehumidified defrosting/defogging:
1.

Push the front defogger “

” button. (The

“

” indicator light will illuminate.)

Push the temperature control “

”/“

” but-

ton to set the desired temperature.

To remove frost from the outside surface of the
windshield quickly, set the temperature to a high
temperature and the fan speed to the maximum
level.

After the windshield is cleared, push the front
defogger “

” button again. (The indicator light

will turn off.)

When the front defogger “

” button is pushed,

the air conditioner will automatically turn on when
the outside air temperature is above

í28C (288F)

to defog the windshield. The air recirculation mode
will automatically turn off. The outside air circula-
tion mode “

” will be selected to improve the

defogging performance.

Manual operation

The manual mode can be used to control the heater
and air conditioner to your desired settings. (“MAN-
UAL” will appear on the display.)

To turn off the heater and air conditioner, push the
“OFF” button.

Fan speed control:
Push the fan speed control “

”/“

” button. Push

the “

” button to increase the fan speed. Push the

“

” button to decrease the fan speed.

Push the “AUTO” button to change the fan speed to
the automatic mode.

Air flow control:
Push the “MODE” button to change the air flow mode.

— Air flows from the center and side ventila-

tors.

— Air flows from the center and side ventila-

tors and foot outlets.

— Air flows mainly from the foot outlets
— Air flows from the defogger outlets and foot

outlets.

Temperature control:
Push the temperature control “

”/“

” button to

set the desired temperature. Push the “

” button to

increase the temperature. Push the “

” button to

decrease the temperature.

Outside air circulation:
Push the outside air circulation “

” button to draw

the air flow from outside the vehicle. (The “

”

indicator light will illuminate.)

Air recirculation:
Push the air recirculation “

” button to circulate the

air flow inside the vehicle. (The “

” indicator light

will illuminate.)

Automatic air intake control:
If the indicator light on either the outside air circulation
“

” button or the air recirculation “

” button is

illuminated, push the button with the light illuminated to
turn the light off. The automatic control is set between
the outside air circulation “

” and air recirculation

“

” modes.

SERVICING AIR CONDITIONER

WARNING:

The air conditioner system contains refrigerant
under high pressure. To avoid personal injury,
any air conditioner service should be done only
by an experienced technician with the proper
equipment.

The air conditioner system in your vehicle is charged
with a refrigerant designed with the environment in
mind.

This refrigerant will not harm the earth

’s ozone

layer.

However, it may contribute in a small part to

global warming.

Special charging equipment and lubricant are required
when servicing your vehicle’s air conditioner. Using
improper refrigerants or lubricants will cause severe
damage to the air conditioner system. (See “Air
conditioner system refrigerant and lubricant” (P.9-4).)

A RENAULT dealer will be able to service your
environmentally friendly air conditioner system.

Heater and air conditioner, and audio system

4-7

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-8

Heater and air conditioner, and audio system

Air conditioner filter (if equipped)

The air conditioner system is equipped with an air
conditioner filter which collects pollen. To make sure
the air conditioner heats defogs, and ventilates
efficiently, replace the filter according the specified
maintenance intervals listed in a separate maintenance
booklet. To replace the filter, contact a RENAULT
dealer.

The filter should be replaced if the air flow decreases
significantly or if windows fog up easily when operating
the heater or air conditioner.

AUDIO OPERATION PRECAUTIONS

WARNING:

Do not adjust the audio system while driving so
that full attention may be given to vehicle
operation.

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Radio

Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.

Using a cellular phone in or near the vehicle may
influence radio reception quality.

Compact Disc (CD) player

During cold weather or rainy days, the player may
malfunction due to the humidity. If this occurs,
remove the CD from CD player and dehumidify or
ventilate the player completely.

The player may skip while driving on rough roads.

The CD player sometimes may not function when
the passenger compartment temperature is ex-
tremely high. Lower the temperature before use.

Do not expose the CD to direct sunlight.

CDs that are of poor quality, or are dirty,
scratched, covered with fingerprints, or that have
pin holes may not work properly.

The following CDs may not work properly.
— Copy control compact discs (CCCD)

— Recordable compact discs (CD-R)
— Rewritable compact discs (CD-RW)

SAA0480

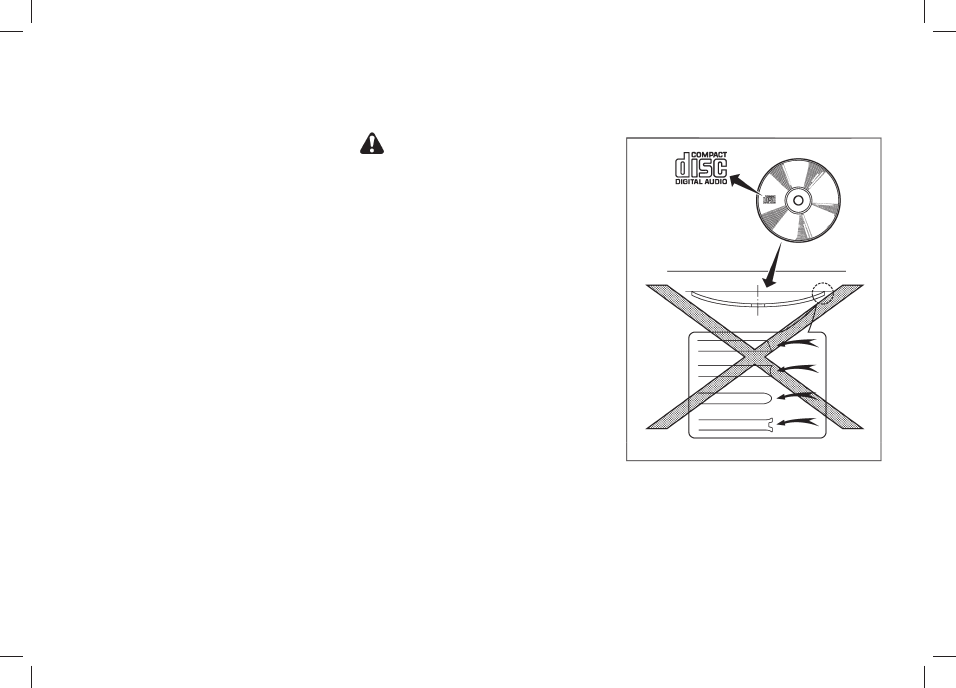

Do not use the following CDs as they may cause
the CD player to malfunction.
— 8 cm (3.1 in) discs (except for FM-AM Radio

with Compact Disc Player (Type C))

— CDs that are not round
— CDs with a paper label
— CDs that are warped, scratched or have

unusual edges.

AUDIO SYSTEM (if equipped)

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

This audio system can only play prerecorded CDs.
It has no capabilities to record or burn CDs.

If the CD cannot be played, one of the following
messages will be displayed.
Check disc:
— Confirm that the CD is inserted correctly (the

label side is facing up, etc.).

— Confirm that the CD is not bent or warped and

it is free of scratches.

Push eject:
This is a malfunction due to the temperature inside
the player is too high. Remove the CD by pushing
the EJECT button, and after a short time reinsert
the CD. The CD can be played when the
temperature of the player returns to normal.
Unplayable:
The file is unplayable in this audio system (only
MP3 or WMA CD).

USB (Universal Serial Bus) (if equipped)

WARNING:

Do not connect, disconnect or operate the USB
device while driving. Doing so can be a distrac-
tion. If distracted you could lose control of your
vehicle and cause an accident or serious injury.

CAUTION:

Do not force the USB device into the USB
port. Inserting the USB device tilted or up-
side-down into the port may damage the
port. Make sure that the USB device is
connected correctly into the USB port.

Do not grab the USB port cover (if equipped)
when pulling the USB device out of the port.

This could damage the port and the cover.

Do not leave the USB cable in a place where
it can be pulled unintentionally. Pulling the
cable may damage the port.

The vehicle is not equipped with a USB device. USB
devices should be purchased separately as necessary.

This system cannot be used to format USB devices. To
format a USB device, use a personal computer.

In some states/area, the USB device for the front seats
plays only sound without images for regulatory
reasons, even when the vehicle is parked.

This system supports various USB memory devices,
USB hard drives and iPod players. Some USB devices
may not be supported by this system.
.

Partitioned USB devices may not be played
correctly.

Some characters used in other languages (Chi-
nese, Japanese, etc.) are not displayed properly
on display. Using English language characters
with a USB device is recommended.

General notes for USB use:

Refer to your device manufacturer’s owner information
regarding the proper use and care of the device.

Notes for iPod use:

iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.

Improperly plugging in the iPod may cause a
checkmark to be displayed on and off (flickering).
Always make sure that the iPod is connected
properly.

An iPod nano (1st Generation) may remain in fast
forward or rewind mode if it is connected during a
seek operation. In this case, please manually reset
the iPod.

An iPod nano (2nd Generation) will continue to
fast-forward or rewind if it is disconnected during
a seek operation.

An incorrect song title may appear when the Play
Mode is changed while using an iPod nano (2nd
Generation)

Audiobooks may not play in the same order as
they appear on an iPod.

Large video files cause slow responses in an iPod.
The vehicle center display may momentarily black
out, but will soon recover.

If an iPod automatically selects large video files
while in the shuffle mode, the vehicle center
display may momentarily black out, but will soon
recover.

Bluetooth

Audio player (if equipped)

Some Bluetooth

audio devices may not be used

with this system. For detailed information about
Bluetooth

audio devices that are available for use

with this system, contact a RENAULT dealer.

Before using a Bluetooth

audio system, the initial

registration process for the audio device is
necessary.

Operation of the Bluetooth

audio system may

vary depending on the audio device that is
connected. Confirm the operation procedure
before use.

The playback of Bluetooth

audio will be paused

under the following conditions. The playback will
be resumed after the following conditions are
completed.
— while using a Hands-free phone
— while checking a connection with a cellular

phone

Heater and air conditioner, and audio system

4-9

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-10

Heater and air conditioner, and audio system

The in-vehicle antenna for Bluetooth

commu-

nication is built in the system. Do not place the
Bluetooth

audio device in an area surrounded by

metal, far away from the system or in a narrow
space where the device closely contacts the body
or the seat. Otherwise, sound degradation or
connection interference may occur.

While a Bluetooth

audio device is connected

through the Bluetooth

wireless connection, the

battery power of the device may discharge quicker
than usual.

This system is compatible with the Bluetooth

profile (A2DP and AVRCP).

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc., and li-
censed to Daewoo IS Corp.

Compact Disc with MP3 or WMA (if
equipped)

Explanation of terms:
.

MP3 — MP3 is short for Moving Pictures Experts
Group Audio Layer 3. MP3 is the most well known
compressed digital audio file format. This format
allows for near “CD quality” sound, but at a
fraction of the size of normal audio files. MP3
conversion of an audio track from CD can reduce
the file size by approximately 10:1 ratio (Sampling:
44.1 kHz, Bit rate: 128 kbps) with virtually no
perceptible loss in quality. MP3 compression
removes the redundant and irrelevant parts of a
sound signal that the human ear doesn’t hear.

WMA — Windows Media Audio (WMA) is a
compressed audio format created by Microsoft as
an alternative to MP3. The WMA codec offers
greater file compression than the MP3 codec,
enabling storage of more digital audio tracks in the
same amount of space when compared to MP3s

at the same level of quality.

Bit rate — Bit rate denotes the number of bits per
second used by a digital music files. The size and
quality of a compressed digital audio file is
determined by the bit rate used when encoding
the file.

Sampling frequency — The rate at which the
samples of a signal are converted from analog to
digital (A/D conversion) per second.

Multisession — Multisession is one of the methods
for writing data to media. Writing data once to the
media is called a single session, and writing more
than once is called a multisession.

ID3/WMA Tag — The ID3/WMA tag is the part of
the encoded MP3 or WMA file that contains
information about the digital music file such as
song title, artist, album title, encoding bit rate,
track time duration, etc. ID3 tag information is
displayed on the Album/Artist/Song title line on
the display.

* Windows

and Windows Media

are registered

trademarks and trademarks in the United States of
America and other countries of Microsoft Corporation
of the USA.

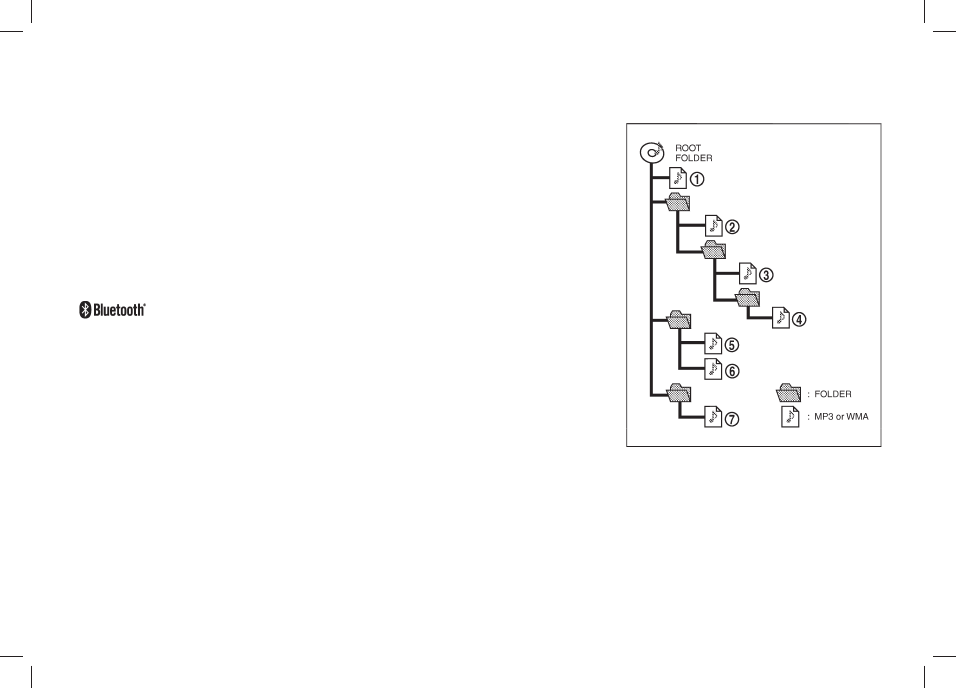

Playback order:

SAA1025

Playback order chart

The music playback order of the CD with MP3 or
WMA is as illustrated.
.

The names of folders not containing MP3 or WMA
files are not shown in the display.

If there is a file in the top level of the disc, “Root
Folder” is displayed.

The playback order is the order in which the files
were written by the writing software. Therefore,
the files might not play in the desired order.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Specification chart (model with type A, B, C, D, E, F audio unit):

Supported media

CD, CD-R, CD-RW

Supported file systems

ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
ISO9660 Level 3 (packet writing) is not supported.
Files saved using the Live File System component (on a Windows Vista-based computer)
are not supported.

Supported versions*1

MP3

Version

MPEG1, MPEG2, MPEG2.5

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR*4

WMA*3

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR*4

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)

Folder levels

Folder levels: 8, Folders: 255 (including route folder), Files: 512 (Max. 255 files for one
folder)

Displayable character codes*2

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE
(UTF-16 Non-BOM Big Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16
BOM Little Endian)

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

Protected WMA files (DRM) cannot be played.

When VBR files are played, the playback time may not be displayed correctly. WMA7 and WMA8 are not applied to VBR.

Heater and air conditioner, and audio system

4-11

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-12

Heater and air conditioner, and audio system

Specification chart (model with type G audio unit):

Supported media

CD, CD-R, CD-RW, USB2.0

Supported file systems

CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are
not supported.
USB memory device: FAT16, FAT32

Supported versions*1

MP3

Version

MPEG1 Audio Layer 3

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR*4

WMA*2

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR*4

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)

Folder levels

CD, CD-R, CD-RW

Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)

USB

Folder levels: 8, Folders 255, Files: 2500 (Max. 255 files for one folder)
Memory size: 4GB

Displayable character codes*3

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16
Non-BOM Big Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little
Endian), 07: SHIFT-JIS

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Protected WMA files (DRM) cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

When VBR files are played, the playback time may not be displayed correctly.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Troubleshooting guide (model with type A, B, C, D, E, F audio unit):

Symptom

Cause and Countermeasure

Cannot play

Check if the disc was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) before using the
player.
If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data), MP3/WMA files on a CD, only the music CD files (CD-DA data) will be played.
Files with extensions other than “.MP3”, “.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of
characters for folder names and file names should be in compliance with the specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of MP3/WMA
writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

It takes a relatively long time before
the music starts playing.

If there are many folder or file levels on the MP3/WMA disc, or if it is a multisession disc, some time may be required before the music
starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Move immediately to the next song
when playing.

When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, “.mp3, “.wma”, or when play is prohibited by copyright
protection, there will be approximately 5 seconds of no sound and then the player will skip to the next song.

The songs do not play back in the
desired order.

The playback order is the order in which the files were written by the writing software, so the files might not play in the desired order.

Heater and air conditioner, and audio system

4-13

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-14

Heater and air conditioner, and audio system

Troubleshooting guide (model with type G audio unit):

Symptom

Cause and Countermeasure

Cannot play

Check if the disc or USB memory device was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) before
using the player.
If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-DA
data) will be played.
Files with extensions other than “.MP3 (.mp3)” or “.WMA (.wma)” cannot be played. In addition, the character codes and
number of characters for folder names and file names should be in compliance with the specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of
compressed audio writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc or USB memory device is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

It takes a relatively long time before the music
starts playing.

If there are many folder or file levels on the disc or USB memory device, some time may be required before the music
starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc.,
might not match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Move immediately to the next song when playing.

If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited by
copyright protection, the player will skip to the next song.

The songs do not play back in the desired order.

The playback order is the order in which the files were written by the writing software, so the files might not play in the
desired order.
Random/Shuffle may be active on the audio system or on a USB memory device.

&RQGLWLRQ

Renault Pulse (2012 year). Instruction - part 8
