Heater and air conditioner, and audio system

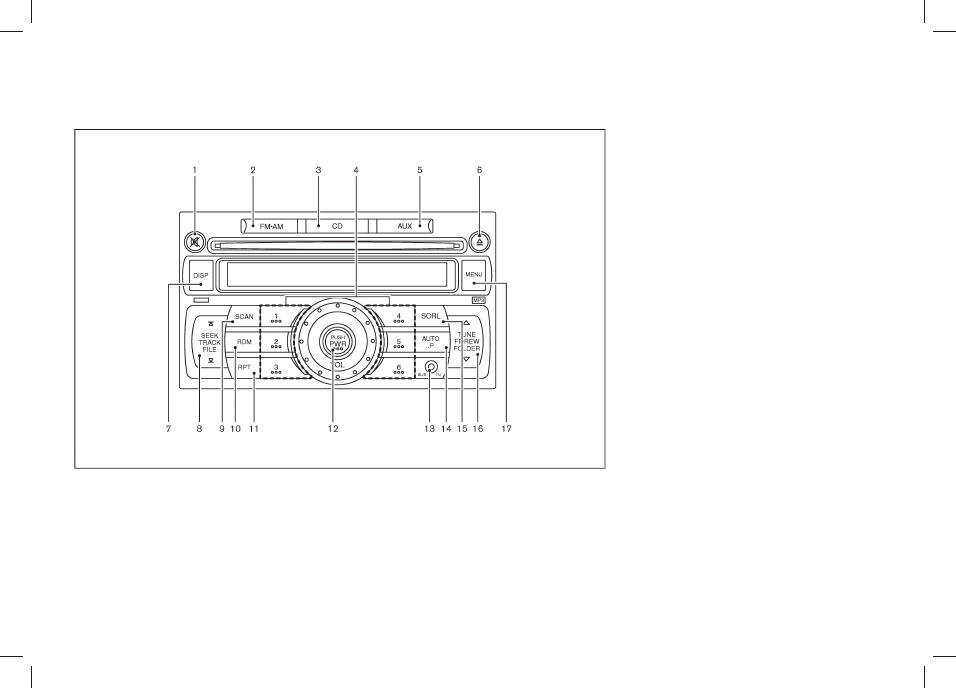

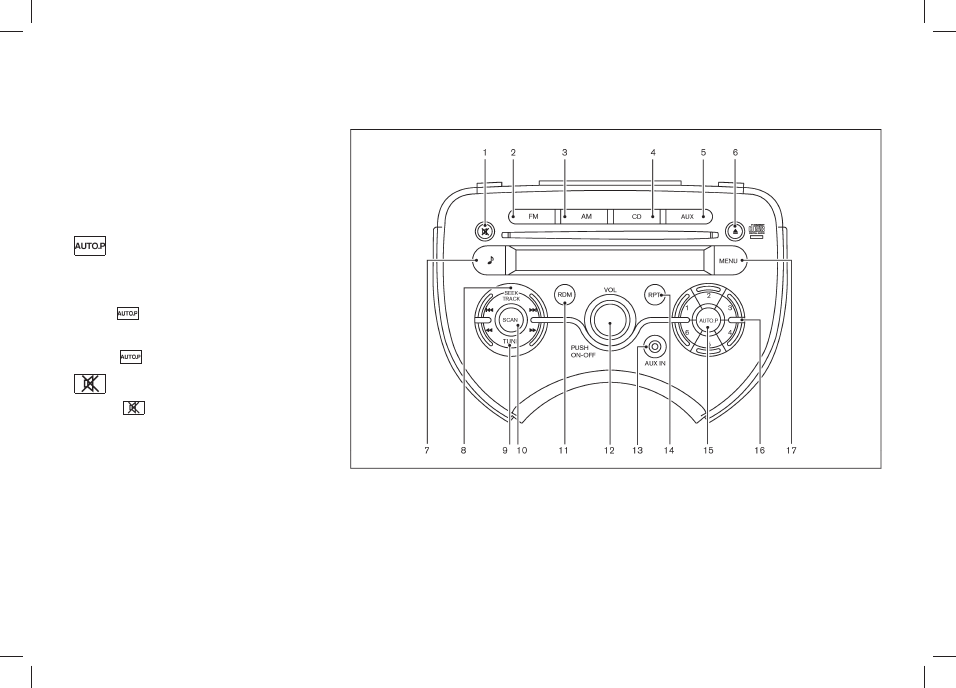

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type A)

SAA3122

MUTE button

FM radio band select button

AM radio band select button

CD button

AUX button

CD EJECT button

MENU button

SEEK/TRACK button

TUNE/FF (Forward)·REW (Rewind)/FOLDER
button

10.

SCAN button

11.

RDM (Random) button

12.

Power button/VOL (Volume) control knob

13.

AUX IN (auxiliary input) jack

14.

RPT (Repeat) button

15.

AUTO.P (Automatic Preset) button

16.

Radio memory buttons (1 - 6)

17.

DISP (Display) button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

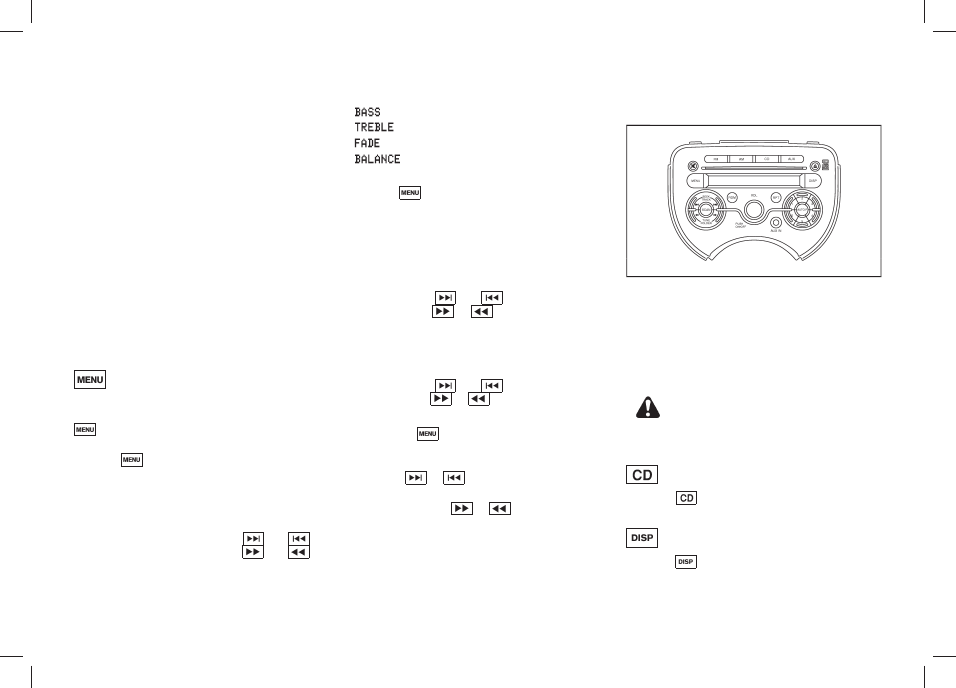

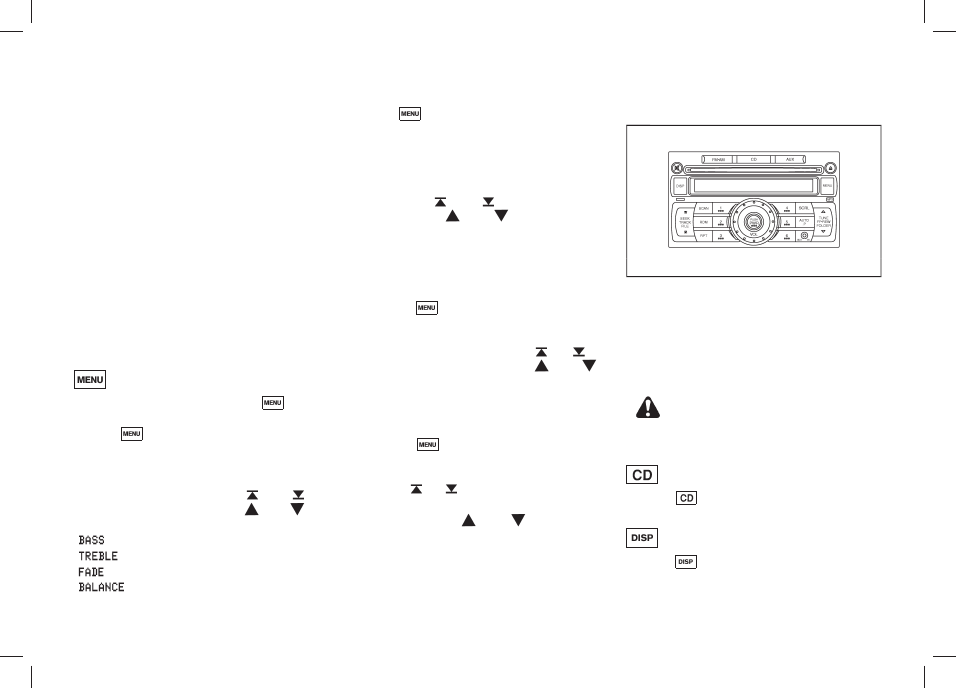

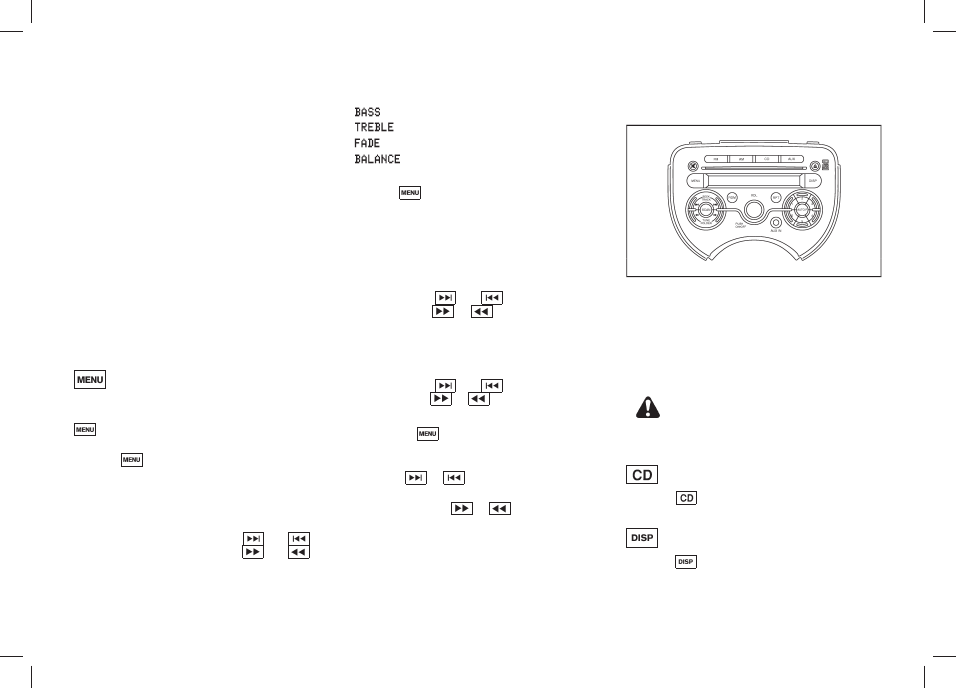

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER button:
To turn on the audio system, push the Power button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the Power button.

Volume control:
To control the volume, turn the VOL control knob.

Turn the knob clockwise to make the sound louder.

Turn the knob counterclockwise to make the sound
quieter.

MENU button:

To change the audio settings (BASS, TREBLE,
FADER, BALANCE, BEEP and CLOCK), push the

button to select the mode while the CD or radio is

on.

Push the

button until the desired mode appears

on the display.

BASS

? TREBLE ? FADE ? BALANCE ? BEEP

? CLOCK

Audio setting

Push the SEEK/TRACK button (

) or

TUNE/FF·REW/FOLDER button (

) to

adjust while the following audio setting is displayed.

: (

í) to decrease / (+) to increase

: (

í) to decrease / (+) to increase

: (F) to front fade / (R) to rear fade
: (R) to right balance / (L) to left balance

Once the audio settings are set to the desired level,
push the

button until the radio or CD display

appears.

If no action is performed for approximately 5 seconds,
the audio settings mode will automatically return to the
normal mode.

Beep setting

To turn the beep sound off or on, push the SEEK/
TRACK button

or TUNE/FF·REW/

FOLDER button

until the desired mode

is displayed. This turns on or off the beep sound when
audio buttons are pushed.

Clock setting

To display the clock on the screen, push the SEEK/
TRACK button

or TUNE/FF·REW/

FOLDER button

to select CLOCK ON.

Turn the clock display on.

Push the

button while CLOCK ON is on the

display. The hour and minute digits blink.

To adjust the hours, push the SEEK/TRACK
button

To adjust the minutes, push the TUNE/FF·REW/
FOLDER button

If no user input is detected for 10 seconds, or when
the “MENU” button is pushed, the clock setting mode
will automatically return to the normal mode.

CD player operation

SAA3123

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Loading:
Insert a CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. To stop playing, push the Power
button.

CAUTION:

Do not force the compact disc into the slot. This
could damage the player.

button:

When the

button is pushed while a CD is loaded,

the CD will start playing automatically.

button:

When the

button is pushed while a CD with a title

is being played, the display will change as follows:

Heater and air conditioner, and audio system

4-17

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-18

Heater and air conditioner, and audio system

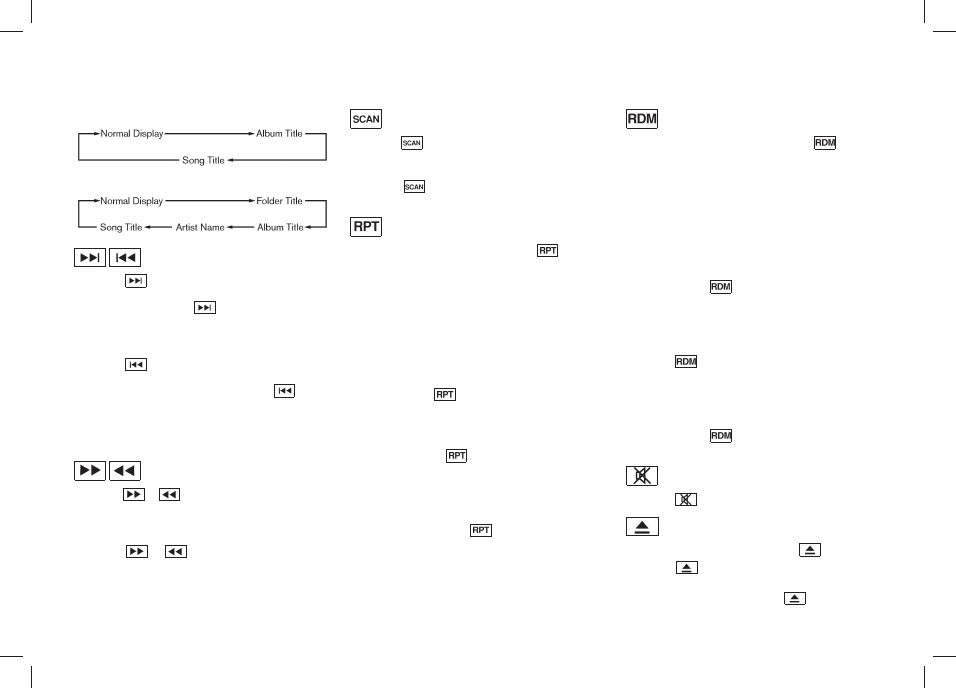

CD:

CD with MP3 or WMA:

SEEK/TRACK button:

When the

button is pushed while a CD is being

played, the present track will be advanced and move to
the next track. Push the

button several times to

skip forward tracks. The CD will advance the number
of times the button is pushed. When the last track of
the CD is forwarded, the first track will be played.

When the

button is pushed while a CD is being

played, the present track will start over from the
beginning of the current track. Push the

button

several times to skip back tracks. The CD will rewind
the number of times the button is pushed. When the
first track of the CD is rewound, the last track will be
played.

TUNE/FF·REW/FOLDER button:

When the

button is pushed and held while

a CD is being played, the CD will be played while
forwarding or rewinding. When the button is released,
the CD will return to the normal play speed.

When the

button is pushed while a CD

with MP3 or WMA is being played, the first track in the
next or the previous folder will be played.

button:

When the

button is pushed while a CD is being

played, the first 10 seconds of all the tracks will be
played.

When the

button is pushed again, the CD will

return to normal play from the track which is playing.

(Repeat) button:

To change the play settings, push the

button to

select the mode.

CD:

RPT DISC

? RPT TRACK

CD with MP3 or WMA:

RPT DISC

? RPT FOLDER ? RPT TRACK

RPT DISC:

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RPT TRACK:

The selected track of the CD will be played con-
tinuously. While the

button is pushed, the display

indicates “RPT TRACK”.

RPT FOLDER:

All the tracks of selected folder will be played
continuously in sequential order (CD with MP3 or
WMA only). While the

button is pushed, the

display indicates “RPT FOLDER”.

(Random) button:

To change the play sequence, push the

button to

select the mode.

CD:

RDM DISC

? RPT DISC

CD with MP3 or WMA:

RDM DISC

? RDM FOLDER ? RPT DISC

RPT DISC:

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RDM DISC:

All the tracks or folders (CD with MP3 or WMA only) of
the CD will be played continuously in random order.
While the

button is pushed, the display indicates

“RDM DISC”.

RDM FOLDER:

All the tracks of the selected folder will be played
continuously in random order (CD with MP3 or WMA
only). While the

button is pushed, the display

indicates “RDM FOLDER”.

MUTE button:

Press the

button to pause the track.

CD EJECT button:

To eject a CD, push the CD EJECT

button.

When the

button is pushed twice, the CD will be

ejected further, and the CD can be removed with ease.

If a CD is ejected by pushing the

button, and it is

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

not taken out from the loading slot, the CD will
automatically be reloaded to the slot to protect the CD
(12 cm discs only).

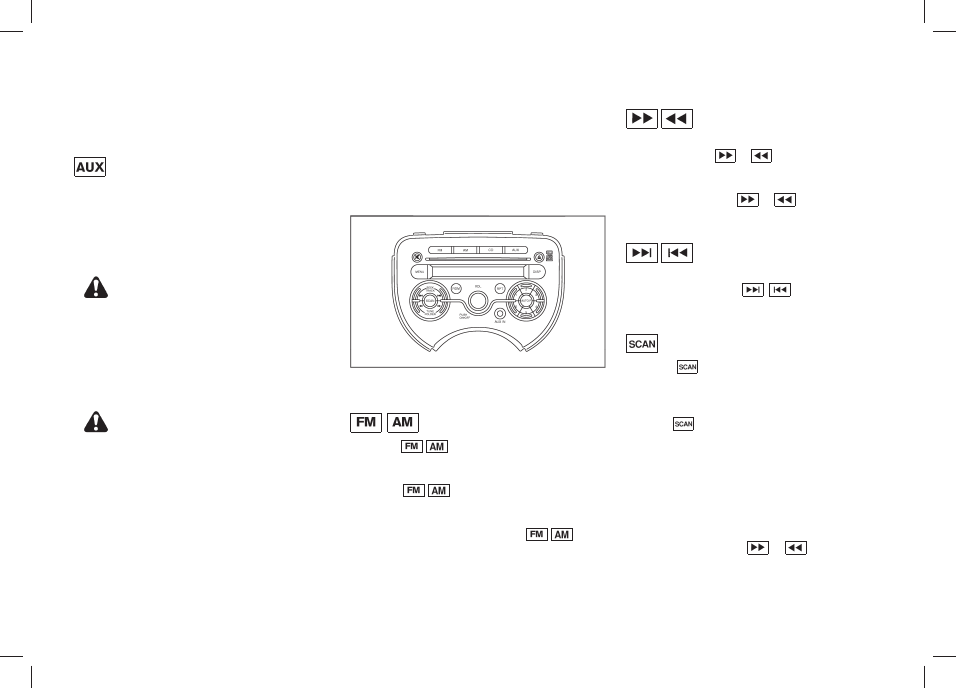

AUX button:

The AUX IN jack is located on the audio unit. The AUX
IN audio input jack accepts any standard analog audio
input such as from a portable cassette tape, CD player,
MP3 player or laptop computers.

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

CAUTION:

Do not allow the cable or an external device
connected to the AUX terminal to affect your
driving.

Connect a stereo mini-plug (3.5 mm in
diameter) cable to the AUX IN jack. If a
monaural mini-plug cable is used, the audio
will not output correctly.

WARNING:

Depending on the external device, please
note that the volume may be louder or
quieter than that of the external device.

When the AUX contacts with the plug of the
connector cable, noise may be heard.

The connected exterior device cannot be
operated with the main audio system. The
volume and sound quality can be adjusted.

The song title in the external device cannot
be displayed on the audio display.

For the power source of the external device,
use the special battery. The external device
cannot be charged with the AUX terminal.
Noise may be heard if the CD, radio etc. is
operated while charging the battery with the
power socket of the vehicle.

FM-AM radio operation

SAA3123

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

button:

When the

button is pushed while the audio

system is off, the audio system will turn on and the
radio will turn on.

When the

button is pushed while another

audio source is playing, the another audio source will
turn off and the radio will turn on.

To change the radio bands, push the

button

until the desired band (FM1, FM2, AM) is displayed.

The FM stereo indicator, “ST” will display during FM
stereo reception. When the stereo broadcast signal is
weak, the radio will automatically change from stereo
to monaural reception.

TUNE/FF·REW/FOLDER button:

When adjusting the broadcasting station frequency
manually, push the

button until the desired

frequency is achieved.

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

SEEK UP/DOWN button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

button:

When the

button is pushed, the system will seek

and stop at the detected broadcasting station for 5
seconds, and then it will start to seek for the next
broadcasting station.

Push the

button in this 5-second period to stop

seeking.

Radio memory button:
The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM station
frequencies.

To store the station frequency:

Tune to the desired broadcasting station fre-
quency by using the

button.

Push and hold a memory button (1 - 6) until a
beep sounds.

Heater and air conditioner, and audio system

4-19

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-20

Heater and air conditioner, and audio system

The switch number and frequency will appear on
the display when the memory is stored properly.

Perform steps 1 - 3 for all other memory buttons.

Push a memory button (1 - 6) to select a desired
memory.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. In such a case,
reset the desired stations.

(Automatic Preset) button:

The audio system can store up to 6 FM station
frequencies and 6 AM station frequencies.

To store the station frequency automatically, push and
hold the

button until a beep sounds. The station

will be automatically stored in the “AUTO.P” memory.
The display indicates “AP-**”.

Push the

button to select a desired memory.

MUTE button:

Press the

button to mute the sound. Press again

to restore the sound.

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type B)

JVH0060X

MUTE button

FM radio band select button

AM radio band select button

CD button

AUX button

CD EJECT button

Sound preference button

SEEK/TRACK button

TUNE/FF (Forward)·REW (Rewind)/FOLDER
button

10.

SCAN button

11.

RDM (Random) button

12.

Power button/VOL (Volume) control knob

13.

AUX IN (auxiliary input) jack

14.

RPT (Repeat) button

15.

AUTO.P (Automatic Preset) button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

16.

Radio memory buttons (1 - 6)

17.

MENU button

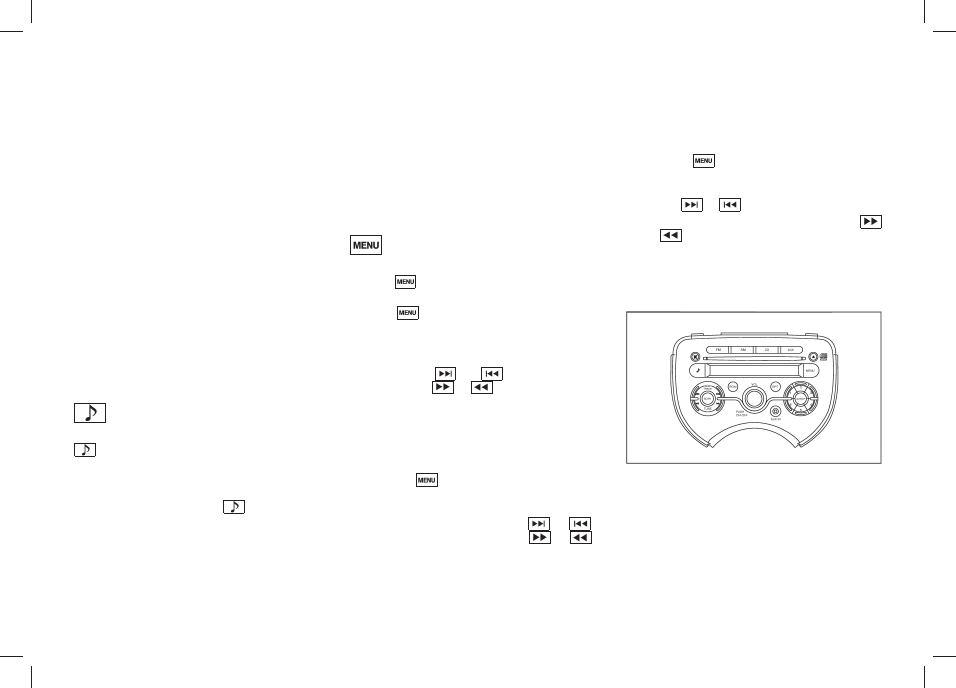

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER button:
To turn on the audio system, push the Power button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the Power button.

Volume control:
To control the volume, turn the VOL control knob.

Turn the knob clockwise to make the sound louder.

Turn the knob counterclockwise to make the sound
quieter.

Sound preference button:

To enter the audio mode (radio, CD or AUX), push the

button. When no CD is loaded and AUX is not

connected , the audio system will automatically switch
to the radio mode.

To change the audio settings (BASS, TREBLE,
FADER, BALANCE), push the

button to select

the mode.

BASS

? TREBLE ? BALANCE ? FADER ? BASS

To adjust each audio setting, push the SEEK/TRACK
button or Tune button.

BASS:

(

í) to decrease / (+) to increase

TREB(LE):

(

í) to decrease / (+) to increase

BAL
(ANCE):

(R) to right balance / (L) to left balance

FADE(R):

(F) to front fade / (R) to rear fade

If the audio settings mode is unchanged for approxi-
mately 8 seconds, the audio settings mode will
automatically return to the normal mode.

MENU button:

To change the audio settings (BEEP and CLOCK),
push the

button to select the mode while the CD

or radio is on.

Push the

button until the desired mode appears

on the display.

BEEP ON

? CLOCK

To turn the beep sound off or on, push the SEEK/
TRACK button

or TUNE/FF·REW/

FOLDER button

until the desired mode

is displayed. This turns on or off the beep sound when
audio buttons are pushed.

Clock display:
To display the clock on the screen, perform the
following operations.

Push the

button repeatedly until CLOCK ON

or OFF appears on the display while the audio
system is on.

Push the SEEK/TRACK button

TUNE/FF·REW/FOLDER button

select CLOCK ON.

Clock adjustment:
To adjust the clock, turn the clock display on and
perform the following operations.

Push the

button while CLOCK ON is on the

display. The hour and minute digits blink.

To adjust the hours, push the SEEK/TRACK
button

To adjust the minutes, push the TUNE button
or

If no user input is detected for 10 seconds, or when
the “MENU” button is pushed, the clock setting mode
will automatically return to the normal mode.

CD player operation

JVH0002X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Loading:
Insert a CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. To stop playing, push the Power
button.

Heater and air conditioner, and audio system

4-21

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-22

Heater and air conditioner, and audio system

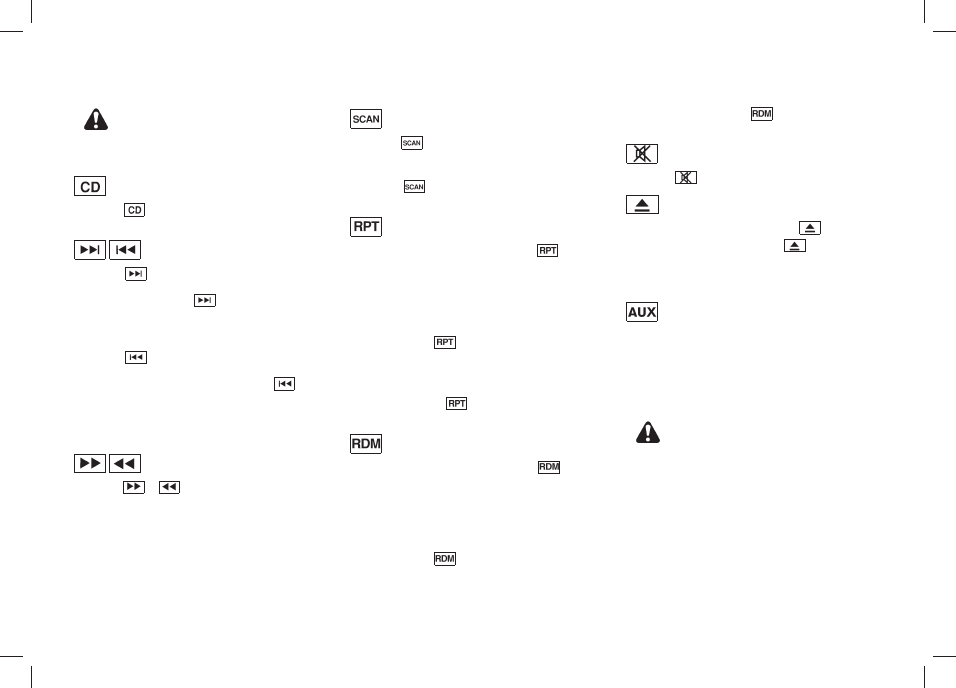

CAUTION:

Do not force the compact disc into the slot. This
could damage the player.

button:

When the

button is pushed while a CD is loaded,

the CD will start playing automatically.

SEEK/TRACK button:

When the

button is pushed while a CD is being

played, the present track will be advanced and move to
the next track. Push the

button several times to

skip forward tracks. The CD will advance the number
of times the button is pushed. When the last track of
the CD is forwarded, the first track will be played.

When the

button is pushed while a CD is being

played, the present track will start over from the
beginning of the current track. Push the

button

several times to skip back tracks. The CD will rewind
the number of times the button is pushed. When the
first track of the CD is rewound, the last track will be
played.

TUNE/FF·REW/FOLDER button:

When the

button is pushed and held while

a CD is being played, the CD will be played while
forwarding or rewinding. When the button is released,
the CD will return to the normal play speed.

button:

When the

button is pushed while a CD is being

played, the first 10 seconds of all the tracks will be
played.

When the

button is pushed again, the CD will

return to normal play from the track which is playing.

(Repeat) button:

To change the play settings, push the

button to

select the mode.

CD:

RPT DISC

? RPT TRACK

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RPT TRACK:

The selected track of the CD will be played con-
tinuously. While the

button is pushed, the display

indicates “RPT TRACK”.

(Random) button:

To change the play sequence, push the

button to

select the mode.

CD:

RDM DISC

? RPT DISC

All the tracks of the CD will be played continuously in
sequential order. The display indicates no symbol
mark. While the

button is pushed, the display

indicates “RPT DISC”.

RDM DISC:

All the tracks of the CD will be played continuously in

random order. While the

button is pushed, the

display indicates “RDM DISC”.

MUTE button:

Press the

button to pause the track.

CD EJECT button:

To eject a CD, push the CD EJECT

button.

If a CD is ejected by pushing the

button, and it is

not taken out from the loading slot, the CD will
automatically be reloaded to the slot to protect the CD
(12 cm discs only).

AUX button:

The AUX IN jack is located on the audio unit. The AUX
IN audio input jack accepts any standard analog audio
input such as from a portable cassette tape, CD player,
MP3 player or laptop computers.

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

WARNING:

Do not allow the cable or an external device
connected to the AUX terminal to affect your
driving.

Connect a stereo mini-plug (3.5 mm in
diameter) cable to the AUX IN jack. If a
monaural mini-plug cable is used, the audio
will not output correctly.

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

WARNING:

Depending on the external device, please
note that the volume may be louder or
quieter than that of the external device.

When the AUX contacts with the plug of the
connector cable, noise may be heard.

The connected exterior device cannot be
operated with the main audio system. The
volume and sound quality can be adjusted.

The song title in the external device cannot
be displayed on the audio display.

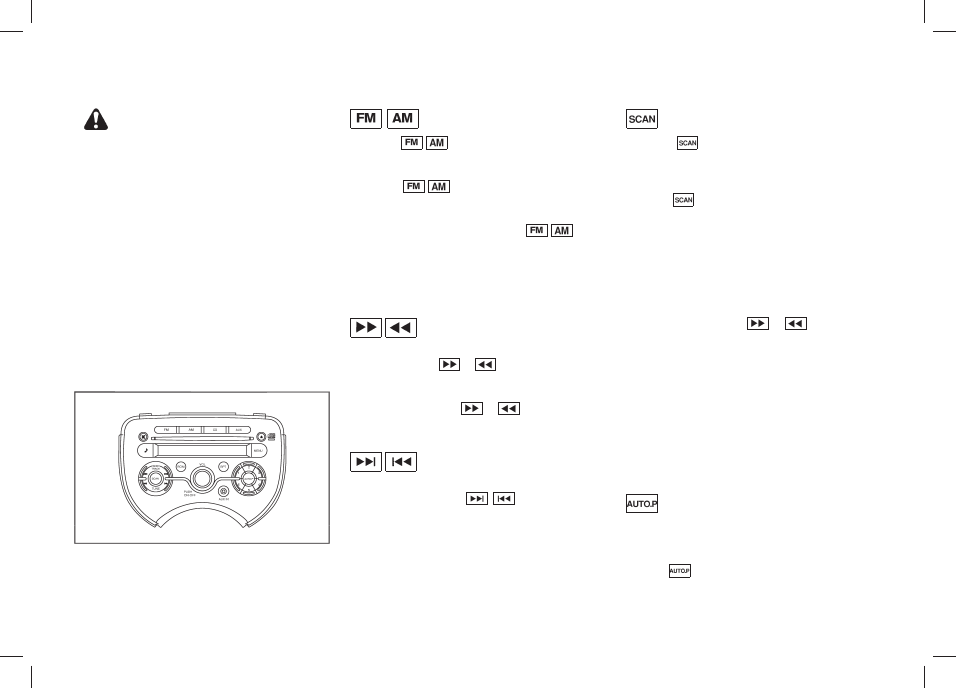

FM-AM radio operation

JVH0002X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

button:

When the

button is pushed while the audio

system is off, the audio system will turn on and the
radio will turn on.

When the

button is pushed while another

audio source is playing, the another audio source will
turn off and the radio will turn on.

To change the radio bands, push the

button

until the desired band (FM1, FM2, or AM) is displayed.

The FM stereo indicator, “ST” will display during FM
stereo reception. When the stereo broadcast signal is
weak, the radio will automatically change from stereo
to monaural reception.

TUNE/FF·REW/FOLDER button:

When adjusting the broadcasting station frequency
manually, push the

button until the desired

frequency is achieved.

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

SEEK UP/DOWN button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

button:

When the

button is pushed, the system will seek

and stop at the detected broadcasting station for 5
seconds, and then it will start to seek for the next
broadcasting station.

Push the

button in this 5-second period to stop

seeking.

Radio memory button:
The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM station
frequencies.

To store the station frequency:

Tune to the desired broadcasting station fre-
quency by using the

button.

Push and hold a memory button (1 - 6) until a
beep sounds.

The switch number and frequency will appear on
the display when the memory is stored properly.

Perform steps 1 - 3 for all other memory buttons.

Push a memory button (1 - 6) to select a desired
memory.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. In such a case,
reset the desired stations.

(Automatic Preset) button:

The audio system can store up to 6 FM station
frequencies and 6 AM station frequencies.

To store the station frequency automatically, push and
hold the

button until a beep sounds. The station

will be automatically stored in the “AUTO.P” memory.
The display indicates “AP-**”.

Heater and air conditioner, and audio system

4-23

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-24

Heater and air conditioner, and audio system

Push the

button to select a desired memory.

MUTE button:

Press the

button to mute the sound. Press again

to restore the sound.

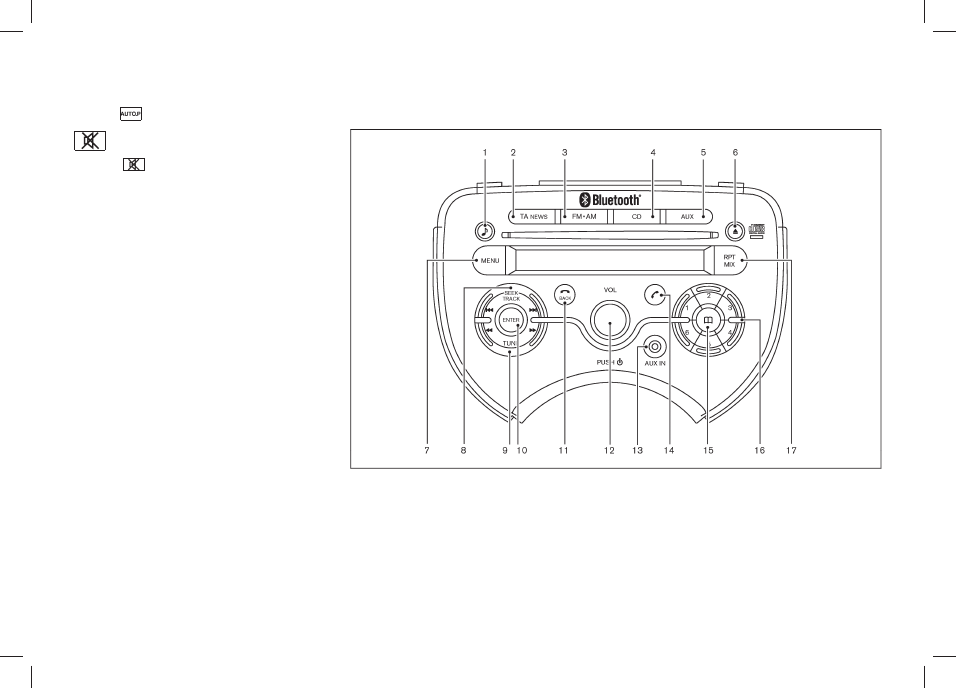

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type C)

JVH0003X

Sound preference button

TA (Traffic Announcement)/NEWS button

FM·AM band select button

CD button

AUX button

CD EJECT button

MENU button

SEEK/TRACK button

TUNE button

10.

ENTER button

11.

PHONE END/BACK button

12.

POWER ON/OFF button/VOLUME control
knob

13.

AUX IN (auxiliary input) jack

14.

PHONE SEND button

15.

PHONE BOOK button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

16.

Radio memory buttons

17.

RPT (Repeat)/MIX (Mix play) button

Anti-theft system (if equipped)

This unit can only be activated when the ignition switch
for Anti-Theft System is in the “ACC” or “ON” position.
Each radio is uniquely matched to the vehicle’s
immobilizer and therefore cannot be transferred to
any other vehicle.

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER ON/OFF button:
To turn on the audio system, push the POWER ON/
OFF button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the POWER ON/
OFF button.

Volume control:
To control the volume, turn the VOLUME control dial.

Turn the VOLUME control dial clockwise to make the
sound louder.

Turn the VOLUME control dial counterclockwise to
make the sound quieter.

Sound preference button:

To enter the audio mode (radio or CD), push the
button. When no CD is loaded, the audio system will
automatically switch to the radio mode.

To change the audio settings (BASS, TREBLE,
FADER, BALANCE, EQ), push the

button or

ENTER button to select the mode.

BASS

? TREBLE ? BALANCE ? FADER ? EQ ?

BASS

To adjust each audio setting, turn the VOL control dial
clockwise or counterclockwise.

BASS: (

í) to decrease / (+) to increase

TREB(LE): (

í) to decrease / (+) to increase

BAL(ANCE): (R) to right balance / (L) to left balance

FADE(R): (F) to front fade / (R) to rear fade

EQ (Equalizer): Use this control to change the preset
sound mode for CD play.

Turn the MENU/VOL dial clockwise or counterclock-
wise. The mode will change as follows:

OFF ⇔ ENHANCE

If the audio settings mode is unchanged for approxi-
mately 8 seconds, the audio settings mode will
automatically return to the normal mode.

MENU button:

To configure the SPEED volume and BEEP settings,
perform the following procedure:

Push the MENU button.

Turn the VOLUME dial clockwise or counter-
clockwise. The display message will change as
follows:

PHONE SETUP ⇔SPEED VOL ⇔ CLOCK ⇔
BEEP ⇔ PHONE SETUP

When SPEED VOL appears on the display, briefly
push on the ENTER button then turn the VOLUME
dial clockwise or counterclockwise to adjust the
level of the volume.

Adjusting the setting to 0 (zero) turns off the
speed volume feature. Increasing the speed
volume setting results in the audio volume
increasing more rapidly with vehicle speed. Push
the ENTER button again to save the setting.

When BEEP appears on the display, briefly push
the ENTER button and then turn the VOLUME dial
clockwise or counterclockwise to switch the beep
sound on or off. Push the ENTER button again to
save the setting.

To configure Alternative Frequency, Regional and
Language settings, perform the following procedure:

Push and hold the MENU button for at least 1.5
seconds.

Turn the VOLUME dial clockwise or counter-
clockwise. The display message will change as
follows:

AF ⇔ REG ⇔ LANGUAGE ⇔ AF

To activate or deactivate the AF and REG mode,
briefly push on the ENTER button when AF or
REG appears on the display and turn the
VOLUME dial clockwise or counterclockwise to
switch between the off or on position. After
selection, push the ENTER button to confirm the
settings.
— When the AF mode is enabled, the audio unit

will automatically re-tune to a stronger fre-
quency if the radio signal becomes weak.

— When the REG mode is enabled, the audio unit

will maintain and hold the station which is
broadcasting local (regional) programmes.

To change the display language, briefly push the
ENTER button when LANGUAGE appears on the
display then turn the VOLUME dial clockwise or
counterclockwise to select the appropriate lan-
guage setting.

Heater and air conditioner, and audio system

4-25

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-26

Heater and air conditioner, and audio system

ENGLISH ⇔ DUTCH ⇔ FRENCH ⇔ SPANISH

⇔ GERMAN ⇔ ITALIAN ⇔ PORTUGUESE ⇔
ENGLISH
After selecting the desired language, push the
ENTER button to exit the menu.

After the desired levels have been set, push the MENU
button to exit the menu or wait at least for 10 seconds
without pressing any buttons.

Clock :
Clock display can be turned on and off, and clock can
be adjusted.
.

When clock is not displayed

Turn the audio unit on by pushing the POWER
ON/OFF button.

Push the MENU button and turn the VOLUME
control knob until “CLOCK” is displayed.

Push the ENTER button. (“CLOCK OFF” is
displayed)

Turn the VOLUME control knob to turn the clock
display mode on. (“CLOCK ON” is displayed)

Push the ENTER button. The hour display will start
flashing.

Turn the VOLUME control knob to adjust the time.

Push the ENTER button. The minute display will
start flashing.

Turn the VOLUME control knob to adjust the time.

Push the ENTER button to finish the clock
adjustment.

When clock is displayed

Turn the audio unit on by pushing the POWER
ON/OFF button.

Push the MENU button and turn the VOLUME
control knob until “CLOCK” is displayed.

Push the ENTER button. (“CLOCK ON” is
displayed.)

Perform steps 5 to 9 above to adjust the time.

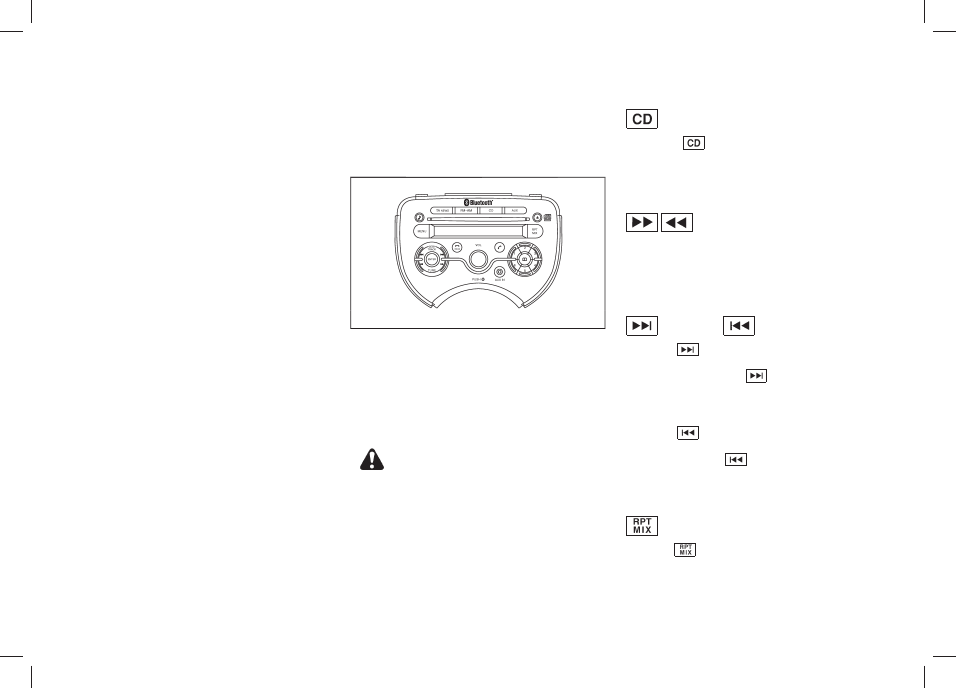

CD player operation

JVH0004X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Loading:
Insert a CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. If the radio is already playing, it will
automatically turn off, and the CD will start playing.

CAUTION:

Do not force the CD into the slot. This could
damage the player.

After loading the CD, the number of tracks and the
playtime will appear on the display.

8 cm (3.1 in) diameter CDs can be played without
using an adapter.

CD button:

When the

button is pushed while the audio

system is off and a CD is loaded, the audio system will
turn on and a CD will start playing automatically. If the
radio is already playing, it will automatically turn off and
the CD will start playing.

FF (Fast Forward), REW (Rewind)

button :

When the (fast forward) or (rewind) button is pushed
while the CD is being played, the CD will play while
fast forwarding or rewinding. When the button is
released, the CD will return to normal play speed.

TRACK UP/

DOWN button:

When the

button is pushed while a CD is being

played, the present track will be advanced and move to
the next track. Push the

button several times to

skip forward tracks. The CD will advance the number
of times the button is pushed. When the last track of
the CD is forwarded, the first track will be played.

When the

button is pushed while a CD is being

played, the present track will start over from the
beginning. Push the

button several times to skip

back tracks. The CD will rewind the number of times
the button is pushed. When the first track of the CD is
rewound, the last track will be played.

Repeat/MIX button:

Push the

button repeatedly to change the play

mode as follows:

RPT (REPEAT) TRACK

? MIX DISC ? RPT

(REPEAT) ALL

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

RPT TRACK: The CD player plays the current track
continuously.

RPT ALL: All the tracks on the CD will be played in
sequential order.

MIX DISC: All the tracks on the CD will be played in a
random order.

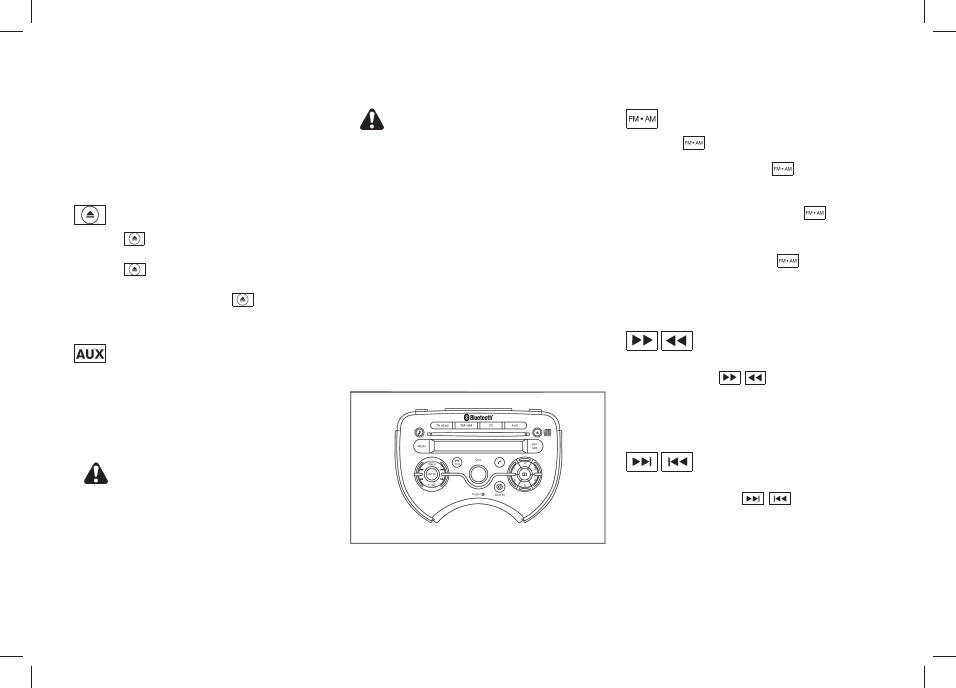

CD EJECT button:

When the

button is pushed while a CD is loaded,

the CD will be ejected.

When the

button is pushed twice, the CD will be

ejected further, and the CD can be removed with ease.

If a CD is ejected by pushing the

button, and it is

not taken out from the loading slot, the CD will
automatically be reloaded to the slot to protect the CD.

AUX button:

The AUX IN jack is located on the audio unit. The AUX
IN audio input jack accepts any standard analog audio
input such as from a portable cassette tape/CD player,
MP3 player, laptop computers, etc.

Push the AUX button to play a compatible device when
it is plugged into the AUX IN jack.

CAUTION:

Do not allow the cable or an external device
connected to the AUX terminal to affect your
driving.

Connect a stereo mini-plug (3.5 mm in
diameter) cable to the AUX IN jack. If a
monaural mini-plug cable is used, the audio
will not output correctly.

WARNING:

Depending on the external device, please
note that the volume may be louder or
quieter than that of the external device.

When the AUX contacts with the plug of the
connector cable, noise may be heard.

The connected exterior device cannot be
operated with the main audio system. The
volume and sound quality can be adjusted.

The song title in the external device cannot
be displayed on the audio display.

FM-AM radio operation

JVH0004X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

FM-AM button:

When the

button is pushed while the audio

system is off, the audio system will turn on and the
radio will turn on. When the

button is pushed

while CD is already operating, it will automatically turn
off, and the radio will turn on.

To change the radio bands, push the

button until

the desired band appears.

FM 1

? FM 2 ? FM T ? MW ? LW

During FM reception, when the

button is pushed

for longer than 1.5 seconds, stations are searched for
and the 6 stations of the FM T band. The sound is
muted until the auto store operation is completed,
upon which preset channel 1 is automatically tuned in.

TUNE button:

When adjusting the broadcasting station frequency
manually, push the

button until the desired

frequency is achieved.

The frequency changes in steps of 100 kHz on the FM
band, 9 kHz on the MW band, and 3 kHz on the LW
band.

SEEK button:

When adjusting the broadcasting station frequency
automatically, push the

button. When the

system detects a broadcasting station, it will stop at
the station.

Heater and air conditioner, and audio system

4-27

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-28

Heater and air conditioner, and audio system

Radio memory buttons:

The audio system can store up to 18 FM station
frequencies (six in each of FM 1, FM 2 and FM T), 6
MW and 6 LW station frequencies.

To store the station frequency manually:

Tune to the desired broadcasting station fre-
quency by using the

button.

Push and hold a radio memory button

until a beep sounds. (The radio mutes when the
memory button is pushed.)

The channel indicator will display and the radio
mute disengages, indicating that the memory is
stored properly.

Perform steps 1 - 3 for all other memory buttons.

If the battery cable is disconnected, or if the audio fuse
blows, the radio memory will be erased. In such a case,
reset the desired stations.

Radio data system (RDS)

Alternative Frequency (AF):
.

The AF function operates in the FM (radio) and CD
modes.

When the AF mode is set to “ON” in the user
setup menu mode, the AF indicator illuminates.

For activation or deactivation details, see “Audio main
operation” (P.4-25).
.

Automatic switching function
This function compares the strengths of the
signals of all the stations on the AF list and
selects the station with the optimum reception
conditions.

Program Information (PI) search
Program Information (PI) search begins automati-

cally if no suitable station is found with the above
automatic switching function. The PI search
function checks each RDS station with the same
PI code. During this time the sound is muted and
“PI SEARCH” is displayed. The PI search opera-
tion stops when a suitable station is found. If no
station is found once all the frequencies have been
searched, the radio returns to the previous
frequency.

Enhanced Other Network (EON) data update
(This function also operates when the AF
mode is off.)
When EON data is being received, this enables
automatic retuning of other preset stations on the
same network. Also, network linked services can
be used. The EON indicator turns on during the
reception of RDS EON stations in the FM mode.

RDS functions:
.

Programme Service (PS) function (station
name display function)
When an RDS station is tuned in with seek or
manual tuning, the RDS data is received and the
Program Service (PS) name is displayed.

Emergency broadcast interrupt function
(ALARM INTERRUPTION

— EBU SPEC FOR

INFO)
When the radio receives PTY code 31 (an
emergency broadcast code), the sound is inter-
rupted, the emergency broadcast is heard, and
“PTY31 ALARM” is displayed. The volume level at
this time is the same as that for traffic announce-
ments. Once the emergency broadcast is finished,
the unit immediately returns to the previous
source.

REG (Regional) mode
Some local radio stations are linked together

according to their region because they only offer
limited coverage due to their limited number of
transmitters. If the signal from one station be-
comes weak while you are driving around, RDS
mode will switch to another local station in the
region with a stronger signal.
When the REG mode is activated in the FM band
and the radio receiver is tuned to a local radio
station, it will keep receiving this radio station
without switching to another local station. For
activation or deactivation details, see “Audio main
operation” (P.4-25).

Traffic Announcement (TA):
.

The TA function operates in the FM and CD
modes.

The TA mode is turned on or off when the TA/
NEWS button is pushed for less than 2 seconds.

The TA mode operates regardless of whether the
AF mode is on or off.

“TA ON” is displayed when the TA mode is turned
on, and the TA indicator turns on. “TA OFF” is
displayed when the TA mode is turned off, and the
TA indicator turns off.

The following functions operate when the TA mode is
on:
.

Traffic announcement interrupt function
When a traffic announcement is received, the
announcement is tuned in and the volume
increases to the set level.
Once the traffic announcement is finished, the unit
returns to the source which was set before the
traffic announcement started, and the volume
returns to the previous level. For EON stations,
the radio is interrupted by another EON station
with traffic announcements.
The traffic announcement interrupt mode is

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

cancelled if the TA/NEWS button is pushed
during a traffic announcement. The TA mode
returns to the standby mode and the audio unit
returns to the previous source.

News mode

When the NEWS button is pushed or the TA/NEWS
button is pushed for longer than 2 seconds in the FM
mode, the news function is activated. “NEWS” is
displayed for 3 seconds and the NEWS indicator
appears on the display.

When the news function is activated, the radio
receives a news code from the FM broadcasting news
station and the actual playing mode will be interrupted.
Once the news broadcast is finished, the unit returns
to the previous mode.

In some countries or regions, this service is not
available or the signal is too weak to be received.

News standby mode

The news standby mode can be activated in
the FM or CD mode.

A news interruption will be announced and
“NEWS” will be displayed when the radio
detects the news code from the tuned station
or EON stations. The display will then change
to the PS name of the interrupting station.

When pushing the NEWS button or pushing
the TA/NEWS button for longer than 2
seconds, the news standby mode is turned
off and the indicator disappears from the
display.

News interruption mode

When the NEWS button or the TA/NEWS
button is pushed during the news interruption
mode, the radio returns to the previous source.
However, the news standby mode is kept.

When the

button is pushed during the

news interruption mode, the radio changes to
the CD mode. However, the news standby
mode is kept.

If the radio band is changed to the MW or LW,
the news standby mode will be turned off.

Heater and air conditioner, and audio system

4-29

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

4-30

Heater and air conditioner, and audio system

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type D)

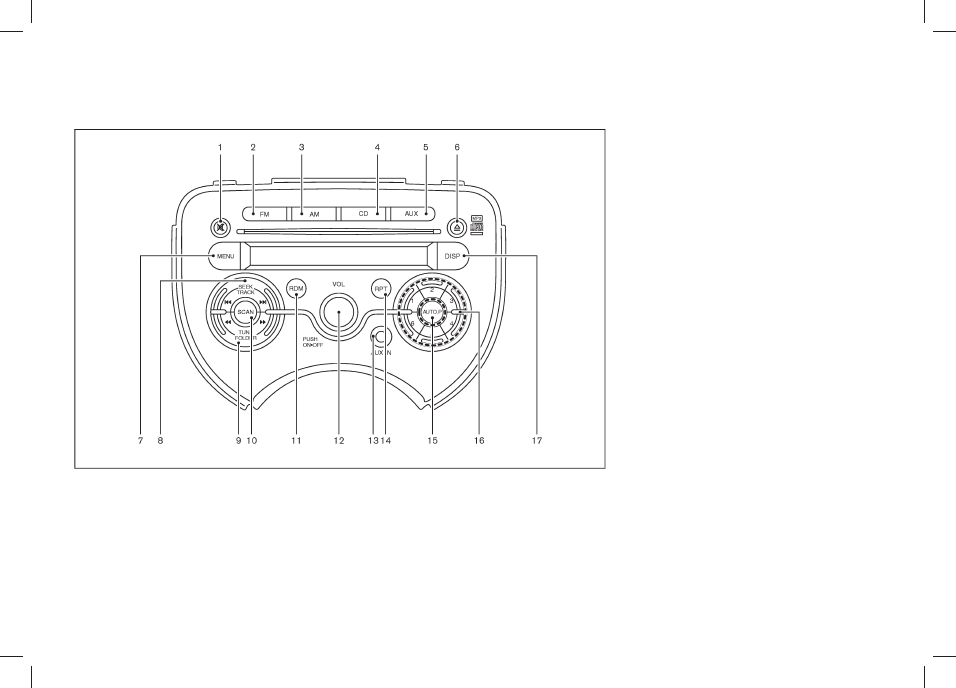

JVH0011X

MUTE button

FM·AM radio band select button

CD button

Radio memory buttons

AUX button

CD EJECT button

DISP button

SEEK/TRACK/FILE button

SCAN button

10.

RDM (Random) button

11.

RPT (Repeat) button

12.

Power button/Volume control knob

13.

AUX IN (auxiliary input) jack

14.

AUTO.P (Automatic Preset) button

15.

SCRL (Scroll) button

16.

TUNE/FF (Forward)·REW (Rewind)/FOLDER
button

17.

MENU button

&RQGLWLRQ

> (GLW 0RGHO .$2(0B5HQDXOW @

Audio main operation

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

POWER button:
To turn on the audio system, push the Power button.
.

The system will turn on in the mode, (radio or CD)
which was used immediately before the system
was turned off.

If there is no CD loaded, the radio will be turned
on.

To turn off the audio system, push the PWR button.

Volume control:
To control the volume, turn the VOLUME control knob.

Turn the knob clockwise to make the sound louder.

Turn the knob counterclockwise to make the sound
quieter.

MENU button:

To change the audio settings, push the

button to

select the mode while the CD or radio is on.

Push the

button until the desired mode appears

on the display.

BASS

? TREBLE ? FADE ? BALANCE ? BEEP ?

CLOCK

? BASS

Push the SEEK/TRACK button (

) or

TUNE/FF·REW/FOLDER button (

) to

adjust the audio settings.

: (

í) to decrease / (+) to increase

: (

í) to decrease / (+) to increase

: (F) to front fade / (R) to rear fade
: (R) to right balance / (L) to left balance

Once the audio settings are set to the desired level,

push the

button until the radio or CD display

appears.

If no action is performed for approximately 5 seconds,
the audio settings mode will automatically return to the
normal mode.

To turn the beep sound off or on, push the SEEK/
TRACK button

or TUNE/FF·REW/

FOLDER button

until the desired

mode is displayed. This turns on or off the beep sound
when audio buttons are pushed.

Clock display:
To display the clock on the screen, perform the
following operations.

Push the

button repeatedly until CLOCK ON

or OFF appears on the display while the audio
system is on.

Push the SEEK/TRACK button

TUNE/FF·REW/FOLDER button

to select CLOCK ON.

Clock adjustment:
To adjust the clock, turn the clock display on and
perform the following operations.

Push the

button while CLOCK ON is on the

display. The hour and minute digits blink.

To adjust the hours, push the SEEK/TRACK
button

To adjust the minutes, push the TUNE/FF·REW/
FOLDER button

If no user input is detected for 10 seconds, or when
the “MENU” button is pushed, the clock setting mode
will automatically return to the normal mode.

CD player operation

JVH0012X

The audio system operates when the ignition switch is
in the “ACC” or “ON” position.

Loading:
Insert a CD into the slot with the label side facing up.
The CD will be guided automatically into the slot and
will start playing. To stop playing, push the Power
button.

CAUTION:

Do not force the compact disc into the slot. This
could damage the player.

button:

When the

button is pushed while a CD is loaded,

the CD will start playing automatically.

button:

When the

button is pushed while a CD with a title

is being played, the display will change as follows:

Heater and air conditioner, and audio system

4-31

&RQGLWLRQ

Content .. 7 8 9 10 ..
