Renault Magnum engine. Manual - part 166

1 / 2

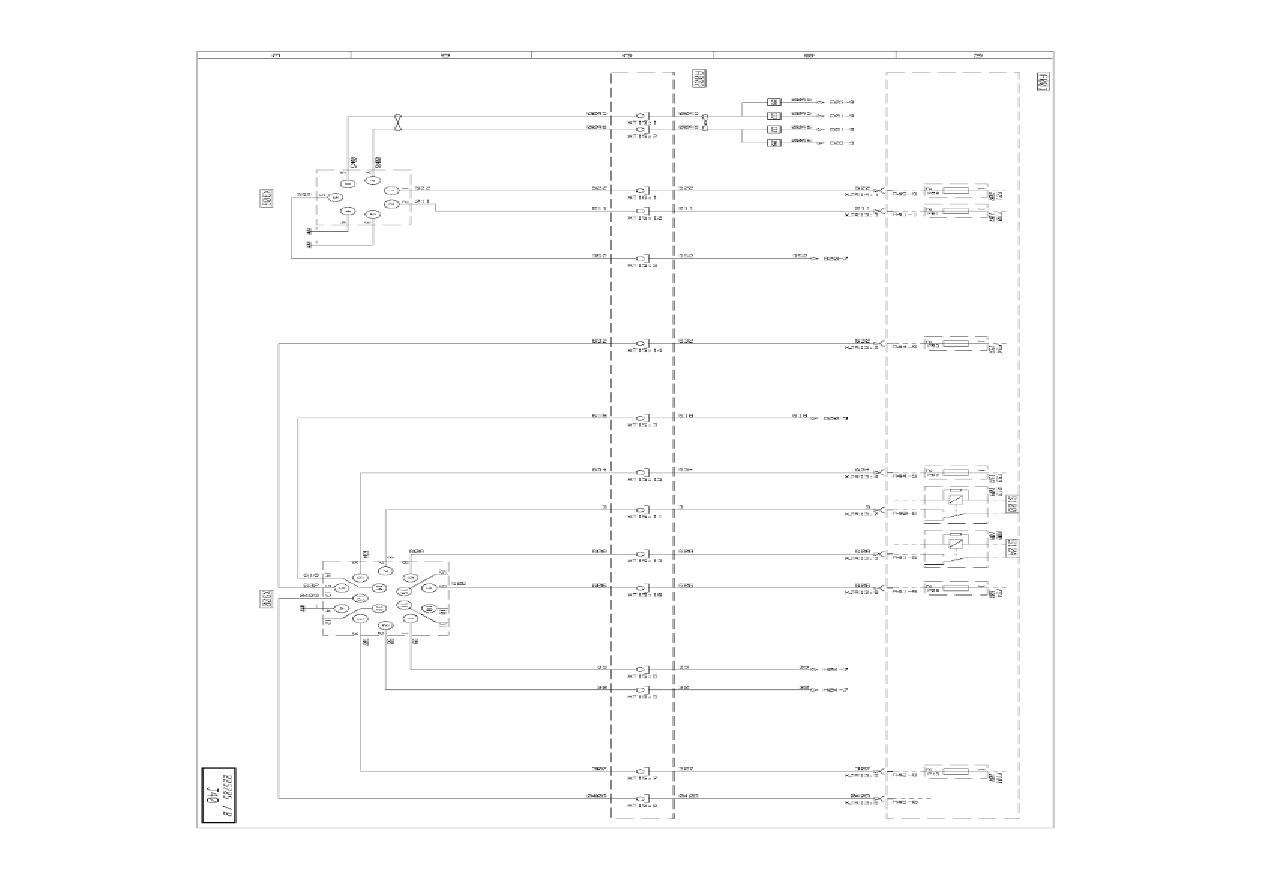

Trailer sockets

Key to appliances

Code

Function

Location

A001

Cab electrical distribution box

B2c

A002

Chassis-cab connection box

B2c

S100

Stop lights power supply relay

B2c

S104

Reversing lights power supply relay

B2c

X900

15-pin trailer socket

B4b

X906

ABS/EBS trailer socket

B4b

BS:  4x2 vehicles

DD:  6x2 vehicles

Trailer sockets

2 / 2

03/28/2016, 5:31:28 PM (CEST)

5A

F15

A001

X913

225785

B

K01

12

13

14

16

17

18

1

1

2

4

5

6

7

8

AM

AN

1 / 2

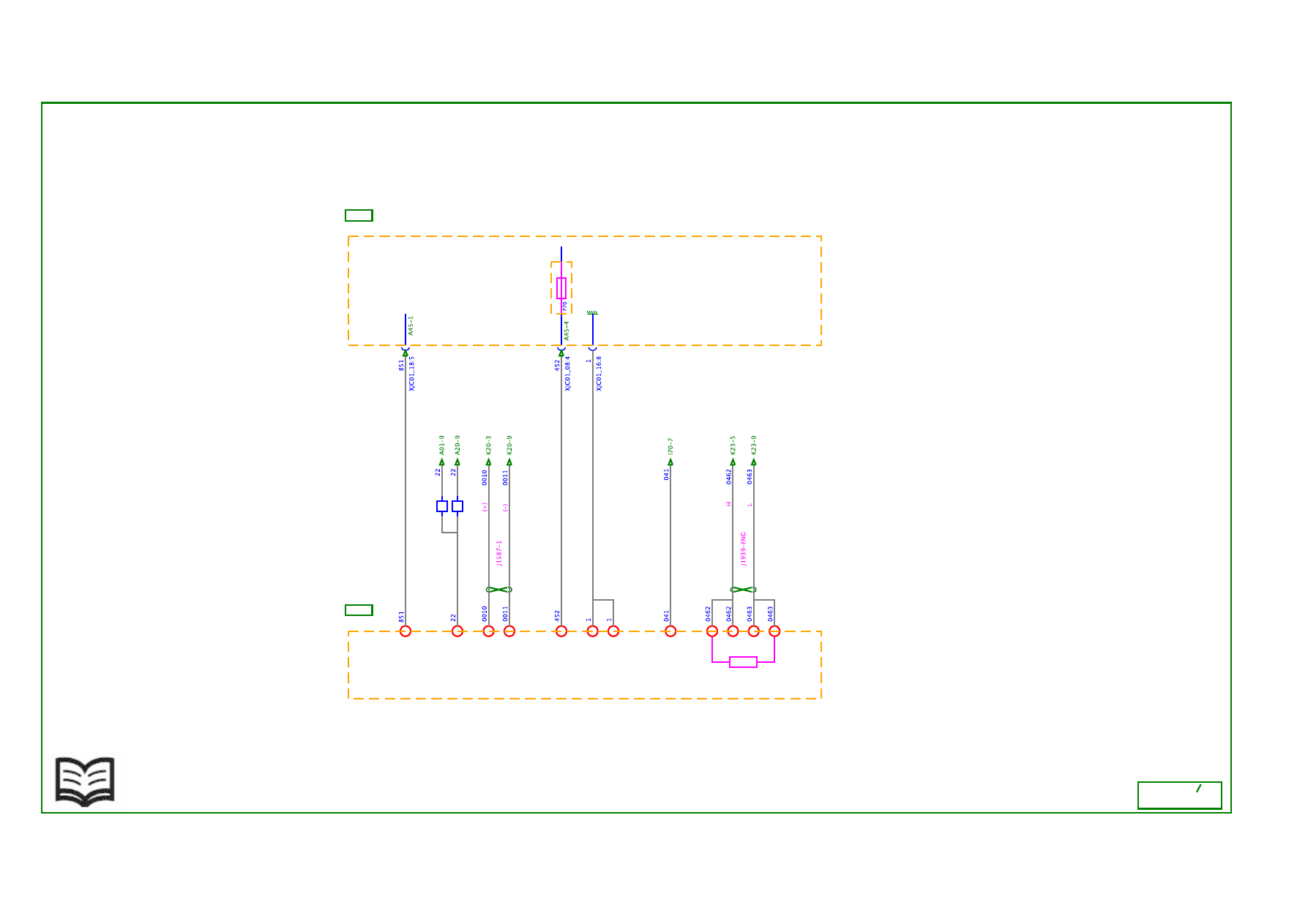

Diagnostic socket

Key to appliances

Code

Function

Location

A001

Cab electrical distribution box

B2c

X913

Vehicle diagnostic socket

C3c

AM: with ADR equipment

AN: without ADR equipment

Diagnostic socket
