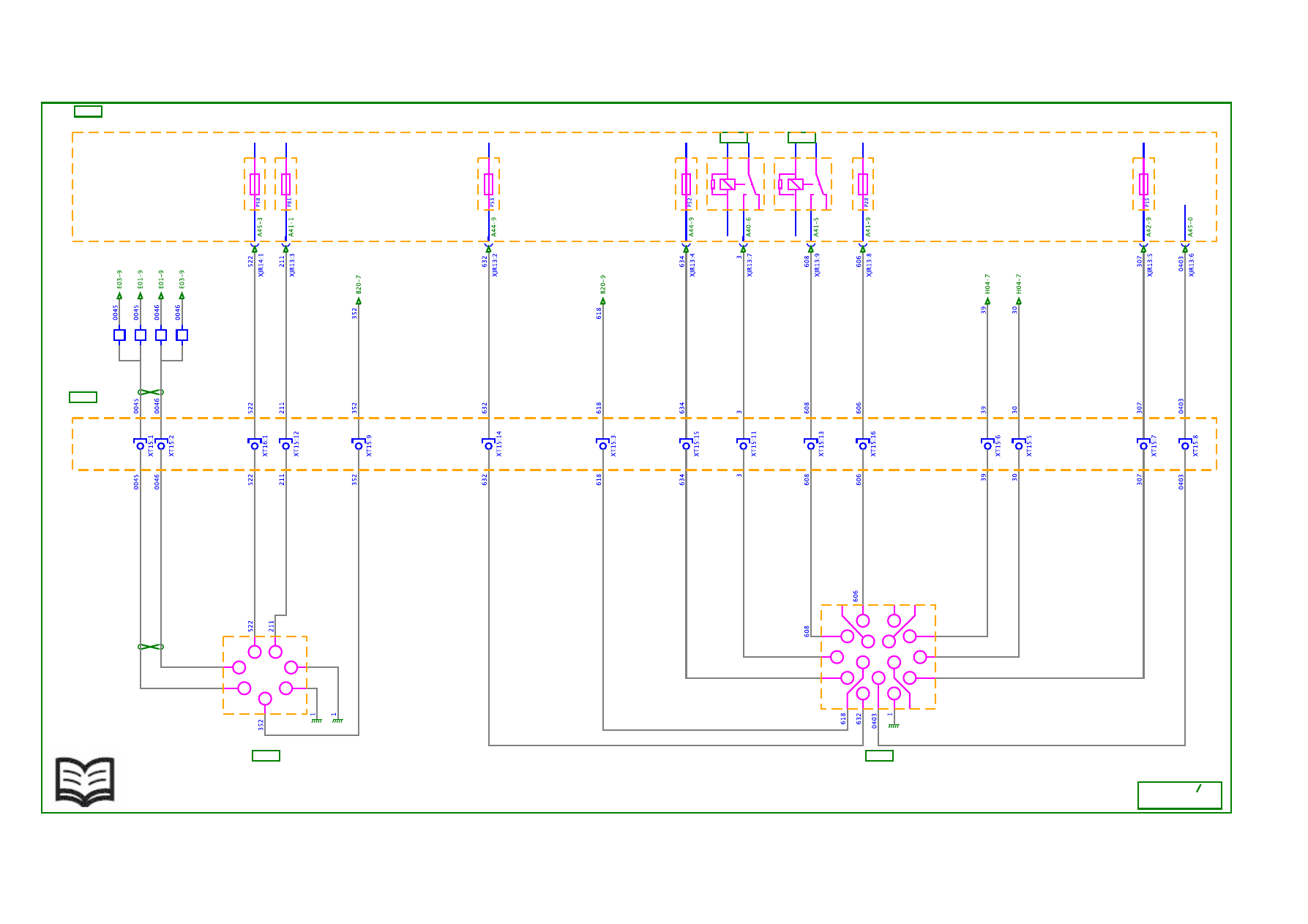

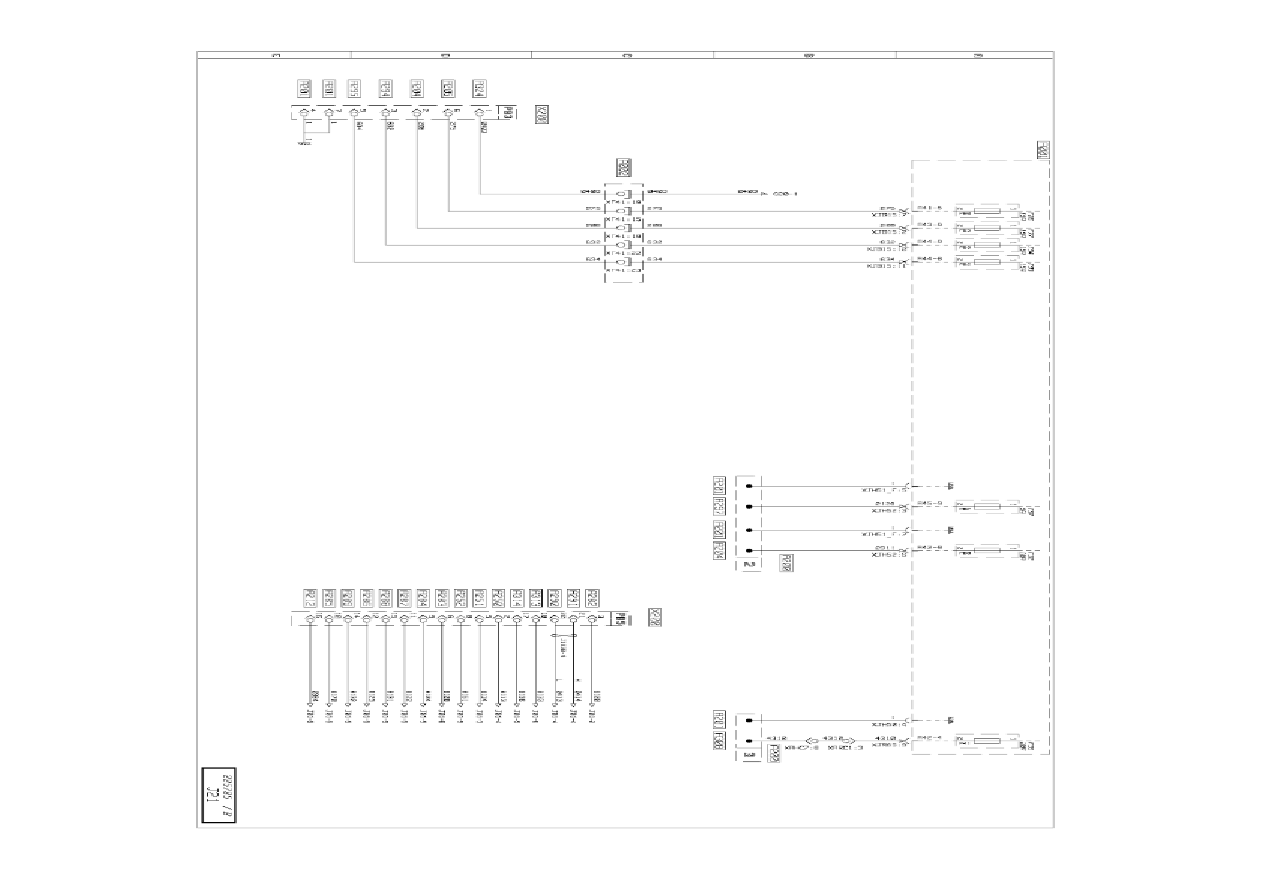

Available power supplies (2/2)
Key to appliances
Code
Function
Location
A001
Cab electrical distribution box
B2c
A002
Chassis-cab connection box
B2c
A200
Available power supply (insulated cut wires)
B2c
A201
Available power supply (vehicle earth)
B2c
A204
Available power supply (after master switch)
B2c
A205
Available power supply (after ignition)
C5d
A212
Available power supply (engine speed)
B2c
A250
Available power supply (PTO 2 control)
B2c
A251
Available power supply (PTO 2 warning light)
B2c
A252
Available power supply (PTO 2 solenoid valve piloting)
B2c
A282
Available power supply (engine start control)
B2c
A283
Available power supply (engine starting information)
B2c
A284
Available power supply (engine alert)
B2c
A285
Available power supply (parameter definable frequency-related output)
B2c
A286
Available power supply (PLC 2 min. output)
B2c
A287
Available power supply (PLC 1 min. output)
B2c
A288
Available power supply (PLC 1 min. input)
B2c
A289
Available power supply (PLC 2 min. input)
B2c
A290
Available power supply (high level CAN bus J1939)
B2c
A291
Available power supply (low level CAN bus J1939)
B2c
A294
Available power supply (LH rear marker light(s)
C5d
A295
Available power supply (RH rear marker light(s)
C5d
A297
Available power supply (night lighting)
B2c
A308
Pre-arrangement for onboard management (screen and keyboard)
C2a
A313
Available power supply (CAN bus disabling)
B2c
A314
Available power supply (engine speed set-point validation)
B2c
A324
Available power supply (rigid perimetric protection module)
C5d
X200
Available power supplies connector
B2c
