Renault Magnum engine. Manual - part 164
1 / 3

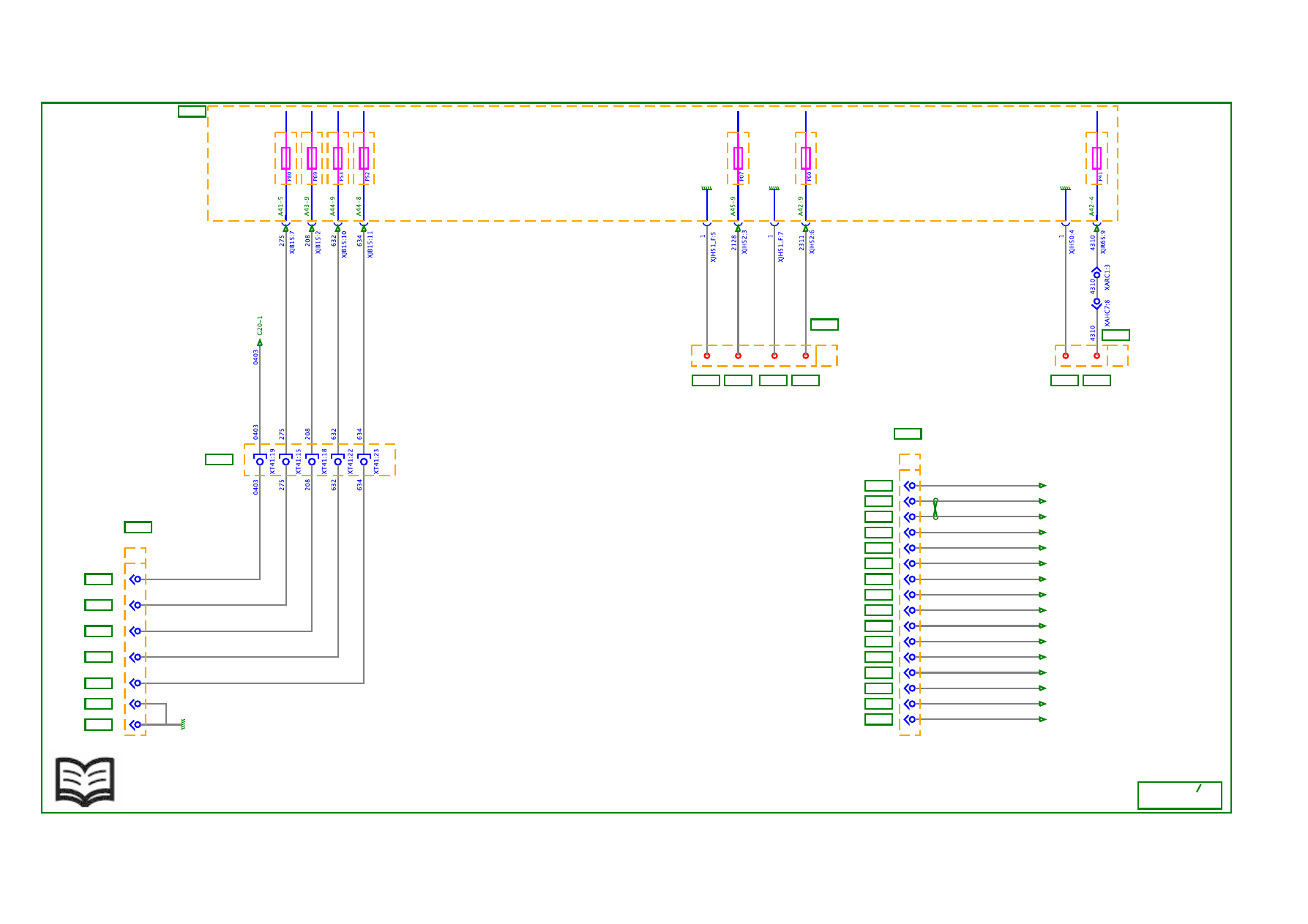

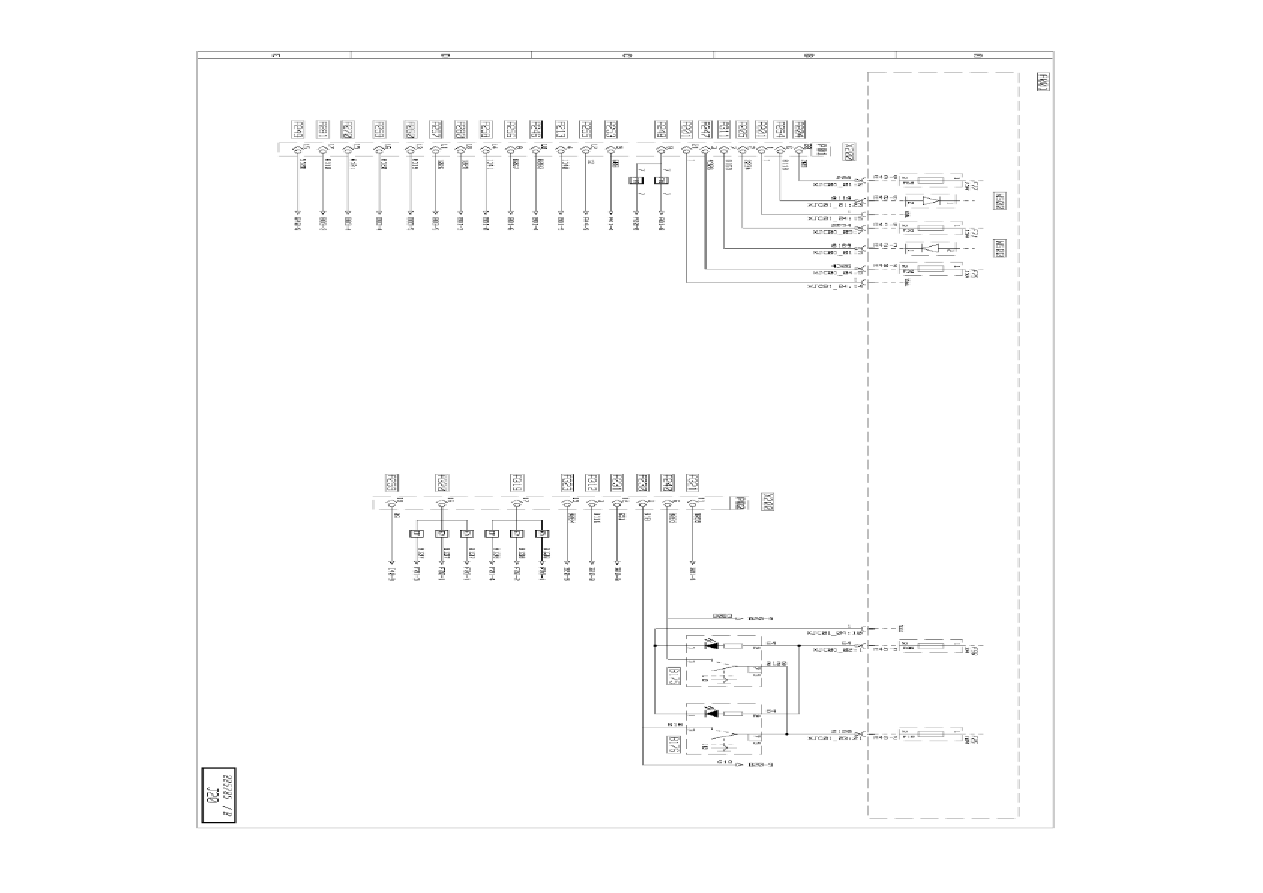

Available power supplies (1/2)
Key to appliances
Code
Function
Location
A001
Cab electrical distribution box
B2c
A201
Available power supply (vehicle earth)
B2c / C5d
A204
Available power supply (after master switch)
B2c / C5d
A205
Available power supply (after ignition)
C5d
A213
Available power supply (PTO N°1)
B2c
A230
Available power supply (equipment in
"road" position warning pictogram)
B2c
A231
Available power supply (equipment in
"working" position warning pictogram)
B2c
A240
Available power supply (lighting)
B2c
A246
Available power supply (PTO N°1 control)
B2c
A247
Available power supply (alternator information, engine running)
B2c
A248
Available power supply (alternator information, engine speed)
B2c
A249
Available power supply (tachograph corrected speed information)
B2c
A253
Available power supply (reversing information)
B2c
A254
Available power supply (parking brake information)
B2c
A255
Available power supply (gearbox neutral information)
B2c
A256
Available power supply (chassis-mounted
engine speed control actuation demand)
B2c
A257
Available power supply (selection of engine speed N°1)
B2c
A258
Available power supply (selection of engine speed N°2)
B2c
A259
Available power supply (engine speed acceleration demand)
B2c
A260
Available power supply (engine speed deceleration demand)
B2c
A270
Available power supply (main engine speed automatic return)
B2c
A280
Available power supply (low speed)
B2c
A281
Available power supply (engine stop control)
B2c
A311
Available power supply (PTO 1 engaged information)
B2c
A312
Available power supply (equipment in dangerous position)
B2c
A319
Available power supply (suspension level control)
B2c
A320
Available power supply (suspension level actuation control)
B2c
A321
Available power supply (6 km/h limitation)
B2c
A323
Available power supply (alarm stop)
B2c
