Renault Magnum engine. Manual - part 162

2 / 2

03/28/2016, 5:26:18 PM (CEST)

10A

20A

3A

50A

5A

F10

F19

F96

R16

RE06

C027

C028

C029

A001

A002

B131

C025

C250

C260

C261

K003

M061

M064

M200

M202

N027

S451

S452

V140

225785

B

A

B

C

I70

SGA

SGB

10

11

12

12

13

14

15

19

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

22

25

25

26

27

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

30

31

31

34

35

36

3

3

3

3

3

3

3

3

4

4

4

4

4

4

5

5

5

5

5

5

6

6

6

6

6

7

7

7

8

8

8

8

8

9

XARC3:4

2014

2332

GR

Y/BL

Y/BL

AT

AT

AT

AT

AT

AT

AT

AT

CY

CY

CY

CY

CY

CY

CY

CY

C

C

C

°

°

°

M

M

U

U

U

M

1 / 2

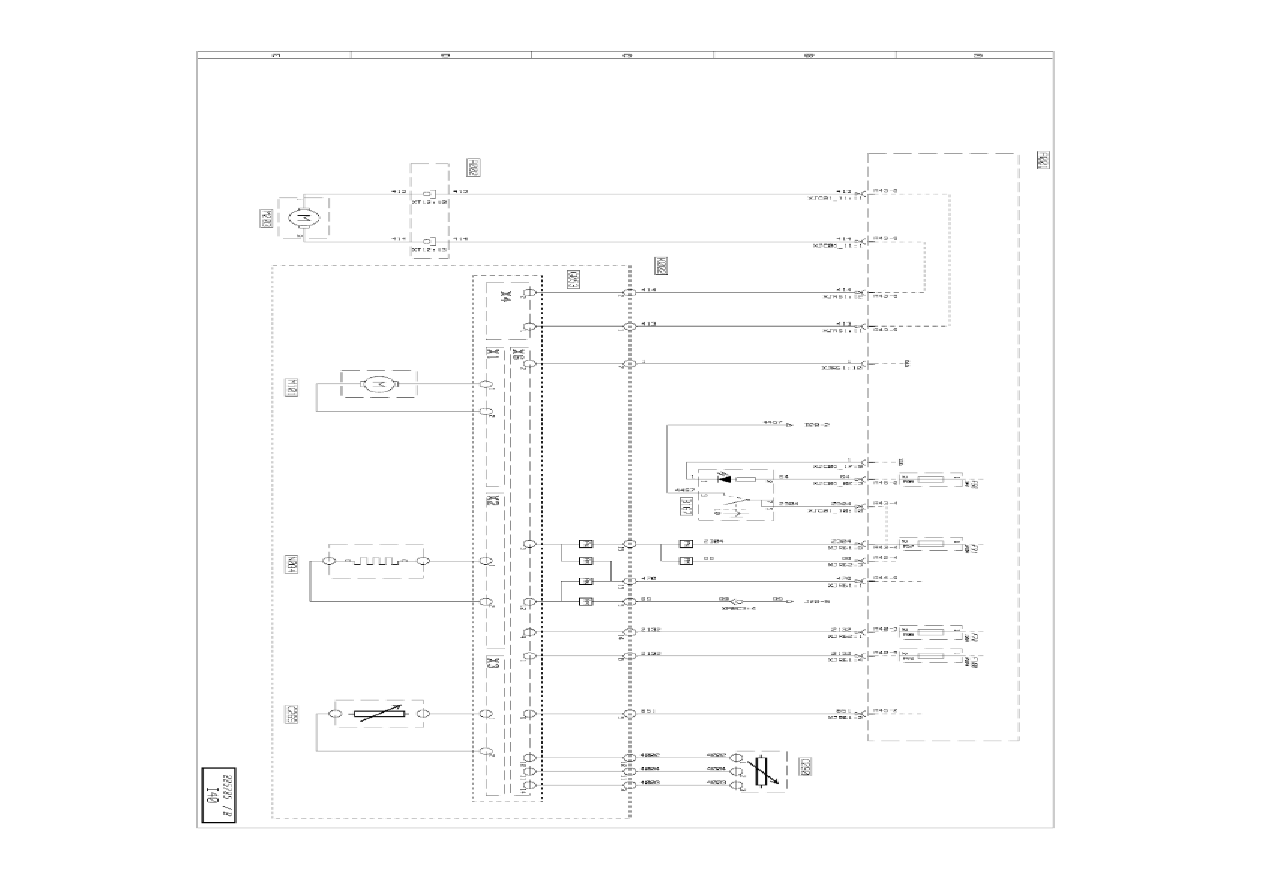

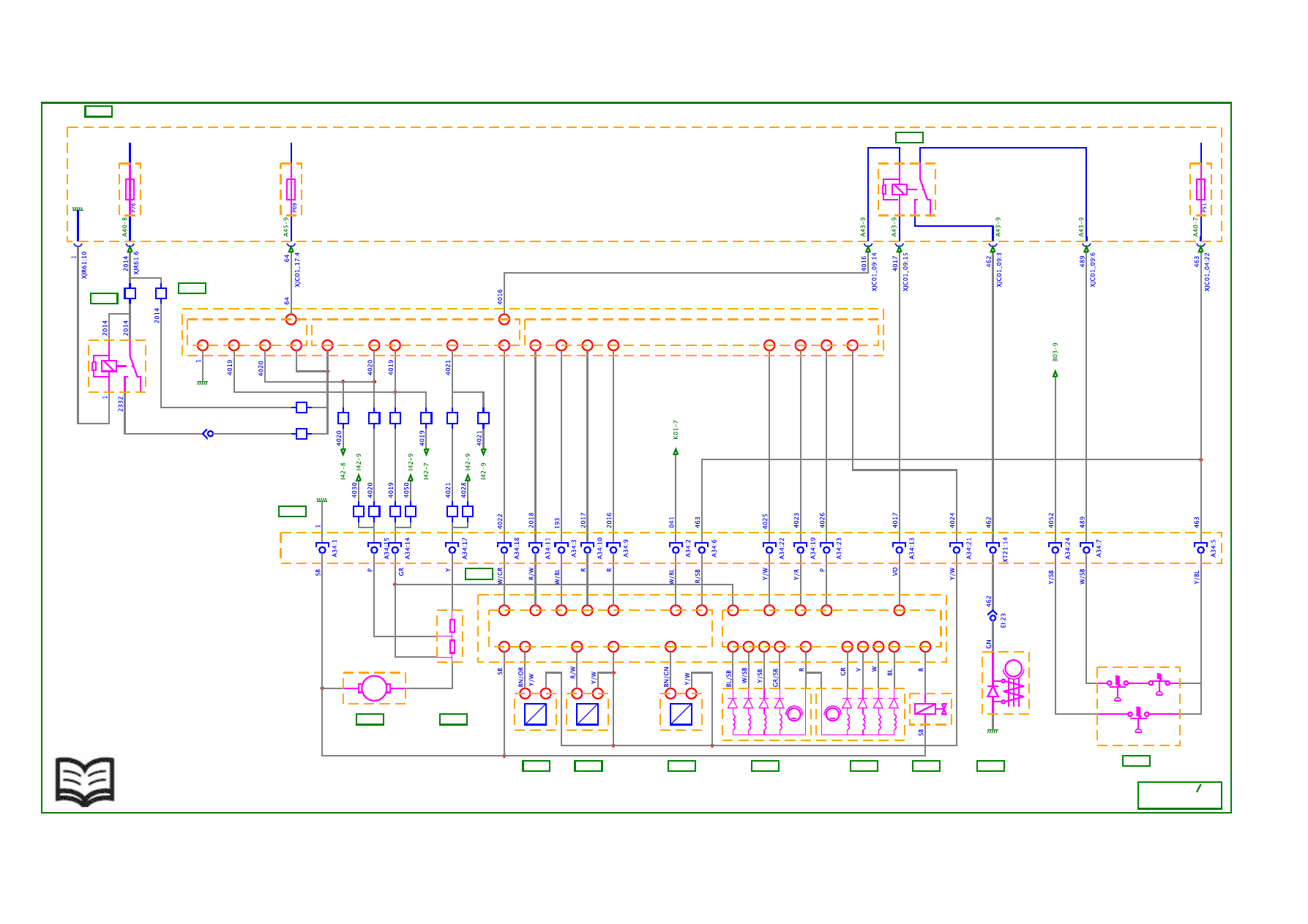

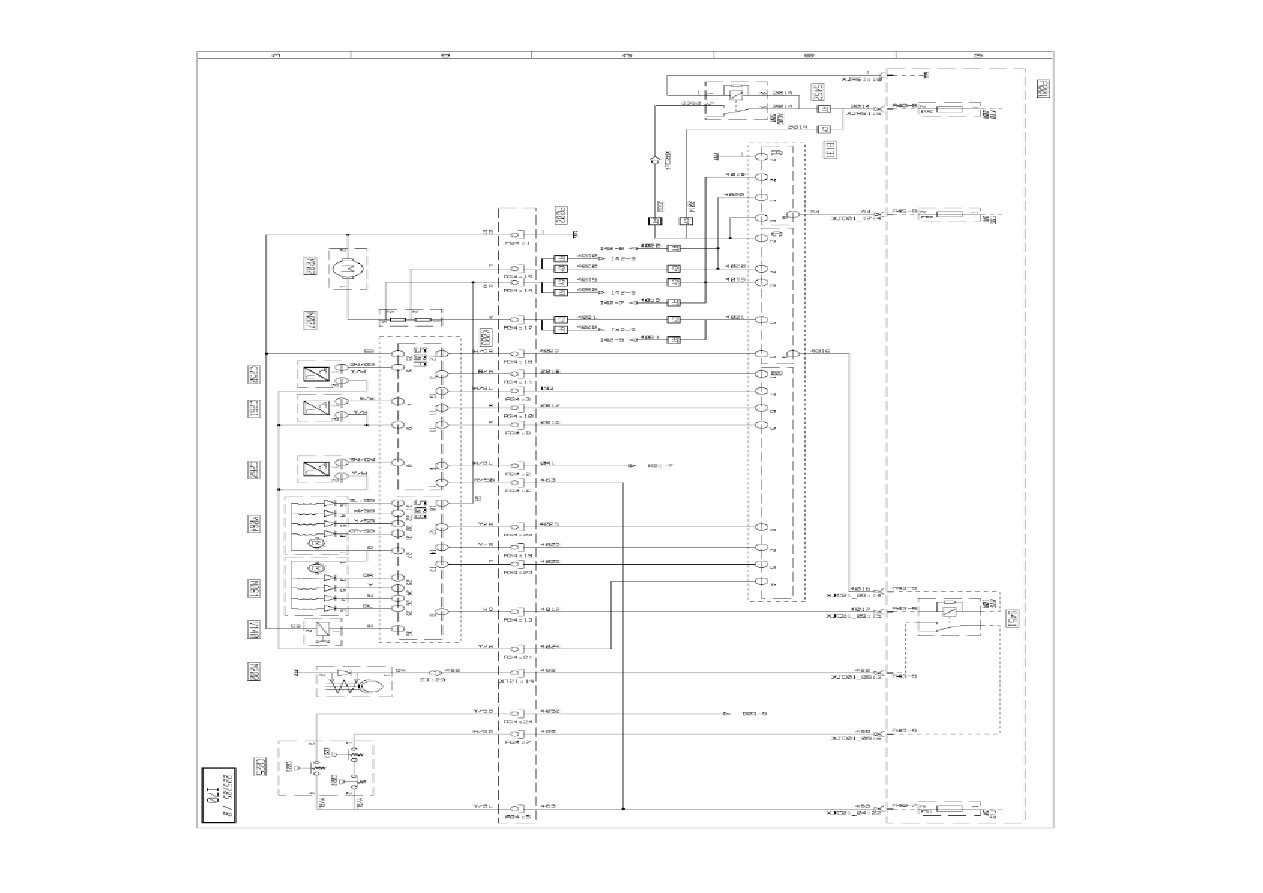

Air conditioning

Key to appliances

Code

Function

Location

A001

Cab electrical distribution box

B2c

A002

Chassis-cab connection box

B2c

B131

Air conditioner control

B2b

C025

3-level air conditioning pressure sensor

B2b

C027

Low level air conditioning pressure sensor

B2b

C028

High level air conditioning pressure sensor

B2b

C029

Intermediate level air conditioning pressure sensor

B2b

C250

Blown air temperature sensor

B2b

C260

Evaporator temperature sensor

B2b

C261

Air conditioning outside air temperature sensor

B2b

K003

Air conditioning ECU

B2b

M061

Air recycling motor

B2b

M064

Air mixing flap motor

B2b

M200

Air conditioning compressor electric clutch

B3d

M202

Driving position fan-coil heater motor

B2b

N027

Fan/coil heater pilot-control resistors assembly

B2b

S451

Air conditioning compressor clutch power supply relay

B3c

S452

Air conditioning fan piloting relay

B2c

V140

Cab heating engine coolant circuit by-pass solenoid valve

B2b

AT: With air / water independent heating

CY: Without air / water independent heating

Air conditioning

2 / 2
