Renault Magnum engine. Manual - part 95

7 / 7

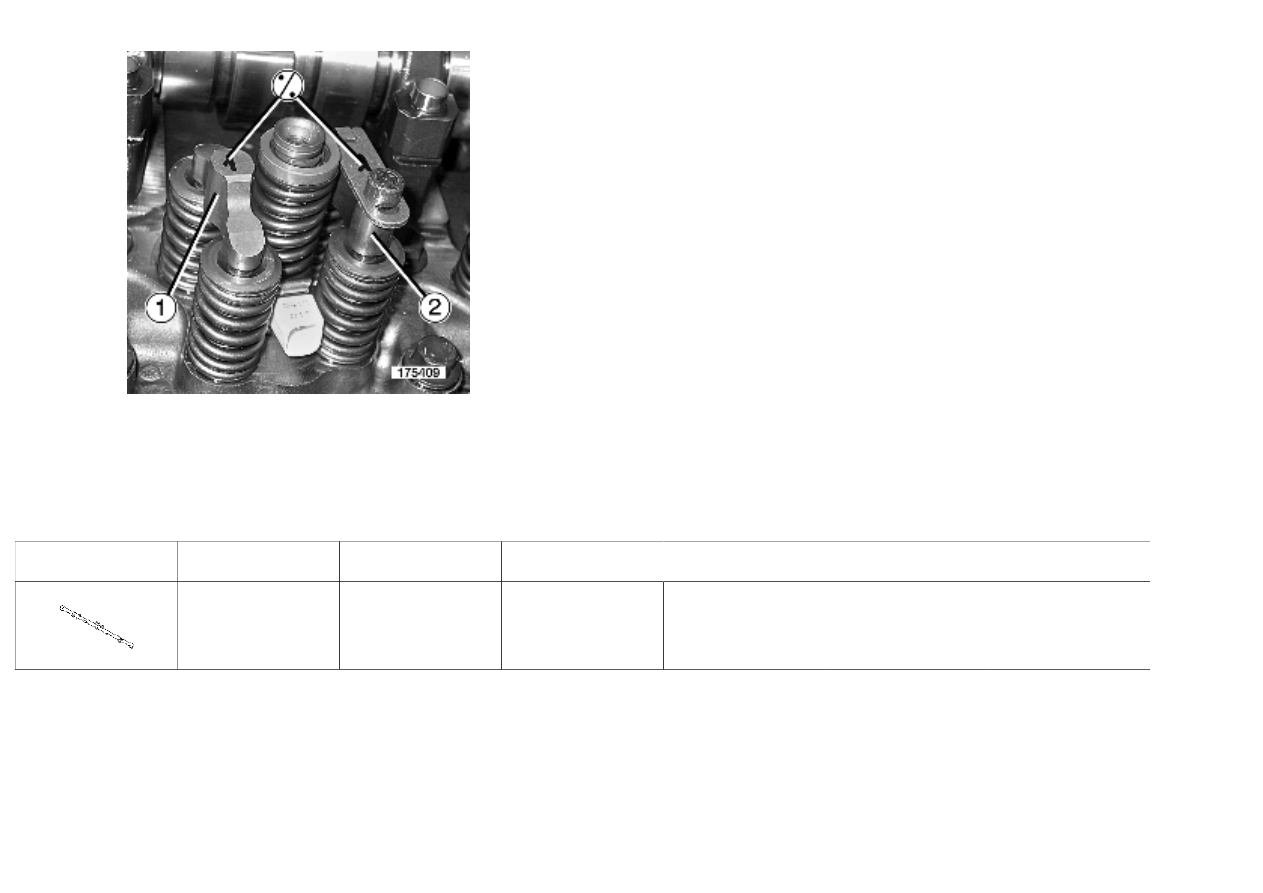

Mark.

Remove clips

(1 - 2).

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

7409990185

LIFTING TOOL (ROCKER

ARM ASSEMBLY)

1 / 12

Rocker shaft, fitting

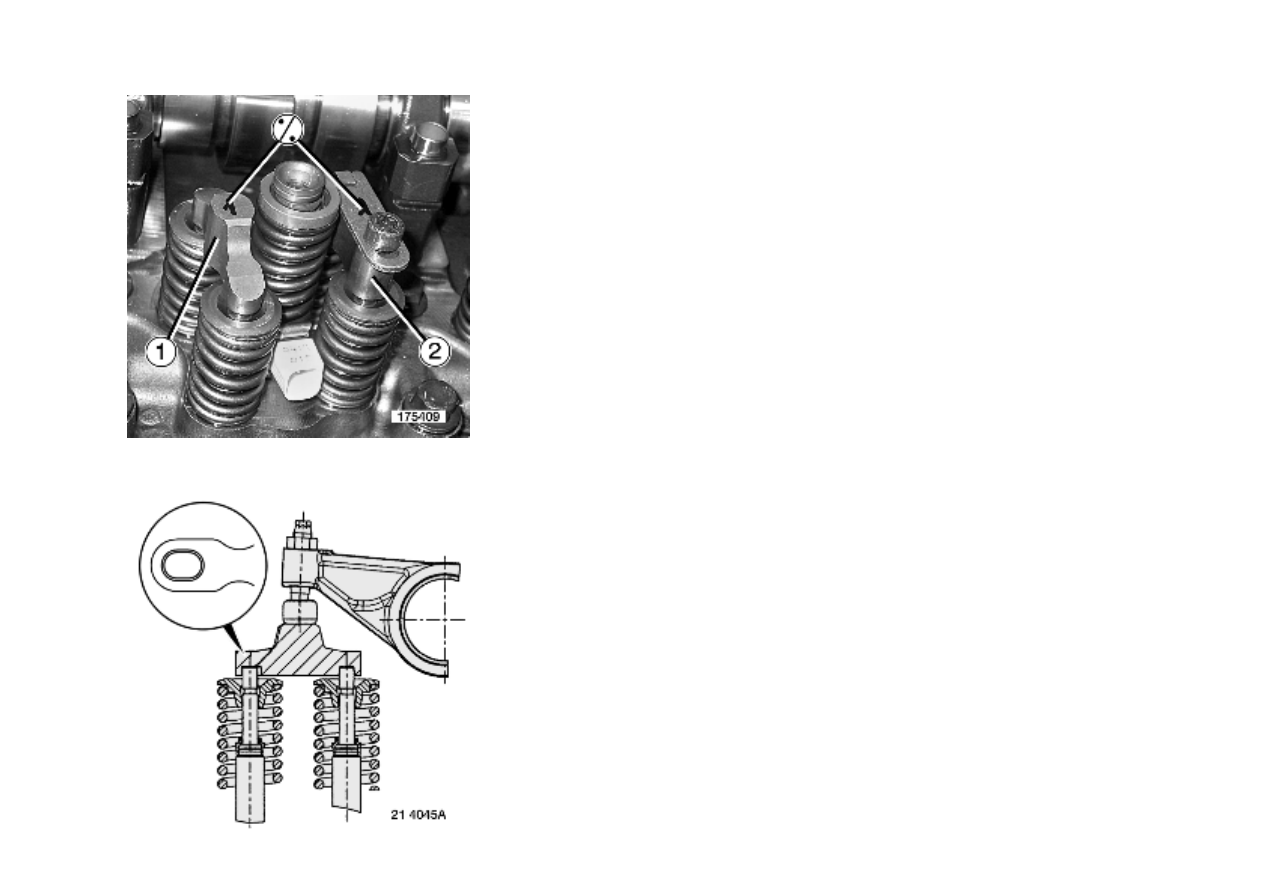

Fit yokes

(1 - 2).

Line up the marks made upon removal.

2 / 12

When fitting new yokes, line up the marks.

Oil all moving parts.

Use engine oil.

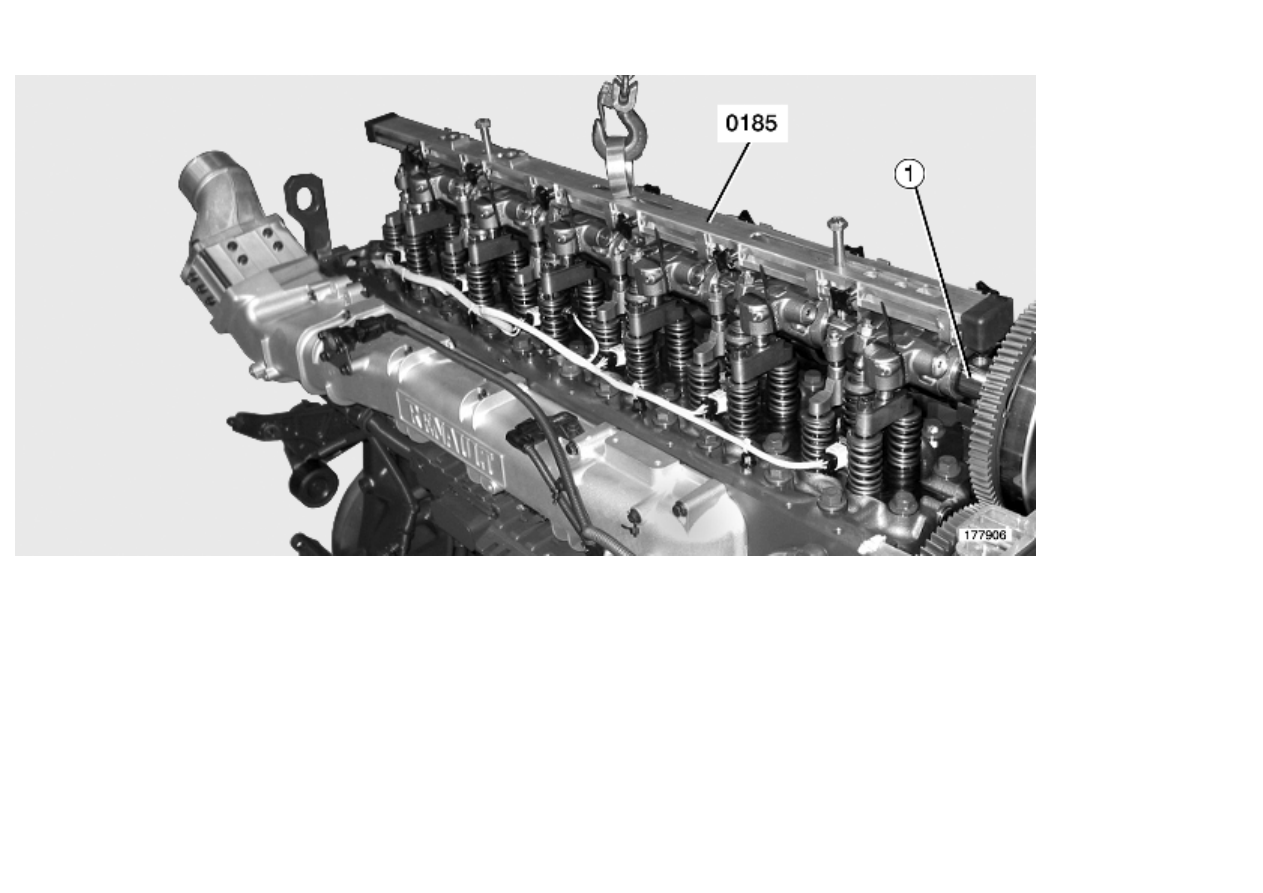

Fit the rocker shaft

(1).

Use tool 0185.

Use lifting tackle.
Engine equipped with "Optibrake"

3 / 12

Oil all moving parts.

Use engine oil.

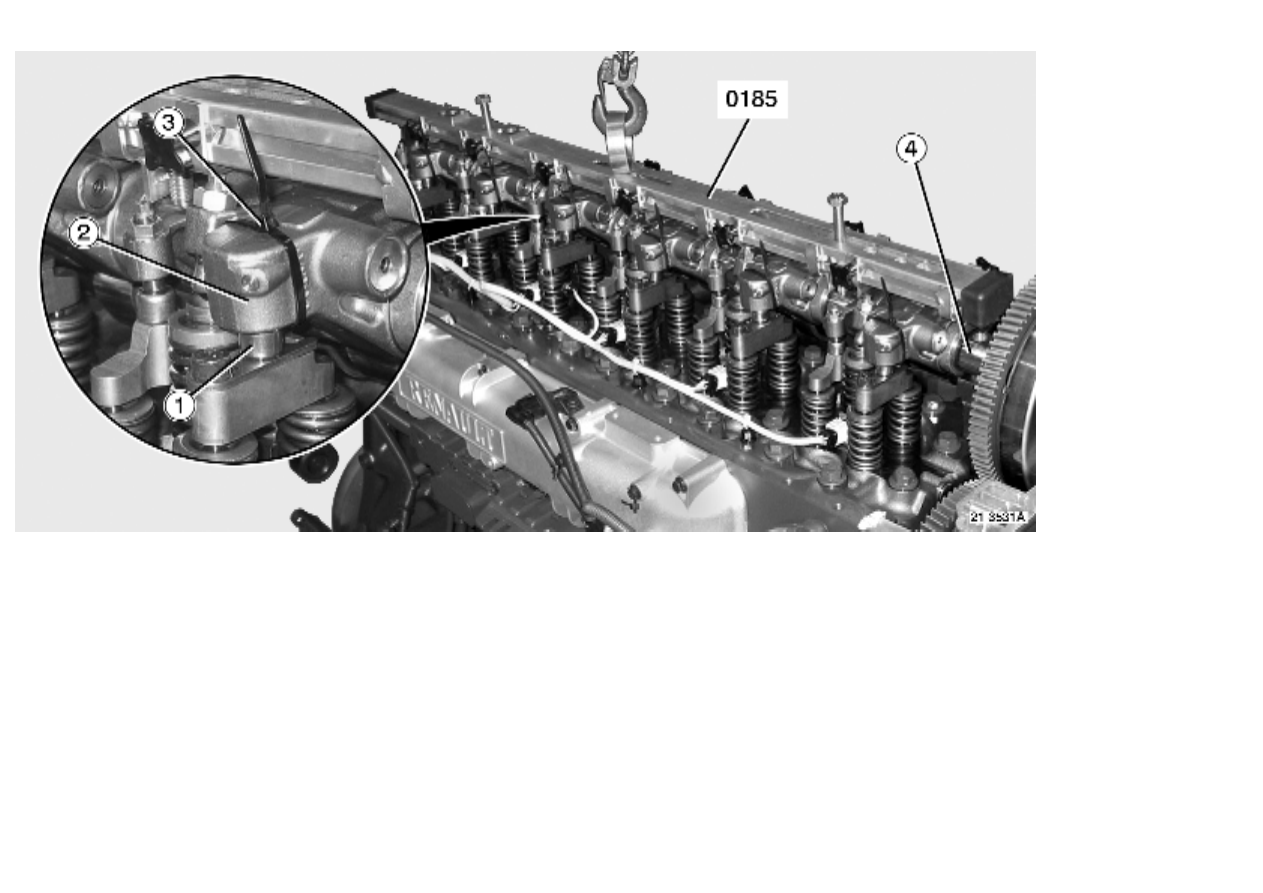

Fit the rocker shaft

(4).

Use tool 0185.

Use lifting tackle.

Cut clamps

(3) to free the pistons (1) of rocker arms (2).

Withdraw tool 0185.
Engine equipped with "Optibrake +"
