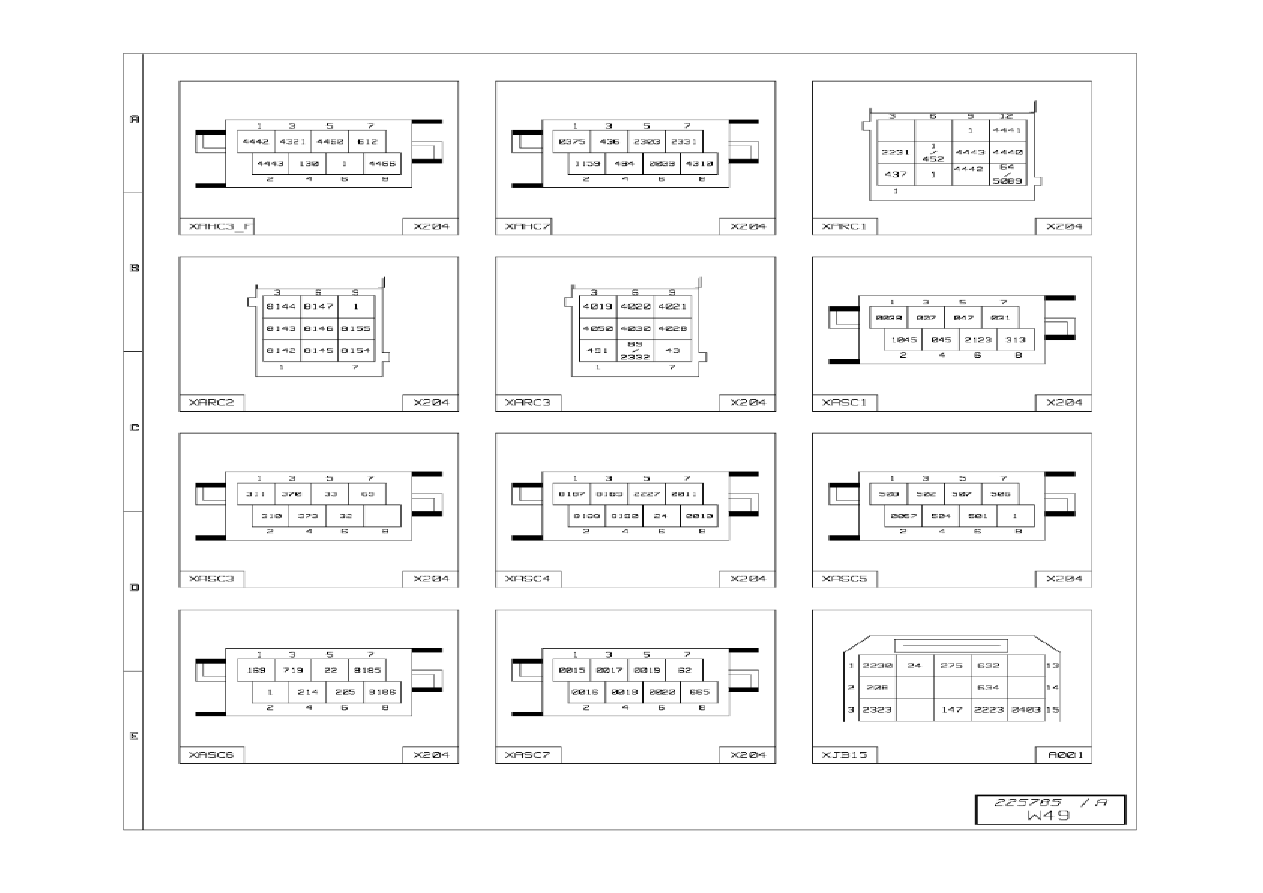

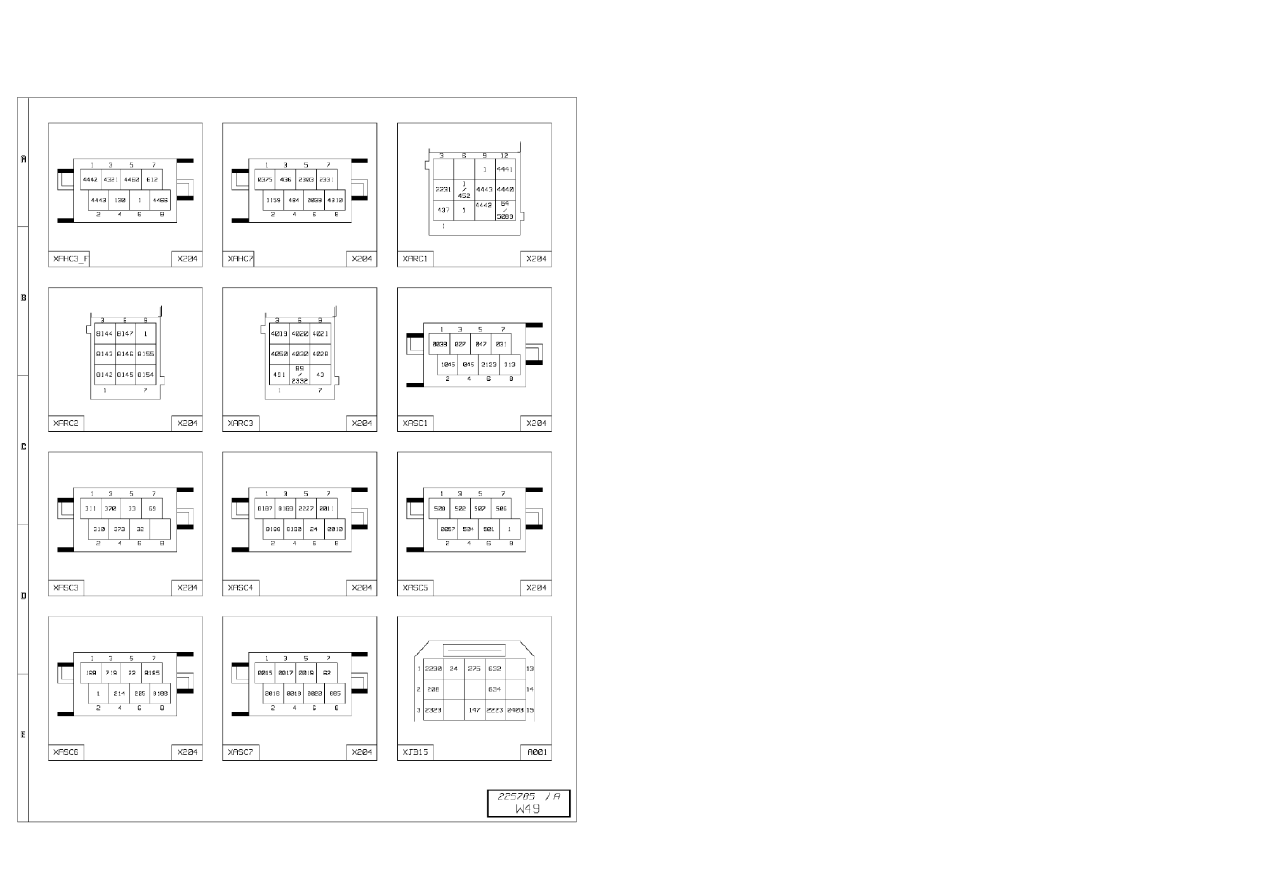

Dashboard wiring harness (10/14)

1 / 2

Dashboard wiring harness (10/14)

Code

Function

Connectors

Colour

Number

of tracks

X204

Link-up connector between 2 wiring harnesses

XAHC3_F

BN

8

X204

Link-up connector between 2 wiring harnesses

XAHC7

Y

8

X204

Link-up connector between 2 wiring harnesses

XARC1

GN

12

X204

Link-up connector between 2 wiring harnesses

XARC2

Y

9

X204

Link-up connector between 2 wiring harnesses

XARC3

NL

9

X204

Link-up connector between 2 wiring harnesses

XASC1

W

8

X204

Link-up connector between 2 wiring harnesses

XASC3

VO

8

X204

Link-up connector between 2 wiring harnesses

XASC4

VO

8

X204

Link-up connector between 2 wiring harnesses

XASC5

W

8

X204

Link-up connector between 2 wiring harnesses

XASC6

R

8

X204

Link-up connector between 2 wiring harnesses

XASC7

R

8

A001

Cab electrical distribution box

XJB15

VO

15

Dashboard wiring harness (10/14)

2 / 2

1 / 1

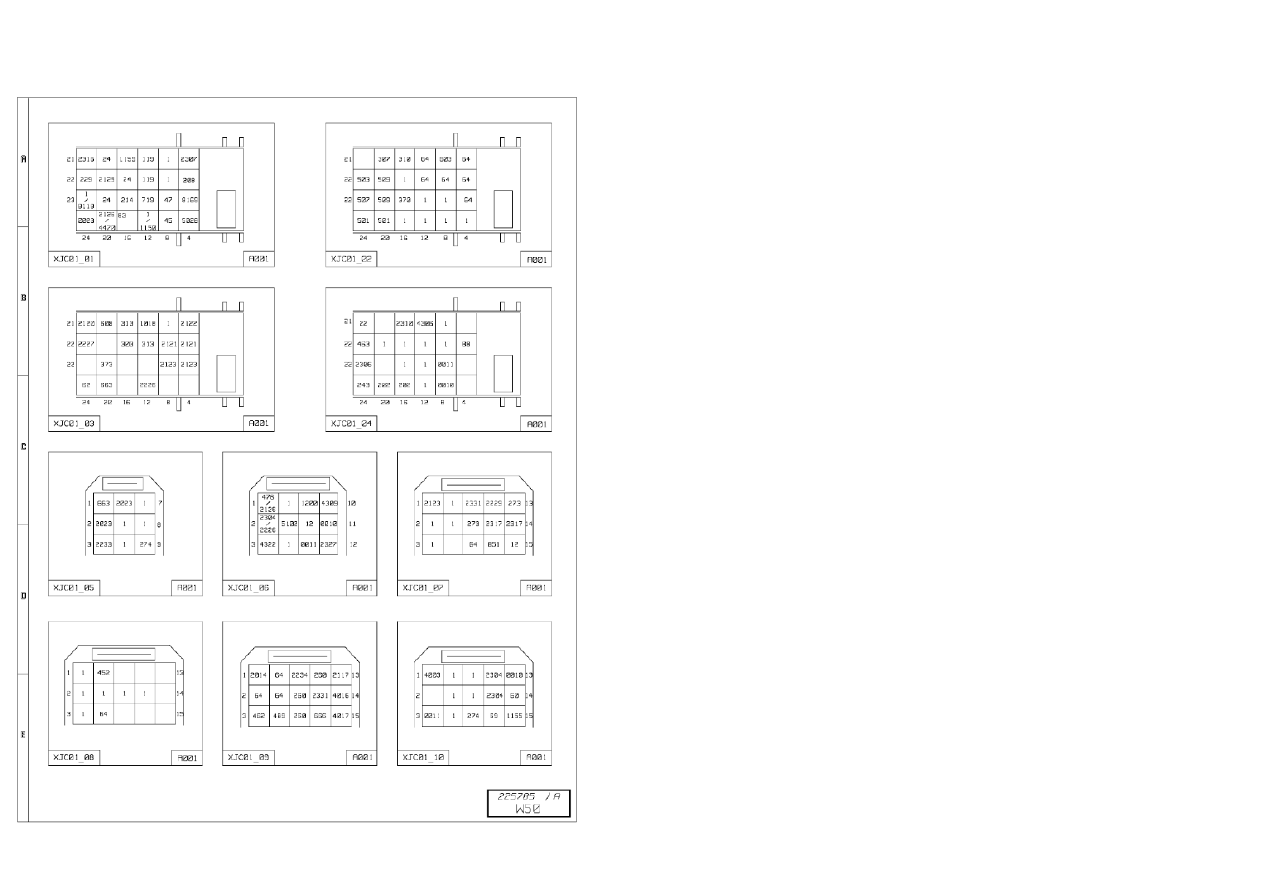

Dashboard wiring harness (11/14)
