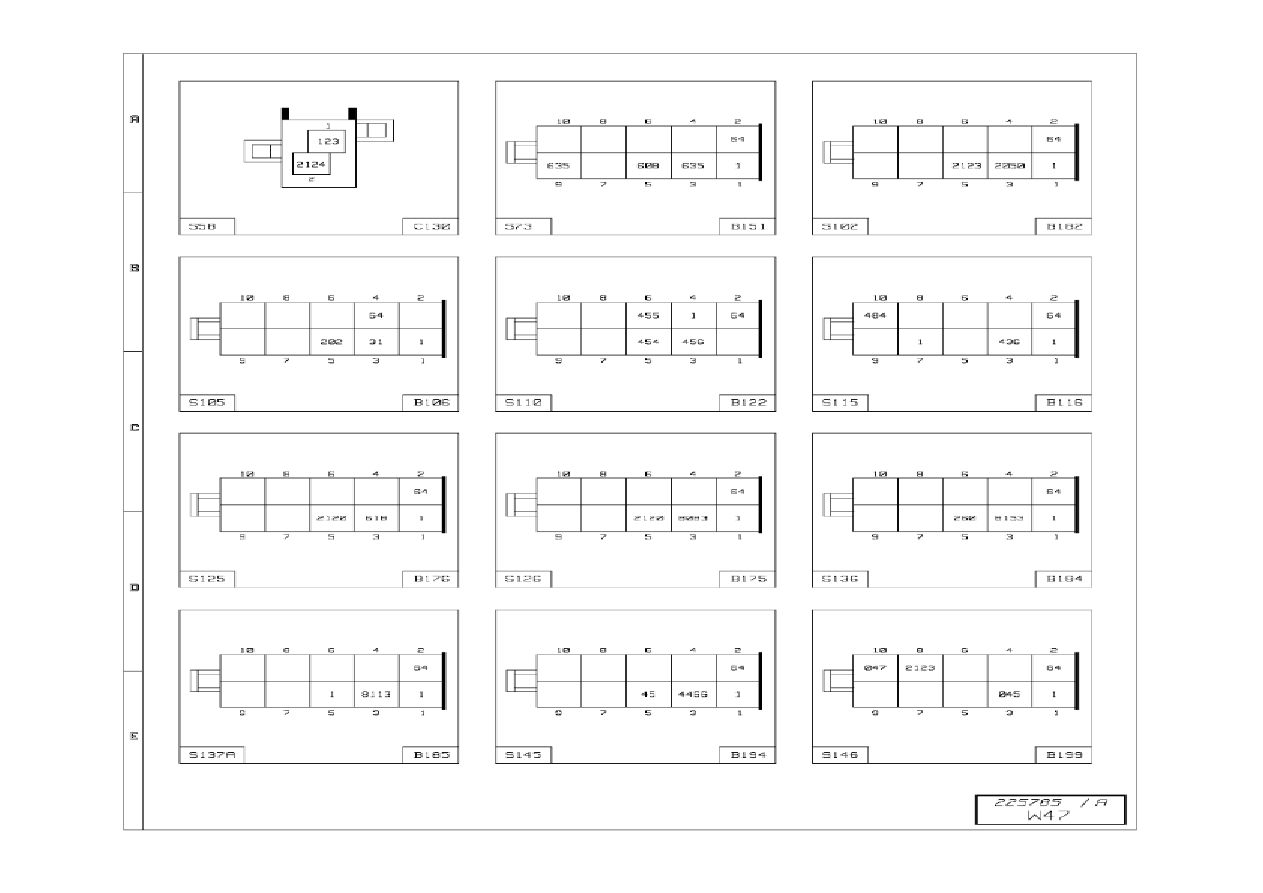

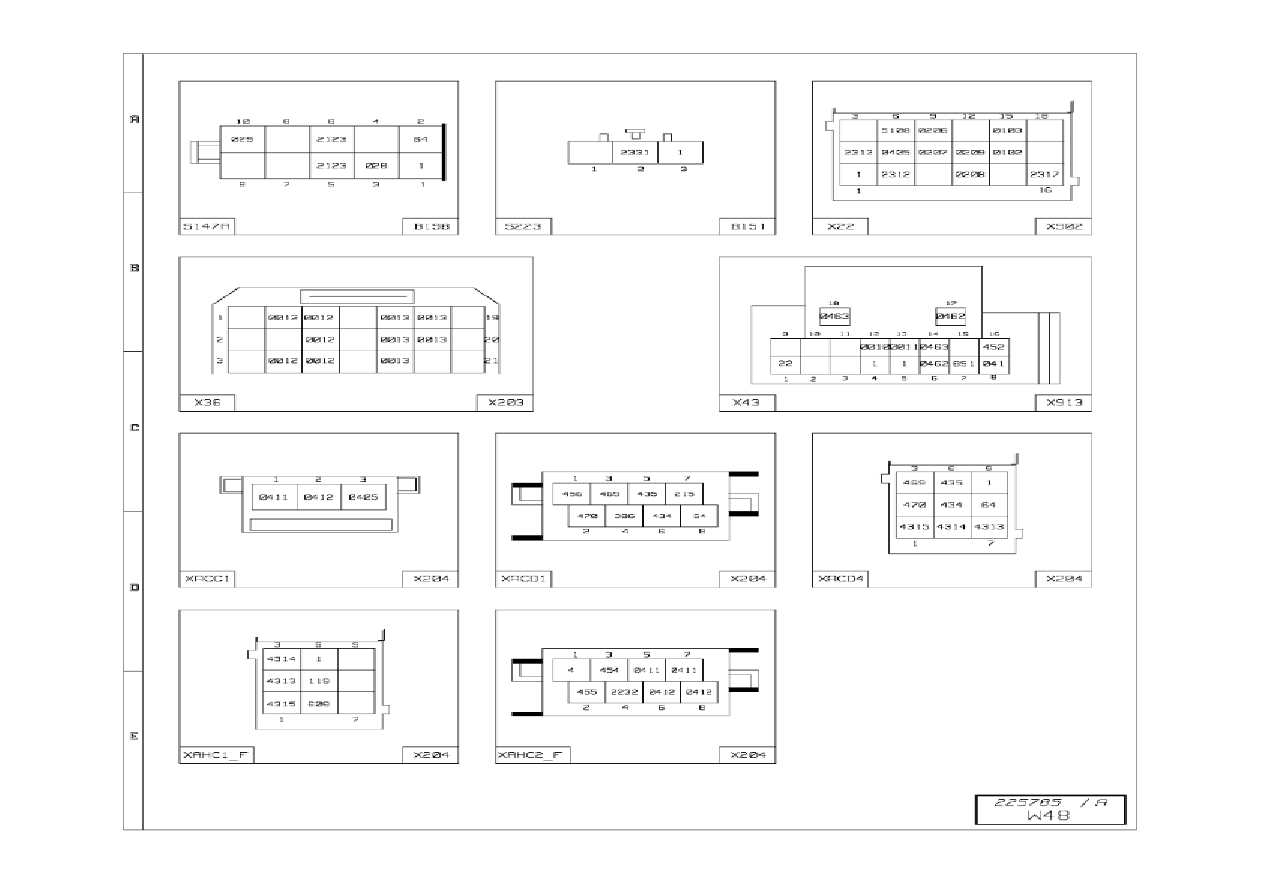

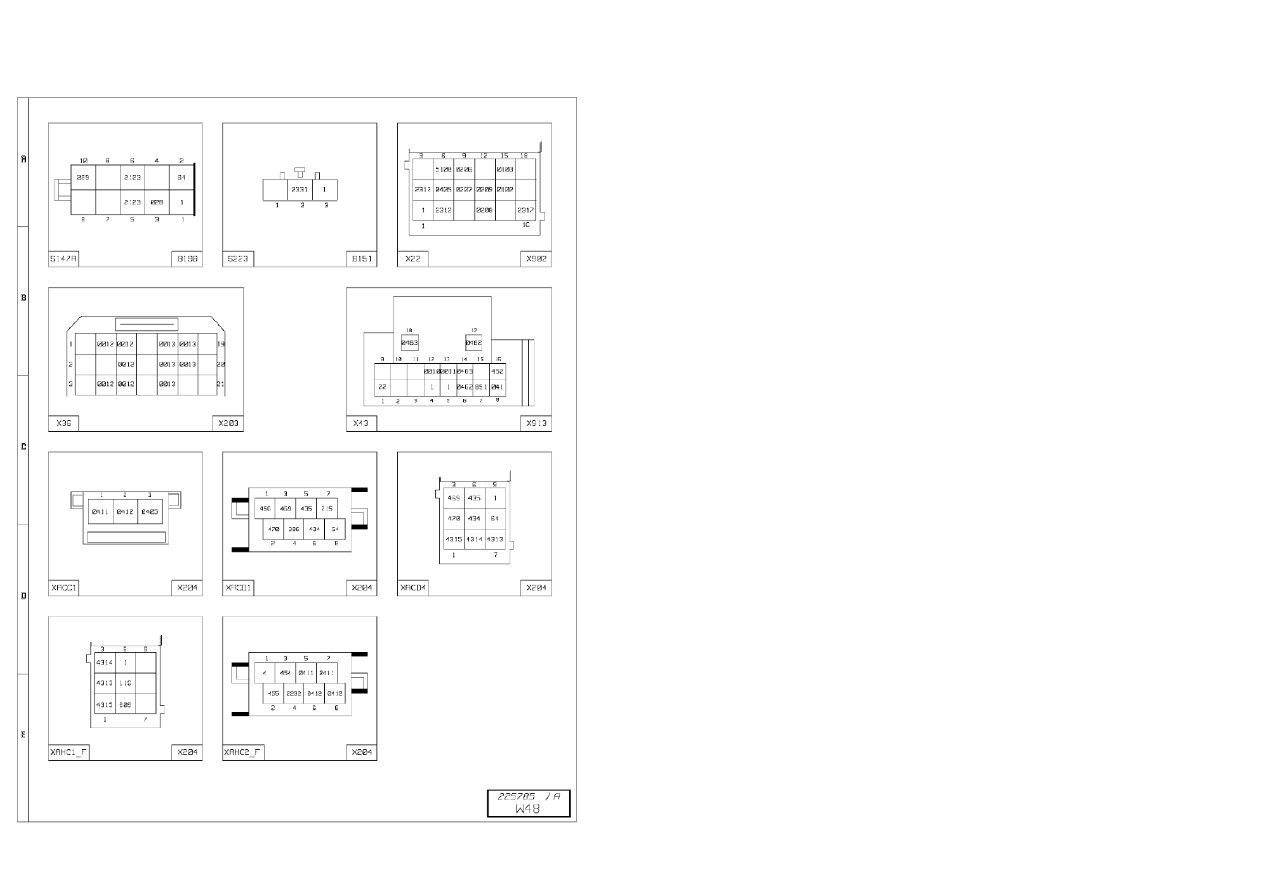

Dashboard wiring harness (9/14)

1 / 2

Dashboard wiring harness (9/14)

Code

Function

Connectors

Colour

Number

of tracks

B198

Fast idling actuation control

S147A

SB

10

B151

Reversing buzzer inhibition control

S223

SB

3

X902

24 Volts power supply socket

X22

SB

18

X203

CAN bus grouping connector

X36

BL

21

X913

Vehicle diagnostic socket

X43

SB

18

X204

Link-up connector between 2 wiring harnesses

XACC1

SB

3

X204

Link-up connector between 2 wiring harnesses

XACD1

GR

8

X204

Link-up connector between 2 wiring harnesses

XACD4

NL

9

X204

Link-up connector between 2 wiring harnesses

XAHC1_F

Y

9

X204

Link-up connector between 2 wiring harnesses

XAHC2_F

VO

8

Dashboard wiring harness (9/14)
