Renault Magnum engine. Manual - part 60

1 / 2

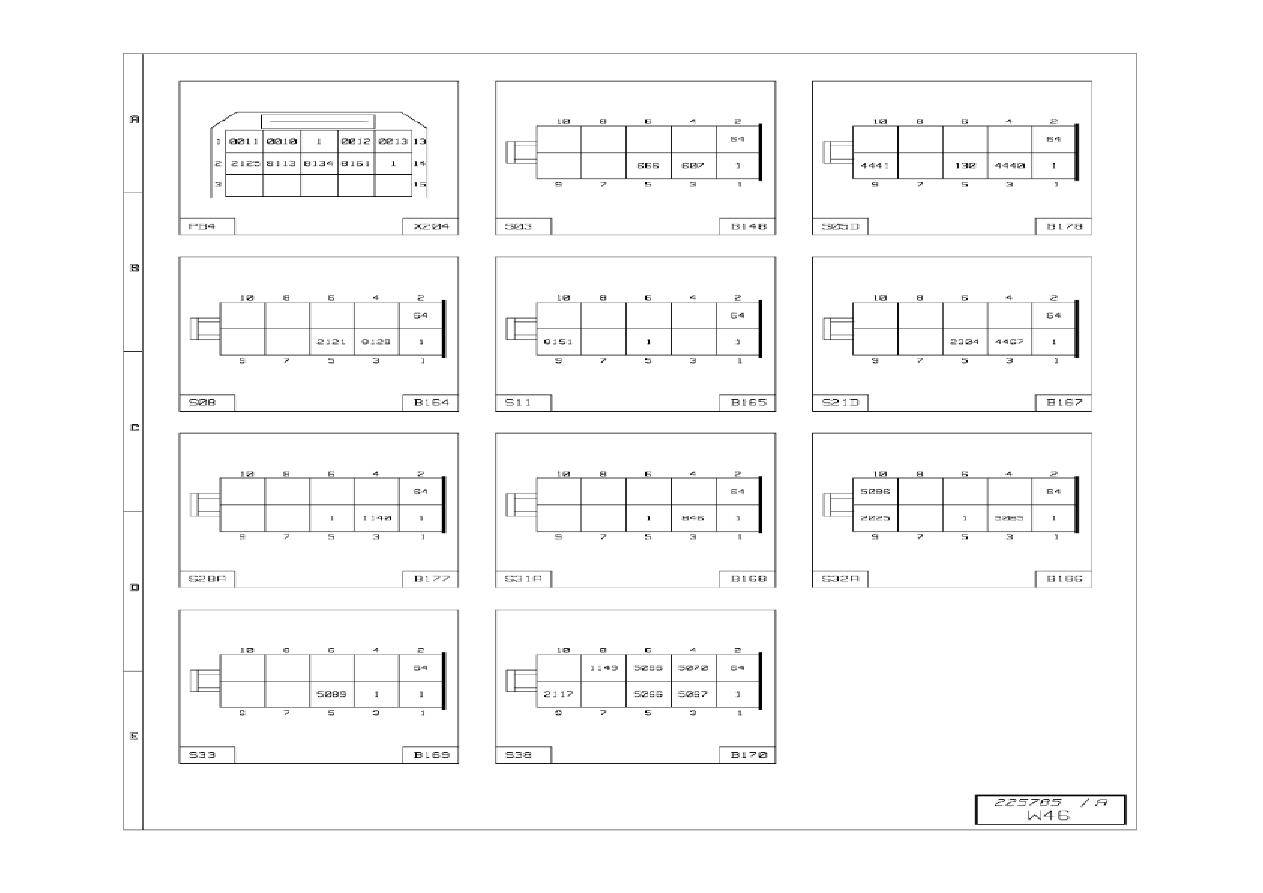

Dashboard wiring harness (7/14)

Code

Function

Connectors

Colour

Number

of tracks

X204

Link-up connector between 2 wiring harnesses

PB4

BN

15

B148

Working lights control

S03

SB

10

B178

Cab interior lighting control (on dashboard)

S05D

SB

10

B164

Rear wheels diff lock control

S08

SB

10

B165

Second rear axle lift-up control

S11

SB

10

B167

Cab add-on heater control

S21D

SB

10

B177

PTO 1 engagement request control (in cab)

S28A

SB

10

B168

Traction control enabling control

S31A

SB

10

B186

Brake holding enabling control

S32A

SB

10

B169

Trailer brake holding enabling control

S33

SB

10

B170

Cab emergency stop control

S38

SB

10

Dashboard wiring harness (7/14)

2 / 2

1 / 1

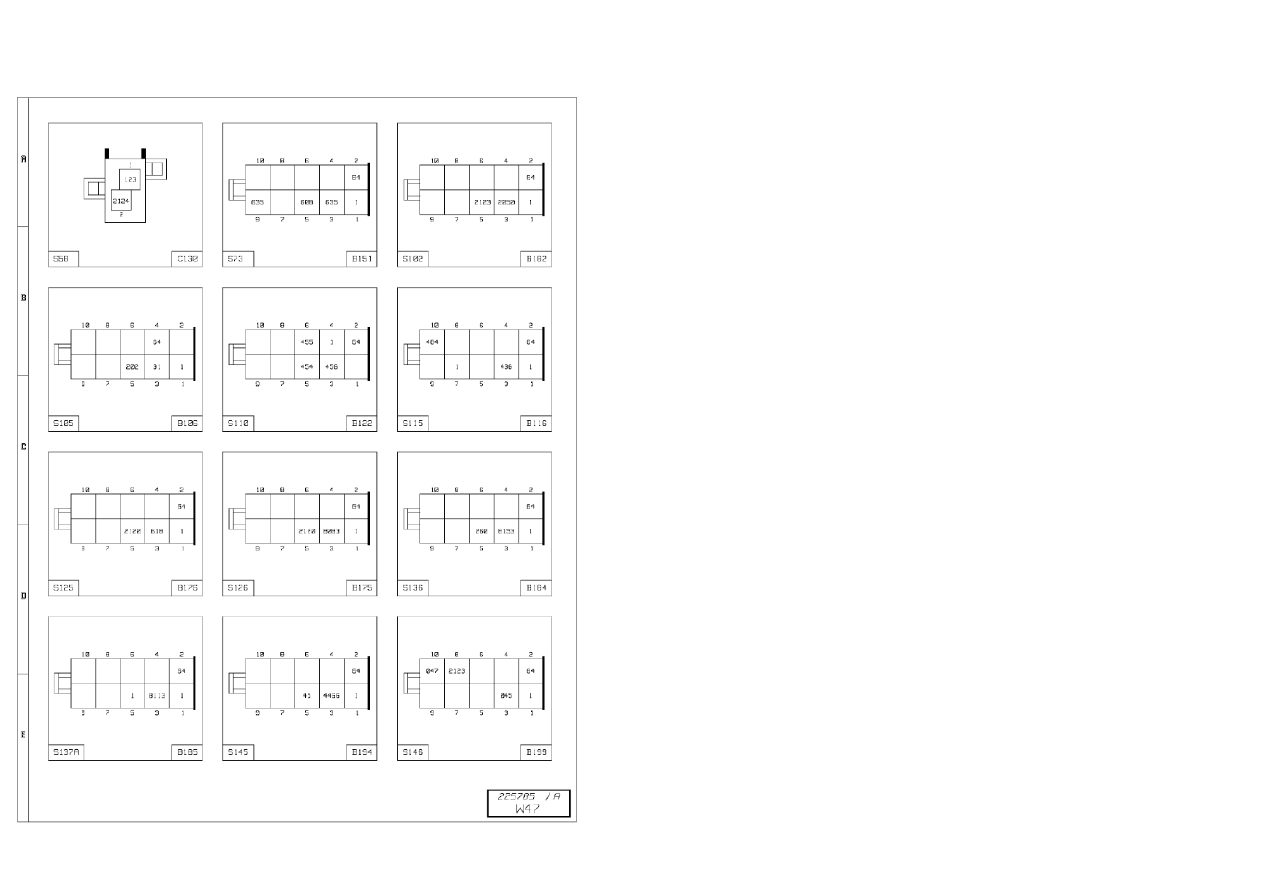

Dashboard wiring harness (8/14)

1 / 2

Dashboard wiring harness (8/14)

Code

Function

Connectors

Colour

Number

of tracks

C130

Clutch pedal position sensor

S58

SB

2

B151

Reversing buzzer inhibition control

S73

SB

10

B182

Auto/manual selection control

S102

SB

10

B106

Hazard lights control

S105

SB

10

B122

Front curtain motor control (driver side)

S110

SB

10

B116

Doors locking control

S115

SB

10

B176

Pre-arrangement for bodybuilder N° 2 control

S125

SB

10

B175

Pre-arrangement for bodybuilder N° 1 control

S126

SB

10

B184

Axle load-shedding activation control

S136

SB

10

B185

PTO 2 engagement request control (in cab)

S137A

SB

10

B194

Overhead lighting control (ambience)

S145

SB

10

B199

Fast idling adjustment control

S146

SB

10

Dashboard wiring harness (8/14)
