Renault Magnum engine. Manual - part 12

10 / 14

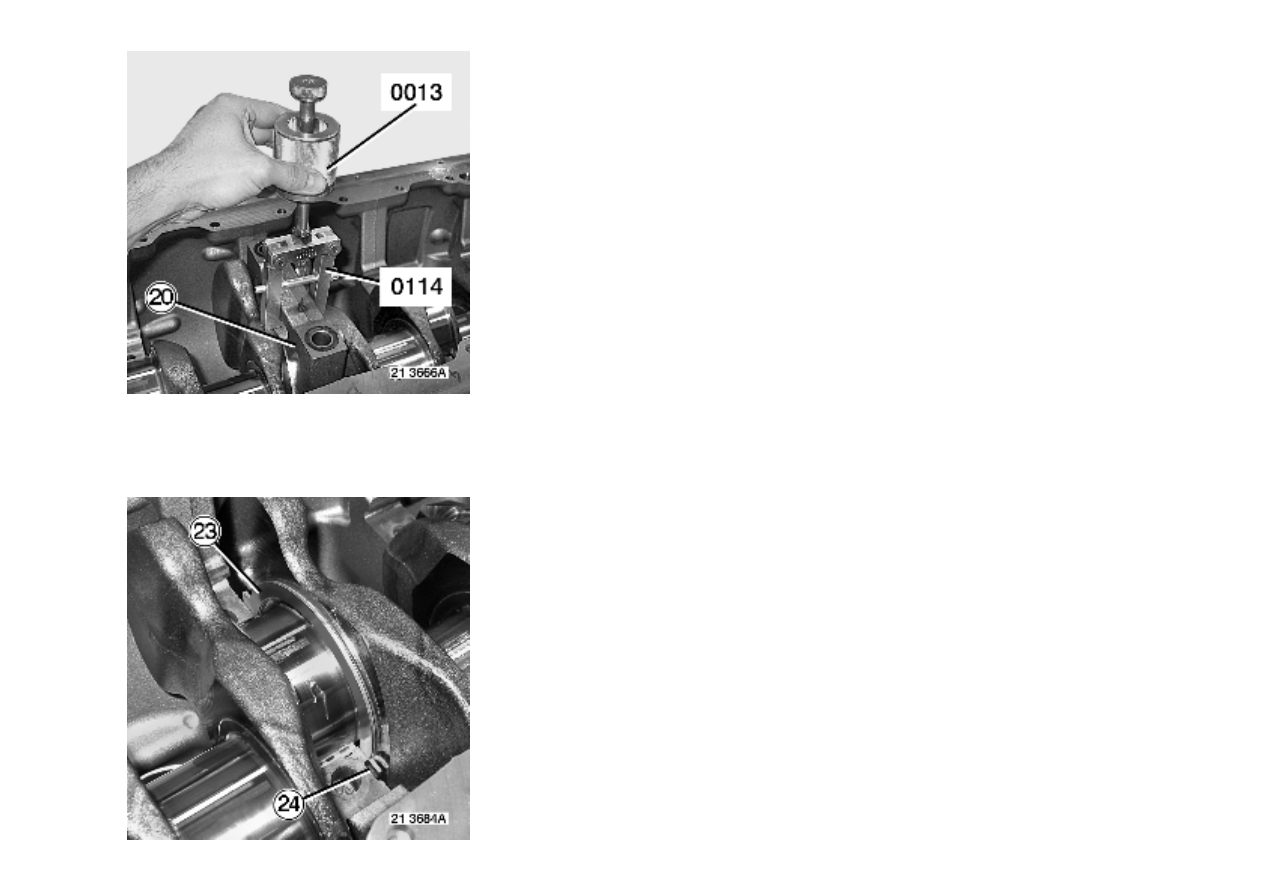

Remove bolts

 (19).

Remove bearing caps

 (20 - 27).

Use tool 0114 + 0013.

Remove bearing half-shells

 (21).

11 / 14

Remove half-rings

 (23).

Remove half-rings

 (24).

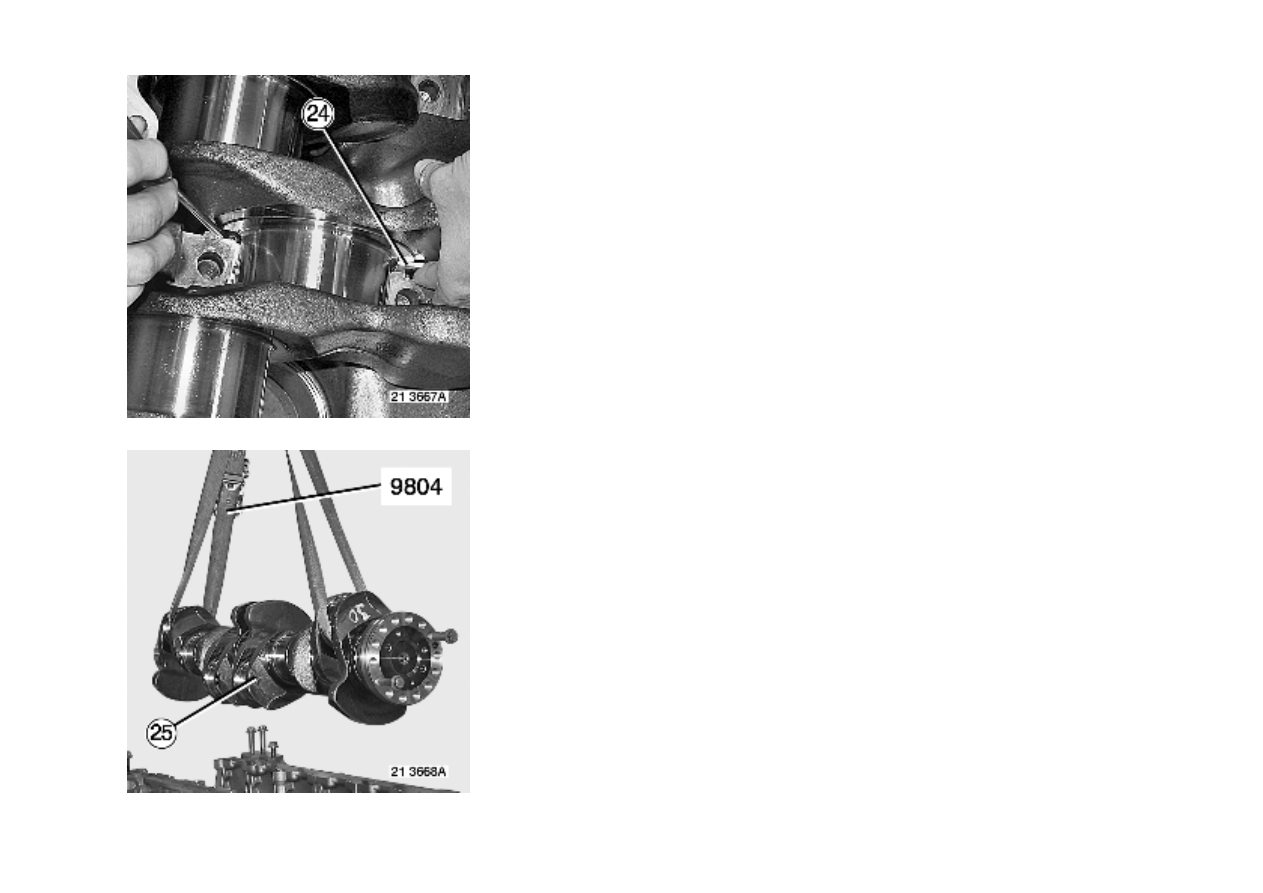

Remove crankshaft

 (25).

Use tool 9804.

12 / 14

Use lifting tackle.

Remove bearing half-shells

 (22).

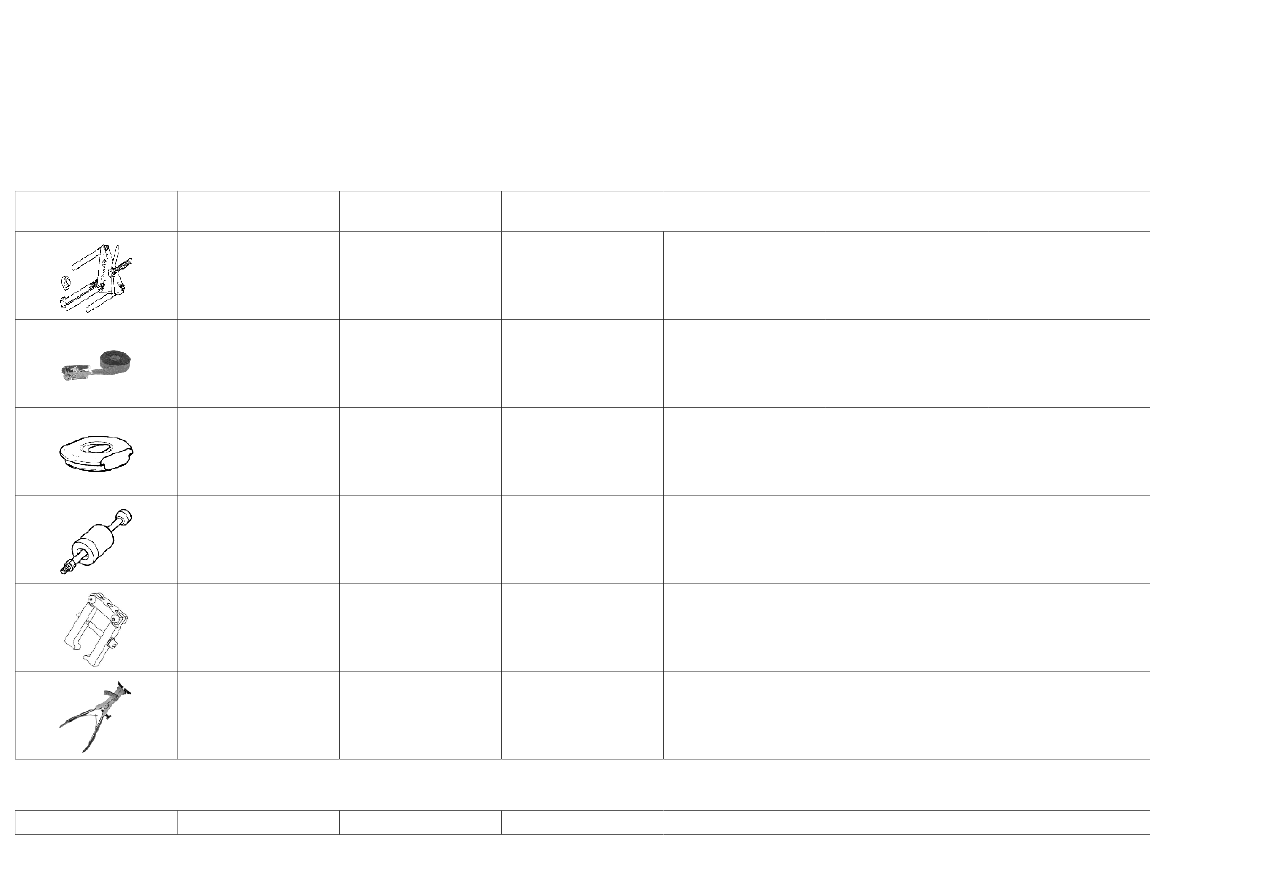

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

5000261230

PULLER

2

1

5000269804

STRAP

2

1

7409992955

PLATE

2

1

7409990013

SLIDE HAMMER

2

1

7409990114

PULLER

2

1

7488800083

PULLER

(PISTON RINGS)

2

1

Locally manufactured tool

Illustration

Designation

Manufacturer's code N°

Scale

Qty

13 / 14

RENAULT

TRUCKS part N°

Manufacturer's

reference N°

OFL1462

SPACER

2

1
