Peugeot 5008 (2024 year). Manual in english

194

Practical information

Original tyre size

Maximum link size

235/50 R19

Not suitable for

chains

For more information on snow chains, contact a

PEUGEOT dealer or a qualified workshop.

Installation tips

► To fit the snow chains during a journey, stop

the vehicle on a flat surface at the side of the

road.

► Apply the parking brake and position any

wheel chocks under the wheels to prevent

movement of the vehicle.

► Fit the snow chains following the instructions

provided by the manufacturer.

► Move off gently and drive for a few moments,

without exceeding 31 mph (50 km/h).

► Stop the vehicle and check that the snow

chains are correctly tightened.

It is strongly recommended that you

practise fitting the snow chains on a level

and dry surface before setting off.

Avoid driving with snow chains on roads

that have been cleared of snow to avoid

damaging the vehicle's tyres and the road

surface. If the vehicle is fitted with alloy

wheels, check that no part of the chain or its

fixings is in contact with the wheel rim.

Rechargeable hybrid vehicles

The use of snow chains is only

authorised on the

front wheels

The driving mode selector must be on the

4WD

position (depending on version).

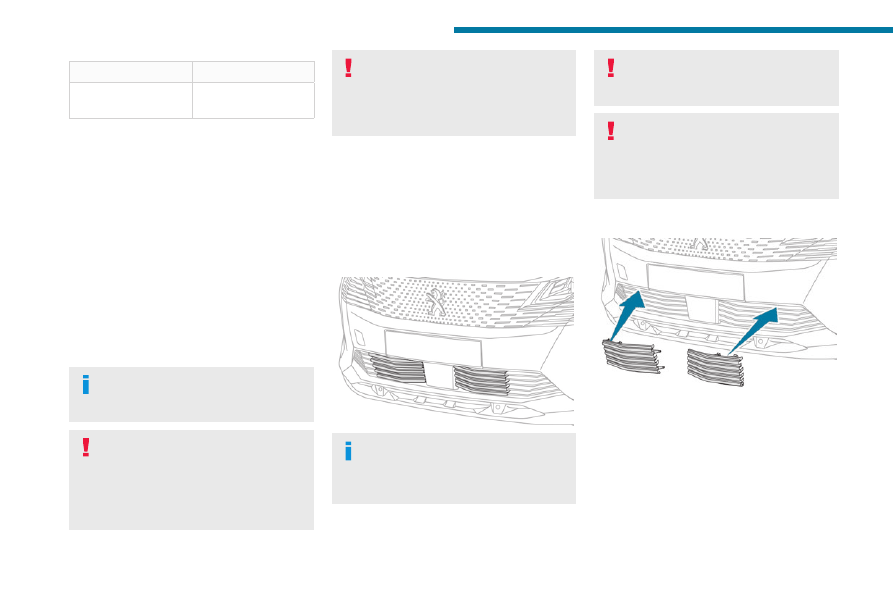

Very cold climate screen

(Depending on country of sale)

This removable device prevents the

accumulation of snow around the radiator

cooling fan.

It consists of two elements to be attached to the

front bumper.

In case of difficulty with installation/

removal

Contact a PEUGEOT dealer or a qualified

workshop.

Before any operation, ensure that the

engine is off and the cooling fan has

stopped.

It is essential to remove them when:

– the outside temperature exceeds

10°C.

– recovery is in progress.

– the speed is above 75 mph (120 km/h).

Fitting

► Hold the corresponding screen in front of the

lower grille of the bumper.

► First insert the upper and side fixing brackets

into the bumper.

► Tilt the screen downwards to engage the

lower part of the screen into the bumper.

► Check that the unit is firmly held by pressing

around the edges.

Repeat these operations for the other screen.

195

Practical information

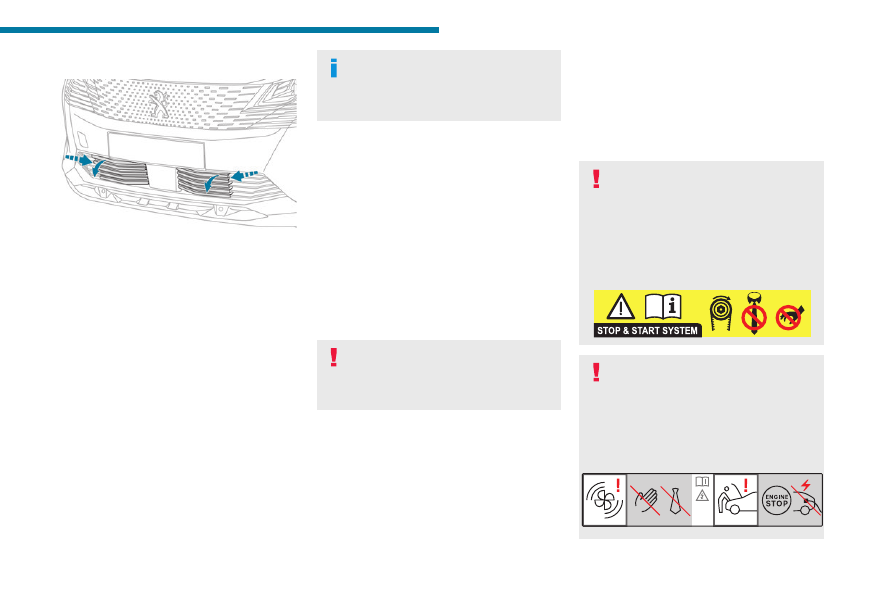

Removing

► Insert a finger into the notch in the upper part

of the screen.

► Pull towards you to unclip the unit.

Repeat these operations for the other screen.

Energy economy mode

This system manages the duration of use of

certain functions, in order to conserve a sufficient

level of charge in the battery with the ignition off.

After switching off the engine and for a maximum

cumulative period of around 30 minutes, you can

continue to use functions such as the audio and

telematics system, dipped beam headlamps or

courtesy lamps.

Selecting the mode

A confirmation message is displayed when

energy economy mode is entered, and the active

functions are placed on standby.

If a telephone call is in progress at the

time, it will be maintained for around 10

minutes via the audio system’s hands-free

system.

Exiting the mode

These functions are automatically reactivated the

next time the vehicle is used.

To restore the use of these functions

immediately, start the engine and let it run:

– For less than 10 minutes, to use the

equipment for approximately 5 minutes.

– For more than 10 minutes, to use the

equipment for approximately 30 minutes.

Let the engine run for the specified duration to

ensure that the battery charge is sufficient.

To recharge the battery, avoid repeatedly or

continuously restarting the engine.

A flat battery prevents the engine from

starting.

For more information on the

12 V battery

refer to the corresponding section.

Load reduction mode

This system manages the use of certain

functions according to the level of charge

remaining in the battery.

When the vehicle is being driven, the load

reduction function temporarily deactivates certain

functions, such as the air conditioning and the

heated rear screen.

The deactivated functions are reactivated

automatically as soon as conditions permit.

Bonnet

Stop & Start / e-Auto mode

Before doing anything under the bonnet,

you must switch off the ignition to avoid any

risk of the engine restarting automatically.

Take care with objects or clothing that could

be caught in the blades of the cooling fan

or in certain moving components - risk of

strangulation and serious injury!

Rechargeable hybrid vehicles

Before any work is carried out under the

bonnet, it is essential to switch off the ignition

and disconnect the charging connector nozzle

if it is connected, check that the

READY

indicator lamp is off on the instrument panel

and wait 4 minutes - risk of serious injury!

196

Practical information

The location of the interior bonnet

release lever prevents the bonnet being

opened when the left-hand front door is

closed.

When the engine is hot, handle the

exterior safety catch and the bonnet stay

with care (risk of burns), using the protected

area.

When the bonnet is open, take care not to

damage the safety catch.

Do not open the bonnet under very windy

conditions.

Cooling of the engine when stopped

The engine cooling fan may start after

the engine has been switched off.

Take care with objects or clothing that

could be caught in the blades of the fan!

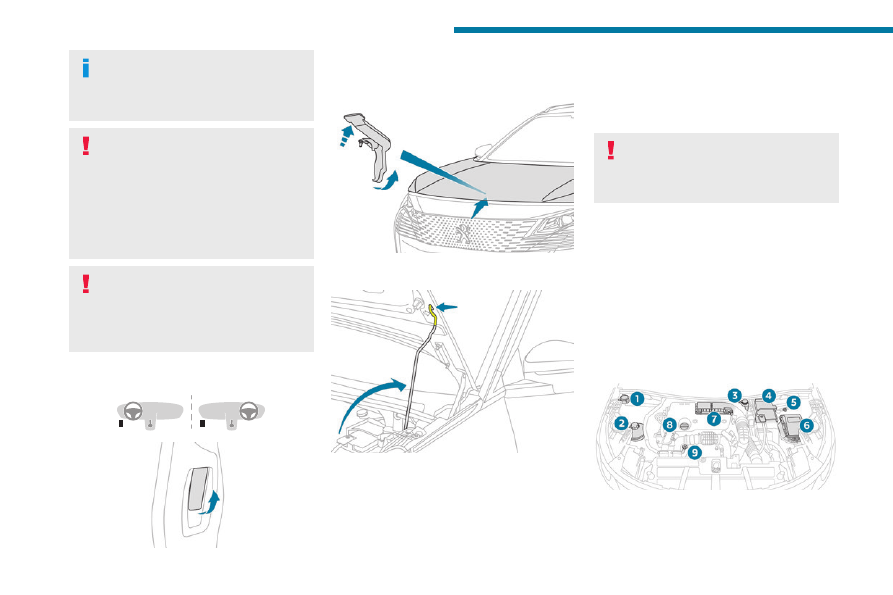

Opening

► Open the left-hand front door.

► Pull the interior release lever, located at the

bottom of the door frame, towards you.

► Lift the exterior safety catch and raise the

bonnet.

► Unclip the stay from its housing and place it

in the support slot to hold the bonnet open.

Closing

► Hold the bonnet and pull out the stay from

the

support slot.

► Clip the stay in its housing.

► Lower the bonnet and release it near the end

of its travel.

► Pull on the bonnet to check that it is locked

correctly.

Because of the presence of electrical

equipment under the bonnet, it is strongly

recommended that exposure to water (rain,

washing, etc.) be limited.

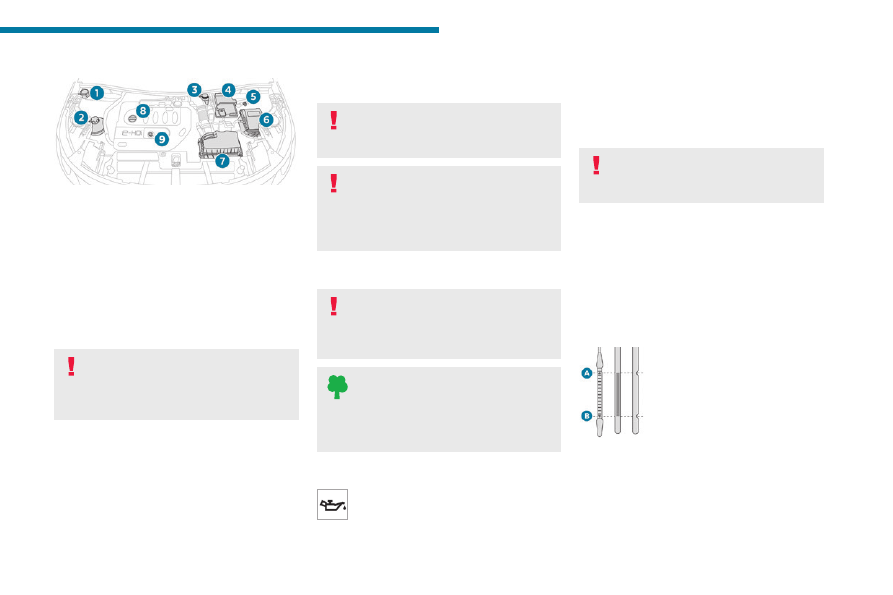

Engine compartment

The engine shown here is an example for

illustrative purposes only.

The locations of the following components may

vary:

– Air filter.

– Engine oil dipstick.

– Engine oil filler cap.

Petrol engine

197

Practical information

Diesel engine

Screenwash fluid reservoir

Engine coolant reservoir

Brake fluid reservoir

Battery/Fuses

Remote earth point (-)

Fusebox

Air filter

Engine oil filler cap

Engine oil dipstick

Diesel fuel system

This system is under very high pressure.

All work must be carried out only by a

PEUGEOT dealer or a qualified workshop

Checking levels

Check all of the following levels regularly in

accordance with the Manufacturer's service

schedule. Top them up if required, unless

otherwise indicated.

If a level drops significantly, have the

corresponding system checked by a PEUGEOT

dealer or a qualified workshop.

The fluids must comply with the

Manufacturer's requirements and with

the vehicle's engine.

Take care when working under the

bonnet, as certain areas of the engine

may be extremely hot (risk of burns) and the

cooling fan could start at any time (even with

the ignition off).

Used products

Avoid prolonged contact of used oil or

fluids

with the skin.

Most of these fluids are harmful to health and

very corrosive.

Do not discard used oil or fluids into

sewers or onto the ground.

Empty used oil into the containers reserved

for this purpose at a PEUGEOT dealer or a

qualified workshop.

Engine oil

The level is checked, with the engine

having been

switched off for at least 30

minutes and on level ground, either using the oil

level indicator in the instrument panel when the

ignition is switched on (for vehicles equipped

with an electric gauge), or using the dipstick.

It is normal to top up the oil level between two

services (or oil changes). It is recommended

that you check the level, and top up if necessary,

every 3,000 miles (5,000 km).

In order to maintain the reliability of the

engine and emissions control system,

never use additives in the engine oil.

Checking using the dipstick

For the location of the dipstick, please refer

to the illustration of the corresponding engine

compartment.

► Grasp the dipstick by its coloured grip and

pull it out completely.

► Wipe the end of the dipstick using a clean,

lint-free cloth.

► Reinsert the dipstick and push fully down,

then pull it out again to visually check the oil

level: the correct level is between marks

(max)

and

B (min).

Do not start the engine if the level is:

– above mark

: contact a PEUGEOT dealer or

a qualified workshop.

198

Practical information

– below mark

: top up the engine oil

immediately.

Oil grade

Before topping up or changing the

engine oil, check that the oil is suitable

for your engine and complies with the

recommendations in the service schedule

supplied with the vehicle (or available

from your PEUGEOT dealer or qualified

workshop).

Use of non-recommended oil may invalidate

your warranty in the event of engine failure.

Topping up the engine oil level

For the location of the engine oil filler cap, please

refer to the corresponding engine compartment

illustration.

Never remove the oil filler cap with the

engine running. Risk of burns and

splashes inside the engine compartment.

► Add oil in small quantities, avoiding any spills

on engine components (risk of fire).

► Wait a few minutes before checking the level

again using the dipstick.

► Top up the level if necessary.

► After checking the level, carefully screw the

oil filler cap back on and push the dipstick back

into its tube up to the stop.

The dipstick must be pushed completely

in to prevent oil from spilling onto the

engine. Risk of fire inside the engine

compartment.

The oil level indication displayed on the

instrument panel when the ignition is

switched on is not valid for 30 minutes

following an addition of oil.

Brake fluid

The level of this fluid should be close to

the "

MAX

" mark. If not, check the brake

pads for wear.

To know how often the brake fluid should be

replaced, refer to the manufacturer's servicing

schedule.

Clean the cap before removing it to refill.

Use only DOT4 brake fluid from a sealed

container.

Engine coolant

It is normal to top up this fluid between

two services.

The check and top-up must only be done with

the engine cold.

A level of coolant that is too low risks causing

major damage to the engine; the coolant level

must be close to the "

MAX

" mark without ever

going above it.

If the level is close to or below the "

MIN

" mark, it

is essential to top it up.

When the engine is hot, the temperature of the

coolant is regulated by the fan.

As the cooling system is pressurised, wait at

least one hour after switching off the engine

before carrying out any work.

In order to avoid the risk of scalding if you need

to top up in an emergency, wrap a cloth around

the cap and unscrew the cap by two turns to

allow the pressure to drop.

Once the pressure has dropped, remove the cap

and top up to the required level.

Screenwash fluid

Top up to the required level when

necessary.

Capacity of the tank:

– 5.3 litres for "very cold climate" versions.

– 2.2 litres for other versions.

Fluid specification

The fluid must be topped up with a pre-mixed

product.

In winter (temperatures below zero), a fluid

containing an anti-freeze agent which is

appropriate for the temperature conditions

must be used in order to protect the system's

components (pump, tank, ducts, jets).

Filling with pure water is prohibited in all

circumstances (risk of freezing,

limescale, etc.).

199

Practical information

Diesel fuel additive (Diesel

with particle filter)

On reaching the minimum level in the

particle filter additive tank, this warning

lamp comes on fixed, accompanied by an

audible signal and a warning message.

Topping up

The topping up of this additive must be carried

out quickly.

Go to a PEUGEOT dealer or a qualified

workshop.

AdBlue

(BlueHDi)

An alert is triggered when the reserve level is

reached.

For more information on the

Indicators

and in

particular the AdBlue range indicators, refer to

the corresponding section.

To avoid the vehicle being immobilised in

accordance with regulations, you must top up the

AdBlue tank.

For more information on

AdBlue

(BlueHDi)

and in particular the supply of AdBlue, refer to

the corresponding section.

Checks

Unless otherwise indicated, check these

components in accordance with the

Manufacturer's service schedule and according

to your engine.

Otherwise, have them checked by a PEUGEOT

dealer or a qualified workshop.

Only use products recommended by

PEUGEOT or products of equivalent

quality and specification.

In order to optimise the operation of

components as important as those in the

braking system, PEUGEOT selects and offers

very specific products.

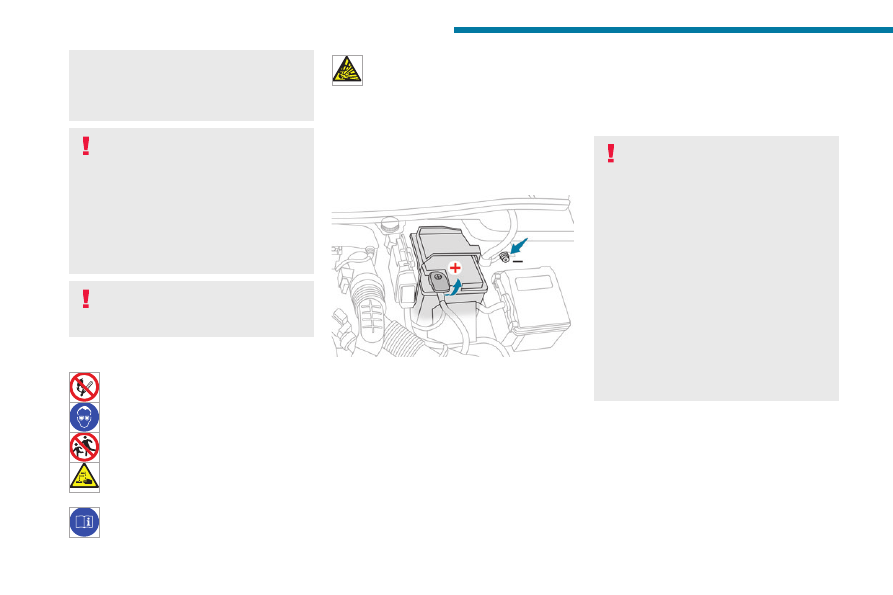

12 V battery

The battery does not require any

maintenance.

Check regularly that the terminals are correctly

tightened (versions without quick-release

terminals) and that the connections are clean.

For more information on the precautions

to take before any work on the

12 V

battery

, refer to the corresponding section.

Versions equipped with Stop & Start are

fitted with a 12 V

lead-acid battery of

specific technology and specification.

Its replacement should be carried out only by

a PEUGEOT dealer or a qualified workshop.

Passenger compartment

filter

Depending on the environment and the

use of the vehicle (e.g. dusty atmosphere,

city driving),

change it twice as often, if

necessary

A clogged passenger compartment filter

can adversely affect air conditioning

system performance and generate

undesirable odours.

Air filter

Depending on the environment and the

use of the vehicle (e.g. dusty atmosphere,

city driving),

change it twice as often, if

necessary

Oil filter

Change the oil filter each time the engine

oil is changed.

Particle filter (Diesel)

The start of clogging of the

particle filter is

indicated by the temporary lighting of this

warning lamp, accompanied by an alert

message.

As soon as traffic conditions allow, regenerate

the filter by driving at a speed of at least

37 mph (60 km/h), with an engine speed above

2,500 rpm, for about 15 minutes (until the

warning lamp goes out).

If it is not possible to reach 37 mph (60 km/h),

leave the engine running at idle for about 15

minutes, then drive with an engine speed above

2,500 rpm for 15 minutes.

200

Practical information

Do not switch off the engine until the filter

is fully regenerated; repeated intervals

can degrade the engine oil prematurely.

Regenerating the filter while the vehicle is

stationary is not recommended.

Following prolonged operation of the

vehicle at very low speed or at idle, you

may, in exceptional circumstances, notice

water vapour coming from the exhaust while

accelerating. These emissions have no

impact on the vehicle’s behaviour and the

environment.

New vehicle

During the first few particle filter

regeneration operations, you may notice a

"burning" smell. This is perfectly normal.

Manual gearbox

The gearbox does not require any

maintenance (no oil change).

Automatic gearbox

The gearbox does not require

any maintenance (no oil

change).

Electric parking brake

This system does not require any routine

servicing. However, in the event of a

problem, do not hesitate to have the system

checked by a PEUGEOT dealer or a qualified

workshop.

For more information on the

Electric

parking brake

, refer to the

corresponding section.

Brake pads

Brake wear depends on the style of

driving, particularly in the case of vehicles

used in town, over short distances. It may be

necessary to have the condition of the brakes

checked, even between vehicle services.

Unless there is a leak in the circuit, a drop in the

brake fluid level indicates that the brake pads

are worn.

After washing the vehicle, moisture, or in

wintry conditions, ice can form on the

brake discs and pads: braking efficiency may

be reduced. Gently dab the brakes to dry and

defrost them.

Brake disc wear

For information on checking brake disc

wear, contact a PEUGEOT dealer or a

qualified workshop.

Wheels and tyres

The inflation pressure of all tyres,

including the spare wheel, must be

checked on "cold” tyres.

The pressures indicated on the tyre pressure

label are valid for "cold" tyres. If you have driven

for more than 10 minutes or more than 6 miles

(10 kilometres) at over 31 mph (50 km/h), add

0.3 bar (30 kPa) to the values indicated on the

label.

Under-inflation increases energy

consumption. Non-compliant tyre

pressures cause tyres to wear prematurely

and have an adverse effect on the vehicle's

road holding - risk of accident!

Driving with worn or damaged tyres reduces the

braking and road holding performance of the

vehicle. Regularly check the condition of the

tyres (tread and sidewalls) and rims as well as

the presence of the valve caps.

When the wear indicators no longer appear set

back from the tread, the depth of the grooves is

less than 1.6 mm; replace the tyres as soon as

possible.

Using different size wheels and tyres from those

specified can affect the lifetime of tyres, wheel

rotation, ground clearance, the speedometer

reading and have an adverse effect on road

holding.

Fitting different tyres on the front and rear axles

can cause the ESC to mistime.

201

Practical information

Always mark the direction of rotation on the tyres

that will be stored when fitting winter or summer

tyres. Store them in a cool, dry place and away

from direct exposure to the sun's rays.

Winter or 4-seasons tyres can be

identified by this symbol on their

sidewalls.

Shock absorbers

It is not easy for drivers to detect when

shock absorbers are worn. Nevertheless,

the shock absorbers have a major impact on

road holding and braking performance.

For your safety and driving comfort, it is

important to have them regularly checked by a

PEUGEOT dealer or a qualified workshop.

Timing and accessory kits

The timing and accessory kits are used

from the time the engine is started until it

is switched off. It is normal for them to wear over

time.

A faulty timing or accessory kit can damage

the engine, rendering it unusable. Observe the

recommended replacement frequency, stated in

distance travelled or time elapsed, whichever is

reached first.

AdBlue

(BlueHDi)

To respect the environment and ensure

compliance with the Euro 6 standard, without

adversely affecting the performance or fuel

consumption of its Diesel engines, PEUGEOT

has taken the decision to equip its vehicles with

a system that combines SCR (Selective Catalytic

Reduction) with a Diesel Particle Filter (DPF) for

the treatment of exhaust gases.

SCR system

Using a liquid called AdBlue

that contains

urea, a catalytic converter turns up to 85% of

the nitrogen oxides (NOx) into nitrogen and

water, which are harmless to health and the

environment.

The AdBlue

is contained in

a special

tank

holding about 17 litres.

Its capacity allows a driving range of

approximately 4,000 miles (6,500 km),

which

may vary considerably

depending on your

driving style.

An alert system is triggered once the reserve

level is reached: it is then possible to drive for a

further 1,500 miles (2,400 km) before the tank is

empty and the vehicle is immobilised.

For more information on the

Warning

and indicator lamps

and the associated

alerts, or the

Indicators

, please refer to the

corresponding sections.

Once the AdBlue

tank is empty, a device

required by law prevents the engine from

being restarted.

If the SCR system is faulty, the level of

emissions from the vehicle will no longer meet

the Euro 6 standard and the vehicle starts

polluting the environment.

In the event of a confirmed SCR system

malfunction, it is essential to visit a

PEUGEOT dealer or a qualified workshop.

After 685 miles (1,100 km), a device is

automatically activated to prevent the engine

from starting.

In both cases, a range indicator indicates

the distance that can be travelled before the

vehicle is stopped.

Freezing of the AdBlue

AdBlue

freezes at temperatures below

around -11°C.

The SCR system includes a heater for the

AdBlue

tank, allowing you to continue driving

in very cold conditions.

Supply of AdBlue

It is recommended that the AdBlue

be topped

up as soon as the first alert is issued indicating

that the reserve level has been reached.

For the correct operation of the SCR

system:

– Use only AdBlue

fluid that meets the ISO

22241 standard.

– Never transfer AdBlue

to another container

as it would lose its purity.

– Never dilute AdBlue

with water.

202

Practical information

You can obtain AdBlue

from a PEUGEOT

dealer or a qualified workshop, as well as service

stations equipped with AdBlue

pumps specially

designed for passenger vehicles.

Recommendations on storage

AdBlue

freezes at about -11°C and deteriorates

above +25°C. Containers should be stored in a

cool area and protected from direct sunlight.

Under these conditions, the fluid can be kept for

at least a year.

If the fluid has frozen, it can be used once it has

completely thawed out at room temperature.

Never store AdBlue

containers in your

vehicle.

Precautions for use

AdBlue

is a urea-based solution. This

fluid is

non-flammable, colourless and odourless (when

kept in a cool place).

In the event of contact with the skin, wash the

affected area with soap and running water. In the

event of contact with the eyes, immediately rinse

the eyes with large amounts of water or with an

eye wash solution for at least 15 minutes. Seek

medical attention if you feel a persistent burning

sensation or irritation.

If swallowed, immediately wash out the mouth

with clean water and then drink plenty of water.

In certain conditions (high temperature, for

example), the risk of release of ammonia cannot

be excluded: do not inhale the fluid. Ammonia

vapours have an irritant effect on mucous

membranes (eyes, nose and throat).

Store AdBlue

out of the reach of

children, in its original container.

Procedure

Before starting the top-up procedure, ensure that

the vehicle is parked on a flat and level surface.

In wintry conditions, ensure that the temperature

of the vehicle is above -11°C. Otherwise the

AdBlue

may be frozen and so cannot be poured

into the tank. Park the vehicle in a warmer area

for a few hours to allow the top-up to be carried

out.

Never pour the AdBlue

into the Diesel

fuel tank.

If any AdBlue

is splashed, or if there are

any spillages on the bodywork, rinse

immediately with cold water or wipe with a

damp cloth.

If the fluid has crystallised, clean it off using a

sponge and hot water.

Important:

in the event of a top-up after

an AdBlue

breakdown, you must wait

about 5 minutes before switching on the

ignition,

without opening the driver's door,

unlocking the vehicle or bringing the

electronic key into the passenger

compartment.

Switch on the ignition, then wait for 10

seconds before starting the engine.

► Press the "

START/STOP

" button to switch off

the engine.

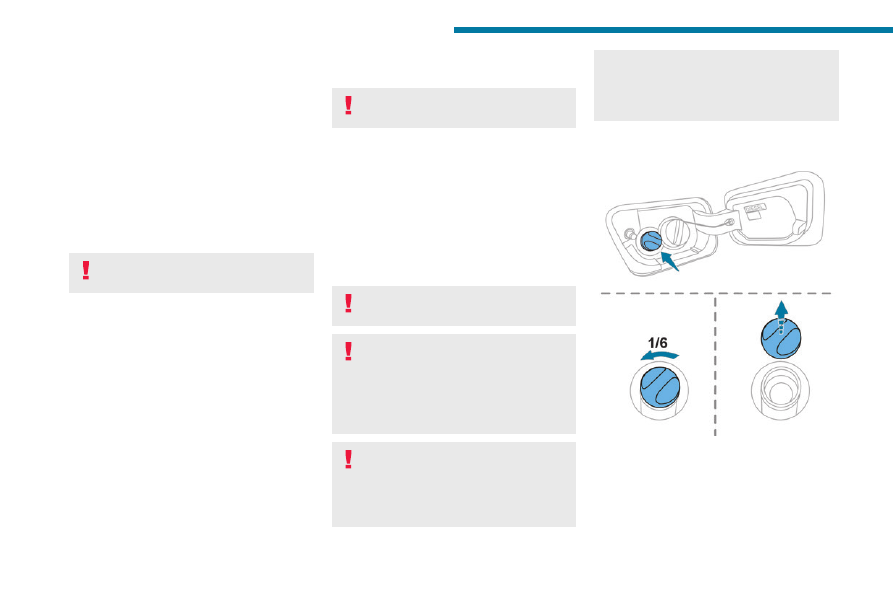

► Turn the blue cap of the AdBlue

tank anti-

clockwise and remove it.

► With a container of AdBlue

: after checking

the expiry date, read the instructions on the

label carefully before pouring the contents of the

container into the vehicle's AdBlue

tank.

203

Practical information

► With an AdBlue

pump: insert the nozzle and

fill the tank until the nozzle automatically cuts

out.

In order not to overfill the AdBlue

tank:

– Add between 10 and 13 litres using

AdBlue

containers.

– Stop after the nozzle’s first automatic cut-

out, if you are refilling at a service station.

The system only registers AdBlue

intermediate top-ups of 5 litres or more.

If the AdBlue

tank is completely empty

– which is confirmed by the message

“

Top up AdBlue: Starting impossible

” – it is

essential to add at least 10 litres.

Top-up detection may not be instantaneous

after addition. It may take a few minutes of

driving before the top-up detection is effective.

Free-wheeling

In certain situations, it is necessary to put the

vehicle into free-wheeling mode (e.g. towing, on

a rolling road, automatic car wash (Wash mode),

rail or sea transport).

The procedure varies according to the type of

gearbox and parking brake.

Never leave the vehicle unattended with

the vehicle into free-wheeling mode.

With a manual gearbox and

electric parking brake

To release them

► With the engine running and while depressing

the brake pedal, move the gear selector to the

neutral position.

► While depressing the brake pedal, switch off

the engine.

► Release the brake pedal, then switch on the

ignition.

► While depressing the brake pedal, press the

control to release the parking brake.

► Release the brake pedal, then switch off the

ignition.

Reverting to normal operation

► While depressing the brake pedal, restart the

engine and apply the parking brake.

With an automatic gearbox

(type 1 or 3) and electric

parking brake

Release procedure

► With the vehicle stationary and the engine

running, depress the brake pedal and select

mode

Within 5 seconds:

► Depress and hold the brake pedal, then

observe this order: switch off the engine and

move the push selector forwards or backwards.

► Release the brake pedal, then switch on the

ignition.

► Place your foot on the brake and press the

electric parking brake control to release it.

► Release the brake pedal, then switch off the

ignition.

A message is displayed on the

instrument panel to confirm the unlocking

of the wheels for 15 minutes.

When the vehicle is free-wheeling, the

audio system cannot be updated (message

displayed on the instrument panel).

After 15 minutes or reverting to normal

operation

► While depressing the brake pedal, restart the

engine and select mode

With an automatic gearbox

(type 2) and electric parking

brake

204

Practical information

Release procedure

► With the vehicle stationary and the engine

running, select mode

and switch off the

engine.

Within 5 seconds:

► Switch on the ignition.

► While depressing the brake pedal, move the

push selector forwards or backwards to confirm

mode

► While depressing the brake pedal, press the

control to release the parking brake.

► Release the brake pedal, switch off the

ignition.

If the 5-second time limit is exceeded,

the gearbox engages mode

; it is then

necessary to restart the procedure.

Reverting to normal operation

► While depressing the brake pedal, restart the

engine and select mode

Keyless Entry and Start

You must not depress the brake pedal

while switching the ignition on again, then

switching it off. If you do, the engine will start,

requiring you to restart the procedure.

Advice on care and

maintenance

General recommendations

Observe the following recommendations to avoid

damaging the vehicle.

Exterior

Never use a high-pressure jet wash in

the engine compartment - risk of

damaging the electrical components!

Do not wash the vehicle in bright sunshine or

extremely cold conditions.

When washing the vehicle in an

automatic roller-brush car wash, be sure

to lock the doors and, depending on version,

move the electronic key away and deactivate

the "hands-free" function (Hands-Free

Tailgate Access).

When using a pressure washer, keep the jet

nozzle at a minimum distance of 30 cm from

the vehicle (particularly when cleaning areas

containing chipped paint, sensors or seals).

Promptly clean up any stains containing

chemicals liable to damage the vehicle's

paintwork (including tree resin, bird

droppings, insect secretions, pollen and tar).

Depending on the environment, clean the

vehicle frequently to remove salty deposits

(in coastal areas), soot (in industrial areas)

and mud/salts (in wet or cold areas). These

substances can be highly corrosive.

Contact a PEUGEOT dealer or a qualified

workshop for advice on removing stubborn

stains requiring special products (such as tar

or insect removers).

Preferably, have paint touch-ups performed

by a PEUGEOT dealer or a qualified

workshop.

Interior

When washing the vehicle, never use a

water hose or high-pressure jet to clean

the interior.

Liquids carried in cups or other open

containers can spill, presenting a risk of

damage to the instruments and controls and

the controls located on the centre console. Be

vigilant!

To clean instrument panels, touch screens

or other displays, wipe gently with a soft,

dry cloth. Do not use products (e.g. alcohol,

disinfectant) or soapy water directly on these

surfaces - risk of damage!

205

Practical information

Bodywork

High-gloss paint

Do not use abrasive products, solvents,

petrol or oil to clean the bodywork.

Never use an abrasive sponge to clean

stubborn stains - risk of scratching the

paintwork!

Do not apply polish in strong sunshine, or to

plastic or rubber parts.

Use a soft cloth and soapy water or a pH

neutral product.

Gently wipe the bodywork with a clean

microfibre cloth.

Apply polish with the vehicle clean and dry.

Comply with the instructions for use stated on

the product.

Textured paint

This type of paint reacts under the effect of

light, through variations in appearance and

finish that highlight the lines and contours of the

vehicle. Its varnish is enriched with particles that

remain visible and create a unique satin effect

with relief. Its slightly granular texture gives it a

surprising touch.

Never attempt to clean without water.

Never clean your vehicle in an automatic

roller-brush car wash.

Never select the programme with hot wax

finish.

Never use high-pressure lances equipped

with brushes - risk of scratching paint!

Never apply glossy polish or preservatives to

the bodywork or alloy wheels; these products

irreversibly reveal glossy or spotted areas.

Choose high-pressure wash, or at least

high-flow water jet.

Rinse the vehicle with demineralised water.

Only a clean microfibre cloth is recommended

for wiping the vehicle; pass it over the vehicle

without rubbing.

Carefully wipe off any fuel spilt on the

bodywork using a soft cloth, then allow to dry.

Clean off minor marks (for example, finger

marks), using a maintenance product

recommended by PEUGEOT.

Decals

(Depending on version)

Do not use a high-pressure washer to

clean the vehicle - risk of damaging or

detaching the decals!

Use a high-flow hose (temperature

between 25°C and 40°C).

Place the jet of water perpendicular to the

surface to be cleaned.

Rinse the vehicle with demineralised water.

Textile

The dashboard, door panels and seats may

contain parts made of textile material.

Maintenance

Do not use aggressive cleaning products

(e.g. alcohol, solvent or ammonia).

Do not use steam-cleaning systems - risk of

affecting the adhesion of the fabrics!

Remove dust from the textile parts

regularly with a dry cloth, soft brush or

vacuum cleaner.

Rub down the textile parts once per year with

a clean, damp cloth. After leaving overnight to

dry, brush with a soft-bristled brush.

Stain removal

Do not rub the stain or it may spread or

you may cause the substance to

penetrate the surface.

Act quickly by reducing the stain from its

edges inwards.

Remove as much substance or solids as

possible using a spoon or spatula, and

remove as much liquid as possible using

absorbent paper.

206

Practical information

Product/Procedure to use depending

on the type of stain:

– Grease, oil and ink: clean with a pH-neutral

detergent.

– Vomit: clean with sparkling mineral water.

– Blood: spread flour over the stain and allow

to dry; remove with a slightly damp cloth.

– Mud: allow to dry and then remove with a

slightly damp cloth.

– Cake, chocolate, ice cream: clean with

lukewarm water.

– Sugary and/or alcoholic drinks: clean with

lukewarm water, or lemon juice if the stain is

persistent.

– Hair gel, coffee, tomato sauce, vinegar:

clean with lukewarm water and lemon juice.

For solid substances, then use a soft brush or

vacuum cleaner.

For liquid substances, then use a damp

microfibre cloth and then dry with another

cloth.

Leather

Leather is a natural product. Appropriate regular

care is essential for its durability.

It must be protected and nourished using a

specific leather product, to keep it supple and

preserve its original appearance.

Do not use maintenance products which

are not suitable for cleaning leather

(e.g. solvent, detergent, petrol, pure alcohol).

Do not use bleaching or colour-removal

products (e.g. perchloroethylene).

When cleaning items partly made from

leather, take care not to damage the other

materials with the specific leather product.

Before cleaning greasy stains or liquids,

quickly mop up any surplus.

Before cleaning, wipe off any residues liable

to scuff the leather, using a cloth that has

been dampened with demineralised water

and thoroughly wrung out.

Clean the leather, without rubbing too

vigorously, using a soft cloth moistened with

soapy water or a pH-neutral product.

Dry with a soft, dry cloth.

207

In the event of a breakdown

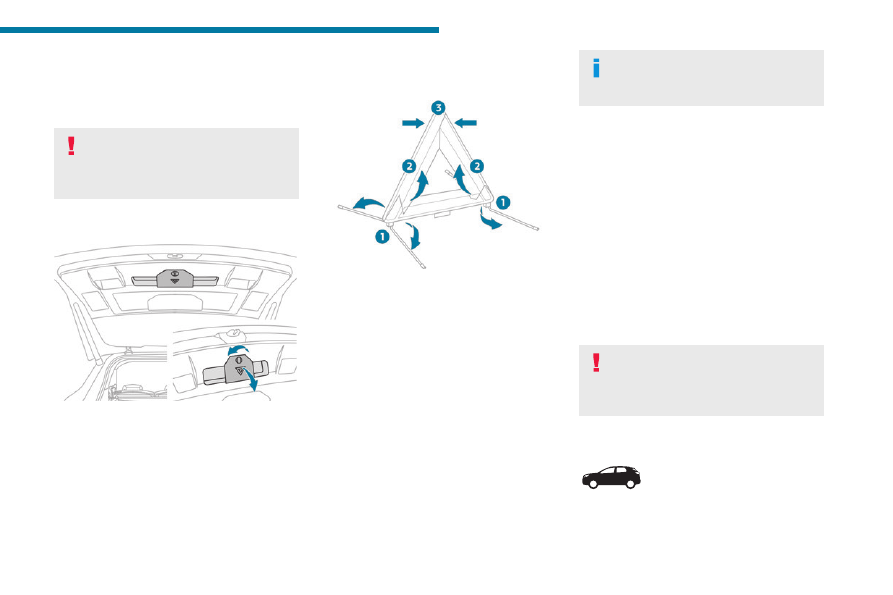

Warning triangle

This reflective and dismantlable device is to be

installed on the side of the road when a vehicle

is broken down or damaged.

Before getting out of the vehicle

Turn on the hazard warning lamps, then

put on the safety vest to assemble and install

the triangle.

Storage compartment

There is a compartment in the interior trim of the

tailgate to store a warning triangle.

► After opening the tailgate, release the cover

by turning the screw a quarter turn to the left.

Assembling and placing the

triangle

For versions supplied with a triangle as original

equipment, refer to the illustration above.

For other versions, refer to the assembly

instructions provided with the triangle.

► Put the triangle in place behind the vehicle,

as required by local legislation.

Running out of fuel

(Diesel)

With Diesel engines, the fuel system must be

primed if you run out of fuel.

Before starting to prime the system

, it is

essential to put at least 5 litres of Diesel into the

fuel tank.

For more information on

Refuelling

and

Misfuel prevention (Diesel)

, refer to

the corresponding section.

1.5 BlueHDi engines

► Switch on the ignition (without starting the

engine).

► Wait around 1 minute and switch off the

ignition.

► Operate the starter motor to start the engine.

If the engine does not start at the first attempt,

do not keep trying, but restart the procedure.

Tool kit

Set of tools supplied with the vehicle.

Its content depends on your vehicle's equipment:

– Temporary puncture repair kit.

– Spare wheel.

These tools are specific to the vehicle

and may vary according to the level of

equipment.

Do not use them for any other purpose.

Accessing the tools

208

In the event of a breakdown

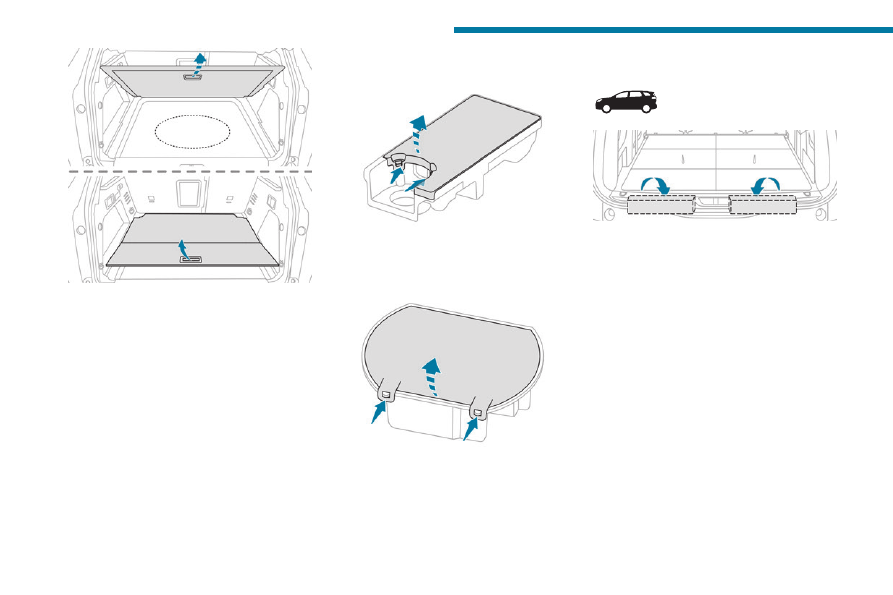

The tool kit is stored in the boot, under the floor.

To access it:

Versions with 2-position boot floor:

► Open the boot.

► Place the adjustable boot floor in the high

position.

► Lift the boot floor past the two retractable

stops.

► Place the boot floor onto these two stops to

hold it up.

Versions with articulated boot mat

(Rechargeable hybrid):

► Open the boot.

► Unfold the articulated boot mat by pulling its

handle until it is fully opened.

With temporary puncture repair kit

► Unclip the two fixings to open its cover.

With spare wheel

► Unclip the storage box by pulling it upwards.

► Unclip the two fixings to open its cover.

Accessing the tools

Some of the tools are stored beneath the floor

against the boot sill.

The left-hand box contains the wheelbrace and

its extension piece.

The right-hand box contains the wheel chocks

and the towing eye.

To access it:

► Open the boot.

► Fold the concertina panels.

► Install the third row seats.

► Unclip the required tools from the boot sill

trim.

209

In the event of a breakdown

With temporary puncture repair kit

Model without storage box

This kit, stored in a bag, is installed behind the

second row left-hand seat.

► Fold the seat backrest onto the cushion to

access the bag.

Model with storage box

This kit is installed in the storage box, located in

front of the second row left-hand seat.

► Open the storage box cover to access the kit.

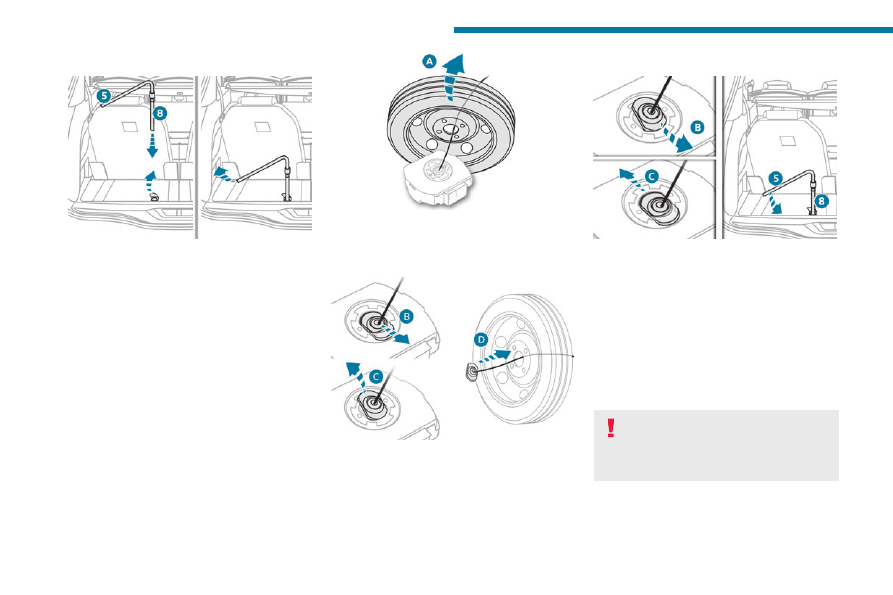

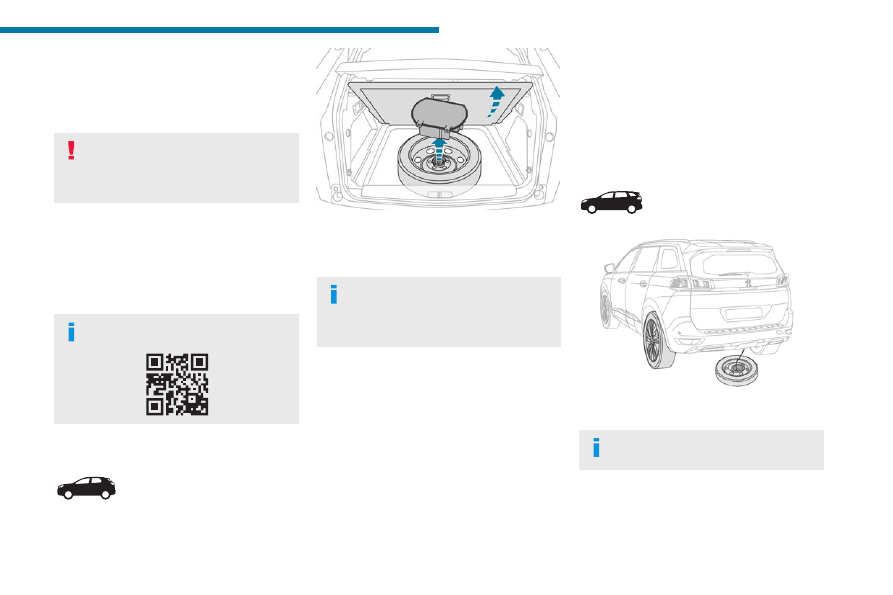

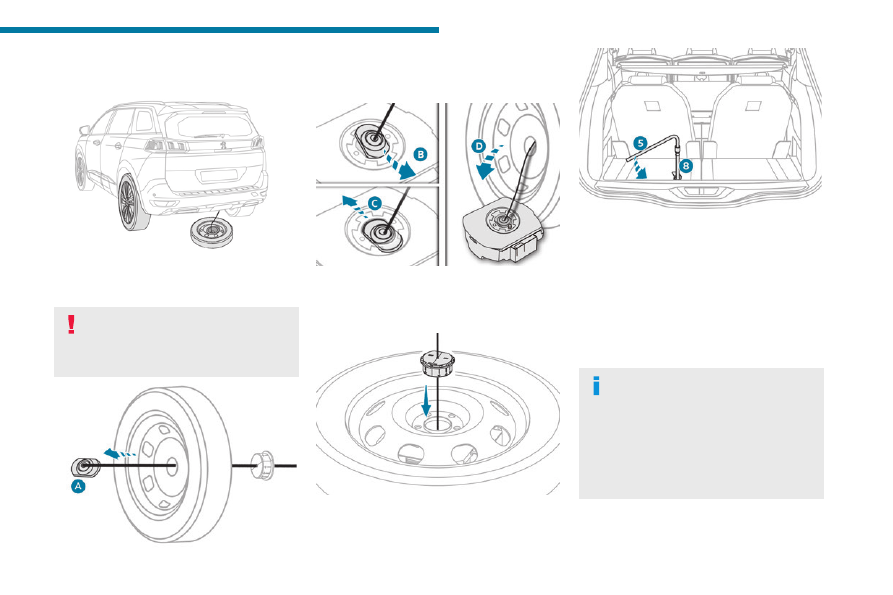

With spare wheel

The tool box is installed at the centre of the

spare wheel beneath the vehicle.

It contains the jack and the wheel bolt cover

removal tool.

► First, access the spare wheel.

For further information on the

Spare wheel

please refer to the corresponding section.

► Press the tab to unlock the cover.

► While keeping the tab pressed in, slide the

cover to the middle and remove it.

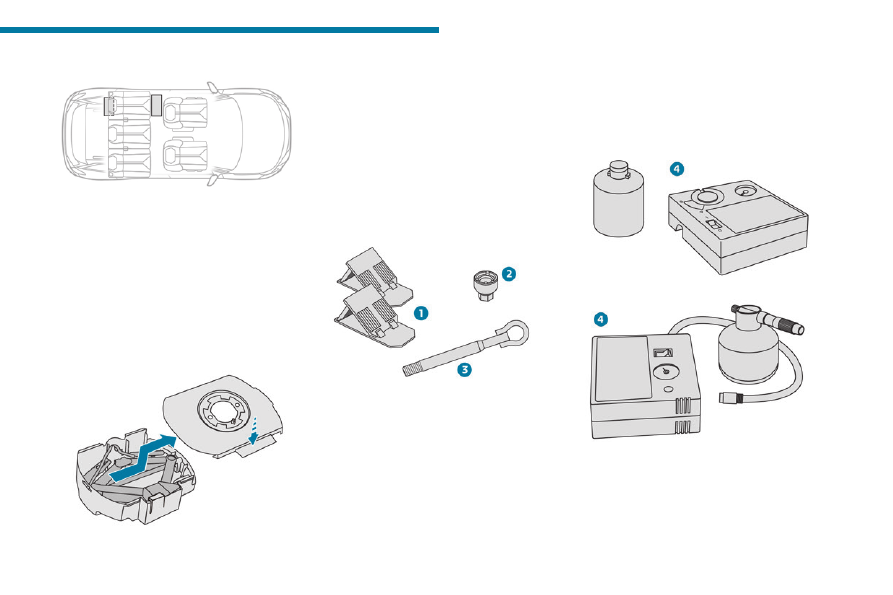

List of tools

Chocks to immobilise the vehicle (depending

on equipment)

Socket for the wheel security bolts (located in

the glove box) (depending on equipment)

To adapt the wheelbrace to the special

‘security’ bolts.

Removable towing eye

For more information on

Towing the vehicle

and using the removable towing eye, refer to the

corresponding section.

With temporary puncture repair kit

Kit 1

Kit 2

12 V compressor with cartridge of sealant

and speed limit sticker

For temporary repair of a tyre and to adjust

the tyre pressure.

210

In the event of a breakdown

For more information on the

Temporary

puncture repair kit

, refer to the corresponding

section.

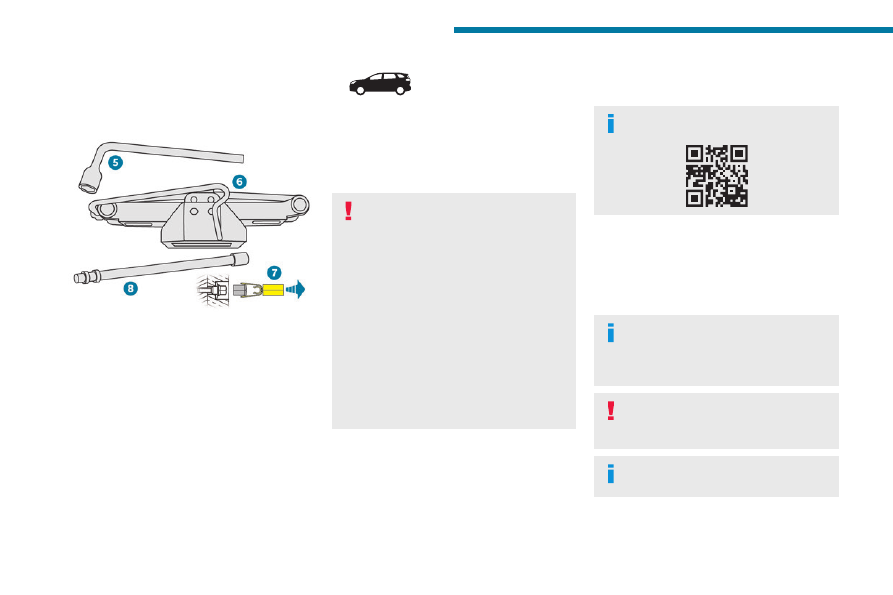

With spare wheel

Wheelbrace

For removing the wheel trim and the wheel

bolts.

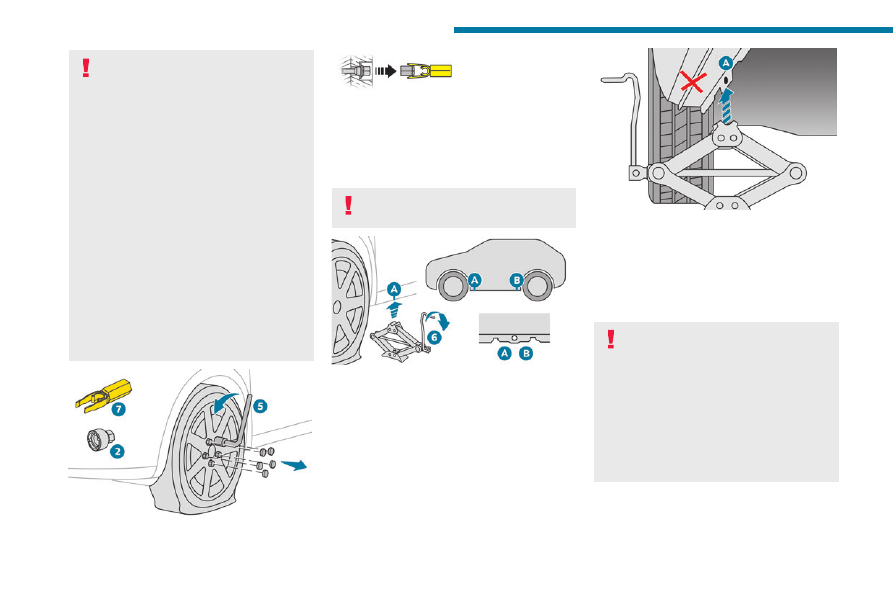

Jack with integrated handle

To raise the vehicle.

Wheel bolt cap removal tool (depending on

equipment)

For removing the wheel bolt head finishers on

alloy wheels.

Wheelbrace extension

For loosening/tightening the spare wheel

carrier winch cable nut.

For more information on the

Spare wheel

, refer

to the corresponding section.

The jack must only be used to change a

wheel with a damaged or punctured tyre.

Do not use any jack other than the one

supplied with the vehicle.

If the vehicle does not have its original jack,

contact a PEUGEOT dealer or a qualified

workshop to obtain the one that was intended

by the manufacturer.

The jack meets European standards,

as defined in the Machinery Directive

2006/42/CE, and also complies with UKCA

requirement, as defined by the Supply

of Machinery (Safety) Regulations 2008

No.1597.

The jack does not require any maintenance.

Temporary puncture

repair kit

Visit this link to view explanatory videos:

http://q-r.to/bagGl9

Made up of a compressor and a sealant

cartridge, it allows you to carry out a

temporary

repair

of the tyre so that you can drive to the

nearest garage.

It is designed to repair most punctures located

on the tyre tread.

The vehicle's electric system allows the

connection of the compressor to the 12 V

power supply for long enough to repair a tyre

after a puncture.

Only the 12 V socket located

at the front

of the vehicle can be used to power the

compressor.

For more information on the

Tool kit

refer to the corresponding section.

211

In the event of a breakdown

Tyre inflation pressures are indicated on

this label.

For more information on

Identification

markings

, particularly this label, refer to the

corresponding section.

Should the pressure of one or more tyres

be adjusted, it is necessary to reinitialise

the under-inflation detection system.

For more information on

Tyre under-inflation

detection

, refer to the corresponding section.

Repair procedure

Do not remove any foreign body

(e.g. nail, screw) which has penetrated

the tyre.

► Park the vehicle without obstructing traffic

and apply the parking brake.

► Follow the safety instructions (hazard

warning lamps, warning triangle, high visibility

jacket, etc.) according to the legislation in force

in the country in which you are driving.

► Switch the ignition off.

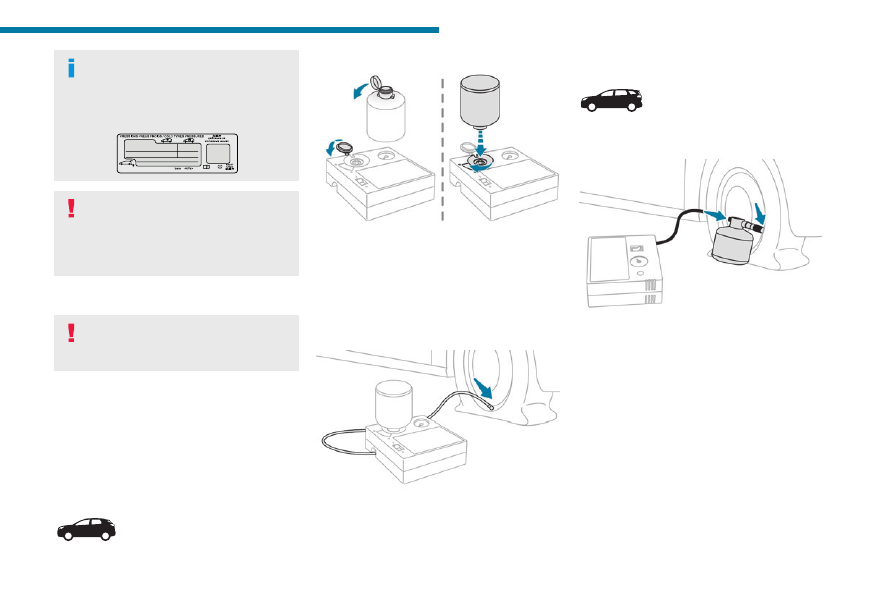

Connecting kit 1

► Remove the transparent cap from the bottle

of sealant.

► Lift the protective cover before installing the

bottle of sealant on the compressor.

► Turn the bottle of sealant over and screw it a

quarter turn into the compressor.

► Remove the valve cap from the tyre to be

repaired, and place it in a clean place.

► Uncoil the pipe stowed under the compressor.

► Connect the pipe from the compressor to the

valve of the tyre to be repaired and tighten firmly.

Connecting kit 2

► Remove the valve cap from the tyre to be

repaired, and place it in a clean place.

► Connect the pipe from the bottle of sealant to

the valve of the tyre to be repaired and tighten

firmly.

► Uncoil the pipe stowed under the compressor.

► Connect the pipe from the compressor to the

bottle of sealant.

Repairing the tyre

► Check that the compressor switch is in

position "

► Fully uncoil the electric cable stowed under

the compressor.

► Connect the compressor's electric plug to the

vehicle's 12 V socket.

212

In the event of a breakdown

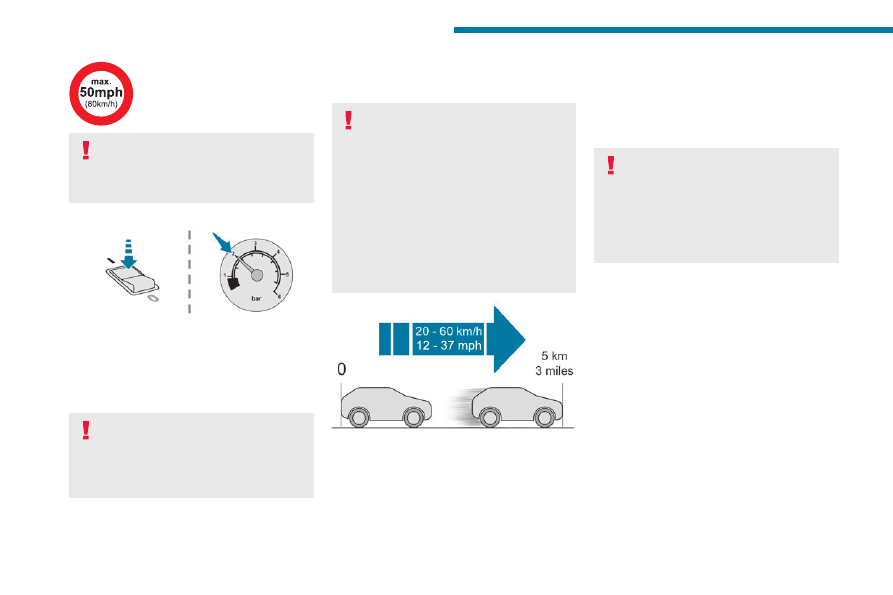

► Affix the speed limit sticker.

The speed limit sticker must be affixed

inside the vehicle in the area close to the

driver, to remind them that a wheel is in

temporary use.

► Switch the ignition on.

► Switch on the compressor by moving the

switch to position "

" until the tyre pressure

reaches 2 bar. The sealant product is injected

under pressure into the tyre; do not disconnect

the pipe from the valve during this operation (risk

of blowback).

If after approximately 7 minutes, the

pressure of 2 bar is not reached, this

indicates that the tyre is not repairable;

contact a PEUGEOT dealer or a qualified

workshop for assistance.

► Move the switch to position "

► Disconnect the compressor's electric plug

from the vehicle's 12 V socket.

► Remove the kit.

► Refit the cap on the valve.

► Remove and store the bottle of sealant.

The sealant product is harmful if

swallowed and causes irritation to the

eyes.

Keep this product out of the reach of children.

The use-by date of the fluid is marked on the

bottle.

After use, do not discard the bottle into the

environment; take it to a PEUGEOT dealer or

an authorised waste disposal site.

Do not forget to obtain a new bottle of

sealant, available from a PEUGEOT dealer or

a qualified workshop.

► Drive immediately for approximately 3 miles

(5 kilometres) at reduced speed (between

12 and 37 mph (20 and 60 km/h)) to plug the

puncture.

► Stop to check the repair

and the tyre

pressure

using the kit:

• If the tyre pressure is incorrect, contact a

PEUGEOT dealer to have the tyre changed.

• If the tyre pressure is correct, drive a second

time for approximately 3 miles (5 kilometres)

at reduced speed (between 12 and 37 mph

(20 and 60 km/h)), stop then check again

the tyre pressure using the kit to confirm the

effective repair of the tyre.

With a tyre repaired using this type of kit,

do not exceed a speed of 50 mph

(80 km/h) and do not drive more than

125 miles (200 km).

You must contact a PEUGEOT dealer or a

qualified workshop to have the repair checked

and the tyre changed.

Checking/adjusting tyre

pressures

The compressor can be used,

without injecting

sealant

, to check and, if necessary, adjust the

tyre pressures.

► Remove the valve cap from the tyre and keep

it in a clean place.

► Uncoil the pipe stowed under the compressor.

► Screw the pipe onto the valve and tighten

firmly.

► Check that the compressor switch is in

position "

► Fully uncoil the electric cable stowed under

the compressor.

► Connect the compressor's electric plug to the

vehicle's 12 V socket.

► Switch the ignition on.

213

In the event of a breakdown

► Start the compressor by placing the switch at

position "

" and adjust the pressure to the value

shown on the vehicle's tyre pressure label. To

deflate: press the black button located on the

compressor pipe, near the valve connection.

If after 7 minutes the pressure of 2 bar is

not reached, the tyre is damaged;

contact a PEUGEOT dealer or a qualified

workshop for assistance.

► Once the correct pressure is reached, put the

switch in position "

► Remove the kit and stow it.

► Refit the cap on the valve.

Spare wheel

Visit this link to view explanatory videos:

http://q-r.to/bagGl9

Accessing the spare wheel

The spare wheel is stored in the boot, under the

floor.

To access the spare wheel, first refer to the

Tool

kit

section.

Depending on version, the spare wheel

may be a standard size steel or alloy

wheel.

In some countries, it is a ‘space saver’ wheel.

Removing the spare wheel

► Slacken the central nut.

► Remove the fastening device (nut and bolt).

► Lift the spare wheel towards you from the

rear.

► Take the wheel out of the boot.

Putting the spare wheel back in place

► Put the spare wheel back in place in its

housing.

► Slacken the nut on the bolt by a few turns.

► Position the fastening device (nut and bolt) in

the middle of the wheel.

► Tighten the central nut sufficiently to retain

the wheel correctly.

► Put the tool box back in place in the middle of

the wheel and clip it in place.

Accessing the spare wheel

The spare wheel is held by a winch system

underneath the rear of the vehicle.

Only a "space-saver" type spare wheel

may be fixed underneath the vehicle.

214

In the event of a breakdown

Removing the spare wheel

► Fold up the concertina panel and install

the third row seat, on the left-hand side (if the

vehicle is equipped with it).

► Lift the pre-cut section of carpet to release

the spare wheel fixing winch nut.

► With extension piece

placed on the end

of wheelbrace

, "tighten" the nut to unreel the

winch cable until the spare wheel is flat on the

ground. Unwind the length required to access

the wheel easily.

► Remove the wheel/box unit through the rear

of the vehicle.

► Straighten the spare wheel to access the tool

box (

► Detach the connecting piece from the cover

of the tool box (

► Pass the connecting piece through the wheel

hub to release it (

Storing the tools

► Replace the appropriate tools in the box and

close the cover.

► Place the tool box on the ground.

► Insert the connecting piece into the tool box

hole (

► Reel in the winch by loosening the winch

control nut with wheelbrace

and extension

piece

: the nut should rotate freely once the

cable is completely reeled in.

► Store the rest of the tools in the storage

areas in the boot sill trim.

The punctured wheel cannot be secured

beneath the vehicle; it must be stored in

the boot (use a cover to protect the inside of

the boot).

215

In the event of a breakdown

Putting the winch and spare wheel

back in place

► Place the appropriate tools in the box and

close the cover.

► Place the tool box on the ground.

When the spare wheel is fitted in place of

a wheel with a punctured tyre, the winch

and tool box must be placed beneath the

vehicle again before restarting.

► Straighten the wheel.

► Pass the connecting piece through the wheel

hub (

► Insert the connecting piece into the tool box

hole (

► Centre and position the spare wheel on the

tool box (

► Insert the centring guide into the wheel hub.

► Place the wheel/box unit beneath the rear of

the vehicle.

► Raise the wheel/box unit underneath the

vehicle, by "loosening" the winch control nut with

wheelbrace

and extension piece

► Tighten fully. When the cable is completely

reeled in, turning the nut no longer encounters

resistance.

► Check that the wheel is properly flattened

against the floor.

Removing a wheel

Wheel with wheel trim

When removing the wheel

, first remove

the wheel trim by pulling with both hands on

one of the upper arms.

When refitting the wheel

, refit the wheel

trim, starting by placing its aperture in line

with the valve and then pushing it into place

all round its edge with the palm of your hand.

216

In the event of a breakdown

Parking the vehicle

Immobilise the vehicle where it does

not obstruct traffic: the ground must be level,

stable and non-slippery.

With a manual gearbox, engage first gear

to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

With an automatic gearbox, select mode

to lock the wheels, apply the parking brake,

unless it is set to automatic mode, and switch

off the ignition.

Check that the parking brake indicator lamps

on the instrument panel are on fixed.

The occupants must get out of the vehicle

and wait where they are safe.

If necessary, place a chock under the wheel

diagonally opposite the wheel to be changed.

Never go underneath a vehicle raised using a

jack; use an axle stand.

► To remove the wheel bolt cover on each of

the bolts, use tool

(alloy wheels).

► Fit security socket

on wheelbrace

slacken the security bolt.

► Slacken the other bolts using the

wheelbrace

only.

Never use an impact wrench on the

security bolt socket.

► Place the foot of jack

on the ground and

ensure that it is directly below the front

rear

jacking point on the underbody, whichever

is closest to the wheel to be changed.

► Extend jack

until its head comes into

contact with jacking point

; contact area

on the vehicle must be properly inserted

into the central part of the head of the jack.

► Raise the vehicle until there is sufficient

space between the wheel and the ground to

easily admit the spare (not punctured) wheel.

Ensure that the jack is stable. If the

ground is slippery or loose, the jack may

slip or collapse - risk of injury!

Take care to position the jack strictly at

one of the jacking points

under the

vehicle, ensuring that the head of the jack is

centred under the contact area on the vehicle.

Otherwise, there is a risk of damage to the

vehicle and/or of the jack collapsing - risk of

injury!

217

In the event of a breakdown

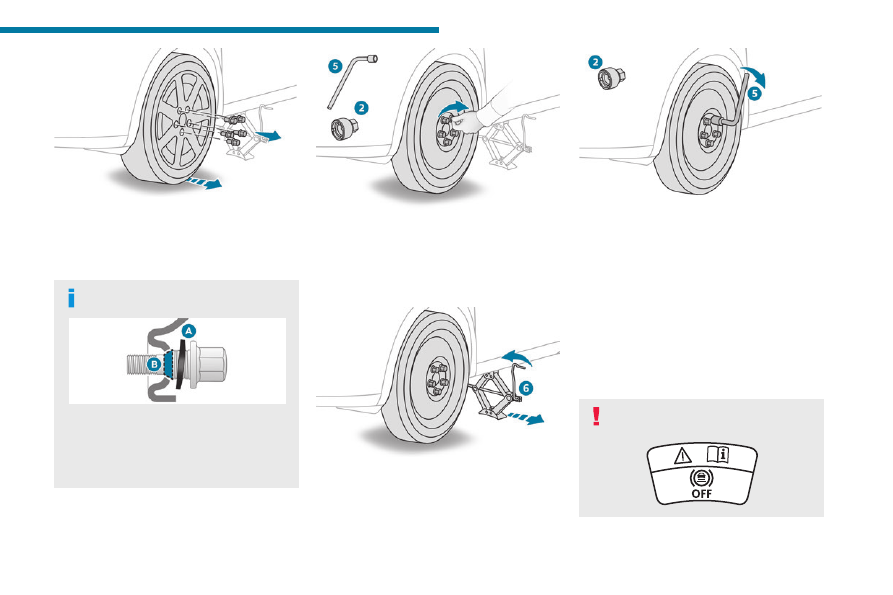

► Remove the bolts and store them in a clean

place.

► Remove the wheel.

Fitting a wheel

Fitting a steel or "space-saver" type

spare wheel

If the vehicle is fitted with alloy wheels, the

washers

do not make contact with the steel

or "space-saver" type spare wheel. The wheel

is held in place by the conical contact surface

of each bolt.

► Fit the wheel on the hub.

► Screw in the bolts by hand as far as possible.

► Pre-tighten the security bolt using the

wheelbrace

equipped with a security socket

► Pre-tighten the other bolts using the

wheelbrace

only.

► Lower the vehicle again fully.

► Fold jack

and remove it.

► Tighten the security bolt using the

wheelbrace

equipped with a security socket

► Tighten the other bolts using the

wheelbrace

only.

► Refit the bolt covers to each of the bolts

(depending on equipment).

► Store the tools.

After changing a wheel

Store the punctured wheel in the boot or,

depending on version, remove the central cover

first to store it beneath the floor in place of the

spare wheel.

With a non-standard or 'space-saver'

spare wheel

218

In the event of a breakdown

Deactivate certain driving aid functions

(Active Safety Brake, Adaptive cruise control,

etc.).

Do not exceed the maximum authorised

speed of 50 mph (80 km/h) or the maximum

distance of 50 miles (80 km).

Driving with more than one spare wheel of

this type is prohibited.

The wheel trim from the replaced wheel must

not be refitted.

Go to a PEUGEOT dealer or a qualified

workshop.

Have the tightening of the spare wheel's bolts

and its tyre pressure checked.

Have the punctured tyre examined. After

inspection, the technician will advise you on

whether the tyre can be repaired or if it must

be replaced.

Changing a bulb

In some weather conditions (e.g. low

temperature or humidity), misting on the

internal surface of the glass of the headlamps

and rear lamps is normal, and will disappear

after the lamps have been on for a few

minutes.

The headlamps have polycarbonate

lenses with a protective coating:

–

Do not clean them with a dry or abrasive

cloth, nor with detergent or solvent

products.

– Use a sponge and soapy water or a pH

neutral product.

– When using a high-pressure washer on

persistent marks, do not keep the lance

directed towards the headlamps, lamps or

their edges for too long, so as not to damage

their protective coating and seals.

Changing a bulb must only be done with

the ignition off and after the headlamp /

lamp has been switched off for several

minutes - risk of serious burns!

Do not touch the bulb directly with your

fingers; use a lint-free cloth.

It is essential only to use anti-ultraviolet

(UV) type bulbs, so as not to damage the

headlamp.

Always replace a failed bulb with a new bulb

of the same type and specification. To avoid

lighting imbalance, replace the bulbs in pairs.

Refitting the lamp units

Perform the operations in the reverse

order to dismantling.

Light-emitting diode (LED)

headlamps and lamps

Depending on version, the affected types of

headlamps/lamps are:

– LED technology headlamps.

– Full LED technology headlamps.

– Direction indicator side repeaters.

– Side spotlamps.

– Brake lamps.

– LED technology rear lamps.

– Third brake lamp.

– Number plate lamps.

If you need to replace this type of bulb,

you must contact a PEUGEOT dealer or

a qualified workshop.

Do not touch the LED or Full LED technology

headlamps - risk of electrocution!

Never look too closely at the light beam

of LED technology lamps - risk of serious

eye injury!

219

In the event of a breakdown

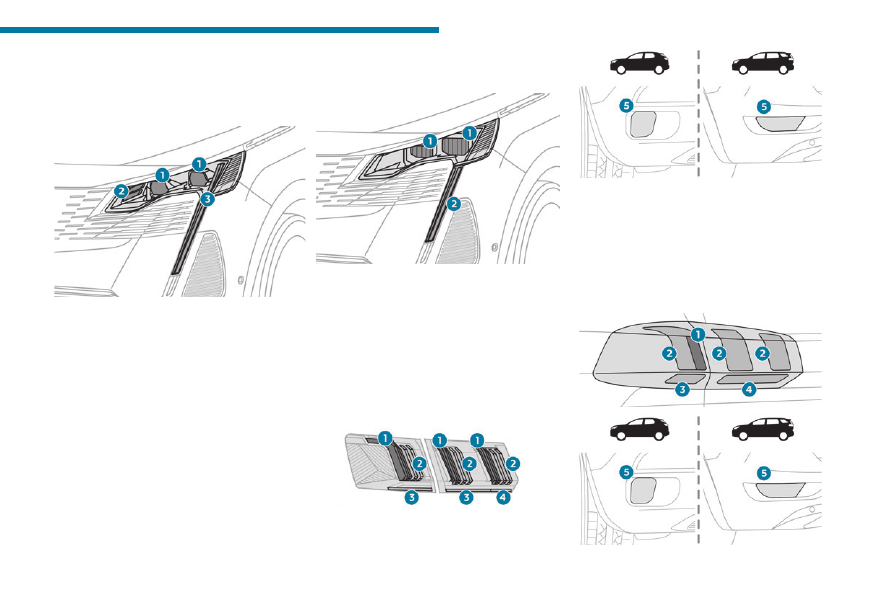

Front lamps

Model with Full

LED technology headlamps

Dipped beam headlamps/Main beam

headlamps

Static cornering lamps

Daytime running lamps/Sidelamps /Direction

indicators

Model with

LED technology headlamps

Dipped beam headlamps/Main beam

headlamps

Daytime running lamps/Sidelamps /Direction

indicators

Rear lamps

Model with Full LED technology

lamps

Daytime running lamps/Sidelamps/Brake

lamps (LED)

Daytime running lamps/Sidelamps (LED)

Direction indicators (LED)

Reversing lamps (LED)

Foglamps (P21W)

Model with LED technology lamps

220

In the event of a breakdown

Brake lamps (LED)

Sidelamps/daytime running lamps (LED)

Direction indicators (WY16W amber)

Reversing lamps (W16W)

Foglamps (P21W)

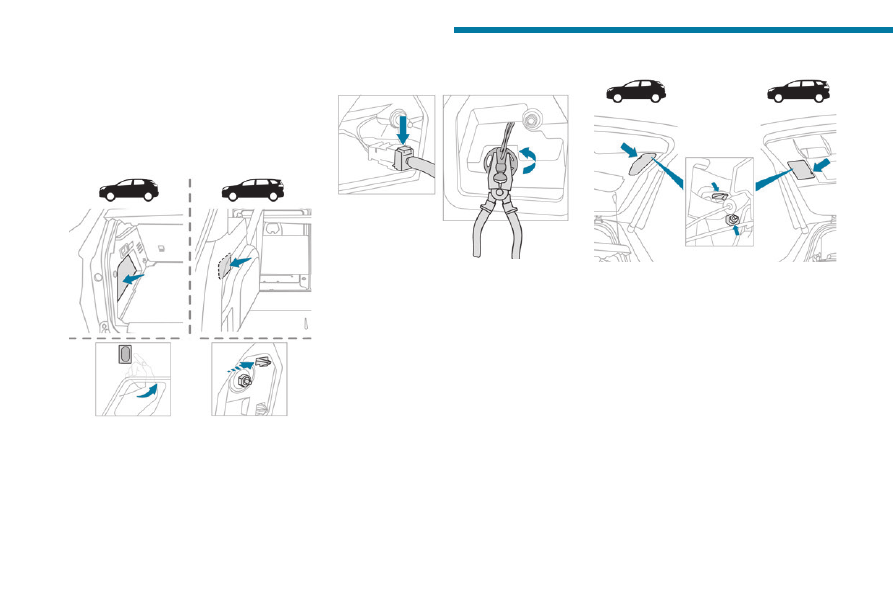

Direction indicators (on the wings)

► Open the tailgate, then unclip the access

cover on the side in question.

► Unblock the lamp fixing nut with a 10 mm box

spanner.

► To avoid losing the nut in the wing trim if it

drops, first place a cloth below it.

► Manually unscrew and remove the lamp

fixing nut.

► Disengage the retaining clip, while slightly

pushing the lamp back.

► From the outside, carefully remove the lamp

by pulling it to the rear, then up.

► Disconnect the lamp connector.

► Turn the bulb holder a quarter turn using a

universal pair of pliers, if necessary, and pull it

out.

► Remove the bulb and replace it.

Reversing lamps (on the tailgate)

► Open the tailgate, then insert a flat

screwdriver into the cut-out to unclip the access

cover on the side in question.

► Unblock the lamp fixing nut with a 10 mm box

spanner.

► Manually unscrew and remove the lamp

fixing nut.

► Disengage the retaining clip, while slightly

pushing the lamp back.

221

In the event of a breakdown

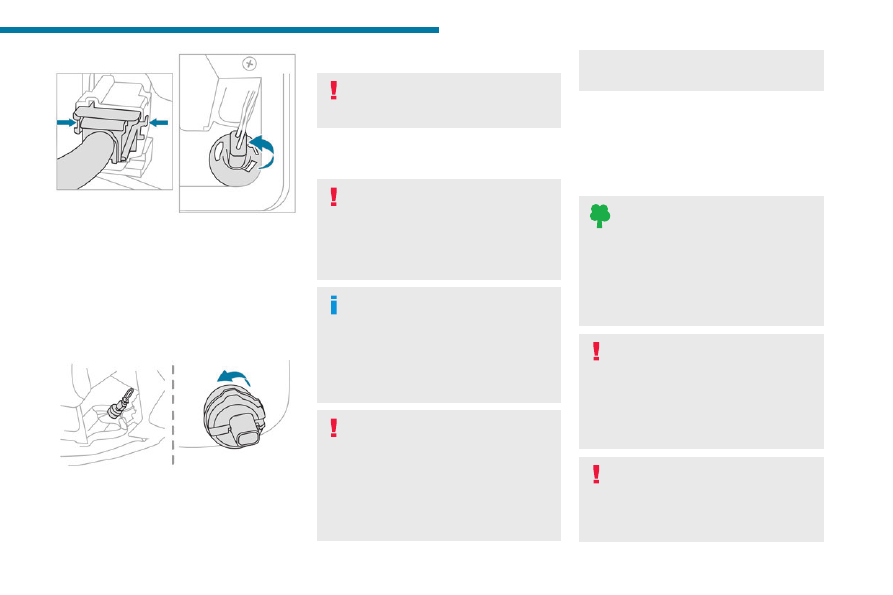

► From the outside, carefully remove the lamp

by pulling it to the rear.

► Disconnect the lamp connector by pressing

on each side.

► Turn the bulb holder a quarter turn and

remove it.

► Remove the bulb and replace it.

Foglamps (P21W)

These bulbs are replaced from outside the rear

bumper.

► Pass your hand under the bumper.

► Turn the bulb holder a quarter turn and

remove it.

► Turn the bulb a quarter turn and replace it.

When changing the bulb within a few

minutes of switching off the ignition, take

care not to touch the exhaust - risk of burns!

Fuses

Changing a fuse

All work must be carried out only by a

PEUGEOT dealer or a qualified workshop

The replacement of a fuse by a third party

could cause a serious malfunction of the

vehicle.

Installing electrical accessories

The vehicle's electrical system is

designed to operate with standard or optional

equipment.

Before fitting other electrical equipment

or accessories to your vehicle, contact a

PEUGEOT dealer or a qualified workshop.

PEUGEOT accepts no responsibility for

the cost incurred in repairing the vehicle

or for rectifying malfunctions resulting from

the installation of accessories not supplied or

not recommended by PEUGEOT and not

installed in accordance with its

recommendations, in particular when the

combined power consumption of all of the

additional equipment connected exceeds 10

milliamperes.

12 V battery/Accessory

batteries

Lead-acid starter batteries

These batteries contain harmful

substances (sulphuric acid and lead).

They must be disposed of in accordance

with regulations and must never under any

circumstances be discarded with household

waste.

Dispose of used batteries at a designated

collection point.

Protect your eyes and face before

handling the battery.

All operations on the battery must be carried

out in a well ventilated area and away from

naked flames and sources of sparks, to avoid

any risk of explosion or fire.

Wash your hands afterwards.

Electronic control units/LED

technology headlamps

Never connect the negative jump lead to the

metal part of the electronic control units or at

the back of the headlamps.

222

In the event of a breakdown

Risk of destroying the electronic control

units and/or headlamps!

Connect to the remote earth point provided

for this purpose.

Frozen battery

Never try to charge a frozen battery - risk

of explosion!

If the battery has frozen, have it checked by a

PEUGEOT dealer or by a qualified workshop,

who will verify that the internal components

have not been damaged and that the case

has not cracked, which could lead to a risk of

leakage of toxic and corrosive acid.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Symbols

No sparks or naked flames, no smoking.

Always protect your eyes. Explosive

gases can cause blindness and injury.

Keep the vehicle's battery out of the reach

of children.

The vehicle's battery contains sulphuric

acid which can make you go blind or

cause severe burns.

For more information, refer to the

handbook.

Explosive gases can be present close to

the battery.

With petrol/Diesel engines

Procedure for starting the engine using another

battery or for charging a discharged battery.

Accessing the battery

The battery is located under the bonnet.

For access to the (+) terminal:

► Release the bonnet by pulling the internal

release lever, then the external safety catch.

► Raise the bonnet.

(+)

Positive terminal with a quick-release

terminal.

(-)

Negative terminal.

As the battery's negative terminal is not

accessible, a remote earth point is located near

the battery.

Starting using another battery

If the vehicle's battery is flat, the engine can be

started using a backup battery (either external or

from another vehicle) and jump leads or using a

battery booster.

Never start the engine by connecting a

battery charger.

Never use a 24 V or higher battery booster.

Check beforehand that the backup battery

has a nominal voltage of 12 V and a capacity

at least equal to that of the discharged

battery.

The two vehicles must not be in contact with

each other.

Switch off all electricity-consuming equipment

on both vehicles (audio system, wipers,

lighting, etc.).

Make sure that the jump leads are well away

from the engine’s moving parts (fan, belt,

etc.).

Do not disconnect the (+) terminal while the

engine is running.

223

In the event of a breakdown

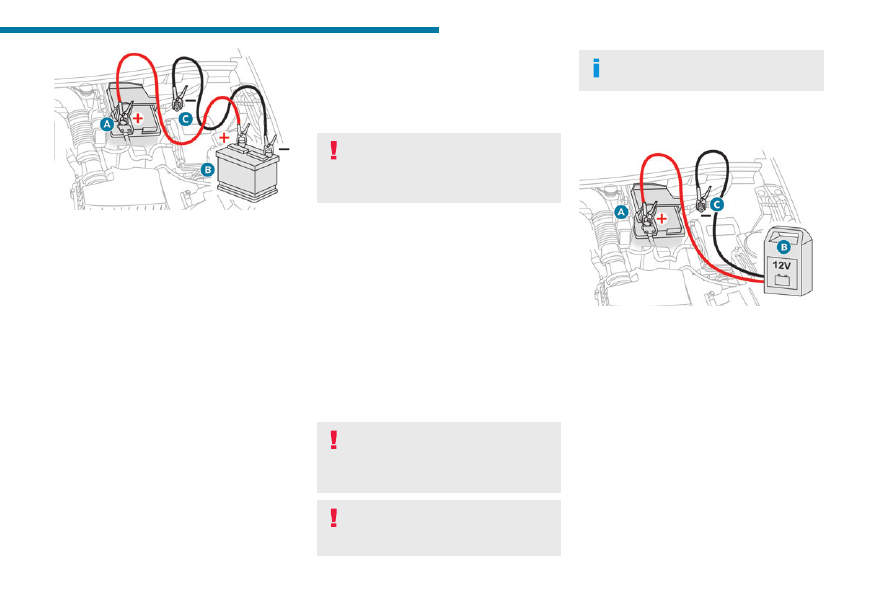

► Lift the plastic cover on the (+) terminal, if the

vehicle has one.

► Connect the red cable to the (+) terminal of

flat battery

(at the metal elbow), then to the

(+) terminal of the backup battery

or of the

booster.

► Connect one end of the green or black cable

to the (-) terminal of the backup battery

or of

the booster (or to an earth point on the assisting

vehicle).

► Connect the other end of the green or black

cable to the earth point

► Start the engine on the assisting vehicle and

leave it running for a few minutes.

► Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start immediately, switch

off the ignition and wait a few moments before

trying again.

► Wait for it to return to idle.

► Disconnect the jump leads

in reverse order

► Refit the plastic cover to the (+) terminal, if

the vehicle has one.

► Allow the engine to run for at least

30 minutes, with the vehicle stationary, so that

the battery reaches an adequate state of charge.

Driving immediately without having

reached a sufficient level of charge may

affect some of the vehicle's functions (e.g.

Stop & Start).

Charging the battery using a battery

charger

For optimum service life of the battery, it is

essential to maintain an adequate state of

charge.

In some circumstances, it may be necessary to

charge the battery:

– When using the vehicle mainly for short

journeys.

– If the vehicle is to be taken off the road for

several weeks.

Consult a PEUGEOT dealer or a qualified

workshop.

To charge the vehicle's battery yourself,

use only a charger compatible with

lead-acid batteries with a nominal voltage of

12 V.

Follow the instructions provided by the

manufacturer of the charger.

Never reverse polarities.

It is not necessary to disconnect the

battery.

► Switch the ignition off.

► Switch off all electrical consumers (audio

system, lighting, wipers, etc.).

► Switch off charger

before connecting

the cables to the battery, so as to avoid any

dangerous sparks.

► Ensure that the charger cables are in good

condition.

► Lift the plastic cover on the (+) terminal, if the

vehicle has one.

► Connect the cables of charger

as follows:

• the positive (+) red cable to the (+) terminal

of battery

• the negative (-) black cable to earth point

on the vehicle.

► At the end of the charging operation, switch

off charger

before disconnecting the cables

from battery

224

In the event of a breakdown

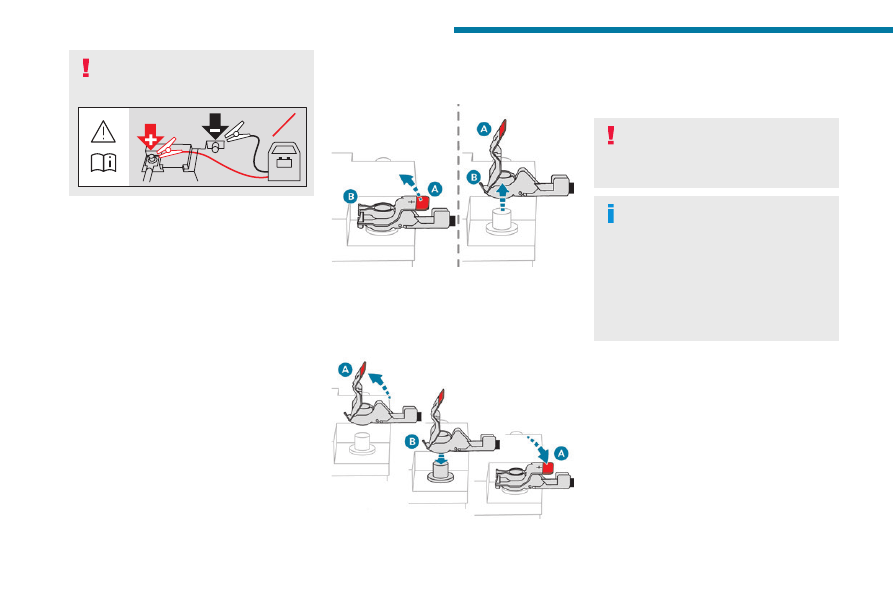

If this label is present, use only a 12 V

charger to avoid causing irreversible

damage to the electrical components.

24V

12V

Disconnecting/Reconnecting the 12 V

battery

In order to maintain an adequate state of

charge for starting the engine, we recommend

disconnecting the battery if the vehicle is to be

unused for an extended period.

Before disconnecting the 12 V battery:

► Close all openings (doors, boot, windows,

roof).

► Switch off all electricity-consuming devices

(audio system, wipers, lamps, etc.).

► Switch off the ignition and wait for 4 minutes.

After accessing the 12 V battery, it is only

necessary to disconnect the (+) terminal.

Quick-release terminal clamp

Disconnecting the (+) terminal

► Depending on equipment, lift the plastic cover

on the

(+)

terminal.

► Raise lever

fully to release clamp

► Remove clamp

by lifting it off.

Reconnecting the (+) terminal

► Raise lever

fully.

► Refit open clamp

on the

(+)

terminal.

► Push clamp

fully down.

► Lower lever

to lock clamp

► Depending on equipment, lower the plastic

cover on the

(+)

terminal.

Do not force the lever when pressing on

it, as if the clamp is not positioned

correctly, locking will then not be possible.

Start the procedure again.

The Stop & Start system may not be

operational during the trip following the

first engine start.

In this case, the system will only be available

again after a continuous period with the

vehicle immobilised, the duration of which

depends on the exterior temperature and the

state of charge of the battery (up to about 8

hours).

With hybrid engines

Procedure for starting the engine using another

battery or for charging a discharged battery

(12 V or 48 V).

► Access to the 12 V battery.

For more information on

Accessing the battery

refer to the corresponding section.

► If necessary, perform the 12 V battery

disconnection/reconnection procedure.

For more information on

Disconnecting/

Reconnecting the battery

, refer to the

corresponding section.

225

In the event of a breakdown

► After reconnecting the 12 V battery, perform

the automatic reset procedures of the electronic

systems and manual reset of some equipment.

For more information on

Following

reconnection

, refer to the corresponding

section.

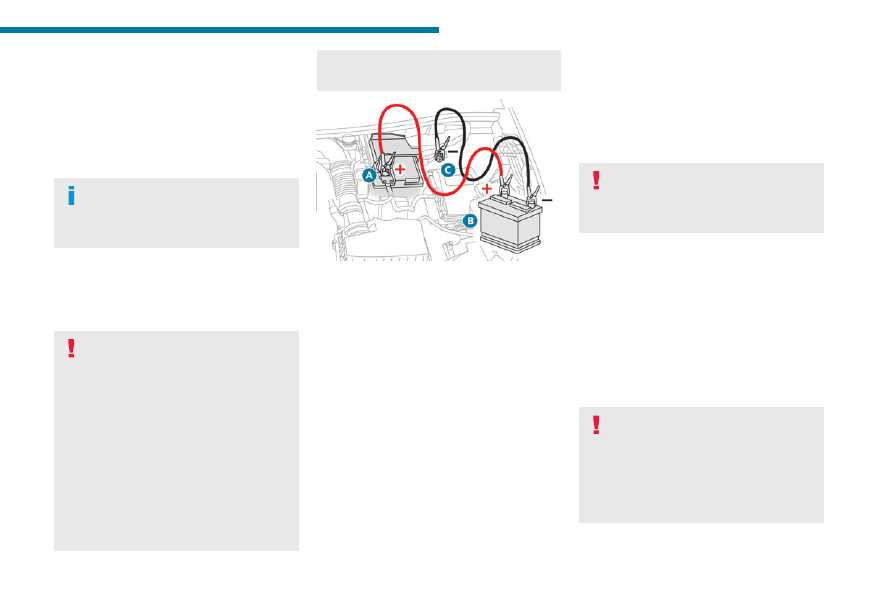

Starting using another battery

The hybrid system starts the vehicle, but

a 12 V supply is required. There are

several reasons why the vehicle cannot be

started.

If the 12 V battery is flat, the 12 V power supply

can be ensured using a backup battery (either

external or from another vehicle) and jump leads

or using a battery booster or using a battery

charger.

Never use a 24 V or higher battery

booster.

Check beforehand that the backup battery

has a nominal voltage of 12 V and a capacity

at least equal to that of the discharged

battery.

The two vehicles must not be in contact with

each other.

Switch off all electricity-consuming equipment

on both vehicles (audio system, wipers,

lighting, etc.).

Make sure that the jump leads are well away

from the engine’s moving parts (fan, belt,

etc.).

Do not disconnect the (+) terminal while the

engine is running.

► Lift the plastic cover on the (+) terminal, if the

vehicle has one.

► Connect the red cable to the (+) terminal of

flat battery

(at the metal elbow), then to the

(+) terminal of the backup battery

or of the

booster.

► Connect one end of the green or black cable

to the (-) terminal of the backup battery

or of

the booster (or to an earth point on the assisting

vehicle).

► Connect the other end of the green or black

cable to the earth point

► Start the engine on the assisting vehicle and

leave it running for a few minutes.

► Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start immediately, switch

off the ignition and wait a few moments before

trying again.

► Wait for it to return to idle.

► Disconnect the jump leads

in reverse order

► Refit the plastic cover to the (+) terminal, if

the vehicle has one.

► Allow the engine to run for at least

30 minutes, with the vehicle stationary, so that

the battery reaches an adequate state of charge.

Driving immediately without having

reached a sufficient level of charge may

affect some of the vehicle's functions (e.g.

e-Auto mode).

Charging the 12 V battery using a

battery charger

For optimum service life of the battery, it is

essential to maintain an adequate state of

charge.

In some circumstances, it may be necessary to

charge the battery (e.g. if the vehicle is to be

taken off the road for several weeks)

Consult a PEUGEOT dealer or a qualified

workshop.

The hybrid system is connected to the

12 V network through the DC/DC

converter. Any operation may affect the

overall behaviour of the system.

To charge the vehicle's battery yourself, use

only a charger compatible with lead-acid

batteries with a nominal voltage of 12 V.

Peugeot 5008 (2024 year). Manual in english - page 7
