Peugeot 5008 (2024 year). Manual in english

Safety

At a speed greater than 12 mph (20 km/h),

these warning lamps flash, accompanied by an

increasing audible signal for approximately two

minutes. After two minutes, these warning lamps

remain on as long as the front seatbelts are not

fastened.

Not fastened at the rear

When the ignition is switched on and with the

engine running or the vehicle moving at a speed

below 12 mph (20 km/h), the warning lamp and

the corresponding indicator lamps light up for

1 minute, if one or more rear seat belts are not

fastened.

Unfastened

After the ignition is switched on, the warning

lamp and the corresponding indicator lamps light

up if the driver and/or one or more passengers

unfasten their seat belts.

At a speed greater than 12 mph (20 km/h), these

warning lamps flash, accompanied by an audible

signal for approximately two minutes. After this

time, these warning lamps remain on as long as

the seatbelts are not refastened.

Advice

The driver must ensure that passengers

use the seat belts correctly and that they

are all fastened before setting off.

Wherever seated in the vehicle, you must

always fasten the seat belt, even for short

journeys.

Do not invert the seat belt buckles, as they

will not fulfil their role properly.

To ensure the proper functioning of the belt

buckles, make sure that there are no foreign

bodies present (e.g. a coin) before fastening.

Before and after use, ensure that the seat belt

is reeled in correctly.

After folding or moving a seat or rear bench

seat, ensure that the seat belt is positioned

and reeled in correctly.

Installation

The lower part of the strap must be

positioned as low as possible over the pelvis.

The upper part must be positioned in the

hollow of the shoulder.

At the front, adjusting the position of the

seat belt may require the seat height to be

adjusted.

In order to be effective, a seat belt must:

– be tightened as close to the body as

possible.

– be pulled in front of you with a smooth

movement, checking that it is not twisted.

– must only be used to secure one person.

– not show signs of tearing or fraying.

– not be changed or modified, in order to

avoid affecting its performance.

Recommendations for children

Use a suitable child seat if the passenger

is less than 12 years old or shorter than 1.5

metres.

Never use the same seat belt to secure more

than one child.

Never carry a child on your lap.

For more information on

Child seats

, refer to

the corresponding section.

Maintenance

In accordance with current safety

regulations, for all work on your vehicle's

seat belts, contact a qualified workshop with

the skills and equipment needed, which a

PEUGEOT dealer is able to provide.

Have the seat belts checked regularly by a

PEUGEOT dealer or a qualified workshop,

particularly if the straps show signs of

damage.

Clean the seat belt straps with soapy water or

a textile cleaning product, sold by PEUGEOT

dealers.

Airbags

General information

This system is designed to improve the safety

of the occupants of the front seats and the rear

outer seats in the event of a violent collision. The

Safety

airbags supplement the action of the seat belts

equipped with a force limiting system.

Electronic detectors record and analyse the

front and side impacts sustained in the impact

detection zones:

– In the event of violent impact, the airbags

deploy instantly and help better protect the

occupants of the vehicle; immediately after the

impact, the airbags deflate rapidly in order not

to hinder the visibility or the possible exit of the

occupants.

– In the event of a slight impact, a rear impact

and under certain rollover conditions, the airbags

may not deploy; only the seat belt helps to

protect you in these situations.

The seriousness of the impact depends on the

nature of the obstacle and the speed of the

vehicle at the moment of collision.

The airbags do not operate when the

ignition is switched off.

This equipment will only deploy once. If a

second impact occurs (during the same or a

subsequent accident), the airbag will not be

deployed again.

* For more information on Deactivating the front passenger airbag, refer to the corresponding section.

Impact detection zones

Front impact zone

Side impact zone

When one or more airbags are deployed,

the detonation of the pyrotechnic charge

incorporated in the system makes a noise and

releases a small quantity of smoke.

This smoke is not harmful, but sensitive

individuals may experience irritation.

The detonation noise associated with the

deployment of one or more airbags may result

in a slight loss of hearing for a short time.

Front airbags

System that protects the driver and front

passenger in the event of a serious front impact,

limiting the risk of head and chest injury.

The driver's airbag is fitted in the centre of the

steering wheel; the front passenger airbag is

fitted in the dashboard above the glove box.

The front airbags are adaptive. In

particular, they inflate less firmly in the

presence of a smaller occupant, with the seat

set in a forward longitudinal position.

Deployment

They deploy, except the front passenger airbag

if it is deactivated*, in the event of a serious front

impact to all or part of the front impact zone

The front airbag inflates between the thorax and

head of the front occupant of the vehicle and the

100

Safety

steering wheel, driver's side, and the dashboard,

passenger's side, to cushion their forward

movement.

Lateral airbags

This system protects the driver and front

passenger in the event of a serious side impact,

limiting the risk of injury to the chest, between

the hip and the shoulder.

Each lateral airbag is fitted in the seat backrest

frame, on the door side.

Deployment

The lateral airbags are deployed on one side in

the event of a serious side impact applied to all

or part of the side impact zone

The lateral airbag inflates between the chest of

the vehicle's occupant and the corresponding

door panel.

Curtain airbags

This system helps provide greater protection for

the driver and passengers (with the exception

of the rear centre passenger) in the event of a

serious side impact, in order to limit the risk of

injury to the side of the head.

Each curtain airbag is built into the pillars and

the upper passenger compartment area.

Deployment

It deploys simultaneously with the corresponding

lateral airbag in the event of a serious side

impact applied to all or part of the side impact

zone

The curtain airbag inflates between the front

and rear occupants of the vehicle and the

corresponding windows.

Malfunction

In the event of a malfunction, this warning

lamp lights up on the instrument panel.

Contact a PEUGEOT dealer or a qualified

workshop to have the system checked.

The airbags may not be deployed in the event of

a serious impact.

In the event of a minor impact or bump at

the side of the vehicle or if the vehicle

rolls over, the airbags may not be deployed.

In the event of a rear or front collision, none of

the lateral airbags are deployed.

Advice

For the airbags to be fully effective,

observe the safety recommendations

below.

Adopt a normal and upright sitting position.

Fasten your seat belt and position it correctly.

Do not place anything between the occupants

and the airbags (e.g. child, animal, object), do

not fix or attach anything near or in the path of

the airbags, as this could cause injuries when

they are deployed.

Never modify the original definition of the

vehicle, particularly in the area directly around

the airbags.

Even if all of the precautions mentioned are

observed, a risk of injury or of minor burns to

the head, chest or arms cannot be ruled out

when an airbag is deployed. The bag inflates

almost instantly (within a few milliseconds)

then deflates within the same time,

discharging the hot gas via openings provided

for this purpose.

After an accident or if the vehicle has been

stolen, have the airbag systems checked.

All work must be carried out only by a

PEUGEOT dealer or a qualified workshop

Front airbags

Do not drive holding the steering wheel

by its spokes or resting your hands on the

centre part of the wheel.

101

Safety

Passengers must not place their feet on the

dashboard.

Do not smoke as deployment of the airbags

can cause burns or the risk of injury from a

cigarette or pipe.

Never remove or pierce the steering wheel or

hit it violently.

Do not fix or attach anything to the steering

wheel or dashboard, as this could cause

injuries when the airbags are deployed.

Lateral airbags

Use only approved seat covers

compatible with the deployment of these

airbags. For information on the range of seat

covers suitable for your vehicle, contact a

PEUGEOT dealer.

Do not fix or attach anything to the seat

backrests (e.g. clothing) as this could cause

injuries to the chest or arm when the airbag is

deployed.

Do not sit with the upper part of the body any

nearer to the door than necessary.

The vehicle's front door panels include side

impact sensors.

A damaged door or any unauthorised or

incorrectly executed work (modification or

repair) on the front doors or their interior trim

could compromise the operation of these

sensors - risk of malfunction of the lateral

airbags!

All work must be carried out only by a

PEUGEOT dealer or a qualified workshop

Curtain airbags

Do not fix or attach anything to the roof,

as this could cause head injuries when the

curtain airbag is deployed.

Do not remove the grab handles installed on

the roof, as these help to secure the curtain

airbags.

Child seats

The regulations on carrying children are

specific to each country. Refer to the

legislation in force in your country.

For maximum safety, please observe the

following recommendations:

– In accordance with European regulations,

all children under the age of 12 or less than

1.5 metres tall must travel in approved child

seats suited to their size or weight

, on seats

fitted with a seat belt or ISOFIX mountings.

–

Statistically, the safest seats in your

vehicle for carrying children are the rear

seats.

–

Children ageing less than 15 months must

travel in the "rearward facing" position,

whether in the front or rear of the vehicle.

It is recommended

that children travel

on the

rear seats

of the vehicle:

– "

rearward facing

" up to the age of 3.

– "

forward facing

" over the age of 3.

Make sure that the seat belt is correctly

positioned and tightened.

For child seats with a support leg, ensure that

the support leg is in firm and steady contact

with the floor.

An incorrectly installed child seat in a

vehicle compromises the child's safety in

the event of an accident.

Ensure that there is no seat belt or seat belt

buckle under the child seat, as this could

destabilise it.

Remember to fasten the seat belts or the

child seat harness keeping the slack relative

to the child's body to a minimum, even for

short journeys.

When installing a child seat using the seat

belt, ensure that the seat belt is tightened

correctly on the child seat and that it secures

the child seat firmly on the vehicle seat. If

the passenger seat is adjustable, move it

forwards if necessary.

Remove the head restraint before

installing a child seat with a backrest on a

passenger seat.

Ensure that the head restraint is stored or

attached securely to prevent it from being

thrown around the vehicle in the event of

sharp braking. Refit the head restraint once

the child seat has been removed.

102

Safety

Installing a booster seat

The chest part of the seat belt must be

positioned on the child's shoulder without

touching the neck.

Ensure that the lap part of the seat belt

passes correctly over the child's thighs.

Use a booster seat with a backrest, equipped

with a belt guide at shoulder level.

Additional protections

To prevent accidental opening of the

doors and rear windows, use the "Child lock".

Take care not to open the rear windows by

more than one third.

To protect young children from the sun's rays,

fit side blinds on the rear windows.

As a safety measure, do not leave:

– A child alone and unsupervised inside a

vehicle.

– A child or an animal in a vehicle which is

exposed to the sun, with the windows closed.

– The keys within reach of children inside the

vehicle.

Child seat at the rear

Forward-facing or rearward-facing

► Move the vehicle's front seat forward and

straighten the backrest so that the legs of the

child in the forward-facing or rearward-facing

child seat itself do not touch the vehicle's front

seat.

► Check that the backrest of the forward-facing

child seat is as close as possible to the backrest

of the vehicle's rear seat, and ideally in contact

with it.

In the presence of a dog guard, it

is essential that booster seat type

child seats with backrest be installed in the

second row.

Centre rear seat

A child seat with a support leg must never be

installed on the

centre rear passenger seat

Child seat at the front

► Adjust the front passenger seat to the

highest

and

fully back longitudinal position

with the backrest straightened

"Forward facing"

You must leave the front passenger

airbag active.

103

Safety

"Rearward facing"

The front passenger airbag must be

deactivated before installing a rearward

facing child seat. Otherwise,

the child risks

being seriously injured or killed if the

airbag is deployed

Warning label - Front passenger airbag

You must comply with the following instruction,

as reminded by the warning label on both sides

of the passenger sun visor:

NEVER use a rearward facing child restraint

on a seat protected by an ACTIVE AIRBAG in

front of it, DEATH or SERIOUS INJURY to the

CHILD can occur.

Deactivating the front

passenger airbag

Passenger airbag OFF

To ensure the safety of the child, the front

passenger airbag MUST be deactivated

when a "rearward facing" child seat is

installed on the front passenger seat.

Otherwise, the child risks being seriously

injured or killed in the event of deployment of

the airbag.

Vehicles not equipped with a

deactivation/reactivation control

Installing a "rearward facing" child seat on

the front passenger seat is strictly prohibited

- risk of death or serious injury in the event of

airbag deployment!

Deactivating/Reactivating the front

passenger airbag

For vehicles on which it is fitted, the switch is

located inside the glove box.

With the ignition off:

► To deactivate the airbag, turn the key in the

switch to the "

OFF

" position.

► To reactivate it, turn the key to the "

position.

When the ignition is switched on:

This warning lamp comes on and remains

lit to signal deactivation.

This warning lamp comes on for about 1

minute to signal activation.

104

Safety

Recommended child seats

Range of child seats secured using a

three-

point seat belt

Group 0+: from birth to 13 kg

"RÖMER Baby-Safe"

Installed in the "rearward facing" position.

Groups 2 and 3: from 15 to 36 kg

"RÖMER KIDFIX 2R"

Can be fitted to the vehicle's ISOFIX

mountings.

The child is restrained by the seat belt.

Only suitable for installation on the side rear

seats.

The head restraint on the vehicle seat must

be removed.

Groups 2 and 3: from 15 to 36 kg

"GRACO Booster"

The child is restrained by the seat belt.

Only suitable for installation on the front

passenger seat or on the rear side seats.

105

Safety

Locations for child seats secured using the seat belt

In accordance with European regulations, this table indicates the options for installing universally approved

(a)

child seats secured using the seat belt,

based on the child’s weight and the seat position in the vehicle.

Weight of the child

/indicative age

Seat

Front passenger

airbag

Under 13 kg

(groups 0

(b)

and

0+)

Up to about 1

year old

From 9 to 18 kg

(group 1)

From about 1 to 3

years old

From 15 to 25 kg

(group 2)

From about 3 to 6

years old

From 22 to 36 kg

(group 3)

From about 6 to

10 years old

Row 1

(c)

Passenger seat

with height adjustment

(d)

without height

adjustment

(e)

Deactivated:

"OFF"

Activated: "ON"

Row 2

(f)

Rear seats

(c) (g)

Row 3

(f)

Rear side seats

106

Safety

Seat position suitable for the installation of

a child seat secured using the seat belt and

universally approved for "rearward facing"

and/or "forward facing" use.

UF:

Seat position suitable for the installation a

child seat secured using the seat belt and

universally approved for "forward facing"

use.

Seat position not suitable for the installation

of a child seat for the specified weight group.

(a)

Universal child seat: child seat that can be

installed in all vehicles using the seat belt.

(b)

Group 0: from birth to 10 kg.

Carrycots and "car" infant carriers cannot be

installed on the front passenger seat.

Carrycots and "car" infant carriers cannot be

installed on the front passenger seat or in

the 3

row.

(c)

Refer to the current legislation in your

country before installing your child on this

seat.

(d)

Maximum height position

(e)

Backrest straightened.

(f)

To install a "rearward facing" or "forward

facing" child seat at the rear, move the front

seat forward, then straighten the backrest to

allow enough room for the child seat and the

child's legs.

(g)

A child seat with a support leg must never

be installed on the centre rear seat.

"ISOFIX" mountings

The seats shown below are fitted with ISOFIX

compliant mountings:

Depending on version.

The mountings comprise three rings for each

seat, indicated by a marking:

– Two rings

, located between the vehicle seat

backrest and cushion.

107

Safety

The 2 latches on

ISOFIX child seats

are

secured to them.

– One ring

, located behind the seat, called the

TOP TETHER

, for attaching seats fitted with an

upper strap.

Front seat

Depending on country of sale.

Rear seats

This system prevents the child seat from tipping

forwards in the event of a front impact.

This ISOFIX mounting system provides fast,

reliable and safe fitting of the child seat in the

vehicle.

To secure the child seat to the

TOP TETHER

► Remove and stow the head restraint before

installing the child seat on this seat (refit it once

the child seat has been removed).

► Pass the strap of the child seat behind the

seat backrest, centring it between the openings

for the head restraint rods.

► Secure the upper strap hook to ring

► Tighten the upper strap.

When fitting an ISOFIX child seat

to the left-hand rear seat of the

bench seat, before fitting the seat, first move

the centre rear seat belt towards the middle of

108

Safety

the vehicle, so as to avoid the seat interfering

with the operation of the seat belt.

An incorrectly installed child seat in a

vehicle compromises the child's safety in

the event of an accident.

Strictly observe the fitting instructions

provided in the user guide supplied with the

child seat.

For information about the options for

fitting ISOFIX child seats in your vehicle,

refer to the summary table.

Recommended ISOFIX child

seats

Also consult the user guide from the child

seat’s manufacturer to find out how to

install and remove the seat.

"RÖMER Baby-Safe and its ISOFIX base"

(size category:

)

Group 0+: from birth to 13 kg

"RÖMER Baby-Safe and its ISOFIX base"

(size category:

)

Group 0+: from birth to 13 kg

Installed "rearward facing" using an ISOFIX

base which is attached to rings

The base has a support leg, height-

adjustable, which rests on the vehicle's floor.

This child seat can also be secured with a

seat belt. In this case, only the shell is used

and attached to the vehicle seat using the

three-point seat belt.

RÖMER Duo Plus ISOFIX

(size category:

)

Group 1: from 9 to 18 kg

RÖMER Duo Plus ISOFIX

(size category:

)

Group 1: from 9 to 18 kg

Suitable for forward-facing installation only.

Attached to rings

and ring

, referred to as

TOP TETHER, using an upper strap.

Three seat body angles: sitting, reclining,

lying down.

This child seat can also be used in seat

positions not equipped with ISOFIX

mountings. In this case, it must be secured to

the vehicle's seat by the three-point seat belt.

Adjust the front seat of the vehicle so that the

child's feet do not touch the backrest.

109

Safety

Locations for ISOFIX child seats

In accordance with European regulations, this table shows the options for installing ISOFIX child seats on vehicle seats fitted with ISOFIX mountings.

In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, as determined by a letter from

, is indicated on the child

seat next to the i-Size logo.

Weight of the child

/indicative age

Under 10 kg

(group 0)

Up to about 6

months old

Under 10 kg

Under 13 kg

(group 0)

(group 0+)

Up to about 1 year old

From 9 to 18 kg

(group 1)

From about 1 to 3 years old

Type of ISOFIX child seat

Carrycot

Rearward facing

Rearward

facing

Forward facing

ISOFIX size category

Seat

Front

passenger

airbag

Row 1

(a)

Passenger

seat

with or

without

height

adjustment

Deactivated:

"OFF"

IUF/IL

Activated:

"ON"

IUF/IL

Row 2

Outer rear

seats

(b)

IUF/IL

Centre rear

seat

Not ISOFIX

110

Safety

Weight of the child

/indicative age

Under 10 kg

(group 0)

Up to about 6

months old

Under 10 kg

Under 13 kg

(group 0)

(group 0+)

Up to about 1 year old

From 9 to 18 kg

(group 1)

From about 1 to 3 years old

Type of ISOFIX child seat

Carrycot

Rearward facing

Rearward

facing

Forward facing

ISOFIX size category

Seat

Front

passenger

airbag

Row 1

(a)

Passenger

seat

with or

without

height

adjustment

Deactivated:

"OFF"

Not ISOFIX

Activated:

"ON"

Row 2

Rear seat

behind the

driver's seat

(b)

IUF/IL

Rear seat

behind the

passenger

seat

(b)

IUF/IL

Centre rear

seat

IUF/IL

111

Safety

Weight of the child

/indicative age

Under 10 kg

(group 0)

Up to about 6

months old

Under 10 kg

Under 13 kg

(group 0)

(group 0+)

Up to about 1 year old

From 9 to 18 kg

(group 1)

From about 1 to 3 years old

Type of ISOFIX child seat

Carrycot

Rearward facing

Rearward

facing

Forward facing

ISOFIX size category

Seat

Front

passenger

airbag

Row 3

Outer rear

seats

Not ISOFIX

IUF:

Seat position suitable for the installation of an

sofix

niversal seat, "

orward facing", secured using the upper strap.

IL:

Seat position suitable for the installation of an

sofix

emi-

niversal seat, either:

– "rearward facing" fitted with an upper strap or a support leg.

– "forward facing" fitted with a support leg.

– a carrycot fitted with an upper strap or a support leg.

For securing the upper strap using the

ISOFIX mountings

, refer to the corresponding section.

Seat position not suitable for the installation of an ISOFIX seat or carrycot for the specified weight group.

(a)

Refer to the current legislation in your country before placing a child in this seat position.

(b)

The installation of a carrycot on this seat may prevent the use of one or more of the other seats in this row.

112

Safety

i-Size child seats

i-Size child seats have two latches that are anchored to the two rings

These i-Size child seats also have:

– either an upper strap that is attached to ring

– or a support leg that rests on the vehicle floor, compatible with the approved i-Size seat position.

Their role is to prevent the child seat from tipping forward in the event of a collision.

For more information on the

ISOFIX mountings

, refer to the corresponding section.

In accordance

with European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with ISOFIX

mountings approved for i-Size.

Seat

Front passenger airbag

i-Size restraint system

Row 1

(a)

Passenger seat

with or without height adjustment

Deactivated: "OFF"

i-U

Not i-Size

Activated: "ON"

i-UF

Not i-Size

Row 2

Rear side seats

i-U

Rear central seat

Not i-Size

i-U

113

Safety

Seat

Front passenger airbag

i-Size restraint system

Row 3

Rear side seats

Not i-Size

i-U:

Suitable for i-Size restraint systems in the

"Universal" category, "forward facing" and

"rearward facing".

i-UF:

Only suitable for i-Size restraint systems

in the "Universal" category which are

"forward facing".

Seat position not suitable for i-Size restraint

systems in the "Universal" category.

(a)

Refer to the current legislation in your

country before installing a child at this seat

position.

Manual child lock

The system prevents a rear door from being

opened using its interior handle.

The red control is located on the edge of each

rear door (marked by a label).

Activation/Deactivation

► To activate the child lock, turn the built-in key

in the

red

control as far as possible:

• To the right on the left-hand rear door.

• To the left on the right-hand rear door.

► To deactivate the child lock, turn the key in

the opposite direction.

Do not confuse the child lock control,

which is red, with the back-up locking

control, which is black.

Electric child lock

This control prevents the opening of the rear

doors using their interior handles and the use of

the rear electric windows.

Activation/Deactivation

► With the ignition on, press this button to

activate/deactivate the child lock.

115

Driving

Driving recommendations

► Observe the driving regulations and remain

vigilant whatever the traffic conditions.

► Monitor your environment and keep your

hands on the wheel to be able to react to

anything that may happen any time.

► Drive smoothly, anticipate the need for

braking and maintain a longer safety distance,

especially in bad weather.

► Stop the vehicle before performing operations

that require sustained attention (e.g. settings).

► During long trips, take a break every 2 hours.

Important!

Never leave the engine running in a

closed space without sufficient

ventilation.

Internal combustion engines emit

toxic exhaust gases such as carbon

monoxide. Danger of poisoning and death!

In very severe wintry conditions

(temperature below -23°C), let the engine

run for 4 minutes before moving off, to ensure

the correct operation and durability of the

mechanical components of your vehicle

(engine and gearbox).

Never drive with the parking brake

applied.

Risk of overheating and

damaging the braking system!

Never park the vehicle and never

leave the engine running on a

flammable surface (e.g. dry grass, dead

leaves).

The vehicle exhaust system is very

hot, even several minutes after the engine

stops. Risk of fire!

Never drive on surfaces covered with

vegetation (e.g. tall grass,

accumulated dead leaves, crops, debris)

such as a field, a country lane overgrown

with bushes or a grassy verge.

This vegetation could come into contact with

the vehicle's exhaust system or other systems

which are very hot. Risk of fire!

Make sure you do not leave any item in

the passenger compartment which could

act like a magnifying glass under the effect of

the sun's rays and cause a fire. Risk of fire or

damage to interior surfaces!

Never leave the vehicle unattended,

with the engine running.

If you have to

leave your vehicle with the engine running,

apply the parking brake and put the gearbox

into neutral or position

(depending on

the type of gearbox).

Never leave children inside the vehicle

unsupervised.

On flooded roads

We strongly advise against driving on flooded

roads, as this could cause serious damage to

the internal combustion engine or electric motor,

the gearbox and the electrical systems of the

vehicle.

If the vehicle absolutely must drive through a

flooded section of road:

► Check that the depth of the water does not

exceed 15 cm, taking account of waves that

might be generated by other users.

► Deactivate the Stop & Start function.

► For rechargeable hybrid engines, place the

mode selector in

4WD

position (depending on

version).

► Drive as slowly as possible without stalling. In

all cases, do not exceed 6 mph (10 km/h).

► Do not stop and do not switch off the engine.

On leaving the flooded road, as soon as safety

conditions allow, make several light brake

applications to dry the brake discs and pads.

If in doubt about the state of your vehicle,

contact a PEUGEOT dealer or a qualified

workshop.

116

Driving

Towing

Driving with a trailer places greater

demands on the towing vehicle and

particular care must be taken.

Do not exceed the maximum towable

weights.

At altitude:

reduce the maximum load by

10% per 1,000 metres of altitude; the lower

air density at high altitudes decreases engine

performance.

New vehicle:

do not tow a trailer until the

vehicle has driven at least 620 miles

(1,000 kilometres).

If the outside temperature is high, let the

engine idle for 1 to 2 minutes after the

vehicle comes to a stop, to help it to cool.

Before setting off

Nose weight

► Distribute the load in the trailer so that the

heaviest items are located as close as possible

to the axle, and the nose weight (at the point

where it joins your vehicle) approaches the

maximum permitted, without exceeding it.

Tyres

► Check the tyre pressures of the towing

vehicle and of the trailer, observing the

recommended pressures.

Lighting

► Check the electrical signalling on the trailer

and the headlamp beam height of your vehicle.

If a genuine PEUGEOT towing device is

used, the rear parking sensors will be

deactivated automatically to avoid activating

the audible signal.

When driving

Cooling

Towing a trailer uphill causes the coolant

temperature to increase. The maximum towable

load depends on the gradient and the exterior

temperature. The fan’s cooling capacity does not

increase with engine speed.

► Reduce speed and lower the engine speed to

limit the amount of heating produced.

► Pay constant attention to the coolant

temperature.

If this warning lamp and the

STOP

warning lamp come on, stop the

vehicle and switch off the engine as soon as

possible.

Brakes

Using the engine brake is recommended to limit

the overheating of the brakes. Braking distances

are increased when towing a trailer.

Side wind

Bear in mind that the vehicle will be more

susceptible to wind when towing.

Anti-theft protection

Electronic immobiliser

The keys contain a code, which must be

recognised by the vehicle before starting is

possible.

If the system malfunctions, indicated by the

display of a message, the engine will not start.

Contact a PEUGEOT dealer.

Starting/switching off the

engine

The electronic key must be present in the

passenger compartment.

If the electronic key is not detected, a

message is displayed.

Move the electronic key so that the engine

can be started or switched off.

If there is still a problem, refer to the "Key

not detected - Back-up starting or Back-up

switch-off" section.

117

Driving

Starting

► With a

manual gearbox

, place the gear lever

in neutral and fully depress the clutch pedal.

► With an

automatic gearbox

, select mode

and depress the brake pedal.

► Press the "

START/STOP

" button while

maintaining pressure on the pedal until the

engine starts.

Diesel engines

With low temperatures and/or when the engine

is cold, starting takes place only after the

preheating warning lamp goes out.

If this warning lamp comes on after

pressing the "

START/STOP

" button:

► Keep the pedal fully depressed and do not

press the "

START/STOP

" button again until the

engine is running at a stabilised engine speed.

In all circumstances, if one of the starting

conditions is not met, a message is displayed.

In some circumstances, a message indicates

that it is necessary to turn the steering wheel

while pressing the "

START/STOP

" button to

assist unlocking of the steering column.

Petrol engines

After a cold start, pre-heating the

catalytic converter can cause noticeable

engine vibrations, for anything up to

2 minutes (accelerated idle speed).

Hybrid engines

The vehicle always starts with the petrol

engine to ensure the efficiency of the catalytic

converter and the availability of the brake

assist.

After a few moments, the petrol engine may

stop if the operating conditions allow (state

of charge of the traction battery, external

temperature, torque demand, selected driving

mode).

If the engine stalls, release the clutch

pedal and fully depress it again, the

engine will restart automatically.

Starting rechargeable hybrid

vehicles

► Fully depress the brake pedal and press

the

START/STOP

button for approximately 2

seconds.

► Keep your foot on the pedal until this

indicator lamp comes on, indicating the

activation of the rechargeable hybrid system

(confirmed by an audible signal).

To exit Park mode, wait for the READY

indicator lamp to come on.

By default, the system starts in

Electric

mode.

Depending on certain parameters (battery

charge level or outside temperature), the system

determines whether it is necessary to start the

petrol engine.

It is possible to change the driving mode at any

time using the mode selector.

When the vehicle starts in electric mode,

it makes no noise.

Pay particular attention to pedestrians and

cyclists who may not hear the vehicle coming

despite the pedestrian horn.

Switching off

► Immobilise the vehicle using the parking

brake.

► With a

manual gearbox

, ideally put the gear

lever into neutral.

► With an

automatic gearbox

, ideally select

mode

► Press the "

START/STOP

" button.

► For rechargeable hybrid vehicles, before

leaving the vehicle, check that the

READY

indicator lamp is switched off.

In some circumstances, it is necessary to turn

the steering wheel to lock the steering column.

118

Driving

On certain versions with an automatic gearbox

(EAT6/EAT8), the steering column does not lock,

but the gearbox locks in mode

If the vehicle is not immobilised, the

engine will not stop.

With the engine off, the braking and

steering assistance systems are also cut

off - risk of loss of control of the vehicle!

Never leave your vehicle with the

electronic key still inside.

Switching on the ignition

without starting the engine

With the electronic key in the passenger

compartment, pressing the "

START/STOP

button,

without depressing any of the pedals

allows the ignition to be switched on without

starting the engine (the instrument panel and

accessories such as the audio system and the

lighting will come on).

► Press this button again to switch off the

ignition and allow the vehicle to be locked.

Key not detected

Back-up starting

A back-up reader is fitted to the steering column,

to enable the engine to be started if the system

fails to detect the key in the recognition zone, or

if the battery in the electronic key is flat.

► Place and hold the remote control against the

reader.

►

With a manual gearbox

, place the gear lever

in neutral, then fully depress the clutch pedal.

►

With an automatic gearbox

, select mode

then depress the brake pedal.

► Press the "

START/STOP

" button.

The engine starts.

Back-up switch-off

If the electronic key is not detected or is no

longer in the recognition zone, a message

appears in the instrument panel when closing a

door or trying to switch off the engine.

► To confirm the instruction to switch off the

engine, press the "

START/STOP

" button for

approximately 5 seconds.

In the event of a fault with the electronic key,

contact a PEUGEOT dealer or a qualified

workshop.

119

Driving

Emergency switch-off

In case of emergency only, the engine can be

switched off without conditions (even when

driving).

► Press the "

START/STOP

" button for about

5 seconds.

In this case, the steering column locks as soon

as the vehicle stops.

On certain versions with automatic gearbox

(EAT6/EAT8), the steering column does not lock.

Electric parking brake

In automatic mode, this system applies the

parking brake when the engine is switched off

and releases it when the vehicle moves off.

At any time, with the engine running:

► To apply the parking brake, briefly pull the

control.

► To release it, briefly push the control while

pressing the brake pedal.

Automatic mode is activated by default.

This automatic operation can be deactivated in

certain situations.

Indicator lamp

This indicator lamp comes on both on the

instrument panel and on the control to

confirm that the parking brake has been applied,

accompanied by display of the message

Parking brake applied

The indicator lamp goes out to confirm the

release of the parking brake, accompanied by

the display of the message "

Parking brake

released

The indicator lamp flashes in response to a

manual request to apply or release the brake.

In the event of a battery failure, the

electric parking brake will not operate.

As a safety measure, with a manual gearbox,

if the parking brake is not applied, immobilise

the vehicle by engaging a gear.

As a safety measure, with an automatic

gearbox, if the parking brake is not applied,

immobilise the vehicle by placing the supplied

chocks against one of the wheels.

Contact a PEUGEOT dealer or a qualified

workshop.

Before leaving the vehicle, check that the

parking brake is applied: the parking

brake indicator lamps on the instrument panel

and the control must be on fixed.

If the parking brake is not applied, there is an

audible signal and a message is displayed on

opening the driver's door.

Never leave a child alone inside the

vehicle, as they could release the parking

brake.

When the vehicle is parked: on a

steep slope, heavily loaded or during

towing

With a manual gearbox, turn the wheels

toward the pavement and engage a gear.

With an automatic gearbox, turn the wheels

toward the pavement and select mode

When towing, the vehicle is approved for

parking on slopes of up to 12%.

Manual operation

Manual release

With the ignition on or engine running:

► Press the brake pedal.

► While maintaining pressure on the brake

pedal, briefly push the control.

120

Driving

If the brake pedal is not depressed, the

parking brake is not released and a

message is displayed.

Manual application

With the vehicle stationary:

► Briefly pull the control.

The control indicator lamp flashes to confirm the

application request.

Automatic operation

Automatic release

First ensure that the engine is running and that

the driver's door is closed.

The electric parking brake gradually releases

automatically as the vehicle moves off.

With a manual gearbox

► Fully depress the clutch pedal and engage

first gear or reverse.

► Depress the accelerator pedal and release

the clutch pedal.

With an automatic gearbox

► Depress the brake pedal.

► Select mode

► Release the brake pedal and depress the

accelerator pedal.

If the brake does not release

automatically, check that the front doors

are fully closed.

When stationary with the engine running,

do not depress the accelerator pedal

unnecessarily. Risk of parking brake release.

Automatic application

With the vehicle stationary, the parking brake

is applied automatically when the engine is

switched off.

It is not applied automatically if the

engine stalls or enters STOP mode with

Stop & Start.

In automatic mode, the parking brake

can be manually applied or released at

any time using the control.

Special cases

Immobilising the vehicle with the

engine running

To immobilise the vehicle with the engine

running, briefly pull the control.

Parking the vehicle with the brake

released

In very cold conditions (ice), applying the

parking brake is not recommended.

To immobilise the vehicle, engage a gear or

place the chocks against one of the wheels.

With an automatic gearbox, mode

automatically selected when the ignition

is switched off. The wheels are blocked.

For more information on

Free-wheeling

, refer

to the corresponding section.

With an automatic gearbox, if you open

the driver's door while mode

engaged, an audible signal will sound and

mode

will be engaged. The audible signal

stops when the driver's door is closed.

Deactivating automatic

operation

In some situations, for example when it is

extremely cold or when towing (e.g. caravan,

breakdown), it may be necessary to deactivate

automatic operation of the system.

► Start the engine.

► Use the control to apply the parking brake, if

it is released.

► Take your foot fully off the brake pedal.

121

Driving

► Push the control for 10 to a maximum of

15 seconds.

► Release the control.

► Depress and hold the brake pedal.

► Pull the control for 2 seconds.

This indicator lamp on the instrument

panel comes on to confirm deactivation of

the automatic functions.

► Release the control and the brake pedal.

From this point onwards, only the manual

functions, using the control, allow the parking

brake to be applied and released.

► Follow this procedure again to reactivate

automatic operation (confirmed by the indicator

lamp on the instrument panel going out).

Emergency braking

If depressing the brake pedal fails to provide

effective braking or in exceptional circumstances

(e.g. driver unwell, assisted driving), the vehicle

can be braked by sustained pulling on the

electric parking brake control. Braking continues

for as long as the control is kept pulled, and

ceases when the control is released.

The ABS and DSC systems stabilise the vehicle

during emergency braking.

If emergency braking malfunctions, the message

Parking brake fault

" will be displayed on the

instrument panel.

If the ABS and DSC systems

malfunction, indicated by lighting

one or both warning lamps on the instrument

panel, the vehicle’s stability is no longer ensured.

► In this case, ensure the vehicle's stability by

successive and repeated "pull-release" actions

on the electric parking brake control until the

vehicle comes to a complete stop.

6-speed manual gearbox

Engaging 5

or 6

gear

► Move the gear selector fully to the right to

engage 5

or 6

gear.

Failure to follow this instruction could

cause permanent damage to the gearbox

(inadvertent engagement of 3

or 4

gear).

Engaging reverse gear

► Raise the trigger under the knob and move

the gear lever to the left, then forwards.

Only engage reverse gear when the

vehicle is stationary with the engine at

idle.

As a safety precaution and to facilitate

starting of the engine, always select

neutral and depress the clutch pedal.

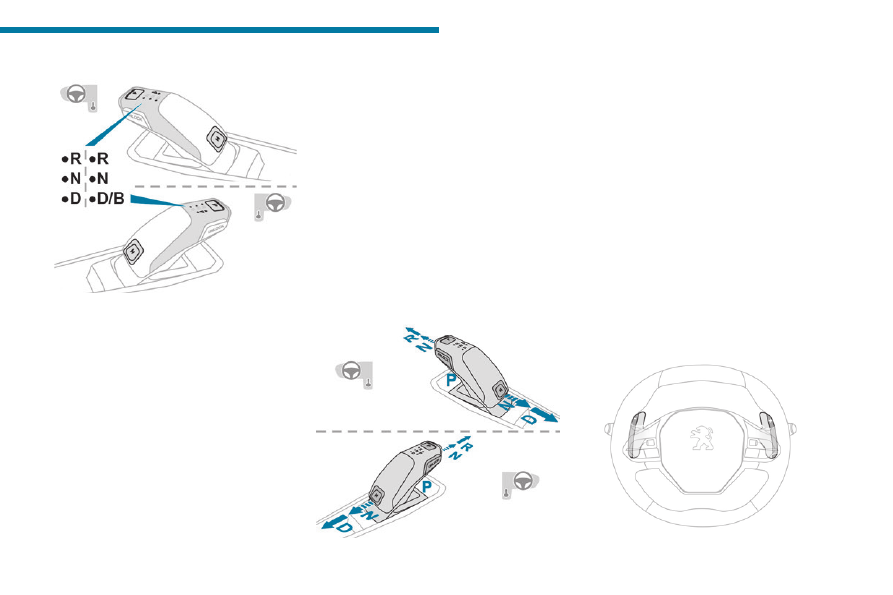

Automatic gearbox

(type 1)

With petrol/Diesel engines

Automatic 6-speed or 8-speed gearbox with push

selector. It also offers a manual mode with gear

changes via control paddles located behind the

steering wheel.

With rechargeable hybrid

engines

Automatic 8-speed gearbox with push selector

and regenerative braking function.

With the exception of the manual mode and

regenerative braking function, its operation is

identical to that of other EAT8 gearboxes.

122

Driving

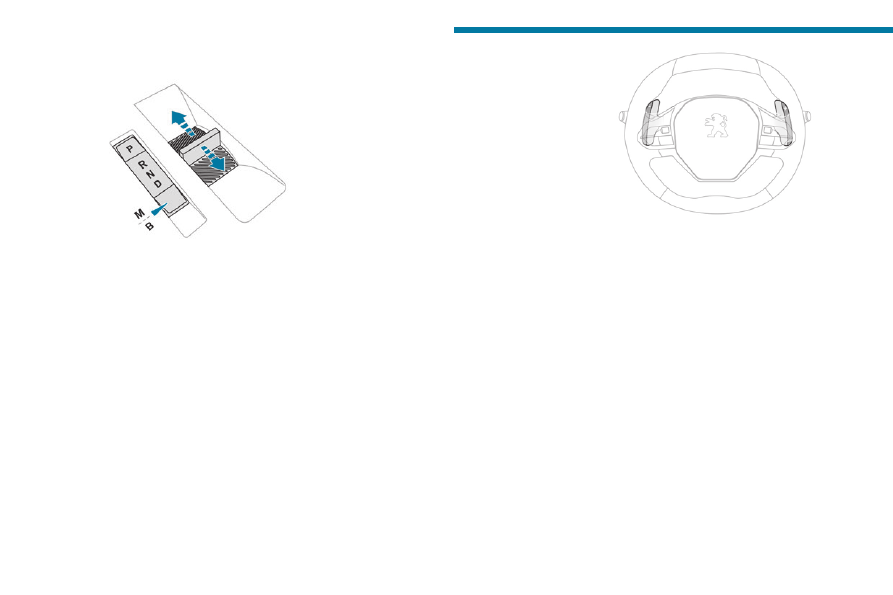

Push selector

Auto Park

Press this button to switch to Parking mode.

For parking the vehicle: the front wheels are

blocked.

Reverse

Neutral

To free-wheel and move the vehicle, with the

ignition off.

For more information on

Free-wheeling

, refer

to the corresponding section.

Driving in automatic mode

The gearbox manages gear changes

according to the style of driving, the road

profile and the vehicle load.

Driving in manual mode (Petrol / Diesel)

Press this button to switch to manual mode.

The driver changes gear using the steering-

mounted controls.

Driving in automatic mode with regenerative

braking function (Rechargeable hybrid)

Press this button to activate the regenerative

braking function.

The gearbox also manages braking when the

accelerator pedal is released.

► In mode

, with your foot on the brake pedal,

push without passing the point of resistance:

• Forwards, mode

is selected.

• Backwards, mode

is selected.

Release the selector fully after each push; it

will then return to its initial position.

Special cases

To avoid mode

(quick change from

and

back again):

► In mode

, push backwards past the point of

resistance, mode

is selected.

► In mode

, push forwards past the point of

resistance, mode

is selected.

► To return to mode

, push without passing

the point of resistance.

Steering-mounted controls

(Depending on equipment)

In mode

, the steering-mounted control

paddles can be used to change gear manually.

They cannot be used to select neutral or to

engage or disengage reverse gear.

► Pull the "

" or "

" paddle towards you and

release to shift up or down a gear, respectively.

Information displayed on

the instrument panel

When the ignition is switched on, the gearbox

status is displayed on the instrument panel:

Parking

Reverse

Neutral

D1...6 / 8

Automatic forward gear

B1...8

Automatic forward gear with

regenerative braking function

activated

M1...6 / 8

Manual forward gear

In all-electric driving, the gear engaged is not

indicated.

The state of the gearbox remains displayed on

the instrument panel for a few seconds after

switching off the ignition.

123

Driving

Operation

Only appropriate mode change instructions are

validated.

With the engine running, if it is necessary to

depress the brake pedal to change modes,

an alert message will be displayed on the

instrument panel.

With the engine running and the brakes

released, if

is selected, the

vehicle moves off, even without pressing the

accelerator pedal.

Never depress the accelerator and brake

pedals at the same time - risk of damage to

the gearbox!

If you open the driver's door while mode

is engaged, an audible signal will

sound and mode

will be engaged. The

audible signal stops when the driver's door is

closed.

At speeds below 3 mph (5 km/h),

opening the driver’s door will engage

mode

- risk of sudden braking!

In the event of battery failure, it is

essential to place the chock(s) supplied

with the tool kit against one of the wheels to

immobilise the vehicle.

Special aspects of automatic mode

The gearbox selects the gear that provides

optimal performance based on ambient

temperature, road profile, vehicle loading and

driving style.

For maximum acceleration, press the accelerator

fully down (kick-down). The gearbox changes

down automatically or holds the selected gear

until the maximum engine speed is reached.

Steering mounted controls allow the driver to

temporarily select a gear, if the vehicle speed

and engine speed conditions permit.

Special aspects of manual mode

The gearbox only changes from one gear to

another if the vehicle speed and engine speed

conditions permit.

Regenerative braking (Brake function)

The regenerative braking function emulates

engine braking, slowing the vehicle with no need

to depress the brake pedal. When the driver

releases the accelerator pedal, the vehicle slows

down more quickly.

The energy recovered when the accelerator

pedal is released is used to partially recharge the

traction battery.

This partial recharging has no effect on

the charge level indicator.

The resulting deceleration of the vehicle

does not cause the brake lamps to come

on.

► From mode

, press button

to activate/

deactivate the function.

on the instrument panel is replaced with

The state of the function is not saved when the

ignition is switched off.

In some situations (e.g. battery full,

extreme temperatures), the amount of

regenerative braking may be temporarily

limited, resulting in less deceleration.

The driver must remain alert to traffic

conditions and must always be ready to use

the brake pedal.

Regenerative braking using the brake

pedal

Energy recovery can also be produced

by depressing the brake pedal in order to

partially recharge the traction battery, without

affecting the charge level indicator.

Starting the vehicle

► Fully depress the brake pedal.

► Start the engine.

► With your foot on the brake pedal, push once

or twice backwards to select automatic mode

or forwards to shift into reverse gear

► Release the brake pedal.

124

Driving

► Accelerate gradually to automatically release

the electric parking brake.

The vehicle moves off immediately.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Switching the vehicle off

Regardless of the current gearbox mode, mode

is immediately engaged automatically when

the ignition is switched off.

However, in mode

, mode

will be engaged

after a delay of 5 seconds (time to enable free-

wheeling mode).

Check that mode

has been engaged and

that the electric parking brake was applied

automatically; if not, apply it manually.

The corresponding indicator lamps on the

gear selector and the electric parking

brake control must be on, as well as the

indicator lamps on the instrument panel.

Gearbox malfunction

This warning lamp comes on,

accompanied by an audible signal and

the display of a message.

Go to a PEUGEOT dealer or a qualified

workshop.

Do not drive faster than 62 mph (100 km/h),

keeping to the speed limit.

Switching of the gearbox to back-up mode

Mode

locks in third gear.

The paddles on the steering wheel do not work

and mode

is no longer accessible.

You may feel a significant jolt on engaging

reverse gear. This will not damage the gearbox.

Selector malfunction

Minor malfunction

This warning lamp comes on,

accompanied by the display of a message

and an audible signal.

Drive carefully.

Go to a PEUGEOT dealer or a qualified

workshop.

In some cases, the selector indicator lamps may

no longer come on, but the gearbox state is still

displayed on the instrument panel.

Major malfunction

This warning lamp comes on,

accompanied by the display of a

message.

You must stop the vehicle.

Stop as soon as it is safe to do so and

switch off the ignition.

Contact a PEUGEOT dealer or a qualified

workshop.

Automatic gearbox

(type 2)

With petrol/Diesel engines

Automatic 6-speed or 8-speed gearbox with push

selector. It also offers a manual mode with gear

changes via control paddles located behind the

steering wheel.

With rechargeable hybrid

engines

Automatic 8-speed gearbox with push selector

and regenerative braking function.

With the exception of the manual mode and

regenerative braking function, its operation is

identical to that of other EAT8 gearboxes.

125

Driving

Push selector

Parking

To park the vehicle: the front wheels are

blocked.

Reverse gear

Neutral

To move the vehicle with the ignition off,

or to allow it to free-wheel.

For more information on

Changing

to free-wheeling

, refer to the

corresponding section.

Driving in automatic mode (Petrol /

Diesel)

The gearbox manages gear changes

according to the style of driving, the road

profile and the vehicle load.

D/B

Driving in automatic mode (

) or driving

in automatic mode with regenerative

braking (

) (Rechargeable hybrid)

The gearbox manages gear changes

according to the style of driving, the road

profile and the vehicle load. With the

regenerative braking function activated,

the gearbox also controls braking when

the accelerator pedal is released.

Driving in manual mode (Petrol / Diesel)

The driver changes gear using the

steering-mounted controls.

Unlock

To unlock the gearbox and come out

or to change to

, with the foot on

the brake pedal.

Press and hold this button before

pushing the selector.

► Move the selector by pressing it forwards

(

) or rearwards (

) once or twice,

passing the point of resistance if necessary.

The push selector returns to its initial position

when released.

For example, to change from

, while

pressing

Unlock

, push forward twice without

crossing the point of resistance or push once

crossing the point of resistance:

– In the first case, the gearbox goes from

then from

– In the second case, the gearbox goes directly

from

Steering-mounted controls

(Depending on equipment)

In mode

, the steering-mounted control

paddles can be used to change gear manually.

They cannot be used to select neutral or to

engage or disengage reverse gear.

126

Driving

► Pull the "

" or "

" paddle towards you and

release to shift up or down a gear, respectively.

Information displayed on

the instrument panel

When the ignition is switched on, the gearbox

status is displayed on the instrument panel:

Parking

Reverse

Neutral

D1...6 / 8

Automatic forward gear

B1...8

Automatic forward gear with

regenerative braking function

activated

M1...6 / 8

Manual forward gear

In all-electric driving, the gear engaged is not

indicated.

The state of the gearbox remains displayed on

the instrument panel for a few seconds after

switching off the ignition.

Operation

With the engine running, if it is necessary to

press the brake pedal and/or the

Unlock

button

in order to change mode, an alert message is

displayed in the instrument panel.

Only appropriate attempted changes of mode

are accepted.

With the engine running and the brakes

released, if

is selected, the

vehicle moves off, even without pressing the

accelerator pedal.

Never press the accelerator and brake

pedals at the same time - risk of damage

to the gearbox!

In the event of a battery failure, you must

place the chocks supplied with the vehicle

tools against one of the wheels to immobilise

the vehicle.

Unlocking the gearbox

– From mode

► Fully depress the brake pedal.

► Press the

Unlock

button.

► While continuing to press the brake pedal

and the

Unlock

button, select another mode.

– From neutral

, at a speed below 3 mph

(5 km/h):

► Fully depress the brake pedal.

► While continuing to depress the brake

pedal, select another mode.

Engaging reverse gear

► Slow down until you come to a stop.

► Depress the brake pedal, then press the

Unlock

button.

► While continuing to press, select mode

Manual mode

Entering the mode:

► With mode

initially selected.

► Press button

; the green indicator lamp in

the button comes on.

Exiting the mode:

► Push forwards once to return to

► Press button

; the indicator lamp in the

button goes off.

Switching off the ignition

To switch off the ignition, the vehicle must be

stationary.

Free-wheeling

For more information on

Free-wheeling

, refer to

the corresponding section.

If you open the driver's door while mode

is engaged, an audible signal will

sound. It will stop when you close the driver's

door again.

Special aspects of automatic mode

The gearbox selects the gear that provides

optimal performance based on ambient

temperature, road profile, vehicle loading and

driving style.

For maximum acceleration, press the accelerator

fully down (kick-down). The gearbox changes

down automatically or holds the selected gear

until the maximum engine speed is reached.

Steering mounted controls allow the driver to

temporarily select a gear, if the vehicle speed

and engine speed conditions permit.

127

Driving

Special aspects of manual mode

The gearbox only changes from one gear to

another if the vehicle speed and engine speed

conditions permit.

Regenerative braking (Brake function)

The regenerative braking function emulates

engine braking, slowing the vehicle with no need

to depress the brake pedal. When the driver

releases the accelerator pedal, the vehicle slows

down more quickly.

The energy recovered when the accelerator

pedal is released is used to partially recharge the

traction battery.

This partial recharging has no effect on

the charge level indicator.

The resulting deceleration of the vehicle

does not cause the brake lamps to come

on.

► From mode

D/B

, move the push selector

backwards to activate/deactivate the function.

on the instrument panel is replaced with

The state of the function is not saved when the

ignition is switched off.

In some situations (e.g. battery full,

extreme temperatures), the amount of

regenerative braking may be temporarily

limited, resulting in less deceleration.

The driver must remain alert to traffic

conditions and must always be ready to use

the brake pedal.

Regenerative braking using the brake

pedal

Energy recovery can also be produced

by depressing the brake pedal in order to

partially recharge the traction battery, without

affecting the charge level indicator.

Starting the vehicle

From mode

► Fully depress the brake pedal.

► Start the engine.

► Maintaining pressure on the brake pedal,

press the

Unlock

button.

► Push once or twice rearwards to select

the automatic mode

, or forwards to engage

reverse

From neutral

► Fully depress the brake pedal.

► Start the engine.

► Maintaining pressure on the brake pedal,

push rearwards to select the automatic mode

or forwards, while pressing the

Unlock

button to

engage reverse

Then, from

► Release the brake pedal.

► Accelerate gradually to automatically release

the electric parking brake.

The vehicle moves off immediately.

Automatic gearbox

Never try to start the engine by pushing

the vehicle.

Switching the vehicle off

Regardless of the current gearbox mode, mode

is immediately engaged automatically when

the ignition is switched off.

However, in mode

, mode

will be engaged

after a delay of 5 seconds (time to enable free-

wheeling mode).

Check that mode

has been engaged and

that the electric parking brake was applied

automatically; if not, apply it manually.

The corresponding indicator lamps on the

gear selector and the electric parking

brake control must be on, as well as the

indicator lamps on the instrument panel.

Gearbox malfunction

This warning lamp comes on,

accompanied by an audible signal and

the display of a message.

Go to a PEUGEOT dealer or a qualified

workshop.

Do not drive faster than 62 mph (100 km/h),

keeping to the speed limit.

128

Driving

Switching of the gearbox to back-up mode

Mode

locks in third gear.

The paddles on the steering wheel do not work

and mode

is no longer accessible.

You may feel a significant jolt on engaging

reverse gear. This will not damage the gearbox.

Selector malfunction

Minor malfunction

This warning lamp comes on,

accompanied by the display of a message

and an audible signal.

Drive carefully.

Go to a PEUGEOT dealer or a qualified

workshop.

In some cases, the selector indicator lamps may

no longer come on, but the gearbox state is still

displayed on the instrument panel.

Major malfunction

This warning lamp comes on,

accompanied by the display of a

message.

You must stop the vehicle.

Stop as soon as it is safe to do so and

switch off the ignition.

Contact a PEUGEOT dealer or a qualified

workshop.

Automatic gearbox

(type 3)

6-speed electrified

dual-clutch automatic

gearbox with push selector for hybrid vehicles.

It also offers a manual mode with gear changes

via control paddles located behind the steering

wheel.

It includes the 48 V electric motor, which

improves the performance of the petrol engine,

reduces fuel consumption and drives in

all-electric.

Push selector

Auto Park

Press this button to switch to Parking mode.

For parking the vehicle: the front wheels are

blocked.

Reverse

Neutral

To free-wheel and move the vehicle, with the

ignition off.

For more information on

Free-wheeling

, refer

to the corresponding section.

Driving in automatic mode

The gearbox manages gear changes

according to the style of driving, the road

profile and the vehicle load.

The gearbox also manages braking when the

accelerator pedal is released.

Driving in manual mode

Press this button to switch to manual mode.

The driver changes gear using the steering-

mounted controls.

► In mode

, with your foot on the brake pedal,

push without passing the point of resistance:

• Forwards, mode

is selected.

• Backwards, mode

is selected.

Release the selector fully after each push; it

will then return to its initial position.

Special cases

To avoid mode

(quick change from

and

back again):

► In mode

, push backwards past the point of

resistance, mode

is selected.

► In mode

, push forwards past the point of

resistance, mode

is selected.

► To return to mode

, push without passing

the point of resistance.

129

Driving

Steering-mounted controls

(Depending on equipment)

In mode

, the steering-mounted control

paddles can be used to change gear manually.

They cannot be used to select neutral or to

engage or disengage reverse gear.

► Pull the "

" or "

" paddle towards you and

release to shift up or down a gear, respectively.

Electric motor

The electric motor included in the automatic

gearbox, which is used for the first start, provides

12 V power supply via the DC/DC converter and

provides electric assistance to the petrol engine.

The electric motor has the following features:

– Provide an additional torque to the gearbox,

optimising the performance of the petrol engine.

– Recover the kinetic energy of the deceleration

phases, converting it into electrical energy, which

can be used for traction or for the power supply

of electrical accessories installed on the vehicle.

– Recharge the 48 V traction battery when the

state of charge is too low.

– Provide all-electric driving only.

These features are achieved through the

following functions set of automatic operating

mode:

– e-Boost.

– e-Creeping.

– e-Launch.

– e-Queueing.

– e-Parking.

A manual operating mode is also available

to activate/deactivate the restart of the petrol

engine while driving: the e-Auto mode.

When mode

is selected on the

automatic gearbox, the noise level in the

engine compartment may increase due to the

start of the charging phase of the traction

battery: this is normal and does not represent

a malfunction.

Information displayed on

the instrument panel

When the ignition is switched on, the gearbox

status is displayed on the instrument panel:

Parking

Reverse

Neutral

Automatic forward gear

M1...6

Manual forward gear

The gear engaged is also displayed in Sport

mode.

However, in all-electric driving, the gear engaged

is not indicated.

The state of the gearbox remains displayed on

the instrument panel for a few seconds after

switching off the ignition.

Operation

Only appropriate mode change instructions are

validated.

With the engine running, if it is necessary to

depress the brake pedal to change modes,

an alert message will be displayed on the

instrument panel.

With the engine running and the brakes

released, if

is selected, the

vehicle moves off, even without pressing the

accelerator pedal.

Never depress the accelerator and brake

pedals at the same time - risk of damage to

the gearbox!

If you open the driver's door while mode

is engaged, an audible signal will

sound and mode

will be engaged. The

audible signal stops when the driver's door is

closed.

Peugeot 5008 (2024 year). Manual in english - page 4
