Peugeot Boxer Dag (2010 year). Instruction

Audio equipment

RADIO

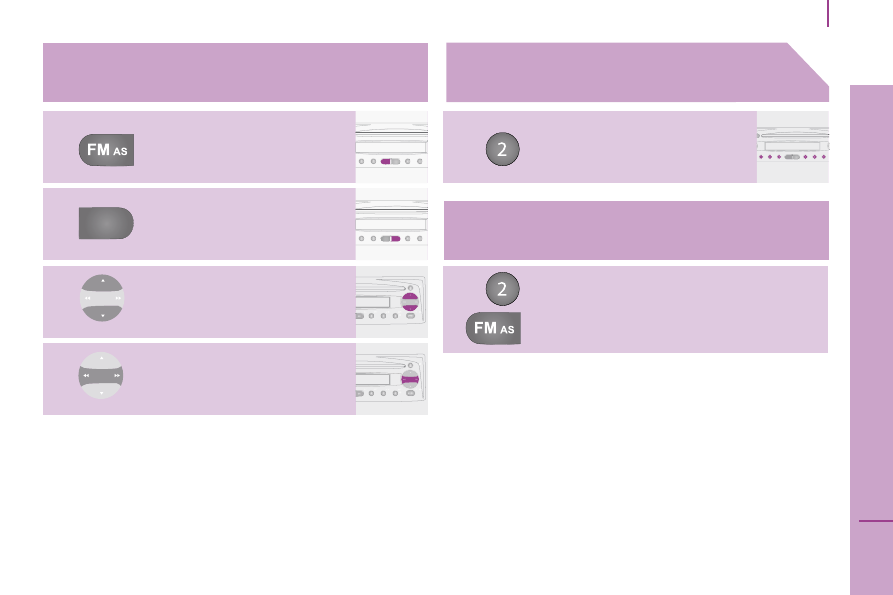

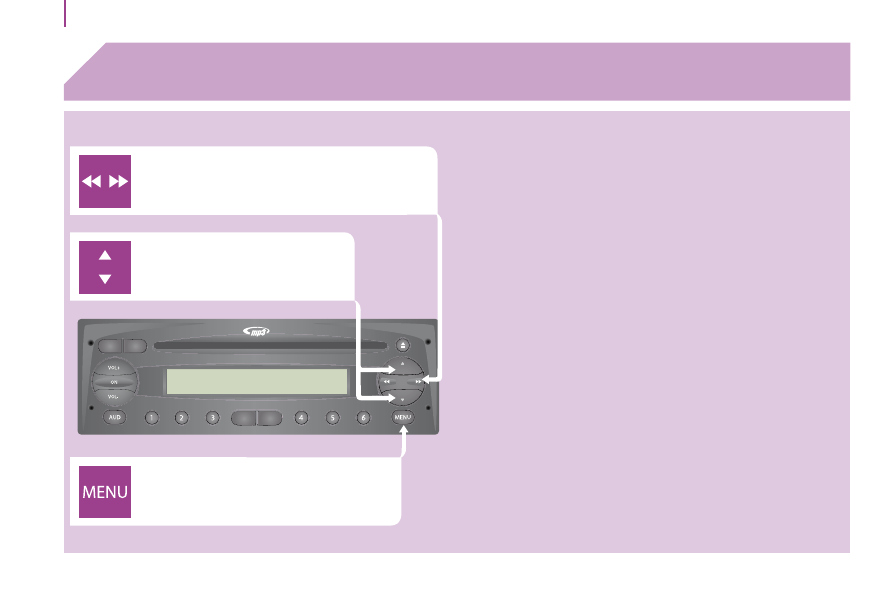

SELECTING A STATION

Press the FM AS source button
several times in succession and
select a waveband: FM1, FM2, FMt.

Press the AM source button several
times in succession and select an
AM waveband.

Briefly press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out
a manual search of the radio stations.

STORING A STATION - MANUALLY

Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.

STORING A STATION - AUTOMATICALLY

Press the FM AS button for more than 2 seconds,
until the audible signal is heard.

The radio searches for and stores the stations
with a strong signal on the numbered buttons.

Audio equipment

…

IGN TIME

20 MIN

00 MIN

Set the audio equipment play time after turning the ignition key to the
"STOP" position:
-

20 MIN to play for 20 minutes,

00 MIN to switch off immediately.

Place the key in the "RUNNING" position to switch the audio equipment back on.

NO HICUT

HICUT ON

Select the dynamic reduction of the treble:
-

ON,

NO.

VOICE

...

OFF

Select the volume setting:
-

1 to 40,

OFF to cut off the sound.

SVC OFF

SVC LOW

SVC
HIGH

Select the automatic control of the volume in relation to
the vehicle speed:
-

LOW for yes (low sensitivity),

HIGH for yes (high sensitivity),

OFF.

CD NAME

XYZ23ABC

ABCDEFG5 MENU

Select and programme the name of the CD, currently
being played, on the display:
-

the name stored previously,

8 dashes if it does not have a name.

Use the 4 arrows to select letters then store using MENU.
To clear the name, press and hold the "CLR" button.

If a CD has
been inserted,
this menu is
displayed.

_ _ _ _ _
_ _ _

Audio equipment

…

AF OFF

AF ON

Set the sensitivity of automatic reception of the FM radio
frequencies (tuner):
-

ON for a search of the transmitters which have the
strongest signal,

OFF for a search of all of the surrounding
transmitters.

MP3 DISP

If your
vehicle is
equipped
with MP3,
this menu is
displayed.

FILENAME

TIME

TAG
INFO

DIR

Select the type of MP3 display for the current track:

FILENAME for the name of the file,

TIME for the time elapsed,

TAG INFO for the title of the album, the name of the
track and of the artist,

DIR for the name of the directory (folder).

CD DISP

NAME

Select the type of display for the current CD:

NAME for the name attributed to the CD,

TIME for the time elapsed since the beginning of the
track.

TIME

REG OFF

REG ON

Select the reception of local or regional programmes
(different from one region to another):

ON for local programmes,

OFF for no programmes.

Audio equipment

…

PRESET

USER

CLASSIC

ROCK

JAZZ

Select pre-defined equaliser settings.

Select USER to set the equaliser manually then go to the
EQ SET menu.

Bass and Treble adjustments are always possible.

EQ SET

If USER is
selected in
PRESET,
this menu is
displayed.

Programme the 7 bands of the equaliser manually.

To store the settings, press MENU.

TA OFF

TA ON

Receive traffic information from the FM radio stations.

EXT

EXT VOL

EXT OFF

EXT
23

Adjust or cut off external sound sources.

LIMIT ON

NO LIMIT

Activate the maximum volume setting when audio
system is on.

MUTE

Audio equipment

PLAYING A CD -

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.

MP3

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.

If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.

In the particular case of a multi-session CD, the Joliet
standard is recommended.

The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.
No other type of file (.wma, .mp4, m3u...) can be played.

It is advisable to restrict file names to 20 characters without
using special characters (e.g.: " " ? ; ù) to avoid any playing
or displaying problems.

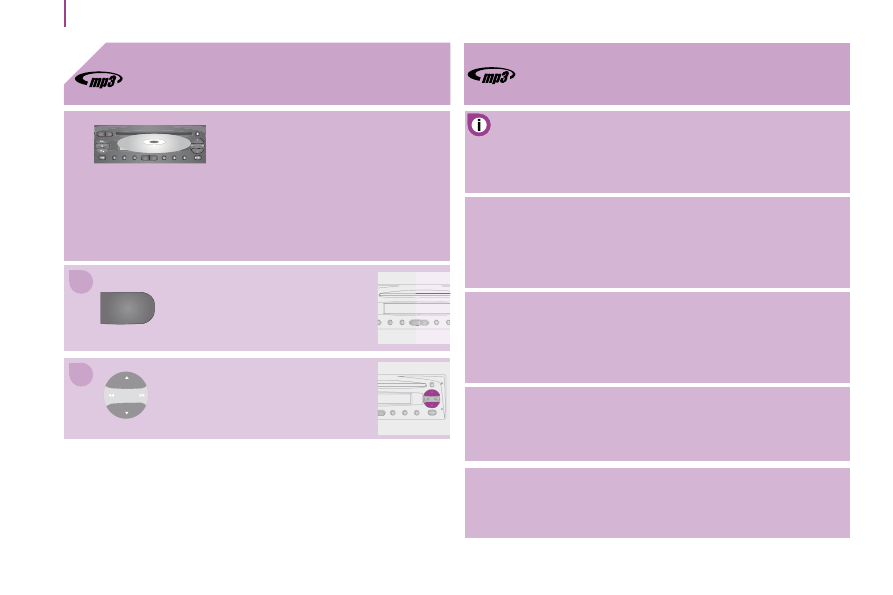

PLAYING AN MP3 CD

Insert circular compact discs only. Some
anti-pirating systems, on original discs or
CDs copied using a personal recorder,
may cause faults which are no reﬂ ection
on the quality of the original player.

Insert a CD or an MP3 CD in the player, play begins
automatically.

If the player already contains a disc,
switch on the audio equipment and
press the CD source button briefly.

The last track played begins.

Press one of the buttons to select a
track on the CD.

Introduction

KEY

Indicates that a maintained press is required to start the action described.

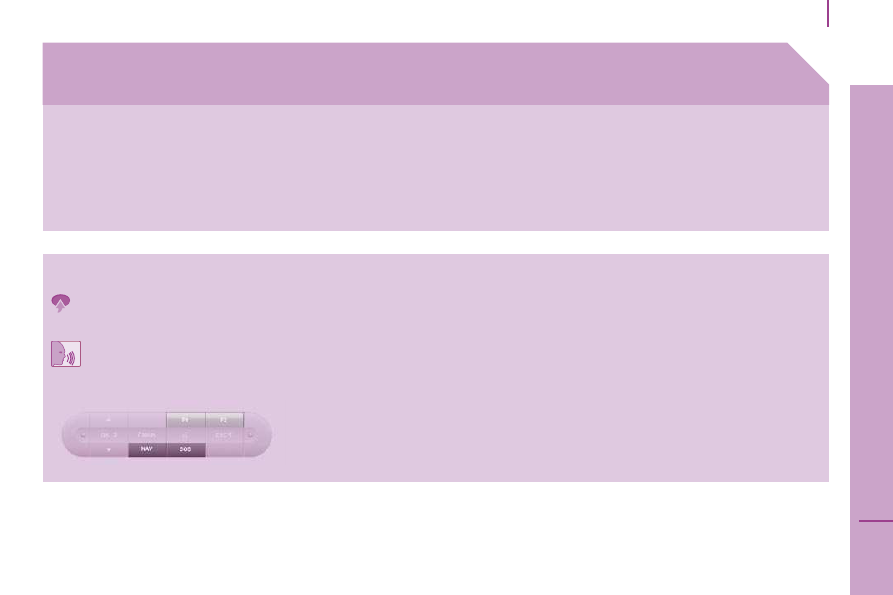

Voice mode

Press the control to start the voice recognition, an audible signal confirms that the function has been activated, do not speak until
you hear this signal.

For further information regarding the voice commands, say "Help" or refer to the tables at the end of this document.

INTRODUCTION

This equipment chiefly enables you to:

connect your Bluetooth

mobile telephone to your vehicle leaving your hands free,

play audio sources (mp3, wma, wav) from a portable player,

use the voice commands.

Recommendations

If the battery is disconnected, the equipment can operate for a further 15 minutes
(approximately).

The buttons "F1, F2, NAV, SOS" on the equipment's control panel are not active.

HANDS-FREE SYSTEM

ESC

NAV

SOS

MAIN

NAV

SOS

MAIN

ESC

Presentation

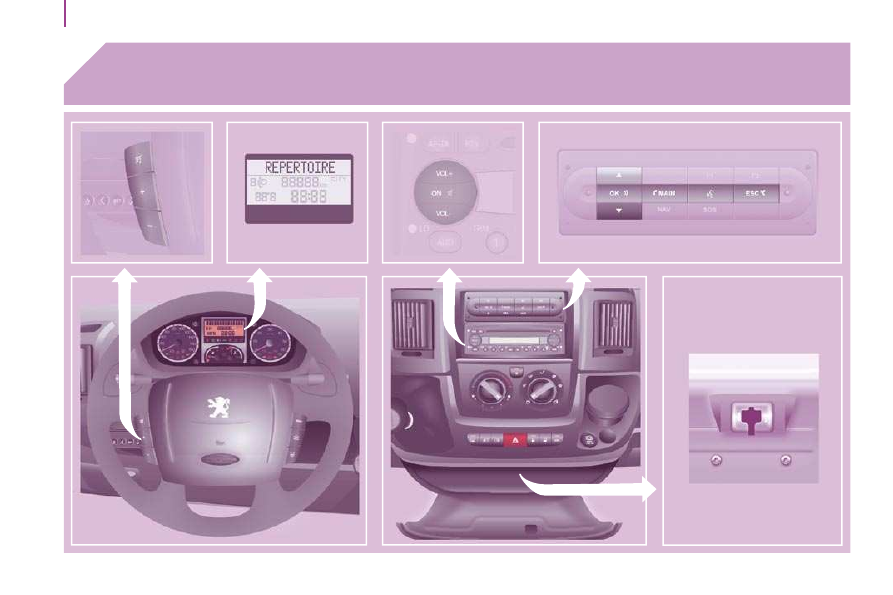

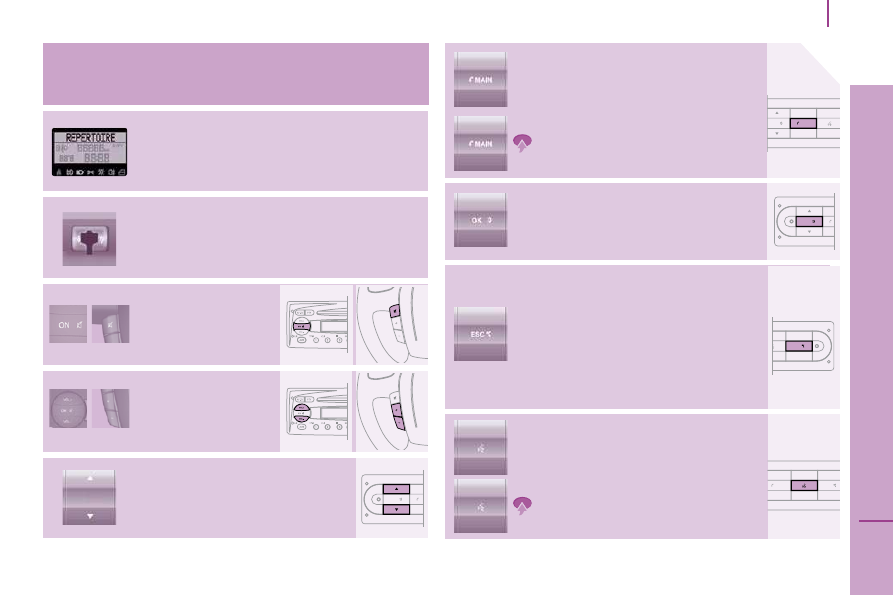

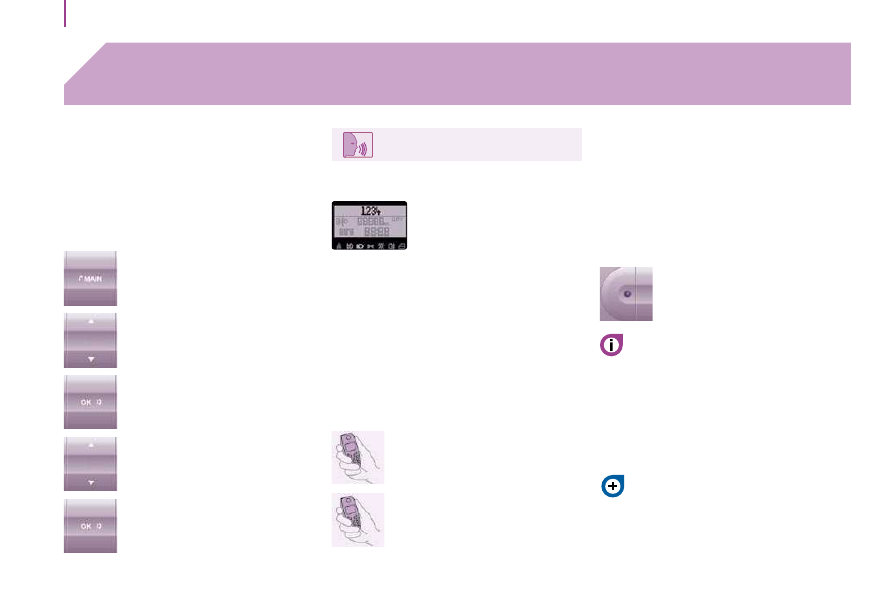

PRESENTATION

Adjustment of the volume
of the functions: hands-
free, audio player, voice
announcements.

Pause/resume the file
being played (portable
player).

USB connection port. Remove the plastic cover to
connect your portable player.

Displaying of the menus and directories of the
files being played (portable player).

Scrolling of the menu options.

Selection of the files to be played
(portable player).

Activation of the voice recognition.

Interruption of the voice message
in order to issue a new voice
command.

Deactivation of the voice recognition.

Interruption of the voice message.

Exit from the main menu.

Exit from a sub-menu and return to
the previous menu option.

Exit without storing.

Deactivation/reactivation of the
microphone during a telephone
conversation.

Setting of the volume of the
incoming call ring to zero.

- Conﬁ rmation of the current menu

option.

Transfer of the telephone conversation
from the hands-free system to the
mobile telephone and vice versa.

Declining of the incoming telephone call.

Interruption of the current telephone call.

Activation of the main menu.

Conﬁ rmation of the current menu option.

Acceptance of the incoming call.

Switching from one telephone
conversation to another.

Repeat of the last voice message.

DESCRIPTION OF THE CONTROLS

Mobile telephone with hands-free function

When prompted by the telephone, enter the
PIN displayed on the instrument panel.

If the pairing has been successful, the
system announces "Connecting".

The name of the telephone identified
appears on the instrument panel display,
pairing is confirmed.

Blue indicator lamp on

"Settings"\wait for a response\
"Pairing".

PIN

Pairing/matching a mobile telephone

The matching consists of setting your
vehicle's Bluetooth

system to recognise

your mobile telephone.

The pairing stores your mobile telephone so
that it can be recognised instantly.

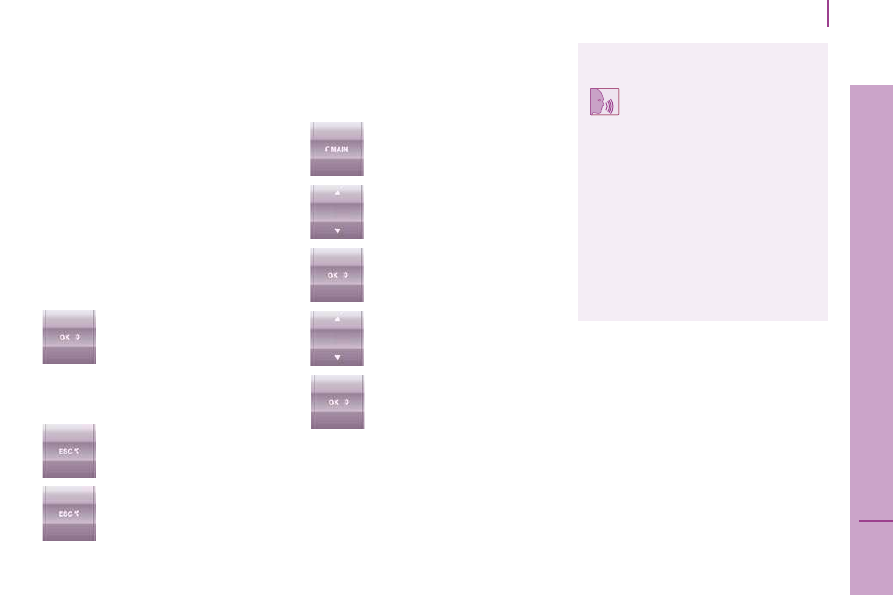

MOBILE TELEPHONE WITH HANDS-FREE FUNCTION

With the key in the MAR position,
activate the main menu.

Select SETTINGS.

Confirm.

Select PAIRING.

Confirm.

This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.

It is communicated by the display on the
instrument panel and is repeated verbally by
the system.

This PIN is independent of your SIM card
and your mobile's access code.

Once your handset has been paired, there is
no need to keep a trace of this number.

If you change your mobile telephone, you
must repeat the matching procedure as you
will be given a new PIN.

Look for the option which permits
displaying of the Bluetooth

system

detected by your telephone.

When the system has been
identified, a message appears on
your telephone (My car, ...).

This indicates a good connection
between the telephone and the system.

It is important to wait until the name of
the telephone is displayed.

Pressing MAIN or ESC during
the pairing phase may cancel the
procedure.

If the pairing fails, an error message will
appear; in this case, repeat the procedure.

For more information on the ignition
switch MAR position, refer to the
"Starting and stopping" part of section 2.

Mobile telephone with hands-free function

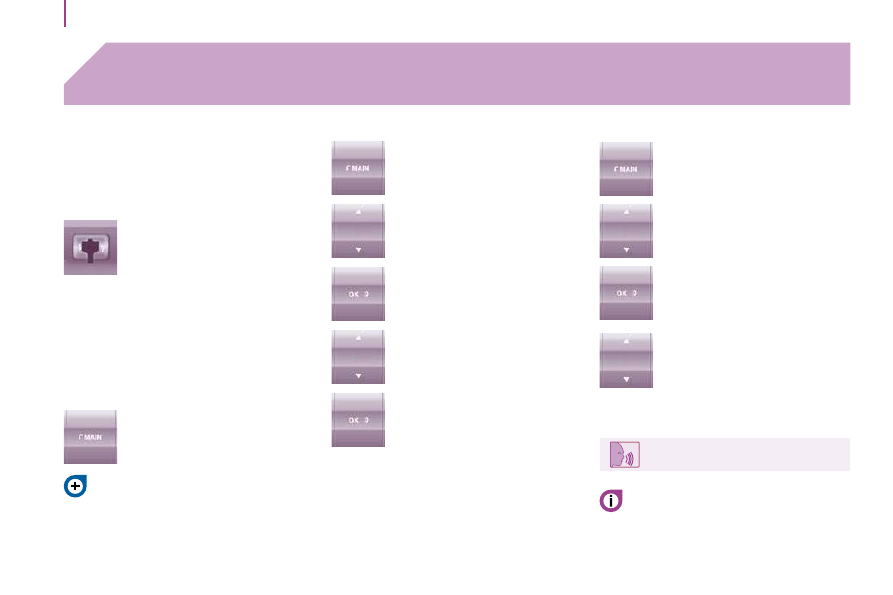

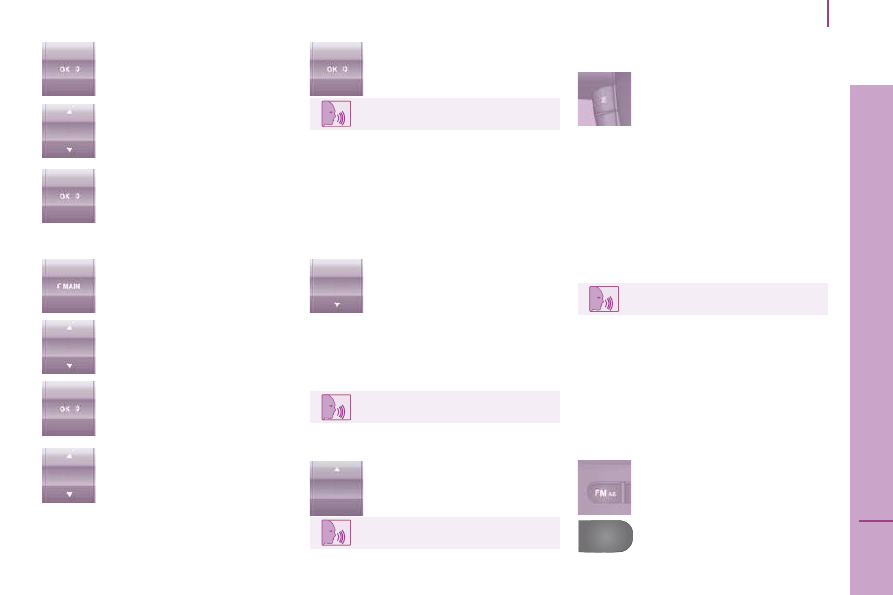

Downloading your phonebook

There are 2 options:

1 - Following the pairing procedure, the

system suggests downloading your
telephone's phonebook.

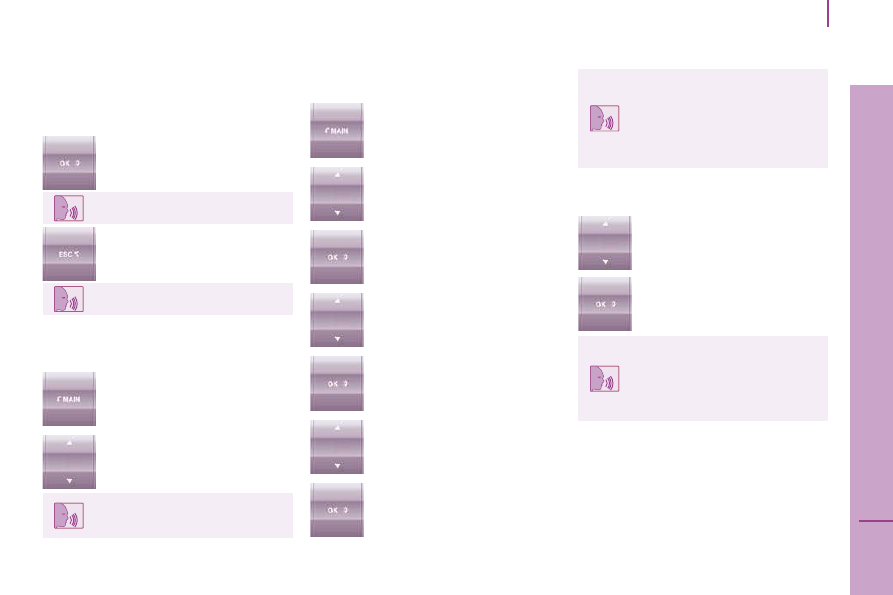

Calling a contact recorded in the
phonebook

Your telephone's phonebook must first be
downloaded into the system.

"Call [Name of the person]"\
wait until the information relating
to the person (name, tel n°, ...)
appears\
"Yes" to make the call or "No" to
cancel.

Pressing conﬁ rms your agreement.

"Yes" starts the download.

Pressing declines this download.

"No" declines.

2 - You can download the phonebook later

via the menu:

Activate the main menu.

Select SETTINGS then USER
DATA then PHONEBOOK.

"Settings"\"User data"\"Download
phonebook".

Activate the main menu.

Select PHONEBOOK.

Confirm.

Select the group with which
the person to be contacted is
associated.

Confirm.

Select the name.

Confirm to make the call, if the
person has only one number.

If the person has more than one number:

Select the number.

Confirm to make the call.

Specify "Home"
or "Work", or "Next" or
"Previous".

Press OK to make the call.

Mobile telephone with hands-free function

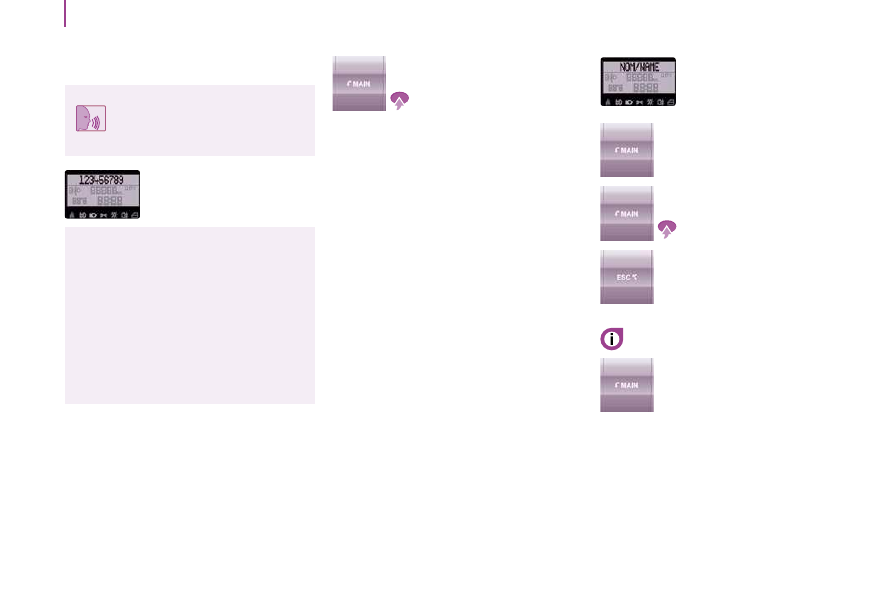

Making a call by dialling a number

Ending a call

Press and hold.

Incoming call

If the person is recorded in
the phonebook, his name is
displayed.

"Dial/Dial a number"\

Say the number character by
character (+, #, *), digit by digit
(0 to 9).

The system displays and
verbally repeats the number
recognised.

"Call" if the number is correct.

"Cancel" to cancel dialling of the number.

"Start over" to delete and start dialling
another number.

"Repeat" to hear the number again.

Press to accept the call.

Press and hold to decline the call.

Press to ignore the call, however,
the call is stored in the register of
incoming calls.

During a call, if a second incoming call
is received.

Press to switch the conversation
and place the other person on
hold.

By means of the voice commands only

Mobile telephone with hands-free function

Transferring an active call

There are 2 options:

1 - From the mobile telephone to the hands-

free system

Turning the key to the ignition switch MAR
position activates the recognition connection
between the mobile telephone and the
vehicle's audio equipment.

Confirm this recognition using the keypad on
the mobile telephone.

The call can then be transferred.

Placing a call on hold

Call register

This enables you to call the number of one
of the last 10 calls received, of one of the
last 10 people called or of one of the last
5 missed calls.

2 - From the hands-free system to the

mobile telephone

Press, the system's controls are
still active.

Press to deactivate the
microphone and place your
contact on hold.

Press again to resume the
conversation.

Activate the main menu.

Select CALL LIST.

Confirm.

Select the number to be called.

Confirm.

"Callback" for the last person who
called you, or
"Redial" for the last person you
called.
"Yes" or "No" to confirm/cancel.
The "Redial" button can also be
used.
The system will again ask "Redial
or callback?".
"Callback" to call back the last
person who called you.
"Redial" to redial the last person
you called.

"Conference" mode

This allows you to call a second person
during a call.

Carry out the procedure in the section
"Calling a contact recorded in the
phonebook" or "Making a call by dialling a
number".

Portable equipment audio player

Audio files in .mp3, .wma, .wav format
and for the lists of files (library) with the
extensions .wpl, .m3u are recognised by the
system.

Selecting files

PORTABLE EQUIPMENT AUDIO PLAYER

Autoplay

USB port

Connect the equipment to
the port directly or using an
appropriate cable (not provided).

Turning the key to the ignition switch MAR
position:

activates the recognition connection and
automatically opens a library of files,

or activates play automatically if the
system is programmed to autoplay.

Otherwise, select the file to be
played via the MENU.

For more information on the ignition
switch MAR position, refer to the
"Starting and stopping" part of section 2.

Activate the main menu.

Select SETTINGS then MEDIA
PLAYER then AUTOPLAY.

Confirm.

Select ON or OFF.

Confirm.

Activate the main menu.

Select MEDIA PLAYER.

Confirm.

Choose one of the selection modes:

FOLDERS, ARTISTS,
GENRES, ALBUMS,
PLAYLISTS, PLAY ANYTHING

(random playing of the files in the library).

"Folders", "Artists", ...

The PLAY ALL function enables you
to listen to the entire content of a
selection mode (folders, artists, ...).

Portable equipment audio player

Displaying the file information

Previous file

Confirm.

Pausing/resuming play

Confirm.

Next file

Stopping play

By means of the voice commands only

Changing the sound source

Select the file.

Start play.

Activate the main menu.

Select MEDIA PLAYER.

Confirm.

Select NOW PLAYING.

"Now playing".

Pressing:

within 3 seconds following the start of
play enables you to play the previous ﬁ le.

after 3 seconds enables you to listen to
the current file again.

"Previous".

Press to play the next file.

"Next".

"Stop".

Press to select the radio.

Pressing suspends or resumes
play.

Press to select the CD.

Voice commands

VOICE COMMANDS

The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).

When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.

SETTINGS

Level 1

Level 2

Level 3

Actions

Settings

User data

Activation of the hands-free system SETTINGS menu.

Activation of the USER DATA menu.

Delete users

Deletion of the data recorded for all of the users.

Delete phone book

Deletion of the phone book data.

Download phone book

Transfer of the phone books from your mobile telephone to the hands-free
system (available according to the type of mobile).

Add Contacts

Transfer of the names from your mobile telephone to the hands-free system
(available according to the type of mobile).

Reset all

Deletion of the pairing data and of the phone books/contacts of all of the
telephones paired, with restoring of the default settings of the hands-free system.

Pairing

Activation of the pairing procedure for a new mobile telephone.

Update/Updates

Activation of the updating of the system.

Pause Update/Pause Updates/Interrupt Updates/
Interrupt Update

Temporary suspension of the current update.

Resume Update/Resume Updates

Resuming of the previously suspended update.

Peugeot Boxer Dag (2010 year). Instruction - part 6
