Ventilation

MONO ZONE DIGITAL AIR
CONDITIONING

If your vehicle is fitted with this system, the
controls are located in the middle of the
dashboard. The system can be identifid by
its control screen.

AUTO mode

Switching on FULL AUTO
mode: pressing the AUTO
control switches on the
system's functions, confirmed

by the display of FULL AUTO . This is the
normal operating mode for the digital air
conditioning system.

Using the moving ring surrounding the AUTO
control, set the comfort temperature to be
reached according to a setting between:
- HI (High to ≈ 32) and,
- LO (Low to ≈ 16).
The system controls the distribution, ﬂ ow and
intake of air to ensure comfort equivalent to the

setting displayed and sufﬁ cient recirculation of
air in the passenger compartment.

No further adjustments are required.

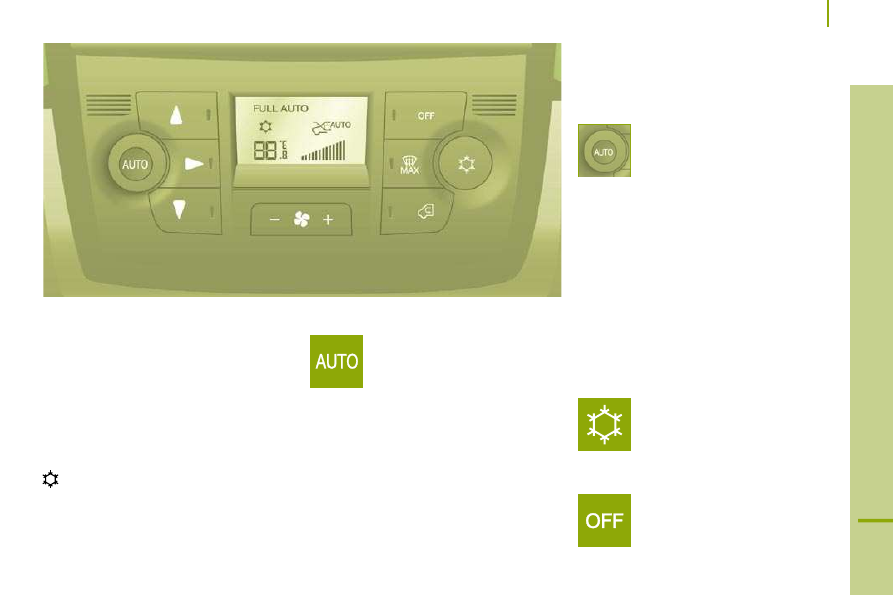

Control screen for your digital air
conditioning system.

AUTO mode with personalisation

Switch on in AUTO mode, certain
settings can be modified: the
distribution, the air flow, the air
conditioning and the air intake/
recirculation.

The display changes from FULL AUTO to
AUTO .

To return to fully automatic operation, press
this button again. The display on the control
panel changes from AUTO to FULL AUTO .

If the system is not able to maintain
the setting selected following manual
adjustments, the setting flashes then  AUTO
is cleared. Press the  AUTO  control to return
to the automatic settings.

Switching off the air conditioning

Pressing this control switches
off the air conditioning functions.
The snowflake is cleared from the
screen.

Complete switch-off

Pressing this control switches
the system off. The LED and the
screen switch off.

When the engine is running and the air
conditioning is on, this symbol and the

message FULL AUTO are displayed.

The other components are displayed
according to the settings selected by the user.

Ventilation

Comfort value adjustment ring

The settings range between:

increasing the interior ambient air
temperature HI (High) which goes up to
to a maximum setting of 32,

cooling the interior ambient air
temperature LO (Low) which goes down
to a setting of 16.

Air distribution

Pressing illuminates the LED on the buttons
which distribute the air flow towards:

the windscreen and front side
window vents (demisting/
defrosting the windows),

the central and side vents (chest
and face),

the vents in the front and rear
areas (feet).

The combination of buttons permits
improvement of air distribution.

Air flow

Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.

Intake of exterior air/
recirculation of interior air

When the LED is on, the air
recirculates inside the passenger

compartment to prevent the entry of exterior
odours and smoke. This position should be
temporary.

When the ambient air comfort level has been
reached, pressing the button switches the
LED off and reopens the exterior air intake.

Pressing the  AUTO  button also restores
the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the  AUTO  button again restores
the  FULL AUTO  function.

Rapid demisting/defrosting

Pressing this control permits
rapid clearing of the windows.
The LED is on.

The system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.

If your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.

Ventilation

ADDITIONAL HEATING SYSTEMS

Supplementary heating

On the 2-3 seats version, this is located
under the seat on the driver's side with air
diffusion directed forwards.

REAR HEATING AND/OR AIR
CONDITIONING

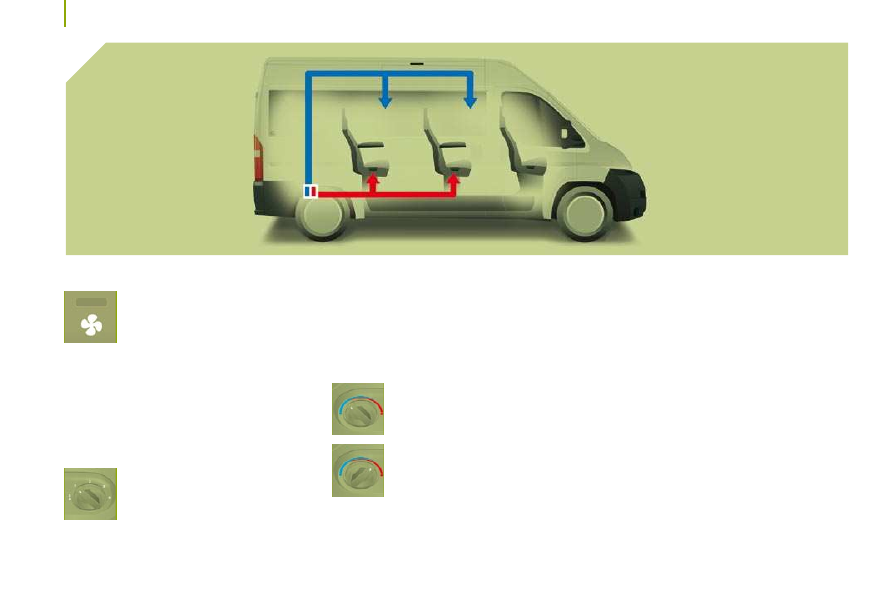

If your vehicle is fitted with an
additional air conditioning unit,
located in the rear of the vehicle:
the distribution rail located in

the roof and the individual diffusion vents
provide a perfect diffusion of cold air.

The warm air diffused at the floor, from the
front air conditioning unit, is distributed at
the feet of the rear passengers of rows 2
and 3.

A warm air diffusion vent, located on the rear
left wheelarch, may complete the assembly
for the feet of the rear passengers of row 3.

Additional heating

This is an additional passenger compartment
heating system which supplements the
standard equipment.

It can operate independently of the engine.

Depending on the level of finish of the
equipment, its start-up can be programmed.

Additional heater or programmable
heating

This is an additional and separate system
which heats the Diesel engine hot coolant
loop to make starting easier.

It improves the demisting and defrosting
performance and that of the heated seats, if
fitted to the vehicle.

The passenger compartment heating is
brought up to temperature more rapidly.

This system must be programmed to start up
before you enter the vehicle.

On the 5-9 seats version, it is
located at the rear. Depending
on the model version, the air
diffusion is either direct from the

rear or comes from the rail located under
each of the two rows of seats.

Press this control to activate/
deactivate the heating. The LED
is on if the heating is activated.
When rapid demisting and
defrosting is required, switch off
the control.

Ventilation

Activation/Deactivation

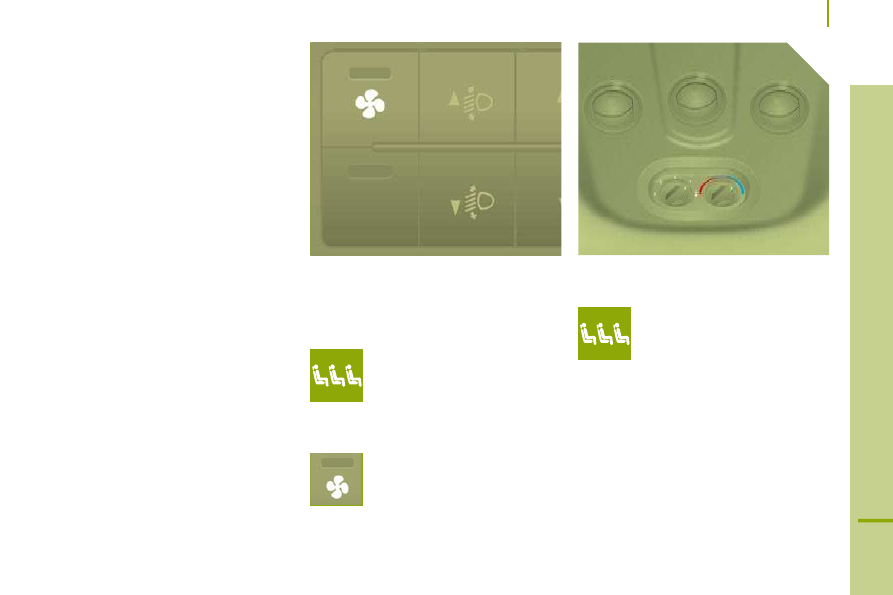

This control, located on the
control panel at the left-hand end
of the dashboard, enables you to
activate/deactivate the operation

of the rear controls from the driver's seat.

The first press activates (LED on).

A second press deactivates (LED off).

To deactivate the blower, place the control in
position 0.

However, a safety device will ventilate the
rear circuit automatically, even if the control
is in position 0, to prevent the formation of
condensation.

Air flow

The force of the blown air, via
the vents, varies from 1 to the
strongest 4.

To obtain a comfortable level of
ambient air, remember to adjust
this control.

Comfort value adjustment

- on the blue, delivers cool air,

- on the red, delivers heating of

the ambient air.

The OFF control on the "Mono-zone" central
control panel switches the function off.

Control positioned:

Ventilation

PROGRAMMABLE ADDITIONAL
HEATING

If your vehicle is fitted with separate
programmable heating: it gradually brings
the engine up to a good temperature to
facilitate starting.

An integrated clock permits programming of
its start time. The passenger compartment
will be heated more quickly.

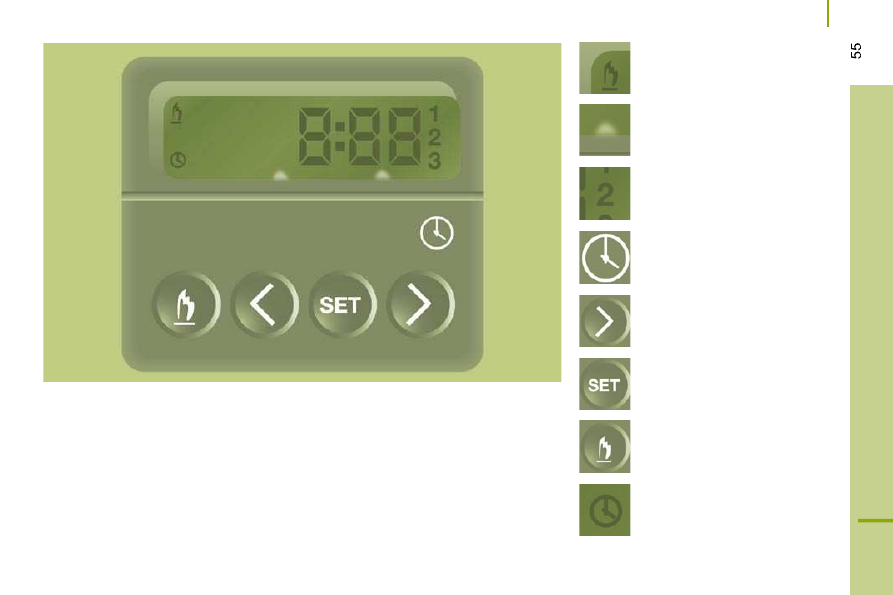

Heating cycle indicator

Digital programming control

The programmable heating system control
panel is located at the bottom left of the
dashboard.

Display on

Display of the programme
number selected

Time display button

Time setting buttons

Selection of the stored
programme

Button for immediate switching
on of the heating

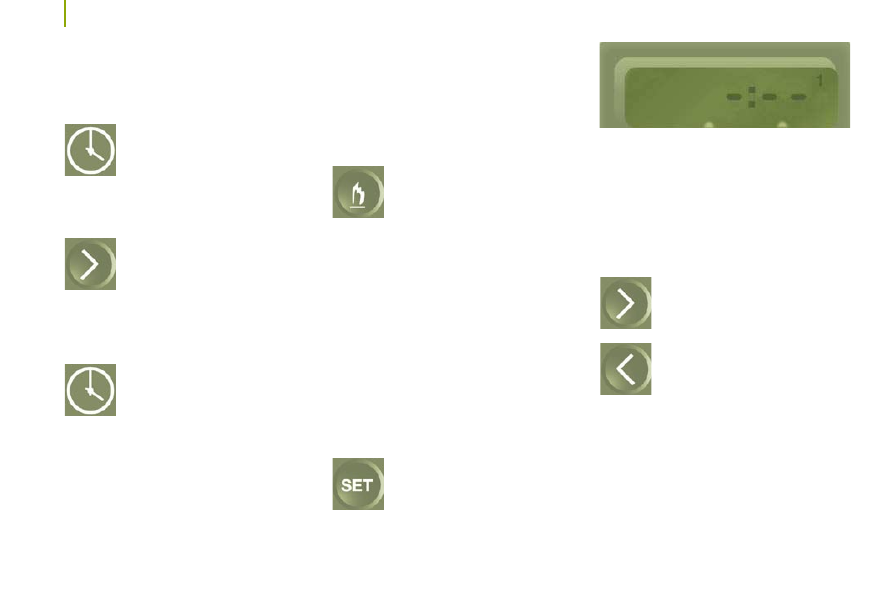

Time setting and reading
indicator

Ventilation

Setting the time of the internal clock

Set the clock on the control panel before
programming the deferred switching on of
the heating.

Immediate switching on of the
heating

Before switching on the heating, check that:

the temperature setting control is in the
"Hot air" position (red).

- the air ﬂ ow setting control is in position 2.

This symbol or the previous stored time and
the number (e.g. 1) corresponding to the
recalled pre-selection are displayed for ten
seconds.

Note: if you wish to recall the other pre-
selected times, press the SET button several
times before the ten seconds have elapsed.

Press this button.

The screen and the associated
indicator come on.

Within ten seconds, press these two setting
buttons until the correct time is displayed.

Press «>» to increase the hours
or «<» to decrease.

Press and hold the button for
more rapid scrolling of the digits.

Reading the time

Press this button.

This indicator comes on, the time
is displayed for approximately ten
seconds.

Press this button.

The screen and the heating cycle
indicator come on and remain
on throughout the duration of
operation.

Switching on the deferred heating

Switching on can be programmed between
one minute and twenty-four hours in
advance.

You can store up to three different start
times, but programme one deferred start
only.

Note: if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.

Press this button, the screen
becomes brighter.

Within the ten seconds, press
these two setting buttons to
select the required start time.

Setting of the stored time is
confirmed by clearing of the
start time, displaying of the
pre-selection number (e.g. 1)

and increased brightness of the screen
illumination.

Ventilation

Cancelling the programming

Press this button briefly to clear
the programmed start time.

The scren illumination and the
pre-selection number (e.g. 1) are
switched off.

Good practice

To avoid any risk of poisoning or
asphyxiation, the additional heating must
not be used, even for short periods, in
an enclosed space such as a garage or
workshop which is not fitted with an exhaust
gas extraction system.

The additional heating is supplied by the
vehicle's fuel tank. Ensure that the fuel
gauge indicator lamp is not at reserve.

Always switch off the additional heating
when filling with fuel to avoid any risk of fire
or explosion.

Do not park the vehicle on an inflammable
surface (dry grass, dead leaves, paper…),
there is a risk of fire.

The temperature near the heater must not
exceed 120 °C. A temperature higher than
this (for example in the case of painting in
an oven) could damage the components of
the electronic circuits.

The additional heating system is fitted with
a temperature limiter which cuts off the
combustion in the event of overheating due
to a lack of coolant. Top up the coolant,
then press the programme selection control
before switching the heating on again.

Have the additional heating system
checked at least once a year at the

beginning of winter. Maintenance and
repairs should only be carried out by a
PEUGEOT dealer.

Use only genuine replacement parts.

Recalling one of the pre-selected
start times

Press this button as many times
as necessary until the number
corresponding to the required
pre-selected start time (e.g. 2)
appears.

After ten seconds, the time is cleared but
remains stored for as long as the number
(e.g. 2) and the screen remain lit.

Switching off the heating

Press this button.

The heating cycle indicator and
the screen are switched off.

Two different types of equipment

The additional heating is separate and
programmable. Before you enter the vehicle,
it gradually increases the temperature of the
engine to make starting easier. This also
facilitates passenger compartment heating,
demisting and defrosting.

The additional passenger compartment
heating system supplements the
standard equipment. Its operation may be
independent of the engine. Switching on of
the heating may be programmable.

Seats

DRIVER'S SEAT

SEATS

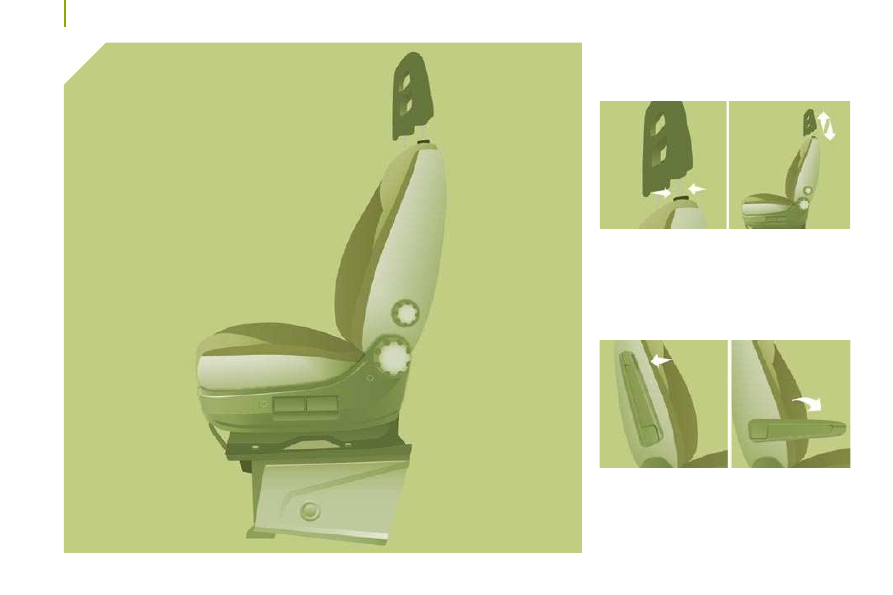

Head restraint

Press the tab to adjust the height of the
head restraint.

To remove the head restraint, press the tabs
and raise the head restraint.

Adjustable armrest

Turn the control located under the end of
the armrest.

Seats

Lumbar support

Turn the control.

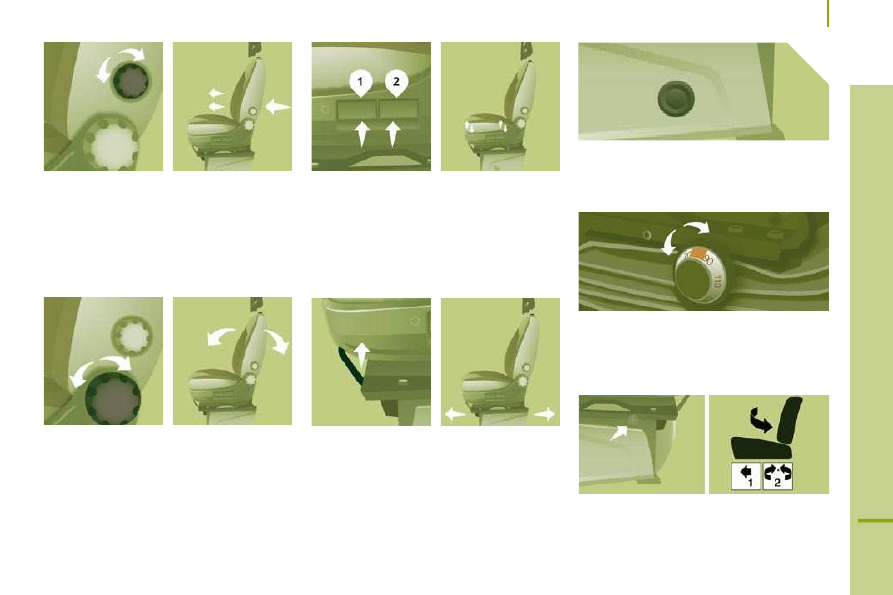

Seat cushion height adjustment

Lift the handle 1 to raise

or lower the front of the seat.

Lift the handle 2 to raise

or lower the rear of the seat.

Heated seat

Use this control to switch the heating of the
seat on or off.

Seat with variable damping

If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.

Seat back angle

Turn the control to adjust the angle of
the seat back.

Forwards-backwards adjustment

Lift the control bar, located under the seat,
and adjust to the required position.

Rotating seat

If fitted on your seat, press the control to
rotate the seat by 180°.

Seats

2-SEAT FRONT BENCH

This is fitted with two seat belts.

Grab handle

This is located above the centre passenger.

Writing table

The back of the centre seat folds to form a
writing table.

Pull the handle located at the top of the seat
back cushion.

Seats

REAR SEATS
Seat back angle

Turn the control to adjust the
angle of the seat back.

Access to the rear seats

To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.

To return the seat back to its initial position,
bring it to the vertical position without
touching the control.

Seat back folded position of the
central seat (rows 2 and 3)

The back of the central seat can be folded
fully onto the cushion and used as a cup
holder table.

Lower the head restraint then raise the
control and fold the seat back forwards.

To return the seat back to its initial position,
raise the control again.

Seats

REAR BENCH SEATS

Removing the bench seat

At least two people are required to
remove the bench seat.

Fold the seat back onto the cushion as
described above.

Turn the two levers forwards.

Tilt the base of the bench seat forwards to
place the assembly in the vertical position.

Good practice

Following the various operations:

do not remove a head restraint without
storing securely,

do not travel in row 3 with the row 2
bench seat in the vertical position,

do not store any kind of object on the
folded seat back of row 2,

check that the seat belts are always
accessible and easy for the passenger
to use,

a passenger must not take their seat
without correctly adjusting their seat's
head restraint and adjusting and
fastening their seat belt.

Access to the rear seats

Lower the head restraints then raise the
control and tilt the seat back forwards.

Seat back folded position

Remove the head restraints then tilt the seat
back as described above.

With your right hand, raise the lever then tilt
the seat back 5° towards the rear.

With your left hand, tilt the seat back
forwards onto the cushion.

Turn the two levers upwards.

Raise the bench seat and remove it.

Seats

CREW CAB

Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.

Each seat of the bench is fitted with an
inertia reel seat belt.

Refer to section 5 to read the "Good
practice" recommendations.

Access to the box under the bench seat

From the cab

Tilt the seat cushion forwards to gain access
to the large box.

From the load space

Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.

Good pratice

Do not tilt the bench seat cushion during
transportation.

No not attach anything to the cab fixing
structure.

Do not exceed the number of passengers
indicated on the registration certificate.

Do not install child seats, booster cushions or
carrycots on the rear seats of the crew cab.

In the rear, the load space is intended for
the transportation of goods only.

You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.

Practical information

CAB FITTINGS

Front seat storage

A storage drawer is provided under the front
seat (driver's).

The space under the passenger's seat is
used to store the tools required in order to
change a wheel.

If your vehicle is fitted with a seat with
variable damping, it does not have any
storage compartments.

Folding writing table

This is located in the centre of the
dashboard.

The clip can be used to secure documents,
slips, ...

Pull or push the top of the table to unfold or
fold it.

PRACTICAL INFORMATION

Central storage tray

This may be lockable (according to
specification).

If your vehicle is fitted with a front
passenger airbag, the table cannot be

raised.

Practical information

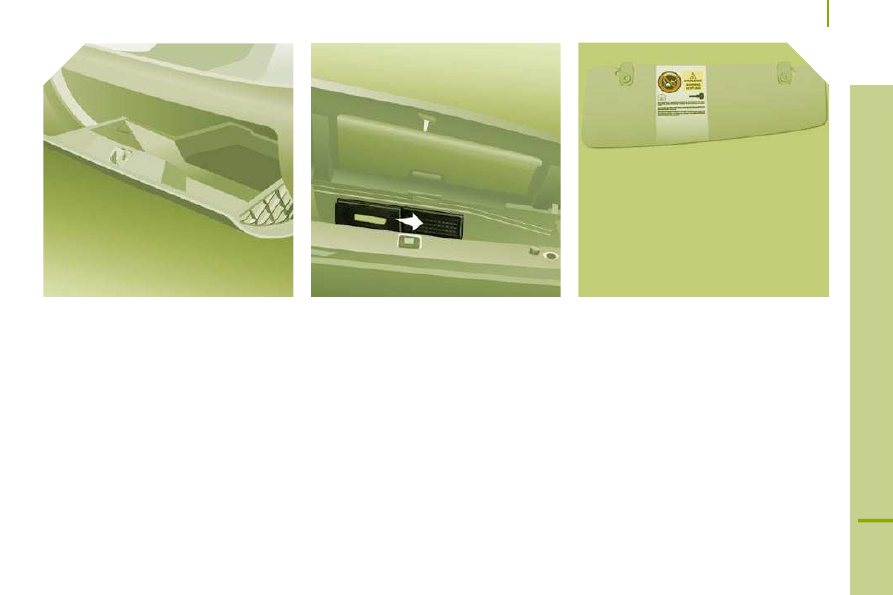

Glove box

Cooled glove box

This is located on the top right part of
the fascia panel.

The ventilation flap can be opened or
closed. The air blown into the glove box is
the same as that blown out via the vents.

Sun visor

To avoid glare from ahead, fold the sun
visor down.

Pockets are arranged in the sun visors for
storing toll cards, tickets, ...

Practical information

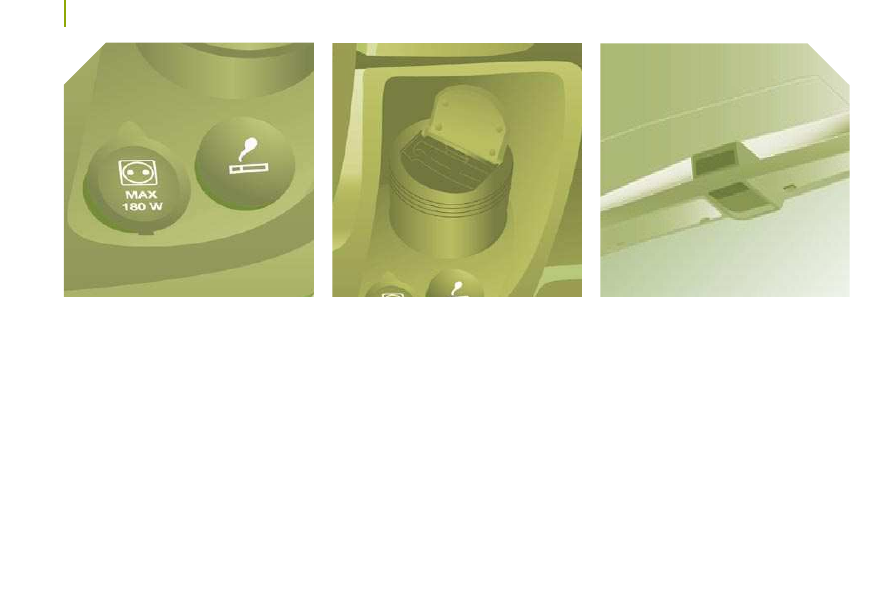

Cigar lighter/12 volt socket

Press and wait a few moments until
the lighter pops out automatically.

When used as a socket: 180 W max.

Portable ashtray

After opening, pull upwards then empty
the ashtray into a bin.

Overhead storage compartment

This is located above the sun visors.
Maximum load: approximately 20 kg.

Content .. 2 3 4 5 ..
