Peugeot Boxer Dag (2010 year). Instruction

Access

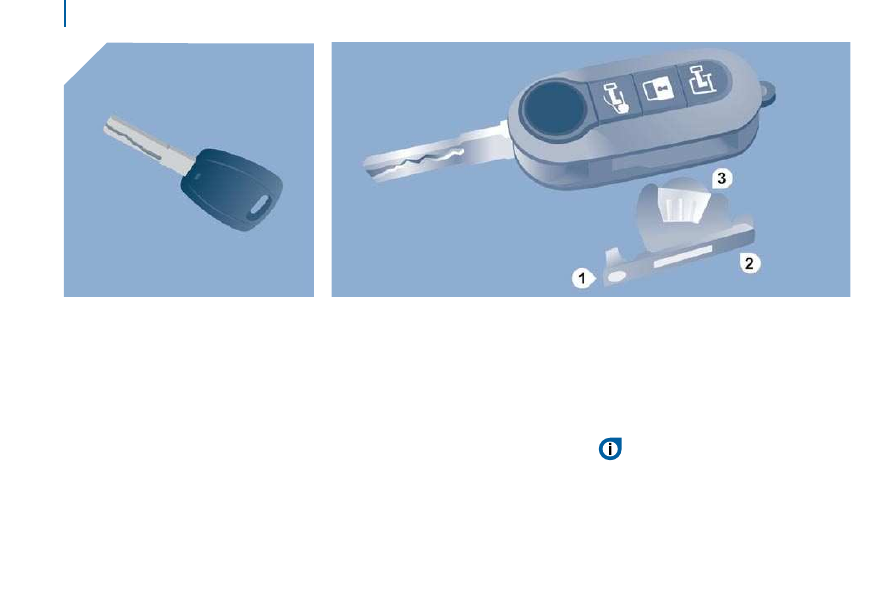

KEY

This locks and unlocks the locks on the

vehicle and starts the engine.

REMOTE CONTROL BATTERY

Reference: CR 2032/3 volts.

Changing the remote control battery

- press the button to eject the key,
- turn the screw 1 from the closed padlock

to the open padlock using a screwdriver

with a thin lip,

- use the screwdriver as a lever to extract

the battery holder housing 2 ,

- remove the housing and change the

battery 3

observing the polarities,

- put the battery holder housing 2 back

inside the key and secure it by turning

the screw 1 .

There is a risk of damage if the

replacement battery is not of the

correct type.

Only use batteries which are identical or of

an equivalent type to those recommended

by a PEUGEOT dealer. Take used batteries

to an approved collection point.

SET

Access

ELECTRONIC IMMOBILISER

All of the keys contain an electronic

immobiliser device.
This device locks the engine supply system.

It is activated automatically when the key is

removed from the ignition.

Operating the remote control, even when it

is in your pocket, may result in involuntary

unlocking of the doors.
However, if none of the doors is opened

within approximately thirty seconds following

unlocking, the doors relock automatically.
The simultaneous use of other high

frequency equipment (mobile telephones,

domestic alarms…), may interfere with the

operation of the remote control temporarily.
The remote control does not operate while

the key is in the ignition, even if the ignition

is off, except for reinitialisation.

Make a careful note of the number of the

keys. If they are lost, your PEUGEOT dealer

will be able to carry out his work more

quickly and effectively if you give him this

number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.

This warning lamp is switched off

after the ignition is switched on

and the key has been recognised,

the engine can be started.

If the key is not recognised, the engine

cannot be started. Use another key and

have the faulty key checked by a PEUGEOT

dealer.

Driving with the doors locked may
make access to the passenger

compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on

board), remove the key from the ignition when

leaving the vehicle, even for a short time.

After the ignition is switched on, a dialogue

is established between the key and the
electronic immobiliser system.

When purchasing a second-hand vehicle:

ensure that you are given the
confidential card,

- have the keys memorised by a

PEUGEOT dealer to ensure that the
keys in your possession are the only
ones which can start the vehicle.

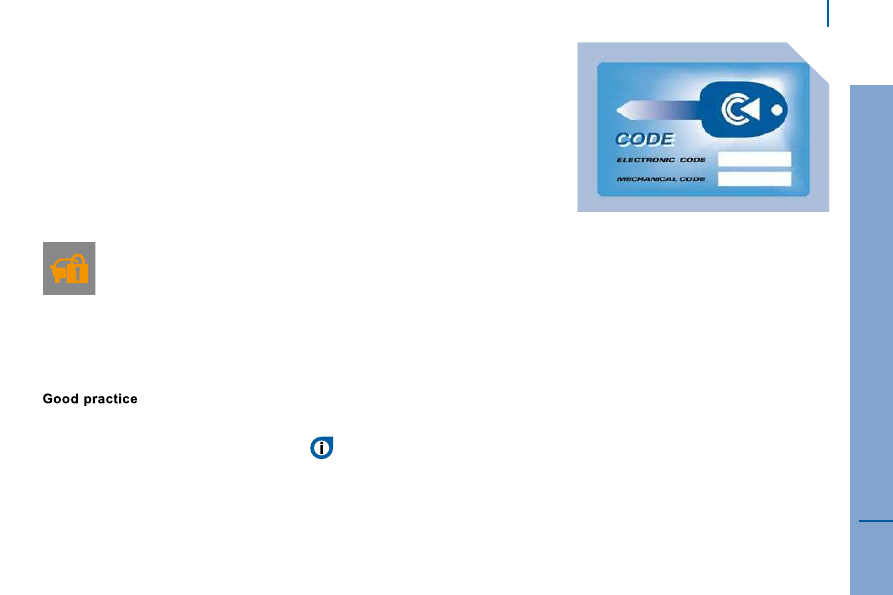

CONFIDENTIAL CARD

This is given to you on delivery of your

vehicle with the duplicate keys.
It contains the identification code necessary

for any work carried out by a PEUGEOT

dealer on the electronic immobiliser system.

This code is hidden by a film, which should

be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,

however, it is advisable to take it with you

along with your personal papers.

Access

While the alarm is monitoring, any intrusion

triggers the siren for approximately

30 seconds, accompanied by lighting of the

direction indicators.
The alarm then returns to monitoring mode

but the triggering event is stored and is

indicated by rapid flashing of the LED, if the

alarm is deactivated.
The alarm is also triggered following an

electrical supply cut-off, when the supply is

restored.

Automatic activation

Depending on the country in which the

vehicle is sold: this function activates

monitoring automatically approximately

2 minutes after the last door is closed. To

avoid triggering the alarm when opening a

door, the unlocking button on the remote

control must be pressed again.

Deactivation using the key

Unlock the doors using the key and enter the

vehicle. Switch on the ignition, identification

of the key code will switch off the alarm.

Deactivation using the remote control

When this button (cab and key) is

pressed, the alarm is deactivated

when the vehicle is unlocked.

Deactivation of the anti-tilt
protection

Press this button to deactivate the

protection (for example when the

vehicle is being towed with the

alarm set).

The protection remains active until the
central unlocking of the doors is activated.

Good practice

  To deactivate the siren quickly following
unwanted triggering:
   -   switch on the ignition, identification of

the key code will switch off the alarm,

- press the unlocking button (cab and key)

on the remote control.

To avoid setting the alarm, when washing

the vehicle for example, lock the vehicle
using the key.

Unlocking the vehicle using the remote
control deactivates the siren automatically.

ALARM

If your vehicle is fitted with an ANTI-THEFT

ALARM.
This provides:
- exterior perimeter protection by means

of detectors on the doors and bonnet

and on the electrical supply,

anti-tilt protection.

  The   system   also includes a siren and   an
LED   which can be seen from outside,
indicating the three possible statuses of
the alarm:
   -   alarm activated (monitoring), slow

flashing of the red LED,

- alarm not activated (not monitoring),

LED off,

- alarm triggered (intrusion signal), rapid

flashing of the red LED when the vehicle

is unlocked.

Activation of the alarm

First ensure that all of the doors are closed
correctly.

The alarm is activated by

pressing this padlock, the

protection is active after a few

seconds.

SET

Access

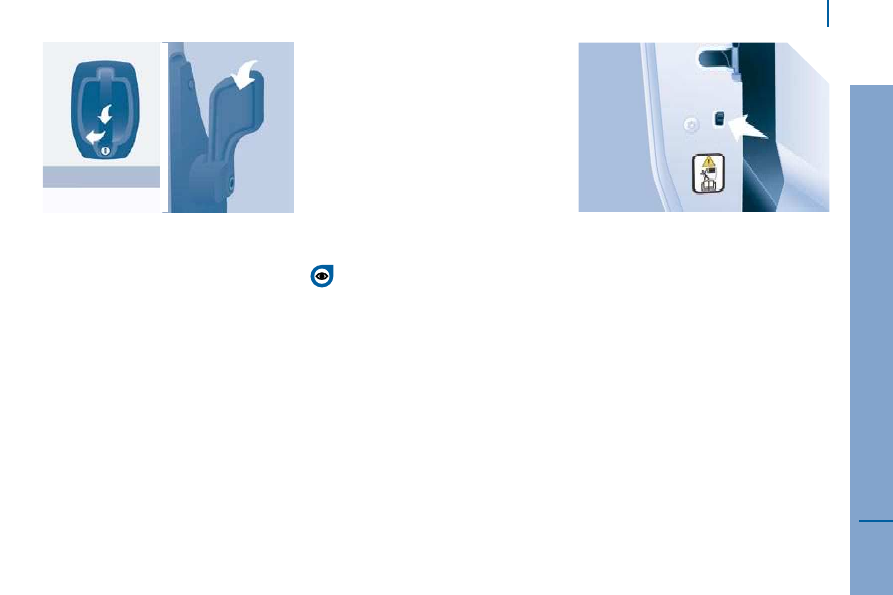

FRONT DOORS

Child lock

This prevents opening of the sliding side

door from the inside.
Press the control located on the edge of the

side door.

Driver's door

Use the remote control to unlock/lock.

SLIDING SIDE DOOR

Take care not to obstruct the guide space

on the floor in order for the door to slide
correctly.

From outside

Pull the handle towards you then towards
the rear.

From inside

To unlock and open, push the handle

towards the rear.
Ensure that the door opens fully in order for the

latch at the bottom of the door to engage.
To release and close, pull the handle while

sliding the door.

Do not drive with the sliding side

door open.

Access

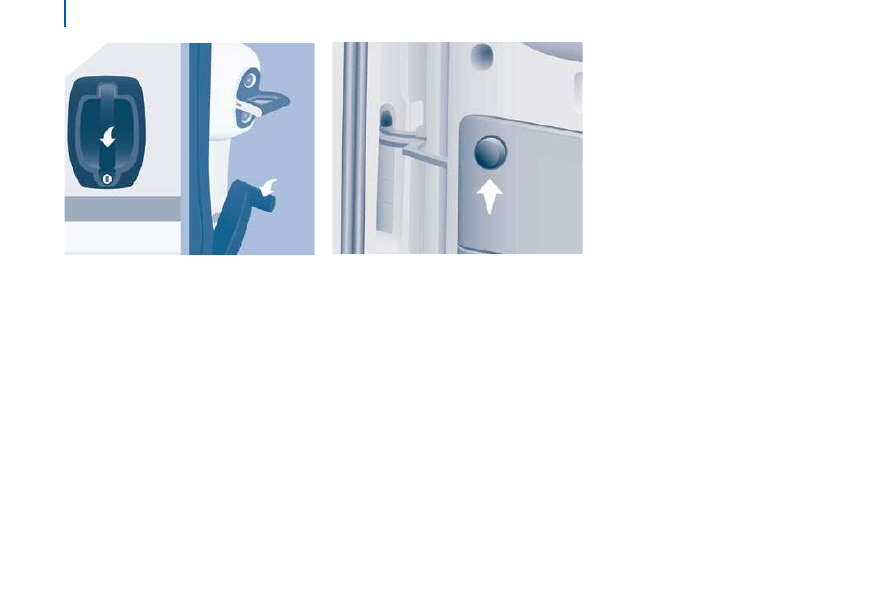

REAR DOORS

From outside

Pull the handle towards you. The two hinged

doors open to 96°.

Opening/Closing the doors
To open, pull the handle towards you then

pull the lever to open the left-hand door.
To close, start with the left-hand door then

close the right-hand door.

Opening to 180°
If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180°.
Press the button, located on the door trim

pad, to widen the angle of the door.
The check strap will take up its normal
position again automatically on closing.

SET

Access

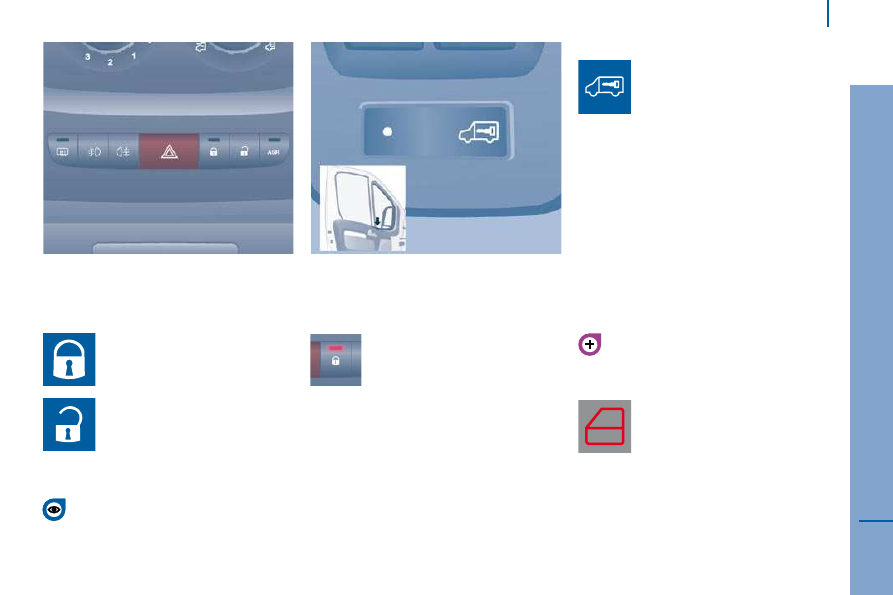

LOCKING/UNLOCKING FROM INSIDE

Door open warning lamp

If this warning lamp comes on,

check that the cab doors, the rear

or side doors and the bonnet are

closed correctly.

Good practice

If you decide to drive with the doors locked,

be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency.

Cab and load space

Pressing permits electric central
locking, when the doors are

closed.

Pressing permits electric central
unlocking.

The doors can still be opened from the

inside.

If one of the doors is open or is not

closed correctly, the central locking

does not work.

The indicator lamp on the control:

- comes on when the doors

are locked and the ignition is

switched on,

- then flashes when the doors

are locked when stationary with

the engine off.

The control is not active when the vehicle

has been locked using the remote control or

the key from the outside.

Load space

Press to lock or unlock the side

door and rear doors from the cab.

The warning lamp remains on on
locking.

Protection against attack

When the vehicle is started, the system

locks the cab and load space doors

automatically when you reach approximately

12 mph (20 km/h).
If none of the doors is opened during the

journey, the locking remains active.

Activation/deactivation of the function
The function is activated/deactivated by

means of Mode, selecting "Autoclose".

Refer to the "Mode" section in chapter 4.

Instruments and controls

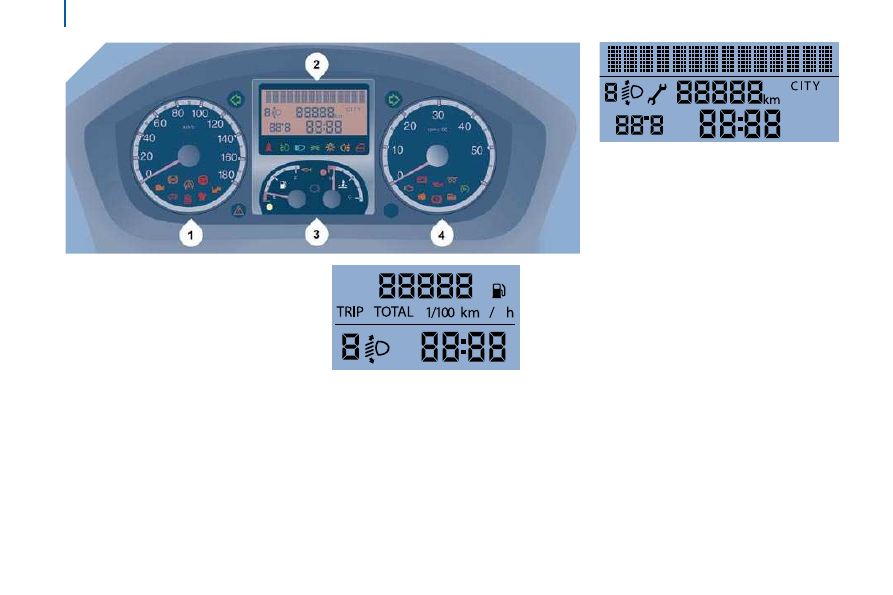

INSTRUMENT PANEL

Distance recorder in miles/kilometres.

2. Screen.

Dials and gauges.

4. Rev counter.

INSTRUMENTS AND CONTROLS

Instrument panel screen 1

   -   Time,
  -   Miles/Kilometres travelled,
  -   Range,
  -   Fuel consumption,
  -   Average speed,
  -   Headlamp beam height,
  -   Programmable overspeed warning via

MODE,

- Service indicator.

Instrument panel screen 2

   -   Time,
  -   Date,
  -   Ambient temperature,
  -   Miles/Kilometres travelled,
  -   Range,
  -   Fuel consumption,
  -   Average speed,
  -   Headlamp beam height,
  -   Programmable overspeed warning via

MODE,

- Service indicator,
- Warning messages displayed in the top

section,

- Radio (frequency of the current station).

Instruments and controls

SET

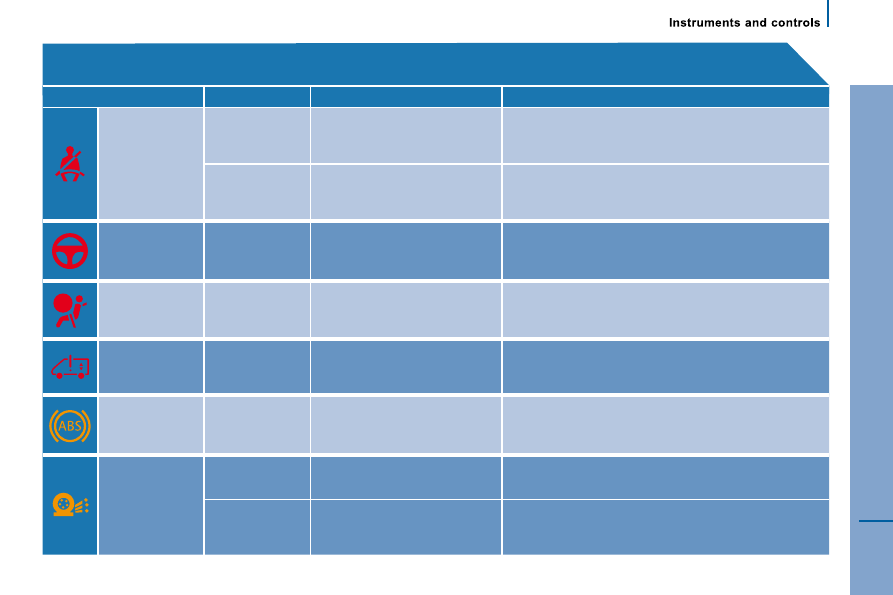

WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They switch off almost

immediately. When the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes.

This initial warning may be accompanied by an audible signal and a message on the screen. "Do not ignore these warnings."

Warning lamp

indicates

Solution - action

Service

on temporarily.

minor faults.

Contact a PEUGEOT dealer.

continuously on,

accompanied by
a message on
the screen.

major faults.

Make a note of the warning message and contact a

PEUGEOT dealer.

Parking brake -
Brake fluid level

on.

that the parking brake is applied or

has not been released correctly.

Releasing the parking brake switches off the warning lamp.

on.

that the fluid level is too low.

Top up with a fluid recommended by PEUGEOT.

continuously on,
even though the
level is correct.

Stop immediately, park, switch off the ignition and
contact a PEUGEOT dealer.

Electronic brake
force distribution

on.

an electronic brake force

distribution fault.

Stop immediately. Consult a PEUGEOT dealer.

Low coolant
level

on.

that the fluid level is too low.

Park and switch off the ignition. Allow to cool. Refer to

the "Levels" section of chapter 7. Consult a PEUGEOT

dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

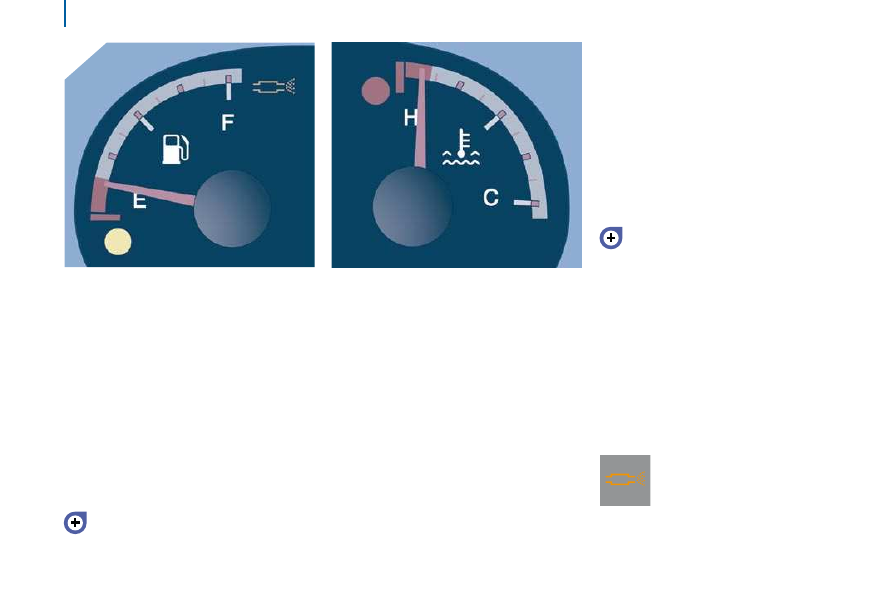

Coolant
temperature

on with the

needle in the red
zone.

an abnormal increase.

Park and switch off the ignition, allow the system to cool.
Visually check the level.

on H in the red
zone.

a coolant temperature.

Refer to the "Levels" section of chapter 7. Consult a

PEUGEOT dealer.

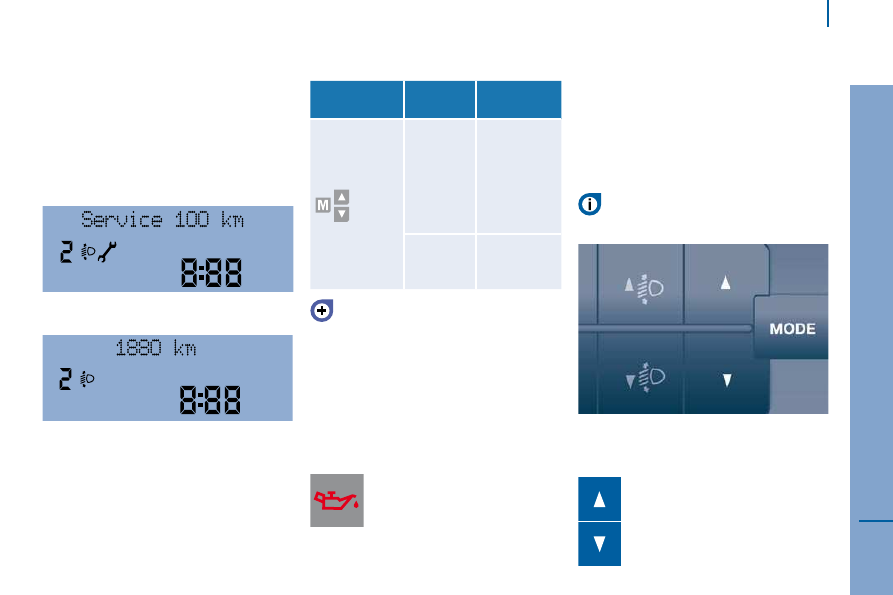

Engine oil
pressure

on while driving. that the pressure is too low.

Park and switch off the ignition, allow the lubrication

system to cool in order to check its level. Refer to the

"Levels" section of chapter 7.

continuously on,
even though the
level is correct.

a major fault.

Consult a PEUGEOT dealer.

flashing, for a

few seconds,

with a message
on the screen.

that a service will soon be due. Refer to the list of checks in the servicing booklet then

carry out the PEUGEOT service.

Battery charge

on.

a fault in the charging circuit.

Check the battery terminals… Refer to the "Battery"

section of chapter 8.

continuously on,

fixed or flashing

in spite of the
checks.

a circuit fault, an ignition or

injection malfunction.

Consult a PEUGEOT dealer.

Door or bonnet
open detection

on.

that a door or the bonnet is not

closed correctly.

Check that the cab doors, the rear and side doors and

the bonnet are closed.

SET

Warning lamp

indicates

Solution - action

Seat belt not
fastened

on then flashes. that the driver has not fastened

his seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied by

an audible signal
then remains on.

that the vehicle is moving
with the driver's seat belt

unfastened.

Check that the seat belt is fastened correctly by pulling

the strap. Refer to "Seat belts" section of chapter 5.

Power steering

on, accompanied

by an audible signal

and a message on

the screen.

its malfunction.

The vehicle retains conventional steering without

assistance. Have the system checked by a PEUGEOT

dealer.

Front/lateral
airbag

flashing or
continuously on.

a fault with an airbag.

Have the system checked by a PEUGEOT dealer. Refer

to the "Airbags" section of chapter 5.

Suspension

on.

a fault with the pneumatic
compensation.

Consult a PEUGEOT dealer.

ABS

on.

failure of the system.

The vehicle retains conventional braking without

assistance. However, you are advised to stop and

contact a PEUGEOT dealer.

ASR

flashing.

that skidding of the wheels has

been avoided.

The system optimises drive and improves the directional

stability of the vehicle.

Refer to the "Driving safety" section of chapter 5.

on, accompanied

by an audible signal

and a message on
the screen.

its malfunction.

Consult a PEUGEOT dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

ESP

flashing.

that it is in operation.

on.

its malfunction or failure of the
hill start assist.

Consult a PEUGEOT dealer.
Refer to the "Driving safety" section of chapter 5.

Emission control
system

on.

a fault with the system.

Have the system checked by a PEUGEOT dealer

without delay.

Anti-pollution

on.

a fault with the system.

Have the system checked by a PEUGEOT dealer

without delay.

Deactivation
of the front
passenger
airbag

on.

the intentional deactivation of

this airbag when a rear facing

child seat is installed.

Configure via the trip computer MODE menu. Refer to

the "Mode" section of chapter 4.

Electronic
immobiliser

on.

the ignition key inserted is not

recognised.
The vehicle cannot be started.

Use another key and have the faulty key checked by

a PEUGEOT dealer. Refer to the "Access" section of
chapter 2.

Front brake

pads

on.

brake pad wear.

Have the pads replaced by a PEUGEOT dealer.

Instruments and controls

SET

Warning lamp

indicates

Solution - action

Water in Diesel
filter

on, accompanied
by a message on
the screen.

that there is water in the Diesel

fuel filter.

Have the filter bled by a PEUGEOT dealer.
Refer to the "Checks" section of chapter 7.

Low fuel level

on with the

gauge needle in
zone E.

that the fuel reserved is being

used.

Fill up with fuel without delay. The calculation of the

remaining fuel depends on the style of driving, the profile

of the road, the time elapsed and the distance travelled

since the warning lamp first came on.

flashing.

a malfunction.

Consult a PEUGEOT dealer.

Diesel
pre-heating

on.

that the weather conditions
impose pre-heating.

Wait for the warning lamp to switch off before operating
the starter.

Sidelamps

on, accompanied
by a message on
the screen.

manual selection.

Turn the ring on the lighting stalk to the first position.

automatic illumination of

headlamps, ring in position A.

Adjust the sensitivity of the sunshine sensor via the

MODE menu. Refer to the "Mode" section of chapter 4.

Dipped beam

headlamps

on.

manual selection.

Turn the ring on the lighting stalk to the second position.

Main beam
headlamps

pulling of the stalk towards you. Pull the stalk to return to dipped beam headlamps.

Instruments and controls

Warning lamp

indicates

Solution - action

Direction
indicators

flashing with
buzzer.

a change of direction using the

lighting stalk, to the left of the

steering wheel.

To the Right: press the stalk upwards.
To the Left: press the stalk downwards.

Front foglamps

on.

that the button on the centre
console has been pressed.

Manual selection.
The foglamps only operate if the sidelamps or dipped

beam headlamps are on.

Rear foglamps

on.

that the button on the centre
console has been pressed.

Manual selection. The foglamps only operate if the

sidelamps or dipped beam headlamps are on. When

visibility is normal, please switch the foglamps off.

Cruise control

on.

that the cruise control has been
selected.

Manual selection.
Refer to the "Steering mounted controls" section of

chapter 3.

Faulty bulb

on accompanied
by a message
on the screen.

that one or more bulbs have
blown.

Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8 or

contact a PEUGEOT dealer.

Rear parking
sensors

on.

failure of the system.

The audible assistance is no longer active.
Have the system checked by a PEUGEOT dealer

without delay.

Instruments and controls

SET

Screen

displays

indicates

Solution - action

Temperature/Ice

the ice warning,
the temperature
flashing

accompanied by
a message on
the screen.

weather conditions which could

result in ice on the road.

Be particularly vigilant and do not brake sharply.

Refer to the "Driving Safely" section of chapter 5".

Date 11:00:00

a setting:
Date. Time.

a configuration via the MODE
menu.

Refer to the "Mode" section of chapter 4.

Headlamp beam
height

a headlamp
height setting.

A position from 0 to 3

depending on the load carried

Adjust using the control on the dashboard. Refer to the

"Steering mounted controls" section of chapter 3.

Service spanner

a service
spanner which
remains on.

that a service will soon be due. Refer to the list of checks in the servicing booklet. Have

the service carried out by a PEUGEOT dealer.

Instruments and controls

FUEL GAUGE

The fuel level is tested each time the key is

turned to the "running" position.
The gauge is positioned on:
-

F (Full):

the fuel tank is full,

approximately 90 litres.

E (Empty):

the reserve is now being

used, the warning lamp comes on
continuously.

The reserve when the warning first comes

on is approximately 11 litres.
Fuel tanks of different capacities (60 and

125 litres) are available as an option.

COOLANT TEMPERATURE

The needle is positioned between
C (Cold) and H (Hot): normal operation.
In arduous conditions of use or hot climatic

conditions, the needle may move close to

the red graduations.

- wait for the engine to cool down in

order to check the level and top it up if

necessary. Follow this advice:

the cooling system is pressurised. In

order to avoid any risk of scalding,

unscrew the cap by two turns to allow

the pressure to drop.

When the pressure has dropped, check the

level and remove the cap to top up.
If the needle remains in the red zone,

contact a PEUGEOT dealer.

Refer to the "Levels" section of chapter 7.

Refer to the "Fuel" section of chapter 7.

  What you should do if the needle enters the
red zone, or if the warning   lamp   comes on:
   -   stop immediately, switch off the ignition.

The fan may continue to operate for

a certain time up to approximately
10 minutes.

EMISSION CONTROL

EOBD (European On Board Diagnosis) is

a diagnostics system which complies with,

among others, the standards concerning

authorised emissions of:
   -   CO (carbon monoxide),
  -   HC (unburnt hydrocarbons),
  -   NOx (nitrogen oxides) or particles,

detected by oxygen sensors placed

upstream and downstream of the
catalytic converters.

Therefore, the driver is warned of any

malfunction of this emission control

system by the lighting of this speciﬁ c

warning lamp on the instrument panel.

There is a risk of damage to the catalytic

converter. Have it checked by a PEUGEOT

dealer.

Instruments and controls

SET

SERVICE INDICATOR

For a few seconds after the ignition is

switched on, the spanner symbolising the

service indicator comes on: the screen

informs you when the next service is due,

in accordance with the manufacturer's

servicing schedule indicated in the servicing

booklet. This information is determined in

relation to the distance travelled since the
previous service.

LIGHTING RHEOSTAT

The rheostat is active when the lighting is on.

After a few seconds, the display returns to

its usual functions.

Use these controls to adjust the

brightness of the instrument panel.
There are 8 levels.

A long press returns you to the main menu.

Refer to "Mode" section of chapter 4.

Deterioration of the engine oil
(100 and 120 bhp engines)

The "Oil Life" function determines the

service interval, between 20,000 miles

(30,000 km) and 30,000 miles (45,000 km),

depending on the wear of the engine oil.
The engine control unit tests the degree of

wear of the engine oil.

Refer to the list of checks in the

servicing booklet which was given to

you on handover of the vehicle.

Reminder of servicing information

At any time, to access the service indicator,

press briefly on the MODE button.
Use the up/down arrows to see the

scheduling and engine oil wear information.
Pressing the MODE button again allows you

to return to the various display menus.

Menu...

Choose...

Allows you

to...

12
Service

Service
(Miles/km

before oil

change)

Display the
distance
remaining
before the

next oil
change.

Oil

Display the
oil level.

Resetting to zero

The stopping of the permanent flashing of

the indicator is carried out by an authorised

repairer with a diagnostic tool.

In this case, your vehicle must be serviced

as soon as possible (within approximately

600 miles/1 000 km).
The function must be reset to zero every

time the engine oil is changed.

You are warned by the flashing of

the engine oil pressure warning

lamp and a message on the
instrument panel every time you

start the engine, if your vehicle is fitted with

this function.

Peugeot Boxer Dag (2010 year). Instruction - part 2
