Peugeot Boxer Dag (2010 year). Instruction - part 7

Voice commands

Level 1

Level 2

Level 3

Actions

Settings

Advanced Features/
Advanced Options

Activation of the ADV. OPTIONS menu.

Device ID

Displaying of the hands-free system identification code.

Connection code/
Connection ID

Activation of the GPRS CODE menu.

Exit

Exit from the SETTINGS menu.

Media settings

Activation of the MEDIA PLAYER menu.

Shuffle/Random order

Activation/Deactivation of the audio files random play function.

Loop/Loop track/Cycle

Activation/Deactivation of the audio files play in loop function.

Autoplay/Autoplay media/Autoplay music

Activation/Deactivation of the automatic playing of the audio files on
connection to the portable equipment function.

Voice commands

The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).

When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.

VOICE COMMANDS

MOBILE TELEPHONE WITH HANDS-FREE FUNCTION

Level 1

Level 2

Level 3

Actions

Dial/Dial a number

One, Two, ..., Plus, Star,
Pound

Call/Dial

Entering of the digits or symbols to dial the telephone number.

Delete/No

Deletion of the last group of digits entered.

Start over

Deletion of all of the groups of digits entered with the option of entering a
new number.

Repeat

Repeating of the telephone number entered and recognised by the hands-free system.

Cancel

Cancellation of dialling of the number.

Sending of the call to the number entered verbally.

Call

[ Name ]

Yes/No

Call to the name of the person, stored in the system's phone book.

mobile/cellular/cell

Call to the name of the person with personalisation if there are several
numbers stored in the system.

home

work

Redial

Call to the last person called.

Callback

Call to the last person who called.

Voice commands

VOICE COMMANDS

PORTABLE EQUIPMENT AUDIO PLAYER

Level 1

Actions

Media player/Media/Music

Activation of the audio player.

Play/Play music/Play media

Activation of play.

Stop/Stop music/Stop media

Interruption of playing of the current ﬁ le.

Next/Next track/Next song/The one after

Go to the next menu or ﬁ le.

Previous/Previous track/Previous song/The one before

Go to the previous menu or ﬁ le.

Shufﬂ e on/Random order on

Activation of playing of the ﬁ les in random order.

Shufﬂ e off/Random order off

Deactivation of playing of the ﬁ les in random order.

Loop on/Loop track on/Cycle on

Activation of playing of the ﬁ les in a loop.

Loop off/Loop track off/Cycle off

Deactivation of playing of the ﬁ les in a loop.

Now playing/What's playing/What is playing/What's this track

Displaying of the information for the ﬁ le currently being played.

Folders/Folder/Browse folders

Activation of the FOLDERS menu.

Artists/Artist/Browse artists

Activation of the ARTISTS menu.

Genres/Genre/Browse genres/Type of music/Styles/Music styles/Types/Music types

Activation of the GENRES menu.

Albums/Album/Browse albums

Activation of the ALBUMS menu.

Playlists/Playlist/Browse playlists

Activation of the PLAYLISTS menu.

Media settings

Activation of the MEDIA PLAYER menu.

Autoplay on/Autoplay media on/Autoplay music on

Activation of autoplay on connection to the portable equipment.

Autoplay off/Autoplay media off/Autoplay music off

Deactivation of autoplay on connection to the portable equipment.

Play anything/Play something

Activation of playing of all of the ﬁ les in random order.

Driving safety

DRIVING SAFELY

PARKING BRAKE

HAZARD WARNING LAMPS

Press this button, the direction indicators
flash.

They can operate with the ignition off.

The hazard warning lamps should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.

Applying

Pull the parking brake to immobilise your
vehicle.

Check that the parking brake is applied
firmly before leaving the vehicle.

If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on on the instrument panel.

When parking on a slope, direct your wheels
towards the pavement and pull the parking
brake lever up.

There is no advantage in engaging a gear after
parking the vehicle, particularly if the vehicle is
loaded.

Releasing

Pull the lever and press the button to lower
the parking brake lever.

Driving safety

HORN

Press the centre of the steering wheel.

ANTI-LOCK BRAKING SYSTEM
(ABS - EBFD)

The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.

The ABS prevents locking of the wheels, the
EBFD provides full control of the braking
pressure wheel by wheel.

EMERGENCY BRAKING ASSISTANCE
SYSTEM (EBA)

In an emergency, this system enables the
optimum braking pressure to be reached
more quickly, press the pedal firmly without
releasing it.
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake pedal
under your foot.
To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.

Good practice

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.

On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to steer the vehicle to avoid an
obstacle.

Normal operation of the ABS may be felt by
slight vibration of the brake pedal.

When changing wheels (tyres and rims),
ensure that these are approved.

If this warning lamp comes on,
it indicates a malfunction of the
ABS which could result in a
loss of control of the vehicle on
braking.

If this warning lamp comes on,
together with the brake warning
lamp, it indicates a malfunction of
the electronic brake force distribution
which could result in a loss of control
of the vehicle on braking.

Stop immediately.

In both cases, contact a PEUGEOT dealer.

Driving safety

TRACTION CONTROL (ASR) AND
DYNAMIC STABILITY CONTROL (ESP)

These systems are linked and complement
the ABS.

The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.

The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration.

Use the ESP to hold your course without
attempting to countersteer.

If there is a variation between the trajectory
followed by the vehicle and that required
by the driver, the ESP system automatically
acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.

In certain exceptional conditions (when
starting a vehicle stuck in mud or snow, or
on loose ground...), it could prove useful
to deactivate the ASR system to make the
wheels spin and regain grip.

Operation of the ASR and ESP
systems

The LED flashes when the ASR
or ESP is triggered.

Press this button.

The LED on the button comes on: the ASR
system no longer acts on the engine operation, but
continues to act on the brakes.

Operating fault

When a malfunction of the ASR
system occurs, this warning lamp
comes on, accompanied by an
audible signal and confirmed by a
message on the screen.

Driving safety

FIXED SPEED LIMITER

If your vehicle is fitted with this function,
the speed of your vehicle can be limited
to a fixed speed of approximately 55 mph
(90 km/h) or 60 mph (100 km/h). This
maximum speed cannot be changed.

A label in the passenger compartment
indicates this maximum speed.
The ﬁ xed speed limiter is not a function of
the cruise control type. It cannot be activated
or deactivated by the driver while driving.

When a malfunction of the ESP
system occurs, this warning lamp
comes on, accompanied by an
audible signal and confirmed by a
message on the screen.

Contact a PEUGEOT dealer to have the
system checked.

Good practice

The ASR/ESP systems offer increased
safety during normal driving, but should not
incite the driver to take risks or to drive at
high speed.

The operation of these systems is ensured
if the recommendations of the manufacturer
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the fitting and repair
procedures within the PEUGEOT network
are observed.

After an impact, have these systems
checked by a PEUGEOT dealer.

Driving safety

FIXED SPEED LIMITER

If your vehicle is fitted with this function,
the speed of your vehicle can be limited
to a fixed speed of approximately 55 mph
(90 km/h) or 60 mph (100 km/h). This
maximum speed cannot be changed.

When a malfunction of the ESP
system occurs, this warning lamp
comes on, accompanied by an
audible signal and confirmed by a
message on the screen.

Contact a PEUGEOT dealer to have the
system checked.

Good practice

The ASR/ESP systems offer increased
safety during normal driving, but should not
incite the driver to take risks or to drive at
high speed.

After an impact, have these systems
checked by a PEUGEOT dealer.

Seat belts

SEAT BELTS

CAB SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.

REAR SEAT BELTS

The seats/bench seats are fitted with three-
point seat belts and inertia reels.

The centre seat has a seat belt guide and
inertia reel, solid with the seat back.

Height adjustment

Squeeze the control with the return and slide
the assembly on the driver's seat side and
on the side passenger seat side.

The height of the seat belt associated with
the centre seat cannot be adjusted.

Fastening

Pull the strap in front of you, with an even
movement, ensuring that it does not twist.

Secure the buckle in its housing.

Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap rapidly.

Unfastening

Press the "red" button on the buckle
housing, the seat belt rolls up automatically
but you are advised to guide it.

As a safety precaution, these
operations should not be carried out
while the vehicle is moving.

Driver's seat belt not
fastened warning lamp

When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.

CREW CAB

Each rear seat is fitted with a three-point
inertia reel seat belt.

Use the seat belt to restrain one person only
per seat.

Seat belts

The force limiter reduces the pressure of the
seat belt against the body of the occupants.

The pretensioning seat belts are active when
the ignition is switched on.

The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.

You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.

Good practice

The driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.

Wherever you are seated in the vehicle, always
fasten your seat belt, even for short journeys.

The seat belts are fitted with an inertia reel
which automatically adjusts the length of
the strap to your size.

Do not use accessories (clothes pegs, clips,
safety pins, etc.) which permit a clearance
with the seat belt straps.

Ensure that the seat belt has reeled in
correctly after use.

After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.

Depending on the nature and seriousness
of any impact, the pretensioning device may
be triggered before and independently of
inflation of the airbags. It instantly tightens
the seat belts against the body of the
occupants.

Triggering of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

The airbag warning lamp comes
on if the pretensioners are
triggered. Consult a PEUGEOT
dealer.

In order to be effective, a seat belt must:

restrain one person only,

must not be twisted, check by pulling in
front of you with an even movement,

be tightened as close to the body as
possible.

The upper part of the seat belt should be
positioned in the hollow of the shoulder.

The lap part should be placed as low as
possible on the pelvis.

Do not invert the seat belt buckles as they
will not fulfil their role completely.

If the seats are fitted with armrests, the lap
part of the seat belt should always pass
under the armrest.

Check that the seat belt is fastened correctly
by pulling the strap firmly.

Recommendations for children:

use a suitable child seat if the
passenger is less than 12 years old or
shorter than one metre fifty,

never allow a child to travel on your lap,
even with the seat belt fastened.

For more information on child seats,
refer to the "Child safety" section of
chapter 5.

Your PEUGEOT dealer can ensure that
all work or any checks, from testing to
maintenance on your seat belt equipment
meets current regulations.

Have the seat belts checked regularly
(even after a minor impact) by a PEUGEOT
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
converted or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PEUGEOT dealers.

Improved safety and security

IMPROVED SAFETY AND SECURITY

IMPACT RESISTANCE

Your vehicle has been designed to limit
the forces on the passenger compartment
as much as possible in the event of a
collision, the engine compartment adopts
a progressive deformation structure and
the front doors have been reinforced to
contribute to the rigidity of the whole.

ANTI-THEFT PROTECTION

Your vehicle, in the van version, comprises
two zones with separate locking: the cab
and the load space.

Depending on the way in which it is used,
this function provides increased protection
both for your personal belongings and for
your merchandise.

Details of these functions are given in
part 2.

An exterior protection alarm with anti-tilt
detection is available (as standard or as an
option) in certain countries.

Airbags

AIRBAGS

The airbags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.

In the event of a serious collision, the
electronic detectors record and analyse any
abrupt deceleration of the vehicle:

if the triggering threshold is reached, the
airbags inflate instantly and protect the
occupants of the vehicle.

Immediately after the impact, the airbags
deflate rapidly, so that they do not hinder the
visibility of the occupants nor their possible
exit from the vehicle.

The airbags will not be deployed in collisions
which are not serious, for which the seat belt
is sufficient to provide maximum protection.
The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Airbags only operate when the ignition is
switched on.

Front airbags

These are fitted in the centre of the steering
wheel for the driver and in the dashboard
for the front passenger. They are deployed
simultaneously, except in cases where the
passenger airbag has been deactivated.

The gas escaping from the deployed
airbags can be a minor irritant.

The noise of the detonation may result in a
slight loss of hearing for a short time.

Front airbag fault

If this warning lamp comes on,
contact a PEUGEOT dealer to
have the system checked.

C I T Y

Airbags

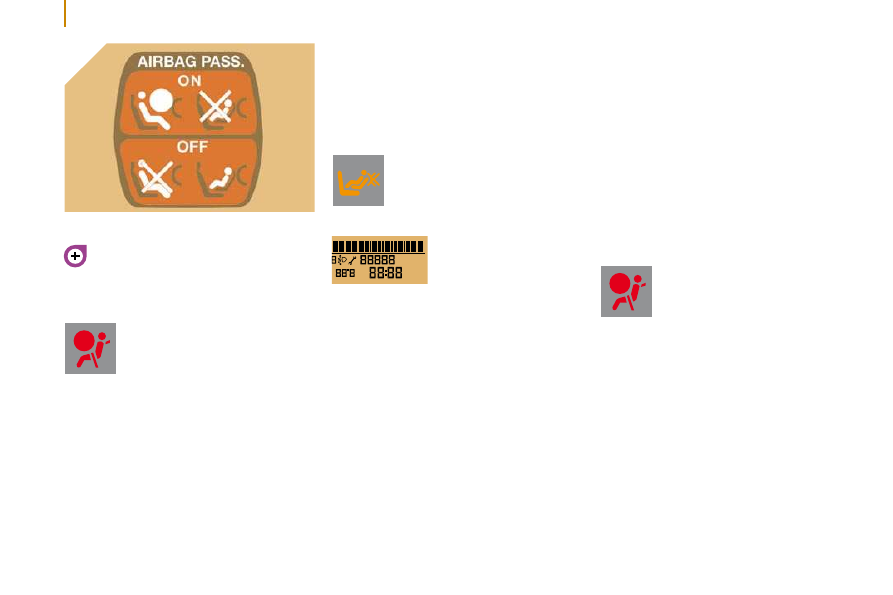

Deactivating the passenger airbag

Refer to the "MODE" section of
chapter 4, then on the "Passenger
airbag" menu, select OFF .

When OFF is selected, the passenger
airbag will not be triggered in the event of an
impact.

As soon as the child seat is removed, select
ON to re-activate the airbag and thus ensure
the safety of your passenger in the event of
an impact.

Lateral airbags and curtain airbags

If your vehicle is fitted with lateral airbags,
these are fitted to the front seat backs on
the door side.

The curtain airbags are fitted to the door
pillars and the upper part of the passenger
compartment, in the roof over the front
cab seats.

They inflate between the occupant and
the glass.

They are deployed independently of each
other depending on which side the collision
occurs.

The airbag warning lamp on the
instrument panel remains on
while the passenger airbag is
deactivated.

To ensure the safety of your child, it is
essential to deactivate the passenger airbag
when you install a rear-facing child seat on
the front passenger seat. Otherwise, the
child would risk being killed or seriously
injured if the airbag were to inflate.

If your vehicle is not fitted with this
equipment: do not install a rear-facing child
seat.

Deactivation check

This is confirmed by lighting of
this warning lamp each time the
engine is started.

If your vehicle is fitted
with this screen, the
check is accompanied by
a message.

Operating check

Confirmed by this indicator lamp.

Airbags

Good practice

  If your vehicle is fitted with front,   lateral
and curtain   airbags  , in order for these to
be fully effective, observe the following
safety rules:

Wear a correctly adjusted seat belt.

Sit in a normal upright position.

Do not leave anything between the
occupants and the airbags (child, animal,
object...).

This could hamper the operation of the
airbags or injure the occupants.

All work on the airbag systems is strictly
prohibited unless it is carried out by qualified
personnel of the PEUGEOT network.

After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.

Front airbags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.

Passengers must not place their feet on the
dashboard.

Smoke as little as possible; deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.

Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags

Only put approved covers on the front seats.
Consult a PEUGEOT dealer.

Do not fix or attach anything to the front seat
backs. This could cause injury to the chest
or arms when the lateral airbag is deployed.

Do not sit with the upper part of the body
any nearer to the door than necessary.

Curtain airbags

Do not fix or attach anything to the pillars or
the roof. This could cause injury to the head
when the curtain airbag is deployed.

Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain airbags.

C I T Y

Airbags

Deactivating the passenger airbag

Refer to the "MODE" section of
chapter 4, then on the "Passenger
airbag" menu, select OFF .

When OFF is selected, the passenger
airbag will not be triggered in the event of an
impact.

As soon as the child seat is removed, select
ON to re-activate the airbag and thus ensure
the safety of your passenger in the event of
an impact.

Lateral airbags and curtain airbags

If your vehicle is fitted with lateral airbags,
these are fitted to the front seat backs on
the door side.

The curtain airbags are fitted to the door
pillars and the upper part of the passenger
compartment, in the roof over the front
cab seats.

They inflate between the occupant and
the glass.

They are deployed independently of each
other depending on which side the collision
occurs.

The airbag warning lamp on the
instrument panel remains on
while the passenger airbag is
deactivated.

If your vehicle is not fitted with this
equipment: do not install a rear-facing child
seat.

Deactivation check

This is confirmed by lighting of
this warning lamp each time the
engine is started.

If your vehicle is fitted
with this screen, the
check is accompanied by
a message.

Operating check

Confirmed by this indicator lamp.

Airbags

Good practice

  If your vehicle is fitted with front,   lateral
and curtain   airbags  , in order for these to
be fully effective, observe the following
safety rules:

Wear a correctly adjusted seat belt.

Sit in a normal upright position.

Do not leave anything between the
occupants and the airbags (child, animal,
object...).

This could hamper the operation of the
airbags or injure the occupants.

All work on the airbag systems is strictly
prohibited unless it is carried out by qualified
personnel of the PEUGEOT network.

After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.

Front airbags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.

Passengers must not place their feet on the
dashboard.

Smoke as little as possible; deployment of
the airbags can cause burns or the risk of
injury from a cigarette or pipe.

Never remove or pierce the steering wheel
or hit it violently.

Lateral airbags

Only put approved covers on the front seats.
Consult a PEUGEOT dealer.

Do not fix or attach anything to the front seat
backs. This could cause injury to the chest
or arms when the lateral airbag is deployed.

Do not sit with the upper part of the body
any nearer to the door than necessary.

Curtain airbags

Do not fix or attach anything to the pillars or
the roof. This could cause injury to the head
when the curtain airbag is deployed.

Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain airbags.

Content .. 5 6 7 8 ..
