Peugeot 3008 Dag (2010.5). Instruction - part 14

184

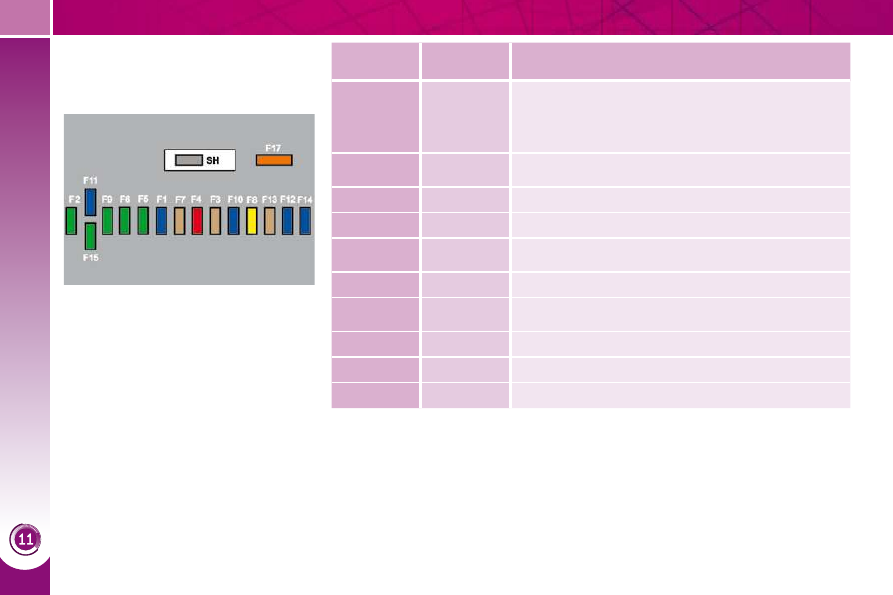

Access to the fuses


refer to the paragraph "Access to

the tools".

Fuse

N°

Rating

(A)

Functions

Audio equipment, audio/telephone, CD changer,

multifunction scren, tyre under-inﬂ ation detection,

alarm siren, alarm control unit, telematic unit,

service module (with Peugeot Connect Media).

Front 12 V socket, cigar lighter, rear 12 V socket.

F10

Steering mounted controls.

F11

Low current ignition switch.

F12

Trailer presence, rain/sunshine sensor, supply for

fuses F32, F34, F35.

F13

Engine fusebox, airbag control unit.

F14

Instrument panel, instrument panel screen, supply

for fuse F33.

F15

Locking and deadlocking.

F17

Heated rear screen, supply for fuse F30.

PARC shunt.

185

Fuse

N°

Rating

(A)

Functions

F29

Nor used.

F30

Heated door mirrors.

F31

Boot 12 V socket.

F32

Electronic gear control gearbox gear lever.

F33

Head-up display, Bluetooth system, air conditioning.

F34

Seat belt warning lamp display.

F35

Parking sensors, Hi-Fi ampliﬁ er authorisation.

F36

Trailer fusebox control unit, driver's door control

pad.

F37

Hi-Fi ampliﬁ er.

F38

Driver's electric seat.

F39

Panoramic sunroof blind.

F40

Not used.

186

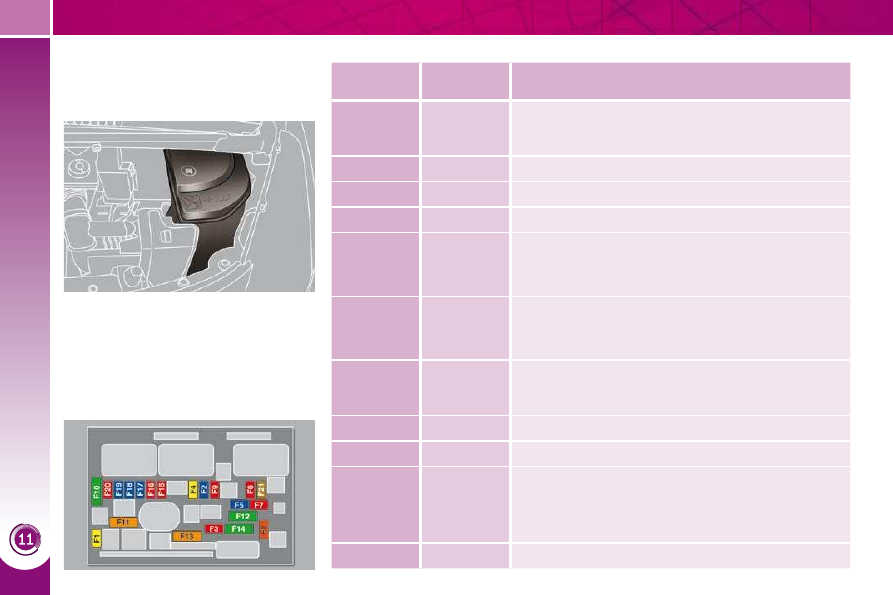

Engine compartment fuses

The fusebox is placed in the engine

compartment near the battery (left-hand

side).

Access to the fuses


Unclip the cover.



Change the fuse (see correspond-

ing paragraph).



When you have ﬁ nished, close the

cover carefully to ensure correct

sealing of the fusebox.

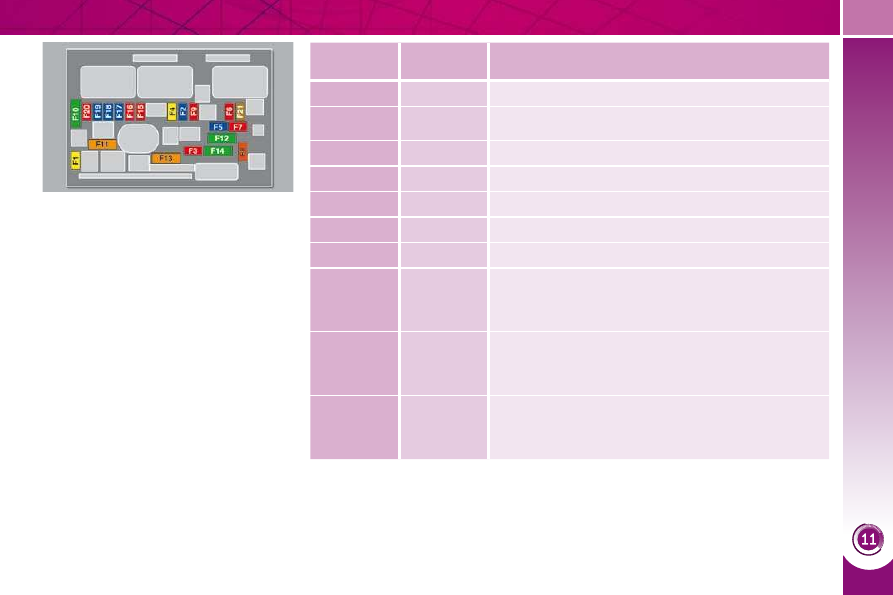

Fuse table

Fuse

N°

Rating

(A)

Functions

Engine control unit supply, injection pump and EGR

electrovalves (2 l HDI 16V), injectors (2 l HDI 16V).

Horn.

Front/rear wash-wipe.

Daytime running lamps.

Purge canister, turbine discharge and Turbo

pressure regulation electrovalves (1.6 l THP 16V),

oil vapour heater (1.6 l THP 16V), diesel heater

(1.6 l HDI 16V).

Diagnostic socket, directional headlamps,

particle emission ﬁ lter pump (Diesel), Distance

alert, engine coolant level detector, mirror

adjustment control.

Power steering control unit, automatic gearbox,

directional headlamps height adjustment motor.

Starter motor control.

Clutch and brake pedal switches.

F10

Engine control unit actuators (petrol: ignition

coils, electrovalves, oxygen sensors, injectors,

heaters, fuel pump, electronic thermostat)

(Diesel: electrovalves, heaters).

F11

Air conditioning fan.

187

Fuse

N°

Rating

(A)

Functions

F12

Windscreen wipers slow/fast speed.

F13

Built-in systems interface supply (ignition positive).

F14

Air pump.

F15

Right-hand main beam headlamp.

F16

Left-hand main beam headlamp.

F17

Left-hand dipped headlamp.

F18

Right-hand dipped headlamp.

F19

Oil vapour heater (1.6 l VTi 16V), Turbo pressure

regulation electrovalve (Diesel), engine coolant

level detector (Diesel).

F20

Electronic thermostat, variable timing electrovalves,

Turbo pressure regulation electrovalve (Diesel),

engine coolant level detector (Diesel).

F21

Fan assembly relay supply, Valvetronic

relay control (1.6 l VTi 16V), Turbo cooling

(1.6 l THP 16V), air ﬂ ow sensor (1.6 l HDI 16V).

188

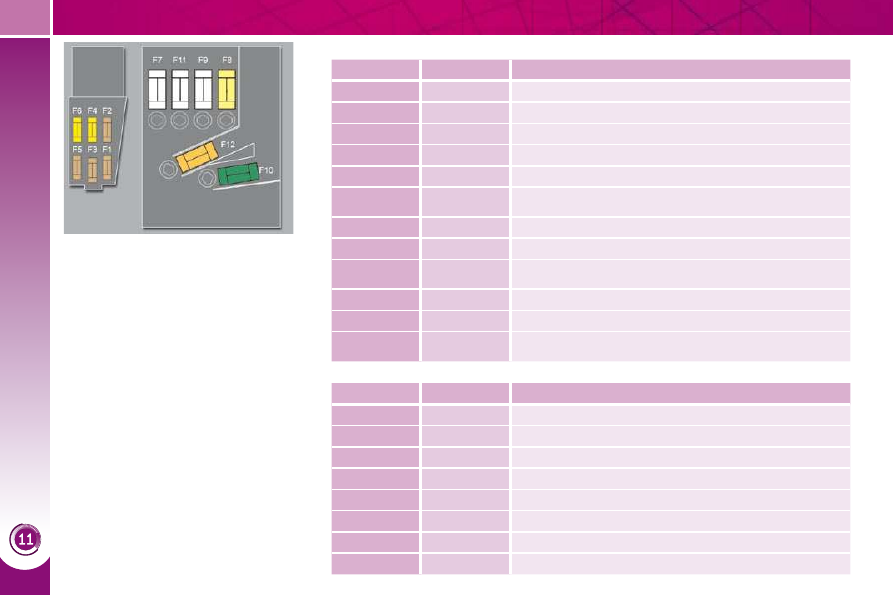

Table of mini and midi-fuses above the battery

Table of maxi-fuses

Fuse N°

Rating (A)

Functions

Not used.

Dual function brake switch.

Battery charge unit.

ABS/ESP electrovalves.

ABS/ESP control unit.

Automatic gearbox, electronic gear control gearbox.

F7 *

Power steering electropump assembly.

Fan assembly.

F9 *

80/30

Pre-heater unit (Diesel), Valvetronic electric motor

(1.6 l THP 16V).

F10 *

ABS/ESP electropump assembly.

F11 *

100

Switching and protection unit.

F12 *

Electronic gear control gearbox electropump

assembly.

Fuse N°

Rating (A)

Functions

MF1 *

Not used.

MF2 *

Trailer fusebox.

MF3 *

Passenger compartment fusebox.

MF4 *

Built-in systems interface.

MF5 *

Built-in systems interface.

MF6 *

Electric parking brake.

MF7 *

Heated front seats.

MF8 *

Headlamp wash.

* The maxi-fuses provide additional

protection for the electrical systems.

All work on the maxi-fuses must be

carried out by a PEUGEOT dealer.

12 V BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

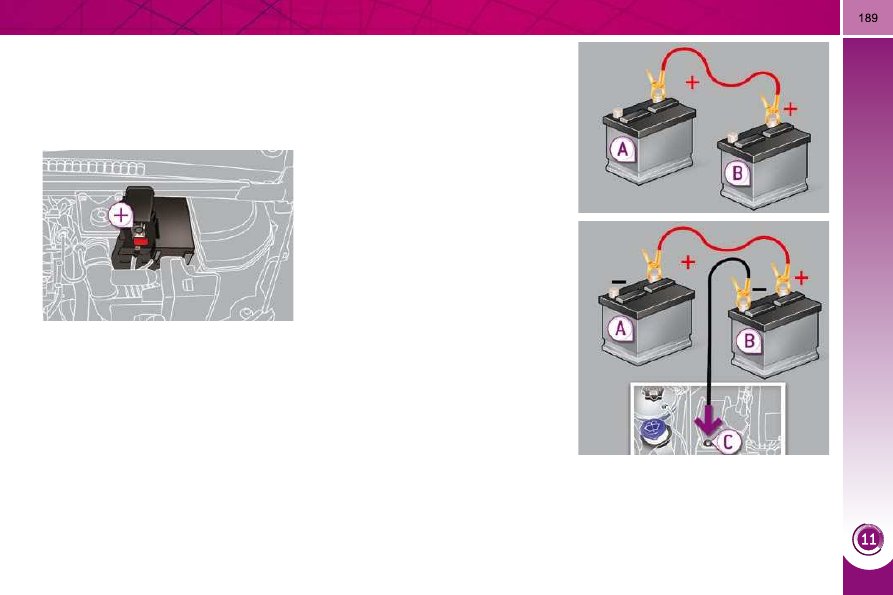

Access to the battery

Starting using another battery



Connect the red cable to the posi-

tive terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of

the slave battery B .



Connect one end of the green or

black cable to the negative termi-

nal (-) of the slave battery B .



Connect the other end of the green

or black cable to the earth point C

on your vehicle (engine mounting).



Operate the starter, let the engine

run.



Wait until the engine returns to idle

and disconnect the cables.

The battery is located under the bonnet.

To gain access to it:


open the bonnet using the interior

release lever, then the exterior safe-

ty catch,



secure the bonnet stay,



remove the plastic cover to gain

access to the two terminals,



unclip the fusebox to remove the

battery, if necessary.

190

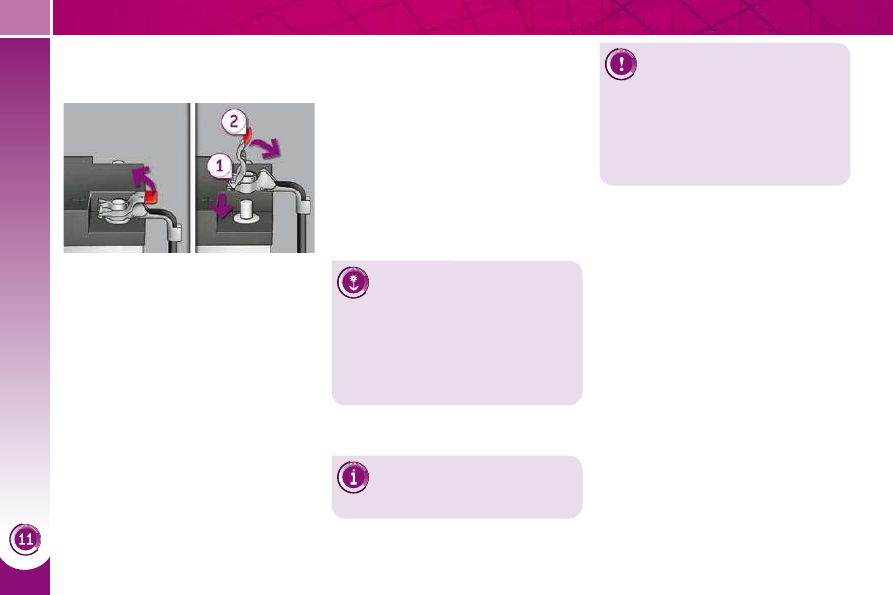

Disconnecting the cables



Raise the locking tab fully.

Reconnecting the cables



Position the open clip 1 of the cable

on the positive terminal (+) of the

battery.



Press vertically on the clip 1 to posi-

tion it correctly against the battery.



Lock the clip by spreading the po-

sitioning lug and then lowering the

tab 2 .

Do not force the tab as locking will not

be possible if the clip is not positioned

correctly; start the procedure again.

Do not disconnect the terminals

while the engine is running.

Do not charge the batteries

without disconnecting the ter-

minals ﬁ rst.

Do not push the vehicle to start the

engine if it is ﬁ tted with a 6-speed

electronic gear control gearbox or an

automatic gearbox.

The batteries contain harm-

ful substances such as sul-

phuric acid and lead. They

must be disposed of in accordance

with regulations and must not, in any

circumstances, be discarded with

household waste.

Take used remote control batteries

and vehicle batteries to a special

collection point.

Charging the battery using a
battery charger



Disconnect the battery from the

vehicle.



Follow the instructions for use

provided by the manufacturer of the

charger.



Reconnect starting with the nega-

tive terminal (-).



Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (whitish or greenish deposit),

remove them and clean them.

It is advisable to disconnect

the battery if the vehicle is to

be left unused for more than

one month.

Before disconnecting the battery
Wait 2 minutes after switching off the ig-

nition before disconnecting the battery.

Close the windows and the doors be-

fore disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the battery,

switch on the ignition and wait 1 minu-

te before starting to permit initialisation

of the electronic systems. However, if

problems remain following this opera-

tion, contact a PEUGEOT dealer.

Referring to the corresponding section,

you must yourself reinitialise:

- the remote control key,

- the panoramic sunroof blind,

- the satellite navigation system.

191

Let the engine run for the

duration speciﬁ ed to ensure

that the battery charge is suf-

ﬁ cient.

Do not repeatedly and continuously

restart the engine in order to charge

the battery.

A ﬂ at battery prevents the engine

from starting (refer to the "Battery"

paragraph).

If the telephone is being used

at this time:

- it will be maintained for 5 min-

utes with the hands-free kit of

your Peugeot Connect Sound or

Peugeot Connect Navigation,

- it will still be possible to ﬁ nish the

call with the Peugeot Connect

Media.

Exiting economy mode

These functions are reactivated auto-

matically next time the vehicle is driven.


In order to resume the use of these

functions immediately, start the en-

gine and let it run:

- for less than ten minutes, to use

the equipment for approximately

ﬁ ve minutes,

- for more than ten minutes, to use

the equipment for up to approxi-

mately thirty minutes.

LOAD REDUCTION MODE

System which manages the use of cer-

tain functions according to the level of

charge remaining in the battery.

When the vehicle is being driven, the

load reduction function temporarily de-

activates certain functions, such as

the air conditioning, the heated rear

screen...

The deactivated functions are reactivat-

ed automatically as soon as conditions

permit.

ENERGY ECONOMY MODE

System which manages the duration of

use of certain functions to conserve a

sufﬁ cient level of charge in the battery.

After the engine has stopped, you can

still use functions such as the audio and

telematics system, windscreen wipers,

dipped beam headlamps, courtesy lamps,

etc. for a maximum combined duration

of thirty minutes.

Switching to economy mode

Once the thirty minutes are over, a

message appears in the multifunction

screen indicating that the vehicle has

switched to economy mode and the ac-

tive functions are put on standby.

192

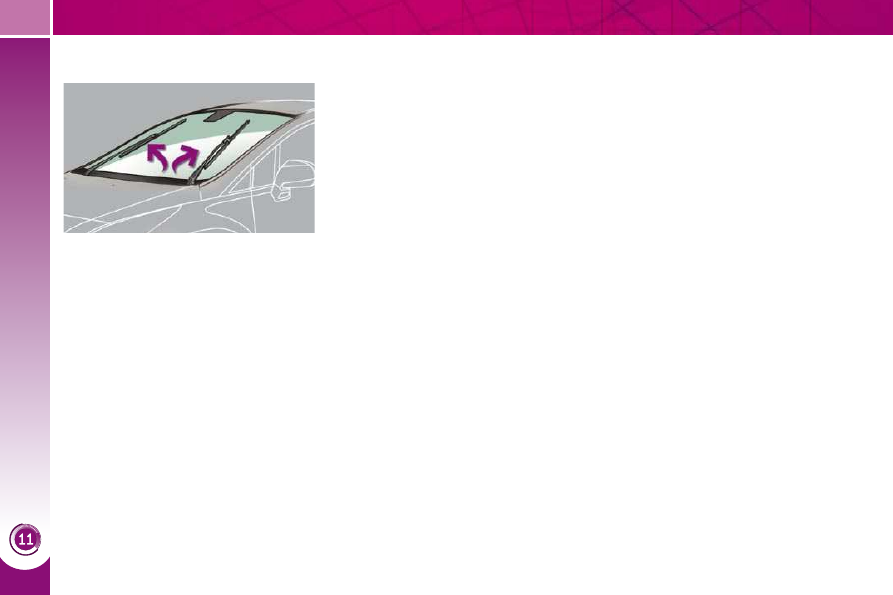

CHANGING A WIPER BLADE

Removing



Raise the corresponding wiper arm.



Unclip the wiper blade and remove it.

Fitting



Put the corresponding new wiper

blade in place and clip it.



Fold down the wiper arm carefully.

Before removing a front wiper
blade



Within one minute after switching off

the ignition, operate the wiper stalk

to position the wiper blades verti-

cally on the windscreen.

After fitting a front wiper blade



Switch on the ignition.



Operate the wiper stalk again to

park the wiper blades.

193

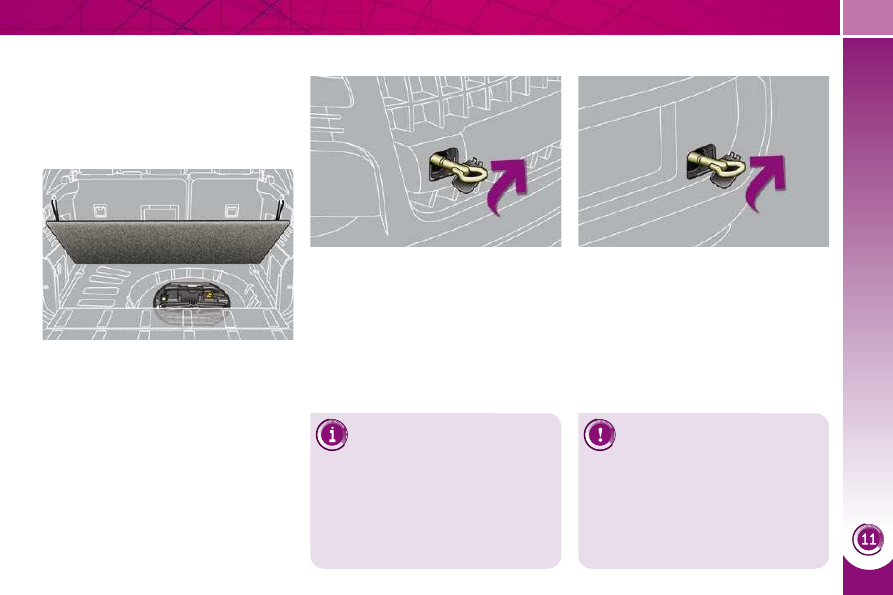

TOWING THE VEHICLE

Access to the tools

Towing your vehicle



On the front bumper, unclip the cov-

er by pressing at the bottom.



Screw the towing eye in fully.



Install the towing bar.



Switch on the hazard warning lamps

on the towed vehicle.



On the rear bumper, unclip the

cover by pressing at the bottom.



Screw the towing eye in fully.



Install the towing bar.



Switch on the hazard warning lamps

on the towed vehicle.

Towing another vehicle

The towing eye is installed in the boot

under the ﬂ oor.

To gain access to it:


open the boot,



raise the ﬂ oor,



secure it by hooking the cords on

the hooks on the rear parcel shelf

support,



remove the polystyrene box,



remove the towing eye from the

holder.

When towing with all four

wheels on the ground, always

use a towing bar.

When towing with only two wheels on

the ground, always use professional

lifting equipment.

When towing with the engine off,

there is no longer any braking or

steering assistance.



Place the gear lever in neu-

tral (position N on the elec-

tronic gear control gearbox

or automatic gearbox).

Failure to observe this spe-

cial condition could result in

damage to certain braking

components and the ab-

sence of braking assistance

the next time the engine is

started.

Procedure for having your vehicle towed

or for towing another vehicle using a re-

movable towing eye.

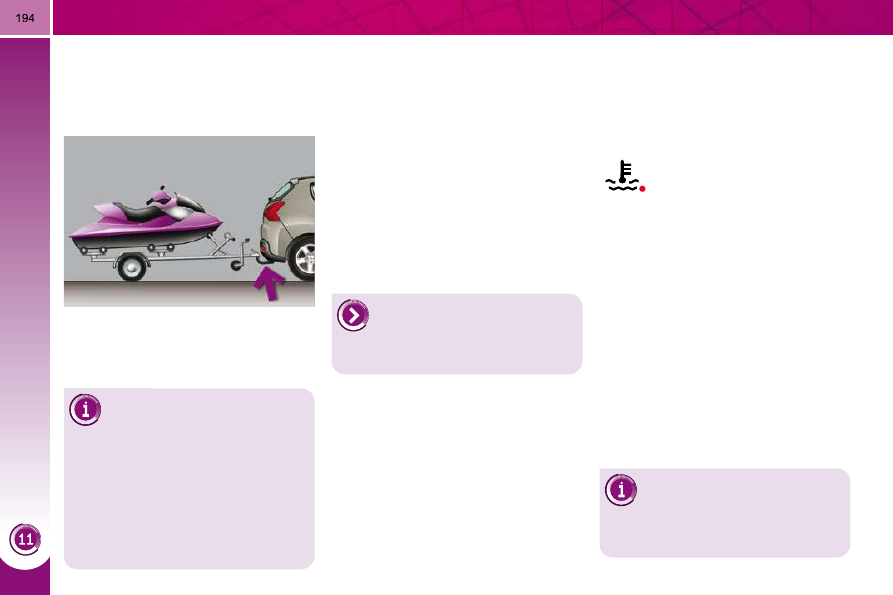

TOWING A TRAILER,
A CARAVAN, ETC.

Your vehicle is primarily designed for

transporting people and luggage, but it

may also be used for towing a trailer.

Driving advice

The maximum towed load on a long in-

cline depends on the gradient and the

ambient temperature.

In all cases, keep a check on the cool-

ant temperature.

Side wind


Take into account the increased

sensitivity to side wind.

Cooling
Towing a trailer on a slope increases

the temperature of the coolant.

As the fan is electrically controlled, its

cooling capacity is not dependent on

the engine speed.


To lower the engine speed, reduce

your speed.

Braking
Towing a trailer increases the braking

distance.

Tyres


Check the tyre pressures of the towing

vehicle and of the trailer, observing the

recommended pressures.

Lighting


Check the electrical lighting and

signalling on the trailer.

The rear parking sensors will

be deactivated automatically if

a genuine PEUGEOT towbar

is used.



If the warning lamp and the

STOP

warning lamp come

on, stop the vehicle and

switch off the engine as

soon as possible.

Towbar suitable for the attachment of a

trailer or caravan with additional lighting

and signalling.

Distribution of loads


Distribute the load in the trailer so

that the heaviest items are as close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Air density decreases with altitude, thus

reducing engine performance. Above

1 000 metres, the maximum towed load

must be reduced by 10 % for every

1 000 metres of altitude.

Driving with a trailer subjects the towing

vehicle to more signiﬁ cant stress and

the driver must take particular care.

We recommend the use of

genuine PEUGEOT towbars

and their harnesses that have

been tested and approved from the

design stage of your vehicle, and that

the ﬁ tting of the towbar is entrusted

to a PEUGEOT dealer.

If the trailer is not ﬁ tted by a

PEUGEOT dealer, it is imperative

that it is ﬁ tted using the vehicle's elec-

trical pre-equipment, in accordance

with the manufacturer's instructions.

Refer to the "Technical Data"

section for details of the

weights and towed loads

which apply to your vehicle.

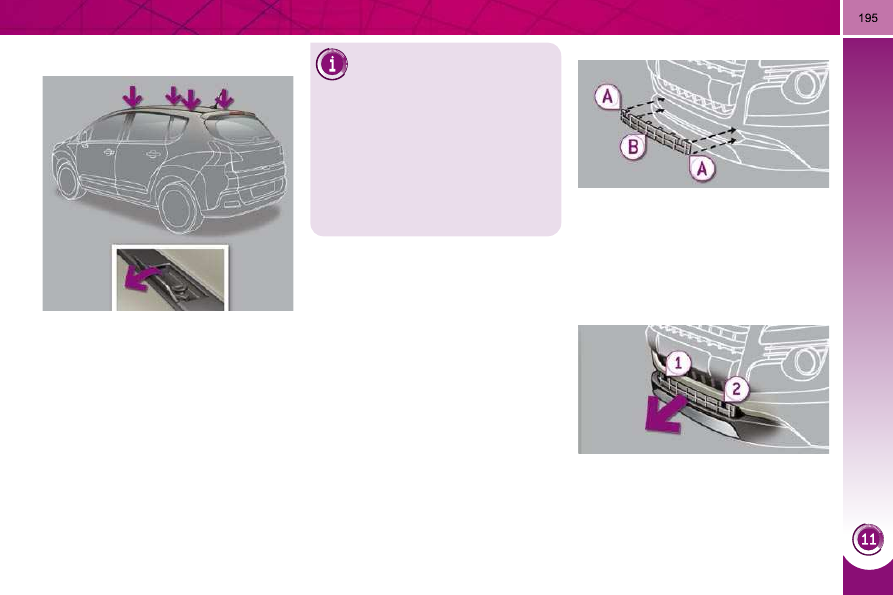

FITTING ROOF BARS

Maximum authorised weight

on the roof rack, for a loading

height not exceeding 40 cm

(with the exception of bicycle

carriers): 65 kg.

If the height exceeds 40 cm, adapt

the speed of the vehicle to the pro-

ﬁ le of the road to avoid damaging the

roof bars and the ﬁ xings on the roof.

Be sure to refer to national legislation

in order to comply with the regula-

tions for transporting objects that are

longer than the vehicle.

When ﬁ tting transverse roof bars, use

the four quick-ﬁ t ﬁ xings provided for this

purpose:


lift the concealing ﬂ aps,



open the ﬁ xing covers on each bar

using the key,



put each ﬁ xing in place and lock

them on the roof one by one,



close the ﬁ xing covers on each bar

using the key.

VERY COLD CLIMATE SCREEN

Removable protective screen which

prevents the accumulation of snow at

the radiator cooling fan.

Before ﬁ tting or removing the screen,

ensure that the engine is off and the

cooling fan has stopped. It is recom-

mended that the screen be ﬁ tted and

removed by a PEUGEOT dealer.



Offer up the screen to the front of

the lower section of the front bum-

per (do not use the upper ventilation

grille position).



Press on the edges A to engage its

ﬁ xing clips.



Press on the middle at B to com-

plete the engagement of the ﬁ xing

clips.

Fitting



Pull on the very cold climate screen

using the cut-outs 1 then 2 at the

edges of the screen.

Do not forget to remove the very cold

climate screen:

- when the ambient temperature ex-

ceeds 10 °C,

- when towing,

- at speeds above 75 mph (120 km/h).

Removal

196

Installation of radio
communication
transmitters

Before installing on your vehicle

any after-market radio communica-

tion transmitter with external aerial,

we recommend that you contact a

PEUGEOT dealer.

The PEUGEOT dealer network will give

you the speciﬁ cation for transmitters

which can be ﬁ tted (frequency, maxi-

mum power, aerial position, speciﬁ c in-

stallation requirements), in line with the

Vehicle Electromagnetic Compatibility

Directive (2004/104/EC).

* To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

and secured correctly,

- never ﬁ t one mat on top of another.

ACCESSORIES

A wide range of accessories and genu-

ine parts is offered by the PEUGEOT

dealer network.

These accessories and parts have been

tested and approved for reliability and

safety.

They are all adapted to your vehicle and

beneﬁ t from PEUGEOT's recommenda-

tion and warranty.

"Transport solutions":

For leisure pursuits: roof bars, bicycle

carrier on towbar, bicycle carrier on roof

bars, ski carrier, roof box, booster seats

and child seats, side blinds, under shelf

storage.

Trailer towbar, which must be ﬁ tted by a

PEUGEOT dealer.

You can also obtain cleaning and main-

tenance products (exterior and interior),

products for topping up (screenwash

ﬂ uid...) and reﬁ lls (sealant cartridge

for the temporary puncture repair kit...)

from PEUGEOT dealers.

Depending on the legislation

in force in the country, it may

be compulsory to have a high

visibility safety vest, warning triangle

and spare bulbs and fuses available

in the vehicle.

The ﬁ tting of electrical equip-

ment or accessories which

are not recommended by

PEUGEOT may result in a failure of

your vehicle's electronic system and

excessive electrical consumption.

Please note this speciﬁ c warning. You

are advised to contact a PEUGEOT

representative to be shown the range

of recommended equipment and

accessories.

"Style":

seat covers compatible with lateral air-

bags, leather gear lever knob, foglamps,

door deﬂ ectors, spoiler, styling strips,

alloy wheels, trims, chrome-plated door

handle shells.

"Safety and security":

anti-theft alarm, window etching, wheel

security bolts, ﬁ rst aid kit, warning tri-

angle, high visibility vest, stolen vehi-

cle tracking system, dog guard, snow

chains.

"Protection":

mats * , boot tray, luggage net, coat

hanger ﬁ xed on head restraint, stain-

less steel or carbon door sills.

"Multimedia":

audio systems, ampliﬁ ers, satellite navi-

gation systems, Bluetooth hands-free

system, CD changer, speakers, DVD

player, USB Box, front and rear parking

sensors, additional Bluetooth wireless

headphones, Bluetooth audio head-

phones mains charger.

197

ENGINES AND GEARBOXES

Petrol engine

1.6 litre 16V VTi

120 hp

1.6 litre 16V THP

156 hp

Gearbox

Manual

(5-speed)

Manual

(6-speed)

Automatic

(6-speed)

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW)

115

Max power engine speed (rpm)

6 000

Max torque: EU standard (Nm)

160

240

Max torque engine speed (rpm)

4 250

1 400

Fuel

Unleaded

Catalytic converter

yes

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

4.25

Gearbox - Final drive

199

ENGINES AND GEARBOXES

Diesel engine

1.6 litre Turbo HDi

110 hp

2 litre Turbo HDi

150 hp

2 litre Turbo HDi

163 hp

Gearbox

Manual

(6-speed)

Electronic gear control

(6-speed)

Manual

(6-speed)

Automatic

(6-speed)

Cubic capacity (cc)

1 560

1 997

Bore x stroke (mm)

75 x 88.3

85 x 88

Max power: EU standard (kW)

110/120

Max power engine speed (rpm)

4 000

3 750

Max torque: EU standard (Nm)

270

320/340

Max torque engine speed (rpm)

1 750

2 000

Fuel

Diesel

Catalytic converter

yes

Particle emission ﬁ lter

yes

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

3.75

Gearbox - Final drive

198

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre 16V VTi

120 hp

1.6 litre 16V THP

156 hp

Gearboxes

Manual

(5-speed)

Manual

(6-speed)

Automatic

(6-speed)

Unladen weight

1 399

1 459

1 480

Kerb weight *

1 474

1 534

1 555

Payload

621

561

Gross vehicle weight (GVW)

2 020

2 030

Gross train weight (GTW)
on a 12 % gradient

3 220

3 426

3 530

Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 200

1 400

Braked trailer ** (with load transfer
within the GTW limit)

1 500

Unbraked trailer

735

750

Recommended nose weight

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Content .. 12 13 14 15 ..
