Peugeot 3008 Dag (2010.5). Instruction - part 15

200

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDi

110 hp

2 litre Turbo

HDi

150 hp

2 litre Turbo

HDi

163 hp

Gearbox

Manual

(6-speed)

Electronic gear control

(6-speed)

Electronic gear control

(6-speed) Score

Manual

(6-speed)

Automatic

(6-speed)

Unladen weight

1 421

1 529

1 539

Kerb weight *

1 497

1 604

1 614

Payload

609

557

566

Gross vehicle weight (GVW)

2 030

2 086

2 105

Gross train weight (GTW)
on a 12 % gradient

3 130

2 920

3 480

3 500

Braked trailer (within GTW limit)
on a 10 % or 12 % gradient

1 100

890

1 400

Braked trailer ** (with load transfer
with the GTW limit)

1 300

1 090

1 500

Unbraked trailer

745

750

Recommended nose weight

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

201

WEIGHTS AND TOWED LOADS 3008 LCV (in kg)

Engines

1.6 litre Turbo HDi

110 hp

2 litre Turbo HDi

150 hp

Gearbox es

Manual

(6-speed)

Electronic gear control

(6-speed) Score

Electronic gear control

(6-speed)

Manual

(6-speed)

Model codes

9HZ

9HR

9HZ

RHE

Unladen weight

1 434

1 430

1 538

Kerb weight *

1 509

1 505

1 613

Gross vehicle weight (GVW) **

2 150

2 135

2 239

Gross train weight (GTW)
on a 12 % gradient ***

3 120

2 920

3 130

3 480

Braked trailer (within GTW limit)
on a 10 % or 12 % gradient ****

970

770

995

1 241

Braked trailer (with load transfer
with the GTW limit)

Unbraked trailer

750

Recommended nose weight

* The kerb weight is equal to the unladen weight + driver (75 kg).
** Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as deﬁ ned in point 2.7 of the

Directive.

*** Exceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as deﬁ ned

in point 2.7 of the Directive.

**** Maximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an

adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

202

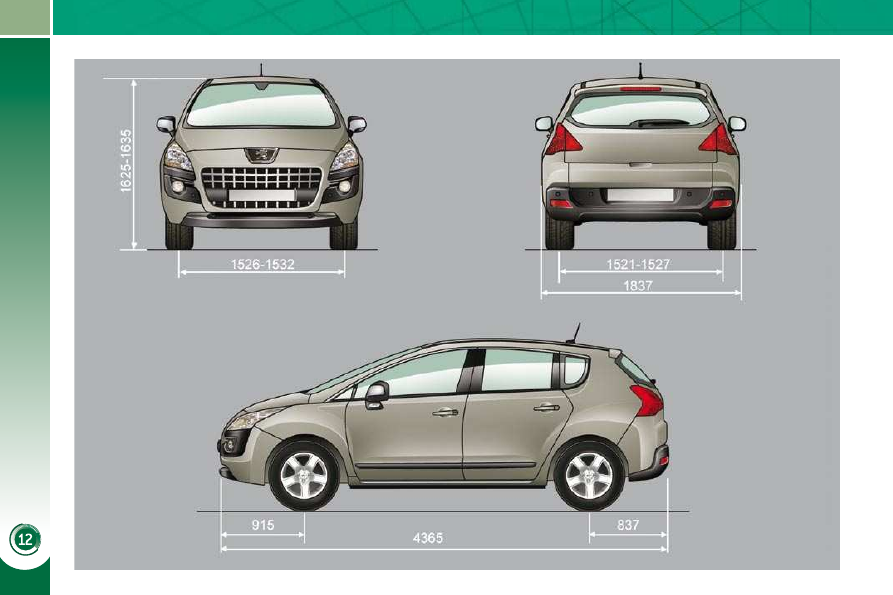

DIMENSIONS (IN MM)

203

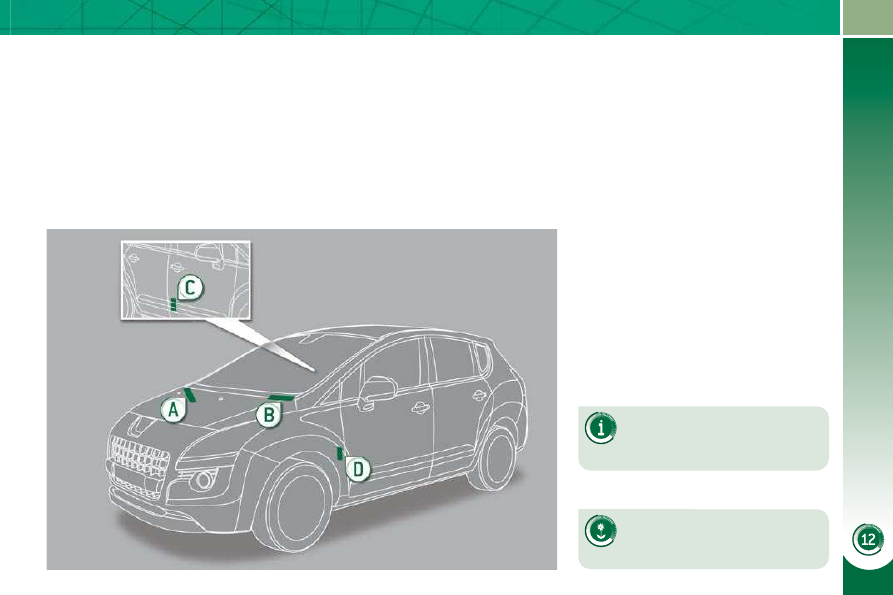

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation and tracing of your vehicle.

If the inﬂ ation pressures are

too low, this increases fuel
consumption.

The inﬂ ation pressures must

be checked when the tyres are
cold, at least once a month.

Vehicle Identiﬁ cation Number

(VIN) under the bonnet.

This number is engraved on the
bodywork near the damper support.

Vehicle identiﬁ cation Number

(VIN) on the windscreen lower

crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C. Manufacturer's label.

The VIN is indicated on a self-

destroying label afﬁ xed to the door

aperture, on the right-hand side.

D. Tyre/paint label.

This label is afﬁ xed to the door

aperture, on the driver's side.

It bears the following information:
- the tyre inﬂ ation pressures with and

without load,

the wheel rim and tyre sizes,

the brands of tyre recommended by
the manufacturer,

- the inﬂ ation pressure of the spare

wheel,

the paint colour code.

206

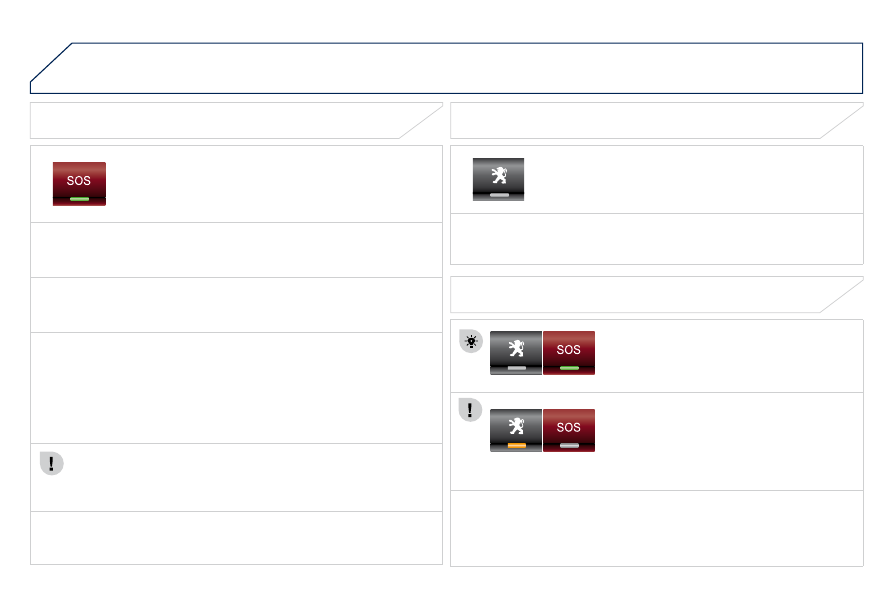

EMERGENCY OR ASSISTANCE CALL

EMERGENCY CALL

In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a

voice message conﬁ rm that the call has been made to the

PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.

ASSISTANCE CALL

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the conﬁ guration of these services

and, if desired, modiﬁ ed to suit your wishes. In a multi-lingual country,

conﬁ guration is possible in the ofﬁ cial national language of your choice.

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating
correctly.

Pressing this button again immediately cancels the request.
The cancellation is conﬁ rmed by a voice message.

  Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message conﬁ rms that the call has been made * .

OPERATION OF THE SYSTEM

The green indicator lamp remains on (without ﬂ ashing) when

communication is established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,

the call is dealt with directly by the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.

* This service is subject to conditions and availability.

Consult a PEUGEOT dealer.

If the orange indicator lamp ﬂ ashes: there is

a system malfunction.
If the orange indicator lamp is on

continuously: the backup battery must be

replaced.
In both cases, consult a PEUGEOT dealer.

207

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

PEUGEOT

CONNECT MEDIA

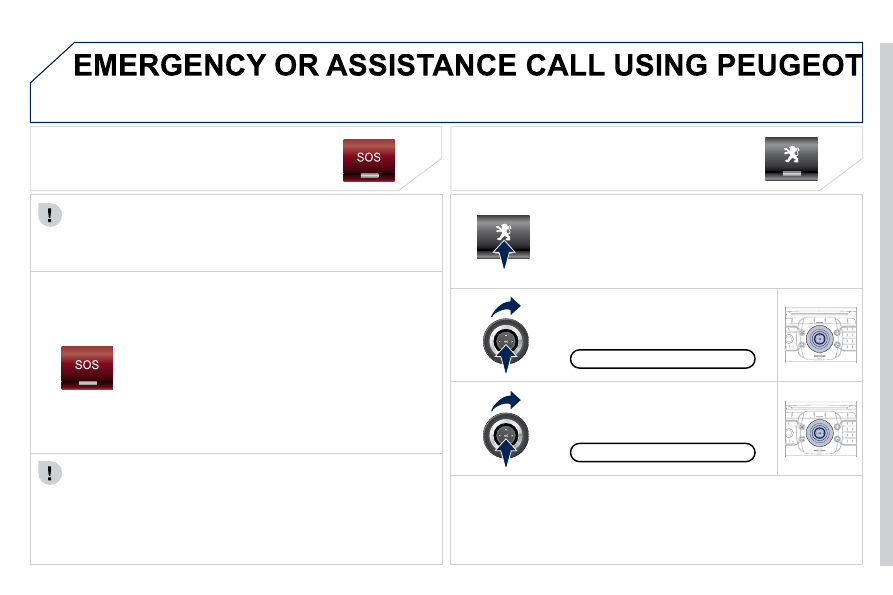

EMERGENCY CALL

In an emergency, press the SOS button until an audible

signal is heard and a "Conﬁ rmation/Cancellation"

screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,

the call is sent to the emergency services (112).

Warning - the emergency call and the services are only active

if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.

Press this button for access to PEUGEOT services.

Customer call

If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with

ﬂ ashing of the orange indicator lamp indicates a malfunction.

Consult a PEUGEOT dealer.

ASSISTANCE CALL

Select "Customer call" to request
any information about the PEUGEOT
marque.

Select "PEUGEOT Assistance" to
make a breakdown assistance call.

PEUGEOT Assistance

This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the

conﬁ guration of these services and, if desired, modiﬁ ed to suit your

wishes.

209

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

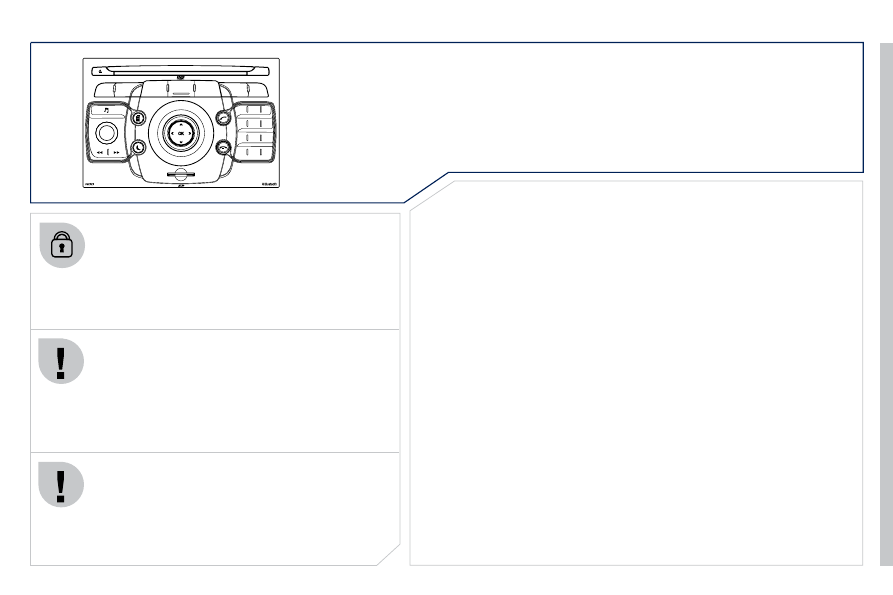

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer

for conﬁ guration of the system.

Certain functions described in this handbook will

become available during the course of the year.

PEUGEOT CONNECT MEDIA

For safety reasons, it is imperative that the driver

carries out operations which require prolonged attention
while the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect Media
switches off following the activation of the Energy

Economy mode.

01 First steps

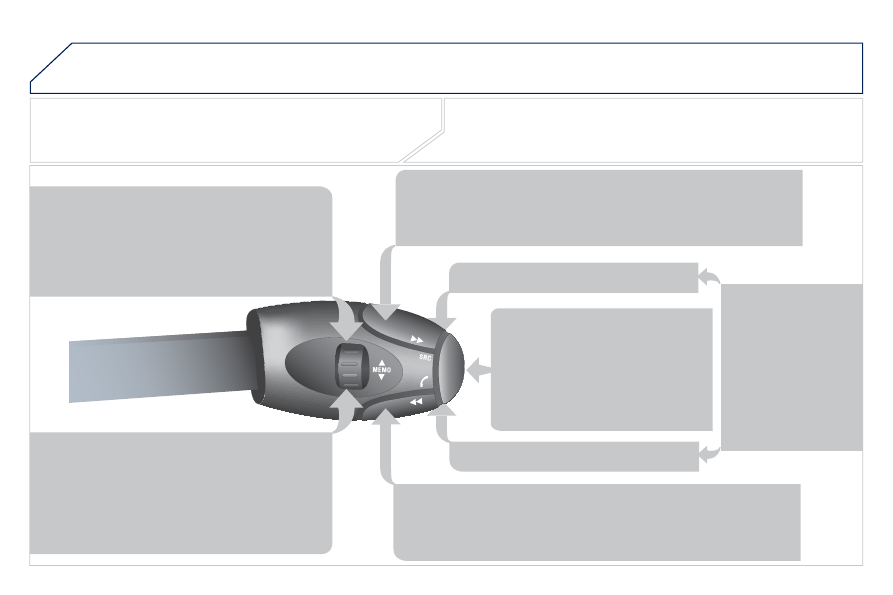

02 Voice commands and

steering mounted controls

  03  General operation
  04  Navigation - Guidance
  05  Traffic information
  06  Radio
  07  Music media players
  08  Using the telephone
  09  Configuration
  10  Screen menu map

p.
p.

p.
p.
p.
p.
p.
p.
p.
p.

210
212

215
220
229
231
232
237
241
242

CONTENTS

Frequently asked questions

247

MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

210

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

RADIO

MEDIA

NAV

ESC

TRAFFIC

SETUP

ADDR
BOOK

PQRS

CD eject.

RADIO: access to the "Radio" Menu.

Display the list of stations in alphabetical
order (FM waveband) or frequency order
(AM waveband).

MEDIA: access to the "Media" Menu (Audio CD,
Jukebox, External Device).

Display the list of tracks. Change of source.

NAV: access to the "Navigation" Menu and display
of the last destinations.

ESC: abandon the operation in progress.

Long press: return to the main display.

TRAFFIC: access to the "Trafﬁ c" Menu (function

described in detail in sections 02 and 10).

ADDR BOOK: access to the "Address book" Menu
(function described in detail in section 10).

SETUP: access to the "SETUP" Menu

(conﬁ guration) (function described in detail in

sections 02 and 10).

Long press: GPS coverage.

Audio settings (Balance/Fader, Bass/Treble,

Musical Ambience...).

4. Volume adjustment (each source is independent,

including message and navigation alert)

Long press: reinitialisation of the system.

Short press: mute.

5. Automatic search for a radio station on a lower

frequency.

Selection of the previous CD or MP3 track.

FIRST STEPS

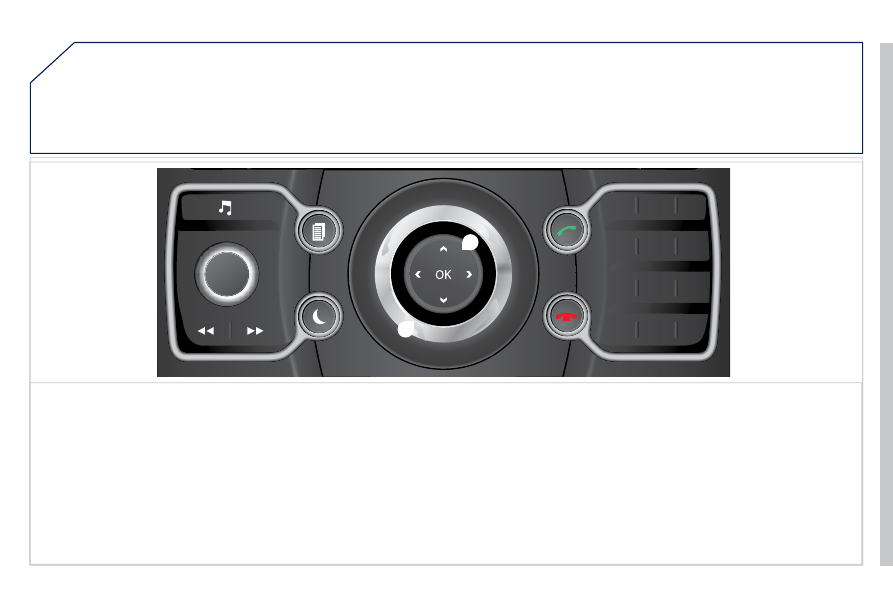

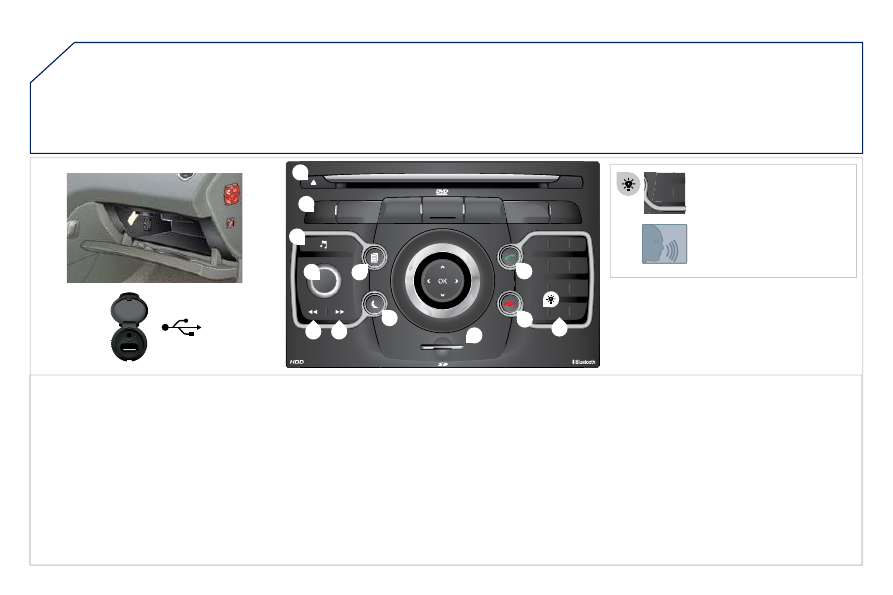

Peugeot Connect Media CONTROL PANEL

Automatic search for a radio station on a higher frequency.

Selection of the next CD or MP3 track.

7. Normal display or black screen.
8.

Selection of the successive display on the screen
of "MAP"/"NAV" (if navigation is in progress)/"TEL"
(if a conversation is in progress)/"RADIO" or
"MEDIA" currently being played.

9. PICK UP: access to the "Phone" menu.

With Bluetooth connection, accept an incoming call.

10. HANG UP: access to the "Phone" menu.

Hang up the current call or refuse an incoming

call, with Bluetooth connection.

11. Entering of numbers or letters on the alpha-numeric

keypad, pre-selection of 10 radio frequencies.

12. SD card reader.

Short press: clears the last
character.

Long press: activates voice
recognition.

211

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

13. OK: conﬁ rmation of the highlighted item on the

screen.

- 4-direction navigator: press to the left/right.

When the "RADIO" screen is displayed: selection
of the previous/next frequency.

When "MEDIA" is displayed: selection of the
previous/next track.

When "MAP" or "NAV" is displayed: horizontal

movement of the map.

- 4-direction navigator: press up/down.

When "RADIO" is displayed: selection of the
previous/next radio station on the list.

When the "MEDIA" screen is displayed: selection
of the MP3 directory.

When "MAP" or "NAV" is displayed: vertical

movement of the map.

Switch to the next or previous page of a menu.

Movement on the virtual keypad displayed.

FIRST STEPS

Peugeot Connect Media NAVIGATOR

14. Rotation of the ring:

When the "RADIO" screen is displayed: selection
of the previous/next radio station on the list.

When the "MEDIA" screen is displayed: selection
of the previous/next CD or MP3 track.

When "MAP" or "NAV" is displayed: front/rear

map zoom.

Movement of the menu selection curser.

212

ABC

DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

NAV

ESC

TRAFFIC

ADDR
BOOK

SETUP

Before using the system for the ﬁ rst time, you are advised to listen

to, say and practice the tutorial.

Press the SETUP button and select
the "Language & Speech" function.
Turn the ring and select "Voice control".
Activate voice recognition.
Select "Tutorial".

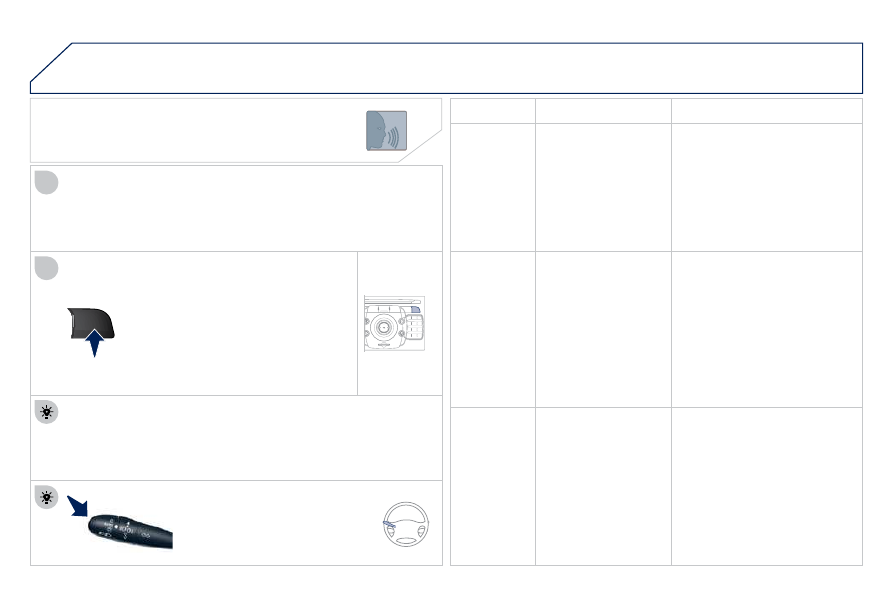

VOICE COMMANDS - VOICE
RECO. INITIATION

The phrases to be spoken according to the context are indicated
in the tables below.
Speak and Peugeot Connect Media acts.

Pressing the end of the lighting
control stalk activates voice
recognition.

CONTEXT

SAY

ACTION

GENERAL

Help address book
Help voice control

Help media
Help navigation
Help telephone
Help radio
Cancel

Correction

Access to the address book help
Access to the voice recognition help

Access to the media management help
Access to the guidance, navigation help
Access to the telephone help
Access to the radio help

To cancel a voice command which is in
progress
Request to correct the last voice recognition
carried out
Clear

RADIO

Select station

Station <tts:stationName>

Read out station list
Enter frequency

Select wave band
AM
FM
TA on
TA off

Select a radio station
Select a radio station using its RDS

description <tts:station Name> from the
RADIO list
Listen to the list of stations available
Listen to the frequency of the current radio
station
Choose the frequency waveband (AM or FM)
Change the frequency waveband to AM
Change the frequency waveband to FM

Activate Trafﬁ c Info (TA)

Deactivate Trafﬁ c Info

NAVIGATION

Destination input

Voice advice off
Voice advice on
Save address
Start guidance

Abort guidance
Navigate entry

POI Search

Command to enter a new destination
address
Deactivate the spoken guidance instructions
Activate the spoken guidance instructions
Save an address in the address book
Start guidance (once the address has been
entered)
Stop the guidance
Start guidance to an entry in the address
book
Start guidance to a point of interest

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

213

VOICE COMMANDS - VOICE
RECO. INITIATION

VOICE COMMANDS AND STEERING MOUNTED CONTROLS

CONTEXT

SAY

ACTION

MEDIA

Media

Select media
Single slot
Jukebox
USB
External device

SD-Card

Track <1 - 1 000>

Folder <1 - 1 000>

Select the MEDIA source
Choose a source
Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source
Select the SD card source

Select a speciﬁ c track (number between 1
and 1 000) on the active MEDIUM

Select a Folder (number between 1 and
1 000) on the active MEDIUM

TELEPHONE

Phone menu

Enter number
Phone book
Dial

Save number
Accept
Reject

Open the Telephone Menu

Enter a telephone number to be called
Open the phone book
Make a call

Save a number in the phone book

Accept an incoming call

Reject an incoming call

ADDRESS
BOOK

Address book menu

Call <entry>

Navigate <entry>

Open the address book

Call ﬁ le using its <ﬁ le> description as
described in the address book
Start guidance to an address in the address

book using its <ﬁ le> description

214

02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS

STEERING MOUNTED CONTROLS

RADIO: selection of the previous stored station.
Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the
previous folder.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the next
folder.
Selection of the next entry in the address book.

RADIO: automatic search for a higher frequency.
CD/SD CARD/JUKEBOX: selection of the next track.
CD/SD CARD/JUKEBOX: continuous press: fast forward play.

RADIO: automatic search for a lower frequency.
CD/SD CARD/JUKEBOX: selection of the previous track.
CD/SD CARD/JUKEBOX: continuous press: fast backward play.

- Change the sound source.

- Make a call from the address

book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the address book.

Volume increase.

Volume decrease.

Mute: by pressing

the volume increase

and decrease buttons

simultaneously.
Restore the sound: by
pressing one of the

two volume buttons.

Wiper stalk: display of "RADIO" and "MEDIA".
Lighting stalk: activation of the voice command by means of a short press;

indication of the current navigation instruction by means of a long press.

215

SETUP

TRAFFIC

MEDIA

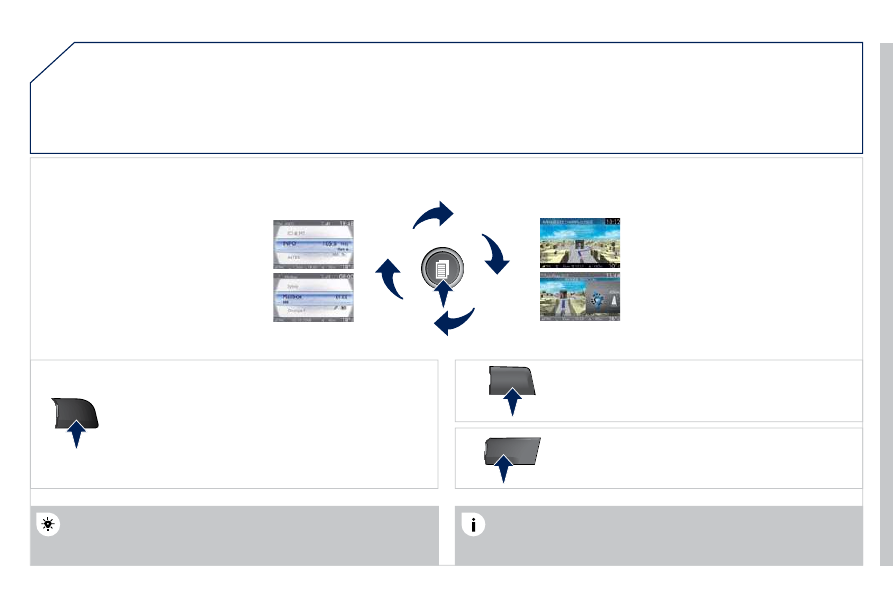

GENERAL OPERATION

For a detailed global view of the menus available, refer to the

"Screen menu map" section of this handbook.

Press the MODE button several times in succession to gain access to the following displays:

Long press: access to the GPS coverage and to the

demonstration mode.

For maintenance of the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, without any additional product.

RADIO / MUSIC MEDIA/

VIDEO

TELEPHONE

(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION
(If guidance is in progress)

SETUP:
access to the "SETUP" Menu: system language *

and voice functions * , voice initialisation (section 09),

date and time * , display, unit and system parameters.

TRAFFIC:
access to the Trafﬁ c Menu: display of the current

trafﬁ c alerts.

DISPLAY ACCORDING TO THE CONTEXT

MEDIA:
"DVD-audio" menu

"DVD-Video" menu

* Available according to model.

216

03 GENERAL OPERATION

Pressing OK gives access to short-cut

menus according to the display on the

screen.

DISPLAY ACCORDING TO THE CONTEXT

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

Abort guidance

Repeat advice

Block road

Unblock

Less

Route type

Avoid

Satellites

Calculate

Zoom/scroll

Browse route

Route info

Show destination

Trip info

Stopovers

Browse route

Zoom/scroll

Voice advice

Route options

Route type

Route dynamics

Avoidance criteria

Recalculate

TELEPHONE:

End call

Hold call

Dial

DTMF-Tones

Private mode

Micro off

MUSIC MEDIA PLAYERS:

Play options

Select media

Normal order

Random track

Scan

217

03 GENERAL OPERATION

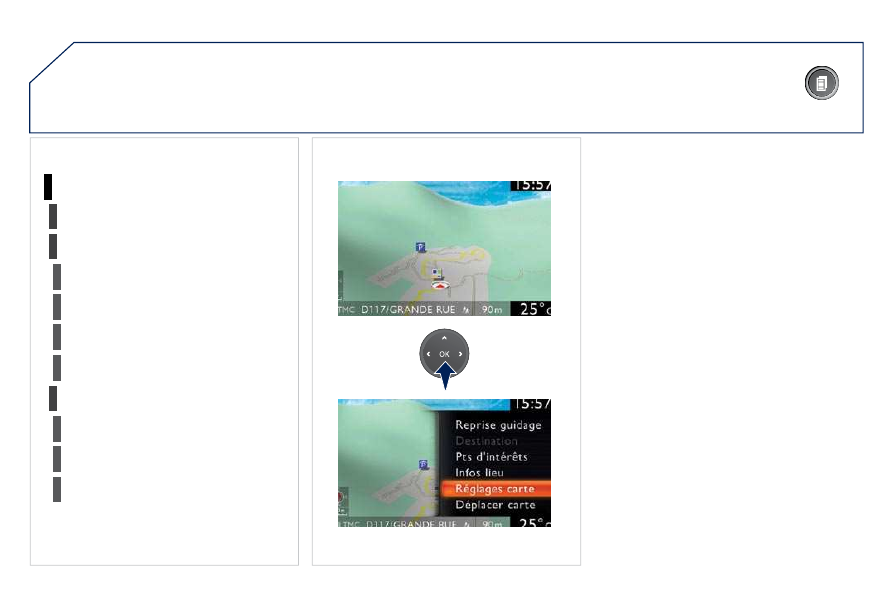

DISPLAY ACCORDING TO THE CONTEXT

RADIO:

In FM mode

In AM mode

RDS

Radiotext

Regional prog.

Refresh am list

FULL SCREEN MAP:

Abort guidance/Resume guidance

Set destination/Add stopover

POIs nearby

Position info

Options

Navigate to

Dial

Save position

Zoom/Scroll

Map Settings

Zoom/Scroll

2D Map

2.5D Map

3D Map

North up

Heading up

AUDIO DVD (LONG PRESS):

Stop

Group

Group 1 .2/n

elect media

Play options

Normal order/Random track/Scan

218

DVD menu

DVD top menu

List of titles

List of chapters

VIDEO DVD (LONG PRESS):

Play

GENERAL OPERATION

DISPLAY ACCORDING TO THE CONTEXT

Stop

DVD Menus

Audio

Subtitles

Angle

DVD Options

Examples:

Content .. 13 14 15 16 ..
