Particular situations

In certain situations (e.g. start-

ing  the  engine),  the  parking  brake
can automatically alter its force. This
is normal operation.
To  advance  your  vehicle  a  few  cen-
timetres  without  starting  the  engine,
but with the ignition on, press on the
brake  pedal  and  release  the  park-
ing brake  by pulling  then  releasing
control  lever   A .  The  full  release  of

the parking brake is conﬁ rmed by the

warning  lamp  in  the  control  lever   A
and  the  warning  lamp  in  the  instru-
ment panel going off and the display
of the message "Handbrake off".
If a parking brake fault occurs  while
applied

or if the battery runs ﬂ at, an

emergency release is always pos-
sible.

EMERGENCY BRAKING

  In the event of a failure of the main ser-
vice brake or in an exceptional situation
(e.g.  driver  taken  ill,  under  instruction,
etc)  a continuous pull on the control
lever   A   will stop the vehicle .
The  electronic  stability  programme
(ESP)  provides  stability  during  emer-
gency braking.
If  there  is  a  fault  with  the  emergency
braking, one of the following messages
will be displayed:
   -

"Parking brake faulty".

"Parking brake control faulty".

If a failure of the ESP system is
signalled by the illumination of
this warning lamp, then brak-
ing stability is not guaranteed.
In this event, stability must be

assured by the driver by repeating al-
ternate "pull release" actions on control
lever A .

  The  emergency  braking  must
only  be  used  in  exceptional
circumstances.

136

Front left seat moved back fully.

In the event of the electric parking brake
malfunctioning or the battery running

ﬂ at, an emergency manual device can

release the parking brake.

Emergency release

 Immobilise the vehicle (or keep

it stationary, if the brake pedal is
pressed), with the engine running,

by engaging ﬁ rst gear (manual gear-

box), position P (automatic gearbox)
or M or R (6-speed electronic gear
control gearbox).

 Switch off the engine but leave the

ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer urgently.

 Fetch the two vehicle blocks and

the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).

 Immobilise the vehicle by placing

blocks in front and behind one of the
front wheels.

 Slide the front left-hand seat back

as far as possible.



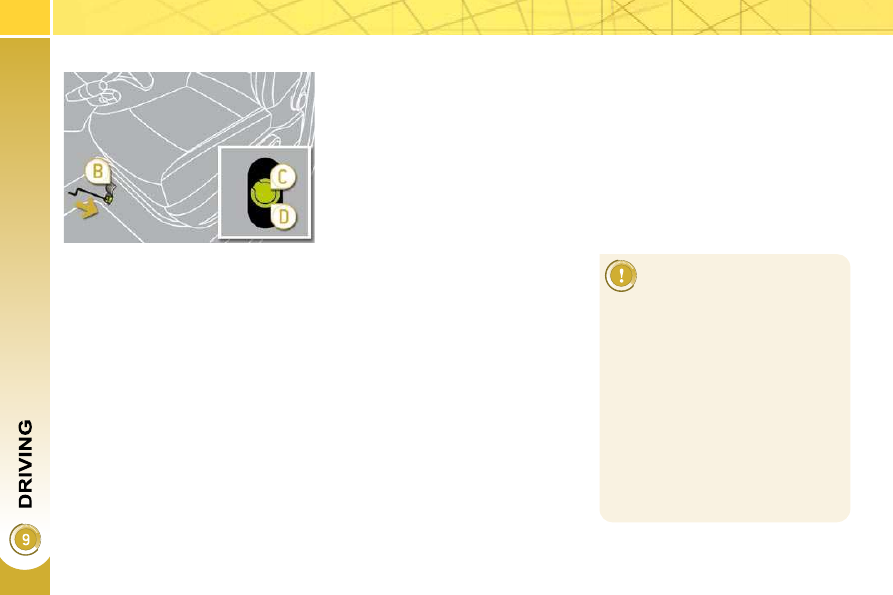

Lift up the ﬂ oor plug B in the carpet

under the seat.

 Pierce the protective cover C on the

tube D with the release device.

 Place the release device in the tube D .
 Turn the release device clockwise.

For safety reasons , it is essential
to continue turning the device as far
as it will go. The parking brake is re-
leased.

 Remove the release device and

store it with the blocks in the tool-
box.

The

operation

the

parking

brake  reinitialises  when  the  igni-
tion  is  switched  off  then  on  again.
If  the  reinitialisation  of  the  parking
brake  proves  impossible,  contact  a
PEUGEOT dealer.

The subsequent time required for
application may be longer than dur-
ing normal operation.

For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.

Following  an  emergency  unlocking,
immobilisation  of  the  vehicle  is  no
longer  guaranteed  once  the  manual
emergency  release  has  been  de-
ployed  and  the  manual  control  does
not  allow  the  re-application  of  your
parking brake.
Take no action, either on the control
lever   A ,  or  stopping  or  starting  the
engine  while  the  release  device  is
engaged.
Take  care  not  to  allow  moisture  or
dust in the proximity of the protective
cover.

137

HILL START ASSIST

System  which  keeps  your  vehicle  im-
mobilised  temporarily  (approximately
2  seconds)  when  starting  on  a  gradi-
ent, the time it takes to move your foot
from the brake pedal to the accelerator
pedal.
This function is only active when:
   -

the vehicle is completely stationary,
with your foot on the brake pedal,

in particular conditions on a slope,

with the driver’s door closed.

The hill start assist function cannot be
deactivated.

Operation

  On an ascending slope, with the ve-
hicle  stationary,  the  vehicle  is  held
for  a  momentarily  when  you  release
the brake pedal:
   -   provided you are in ﬁ rst gear or neu-

tral on a manual gearbox,

provided you are in A or M on an
electronic gear control gearbox,

provided you are in D or M on an
automatic gearbox.

  On a descending slope, with the ve-
hicle  stationary  and  reverse  gear
engaged, the vehicle is held momen-
tarily  when  you  release  the  brake
pedal.

Do not exit the vehicle while
it is being held in the hill start
assist phase.

If  you  need  to  exit  the  vehicle  with
the  engine  running,  apply  the  park-
ing brake manually then ensure that
the parking brake warning lamp (and
the warning lamp  P  in the lever of the

electric parking brake) are on ﬁ xed

(not ﬂ ashing).

If a fault occurs, these warning lamps
come on. Contact a PEUGEOT dealer
to have the system checked.

140

System which projects various informa-

tion onto a transparent strip in the ﬁ eld

of vision of the driver so that they do not
have to take their eyes off the road.
This system operates when the engine
is running and the settings are stored
when the ignition is switched off.

HEAD-UP DISPLAY

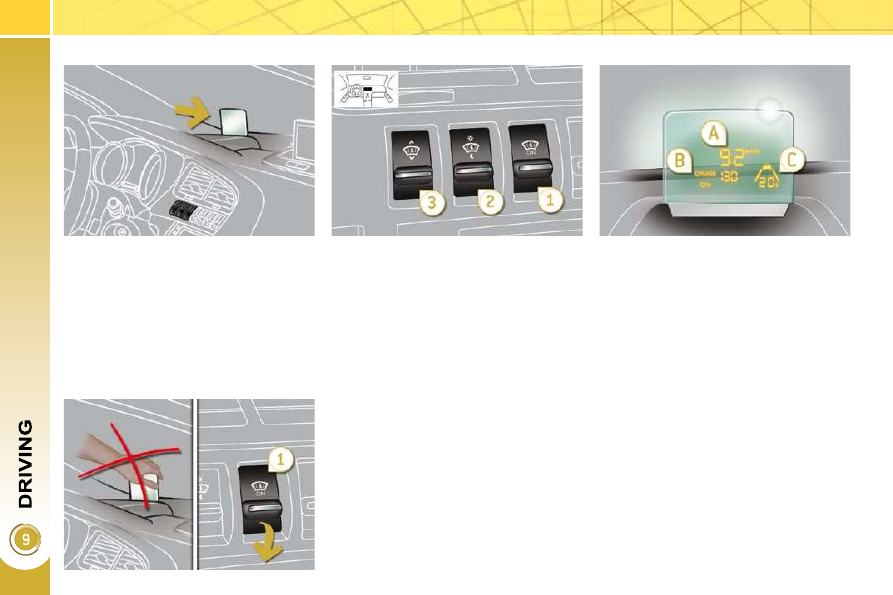

   1.   Head-up display on/off.
  2.   Brightness adjustment.
  3.   Display height adjustment.
The strip is activated by pressing one of
the buttons.

Once  the  system  has  been  activated,
the following information is grouped to-
gether in the head-up display:
   A.   The speed of your vehicle.
  B.   Cruise  control/speed  limiter  infor-

mation.

Buttons

Displays during operation

C. "Distance alert" information (de-

pending on version).

141

In certain extreme weather
conditions (rain and/or snow,
bright sunshine, ...) the head-

up display may not be legible or may
suffer temporary interference.
Certain glasses (sunglasses, spec-
tacles or polarised lenses) may ham-
per reading of the information.
To clean the transparent strip, which
is made of organic glass, use a clean,
soft cloth (such as a spectacles cloth

or microﬁ bre cloth). Do not use a dry

or abrasive cloth or detergent or sol-
vent products as these could scratch

the strip or damage the anti-reﬂ ec-

tion coating.

  We  recommend  that  adjust-
ments  are  only  made  using
these  buttons  when  the  vehi-
cle is stationary.

When  stationary  or  while  driving,  no
objects should be placed around the
transparent  strip  (or  on  its  cover)  to
avoid  blocking  the  strip  output  and
preventing its correct operation.

 With the engine running, press button 1 .

The activated/deactivated status when
the engine was switched off is retained
when the engine is switched on again.

Height adjustment

 With the engine running, adjust the

display to the required height using
button 3 :

- up to move the display up,
- down to move the display down.

Activation/Deactivation

Brightness adjustment

 With the engine running, adjust the

brightness of the information using
button 2 :

- up to increase the brightness,
- down to decrease the brightness.

142

DISTANCE ALERT*

For the safety time to be observed, refer
to the current legislation or highway code
recommendations in your country.
The  system  operates  when  the  speed
of  your  vehicle  is  higher  than  45  mph
(70 km/h) and below 90 mph (150 km/h).
It  has  a  programmable  visual  alert
which remains in the memory when the
ignition is switched off.
This system is a driving aid and cannot,
in any circumstances, take the place of
the  vigilance  and  responsibility  of  the
driver.

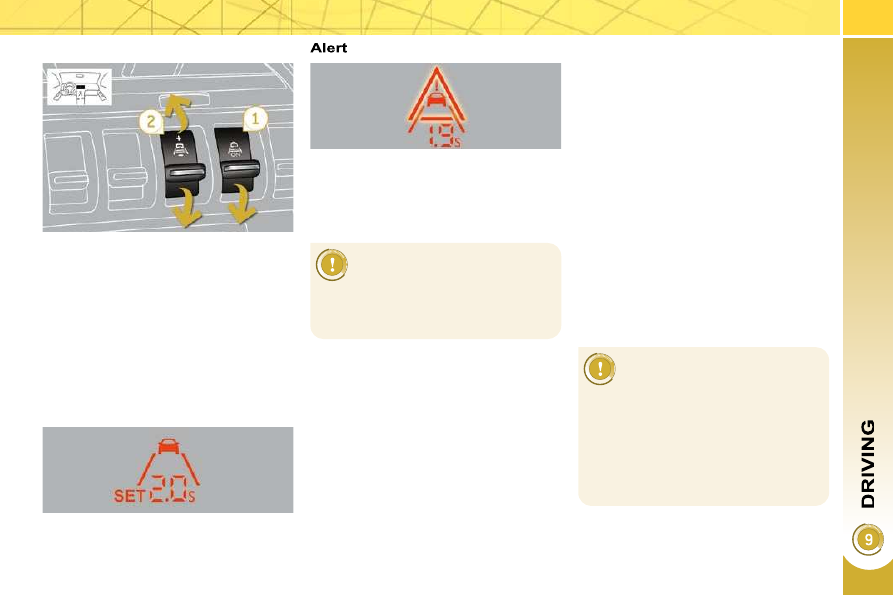

1. On/off.
2. Alert value increase (+)/decrease (-).

The information is grouped together in
the head-up display.

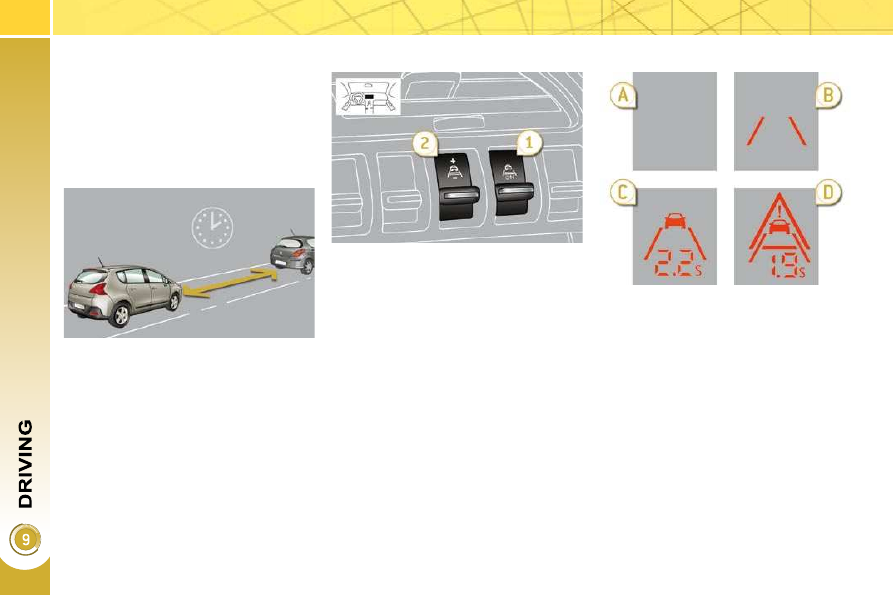

Once the system has been activated:
A. The speed of your vehicle is outside

the operating range.

B. Your vehicle is within the operating

range but no vehicle has been de-
tected.

C. The vehicle in front of you has been

detected.

The current time separating you
from

this

vehicle

displayed

permanently.

D. The time between your vehicle and

the vehicle in front is less than the

programmed alert value (it ﬂ ashes).

Buttons

Displays during operation

  Driving  aid  which  informs  the  driver  of
the  time  interval  (in  seconds)  separat-
ing them from the vehicle in front when
the driving conditions are stable.
It  does  not  detect  stationary  vehicles
and does not itself take  any action  on
your vehicle's controls.

Depending on version

143

Activation

Deactivation

 Press button 1 to deactivate the sys-

tem, the indicator lamp goes off.

Reactivation

 Press button 1 again to reactivate

the system.

The last value programmed is retained
and the indicator lamp comes on.

Example with a value of 2 seconds:

Operating limits

The  system  switches  to  standby  auto-
matically  if  the  sensor  does  not  detect
the  vehicle  in  front  correctly  (very  dif-

ﬁ cult weather conditions, sensor out of

adjustment, ...). A message is displayed
in the multifunction screen.
The vehicle being followed may not be
detected in certain conditions such as,
for example:
-

when turning,

when changing lane,

when the vehicle in front is either
too far ahead (maximum range of
the sensor: 100 m) or stationary (in

a trafﬁ c jam, ...).

When the vehicle being followed is
much too near (time between the two
vehicles less than 0.5 seconds), the dis-

play remains ﬁ xed at 0.5 seconds.

Programming the alert value

 Select the alert value required using

button 2 , in steps of 0.1 second:

- up to increase: "+",
- down to decrease: "-".

If the indicator lamp in but-
ton 1

ﬂ ashes, have the sys-

tem checked by a PEUGEOT
dealer.

This  system  is  not  an  anti-colli-
sion radar and it does not act of the
movement  of  your  vehicle.  It  pro-
vides  information  but  cannot,  in  any
circumstances, take the place of the
vigilance  and  responsibility  of  the
driver.

 Press button 1 , the indicator lamp

comes on.

The system is activated but will only op-
erate from 45 mph (70 km/h).

The  alert value  can  be  programmed  to
between 0.9 second and 2.5 seconds.
The  visual  alert  can  be  deactivated  by
programming a value of 0 second.

When  the  time  (in  seconds)  between
your  vehicle  and  the  vehicle  in  front  is
less  than  the  programmed  time  (alert

value), a visual alert ﬂ ashes.

   A  safety  time  of  2  seconds  is
recommended in normal driving
conditions  (correct  traction  and
speed) to avoid a collision in the
event of emergency braking.

144

SPEED LIMITER

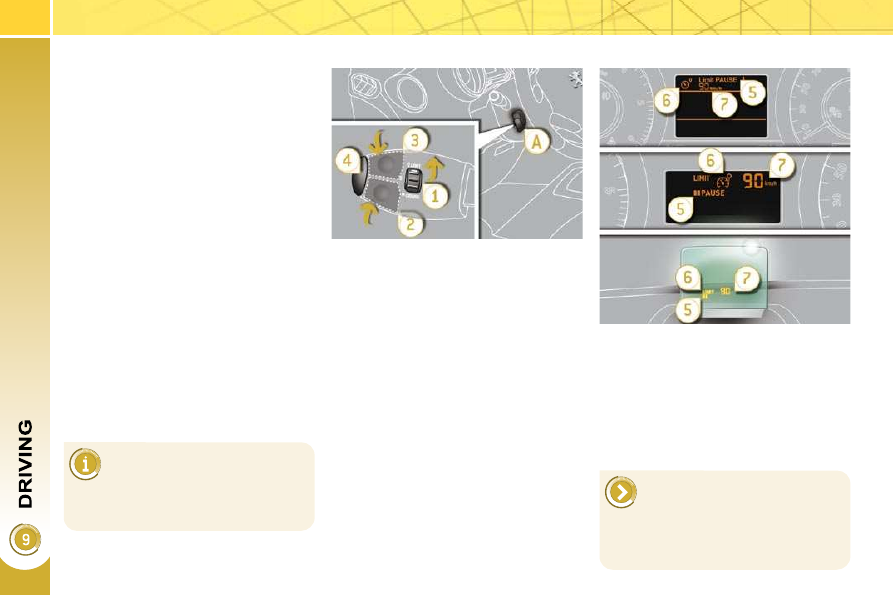

The controls of this system are grouped
together on stalk  A .
   1.   Speed limiter mode selection dial
  2.   Programmed value decrease button
  3.   Programmed value increase button
  4.   Speed limiter on/off button

The  programmed  information  is  grouped
together  on  the  instrument  panel  screen.
  5.   Speed limiter on/off indication
  6.   Speed limiter mode selection indication
  7.   Programmed speed value

Steering mounted controls

Displays on the instrument panel

The speed limiter cannot, in any
circumstances, replace the need
to observe speed limits, nor can

it replace the need for vigilance and re-
sponsibility on the part of the driver.

The speed limiter is switched on manu-
ally: it requires a programmed speed of
at least 20 mph (30 km/h).

The speed limiter is switched off by
manual operation of the control.

The programmed speed remains in the
memory when the ignition is switched off.

This information also appears
in the head-up display.

For more information on the head-up
display, refer to the relevant page in
this "Driving" section.

  System which prevents the vehicle from
exceeding  the  speed  programmed  by
the driver.
When  the  programmed  speed  limit  is
reached, pressing the accelerator ped-
al  no  longer  has  any  effect  unless  it  is

pressed ﬁ rmly, which permits temporary

exceeding of the programmed speed.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed by releasing the
accelerator.

145

  On  a  steep  descent  or  in  the
event  of  sharp  acceleration,
the  speed  limiter  will  not  be

able  to  prevent  the  vehicle  from  ex-
ceeding the programmed speed.
To  avoid  any  risk  of  jamming  of  the
pedals:
   -

ensure that the mat is positioned
correctly,

- do not ﬁ t one mat on top of

another.

Programming

Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal

ﬁ rmly past the point of resistance .
The speed limiter is deactivated temporarily and the

programmed speed, which is still displayed, ﬂ ashes.
Returning to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically

cancels the ﬂ ashing of the programmed speed.

Return to normal driving

 Turn dial 1 to the "0" position: the

speed  limiter  mode  is  deselected.
The  display  returns  to  the  distance
recorder.

Operating fault

In the event of a speed limiter malfunction, the speed

is cleared resulting in ﬂ ashing of the dashes.
Have the system checked by a PEUGEOT dealer.

 Switch the speed limiter off by pressing button 4 : the

display conﬁ rms that it has been switched off (OFF).

 Switch the speed limiter back on by pressing button 4

again.

 Set the speed value by pressing button 2 or 3 (e.g.:

55 mph (90 km/h)).

You can then change the programmed speed using buttons  2
and  3 :
   -

by + or - 1 mph (km/h) = short press,

by + or - 5 mph (km/h) = long press,

in steps of + or - 5 mph (km/h) = maintained press.

 Switch the speed limiter on by pressing button 4 .

 Turn dial 1 to the "LIMIT" position:

the speed limiter mode is selected
but is not switched on (OFF).

You do not have to switch the speed
limiter on in order to set the speed.

146

CRUISE CONTROL

System  which  automatically  maintains
the  speed  of  the  vehicle  at  the  value
programmed  by  the  driver,  without  any
action on the accelerator pedal.
The  cruise  control  is   switched  on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
   -

of fourth gear on the manual gearbox,

of second gear on the electronic gear
control gearbox or automatic gear-
box, in sequential driving mode,

of position  A  on the electronic gear
control  gearbox  or   D   on  the  auto-
matic gearbox.

The controls of this system are grouped
together on stalk  A .
   1.   Cruise control mode selection dial
  2.   Speed

programming/programmed

value decrease button

3. Speed

programming/programmed

value increase button

4. Cruise control off/resume button

The programmed information is grouped
together on the instrument panel display.
5. Cruise control off/resume indication
6. Cruise control mode selection indi-

cation

7. Programmed speed value

Steering mounted controls

Displays on the instrument panel

The cruise control cannot, in any
circumstances, replace the need
to observe speed limits, nor can

it replace the need for vigilance and re-
sponsibility on the part of the driver.

The cruise control is switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.

It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.

Switching off the ignition cancels any
programmed speed value.

This information also appears
in the head-up display.

For more information on the head-up
display, refer to this "Driving" section.

147

When  the  cruise  control  is
switched  on,  be  careful  if you
maintain  the  pressure  on  one

of the programmed speed chang-
ing buttons: this may result in a very
rapid change in the speed of your ve-
hicle.
Do not use the cruise control on slip-

pery roads or in heavy trafﬁ c.
On a steep descent, the cruise con-
trol  will  not  be  able  to  prevent  the
vehicle  from  exceeding  the  pro-
grammed speed.
To  avoid  any  risk  of  jamming  of  the
pedals:
   -

ensure that the mat is positioned
correctly,

never ﬁ t one mat on top of another.

Programming

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed

speed results in ﬂ ashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-

cels the ﬂ ashing of the speed.

Return to normal driving

 Turn dial 1 to the "0" position: the cruise control mode is

deselected. The display returns to the distance recorder.

Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in

ﬂ ashing of the dashes.
Have it checked by a PEUGEOT dealer.

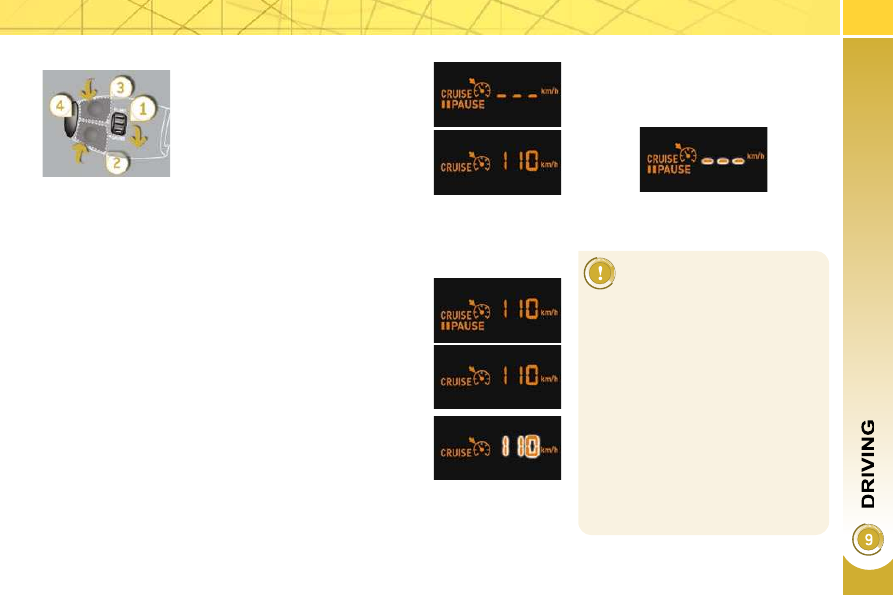

 Set the programmed speed by ac-

celerating  to  the  required  speed,
then  press  button   2   or   3   (e.g.:
70 mph (110 km/h)).

 Switch off the cruise control by pressing button 4 : the

display conﬁ rms that it has been switched off (OFF).

 Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using buttons  2
and  3 :
   -

by + or - 1 mph (km/h) = short press,

by + or - 5 mph (km/h) = long press,

in steps of + or - 5 mph (km/h) = maintained press.

 Turn dial 1 to the "CRUISE" po-

sition: the cruise control mode is
selected but is not switched on
(OFF).

148

6-SPEED MANUAL
GEARBOX

As a safety precaution and to fa-
cilitate starting of the engine:

Only engage reverse gear
when the vehicle is stationary
with the engine at idle.

Engaging reverse gear

 Raise the ring under the knob and

push the gear lever to the left then
forwards.

* According to engine.

GEAR SHIFT INDICATOR *

System which reduces fuel consumption
by advising the driver to change up on

vehicles ﬁ tted with a manual gearbox.

Operation

The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your  vehicle's  equipment,  the  system
may  advise  you  to  skip  one  or  more
gears.  You  can  follow  this  instruc-
tion  without  engaging  the  intermediate
gears.
The  gear  recommended  should  not
be  considered  compulsory.  In  fact,  the

conﬁ guration of the road, the amount

of trafﬁ c and safety remain determining

factors when choosing the best gear.
Therefore, the driver remains responsi-
ble for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated.

Example:
-

You are in third gear.

In the case of driving which
makes particular demands on
the performance of the engine

(ﬁ rm pressure on the accelerator

pedal,  for  example,  when  overtak-
ing...),  the  system  will  not  recom-
mend a gear change.
The system never suggests:
   -   engaging ﬁ rst gear,
  -

engaging reverse gear,

engaging a lower gear.

You press the accelerator pedal
moderately.

The system may suggest that you
engage a higher gear, if appropriate.

  The  information  appears  in  the  form
of  an  arrow  in  the  instrument  panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.

This equipment will become available
during the year.

always select neutral,

press the clutch pedal.

149

6-SPEED ELECTRONIC GEAR
CONTROL GEARBOX

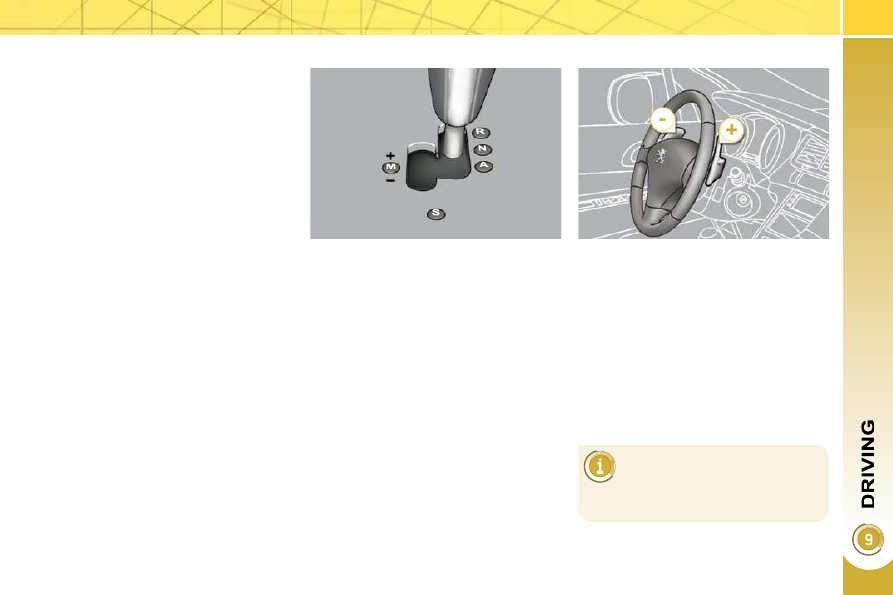

Gear lever

R. Reverse
 With your foot on the brake, move

the lever upwards to select this posi-
tion.

N. Neutral.
 With your foot on the brake, select

this position to start.

A. Automatic mode.
 Move the lever downwards to select

this mode.

M. +/- Sequential mode with manual

changing of the gears.

 Move the lever downwards then to

the left to select this mode, then:

- push the lever forwards to change

up a gear,

- or pull the lever rearwards to

change down a gear.

S. Sport function.
 Press this button to activate or de-

activate this function.

Steering mounted controls

+. Change up paddle to the right of the

steering wheel.

 Press the back of the "+" steering

mounted paddle to change up a
gear.

-. Change down paddle to the left of the

steering wheel.

 Press the back of the "-" steering

mounted paddle to change down a
gear.

  The steering mounted paddles
do  not  permit  the  selection  of
neutral or the engaging or dis-
engaging of reverse gear.

  Six-speed electronic gear control gear-
box  which  offers  a  choice  between  the
comfort  of  fully  automatic  operation  or
the pleasure of manual gear changing.
Three driving modes are offered:
   -

automatic mode for automatic con-
trol of the gears by the gearbox,

sequential mode for manual chang-
ing of the gears by the driver,

auto sequential  mode to overtake,
for example, remaining in automatic
mode  while  using  the  functions  of
the sequential mode.

A Sport function is available in auto-
matic or sequential mode for a more dy-
namic style of driving.

150

Displays in the instrument panel

  Gear lever positions
  N.  Neutral
  R.  Reverse
  1, 2, 3, 4, 5, 6.  Gears in sequential mode
  AUTO.   This  comes  on  when  the  au-

tomatic mode is selected. It
switches off on changing to se-
quential mode.

S. Sport (Sport function)

 Place your foot on the

brake when this warning

lamp ﬂ ashes (e.g.: when

starting the engine).

      Select position  N .
     Press the brake pedal down fully.
     Start the engine.



Select ﬁ rst gear (position M or A ) or

reverse (position R ).

 Release the parking brake unless it

is programmed to automatic mode.

 Take your foot off the brake pedal,

then accelerate.

AUTO and 1 or R appear in
the instrument panel screen.

ﬂ ashes in the instrument

panel, accompanied by an au-
dible signal and a message in

the  multifunction  screen,  if  the  gear
lever is not in position  N  on starting.
  Foot on brake

ﬂ ashes in the instru-

ment panel, accompanied by an au-
dible  signal  and  a  message  in  the
multifunction  screen,  if  the  brake
pedal is not pressed on starting.

  There  is  an  audible  signal
when  reverse  gear  is  en-
gaged.

N appears in the instrument
panel screen.

Sequential mode

 When the vehicle has moved off, se-

lect position M to change to sequen-
tial mode.

AUTO disappears and the
gears engaged appear in suc-
cession in the instrument pan-
el screen.

The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically to
allow vehicle to pull away in the correct
gear.

At very low speed, if reverse
gear is requested, this will only
be taken into account when

the vehicle is immobilised. The Foot
on brake

warning lamp may ﬂ ash in

the  instrument  panel  to  prompt  you
to brake.
At  high  speed,  if  reverse  gear  is  re-
quested,  the   N   indicator  lamp  will

ﬂ ash and the gearbox will change to

neutral  automatically.  To  engage  a
gear  again,  return  the  lever  to  posi-
tion  A  or  M .

151

The gearbox is then operating in auto-
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
-

style of driving,

- proﬁ le of the road.

AUTO and the gear engaged
appear in the instrument panel
screen.

Automatic mode

 Following use of the sequential

mode, select position A to return to
the automatic mode.

"Auto sequential mode"

This mode enables you to overtake, for
example, remaining in automatic mode
while using the functions of the sequen-
tial mode.
 Operate the + or - steering mounted

paddle.

The gearbox engages the gear request-
ed if the engine speed permits.  AUTO  is
still displayed in the instrument panel.
After a few moments without any action
on  the  controls,  the  gearbox  resumes
automatic control of the gears.

  On  sharp  acceleration,  the
gearbox  will  not  change  up
unless  the  driver  acts  on  the

gear  lever  or  the  steering  mounted
paddles.
Never select neutral  N  while the ve-
hicle is moving.
Only  engage  reverse  gear   R   when
the  vehicle  is  immobilised  with  the
brake pedal pressed.

For optimum acceleration, for
example when overtaking an-
other vehicle, press the accel-

erator pedal ﬁ rmly past the point of

resistance.

152

Stopping the vehicle

Operating fault

With the ignition on, if this
warning lamp comes on and
AUTO

ﬂ ashes, accompanied

by an audible signal and a
message in the multifunction

screen, this indicates a fault with the
gearbox.
Have it checked by a PEUGEOT dealer.

It is essential to press the
brake pedal when starting the
engine.

When parking, is it essential to apply
the parking brake to immobilise the
vehicle, whatever the circumstances.

When immobilising the vehi-
cle, with the engine running, it
is essential to place the gear

lever in neutral N .

Before  carrying  out  any  work  in  the
engine compartment, check that the
gear  lever  is  in  neutral   N   and  that
the parking brake is applied.

Sport function

 Following selection of the sequential

mode or automatic mode, press but-
ton   S   to  activate  the  Sport  function
which  offers  you  a  more  dynamic
style of driving.

S appears next to the gear en-
gaged in the instrument panel
screen.

 Press button S again to deactivate

the function.

S is then cleared from the instrument
panel screen.

The gearbox returns to normal
mode automatically each time
the ignition is switched off.

Before switching off the engine, you can
choose to:
-

move to position N to engage neu-
tral,

leave the gear engaged; in this
case, it will not be possible to move
the vehicle.

In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle.

Peugeot 3008 Dag (2010.5). Instruction - part 11
