Indicator lamp on, the rear
controls are deactivated.
Indicator lamp off, the rear
controls are activated.

This control also deactivates
the interior controls for the
rear doors (refer to the section

"Child safety - § Electric child lock").

Reinitialisation
If a window does not rise automatically,

its operation must be reinitialised:
 pull the control until the window

stops,

 release the control and pull it again,

repeat these operations until the
window closes fully,

 continue to hold the control for ap-

proximately one second after the
window has closed,

 press the control to lower the window

automatically to the low position,

 when the window has reached the

low position, press the control again
for approximately one second.

Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.

Have it checked by a PEUGEOT

dealer.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
If an obstacle is encountered during

operation  of  the  electric  windows,
you  must  reverse  the  movement  of
the  window.  To  do  this,  press  the
control concerned.
When the driver operates the  controls
for the passengers' electric windows,
they must ensure that no one is pre-
venting  correct  closing  of  the  win-
dows.
The driver must ensure that the pas-
sengers  use  the  electric  windows
correctly.
Be aware of children when operating
the windows.

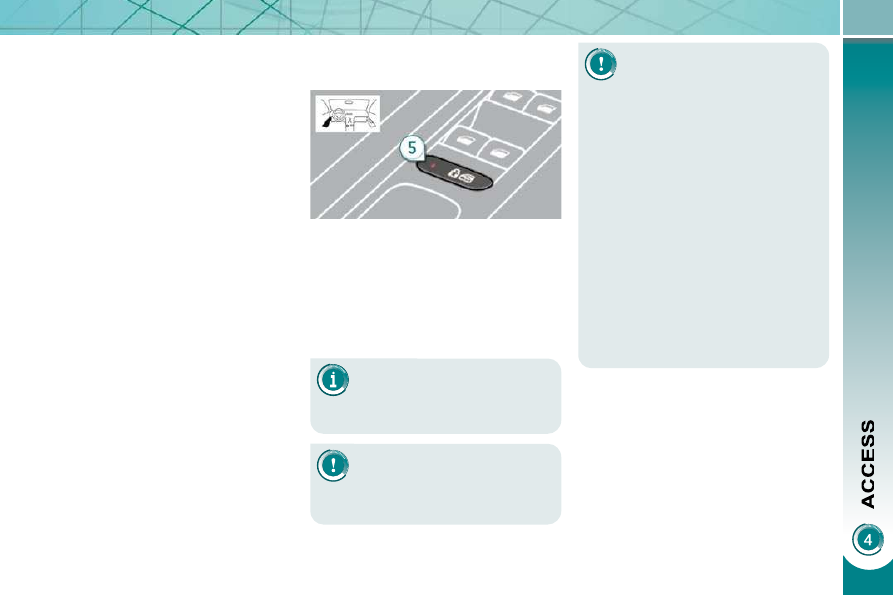

Deactivation of the rear electric
window and door controls

 For the safety of your children, with

the  ignition  on,  press  control   5   to
deactivate  the  rear  electric  window
controls regardless of their position.

It is still possible to open the doors from

the outside and operate the rear electric
windows from the driver's control pad.

The safety anti-pinch function is not
operational during these operations.

DOORS

 After unlocking the vehicle com-

pletely using the remote control or
the key, pull the door handle.

From inside

 Pull the door control (front or rear)

to open the door; this unlocks this
vehicle completely.

   The  interior  door  controls  do
not  operate  when  the  vehicle
is deadlocked.

Closing

When a door is not closed correctly:

when the engine is running ,
this warning lamp comes on,

accompanied by a message

on the multifunction screen for
a few seconds,

when the vehicle is moving  (speed
higher  than  6  mph  (10  km/h)),  this
warning  lamp  comes  on,  accompa-

nied by an audible signal and a mes-

sage on the multifunction screen for
a few seconds.

Opening

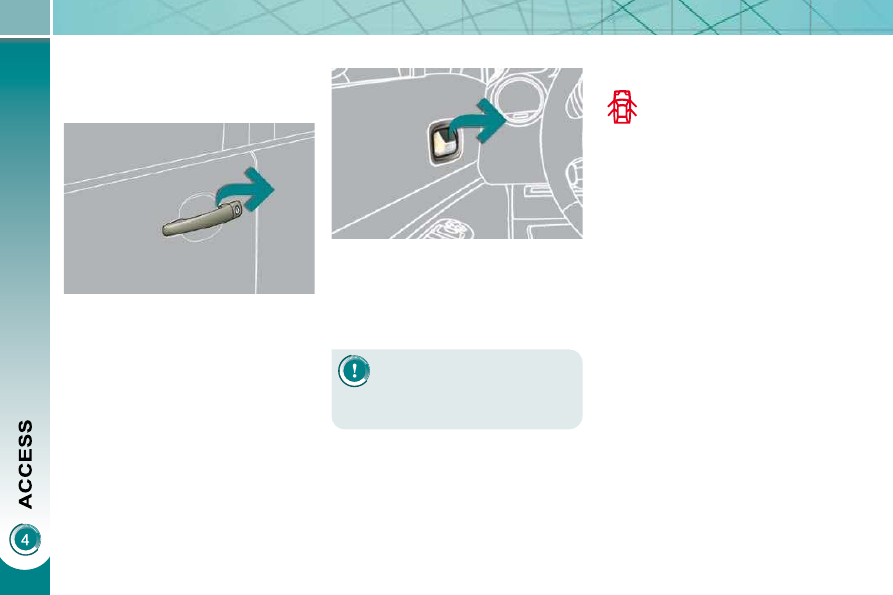

From outside

If the vehicle is locked or
deadlocked from the outside,

the red indicator lamp ﬂ ashes

and button A is inactive.

 In this case, use the remote control

or the key to unlock the vehicle.

A conﬁ rmation message ap-

pears on the multifunction

screen, accompanied by an

audible signal.

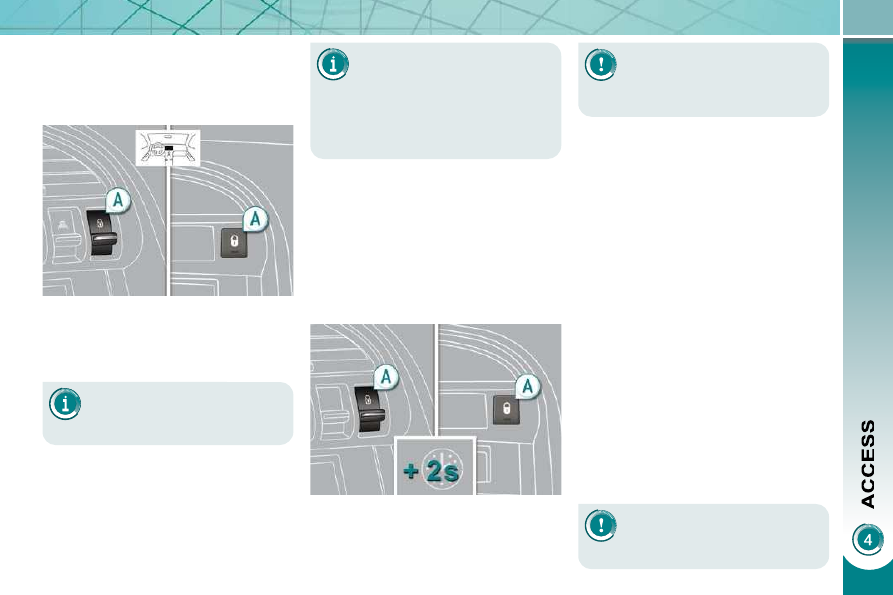

Manual centralised control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking


Press button A to lock the vehicle.

The red indicator lamp on the button

comes on.

Automatic centralised control

System which provides full automatic
locking or unlocking of the doors and

boot while driving, if they are closed

correctly.
You can activate or deactivate this function.

Locking
When the speed exceeds 6 mph (10 km/h),

the doors and boot lock automatically.
If one of the doors is open, the automatic
central locking does not take place.
If the boot is open, the automatic central

locking of the doors is active.

Deactivation


Press button A again for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen, accompanied by

an audible signal.

If one of the doors is open, the
central locking from the inside
does not take place.

Unlocking


Press button A again to unlock the

vehicle.

The red indicator lamp on the button

switches off.

Activation

In the event of an impact, the
doors unlock automatically.

Unlocking


Above 6 mph (10 km/h), press but-

ton A

to unlock the doors and boot

temporarily.



Press button A for more than

two seconds.

Emergency control

System which locks or unlocks the
doors mechanically in the event of a

malfunction of the battery or of the cen-

tral locking.
In the event of a fault with the central

locking, you must disconnect the bat-

tery to lock the boot and so ensure the

complete locking of the vehicle.

 Insert the key in the lock, located on

the edge of the door, then turn it one
eighth of a turn .

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

Opening

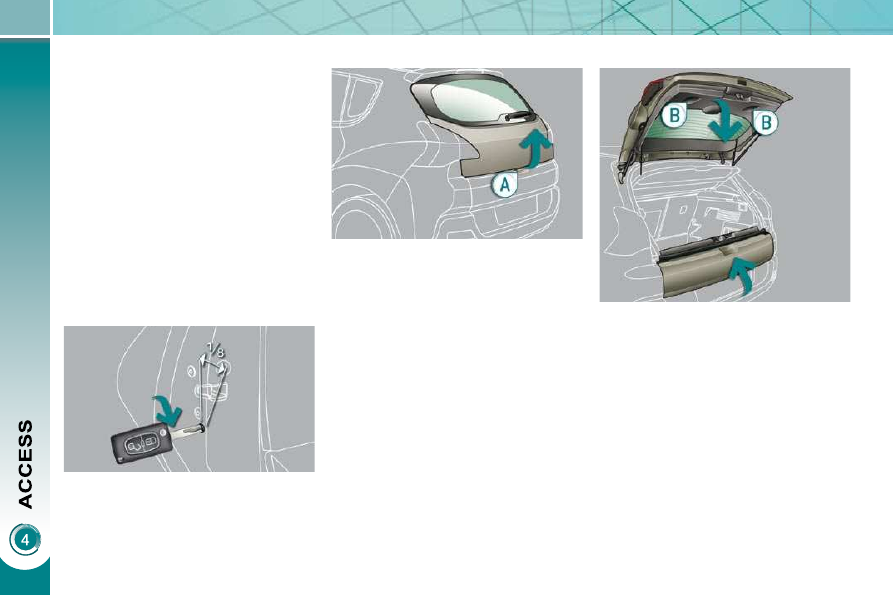

 After unlocking the vehicle using the

remote control or the key, press the
handle A and raise the tailgate.

BOOT

Closing

 Close the lower tailgate.
 Pull the handle B downwards to

guide the tailgate.

Emergency control

System which locks or unlocks the
doors mechanically in the event of a

malfunction of the battery or of the cen-

tral locking.
In the event of a fault with the central

locking, you must disconnect the bat-

tery to lock the boot and so ensure the

complete locking of the vehicle.

 Insert the key in the lock, located on

the edge of the door, then turn it one
eighth of a turn .

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

Opening

 After unlocking the vehicle using the

remote control or the key, press the
handle A and raise the tailgate.

BOOT

Closing

 Close the lower tailgate.
 Pull the handle B downwards to

guide the tailgate.

LOWER TAILGATE

Opening

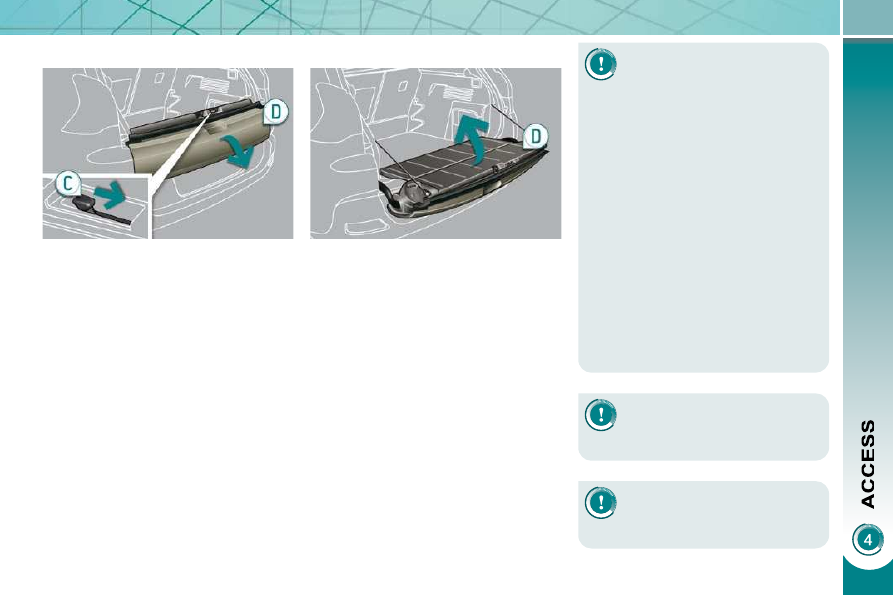

 Push the handle C to the right and

tilt the tailgate D gently.

Closing

 Raise the tailgate D , push it fully to

close it, check that it is secured cor-
rectly.

Before opening the boot, en-

sure that no one is within the
radius of opening.

For reasons of safety, correct opera-
tion and compliance with regulations,

do not drive with the boot and the

lower tailgate open.
If the battery is disconnected, the

boot cannot be opened.

Do not climb onto the lower tailgate

and do not subject it to heavy knocks,

it may be damaged.
Always close the lower tailgate and

check that it is secured correctly be-

fore closing the boot.
When closing the lower tailgate, en-

sure that no person or object is in the

proximity of the moving parts to avoid

any risk of injury or damage.

Do not open the lower tailgate

when a towbar is ﬁ tted.

  Maximum  authorised  weight
on  the  lower  tailgate  when
open:  200 kg .

The key cannot be removed

from the lock until the cap is

put back on the tank.

Opening the cap may trigger an in-
rush of air. This vacuum, which is

completely normal, is caused by the

sealing of the fuel system.

FUEL TANK

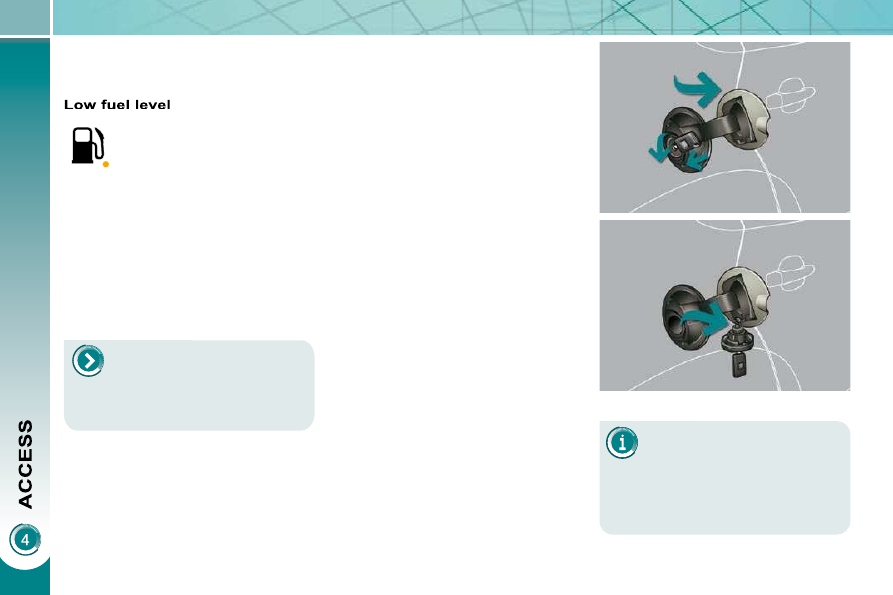

Capacity of the tank: approximately
60 litres.

To ﬁ ll the tank safely:
 the engine must be switched off,


open the fuel ﬁ ller ﬂ ap,

 insert the key in the cap, then turn it

to the left,

When refuelling is complete:


put the cap back in place,

 turn the key to the right, then remove

it from the cap,



close the ﬁ ller ﬂ ap.

 remove the cap and secure it on the

hook, located on the inside of the

ﬂ ap,



ﬁ ll the tank, but do not continue af-

ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.

Operating fault

A malfunction of the fuel gauge is indi-

cated by the return to zero of the fuel

gauge needle.
Have it checked by a PEUGEOT dealer.

Refuelling

A label afﬁ xed to the inside of the ﬁ ller

ﬂ ap reminds you of the type of fuel to be

used according to your engine.
More than 5 litres of fuel must be add-

ed in order to be registered by the fuel

gauge.

When  the  low  fuel  level  is
reached,  this  warning  lamp
comes  on  in  the  instrument

panel, accompanied by an

audible signal and a message

in the multifunction screen. When the

lamp ﬁ rst comes on, there is approxi-

mately 6 litres of fuel remaining.
Until sufﬁ cient fuel has been added, this

warning lamp appears every time the

ignition is switched on, accompanied by

an audible signal and a message. When

driving, this audible signal and message

are repeated with increasing frequency,
as the fuel level drops towards "0" .

You must refuel to avoid run-
ning out of fuel.

If you run out of fuel (Diesel), refer
also to the "Checks" section.

DIESEL

Quality of the fuel used for
petrol engines

The petrol engines are perfectly com-

patible with E10 type petrol biofuels

(containing  10 %  ethanol),  conforming
to  European  standards  EN 228  and
EN 15376.
E85  type  fuels  (containing  up  to  85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For  Brazil  only,  special  vehicles  are

marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly com-

patible with biofuels which conform to

current and future European standards
(Diesel fuel which complies with stand-

ard EN 590 mixed with a biofuel which

complies with standard EN 14214)

available at the pumps (containing up

to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-

tain Diesel engines; however, this use

is subject to strict application of the

special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel

(vegetable or animal oils, pure or dilut-

ed, domestic fuel...) is strictly prohibited

(risk of damage to the engine and fuel
system).

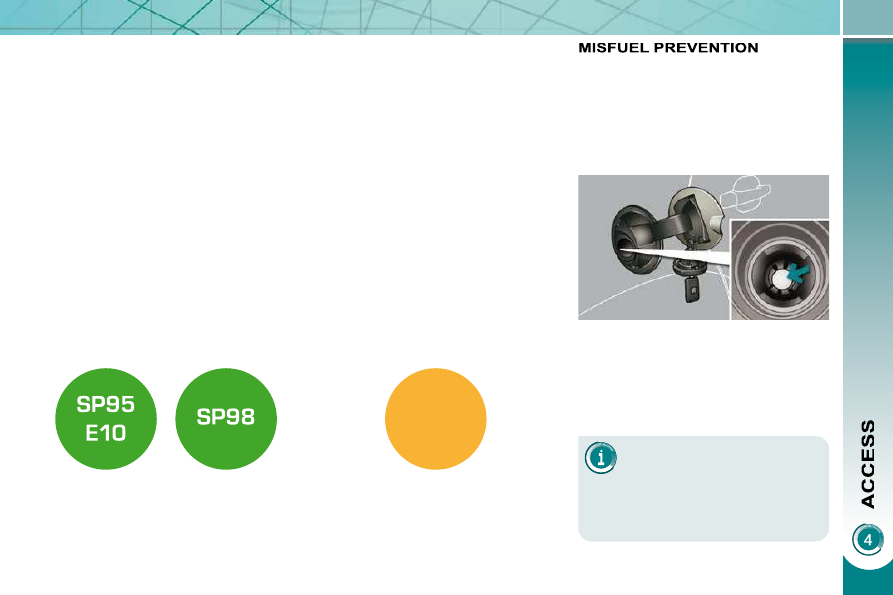

Mechanical device which prevents ﬁ ll-

ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-

age that can result from ﬁ lling with the

wrong fuel.
Located in the ﬁ ller neck, the misfuel

prevention device appears when the

ﬁ ller cap is removed.

Operation

When a petrol ﬁ ller nozzle is intoduced into

the fuel ﬁ ller neck of your Diesel vehicle, it

comes into contact with the ﬂ ap. The sys-

tem remains closed and prevents ﬁ lling.
Do not persist but introduce a Diesel

type ﬁ ller nozzle.

The device allows ﬁ lling from

a fuel can.
In order to ensure a good ﬂ ow

of fuel, do not place the nozzle of the

fuel can in direct contact with the ﬂ ap

of the misfuel prevention device.

This equipment will become available

during the year.

DIESEL

Quality of the fuel used for
petrol engines

The petrol engines are perfectly com-

patible with E10 type petrol biofuels

marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

The Diesel engines are perfectly com-

patible with biofuels which conform to

current and future European standards
(Diesel fuel which complies with stand-

ard EN 590 mixed with a biofuel which

complies with standard EN 14214)

available at the pumps (containing up

to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-

tain Diesel engines; however, this use

is subject to strict application of the

special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel

(vegetable or animal oils, pure or dilut-

ed, domestic fuel...) is strictly prohibited

(risk of damage to the engine and fuel
system).

Mechanical device which prevents ﬁ ll-

ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-

age that can result from ﬁ lling with the

wrong fuel.
Located in the ﬁ ller neck, the misfuel

prevention device appears when the

ﬁ ller cap is removed.

Operation

When a petrol ﬁ ller nozzle is intoduced into

the fuel ﬁ ller neck of your Diesel vehicle, it

comes into contact with the ﬂ ap. The sys-

tem remains closed and prevents ﬁ lling.
Do not persist but introduce a Diesel

type ﬁ ller nozzle.

The device allows ﬁ lling from

a fuel can.
In order to ensure a good ﬂ ow

of fuel, do not place the nozzle of the

fuel can in direct contact with the ﬂ ap

of the misfuel prevention device.

This equipment will become available

during the year.

LIGHTING CONTROLS

System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.

Main lighting

The  various  front  and  rear  lamps  of
the  vehicle  are  designed  to  adapt  the
lighting  progressively  in  relation  to  the
climatic  conditions  and  so  improve  the
driver's visibility:
   -

sidelamps, to be seen,

dipped beam headlamps to see
without dazzling other drivers,

main beam headlamps to see clearly
when the road is clear,

directional headlamps for improved
visibility when cornering.

Additional lighting

Other lamps are installed to fulﬁ l the

requirements of particular driving con-
ditions:
-

a rear foglamp to be seen from a
distance,

front foglamps for even better visibility,

daytime running lamps to be seen
during the day.

Programming

Various

automatic

lighting

control

modes are also available according to
the following options:
-

guide-me-home lighting,

automatic lighting,

directional headlamps.

Model without AUTO lighting

Model with AUTO lighting

Automatic illumination of
headlamps.

Manual controls

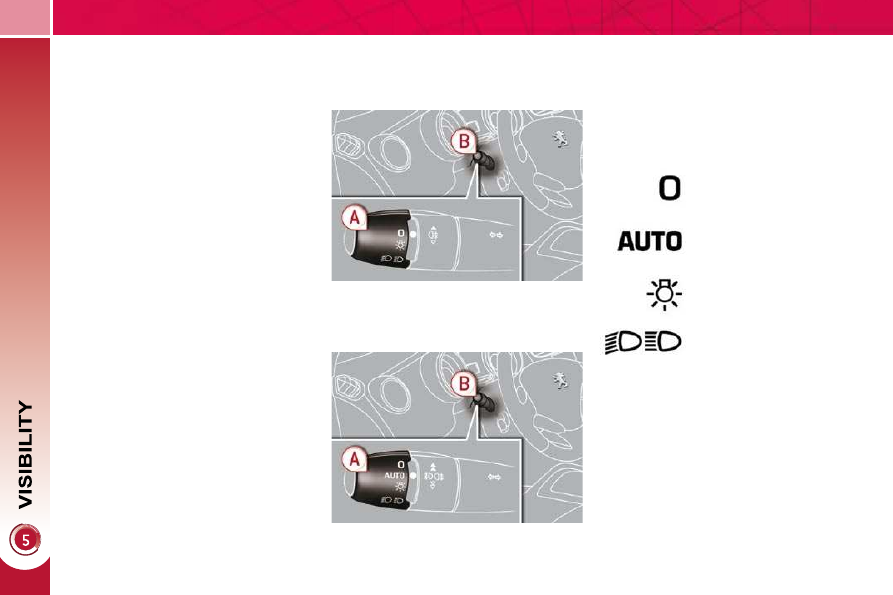

The  lighting  commands  are  issued  di-
rectly by the driver by means of the ring  A
and the stalk  B .
  A.

Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.

Lamps off.

Sidelamps only.

B. Stalk for switching headlamps: pull

to switch the lighting between dipped
headlamps/main beam headlamps.

In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps

temporarily

("headlamp

ﬂ ash") by maintaining a pull on the stalk.

Dipped headlamps or main
beam headlamps.

Displays

Lighting of the corresponding indicator

lamp on the instrument panel conﬁ rms

the switching on of the lighting selected.

Model with rear foglamp only

rear foglamp

This operates with the dipped beam
headlamps and main beam headlamps.
 To switch on the foglamp, turn the

ring C forwards.

 To switch off the foglamp, turn the

ring C rearwards.

When the lighting is switched on auto-

matically (with AUTO model), the dipped

headlamps and sidelamps remain on
until the rear foglamp is switched off.

In good or rainy weather, by
both day and night, the front
foglamps and the rear foglamp

are  prohibited.  In  these  situations,
the power of their beams may dazzle
other drivers.
Do  not  forget  to  switch  off  the  front
foglamps and the rear foglamp when
they are no longer necessary.

Model with front and rear foglamps

front and rear foglamps

The  rear  foglamp  operates  with  the
dipped  beam  and  main  beam  head-
lamps.
The  front  foglamps  also  operate  with
the sidelamps.

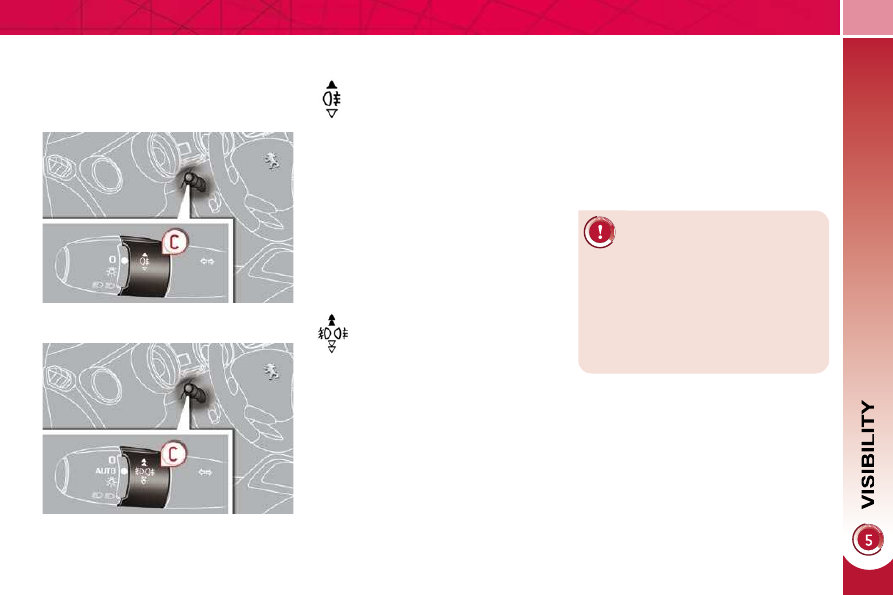

      To  switch  on  the  rear  foglamp,  turn

the ring C forwards.

 To switch on the front foglamps, turn

the ring C forwards again.

 To switch off the rear foglamp, turn

the ring C rearwards.

 To switch off the front foglamps, turn

the ring C rearwards again.

Fog lamps selection ring.

  Lighting on audible warning
When  the  ignition  is  switched  off,  all  of
the lamps switch off automatically, unless
guide-me-home lighting is activated.
If  the  lighting  is  switched  on  manually
after  switching  off  the  ignition,  there
is  an  audible  signal  when  a  front  door
is  opened  to  warn  the  driver  that  they
have forgotten to switch off the vehicle's
lighting, with the ignition off.

When the lighting is switched on auto-

matically (with AUTO model), the dipped

headlamps and sidelamps remain on
until the rear foglamp is switched off.
When the lighting is switched off auto-

matically (with AUTO model) or when

the dipped headlamps are switched off
manually, the foglamps and the side-
lamps will remain on.

Manual guide-me-home lighting

Temporarily  keeping  the  dipped  beam
headlamps  on  after  the  vehicle's  igni-
tion  has  been  switched  off  makes  the
driver's  exit  easier  when  the  light  is
poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting stalk.



A further "headlamp ﬂ ash" switches

the function off.

  Switching off
The  manual  guide-me-home  lighting
switches  off  automatically  after  a  set
time.

System which permits switching on of the

special lamps at the front (low power), so

that you can be seen during the daytime.
The daytime running lamps come on
automatically when the vehicle is start-

ed, if ﬁ tted * .
The instruments and controls (multi-
function screen, air conditioning control

panel, ...) are not lit, except when the

lighting is switched on manually or auto-
matically.

* According to country.

EXTERIOR WELCOME
LIGHTING

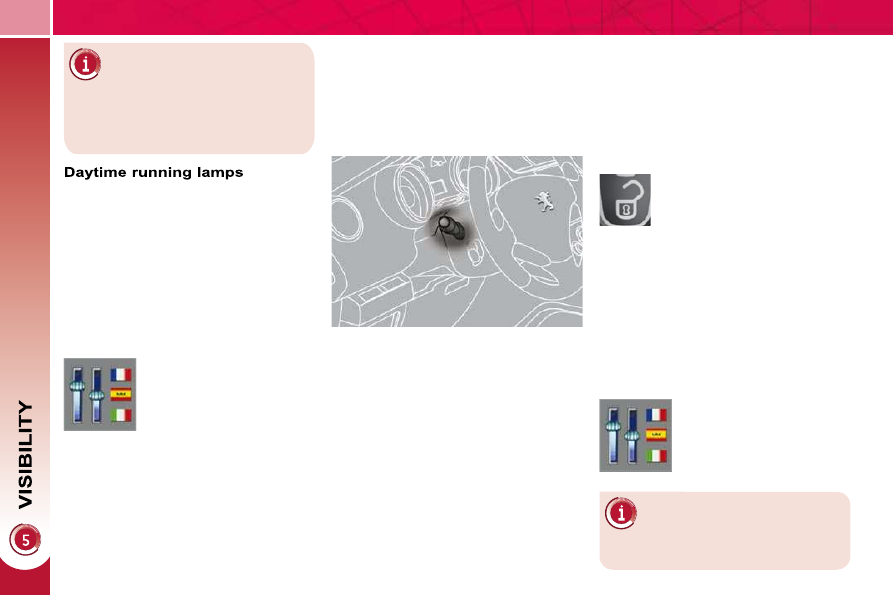

The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.

Switching on

Switching off

Programming

In  countries  in  which  this
function  is  not  imposed  by
regulations,  you  can  acti-
vate  or  deactivate  it  via  the

multifunction screen conﬁ g-

uration menu.

Programming

The lighting duration is
selected via the multifunc-

tion screen conﬁ guration

menu.

The  duration  of  the  welcome
lighting  is  associated  with  and
identical to that of the automatic
guide-me-home lighting.

In countries in which it is imposed by
regulations:
-

by default, this function is activated,

the sidelamps and the number plate

lamps are also switched on * .

 Press the open padlock on

the remote control.

The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.

In some weather conditions
(e.g. low temperature or hu-

midity), the presence of mist-

ing on the internal surface

of  the  glass  of  the  headlamps  and
rear  lamps  is  normal;  it  disappears
after  the  lamps  have  been  on  for  a
few minutes.

The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

In fog or snow, the sunshine

sensor may detect sufﬁ cient

light. Therefore, the lighting will
not come on automatically.

Do  not  cover  the  sunshine  sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind  the  rear  view  mirror;  the  as-
sociated  functions  would  no  longer
be controlled.

  Associated with the automatic
"Guide-me-home" lighting
Association  with  the  automatic  lighting
provides  the  "guide-me-home"  lighting
with the following additional options:
   -

selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction

screen conﬁ guration menu,

automatic activation of "guide-me-
home" lighting when automatic light-
ing is in operation.

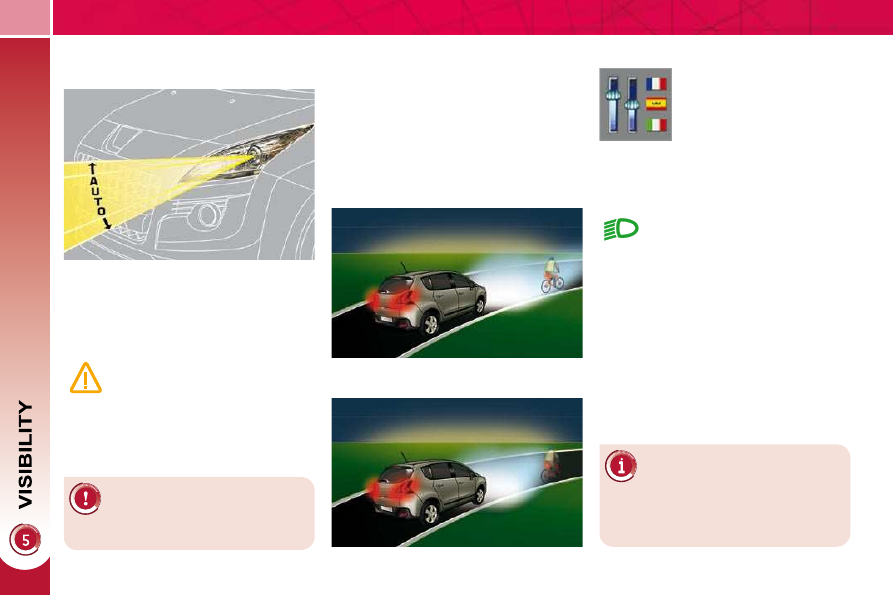

Automatic illumination of headlamps

The sidelamps and dipped beam head-
lamps  are  switched  on  automatically,
without  any  action  on  the  part  of  the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As  soon  as  the  brightness  returns  to  a

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

Activation
 Turn the ring to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.

Deactivation
 Turn the ring to another position.

Deactivation is accompanied by a
message on the multifunction screen.

Operating fault

In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-

ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.

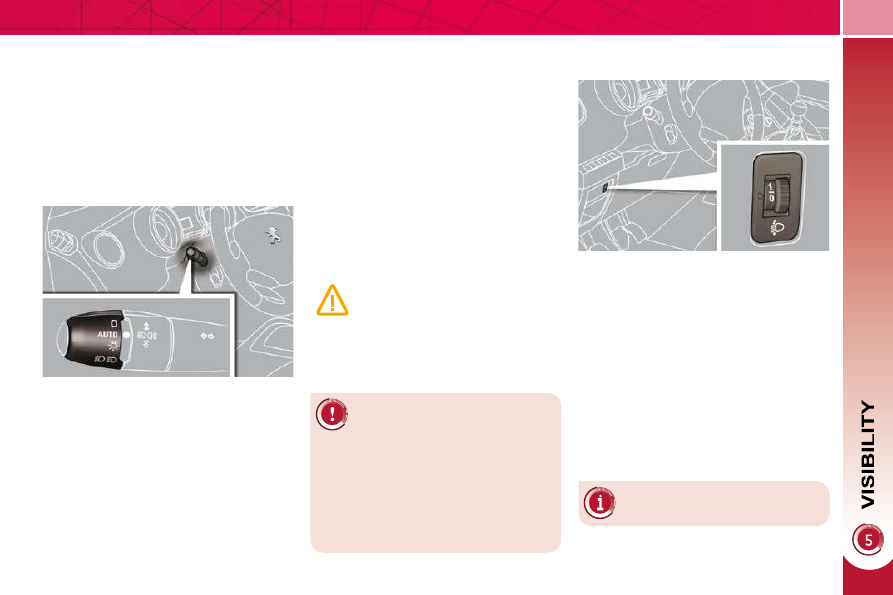

MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS

The initial setting is position "0" .

  To  avoid  causing  a  nuisance  to  other
road  users,  the  height  of  the  halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
  0.   1 or 2 people in the front seats.
  -.   3 people.
  1.   5 people.
  -.   Intermediate setting.
  2.   5  people  +  maximum  authorised

load.

-. Intermediate setting.
3. Driver + maximum authorised load.

Manual guide-me-home lighting

Temporarily  keeping  the  dipped  beam
headlamps  on  after  the  vehicle's  igni-
tion  has  been  switched  off  makes  the
driver's  exit  easier  when  the  light  is
poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting stalk.



A further "headlamp ﬂ ash" switches

the function off.

  Switching off
The  manual  guide-me-home  lighting
switches  off  automatically  after  a  set
time.

System which permits switching on of the

special lamps at the front (low power), so

that you can be seen during the daytime.
The daytime running lamps come on
automatically when the vehicle is start-

ed, if ﬁ tted * .
The instruments and controls (multi-
function screen, air conditioning control

panel, ...) are not lit, except when the

lighting is switched on manually or auto-
matically.

* According to country.

EXTERIOR WELCOME
LIGHTING

The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.

Switching on

Switching off

Programming

In  countries  in  which  this
function  is  not  imposed  by
regulations,  you  can  acti-
vate  or  deactivate  it  via  the

multifunction screen conﬁ g-

uration menu.

Programming

The lighting duration is
selected via the multifunc-

tion screen conﬁ guration

menu.

The  duration  of  the  welcome
lighting  is  associated  with  and
identical to that of the automatic
guide-me-home lighting.

In countries in which it is imposed by
regulations:
-

by default, this function is activated,

the sidelamps and the number plate

lamps are also switched on * .

 Press the open padlock on

the remote control.

The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.

In some weather conditions
(e.g. low temperature or hu-

midity), the presence of mist-

ing on the internal surface

of  the  glass  of  the  headlamps  and
rear  lamps  is  normal;  it  disappears
after  the  lamps  have  been  on  for  a
few minutes.

The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

In fog or snow, the sunshine

sensor may detect sufﬁ cient

light. Therefore, the lighting will
not come on automatically.

  Associated with the automatic
"Guide-me-home" lighting
Association  with  the  automatic  lighting
provides  the  "guide-me-home"  lighting
with the following additional options:
   -

selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction

screen conﬁ guration menu,

automatic activation of "guide-me-
home" lighting when automatic light-
ing is in operation.

Automatic illumination of headlamps

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

Activation
 Turn the ring to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.

Deactivation
 Turn the ring to another position.

Deactivation is accompanied by a
message on the multifunction screen.

Operating fault

In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-

ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.

MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS

The initial setting is position "0" .

load.

-. Intermediate setting.
3. Driver + maximum authorised load.

DIRECTIONAL LIGHTING

When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-

mately 12 mph (20 km/h) and associ-

ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting

without directional lighting

Programming

Operating fault

The function is activated or
deactivated via the multi-

function screen conﬁ gura-

tion menu.

If a fault occurs, this warn-

ing lamp ﬂ ashes in the instru-

ment panel, accompanied by
a message in the multifunction
screen.

Consult a PEUGEOT dealer.

AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS

If a malfunction occurs, do not
touch the xenon bulbs. Consult
a PEUGEOT dealer.

In  order  to  avoid  causing  a  nuisance  to
other  road  users,  this  system  corrects
the height of the xenon headlamps beam
automatically and when stationary, in re-
lation to the load in the vehicle.

   If  a  malfunction  occurs,  this
warning  lamp  is  displayed  on
the  instrument  panel,  accom-
panied by an audible signal and
a message on the multifunction
screen.

The system then places your headlamps
in the lowest position.

When  stationary  or  moving
at  very  low  speed  or  when
reverse  gear  is  engaged,  the
function is inactive.

The  status  of  the  function  remains
in  the  memory  when  the  ignition  is
switched off.

Peugeot 3008 Dag (2010.5). Instruction - part 6
