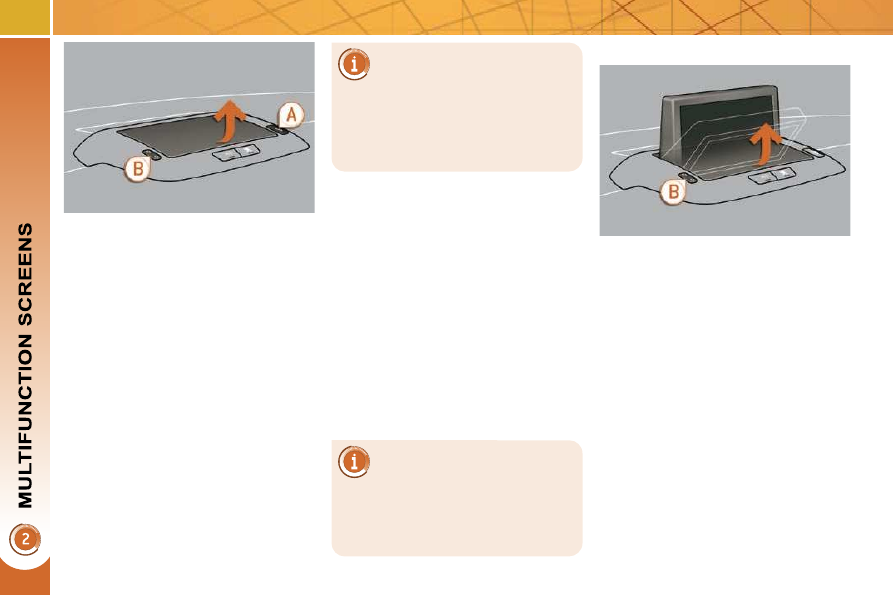

Access to the retractable screen

This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
-

opening or storing by means of con-
trol A ,

angle adjustments by means of con-
trol B .

It is also ﬁ tted with safety auto-reverse

protection.

Opening the screen
 With the screen stored, press con-

trol A to open it.

The  screen  opens  automatically  when
the  ignition  is  switched  on,  when  the
audio and telematics system is switched
on,  when  an  outgoing  telephone  call  is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.

Closing the screen
 With the screen open, press control A

to store it.

The  screen  is  stored  automatically
when  the  ignition  is  switched  off,  after
approximately three seconds, if the au-
dio and telematics system is off.

If you wish the screen to open
or close automatically when
the audio and telematics sys-

tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating.

When the screen is open, you can ad-
just it precisely in different ways:
 press the corresponding part of con-

trol B to move the screen towards
you or towards the windscreen,

or
 push or pull the screen gently by

hand.

Adjusting the position of the screen

  Safety auto-reverse
If  the  screen  meets  an  obstacle  as  it
opens  or  closes,  the  movement  stops
immediately  and  is  reversed  by  a  few
millimetres.
After  clearing  the  obstacle,  issue  the
command required again.

  Storing the position of the screen
The  system  has  four  pre-set  positions
in its memory.
Each  time  the  screen  is  closed,  the
system  stores  the  last  position  of  the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.

If you close the screen dur-
ing operation of the audio and
telematics system, it will re-

open automatically when an outgoing
telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.

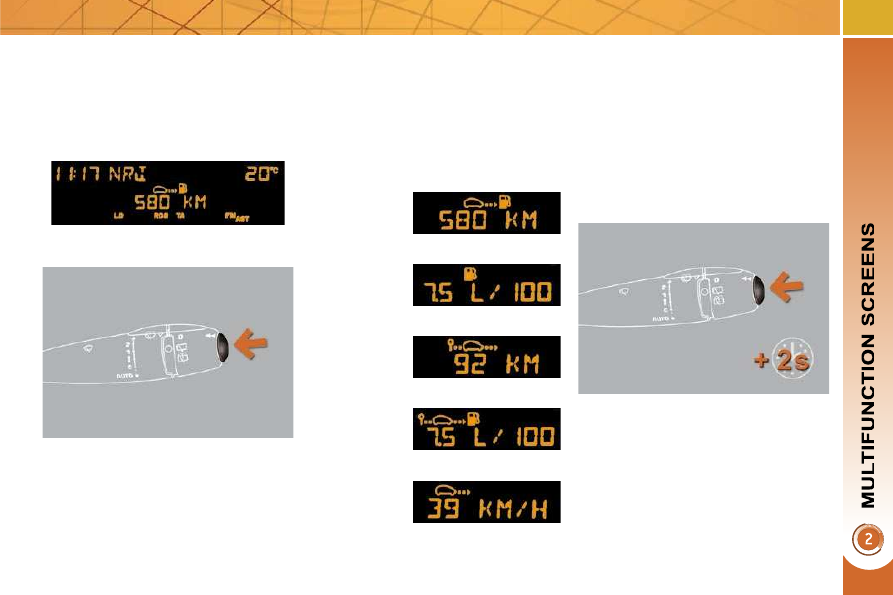

TRIP COMPUTER

 Press the button, located at the end

of  the   wiper  stalk ,  to  display  the
various  items  of  trip  computer  data
in succession.

The trip computer provides the following
information:

System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than

two  seconds  to  reset  to  zero  the
distance  travelled,  the  average
fuel  consumption  and  the  average
speed.

Monochrome screen A

Zero reset

Information displays

range,

current fuel consumption,

distance travelled,

average fuel consumption,

average speed.

 The next press then returns you to

the normal display.

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁ ll-

ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer.

This function is only displayed
from 20 mph (30 km/h).

This value may vary following
a change in the style of driv-
ing or the relief, resulting in a

signiﬁ cant change in the current fuel

consumption.

  Range
(miles or km)
This  indicates  the  distance
which  can  still  be  travelled

with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.

  Current fuel consumption
(mpg or l/100 km or km/l)
This  is  the  average  fuel  con-
sumption  during  the  last  few
seconds.

Average fuel

consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.

  Distance travelled
(miles or km)
This  indicates  the  distance
travelled  since  the  last  trip
computer zero reset.

  Average speed
(mph or km/h)
This  is  the  average  speed  cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to

destination
(miles or km)
This is the distance remaining

to be travelled to the ﬁ nal destination. It

is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

Monochrome screen C

Instrument panel screen -

Peugeot Connect Media

16/9 colour screen - Peugeot Connect Navigation

TRIP COMPUTER

System which provides current infor-
mation concerning the trip (range, con-
sumption…).

Depending  on  your  vehicle's
equipment,  the  trip  computer
information  appears  on  the

multifunction screen or on the instru-
ment panel screen.

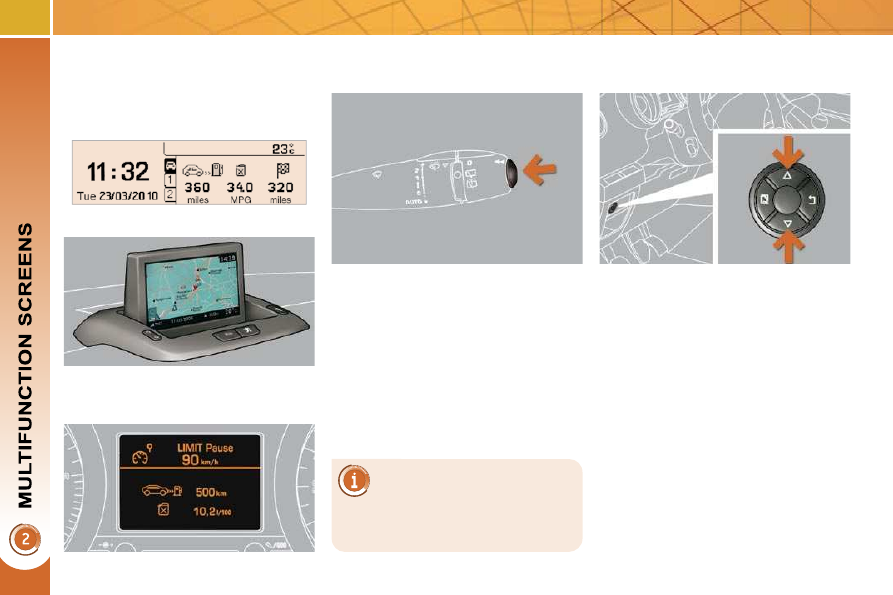

Information displays

 Press the button, located at the end

of  the   wiper  stalk ,  to  display  the
various  trip  computer  tabs  in  suc-
cession.

With the instrument panel screen

(Peugeot Connect Media)

 Press the up and down arrows on

the  navigator,  associated  with  the
Peugeot  Connect  Media,  to  display
the  various  trip  computer  tabs  in
succession.

With the screen C or the colour screen

(Peugeot Connect Navigation)

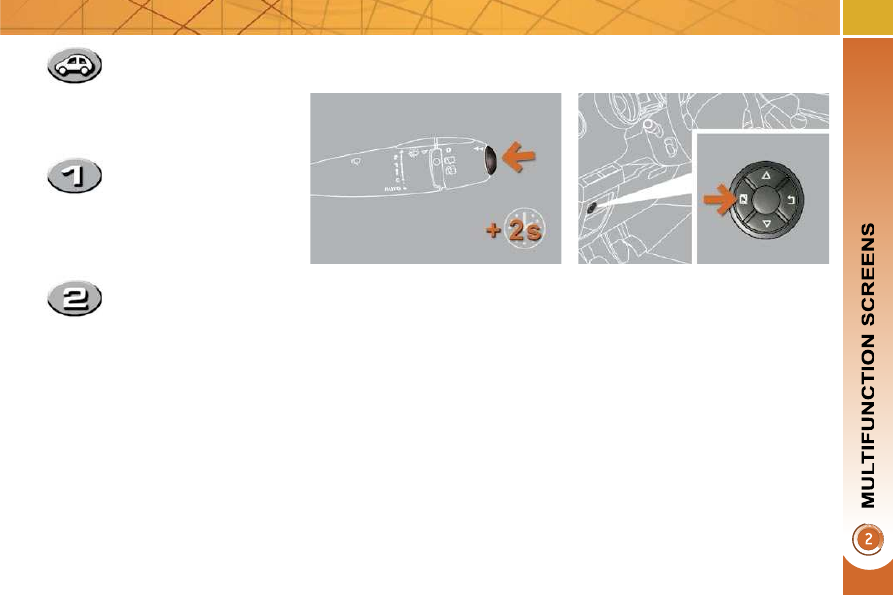

Trip zero reset
With the screen C or the colour screen

(Peugeot Connect Navigation)

 When the trip required is displayed,

press the control for more than two
seconds.

With the instrument panel screen

(Peugeot Connect Media)

 When the required trip is displayed,

press the  "OK"  button on the navi-
gator,  associated  with  the  Peugeot
Connect  Media,  for  more  than
two seconds.

Trips "1" and "2" are independent but
their use is identical.
For example, trip "1" can be used for

daily ﬁ gures, and trip "2" for monthly

ﬁ gures.

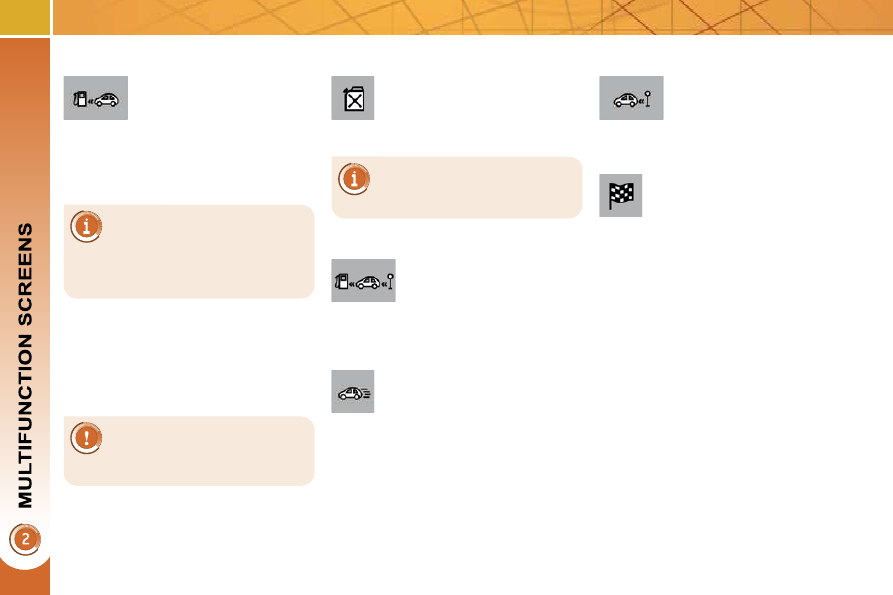

The current information
tab with:

the range,

the current fuel

consumption,

the distance remaining

to be travelled.

The trip "1" tab with:

the distance travelled,

the average fuel

consumption,

the average speed,

for the ﬁ rst trip.

The trip "2" tab with:

the distance travelled,

the average fuel

consumption,

the average speed,
for the second trip.

 Pressing the button again takes you

to a black screen.

A further press returns you to the
normal display.

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After ﬁ ll-

ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).

If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer.

This function is only displayed
from 20 mph (30 km/h).

This value may vary following
a change in the style of driv-
ing or the relief, resulting in a

signiﬁ cant change in the current fuel

consumption.

  Range
(miles or km)
This  indicates  the  distance
which  can  still  be  travelled

with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.

  Current fuel consumption
(mpg or l/100 km or km/l)
This  is  the  average  fuel  con-
sumption  during  the  last  few
seconds.

Average fuel

consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.

  Distance travelled
(miles or km)
This  indicates  the  distance
travelled  since  the  last  trip
computer zero reset.

  Average speed
(mph or km/h)
This  is  the  average  speed  cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to

destination
(miles or km)
This is the distance remaining

to be travelled to the ﬁ nal destination. It

is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

HEATING AND VENTILATION

System which creates and maintains
good conditions of comfort and visibi-
lity in the vehicle's passenger compart-
ment.

Controls

The incoming air follows various routes
depending  on  the  controls  selected  by
the driver, the front passenger and rear
passengers,  according  to  the  level  of
equipment.
The temperature control enables you to
obtain  the  level  of  comfort  required  by
mixing the air of the various circuits.
The air distribution control enables you
to select the air vents used in the pas-
senger  compartment  by  the  combined
use of the associated buttons.

The air ﬂ ow control enables you to in-

crease or reduce the speed of the ven-
tilation fan.
These controls are grouped together on
control panel A on the centre console.

The air circulating in the passenger com-

partment is ﬁ ltered and originates either

from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.

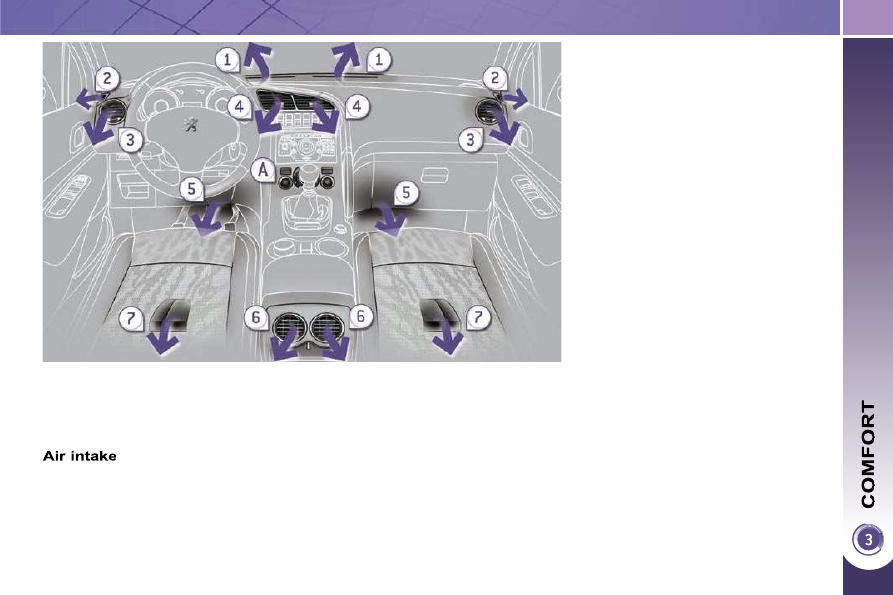

Air distribution

1. Windscreen demisting/defrosting vents.
2. Front side window demisting/de-

frosting vents.

  3.   Side adjustable air vents.
  4.   Central adjustable air vents.
  5.   Air outlets to the front footwells.
  6.   Adjustable air vents for the rear pas-

sengers.

7. Air outlets to the rear footwells.

Recommendations for ventilation and air conditioning

In order for these systems to be fully effective, follow the operation and mainte-
nance guidelines below:
 If the interior temperature remains very high after the vehicle has been

parked in the sun for a considerable time, ﬁ rst ventilate the passenger com-

partment for a few minutes.

Place the air ﬂ ow control at a sufﬁ cient level to provide an adequate renewal

of air in the passenger compartment.

 To obtain an even air distribution, take care not to obstruct the exterior air

intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Use in preference the intake of exterior air as prolonged use of the air recir-

culation may cause misting of the windows and side windows.

 Do not cover the sunshine sensor, located on the dashboard; this is used for

regulation of the automatic air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, once or twice a

month to keep it in perfect working order.



Ensure that the passenger compartment ﬁ lter is in good condition and have

the ﬁ lter elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compartment ﬁ lter. Thanks

to its second special active ﬁ lter, it contributes to the puriﬁ cation of the air

breathed by the occupants and the cleanliness of the passenger compart-

ment (reduction of allergic symptoms, bad odours and greasy deposits).

 The air conditioning uses power from the engine while operating. This results

in an increase in the vehicle's fuel consumption.

When towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so
improves towing capacity.

Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.

 To ensure correct operation of the air conditioning system, you are also

advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a PEUGEOT

dealer.

  The  air  conditioning  system
does not contain chlorine and
does  not  present  any  danger
to the ozone layer.

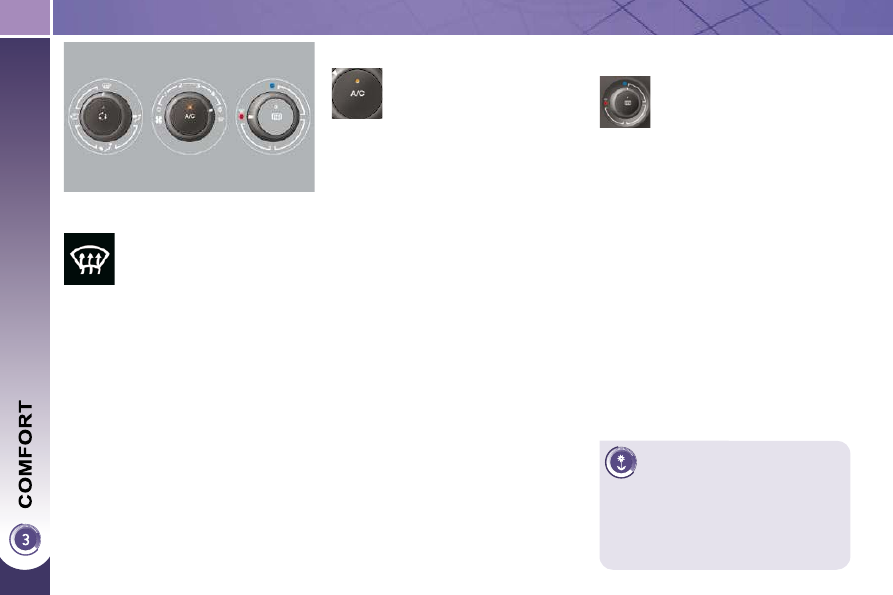

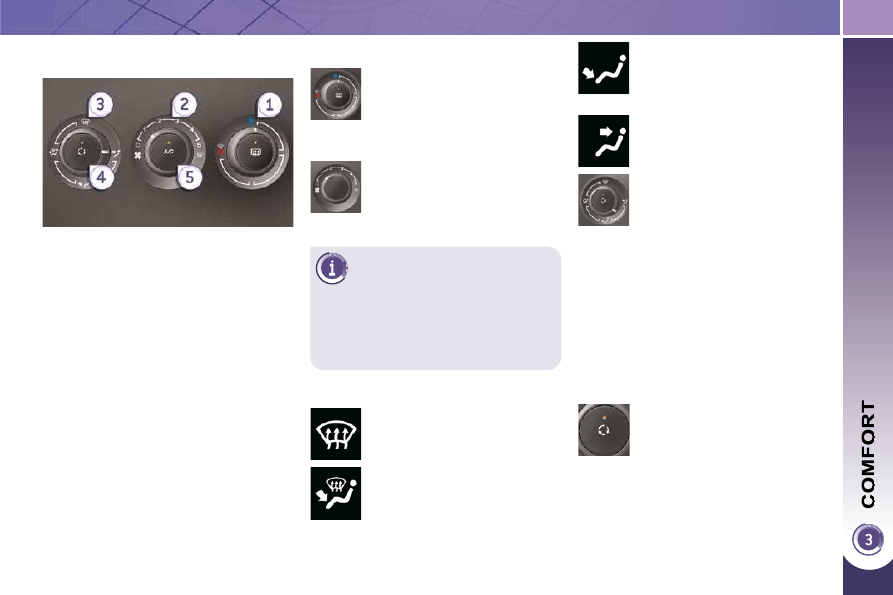

2. Air ﬂ ow adjustment

 Turn the dial from position 1

to position 5 to obtain a

comfortable air ﬂ ow.

Windscreen, side windows and
front-rear footwells.

Footwells, front-rear
(closing the vents increases

the ﬂ ow to the footwells).

Central, side and rear vents.

 Turn the dial from blue

(cold) to red (hot) to adjust

the temperature to your re-
quirements.

Windscreen and side windows.

1. Temperature adjustment

The air distribution can be
adapted by placing the dial in
an intermediate position.

The air conditioning can only operate
with the engine running.

  4. Air intake/Air recirculation
The  intake  of  exterior  air  limits  misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible  to  prevent  deterioration  of  the
air quality and demisting performance.



If you place the air ﬂ ow control

in position 0

(deactivation of

the system), the temperature

is no longer maintained at a
comfortable level. However,

a slight ﬂ ow of air, due to the

movement of the vehicle, can
still be felt.

3. Air distribution adjustment

 Press the button to recir-

culate the interior air. The
indicator lamp comes on to

conﬁ rm this.

 Press the button again to permit the

intake of exterior air. The indicator

lamp goes off to conﬁ rm this.

MANUAL AIR CONDITIONING

Demisting/defrosting

The control button is located
on the air conditioning system
control panel.

REAR SCREEN DEMIST/
DEFROST

 Switch off the demist/de-

frost of the rear screen and
door mirrors as soon as it
is  no  longer  necessary  as
lower  current  consump-
tion results in reduced fuel
consumption.

Switching on

The rear screen demist/defrost can only
operate when the engine is running.
 Press this button to demist/defrost

the  rear  screen  and  the  door  mir-
rors. The  indicator  lamp  associated
with the button comes on.

Switching off

The  demist/defrost  switches  off  auto-
matically  to  prevent  an  excessive  con-
sumption of current.
      It  is  possible  to  stop  the  demist/de-

frost operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off.

5. Air conditioning On/Off

The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.

It enables you to:
-

lower the temperature, in summer,

increase the effectiveness of the
demisting in winter, above 3 °C.

Switching off
 Press the "A/C" button again, the

button's indicator lamp goes off.

Switching off may affect comfort levels

(humidity, condensation).

Switching on
 Press the "A/C" button, the button's

indicator lamp comes on.

The air conditioning does not operate

when the air ﬂ ow adjustment control 2

is in position " 0 ".

The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:

 place the air intake control 4 in the

"Exterior air intake" position (indica-

tor lamp off),

 place the air distribution dial 3 in the

"Windscreen position",



place the air ﬂ ow dial 2 in position 5

(maximum),

 place the temperature dial 1 in the

red position (hot).

Demisting/defrosting

The control button is located
on the air conditioning system
control panel.

REAR SCREEN DEMIST/
DEFROST

 Switch off the demist/de-

frost of the rear screen and
door mirrors as soon as it
is  no  longer  necessary  as
lower  current  consump-
tion results in reduced fuel
consumption.

Switching on

The rear screen demist/defrost can only
operate when the engine is running.
 Press this button to demist/defrost

the  rear  screen  and  the  door  mir-
rors. The  indicator  lamp  associated
with the button comes on.

Switching off

The  demist/defrost  switches  off  auto-
matically  to  prevent  an  excessive  con-
sumption of current.
      It  is  possible  to  stop  the  demist/de-

frost operation before it is switched
off automatically by pressing the but-
ton again. The indicator lamp associ-
ated with the button switches off.

5. Air conditioning On/Off

The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.

It enables you to:
-

lower the temperature, in summer,

increase the effectiveness of the
demisting in winter, above 3 °C.

Switching off
 Press the "A/C" button again, the

button's indicator lamp goes off.

Switching off may affect comfort levels

(humidity, condensation).

Switching on
 Press the "A/C" button, the button's

indicator lamp comes on.

The air conditioning does not operate

when the air ﬂ ow adjustment control 2

is in position " 0 ".

The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:

 place the air intake control 4 in the

"Exterior air intake" position (indica-

tor lamp off),

 place the air distribution dial 3 in the

"Windscreen position",



place the air ﬂ ow dial 2 in position 5

(maximum),

 place the temperature dial 1 in the

red position (hot).

On entering the vehicle, if the
interior temperature is much
colder or warmer than the

comfort  value,  there  is  no  need  to
change  the  value  displayed  in  order
to  obtain  the  comfort  required  more
quickly. The  system  corrects  the  dif-
ference in temperature automatically
and as quickly as possible.

The air conditioning can only operate
with the engine running.

The driver and front passenger
can each adjust the tempera-
ture to their requirements.

 Turn control 2 or 3 to the left or to

the right respectively to decrease or
increase this value.

A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.

4. Automatic visibility programme

The automatic comfort pro-

gramme may not be sufﬁ cient

to quickly demist or defrost
the windscreen and side win-

dows (humidity, several pas-

sengers, ice, etc.).

 In this case, select the automatic

visibility programme.

The system automatically controls the

air conditioning, the air ﬂ ow and the air

intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

Automatic operation

 Press the "AUTO" button.

The indicator lamp on the
button comes on.

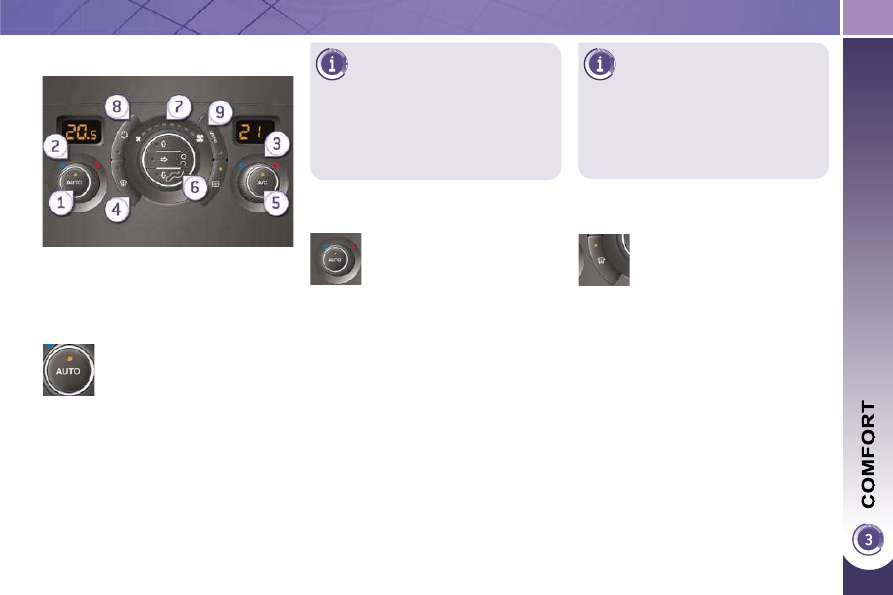

2-3. Driver-passenger side

adjustment

DUAL-ZONE DIGITAL AIR
CONDITIONING

We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-

ger compartment temperature, air ﬂ ow,

air  distribution  and  air  recirculation,  in
accordance with the comfort value that
you have chosen.
This  system  is  designed  to  operate  ef-
fectively  in  all  seasons,  with  the  win-
dows closed.

The value indicated in the screen cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

 To switch it off, press the "visibility"

button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off or the indicator lamp in
the "AUTO" button comes on.

1. Automatic comfort programme

To prevent too great a distribu-
tion of cold air when the engine

is cold, the air ﬂ ow will reach its

optimum level gradually.

In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.

Manual operation

If  you  wish,  you  can  make  a  different
choice  from  that  offered  by  the  system
by  changing  a  setting.  The  other  func-
tions  will  still  be  controlled  automati-
cally.
      Pressing the  "AUTO"  button returns

the system to completely automatic
operation.

 Press this button to switch

off the air conditioning.

6. Air distribution adjustment

 Press one or more buttons to

direct the air ﬂ ow towards:

7. Air ﬂ ow adjustment

 Turn this control to the left

to decrease the air ﬂ ow or

to the right to increase the

air ﬂ ow.

5. Air conditioning On/Off

the windscreen and side windows

(demisting or defrosting),

the windscreen, the side windows
and the vents,

the windscreen, the side windows,
the vents and the footwells,

the vents and the footwells,

the vents,

the footwells,

the windscreen, the side windows
and the footwells.

The air ﬂ ow indicator lamps, between

the two fans, come on progressively in
relation to the value requested.

For maximum cooling or heat-
ing of the passenger compart-
ment, it is possible to exceed

the minimum value 14 or the maxi-
mum value 28.
 Turn control 2 or 3 to the left until

"LO"

(low) is displayed or to the

right until "HI"

(high) is displayed.

Switching the system off could result in

some discomfort (humidity, condensation).
 Press this button again to return

to  automatic  operation  of  the  air
conditioning.  The  indicator  lamp  in
the  "A/C"  button comes on.

9. Mono-zone/Dual-zone

 Press this button to equalise

the comfort value on the pas-
senger side with that on the

driver's side (mono-zone).

The indicator lamp in the
button comes on.

8. Air recirculation

 Press this button to recir-

culate the interior air. The
indicator lamp comes on.

Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
 As soon as possible, press this

button  again  to  allow  the  intake  of
exterior  air  and  avoid  misting.  The
indicator lamp in the button goes off.

Switching the system off



Turn the air ﬂ ow control to the left

until all of the indicator lamps go
off.

This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-

ger guaranteed but a slight ﬂ ow of air,

due to the movement of the vehicle, can
still be felt.


Turn the air ﬂ ow dial to the right or

press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.

Avoid driving for prolonged
periods with the system off.

FRONT SEATS

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

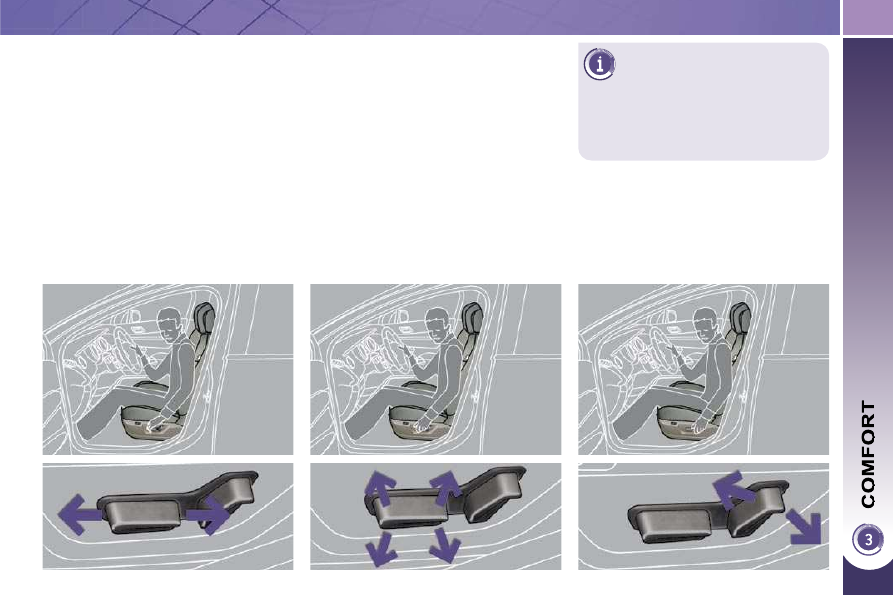

Forwards-backwards adjustment
 Raise the control and slide the seat

forwards or backwards.

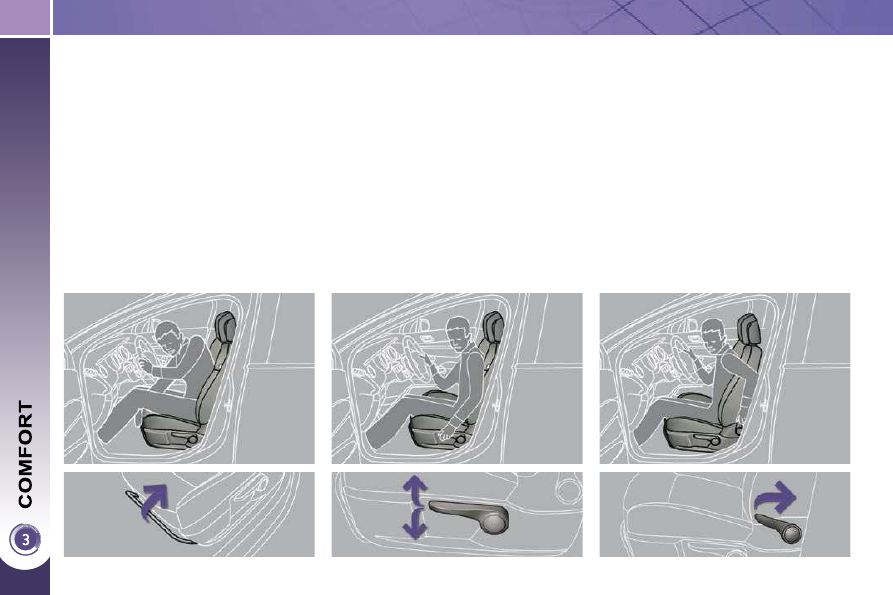

Driver's or passenger's seat height

adjustment
 Pull the control upwards to raise

or push it downwards to lower, as
many times as necessary, to obtain
the position required.

Seat back angle adjustment
 Push the control rearwards.

Manual adjustments

DRIVER'S ELECTRIC SEAT

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment
 Push the control forwards or rear-

wards to slide the seat.

Seat cushion height and angle

adjustment
 Tilt the rear part of the control up-

wards or downwards to obtain the
required height.

 Tilt the front part of the control up-

wards or downwards to obtain the
required angle.

Seat back angle adjustment
 Tilt the control forwards or rearwards

to adjust the angle of the seat back.

The electrical functions of the
driver's seat are active approxi-
mately one minute after opening

the front door. They are deactivated ap-
proximately one minute after the ignition
is switched off and in economy mode.
To reactivate them, switch on the ignition.

Content .. 2 3 4 5 ..
