Peugeot 3008 Dag (2010.5). Instruction

DRIVING SAFELY

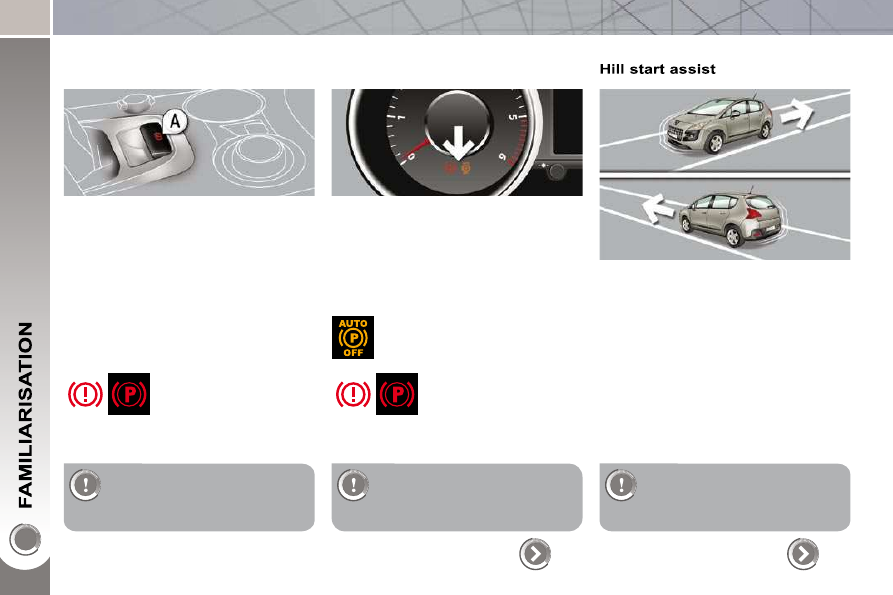

Electric parking brake

  Manual application/release
The parking brake can be  applied  manu-
ally by  pulling  the control lever  A .
When  the  ignition  is  on,  the  parking
brake  can  be   released   manually  by
pressing the brake pedal  and  pulling
then  releasing  the control lever  A .

  Automatic application/release
Press  the  accelerator  and  release  the
clutch,  the  parking  brake  is  released
automatically  and  progressively  on  ac-
celeration.
When  the   engine  is switched  off , the
parking brake is  applied  automatically.

Before getting out of the
vehicle, check that the
braking

warning

lamp

( red ! ) and the warning

lamp P in the control lever A , are on

(not ﬂ ashing)

If you get out of your vehicle
with the engine running, apply
the parking brake manually.

Before getting out of the
vehicle, check that the
braking

warning

lamp

( red ! ) and the warning

lamp P in the control lever A are on (not

ﬂ ashing).

Do not leave a child alone in
the vehicle with the ignition on;
they could release the parking
brake.

132

Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This function is only active:
-

when the vehicle has been immobi-
lised completely with your foot on
the brake pedal,

on certain gradients,

when the driver's door is closed.

Do not get out of the vehicle
during the hill start assist tem-
porary hold phase.

137

If this warning lamp is on in the
instrument panel, the automatic
application/release function is
deactivated .

DRIVING SAFELY

Head-up display

   1.   Head-up display on/off.
  2.   Brightness adjustment.
  3.   Display height adjustment.

The adjustments must be
made with the engine running
and the vehicle stationary.

140

Distance alert

1. Distance alert on/off.
2. Alert value increase/decrease.

142

Grip control

ESP (normal mode).

123

Snow.

All terrain.

Sand.

ESP OFF.

DRIVING SAFELY

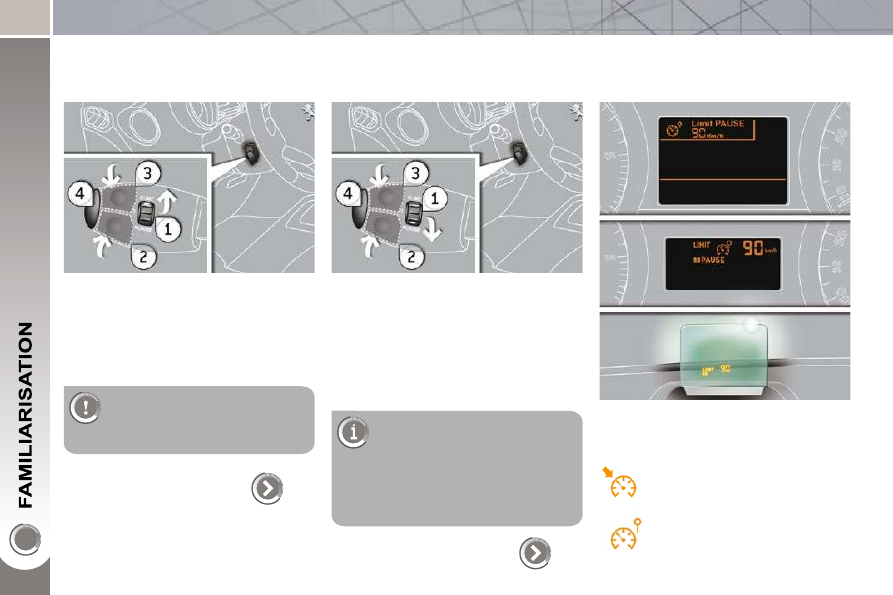

Speed limiter "LIMIT"

   1.   Limiter mode Selection/Off.
  2.   Decreasing the programmed value.
  3.   Increasing the programmed value.
  4.   Speed limiter On/Off.

The values must be set with
the engine running.

144

Cruise control "CRUISE"

1. Cruise control mode Selection/Off.
2. Programming a speed/Decreasing

the programmed value.

3. Programming a speed/Increasing

the programmed value.

4. Cruise control Off/Resume.

In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph

(40 km/h),  with  at  least  fourth  gear
engaged  on  the  manual  gearbox
(second  gear  for  the  6-speed  elec-
tronic  gear  control  gearbox  or  auto-
matic gearbox).

146

Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

Cruise control

Speed limiter

149

DRIVING SAFELY

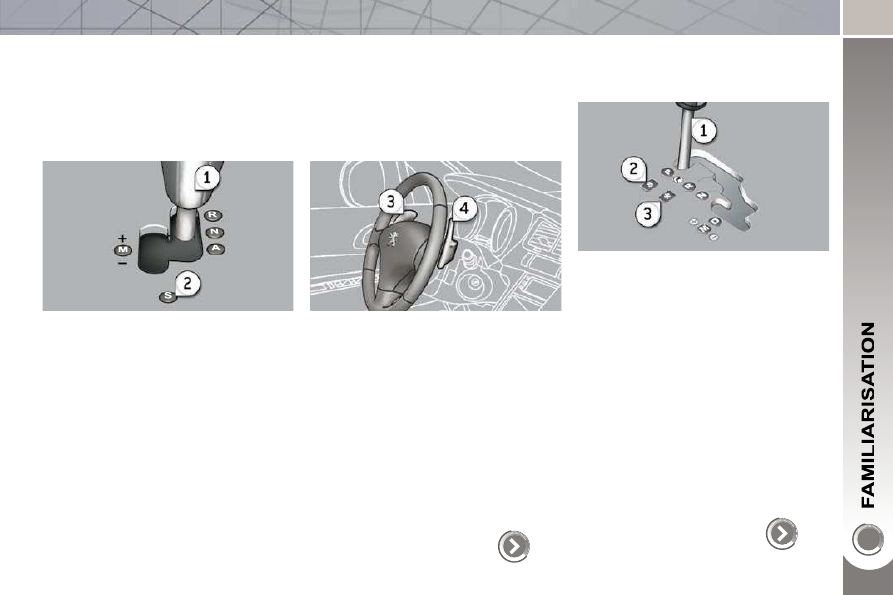

6-speed electronic
gear control gearbox

  This  6-speed  gearbox  offers  a  choice
between  the  comfort  of  fully  automatic
operation  or  the  pleasure  of  manual
gear changing.

1. Gear lever.
2. Button "S" (sport) .

"Tiptronic - Porsche system"
gearbox

  This six-speed gearbox offers a choice
between  the  comfort  of  fully  automatic
operation  or  the  pleasure  of  manual
gear changing.
   1.   Gear lever.
  2.   Button  "S" (sport) .
  3.   Button  "  " (snow) .

Moving off

 Select position N and press the

brake pedal ﬁ rmly while starting the

engine.



Engage ﬁ rst gear (position A or M )

or reverse (position R ) using the
gear lever 1 .

 Take your foot off the brake pedal

then accelerate.

 Select position P or N and press the

brake pedal ﬁ rmly while starting the

engine.

 Select position R , D or M .
 Take your foot off the brake pedal,

then accelerate.

3. Steering mounted "-" paddle.
4. Steering mounted "+" paddle.

153

Moving off

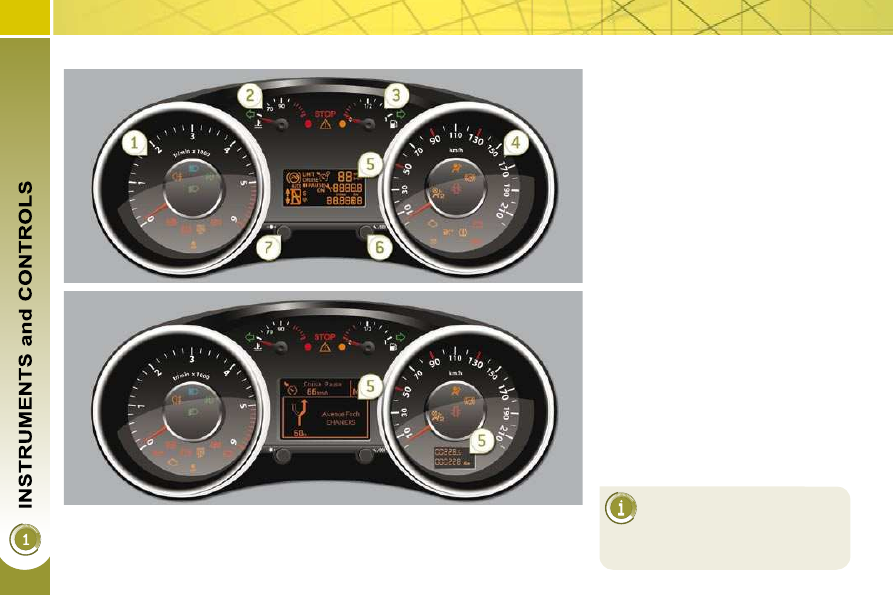

INSTRUMENT PANELS

Panel grouping together the vehicle operation indication dials and warning lamps.

Dials

1. Rev counter.

Indicates the engine speed (x 1 000 rpm).

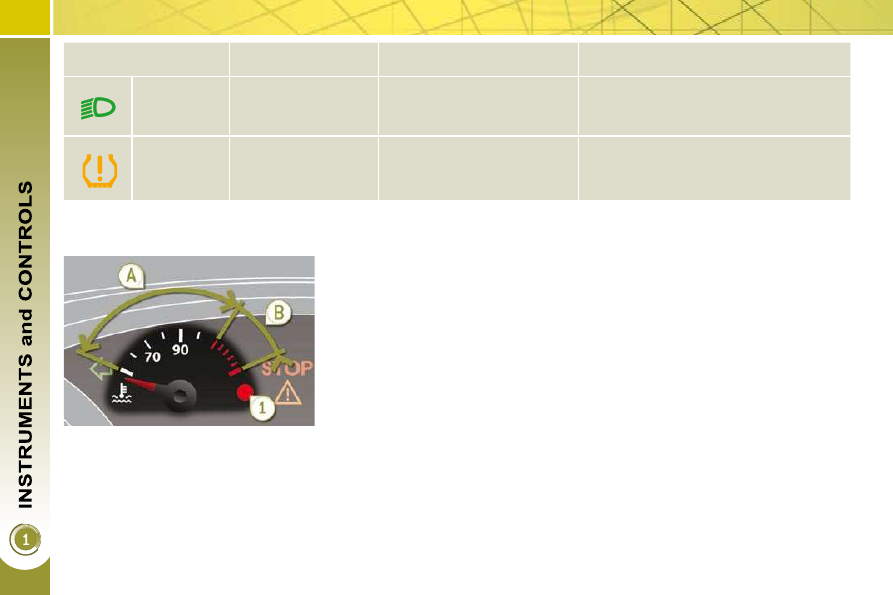

2. Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3. Fuel level.

Indicates the quantity of fuel remain-
ing in the tank.

4. Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5. Screen.
6. Display zero reset or service indi-

cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7. Instrument panel lighting dimmer .

Adjusts the brightness of the light-
ing of the instruments and controls,
if the vehicle lighting is on.

  For  more  information,  refer
to  the  paragraph  relating  to
the  button  or  function  and  its
associated display.

Screen(s)

Instrument panel navigator associated
with the Peugeot Connect Media

This group of buttons permits:
-

when stationary

, conﬁ guration of

the vehicle's equipment and the
screen settings (languages, units...),

while driving , scrolling of the active
functions (trip computer, naviga-
tion...).

  Controls
There  are  four  buttons  to  control  the
large  16/9  screen  in  the  instrument
panel:
   1.

access the main menu, conﬁ rm the

selection,

  2.   move up through the menu,
  3.   move down through the menu,
  4.   return  to  the  previous  display,  exit

from the menu.

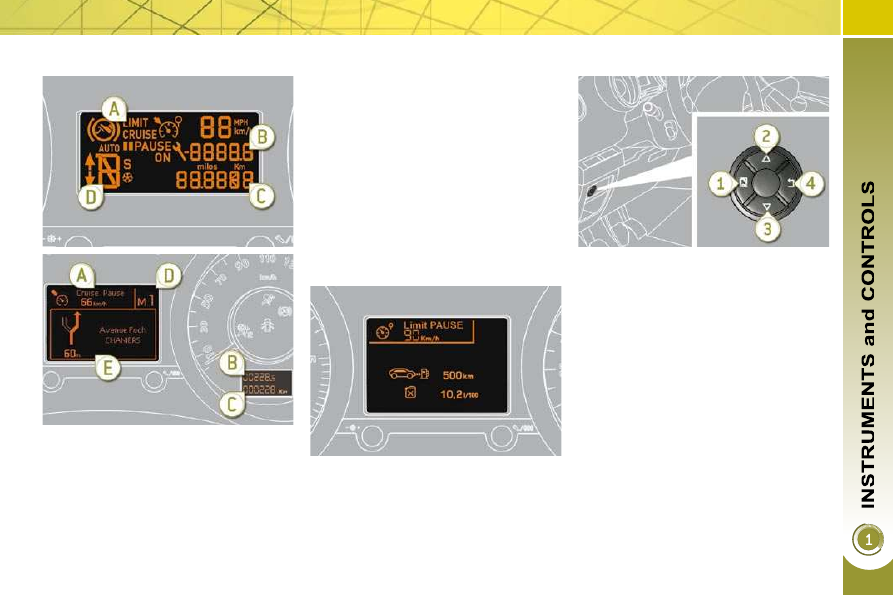

A. Speed limiter

Cruise control.

(mph or km/h)

B. Trip distance recorder.

(miles or km)

C. Service indicator.

(miles or km) or,

Engine oil level indicator.

distance recorder.

(miles or km)

D. 6-speed electronic gear control

or automatic gearbox.

E. Warning messages and function

status messages, trip computer,
GPS navigation information, menus
(with Peugeot Connect Media).

Vehicle parameters

This  menu  allows  you  to  activate  or
deactivate  certain  driving  and  comfort
equipment (according to country):
   -

wiper linked with reverse gear (refer
to the "Visibility" section),

selective unlocking (refer to the "Ac-
cess" section),

guide-me-home and welcome light-
ing (refer to the "Visibility" section),

interior mood lighting (refer to the
"Visibility" section),

daytime running lamps (refer to the
"Visibility" section),

directional headlamps (refer to the
"Visibility" section),

automatic or manual parking brake
(refer to the "Driving" section).

  Choice of units
This  menu  allows  you  to  select  the
units:  temperature  (°Celsius  or  °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).

  Choice of language
This  menu  allows  you  to  select  the
display  language:  Deutsch,  English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .

  The  main  menu  and  its asso-
ciated  functions  can  only  be
accessed when stationary, via
buttons  1  to  4 .

A  message  appears  on  the  screen,
above a certain speed threshold, in-
dicating  that  the  main  menu  cannot
be displayed.
The  trip  computer  displays  can  only
be  accessed  while  driving,  via  but-
tons  2  and  3  (refer to the "Trip com-
puter" paragraph).

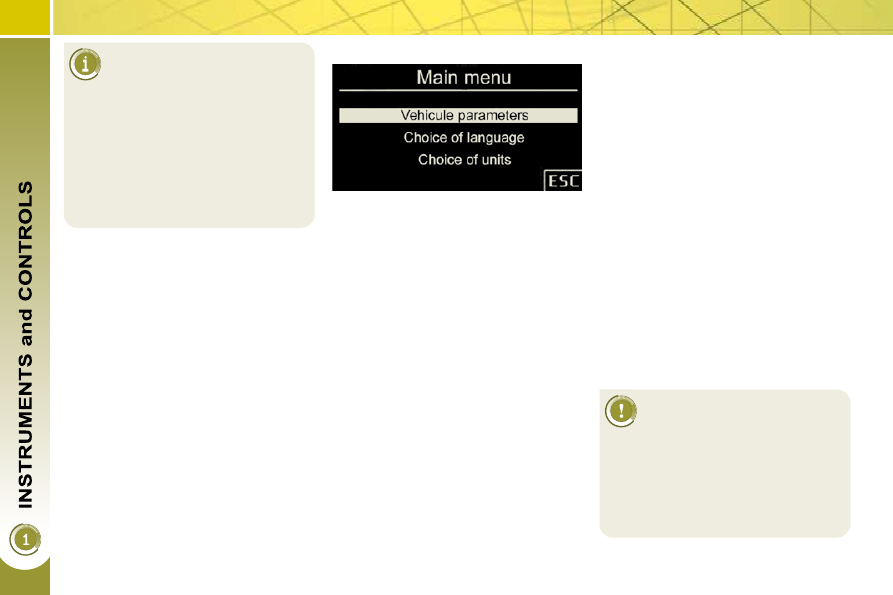

Main menu
 Press button 1 for access to the

main menu and select one of the
following functions:

   -   "Vehicle parameters",
  -   "Choice of language",
  -   "Choice of units".

 Press button 2 or 3 to move in the

screen.

 Press button 1

again to conﬁ rm the

selection.

* According to country.

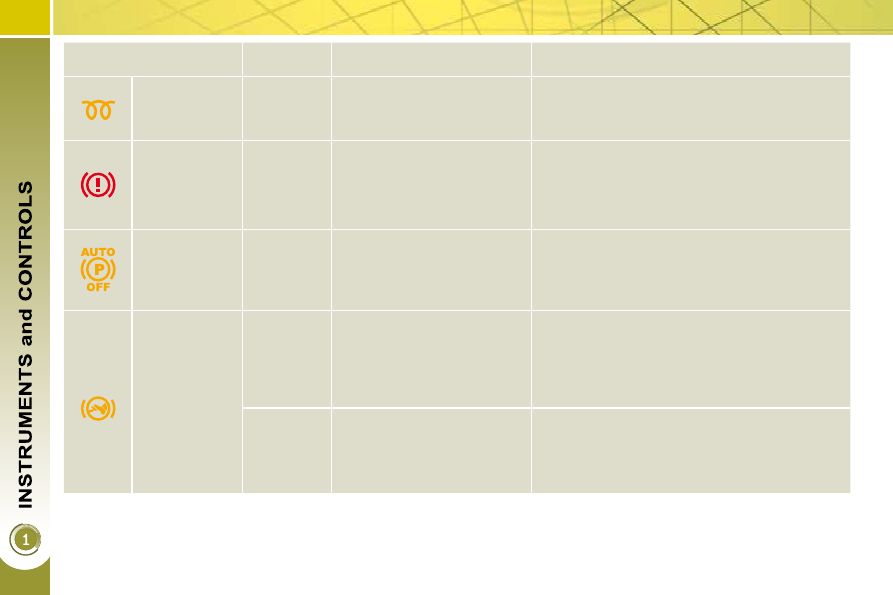

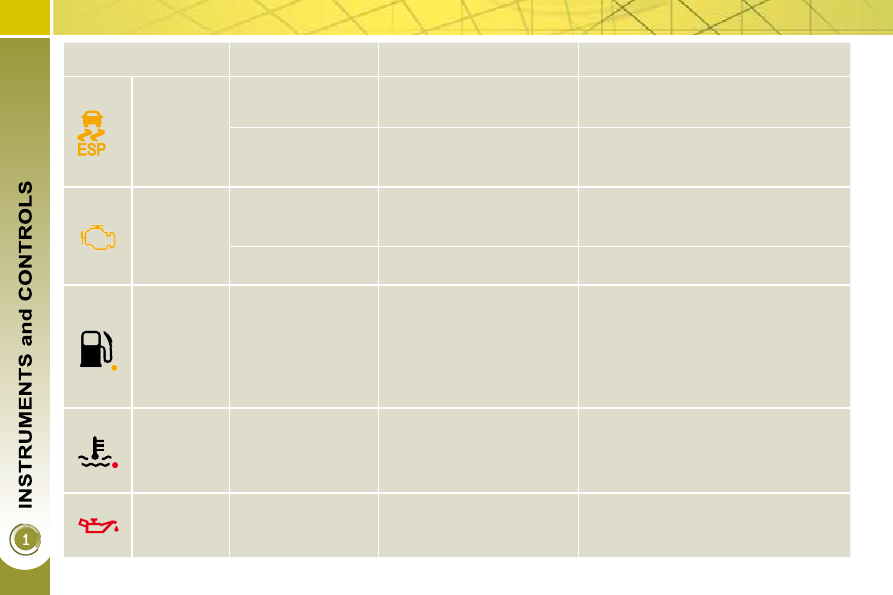

Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

  When the ignition is switched on
Certain  warning  lamps  come  on  for  a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If  they  remain  on,  before  moving  off,
refer  to  the  information  on  the  warning
lamp concerned.

  Associated warnings
The  switching  on  of  certain  warning
lamps  may  be  accompanied  by  an
audible  signal  and  a  message  on  the
multifunction screen.

The warning lamps may come

on continuously (ﬁ xed) or

ﬂ ash.

Certain warning lamps may come on in
two different modes. Only by relating the
type of lighting to the operating status of
the vehicle can it be ascertained wheth-
er the situation is normal or whether a
fault has occurred.

Vehicle parameters

This  menu  allows  you  to  activate  or
deactivate  certain  driving  and  comfort
equipment (according to country):
   -

wiper linked with reverse gear (refer
to the "Visibility" section),

selective unlocking (refer to the "Ac-
cess" section),

guide-me-home and welcome light-
ing (refer to the "Visibility" section),

interior mood lighting (refer to the
"Visibility" section),

daytime running lamps (refer to the
"Visibility" section),

directional headlamps (refer to the
"Visibility" section),

automatic or manual parking brake
(refer to the "Driving" section).

  Choice of units
This  menu  allows  you  to  select  the
units:  temperature  (°Celsius  or  °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).

  Choice of language
This  menu  allows  you  to  select  the
display  language:  Deutsch,  English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .

  The  main  menu  and  its asso-
ciated  functions  can  only  be
accessed when stationary, via
buttons  1  to  4 .

Main menu
 Press button 1 for access to the

main menu and select one of the
following functions:

   -   "Vehicle parameters",
  -   "Choice of language",
  -   "Choice of units".

 Press button 2 or 3 to move in the

screen.

 Press button 1

again to conﬁ rm the

selection.

* According to country.

Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

  Associated warnings
The  switching  on  of  certain  warning
lamps  may  be  accompanied  by  an
audible  signal  and  a  message  on  the
multifunction screen.

The warning lamps may come

on continuously (ﬁ xed) or

ﬂ ash.

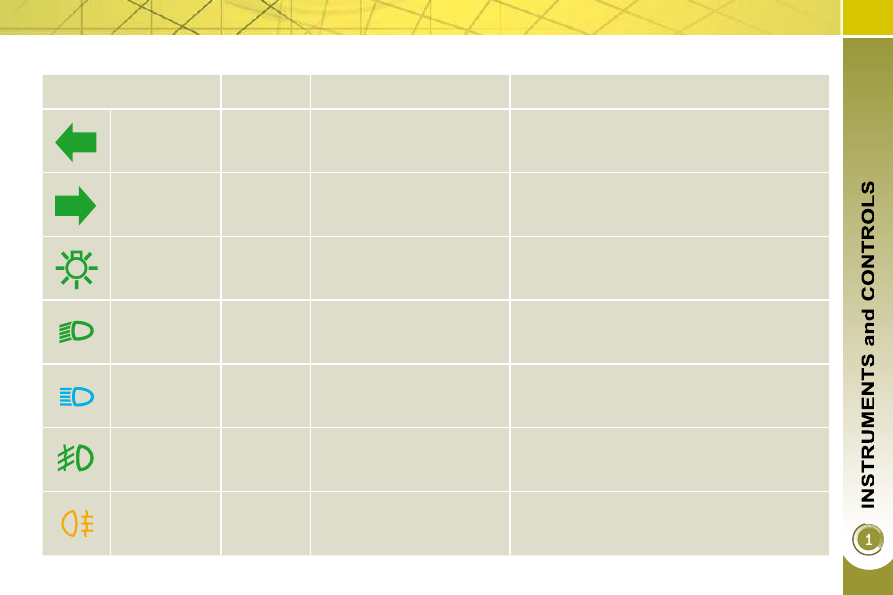

Operation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has come into operation.

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction
indicato r

ﬂ ashing

with buzzer.

The lighting stalk is pushed
down.

Right-hand

direction
indicator

ﬂ ashing

with buzzer.

The lighting stalk is pushed
up.

Sidelamps

ﬁ xed.

The lighting stalk is in the
"Sidelamps" position.

Dipped beam

headlamps

ﬁ xed.

The lighting stalk is in the
"Dipped beam headlamps"
position.

Main beam

headlamps

ﬁ xed.

The lighting stalk is pulled
towards you.

Pull the stalk to return to dipped beam
headlamps.

Front

foglamps

ﬁ xed.

The front foglamps are
switched on.

Turn the ring on the stalk rearwards twice to
switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are
switched on.

Turn the ring on the stalk rearwards to switch off
the rear foglamps.

Warning lamp

is on

Cause

Action/Observations

Diesel engine

pre-heating

ﬁ xed.

The ignition switch is at the
2nd position (ignition on).

Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.

Electric

parking brake

ﬁ xed.

The electric parking brake is
applied.

Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For further information about the electric parking
brake, refer to the "Driving" section.

Deactivation

of the

automatic

functions of

the electric

parking brake

ﬁ xed.

The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty.

Activate the function (according to country) via

the vehicle conﬁ guration menu or contact a

PEUGEOT dealer.

Foot on the

brake pedal

ﬁ xed.

The brake pedal must be
pressed.

Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position N ) or automatic gearbox
(lever in position P ).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

ﬂ ashing.

In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats.

Use the brake pedal and/or the electric parking
brake.

           Deactivation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

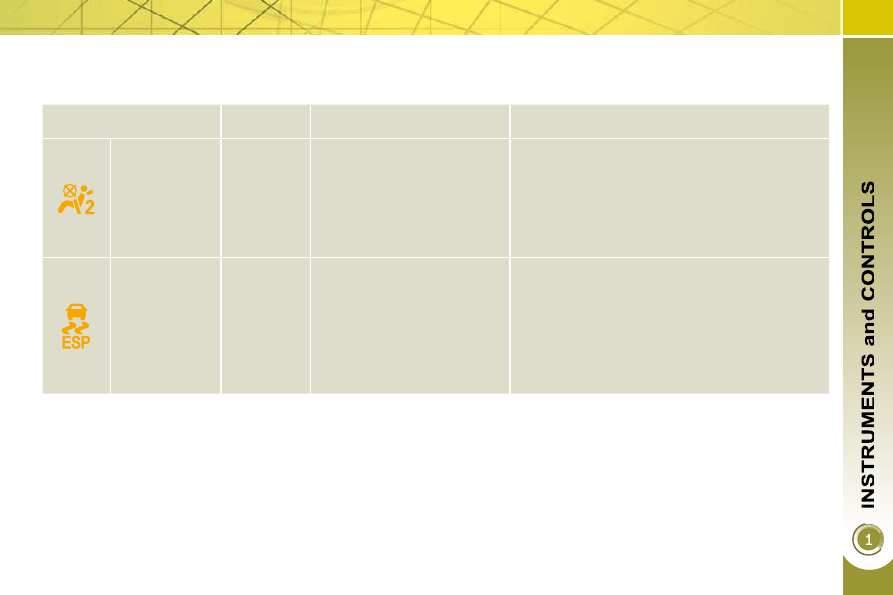

Passenger's

airbag system

ﬁ xed.

The control, located in the
glove box, is set to the OFF
position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat.

Set the control to the ON position to activate the

passenger's front airbag. In this case, do not ﬁ t

a child seat in the rear-facing position.
The passenger's airbag system is put into
service automatically when the vehicle is started
( ON position).

ESP/ASR

ﬁ xed.

The button (located at the
bottom left of the dashboard)
or the Grip control dial is
operated. Its indicator lamp
comes on.
ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation.

Press the button to activate the ESP/ASR or
turn the Grip control dial to ESP. Its indicator
lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.

Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates
a fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated further by reading the associated message on
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed, alone or

associated with

another warning lamp,

accompanied by an

audible signal and a

message on the screen.

Illumination of this warning
lamp is associated with a
serious braking system,
power steering, engine
lubrication or cooling system
fault or a punctured tyre.

Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and call a
PEUGEOT dealer.

Service

temporarily.

A minor fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message
shown in the screen, such as, for example:
-

the closing of the doors, boot or bonnet,

the engine oil level,

the screenwash level,

the remote control battery,

the tyre pressures,

saturation of the particle emission

ﬁ lter (Diesel).

For any other faults, contact a
PEUGEOT dealer.

ﬁ xed.

A major fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the
message shown on the screen and
contact a PEUGEOT dealer.

(PEF:

particle

emissions

ﬁ lter, Diesel)

ﬁ xed, associated

temporarily with a

message on the risk of

blockage of the PEF.

This indicates the start of sat-
uration of the particle emis-

sions ﬁ lter.

As soon as trafﬁ c conditions allow,

regenerate the ﬁ lter by driving at a

speed of at least 35 mph (60 km/h) until
the service warning lamp goes off.

ﬁ xed.

This indicates the low level in
the Diesel additive reservoir.

Have the level topped up by a PEUGEOT
dealer as soon as possible.

Warning lamp

is on

Cause

Action/Observations

Electric
parking

brake

ﬂ ashing.

The application or release
of the electric parking brake
was interrupted.

You must stop as soon as it is safe to do so.
Park on level ground, switch off the
ignition and contact a PEUGEOT dealer

or a qualiﬁ ed workshop.

Electric
parking

brake fault

ﬁ xed.

The electric parking brake
has a fault.

Automatic application/release is no
longer possible.
Contact a PEUGEOT dealer or a

qualiﬁ ed workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.

Braking

ﬁ xed.

The braking system

ﬂ uid level has dropped

signiﬁ cantly.

Stop as soon as it is safe to do so. Top up

with brake ﬂ uid recommended by PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer.

ﬁ xed, associated with

the electric parking

brake fault warning
lamp, if the parking

brake is released.

The braking system has a
fault.

Stop as soon as it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.

ﬁ xed, associated with

the ABS warning lamp.

The electronic brake force distribution
(EBFD) system has a fault.

Stop as soon as it is safe to do so. Have
it checked by a PEUGEOT dealer.

Anti-lock

Braking

System

(ABS)

ﬁ xed.

The anti-lock braking system
has a fault.

The vehicle retains conventional
braking.
Drive carefully at reduced speed and
contact a PEUGEOT dealer without
delay.

Warning lamp

is on

Cause

Action/Observations

Engine

autodiagnosis

system

ﬁ xed.

The emission control system
has a fault.

This lamp should switch off when the

engine is started.
If it does not switch off, contact a PEUGEOT

dealer urgently.

ﬂ ashing.

The engine management
system has a fault.

Risk of destruction of the catalytic convertor.
Have it checked by a PEUGEOT dealer.

Low fuel

level

ﬁ xed with the needle

in the red zone.

When it ﬁ rst comes on there

remains approximately
6 litres of fuel in the tank.
At this point, you begin to
use the fuel reserve.

Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a

sufﬁ cient addition of fuel is made.
Fuel tank capacity: approximately 60 litres .
Never continue to drive until you run out
of fuel, as this could damage the emission
control and injection systems.

Maximum

coolant

temperature

ﬁ xed with the needle

in the red zone.

The temperature of the
cooling system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer.

Engine oil

pressure

ﬁ xed.

There is a fault with the
engine lubrication system.

Stop as soon it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.

Dynamic

stability

control

(ESP/ASR)

ﬂ ashing.

The ESP/ASR regulation is
active.

The system optimises traction and
improves the directional stability of
the vehicle.

ﬁ xed.

Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty.

Have it checked by a PEUGEOT dealer.

Warning lamp

is on

Cause

Action/Observations

Battery

charge

ﬁ xed.

The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...).

The warning lamp should go off when
the engine is started.
If it does not switch off, contact a
PEUGEOT dealer.

Door(s)

open

ﬁ xed if the speed is

below 6 mph (10 km/h).

A door, the boot, the lower
tailgate or the bonnet (with
alarm only) is still open.

Close the door or boot.

ﬁ xed and accompanied

by an audible signal if

the speed is above

6 mph (10 km/h).

Seat belt not

fastened/

unfastened

ﬁ xed then ﬂ ashing

accompanied by an

increasing audible

signal.

The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.

Pull the strap then insert the tongue in
the buckle.

Airbags

temporarily.

This lamp comes on for a
few seconds when you turn
on the ignition, then switches
off.

This lamp should switch off when the
engine is started.
If it does not switch off, contact a
PEUGEOT dealer.

ﬁ xed.

One of the airbag or seat belt
pretensioner systems has a
fault.

Have it checked by a PEUGEOT dealer.

Water in

Diesel

ﬁ xed.

The diesel ﬁ lter contains

water.

Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer without
delay.

Coolant temperature indicator

With the engine running, when the
needle is:
-

in zone A , the temperature is correct,

in  zone   B ,  the  temperature  is  too
high;  the  max  temperature  warning
lamp  1  and the central  STOP  warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen.

After driving for a few minutes, the tem-
perature  and  pressure  in  the  cooling
system increase.
To top up the level:
      wait for the engine to cool,
     unscrew  the  cap  by  two  turns  to

allow the pressure to drop,

 when the pressure has dropped,

remove the cap,

 top up the level to the "MAX" mark.

You must stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.

Warning lamp

is on

Cause

Action/Observations

Directional

headlamps

ﬂ ashing.

The directional headlamps
system is faulty.

Have it checked by a PEUGEOT dealer.

Under-

inﬂ ated tyre

ﬁ xed.

The pressure in one or more
wheels is too low.

Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.

Peugeot 3008 Dag (2010.5). Instruction - part 2
