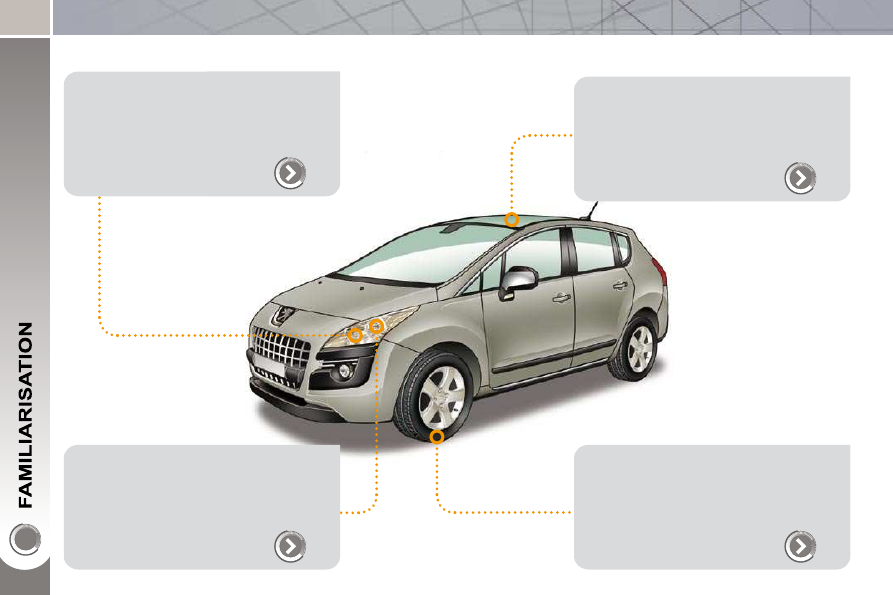

EXTERIOR

Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your ap-
proach to the vehicle easier when the
light is poor.

Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.

103

  Grip control
This  special  traction  control  system  im-
proves  the  traction  of  2  wheel  drive  ve-
hicles in snow, mud and sand.

123

EXTERIOR

Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and an integral sealant
cartridge, for the temporary repair of a
tyre.

166

  Lower tailgate
This  lower  tailgate  permits  remarkable
accessibility  and  makes  the  loading  of
bulky objects easier.

Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.

156

When using an automatic car wash:
-

unscrew the aerial,

fold back the mirrors.

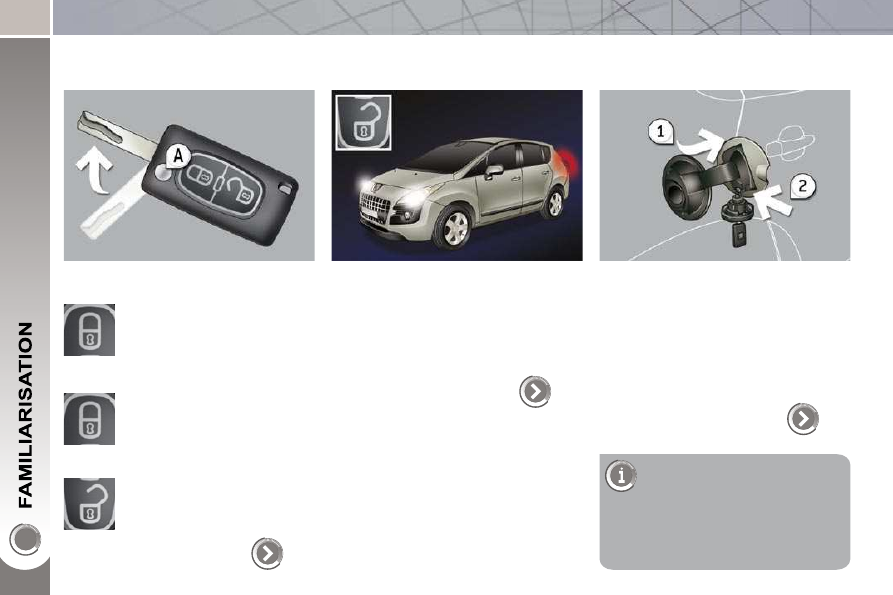

OPENING

Remote control key

A. Unfolding/Folding the key.

Normal locking
(press once; ﬁ xed lighting of

the direction indicators).

Deadlocking the vehicle
(press twice in succession;

ﬁ xed lighting of the direction

indicators).

Complete or selective unlock-
ing of the vehicle
(rapid ﬂ ashing of the direction

indicators).

When  the  light  is  poor,  detected  by
a  sensor,  the  remote  switching  on  of
the  dipped  headlamps  and  sidelamps
makes  your  approach  to  the  vehicle
easier.
This  function  can  be  programmed  via

the conﬁ guration menu.

Fuel tank

Opening the fuel ﬁ ller ﬂ ap.

Opening and hooking the fuel ﬁ ller

cap.

The type of fuel to be used is indicated

on the inner face of the fuel ﬁ ller ﬂ ap.
Capacity of the tank: approximately
60 litres.

Welcome lighting

On Diesel vehicles, the fuel

ﬁ ller neck incorporates a mis-

fuel prevention device which

prevents ﬁ lling with petrol.

This equipment will become avail-
able during the year.

OPENING

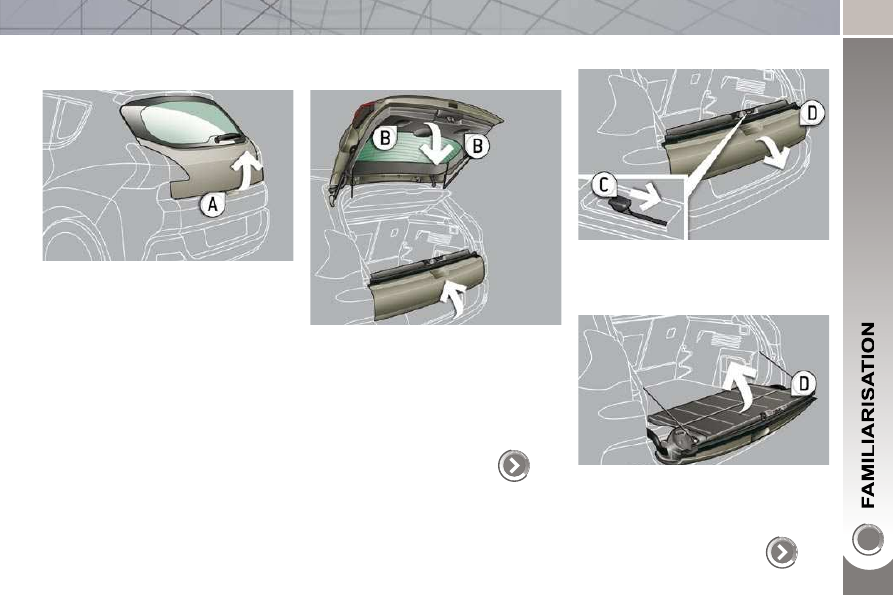

Boot

Opening
 After unlocking the vehicle using the

remote control or the key, press the
handle A and lift the tailgate.

Closing
 After closing the lower tailgate, pull

the handle B downwards to guide
the tailgate.

Lower tailgate

Opening
 Push the handle C to the right and

tilt the tailgate D .

Closing
 Raise the tailgate D , push it fully to

close it, check that it is locked cor-
rectly.

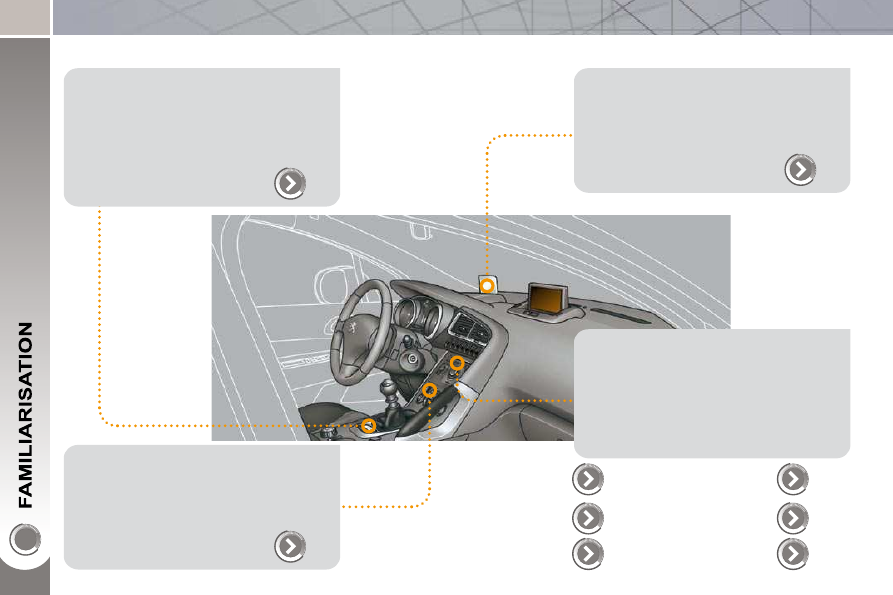

INTERIOR

  Electric parking brake
This  combines  the  functions  of   auto-
matic  application   on  switching  off  the
engine and  automatic release  on accel-
eration.
Manual application/release is possible.

132

Audio and communication systems
These systems beneﬁ t from the latest

technology:  MP3  compatible  Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth,  Peugeot  Connect  Navigation
or Peugeot Connect Media with 16/9 re-
tractable colour screen, JBL audio system,
auxiliary sockets.

209

Head-up display
This system projects certain information

into the ﬁ eld of vision of the driver: speed,

cruise control/speed limiter and Distance
alert.

140

  Dual-zone digital air conditioning
This  systems  allows  different  levels  of
comfort to be set for the driver and front
passenger.  It  then  controls  these  level
automatically  according  to  the  ambient
conditions.

Peugeot Connect
Navigation

253

285

Peugeot Connect
Sound

Peugeot Connect
Media

Peugeot Connect
USB

232,
292

Bluetooth

237,
273,
295

205

PEUGEOT
Assistance

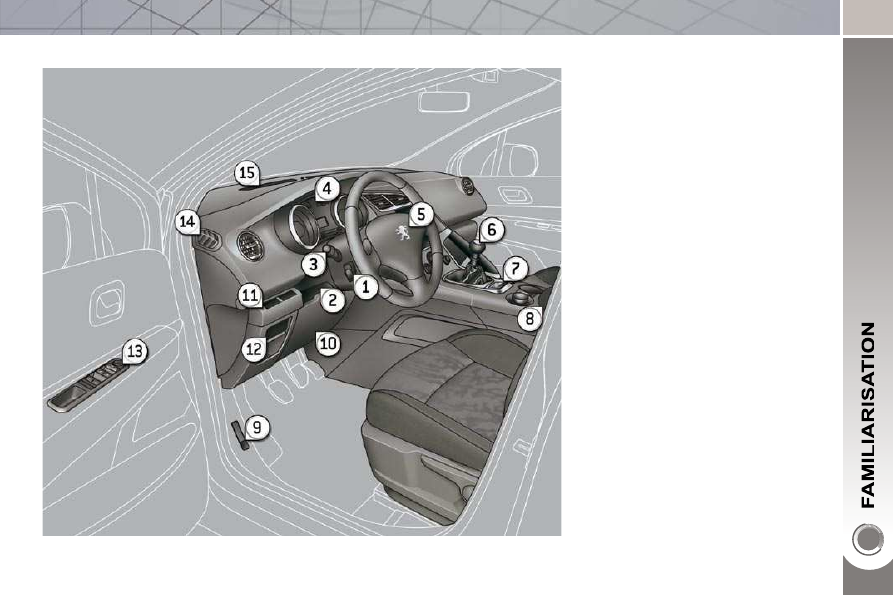

INSTRUMENTS AND CONTROLS

1. Cruise control/speed limiter

switches.

2. Steering wheel adjustment control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

5. Driver's airbag.

Horn.

6. Gear lever.

7. Electric parking brake.

8. Front armrest - Peugeot Connect

USB and/or auxiliary socket.

9. Bonnet release.

10. Driver's storage compartment

(Handbook).

11. Alarm button.

Parking sensors button.

Dynamic stability control button
(ESP/ASR).

12. Manual headlamp adjustment.

Instrument panel navigator
associated with the Peugeot
Connect Media.

13. Door mirror controls.

Electric window controls.

Child lock.

14. Front side window demisting vent.

15. Windscreen demisting vent.

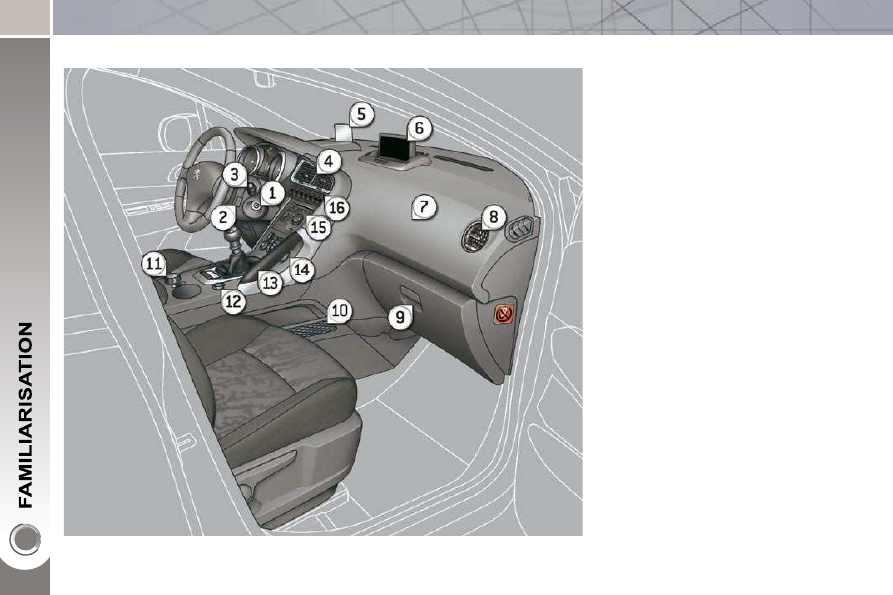

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.

2. Audio and telematics system

steering mounted control.

3. Wipers/screenwash/trip computer

control stalk.

4. Central adjustable air vents.

5. Head-up display.

6. Multifunction screen.

7. Passenger's airbag.

8. Side adjustable air vent.

9. Glove box - Audio/video sockets -

Passenger's airbag deactivation.

10. Storage compartment with net.

11. Grip control switch.

12. 12 V accessory socket.
13. Grab handle.

14. Heating/air conditioning controls.

15. Audio and telematics system.

16. Buttons:

- head-up display,

- hazard warning lamps,

- Distance alert,

- central locking.

SITTING COMFORTABLY

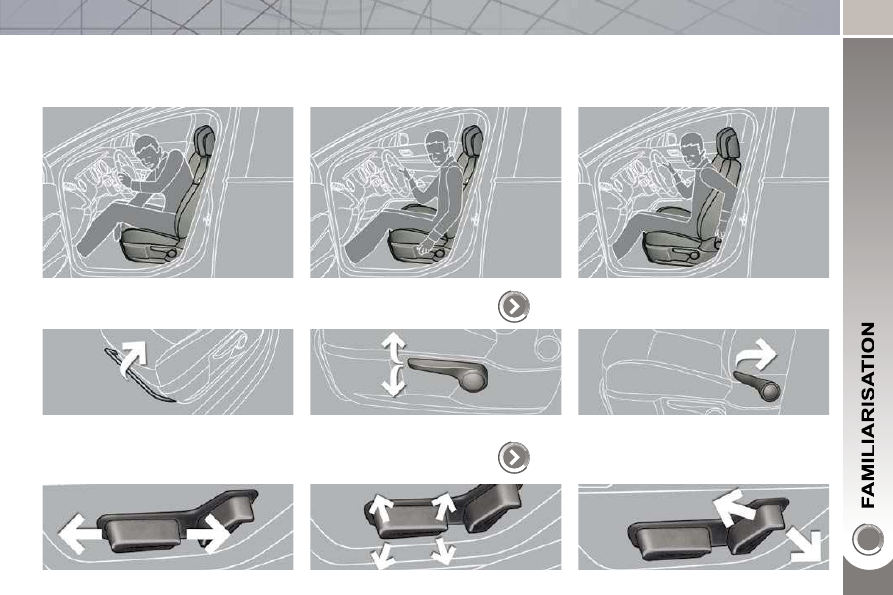

Driver's seat

Forwards-backwards

Height

Manual adjustment

Electric adjustment

Seat back angle

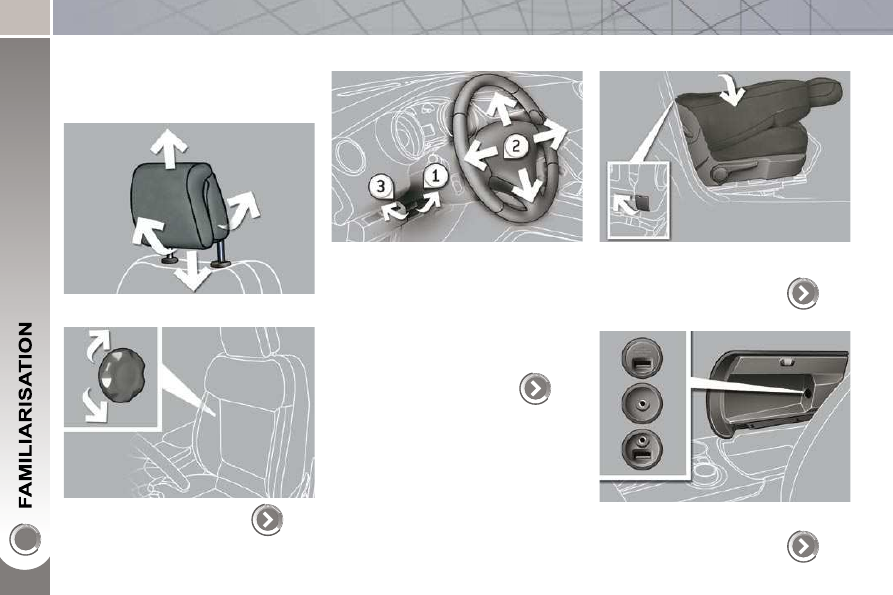

SITTING COMFORTABLY

Front seats

Head restraint height and angle

Lumbar

Steering wheel adjustment

   1.   Unlock the control.
  2.   Adjust for height and reach.
  3.   Lock the control.

As a safety precaution, these opera-
tions must only be carried out when sta-
tionary.

Table position (front passenger seat)

To place objects on the table or to make
the loading of long objects in the vehicle
easier.

Front armrest

This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.

SITTING COMFORTABLY

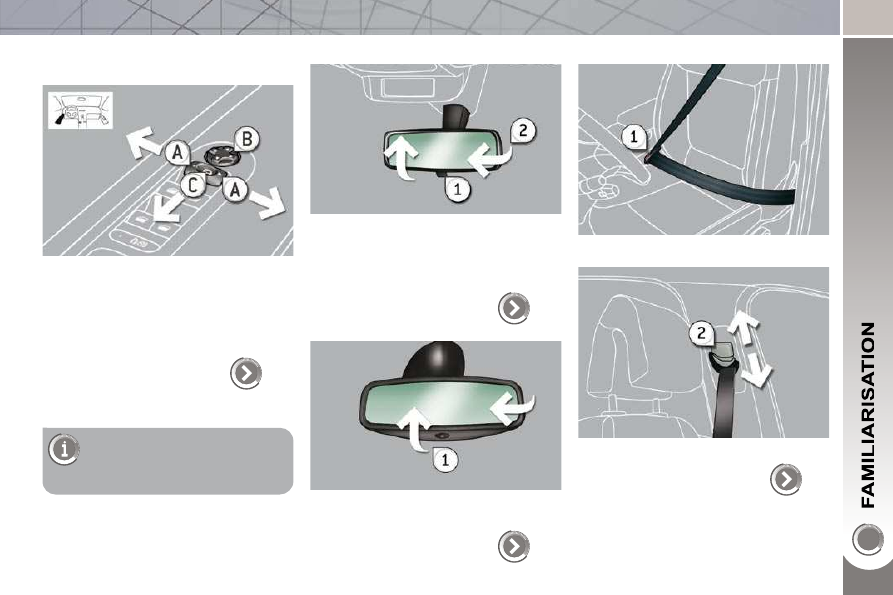

Door mirrors

Adjustment

A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the

mirror in the four directions.

Rear view mirror

Manual model

1. Selection of the "day" position of the

mirror.

2. Adjustment of the mirror.

Automatic day/night model
1. Adjustment of the mirror.

Front seat belts

1. Fastening of the buckle.

125

2. Height adjustment.

Also...
C. Folding/

Unfolding.

SEEING CLEARLY

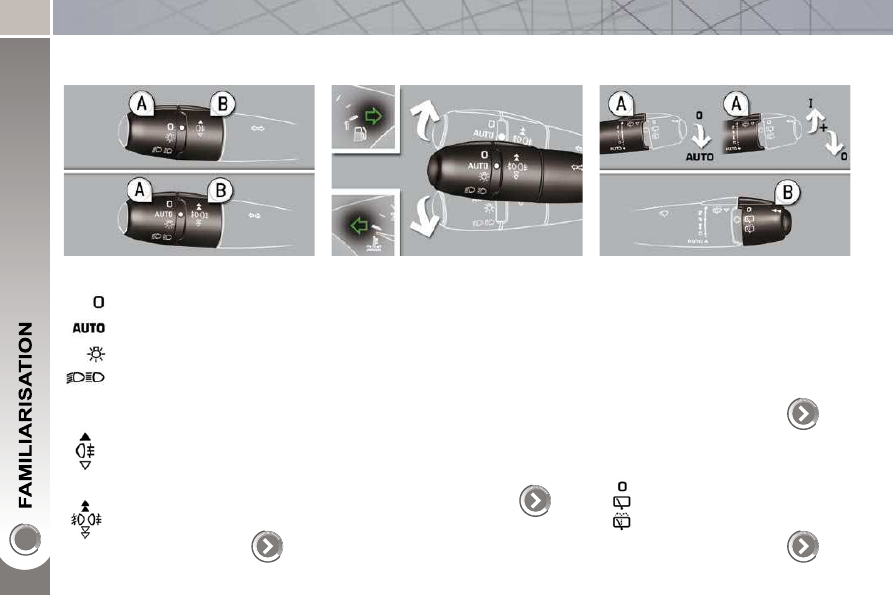

Lighting

Ring A

Lighting off.

Ring B

Sidelamps.

Dipped/main beam headlamps.

Rear foglamp.

Front and rear foglamps.

Automatic illumination of head-
lamps.

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the correspond-

ing direction indicators will ﬂ ash for as

long as the stalk remains in this posi-
tion.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators

will ﬂ ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.

119

Wipers

Stalk A: windscreen wipers

Switching on "AUTO"
 Press the stalk down and release it.

Switching off "AUTO"
 Push the stalk up and return it to

position "0" .

Ring B: rear wiper

Park.
Intermittent wipe.

Wash-wipe.

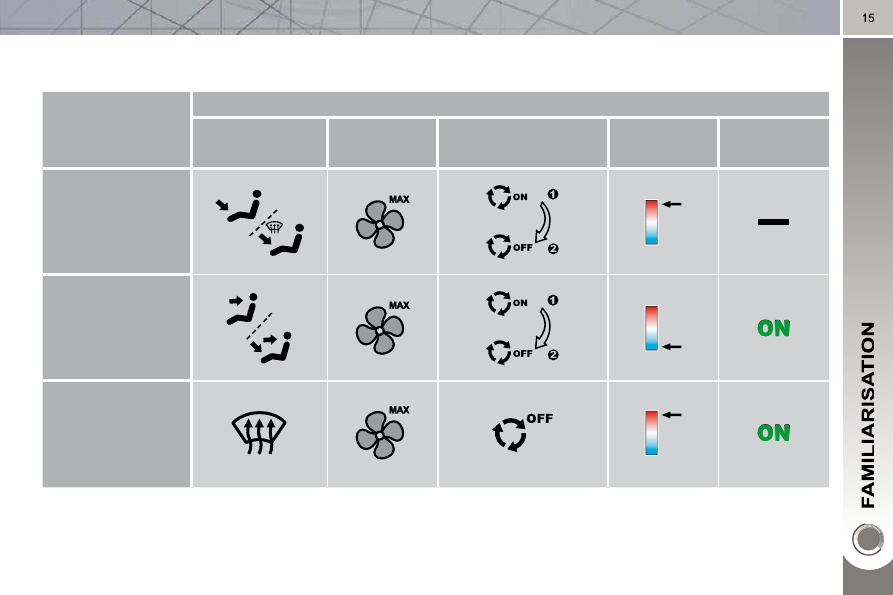

VENTILATION

Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

Recommended interior settings

I require...

Heating or Manual Air Conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Intake of outside air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

MONITORING

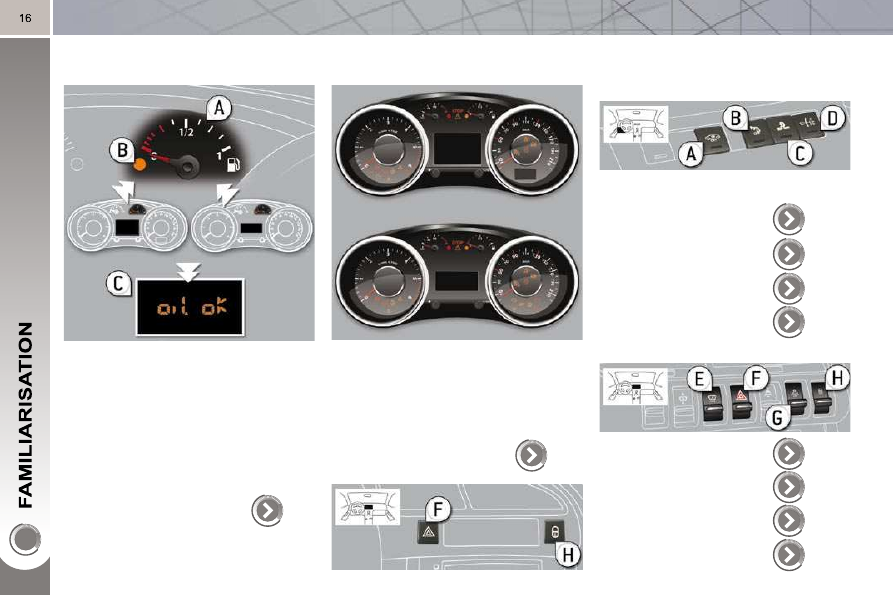

Instrument panel

A. With the ignition on, the needle

should indicate the level of fuel re-
maining.

B. With the engine running, its associ-

ated low level warning lamp should
go off.

C. With the ignition on, the oil level in-

dicator should display "OIL OK" for
a few seconds.

If the levels are not correct, top up the
levels which are low.

Warning lamps

1. With the ignition on, the orange and

red warning lamps come on.

2. With the engine running, these

warning lamps should go off.

If warning lamps remain on, refer to the
page concerned.

Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.

A. Interior volumetric pro-

tection alarm.

156

121

79, 118

140

119

142

B. Visual

and

audible

parking sensors.

C. ESP

OFF

(without

Grip control).

D. Child lock.

E. Head-up display.

F. Hazard warning lamps.

G. Distance alert.

H. Central locking.

Lower

Central

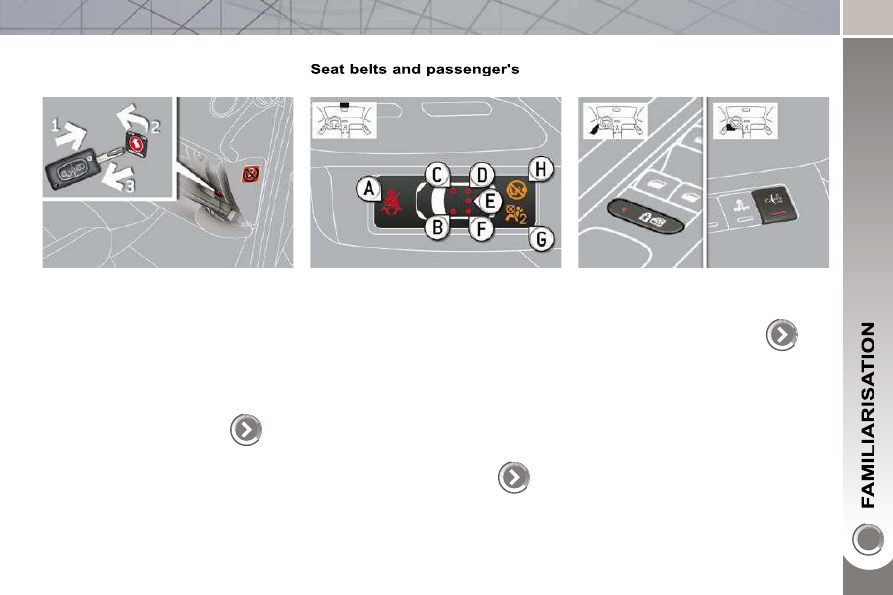

PASSENGER SAFETY

Passenger's front airbag

1. Insert the key.
2. Select the position:

"OFF" (deactivation), with "rear fac-
ing" child seat,

"ON" (activation), with front passen-
ger or "forwards facing" child seat.

3. Remove the key keeping the switch

in the new position.

129

front airbag

A. Front and/or rear seat belts not fas-

tened/unfastened warning lamp.

  B.   Front left seat belt warning lamp.
  C.   Front right seat belt warning lamp.
  D.   Rear right seat belt warning lamp.
  E.   Rear centre seat belt warning lamp.
  F.   Rear left seat belt warning lamp.
  G.   Passenger's  front  airbag  deactivated

warning lamp.

H. Passenger's front airbag activated

warning lamp.

126

Child lock
(locking of the rear doors)

Illumination of the indicator lamp indicates
the status of the corresponding function.

118

ARRANGE YOUR BOOT

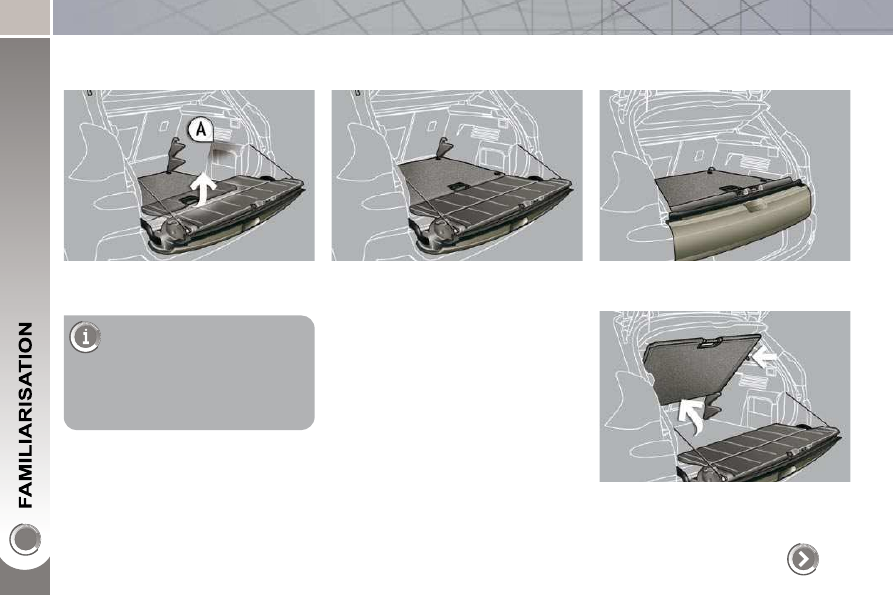

3 position adjustable boot

Low position (150 kg max).

108



To release the ﬂ oor, push

slightly

forwards

then

raise.

 Use the stops A , placed on each

side of the boot to change the

height of the ﬂ oor more easily.

Intermediate position (100 kg max).

High position (50 kg max) with the lower
tailgate closed to isolate the lower part
of the boot.

From the high position, place the ﬂ oor

in this position (at an angle), two stops
support it to allow access underneath it
or to the spare wheel.

ARRANGE YOUR BOOT

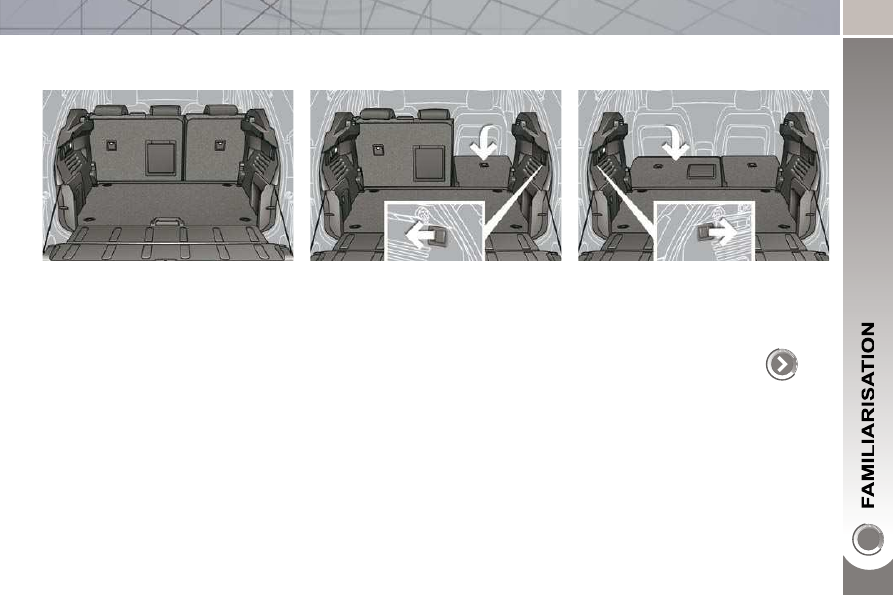

Rear seats



Place the adjustable ﬂ oor in the in-

termediate position .

 Check that nothing is preventing

the seat backs from folding (front

seats sufﬁ ciently advanced, head

restraints, seat belts, ...).

 Check also that no object on or un-

der the seat could hinder its move-
ment.

 Pull the control of the 1/3 section,

from the boot.

 Pull the control of the 2/3 section,

from the boot.

The seats are aligned with the adjust-

able ﬂ oor and the lower tailgate.
