Peugeot Connect USB

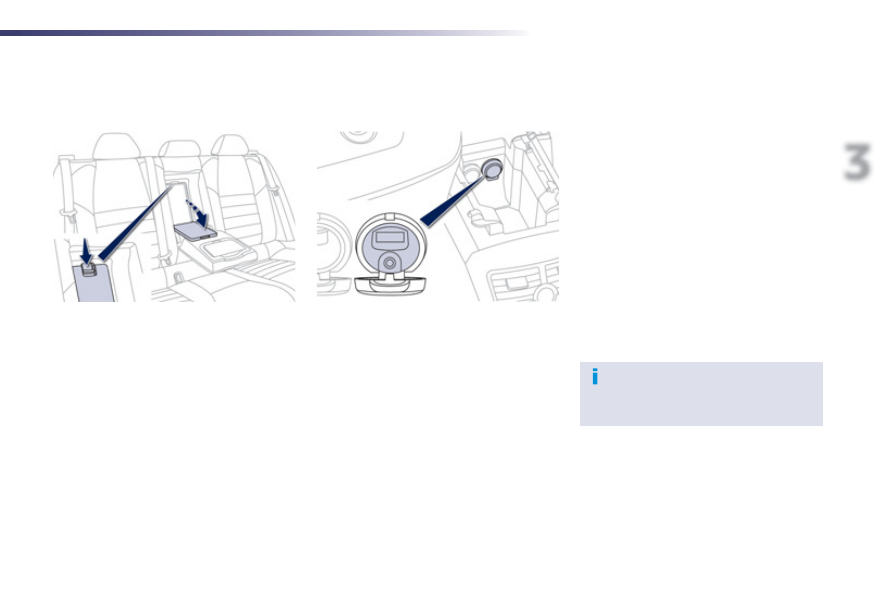

This connection box, consisting of a JACK
auxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of portable device,
such as a digital audio player of the iPod

type

or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA, WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.

When the USB port is used, the portable device
charges automatically.

For more information on the use of
this system, refer to the "Audio and
Telematics" section.

Ski fl ap

Facility for storing and transporting long
objects.

Opening

)

Lower the armrest.

)

Press the flap opening control.

)

Lower the flap.

)

Load the objects from inside the boot.

Comfort

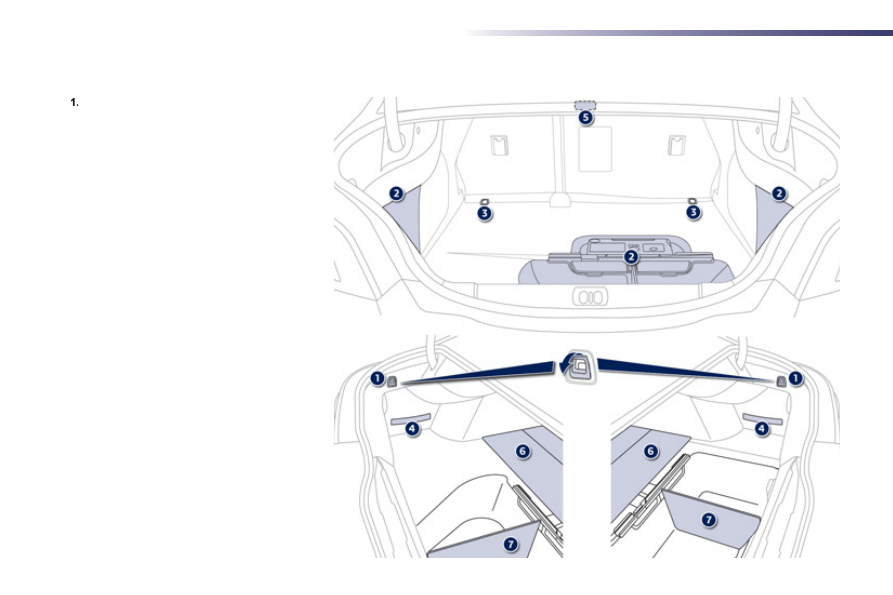

Boot fi ttings (Saloon)

Retractable hooks

2. Storage pockets

With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).

3. Stowing rings
4. Retaining straps
5. Boot lamp
6. Boot floor

For access to the storage compartments or
the spare wheel (according to destination
country), raise the floor

Adjustable divider

Comfort

Boot fi ttings (SW)

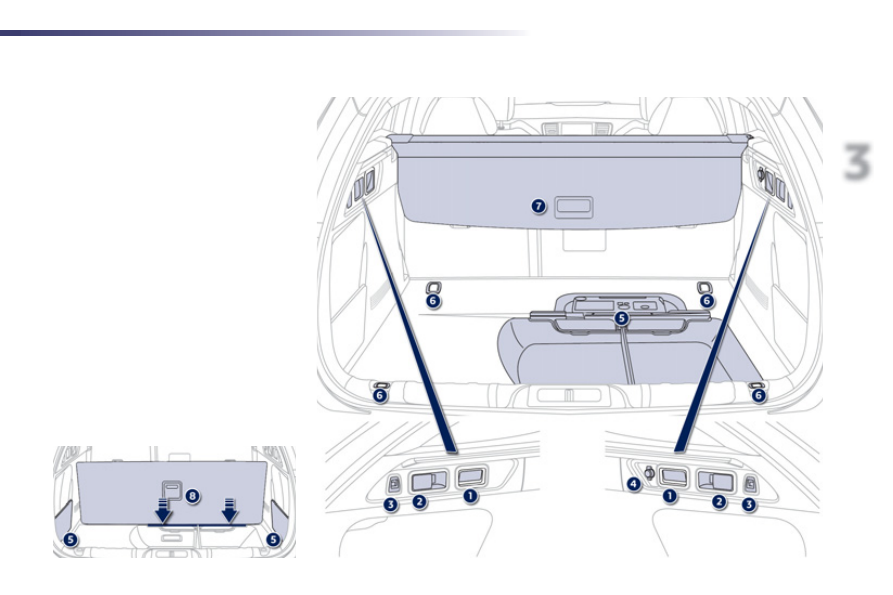

1. Boot lamps
2. Rear seats folding controls
3. Retractable hooks
4. 12 V accessory socket (120 W max)
5. Storage pockets

With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).

6. Stowing rings
7.

Load space cover

(see following page)

8. Boot floor

For access to the storage compartments or the
spare wheel (according to destination country),
position the floor vertically in its guide.

Comfort

Luggage cover

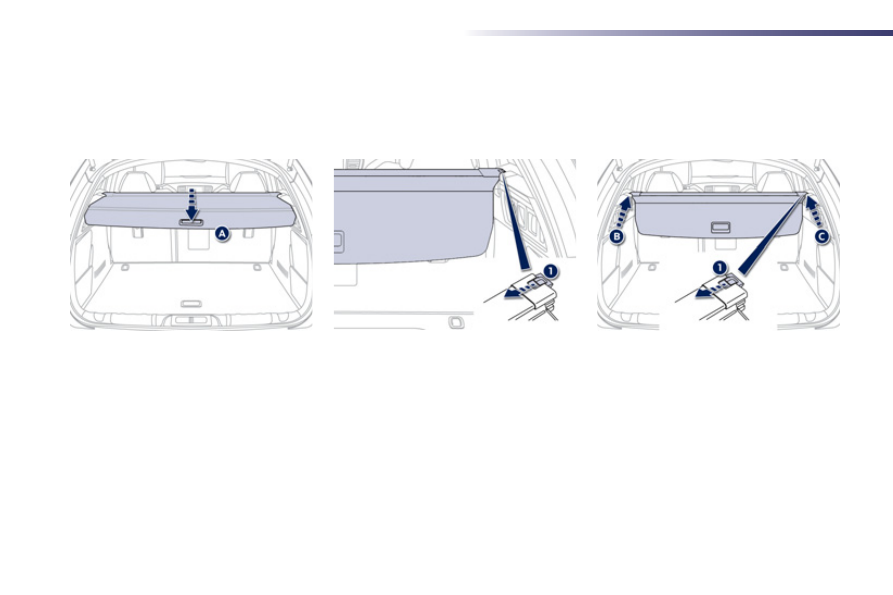

To reel in

To remove

To install

)

Gently push on the (PRESS) handle, the
luggage cover reels in automatically.

The moving part A can be folded against the
rear bench seat backrest.

)

Compress the control 1 and lift the

luggage cover on the right then on the left
to remove it.

)

Position the left-hand end of the luggage
cover roller in its location B behind the rear
bench seat.

)

Compress the roller control 1 and put the
roller in place in its location C on the right.

)

Release the control to secure the luggage
cover.

)

Unreel it to its fastening on the rear pillar.

(SW)

Comfort

Warning triangle (stowing)

Before leaving your vehicle to set up
and install the triangle, put on your high
visibility vest.

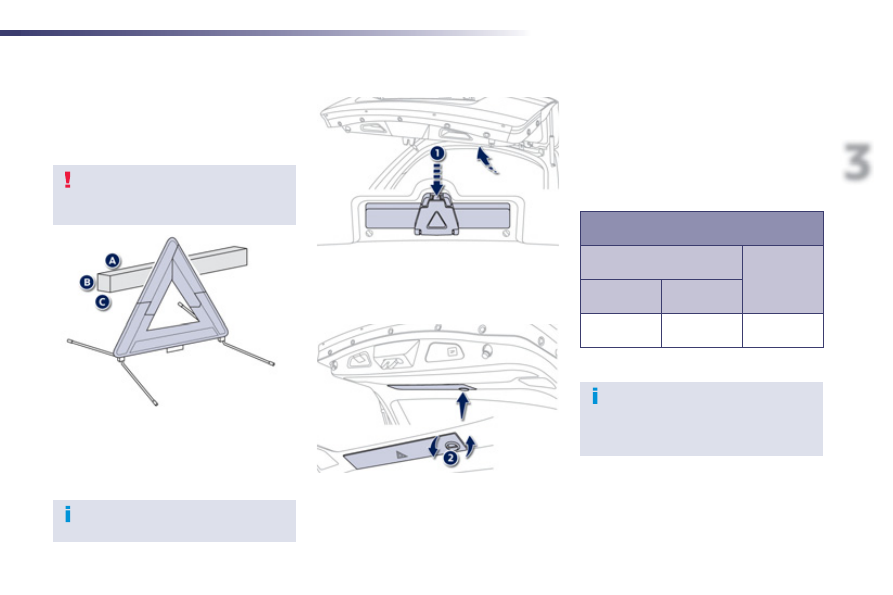

The dimensions of the triangle (once folded) or
its storage box must be:
-

A : length = 438 mm,

B: height = 56 mm,

C: width = 38 mm.

Saloon

)

Press the lug 1 and pull the assembly

towards you.

)

Turn the knob 2 to remove the cover.

)

Hold the cover and the triangle so that they

do not fall.

The location for a folded triangle is in the inner
trim panel of the boot lid.

Placing the triangle in the

road

Distance from your vehicle (in metres)

Road

Motorway

Day

Night

50 m

80 m

150 m

These are the internationally recognised
values.
Use the triangle in line with local driving
regulations.

The triangle is available as an accessory,
contact a PEUGEOT dealer or a qualified
workshop.

)

Place the triangle at a distance behind

the vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.

To use the triangle, refer to the
manufacturer's instructions.

Comfort

High load retaining net

Hooked onto the special upper and lower
fixings, this allows the use of the entire loading
volume up to the roof:
-

behind the front seats (row 1) when the rear
seats are folded.

behind the rear seats (row 2).

Never reposition the rear seats if the
net's roller is attached to the backs of
the folded seats.

)

position the net's roller above the two rails

(located on the back of the folded rear
seats),

)

the two grooves A must be placed above

the two rails B . Slide the two rails B in the
grooves A and push the roller (lengthwise)
from right to left to secure it,

)

check that the net is hooked and tightened

correctly,

)

fold the rear seats,

)

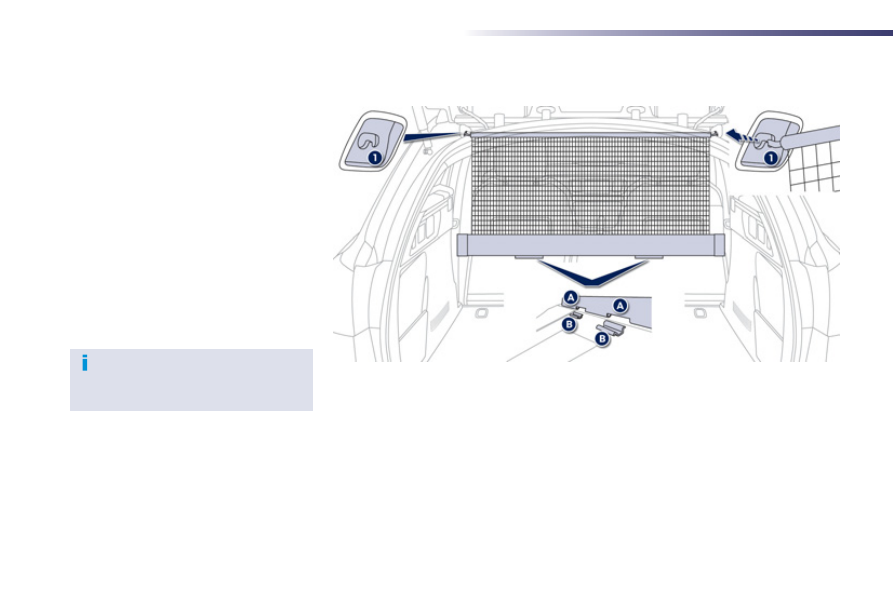

unroll the high load retaining net without
stretching it,

)

position one of the ends of the net's metal
bar in the corresponding upper fixing 1,

)

pull the net's metal bar to position the other
end in the other upper fixing 1 .

Row 1

(SW)

Comfort

)

reel in then remove the load space cover,

)

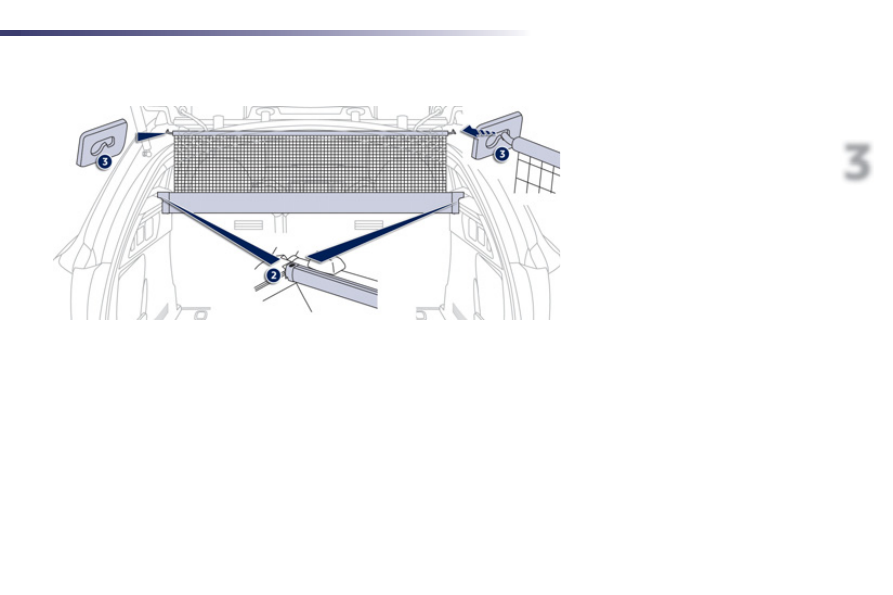

position the left hand end of roller 2 in the
load space cover support,

)

position the right hand end of roller 2 in the
load space cover support, then lock the
position (red indicator),

)

from the rear bench seat, unroll the high
load retaining net by pushing to disengage
the retaining hooks,

)

position one of the ends of the net's metal

bar in the corresponding upper fixing 3 ,

)

pull on the net's metal bar to position the

other end in the other upper fixing 3,

)

check that the net is hooked and tensioned

correctly.

Row 2

Comfort

Heating and Ventilation

The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.

Controls

The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
These controls are grouped together on control
panel A on the centre console.

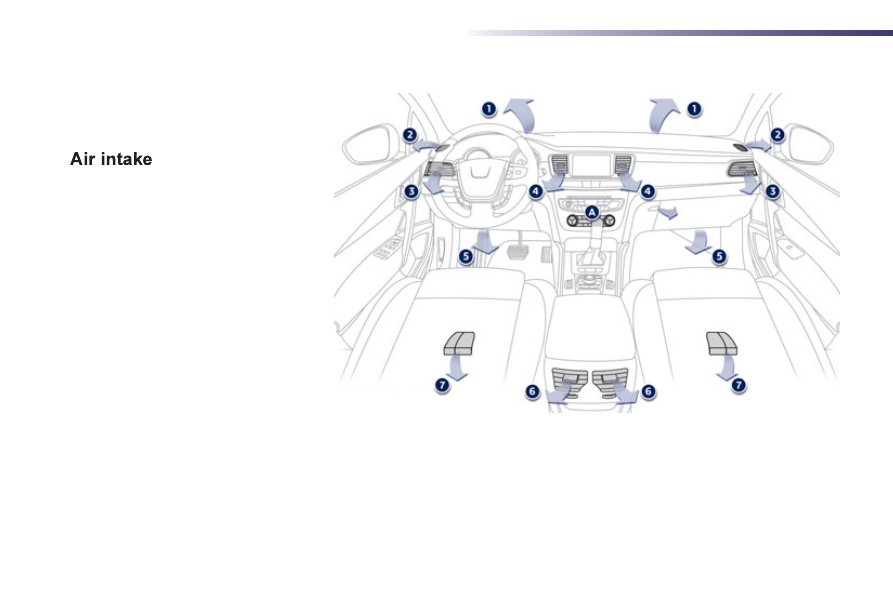

1. Windscreen demisting/defrosting vents.
2. Front side window demisting/defrosting

vents.

3. Side adjustable air vents.
4. Central adjustable air vents.

5. Air

outlets to the front footwells.

6. Adjustable air vents for the rear

passengers.

7. Air

outlets to the rear footwells.

Air distribution

System which creates and maintains good
conditions of comfort and visibility in the
vehicle's passenger compartment.

Comfort

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
)

If the interior temperature remains very high after the vehicle has been parked in the sun for a

considerable time, first ventilate the passenger compartment for a few minutes.

Place the air flow control at a sufficient level to provide an adequate renewal of air in the
passenger compartment.

)

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

)

Use in preference the intake of exterior air as prolonged use of the air recirculation may

cause misting of the windows and side windows.

)

Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the automatic air conditioning system.

)

Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it

in good working order.

)

Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compartment filter. Thanks to its
second special active filter, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

)

The air conditioning uses power from the engine while operating. This results in an

increase in the vehicle's fuel consumption.

When

towing at or near maximum capacity or on steep slopes in high ambient

temperatures, switching off the air conditioning saves engine power and so improves
towing capacity.

Condensation created by the air conditioning results in a discharge of water under the
vehicle when stationary, which is perfectly normal.

)

To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly.

)

If the system does not produce cold air, do not use it and contact a PEUGEOT dealer or

a qualified workshop.

Recommendations for ventilation and air conditioning

The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

Comfort

Manual air conditioning

The air conditioning can only operate with the engine running.

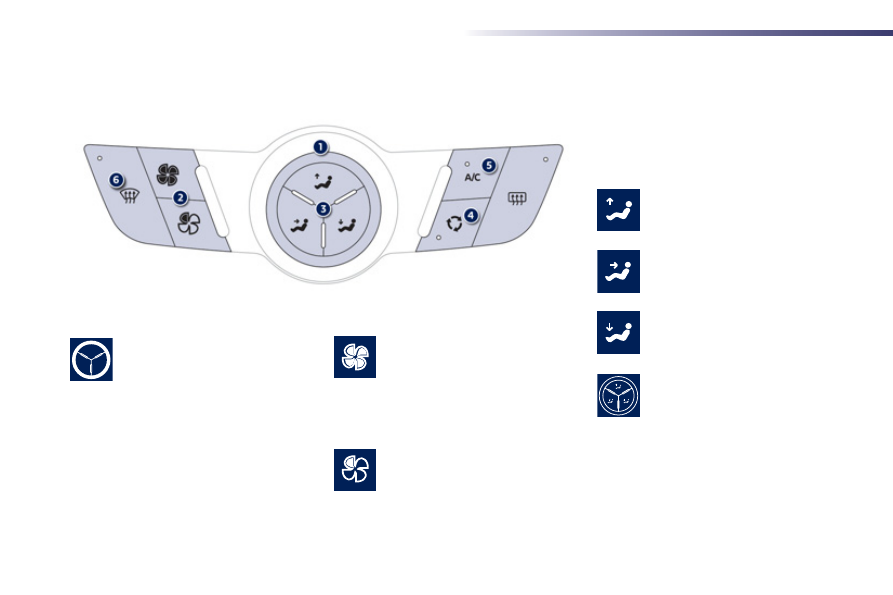

1. Temperature adjustment

)

Turn the dial from left

(cold) to right (hot) to adjust
the temperature to your
requirements.

2. Air fl ow adjustment

)

Press the "full fan" button to
increase the air flow.

According to the value selected,

the associated line of LEDs fills
progressively.

)

Press the "empty fan" button to

reduce the air flow.

3. Air distribution adjustment

)

press the corresponding button for:

Windscreen and side windows.

Central and side vents.

Footwells.

Depending on your requirements, you
can combine two distribution buttons
or select the three distribution modes
simultaneously.

Comfort

4. Air intake / Air recirculation

)

Press this button to recirculate

the interior air. The indicator
lamp comes on to confirm this.

)

Press the button again to

permit the intake of exterior air.
The indicator lamp goes off to
confirm this.

The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.

5. Air conditioning On / Off

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.

It enables you to:
-

lower the temperature, in summer,

increase the effectiveness of the demisting
in winter, above 3°C.

Switching on

)

Press the "A/C" button, the associated

green indicator lamp comes on.

The air conditioning does not operate when
the air flow adjustment is set to off.

Switching off

)

Press the "A/C" button again, the associated

green indicator lamp switches off.

Switching off may result in some discomfort
(humidity, misting).

6. Automatic visibility

programme

See "Front demisting - Defrosting".

Comfort

Dual-zone digital air conditioning

Automatic operation

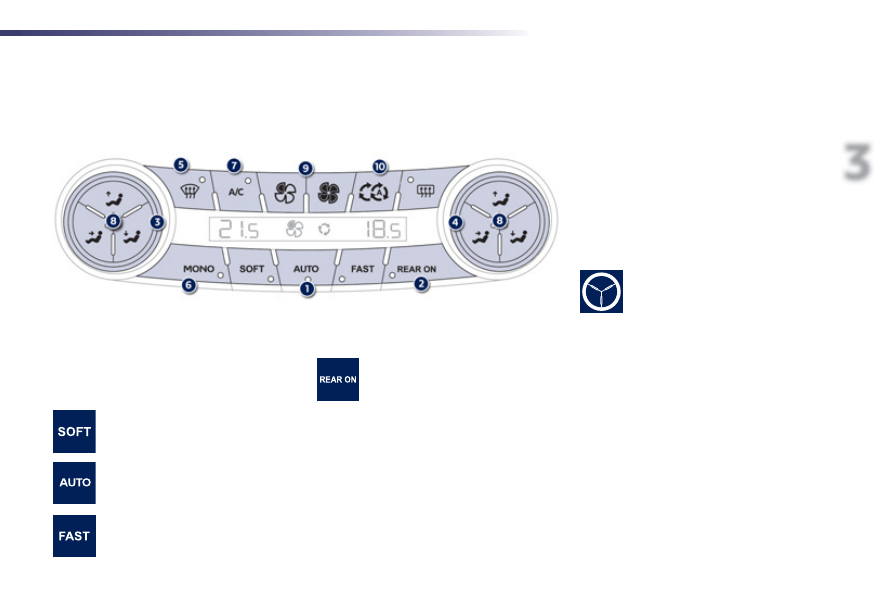

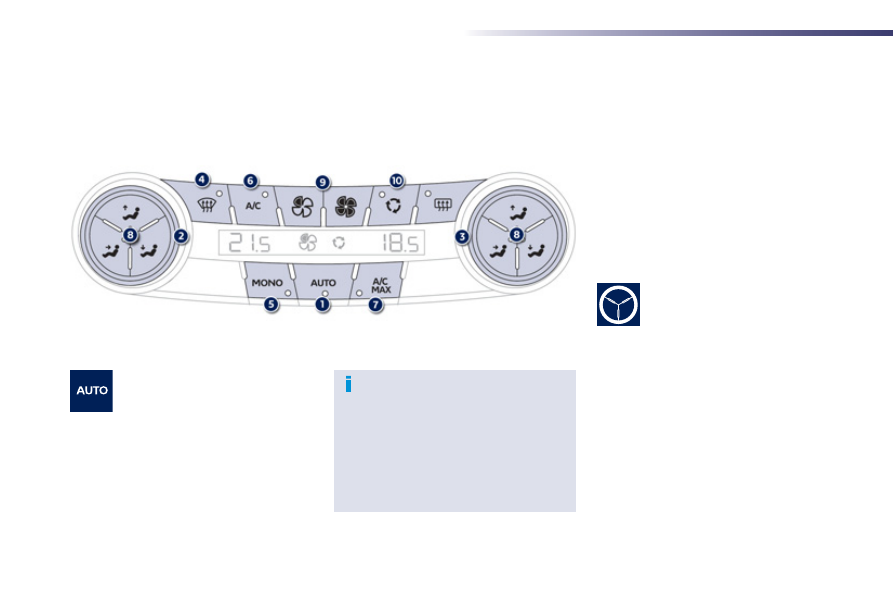

1. Automatic comfort programme

)

Press this "AUTO" button. The

indicator lamp comes on.

We recommend that you use this mode. It
automatically adjusts all settings to provide
optimum operation for the comfort level chosen:
passenger compartment temperature, air flow,
air distribution and air recirculation.
This system is designed to operate effectively
in all seasons, with the windows closed.

When the engine is cold, to prevent
too great a distribution of cold air, the
air flow will reach its optimum level
gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, side windows and footwells
only.

2 - 3. Driver-passenger side

adjustment

The driver and front passenger can each adjust
the temperature to their requirements.
The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.

)

Turn control 2 or 3 to the left

(blue) or to the right (red)
respectively to decrease or
increase this value.

A setting around the value 21 provides optimum
comfort. However, depending on your requirements,
a setting between 18 and 24 is normal.
It is recommended that the difference between
left and right should not be greater 3.

The air conditioning can only operate with the engine running.

Comfort

On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required.
The system corrects the difference
in temperature automatically and as
quickly as possible.

4. Automatic visibility

programme

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
)

Turn control 2 or 3 to the left until

"LO" is displayed or to the right
until "HI" is displayed.

See "Front demisting-defrosting".

)

Press this button to equalise the

comfort value on the passenger's
side with that on the driver's side
(mono-zone). The indicator lamp
in the button comes on.

If you wish, you can change one of settings
provided by the system. The other functions will
still be controlled automatically.
)

Pressing the "AUTO" button returns the

system to completely automatic operation.

Manual operation

5. Mono-zone / Dual-zone

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.

6. Air conditioning On / Off

It allows you:
-

in summer, to lower the temperature,

in winter, above 3°C, to improve demisting
performance.

7. Maximum air conditioning

If you want to temporarily refresh the
air in the passenger compartment,
press this button and "LO" is
displayed.

To return to the previous settings, press the
button again.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Switching on
)

Press the "A/C" button, the associated

green indicator lamp comes on.

The air conditioning does not operate when
the air flow control is set to off.

Switching off
)

Press the "A/C" button again, the

associated green indicator lamp goes off.

Switching off the air conditioning may result in
some discomfort (humidity, misting).

Comfort

8. Air distribution adjustment

)

Press the corresponding button for:

Windscreen and side windows.

Centre and side vents.

Footwells.

To suit your requirements, you can
combine two distribution buttons or
select the three distribution modes
simultaneously.

9. Air fl ow adjustment

)

Press this "full fan" button to
increase the air flow.

)

Press "empty fan" button to
reduce the air flow.

10. Air intake / Air recirculation

)

Press this "empty fan" air
flow button until the fan symbol
disappears and "--" appears.

Switching the system off

)

Press this button for recirculation

of the interior air. The indicator
lamp on the button comes on.

Air recirculation enables the passenger
compartment to be isolated from exterior
odours and smoke. It is activated automatically
when operating the screenwash.

Avoid driving for long periods with the
system off (risk of condensation and
deterioration of the air quality).
Pressing the "full fan" button
reactivates the system with the values
in use at the time it was switched off.

The air flow symbol, the fan, fills progressively
according to the value requested.

This action switches off all of the functions of
the air conditioning system.
Temperature related comfort is no longer
guaranteed but a slight flow of air, due to the
forward movement of the vehicle, can still be felt.

)

As soon as possible, press this button
again to permit the intake of outside air and
prevent the formation of condensation. The
indicator lamp in the button goes off.

Comfort

Quad-zone digital air conditioning

Automatic operation

1. Automatic comfort programme

The Soft/Auto/Fast modes allow the driver
and front seat passenger to select their
desired comfort settings for the passenger
compartment:

2. Activating/deactivating the

rear air conditioning

3 - 4. Driver-passenger side

adjustment

Favours optimum gentle and silent
operation by limiting the air flow.

Offers the best compromise between
thermal comfort and silence of
operation.

Favours dynamic and effective air
flow.

Press this button to deactivate the
rear air conditioning and lock the
system. A padlock appears in the
LCD screen. When the rear system

is reactivated, automatic mode is selected with
the last temperature settings used.

)

Turn control 3 or 4 to the left

(blue) or to the right (red)
respectively to decrease or
increase this value.

A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.

The air conditioning can only operate with the engine running.

Comfort

5. Automatic visibility

programme

6. Mono-zone / Quad-zone

7. Air conditioning On / Off

Manual operation

If you wish, you can change one of settings
provided by the system. The other functions will
still be controlled automatically.
Press one of the Soft/Auto/Fast buttons to
return to fully automatic operation.

See "Front demisting-defrosting".

Press this button to apply the driver's
comfort setting value to the front and
rear passengers (mono-zone). The
indicator lamp on the button comes on.

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It allows you:

in summer, to lower the temperature,

in winter, above 3°C, to improve demisting
performance.

Switching on
)

Press the "A/C" button, the associated

green indicator lamp comes on.

The air conditioning does not operate when
the air flow control is set to off.

Switching off
)

Press the "A/C" button again, the

associated green indicator lamp goes off.

Switching off the air conditioning may result in
some discomfort (humidity, misting).

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
)

Turn the dial 3 or 4 to the left until

"LO" is displayed or to the right
until "HI" is displayed.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

Content .. 4 5 6 7 ..
